| Product Type | Wireless In-Ear Headphones |
| Brand | Monster |
| Model | iSport Wireless Slim |
| Connectivity | Bluetooth |
| Multipoint Technology | Yes (up to two phones) |
| Supported Bluetooth Profiles | HFP, HSP, A2DP, AVRCP |
| Bluetooth Range | 10 meters (typical) |
| Battery | Built-in Rechargeable Lithium-ion |
| Charging Time | Approximately 1.5 hours |
| Talk Time | Up to 8 hours (estimated) |
| Standby Time | Up to 240 hours (estimated) |
| Microphone | Built-in |
| Call Control | Multifunction button (answer, reject, end) |
| Music Control | Play/pause, next/previous track |
| Voice Assistant | Yes (double press on MFB) |
| LED Indicator | Red (charging) / Blue (standby) / Red and blue (pairing) |
| Weight | Approximately 20 g |
| Approximate Dimensions | 45 x 20 x 15 mm |
| Operating Temperature | 0 °C to 45 °C |
| Certifications | FCC, IC, CE |
| Warranty | 1 year (North America) / 2 years (Europe) |
Frequently Asked Questions - iSport Wireless Slim MONSTER
User questions about iSport Wireless Slim MONSTER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Earphones in PDF format for free! Find your manual iSport Wireless Slim - MONSTER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. iSport Wireless Slim by MONSTER.
USER MANUAL iSport Wireless Slim MONSTER

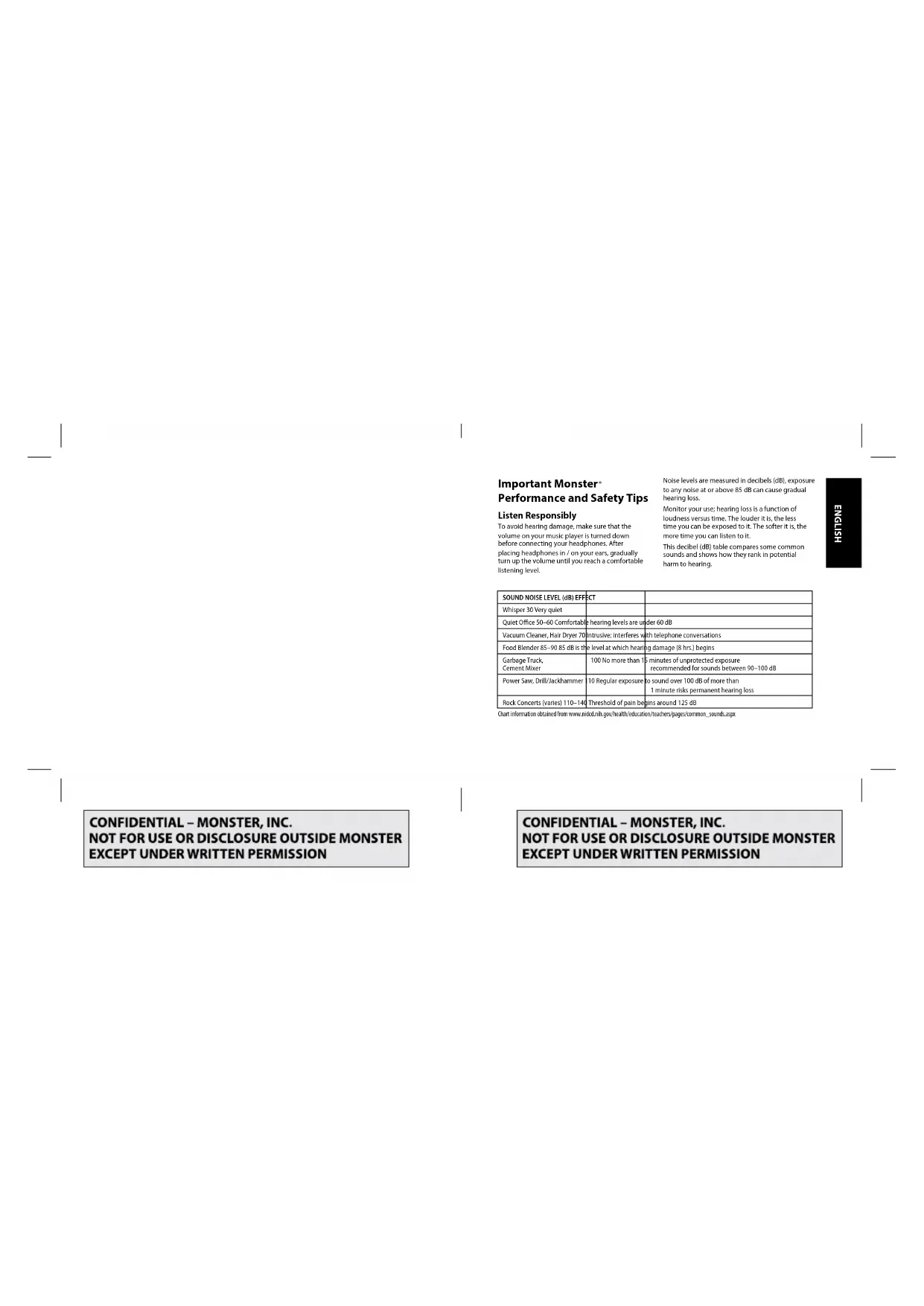

Performance and Safety Tips
Listen Responsibly
To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in / on your ears, gradually turn up the volume until you reach a comfortable listening level.
Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss.
Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it.
This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing.
| SOUND NOISE LEVEL (dB) EFFECT | ||
| Whisper 30 Very quiet | ||
| Quiet Office 50–60 Comfortable hearing levels are under 60 dB | ||
| Vacuum Cleaner, Hair Dryer 70 Intrusive interfaces with telephone conversations | ||
| Food Blender 85–90 85 dB is the level at which hearing damage (8 hrs.) begins | ||
| Garbage Truck, Cement Mixer | 100 No more than 15 minutes of unprotected exposure recommended for sounds between 90–100 dB | |
| Power Saw, Drill/Jackhammer | 10 Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss | |
| Rock Concerts (varies) 110–140 Threshold of pain begins around 125 dB | ||
Chart information obtained from www.nidcd.nih.gov/health/education/teachers/pages/common sounds.aspx
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.
Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org. Important information on how to prevent Noise-Induced Hearing Loss (NIHL) and a comprehensive list of which noises can cause damage can be found on the Deafness Research Foundation's website, www.drf.org.
Physiology of the Ear and Hearing
For additional information on what loud noises do to your car and chart reference www.abeland.org/hear/hear.php/houd-music
Use Responsibly
Do not use headphones when it's unsafe to do so while operating a vehicle, riding a bike, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required.
It's dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens.
Please avoid wearing your headphones while driving. Use one of Monster's FM transmitters to listen to your mobile media devices instead.
Headphones "Break-in"
Break in time for headphones? We're kidding, right? No we're not. Like any high performance product, whether it's cars or headphones, they're mechanical devices that settle in after use. Your new headphones will sound incredible out of the box, but will "mellow" out after use and sound even better. We recommend playing them for 8 hours. After 20 hours of playing, they should be fully broken in. Enjoy.
Battery
If applicable, battery must be recycled or disposed of properly.
Information to consumers in application of EU WEEE Directive 96/2002
This product is subject to European Union regulations that promote the re-use
and recycling of used electrical and electronic equipment. This product required the extraction and use of natural resources and may contain hazardous substances. The symbol above, on the product or on its packaging, indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the store from which you purchased the product. For more information about Monster products, please visit us at: www.MonsterProducts.com.
Monster® Service
Have a Problem with Your Headphones? Our Customer
Service Team is here for you.
Please don't return headphones to your retailer, CALL our customer service center, 1-877-600-8989 for United States or Latin America, or email us at www.MonsterProducts.com/service/. For Canadian, European, and Asian Pacific customer service numbers, please see the "Telephone Numbers" section in the following "Limited Warranty for Consumers". Our team of experts will assist you with all questions and technical difficulties.
We stand behind our products. Monster headphones deliver the best in sound, quality, and design.
Thank you for your purchase.
Download the complete manual at:
www.MonsterProducts.com
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Product Overview
-
Indicator light
-
Charge jack
-
Volume + / Track Forward
-
Multifunction button
Activate Voice Dialing)
-
Volume - / Track Backward
-
Microphone
| INDICATOR LIGHT DESCRIPTION VOICE PROMPTS | |
| Power on Stays red 1 second Power on | |
| Power off Stays red 2 seconds Power off | |
| Standby (connected) Blue blue once every 5 seconds / | |
| Pairing Flashes Red and blue alternately [ Pairing Tone ] | |
| Incoming call Flashes blue continuous / | |
| Charging Stays on blue while charging / | |
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Basic operation
Charge the Battery
Your iSport® Wireless SuperSlim initially has enough power to complete the pairing and a few calls. When battery is low, you will hear warning tone and indicator light changes to red. The headphone includes a Micro USB cable that can be connected to your computer or other device made for USB charging. Plug the Micro USB end of the included USB cable into the USB micro port charger connector on the right channel side of the headphone. Plug the other end into a USB port on your computer or other devices made for USB charging. The indicator light will be blue while charging. Once fully charged, the indicator light will be off. Charge time is approximately 1.5 hours on an empty battery.
Note: The lifetime of the battery will be significantly reduced if your headphone is left uncharged for a long period. We recommend that you recharge your headphone at least once a month.
Power On/ Power Off
Press the Multifunction button for about 1 second to power on the headphone. To power off the headphone, press the Multifunction button for about 3 seconds.
Volume Control
Press the Volume *1* or *-* to turn volume up or down, you hear beep once you reach the maximum volume or minimum volume.
Pairing
Pair One Phone
-
Press and hold the Multifunction button for about 5 seconds until indicator light flashes blue and red alternately, you hear "Power on" and pairing tone. Nowheadphone is in pairing mode.
-
Activate Bluetooth ^® on your phone and set it to search for new devices.
-
Select "Sport Wireless Superslim". If your phone asks, enter 0000 (four zeros) for the passcode or accept the connection. The indicator light stops flashing red and blue once successfully paired, you hear "Paired, phone 1 connected". Some phone list an option to "Play through earphone", select to use the headphone.
Note: When you unbox the headphone and power it on for the first time, it will enter to pairing mode automatically.
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Pair Another Phone
Multipoint technology enables you to pair another phone and take a call from either.
To pair with another mobile phone, power off the headphone, then follow the steps for 'Pair one phone'. After pairing successfully, restart the headphone to connect to 2 paired mobile phone automatically and manually.
Note: You may need to connect the second phone manually.
Call
Answer a Call: Press the Multifunction button once. Reject a Call: Press and hold the Multifunction button for about 1 second.
End a Call: Press the Multifunction button once.
Redial the Last Call: Press Volume ^+ and * - for about 3 seconds in standby mode. The mobile phone will redial the last call number.
Mute On/Off: Press the Volume *- for about 3 seconds to mute on/off.
Switch Between the Headphone and Phone: Press the Multifunction button for about 1 second during a call, the call will be switched to the mobile phone, redo this operation again, the call will be switched to the headphone.
End Current Call and Answer New Call: When a new call rings during a call, press the Multifunction button once to answer new call and end current call simultaneously.
On Hold Current Call and Answer New Call: When a new call rings during a call, double press the Multifunction button to hold current call and answer new call. To switch between held call and active call, double press the Multifunction button. Activate Voice Dialing: Double press the Multifunction button to trigger the voice dialer, this function varies with user's smartphone.
Music
Play / Pause Music: Press Multifunction button once to play / pause music. (Some phones may require you to start a media player first).
Track Back / Forward: Press the Volume “-” for 1 second once to skip track backward, press Volume “+” for 1 second once to skip track forward.
Switch Music and Call: When a call rings during a music playing, the music automatically pauses to allow you to answer or ignore the call. Once the call is ignored or ends, the music is resumed.
More Features
Battery Indicator
When the headphone is connected to a device with IOS system, a battery indicator will appear at the upper right of the system, indicating battery status of the headphone.
Auto Power-Off
When the distance between the headphone and the mobile phone is beyond effective range, a warning tone will be alerted and headphone will try to reconnect with the mobile phone for 10 minutes. If no phone is reconnected within 10 minutes, the headphone will go to connectable mode and wait for 5 more minutes before automatically power off.
Automatic Connection After
Powering On
When the headphone and phone have been paired once, they will automatically connect when the headphone is on and Bluetooth is activated on the phone.
Connection Standby
After successful pairing and connection, you will hear the voice prompt "Phone 1 connected". The headphone will be in turning on mode or standby mode automatically and the blue LED will flash
once every 5 seconds. When the phone disconnects the headphone, you will hear the disconnect tone.
Reset Paired Device(s)
Go to the Pairing mode (hold the Multifunction button for 5 seconds from Power off state), then hold the Volume * to reset the paired device(s), indicator light flashes blue and red alternatively and rapidly few times, you will also hear the tone.
Hardware Reset
Plug the Micro USB cable into the USB micro port of headphone to connect it to the computer or other device made for USB charging to have the hardware reset.
Certification
FCC ID: RJE190653
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modification not expressly approved by the party responsible for Compliance could void the user's authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
signal cables. The socket-outlet shall be installed near the equipment and shall be easily accessible. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's (or your) authority to operate the equipment. Avoid storage in extreme heat or cold. Avoid exposure to liquids, temperature extremes and high humidity. The product's working temperature range is 0–45°C (32–113°F). This device complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment.
Canada Notice — IC ID: 5153A-190653
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Canadian Class B Statement
This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference causing equipment standard entitled "Digital Apparatus," ICES-003 of the Department of Communications.
CAN ICES-3 (B)/NMB-3(B)
Modification
Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the device.
Europe—EU Declaration of Conformity
The equipment complies according to the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC.
This equipment meets the following conformance standards:
Safety EN 60950-1/A 12:2011
Health EN 62479:2010
TM5 FN201/00 4/14 0:0
EMC EN 301489-1 V1.9.2 EN 301489-17 V2.2.1 EN 55022:2010/AC:2011 EN 55024:2010
Radio EN 300 328 V1.8.1
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Certification Model Number: 190653 (Green)
Import: Monster, LLC
Address: 7251 West Lake Mead Blvd., Las Vegas, NV 89128
Import: Monster Technology International, Ltd. Address: Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland
LIMITED WARRANTY FOR CONSUMERS
Monster, LLC, 7251 West Lake Mead Blvd., Las Vegas, NV 89128, USA. [PLEASE NOTE THAT MONSTER DOES NOT ACCEPT PRODUCTS SHIPPED TO THIS ADDRESS - FOLLOW INSTRUCTIONS IN "HOW TO MAKE A CLAIM" BELOW] (415) 840-2000 ("Monster") extends You this Limited Warranty. Statutory or common law may provide You with additional rights or remedies, which shall not be affected by this Limited Warranty.
DEFINITIONS
"Adequate Use" means personal use of the Product (i) for private (as opposed to commercial) purposes, (ii) in conformance with all applicable law, code or regulations (including without limitation building and/or electrical codes), (iii) in accordance with manufacturer recommendations and/or instructions in the materials and documentation that accompany the Product, and (iv) if applicable, with proper electrical grounding.
"Authorized Dealer" means any distributor,
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
reseller or retailer that (i) was duly authorized to do business and permitted to sell You the Product under the laws of the jurisdiction where You bought the Product, (ii) purchased the Product directly from Monster or from a party with a contractual relationship with Monster and in accordance with the authorized terms and conditions of such agreement, and (iii) sold You the Product new and in its original packaging.
"Formal Warranty Claim" means a claim made in accordance with the section "Formal Warranty Claims" herein.
"Product" means a Product (i) that is listed in the Specifications Table below, (iii) that You bought from an Authorized Dealer new and in its original packaging, and (iii) whose serial number, if any, has not been removed, altered, or defaced.
"Product Defect" or "Defective Product" means an inadequacy of the Product that existed at the time when You received the Product from an Authorized Dealer and that causes a failure of the Product to perform in accordance with Monster's documentation accompanying the Product, unless such failure has been caused completely or partly by (a) any use other than Adequate Use, (b) transportation, neglect, misuse or abuse by anyone other than Monster's employees; (c) alteration, tampering or modification of the product by anyone other than a Monster employee; (d) accident (other than a malfunction that would otherwise qualify as a Product Defect);
(e) maintenance or service of the Product by anyone other than a Monster employee; (f) exposure of the Product to heat, bright light, sun, liquids, sand or other contaminants; or (g) acts outside the control of Monster, including without limitation acts of God, fire, storms, earthquake or flood.
"Warranty Period" means the time period during which Monster must have received Your Formal Warranty Claim. The different Warranty Periods related to Product Defects are defined in the Specifications Table below. The Warranty Period commences on the date when You purchased or received (whichever occurs later) the Product from an Authorized Dealer as evidenced by the Authorized Dealer's invoice, sales receipt or packing slip. If you do not have written proof of the date of purchase or receipt, then the Warranty Period commences three (3) months after the date when the Product left Monster or its factory as evidenced by Monster's records. The Warranty Period ends after the time defined In the Specifications Table has expired or after You have transferred ownership of the Product, whichever occurs earlier. Also, You must call Monster and obtain a Return Authorization Number (as described under "How to Make a Claim") within two (2) months after You discover a Product Defect (or should have discovered it, if such Product Defect was obvious).
"You" means the first individual person that
purchased the Product in its original packaging from an Authorized Dealer. This Limited Warranty does not apply to persons or entities that bought the Product (i) in used or unpackaged form, (ii) for resale, lease or other commercial use, or (iii) from someone other than an Authorized Dealer.
SCOPE OF THIS LIMITED WARRANTY
PRODUCTS. If a Product contained a Product Defect when You bought it from an Authorized Dealer, and Monster receives a Formal Warranty Claim from You (i) within two (2) months after You discover such Product Defect (or should have discovered it, if such Product Defect was obvious) and (ii) before the end of the Warranty Period for Product Defects applicable to the Defective Product, then Monster will provide You with one of the following remedies: Monster will (1) repair or, at Monster's sole discretion, replace the Defective Product, or (2) refund to You the purchase price You paid to Monster or the Authorized Dealer for the Defective Product if repair or replacement is not commercially practicable or cannot be timely made. NOTE: TO THE PULLEST EXTENT PERMITTED BY APPLICABLE LAW, MONSTER DOES NOT ASSUME ANY LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES UNDER THIS LIMITED WARRANTY.
GENERAL PROVISIONS
CHOICE OF LAW/JURISDICTION. This Limited
Warranty and any disputes arising out of or in connection with this Limited Warranty ("Disputes") shall be governed by the laws of the jurisdiction where You bought the Product.
OTHER RIGHTS. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION, AND WHICH SHALL NOT BE AFFECTED BY THIS LIMITED WARRANTY. THIS WARRANTY EXTENDS ONLY TO YOU AND CANNOT BE TRANSFERRED OR ASSIGNED. If any provision of this Limited Warranty is unlawful, void or unenforceable, that provision shall be deemed severable and shall not affect any remaining provisions. In case of any inconsistency between the English and other versions of this Limited Warranty, the English version shall prevail. REGISTRATION. Please register Your Product at www.MonsterProducts.com. Failure to register will not diminish Your warranty rights.
SPECIFICATIONS TABLE
| Product Model Warranty Period for headphone | |
| Product that accompanies this warranty statement | One (1) year for product sold in North America, South America and Asia PacificTwo (2) years for product sold in Europe |
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
FORMAL WARRANTY CLAIM
HOW TO MAKE A CLAIM. In the event of a Product Defect, You must follow these instructions: (1) Call Monster within two (2) months after You discover a Product Defect (or should have discovered it, if such Product Defect was obvious); (2) Give a detailed explanation of how the damage occurred; (3) Obtain a Return Authorization Number; (4) Return the Product, shipping prepaid by You to be refunded if You are entitled to a remedy under the Scope of this Limited Warranty), to Monster for verification of damage, along with a copy of Your original sales receipt or proof of purchase (involce or packing slip) for such Product, the completed claim form, and printed Return Authorization Number on the outside of the return package (the claim form will include instructions for return).
TELEPHONE NUMBERS. If You bought the Product in the United States (1-877-800-8989), Latin America (Mexico 011-882-800-8989), or Asia Pacific (China 400-820-8973), contact Monster, LLC via postal service at 455 Valley Drive, Brisbane, CA 94005 (PLEASE NOTE THAT MONSTER DOES NOT ACCEPT PRODUCTS SHIPPED TO THIS ADDRESS - FOLLOW INSTRUCTIONS IN "HOW TO MAKE A CLAIM" ABOVE). If You bought the Product in Australia, contact Monster's agent, Convoy
International Pty Ltd (02 9700 0111), Unit 7, 1801 Botany Rd, Banksmeadow, NSW 2019 Australia. If You bought the Product anywhere else, contact Monster Technology International Ltd., Ballymaley Business Park, Gort Road, Ennis, Co. Clare, Ireland. You can use one of the following telephone numbers:
United States 1-877-800-8989 Canada 866-348-4171
Mexico 011-882-800-8989
China 400-820-6973
Ireland 353 65 68 69 354
Austria 0800290482
Belgium 0800-79201 Denmark 0000-2130
Denmark 0000-2120 E-mail: 000-613769
Finland 800-112708 France 0800-918201
Germany 0800-1819388
Greece 00800-353-12008
Italy 800-671-479
Netherlands 0800-0228919
Norway 800-10906
Russia 810-800-20051353
Spain 900-982-909
Sweden 020-792650
Switzerland 0800834659
Czech Republic 800-14247
United Kingdom 0800-0569520
FURTHER PROCEEDINGS. Monster will determine
whether a Product Defect existed. Monster may, at its discretion, direct You to obtain a repair estimate at a service center. If a repair estimate is required, You will be instructed on how to properly submit the estimate and the resulting invoice to Monster for payment. Any fees for repairs may be negotiated by Monster.
TIMING. If you bring a Formal Warranty Claim and fully comply with all terms and conditions of this Limited Warranty, Monster will use its best efforts to provide You with a remedy within thirty (30) days after receipt of Your Formal Warranty Claim (if you reside in the United States - forty-five (45) days if You reside elsewhere), unless obstacles outside Monster's control delay the process. * Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Ver.121912 - GLOBAL ©2003-2014 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Address: 7251 West Lake Mead Blvd.,
Las Vegas, NV 89128
Import: Monster Technology International, Ltd. Address: Ballymaley Business Park,
Gort Rd., Ennis, Co. Clare, Ireland
GARANTIE LIMITÉE POUR LE CONSOMMATEUR
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Gort Rd., Ennis, Co. Clare, Ireland
EINGESCHRÄNKTE GARANTIE FÜR VERBRAUCHER
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Press the Volume "+" or "-" to turn volume up or down, you hear beep once you reach the maximum volume or minimum volume.
Pairing
Pair One Phone
Republic of Canada 800
Dinamarca 8088-2128 Finlandia 999-113769
Finlandia 800-11276
Francia 0800-918201
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Verbinding in stand-by
Import: Monster Technology International, Ltd. Acres: Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland
BEPERKTE GARANTIE VOOR CONSUMENTEN
Ver.121912-WERELDWJD
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Importa: Monster Technology International, Ltd. Indirizzo: Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland
GARANZIA LIMITATA PER I CONSUMATORI
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
GARANTIA LIMITADA PARA CONSUMIDORES
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
On https://www.100.com/10000000000000000000000000000000000000000000000
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Tablo bilgisi www.nisol.nih.gov/health/education/teachers/pages/common_sounds.aspx
Las Vegas, NV 89128
Ithalat: Monster Technology International, Ltd.
Adres: Ballymaley Business Park,
Gort Rd., Ennis, Co. Clare, Ireland
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Las Vegas, NV 89128
Import: Monster Technology International, Ltd.
Adresa: Ballymaley Business Park,
Gort Rd., Ennis, Co. Clare, Ireland
OMEZENÁ
SPOTŘEBITELSKÁ ZÁRUKA
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Informacie • tabulke si z internetorej strainky www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Las Vegas, NV 89128
Dovoz: Monster Technology International, Ltd.
Adresa: Ballymaley Business Park,
Gort Rd., Ennis, Co. Clare, Ireland
OBMEDZENÁ ZÁRUKA PRE SPOTREBITELOV
Monster, LLC, 7251 West Lake Mead Blvd., Las Vegas, NV 89128, USA, [UPOZORNUJEME, ZE SPOLOČNOST MONSTER NEAKCEPTUJE VÝBORKY ZASI ANĚ NA TIŮTO ADRESU –
POSTUPUJTE PODLA POKYNOV UVEDENÝCH NIŽŠIE V ČASTI „AKO REKLAMOVAT“
94005 (UPOZORNUJEME, ZE SPOLOCNOST
MUNSTER NEARCEPTUJE VYROBRY ZASLANE NA TUTO ADRESIL - POSTUPUTE PODI'A
NA TUTO ADRESO - POSTOPOSTE PODLA POKYNOV LIVEDENÝCH VYŠŠIE V ČASTI
REKLAMOVAČ"). Ak ste si virobok zakúpili
Monster, Convoy International Pty Ltd (02 9700)
0111), Unit 7, 1801 Botany Rd, Banksmeadow,
NSW 2019 Australia. Ak ste si vyrobok zakupili
inde, kontaktujte spoločnost Monster Technology International Ltd. Polymole Business Bank Corp
International Ltd, Danymalley Business Fund, Road Bank Co, Clare Ireland, Måfera pouëld
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
Важная информация
о функциональных
©2003-2013 Monster, LLC
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
表の情報は www.nikd.nih.gov/health/education/teachers/pages/common_sounds.aspx
住所：Ballymaley Business Park,
Govt. Rel., Fair S, Co. Clare,
Ireland
消費者への限定保証
图表信息从如下网站获得：www.nidcl.nih.gov/health/education/teachers/pages/common_sounds.aspx
Cort Rd., Ennis, Co. Clare,
Iceland
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
有限保修条款
代理：Convoy International Pty Ltd (02 9700 0111) Unit 7, 1801 Botany Rd. Banksmeadow
0117, Unit 7, Botany No. Banksmeadow. NSW 2019 Australia. 如果您正在任何其他处
International Ltd., Ballymaley Business Park, Gort Road, Ennis, Co. Clare, Ireland. 您可以拨打以下的电话号码：
美国 1-877-800-8989
加拿大 866-348-4171
©2003-2013 Monster, LLC
중요 Monster□ 성능 및
안전 수칙
책임갑 있는 징취
류득한 도표 정보: www.nidcd.nih.gov/health/education/teachers/pages/common sounds.aspx
CONFIDENTIAL – MONSTER, INC. NOT FOR USE OR DISCLOSURE OUTSIDE MONSTER EXCEPT UNDER WRITTEN PERMISSION
수입자: Monster Technology International, Ltd. 주소: Ballymaley Business Park, Gort Rd., Ennis. Co. Clare, Ireland
[Unreadable due to severe distortion and noise]
©2008-2014 Monster, LLC
重要 Monster® 效能與安全提示
負責任地聆聽
閥表資訊來自：www.nided.nih.gov/health/education/teachers/pages/common_sounds.aspx
地址：Ballynaley Business Park,
Gort Rd., Ennis, Co. Clare,
Ireland
消费者的有限保固
Monster, LLC, 7251 West Lake Road Blvd., Las Vegas,
NV 89128, USA, [請注意, MONSTER]
不接受还至该地址的
无法一而依照上述|如何申请
Monster Technology International, Ltd
Monster, the M Monster logo, Pure Monster Sound, iSport, the product and packaging are trademarks or registered trademarks of Monster, Inc. or its subsidiaries in the United States or other countries. Product may vary from images shown. Licensed under Freebit patent number EP2177045 and corresponding international patents. Design is Patent Pending. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Monster is under license. All other trademarks and trade names are those of their respective owners.
