ROC Sport Freedom - Earphones MONSTER - Free user manual and instructions
Find the device manual for free ROC Sport Freedom MONSTER in PDF.
| Product Type | Bluetooth wireless headset/earphone with wired use |
| Brand | Monster |
| Model | ROC Sport Freedom |
| Connection Technology | Bluetooth and 3.5mm audio cable |
| Supported Bluetooth Profiles | A2DP (Advanced Audio Distribution Profile) |
| Battery Life (music) | Up to 10 hours |
| Standby Time | Up to 100 hours |
| Charging Time | About 1 hour 30 minutes |
| Charging Type | Micro-USB (cable included) |
| Phone Functions | Answer, end, reject calls; voice dialing |
| Audio Controls | Play/pause, fast forward/rewind, volume +/-, multifunction button |
| Microphone | Built-in (also on ControlTalk Universal cable) |
| LED Indicator | Yes (red/green/blue depending on status) |
| Wired Use | Passive mode via ControlTalk Universal cable (battery saving) |
| Maintenance | Clean with a soft cloth dampened with a mildly soapy solution |
| Safety Precautions | Avoid exposure to liquids, extreme heat, humidity; listen at moderate volume to protect hearing |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty (varies by region) | 1 year (North America, Asia-Pacific) / 2 years (Europe) |
| Certifications | FCC, IC, CE |
Frequently Asked Questions - ROC Sport Freedom MONSTER
User questions about ROC Sport Freedom MONSTER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Earphones in PDF format for free! Find your manual ROC Sport Freedom - MONSTER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ROC Sport Freedom by MONSTER.
USER MANUAL ROC Sport Freedom MONSTER
FREEDOM

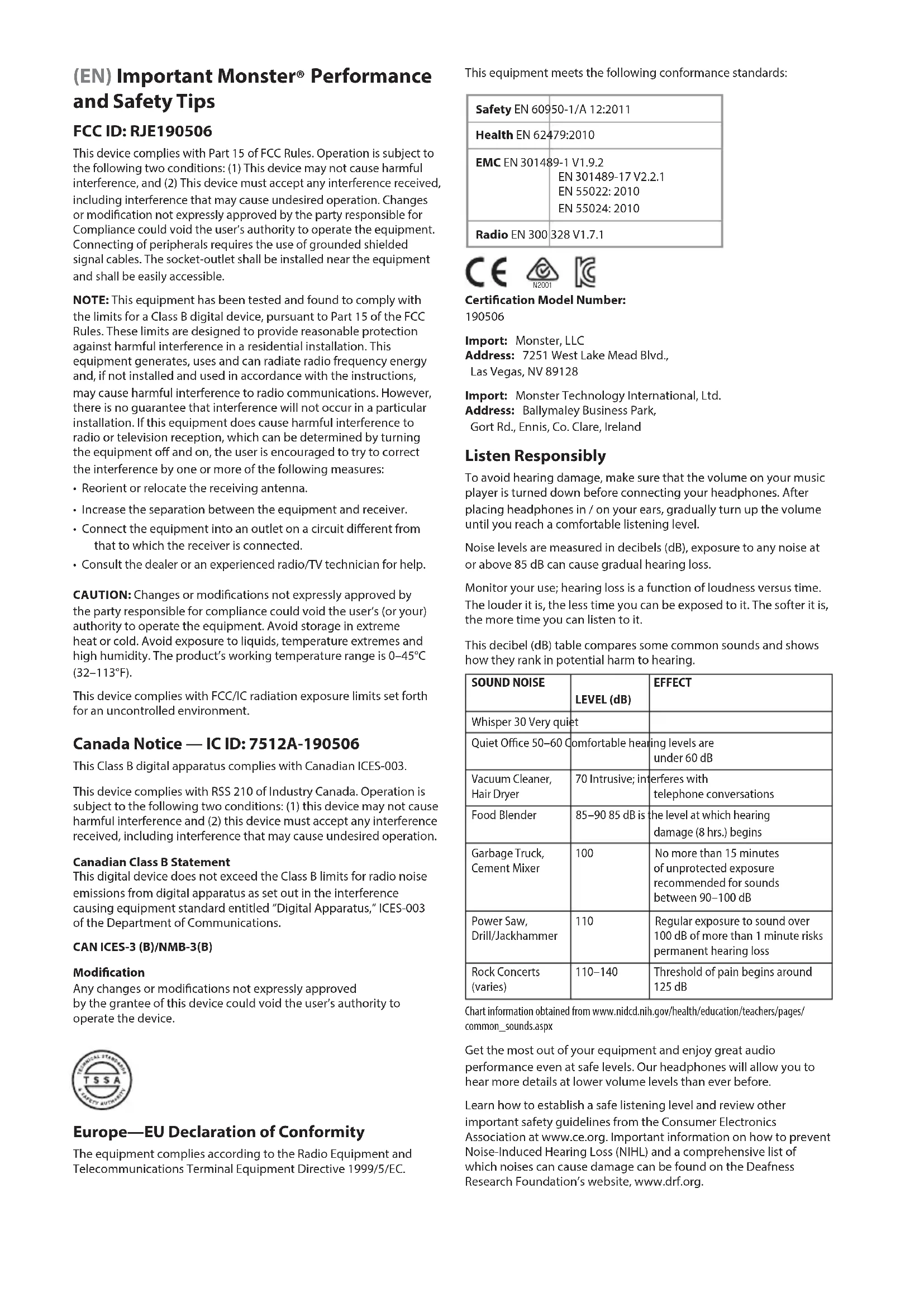

(EN) Important Monster® Performance and Safety Tips
FCC ID: RJE190506
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modification not expressly approved by the party responsible for Compliance could void the user's authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables. The socket-outlet shall be installed near the equipment and shall be easily accessible.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's (or your) authority to operate the equipment. Avoid storage in extreme heat or cold. Avoid exposure to liquids, temperature extremes and high humidity. The product's working temperature range is 0–45°C (32–113°F).
This device complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment.
Canada Notice — IC ID: 7512A-190506
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
Canadian Class B Statement
This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference causing equipment standard entitled "Digital Apparatus," ICES-003 of the Department of Communications.
CAN ICES-3 (B)/NMB-3(B)
Modification
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.
Europe—EU Declaration of Conformity
The equipment complies according to the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC.
This equipment meets the following conformance standards:
| Safety EN 60950-1/A 12:2011 | |
| Health EN 62479:2010 | |
| EMC EN 301489-1 V1.9.2EN 301489-17 V2.2.1EN 55022: 2010EN 55024: 2010 | |
| Radio EN 300328 V1.7.1 |
Certification Model Number:
190506
Import: Monster, LLC
Address: 7251 West Lake Mead Blvd.,
Las Vegas, NV 89128
Import: Monster Technology International, Ltd.
Address: Ballymaley Business Park,
Gort Rd., Ennis, Co. Clare, Ireland
Listen Responsibly
To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in / on your ears, gradually turn up the volume until you reach a comfortable listening level.
Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss.
Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it.
This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing.
| SOUND NOISE | LEVEL (dB) | EFFECT |
| Whisper 30 Very quiet | ||
| Quiet Office 50–60 Comfortable hearing levels are under 60 dB | ||
| Vacuum Cleaner, Hair Dryer | 70 Intrusive; interferes with telephone conversations | |
| Food Blender | 85–90 85 dB is the level at which hearing damage (8 hrs.) begins | |
| Garbage Truck, Cement Mixer | 100 | No more than 15 minutes of unprotected exposure recommended for sounds between 90–100 dB |
| Power Saw, Drill/Jackhammer | 110 | Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss |
| Rock Concerts (varies) | 110–140 | Threshold of pain begins around 125 dB |
Chart information obtained from www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx
Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.
Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org. Important information on how to prevent Noise-Induced Hearing Loss (NIHL) and a comprehensive list of which noises can cause damage can be found on the Deafness Research Foundation's website, www.drf.org.

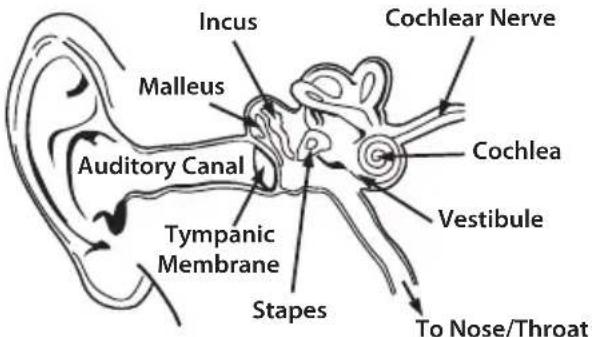

Physiology of the Ear and Hearing
Use Responsibly
Do not use headphones when it's unsafe to do so—while operating a vehicle, riding a bike, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required.
It's dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens.
Please avoid wearing your headphones while driving. Use one of Monster's FM transmitters to listen to your mobile media devices instead.
Cleaning
Wipe earcups with a soft cloth dampened with a mild soap solution.

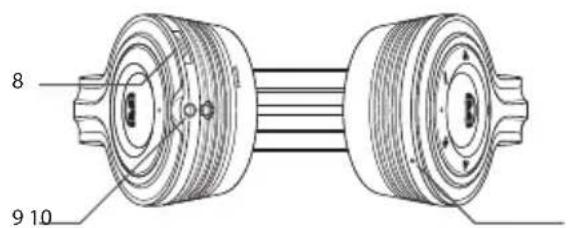

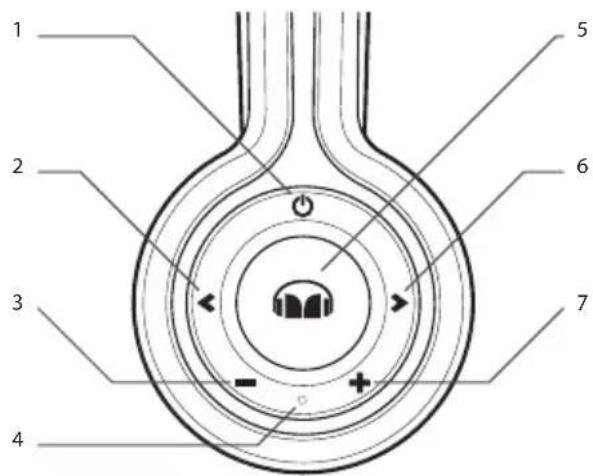

Keys and Parts
-
Multifunction key (Power On/Off, Pairing, Activate Voice Dialing)
-
Play / Pause key (Answer/End/Reject Call)
-
Track back
-
Track forward
-
Volume down
-
Volume up
-
Indicator light (Only visible when lit)
-
Charger connect
-
3.5mm cable port
-
Microphone
Before using the headset, you must charge the battery and pair the headset with a compatible device. Freedom will function without a charged battery when attached by cable to phone or music player.
Charge the Battery
The headphone includes a Micro USB cable that can be connected to your computer or other device made for USB charging. Plug the Micro USB end of the included USB cable into the USB micro port charger connector under the left earcup of the headphone. Plug the other end into a USB port on your computer or other devices made for USB charging. The indicator light will be red while charging. Once fully charged, the green LED will be on. Charge time is 1.5 hours on an empty battery. The fully charged battery has power for up to 10 hours talking and/or music time and up to 100 hours standby time.
WARNING: (1) Please pay attention to the environmental aspects of battery disposal. Battery must be recycled or disposed of properly. This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way. (2) Batteries (battery pack or batteries installed) should not be exposed to excessive heat, such as sunshine, fire, or the like. (3) DO NOT disassemble or replace the battery. If you suspect there is something wrong with the battery, please carry the unit to the service center for help.
Switch On
To switch on, press and hold the multifunction key about two seconds. The headset beeps ascending tones, and the green indicator light is briefly displayed. When the headset tries to connect to the last used phone or music player, the red indicator light flashes slowly. When the headset is connected to a device and is ready for use, the blue indicator light flashes slowly. If the headset has not been paired with a device, it automatically enters the pairing mode.
Switch Off
To switch off, press and hold the multifunction key for about three seconds. The headset beeps descending tones, and the red light is briefly displayed. If the headset is not connected to a device within 10 minutes, it switches off automatically.
Pairing
-
Ensure that your phone or music player is switched on.
-
To pair the headset if it has not been previously paired with a device, switch on the headset. The headset enters the pairing mode, and the blue and red indicator light starts to flash quickly. To pair the headset if it has been previously paired with another device, ensure that the headset is switched off, and press and hold the multifunction key (for about five seconds) until the blue and red indicator light starts to flash quickly.
-
Activate the Bluetooth ^® feature on your phone or music player, and set it to search for Bluetooth devices.
-
Select "Freedom" from the list of found devices on your phone or music player.
-
If necessary, enter passcode 0000 to pair and connect the headset to your device.
Adjust the Volume
To adjust the headset volume, press the volume up or down key during a call or while listening to music. To adjust the volume quickly, press and hold either key.
WARNING: Excessive sound pressure from earphones and headphones can cause hearing loss.
Calls
To make a call, use your mobile phone in the normal way when the headset is connected to it.
To activate voice dialing (if your phone supports this feature with the headset), when no call is in progress, press the multifunction key twice quickly until the phone starts voice dialing, and process as described in the phone user guide.
To answer or end a call, quickly press the play / pause key. To reject a call, press and hold the play / pause key for approximately two seconds.
To switch a call (in progress) from the headset to the connected phone, press and hold the play / pause key for about two seconds. To switch a call (in progress) from the phone to the headset, press and hold the play / pause key for about two seconds.
Disconnect the Headphone
To disconnect the headset from your device, switch off the headset, or disconnect it in Bluetooth menu of your device.
Reconnect the Headphone
To connect the headset to the phone or music player that you have last used with it, switch on the headset, or make the connection in the Bluetooth menu of your device.
Listen to Music
To listen to music, connect the headset to compatible music player that supports A2DP Bluetooth profile. The available music functions depend on your music player.
If you receive or make a call while listening to music, the music is paused until the call ends.
To play a song, select in the music player and press the play / pause key on the ROC Freedom headset. To pause or resume playing a song, press the play / pause key.
To select the next song during playback, press the track forward key quickly. To select the previous song, press the track back key (once or twice) quickly. To scroll through the current song quickly, press and hold either key.
Clear Settings or Reset
To clear the pairing settings from the headset, switch off the headset and press and hold the multifunction and volume down keys (for over eight seconds) until the red and blue indicator lights alternate three times.
To reset the headset, connect the headset to a charger and press both the multifunction and volume up keys.
Passive Mode
You can use ROC Freedom as a wired headphone to save batteries. Simply connect one end of the included ControlTalk Universal™ cable to the bottom of the earcup and the other to your MP3 player. Inserting an audio cable disables wireless functionality.

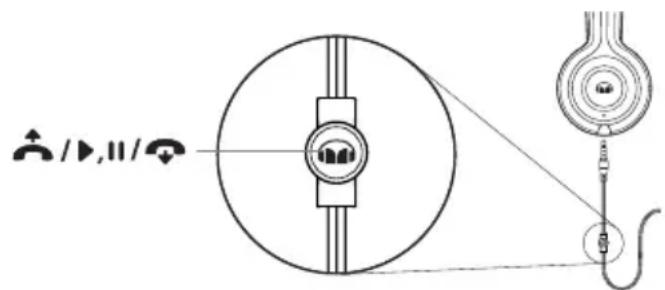

Using ControlTalk Universal™
To connect, plug the end of the ROC Freedom headphone cable that is closest to the ControlTalk Universal™ into the bottom of the left or right earcup and the other end into the 1/8" (3.5mm) stereo socket on your music player.
Answering a call: When alerted of an incoming call, press and release the ControlTalk Universal™ control button to answer.
Ending a call: On most phones, press and release the control button. Some phones require you to press and hold the control button.
To use call waiting: Most (but not all) phones function as follows: When alerted of an incoming call while already on a call, press and release the control button to answer and put the first call on hold. Press and release the control button to swap back to the first call. Press and hold the control button to end your current call and swap back to the call on hold.
Play or pause a song or video: Press and release the center button. Repeat to resume.
Functionality will vary by device. For more information on functionality for your device, please visit MonsterProducts.com/mp3/ctuniversalworks.asp
Headphones "Break-in"
Break in time for headphones? We're kidding, right? No we're not. Like any high performance product, whether it's cars or headphones, they're mechanical devices that settle in after use. Your new headphones will sound incredible out of the box, but will "mellow" out after use and sound even better. We recommend playing them for 8 hours. After 20 hours of playing, they should be fully broken in. Enjoy.
LIMITED WARRANTY FOR CONSUMERS
Monster, LLC, 7251 West Lake Mead Blvd., Las Vegas, NV 89128, USA, [PLEASE NOTE THAT MONSTER DOES NOT ACCEPT PRODUCTS SHIPPED TO THIS ADDRESS—FOLLOW INSTRUCTIONS IN "HOW TO MAKE A CLAIM" BELOW] (415) 840-2000 ("Monster") extends You this Limited Warranty. Statutory or common law may provide You with additional rights or remedies, which shall not be affected by this Limited Warranty.
DEFINITIONS
"Adequate Use" means personal use of the Product (i) for private (as opposed to commercial) purposes, (ii) in conformance with all applicable law, code or regulations (including without limitation building and/or electrical codes), (iii) in accordance with manufacturer recommendations and/or instructions in the materials and documentation that accompany the Product, and (iv) if applicable, with proper electrical grounding.
"Authorized Dealer" means any distributor, reseller or retailer that (i) was duly authorized to do business and permitted to sell You the Product under the laws of the jurisdiction where You bought the Product, (ii) purchased the Product directly from Monster or from a party with a contractual relationship with Monster and in accordance with the authorized terms and conditions of such agreement, and (iii) sold You the Product new and in its original packaging.
"Formal Warranty Claim" means a claim made in accordance with the section "Formal Warranty Claims" herein.
"Product" means a Product (i) that is listed in the Specifications Table below, (ii) that You bought from an Authorized Dealer new and in its original packaging, and (iii) whose serial number, if any, has not been removed, altered, or defaced.
"Product Defect" or "Defective Product" means an inadequacy of the Product that existed at the time when You received the Product from an Authorized Dealer and that causes a failure of the Product to perform in accordance with Monster's documentation accompanying the Product, unless such failure has been caused completely or partly by (a) any use other than Adequate Use, (b) transportation, neglect, misuse or abuse by anyone other than Monster's employees; (c) alteration, tampering or modification of the product by anyone other than a Monster employee; (d) accident (other than a malfunction that would otherwise qualify as a Product Defect); (e) maintenance or service of the Product by anyone other than a Monster employee; (f) exposure of the Product to heat, bright light, sun, liquids, sand or other contaminants; or (g) acts outside the control of Monster, including without limitation acts of God, fire, storms, earthquake or flood.
"Warranty Period" means the time period during which Monster must have received Your Formal Warranty Claim. The different Warranty Periods related to Product Defects are defined in the Specifications Table below. The Warranty Period commences on the date when You purchased or received (whichever occurs later) the Product from an Authorized Dealer as evidenced by the Authorized Dealer's invoice, sales receipt or packing slip. If You do not have written proof of the date of purchase or receipt, then the Warranty Period commences three (3) months after the date when the Product left Monster or its factory as evidenced by Monster's records. The Warranty Period ends after the time defined in the Specifications Table has expired or after You have transferred ownership of the Product, whichever occurs earlier. Also, You must call Monster and obtain a Return Authorization Number (as described under "How to Make a Claim") within two (2) months after You discover a Product Defect (or should have discovered it, if such Product Defect was obvious).
"You" means the first individual person that purchased the Product in its original packaging from an Authorized Dealer. This Limited Warranty does not apply to persons or entities that bought the Product (i) in used or unpackaged form, (ii) for resale, lease or other commercial use, or (iii) from someone other than an Authorized Dealer.
SCOPE OF THIS LIMITED WARRANTY
PRODUCTS. If a Product contained a Product Defect when You bought it from an Authorized Dealer, and Monster receives a Formal Warranty Claim from You (i) within two (2) months after You discover such Product Defect (or should have discovered it, if such Product Defect was obvious) and (ii) before the end of the Warranty Period for Product Defects applicable to the Defective Product, then Monster will provide You with one of the following remedies: Monster will (1) repair or, at Monster's sole discretion, replace the Defective Product, or (2) refund to You the purchase price You paid to Monster or the Authorized Dealer for the Defective Product if repair or replacement is not commercially practicable or cannot be
timely made. NOTE: TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW, MONSTER DOES NOT ASSUME ANY LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES UNDER THIS LIMITED WARRANTY.
GENERAL PROVISIONS
CHOICE OF LAW/JURISDICTION. This Limited Warranty and any disputes arising out of or in connection with this Limited Warranty ("Disputes") shall be governed by the laws of the jurisdiction where You bought the Product.
OTHER RIGHTS. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION, AND WHICH SHALL NOT BE AFFECTED BY THIS LIMITED WARRANTY.* THIS WARRANTY EXTENDS ONLY TO YOU AND CANNOT BE TRANSFERRED OR ASSIGNED. If any provision of this Limited Warranty is unlawful, void or unenforceable, that provision shall be deemed severable and shall not affect any remaining provisions. In case of any inconsistency between the English and other versions of this Limited Warranty, the English version shall prevail.
REGISTRATION. Please register Your Product at www.MonsterProducts.com. Failure to register will not diminish Your warranty rights.
SPECIFICATIONS TABLE
| Product Model Warranty Period for headphone | |
| Product that accompanies this warranty statement | One (1) year for product sold in North America, South America and Asia PacificTwo (2) years for product sold in Europe |
FORMAL WARRANTY CLAIM
HOW TO MAKE A CLAIM. In the event of a Product Defect, You must follow these instructions: (1) Call Monster within two (2) months after You discover a Product Defect (or should have discovered it, if such Product Defect was obvious); (2) Give a detailed explanation of how the damage occurred; (3) Obtain a Return Authorization Number; (4) Return the Product, shipping prepaid by You (to be refunded if You are entitled to a remedy under the Scope of this Limited Warranty), to Monster for verification of damage, along with a copy of Your original sales receipt or proof of purchase (invoice or packing slip) for such Product, the completed claim form, and printed Return Authorization Number on the outside of the return package (the claim form will include instructions for return).
TELEPHONE NUMBERS. If You bought the Product in the United States (1-877-800-8989), Latin America (Mexico 011-882-800-8989), or Asia Pacific (China 400-820-8973), contact Monster, Inc. via postal service at 455 Valley Drive, Brisbane, CA 94005 (PLEASE NOTE
THAT MONSTER DOES NOT ACCEPT PRODUCTS SHIPPED TO THIS ADDRESS—FOLLOW INSTRUCTIONS IN "HOW TO MAKE A CLAIM" ABOVE). If You bought the Product in Australia, contact Monster's agent, Convoy International Pty Ltd (02 9700 0111), Unit 7, 1801 Botany Rd, Banksmeadow, NSW 2019 Australia. If You bought the Product anywhere else, contact Monster Cable International Ltd., Ballymaley Business Park, Gort Road, Ennis, Co. Clare, Ireland. You can use one of the following telephone numbers: Canada 866-348-4171, Ireland 353 65 68 69 354, Austria 0800296482, Belgium 0800-79201, Czech Republic 800-142471, Denmark 8088-2128, Finland 800-112768, France 0800-918201, Germany 0800-1819388, Greece 00800-353-12008, Italy 800-871-479, Netherlands 0800-0228919, Norway 800-10906, Russia 810-800-20051353, Spain 900-982-909, Sweden 020-792650, Switzerland 0800834659, United Kingdom 0800-0569520.
FURTHER PROCEEDINGS. Monster will determine whether a Product Defect existed. Monster may, at its discretion, direct You to obtain a repair estimate at a service center. If a repair estimate is required, You will be instructed on how to properly submit the estimate and the resulting invoice to Monster for payment. Any fees for repairs may be negotiated by Monster.
TIMING. If You bring a Formal Warranty Claim and fully comply with all terms and conditions of this Limited Warranty, Monster will use its best efforts to provide You with a remedy within thirty (30) days after receipt of Your Formal Warranty Claim (if You reside in the United States - forty-five (45) days if You reside elsewhere), unless obstacles outside Monster's control delay the process.
* Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Ver.121912 - GLOBAL ©2015 Monster, LLC
