USER MANUAL iSport Freedom Wireless MONSTER

MONSTER® iSport®

FREEDOM

EN

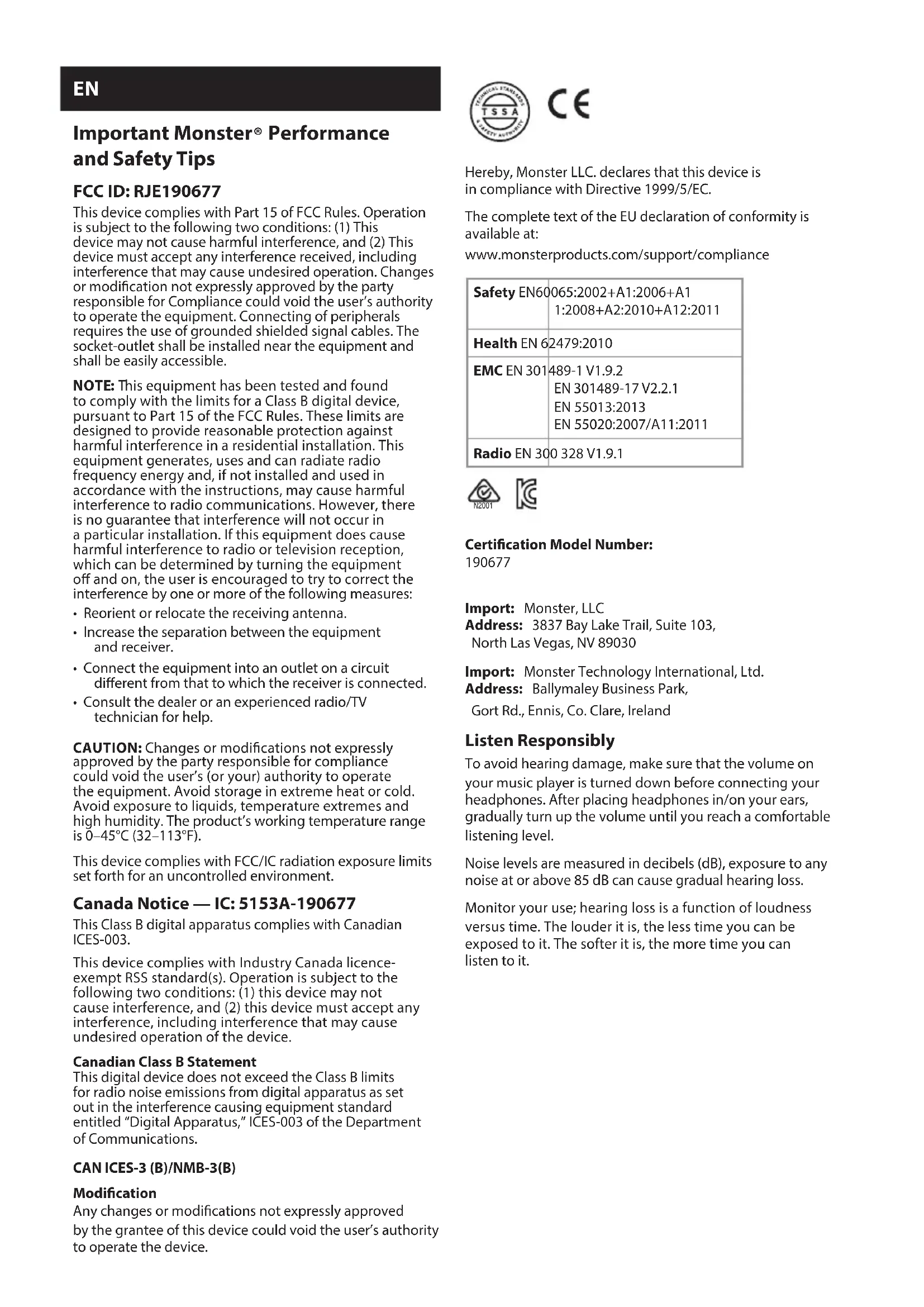

Important Monster® Performance and Safety Tips

FCC ID: RJE190677

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modification not expressly approved by the party responsible for Compliance could void the user's authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables. The socket-outlet shall be installed near the equipment and shall be easily accessible.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's (or your) authority to operate the equipment. Avoid storage in extreme heat or cold. Avoid exposure to liquids, temperature extremes and high humidity. The product's working temperature range is 0–45°C (32–113°F).

This device complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment.

Canada Notice — IC: 5153A-190677

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Canadian Class B Statement

This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference causing equipment standard entitled "Digital Apparatus," ICES-003 of the Department of Communications.

CAN ICES-3 (B)/NMB-3(B)

Modification

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

CE

Hereby, Monster LLC. declares that this device is in compliance with Directive 1999/5/EC.

The complete text of the EU declaration of conformity is available at:

www.monsterproducts.com/support/compliance

Safety EN60	065:2002+A1:2006+A11:2008+A2:2010+A12:2011
Health EN 6	2479:2010
EMC EN 301	489-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011
Radio EN 300	328 V1.9.1

Certification Model Number:

190677

Import: Monster, LLC

Address: 3837 Bay Lake Trail, Suite 103,

North Las Vegas, NV 89030

Import: Monster Technology International, Ltd.

Address: Ballymaley Business Park,

Gort Rd., Ennis, Co. Clare, Ireland

Listen Responsibly

To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level.

Noise levels are measured in decibels (dB), exposure to any noise at or above 85 dB can cause gradual hearing loss.

Monitor your use; hearing loss is a function of loudness versus time. The louder it is, the less time you can be exposed to it. The softer it is, the more time you can listen to it.

This decibel (dB) table compares some common sounds and shows how they rank in potential harm to hearing.

SOUND NOISE	LEVEL (dB)	EFFECT
Whisper 30 Very quiet
Quiet Office 50–60 Comfortable	hearing levels are under 60 dB
Vacuum Cleaner, Hair Dryer	70 Intrusive; interferes with telephone conversations
Food Blender 85–90 85 dB is the level at which hearing damage (8 hrs.) begins
Garbage Truck, Cement Mixer	100 No more than 15 minutes of unprotected exposure recommended for sounds between 90–100 dB
Power Saw, Drill/ Jackhammer	110 Regular exposure to sound over 100 dB of more than 1 minute risks permanent hearing loss
Rock Concerts (varies)	110–140 Threshold of pain begins around 125 dB

Chart information obtained from www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

Get the most out of your equipment and enjoy great audio performance even at safe levels. Our headphones will allow you to hear more details at lower volume levels than ever before.

Learn how to establish a safe listening level and review other important safety guidelines from the Consumer Electronics Association at www.ce.org. Important information on how to prevent Noise-Induced Hearing Loss (NIHL) and a comprehensive list of which noises can cause damage can be found on the Deafness Research Foundation's website, www.drf.org.

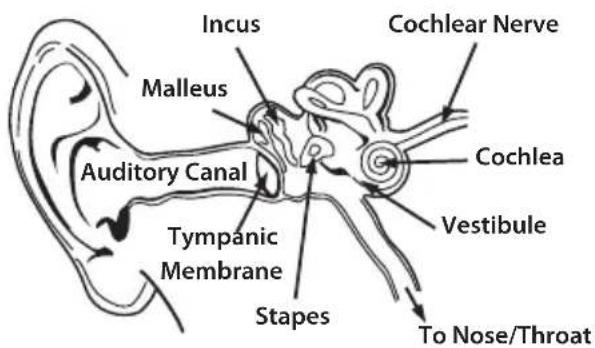

Physiology of the Ear and Hearing

Incus Cochlear Nerve Malleus Auditory Canal Cochlea Vestibule Tympanic Membrane Stapes To Nose/Throat

For additional information on what loud noises do to your ear and more on protecting the ear, reference www.abelard.org/hear/hear.php#loud-music

Use Responsibly

Do not use headphones when it's unsafe to do so—while operating a vehicle, riding a bike, crossing streets, or during any activity or in an environment where your full attention to your surroundings is required.

It's dangerous to drive while wearing headphones, and in many places, illegal because it decreases your chances of hearing life-saving sounds outside of your vehicle, such as another car's horn and emergency vehicle sirens.

Please avoid wearing your headphones while driving. Use one of Monster's FM transmitters to listen to your mobile media devices through your car stereo instead.

Cleaning

Wipe earcups with a soft cloth dampened with a mild soap solution.

Using Finger Tip Controls

The surface of the right ear cup is a touch sensitive control surface. The center section (the logo) serves as a play/pause control. Tap once for play/pause also for answer/end.

Swipe motion on the touch pad works as a volume control. Swipe up for more volume, swipe down for less volume. Tap action anywhere on the touch pad works as track forward/track back control. Tap two times for the next track. Tap three times for the previous track.

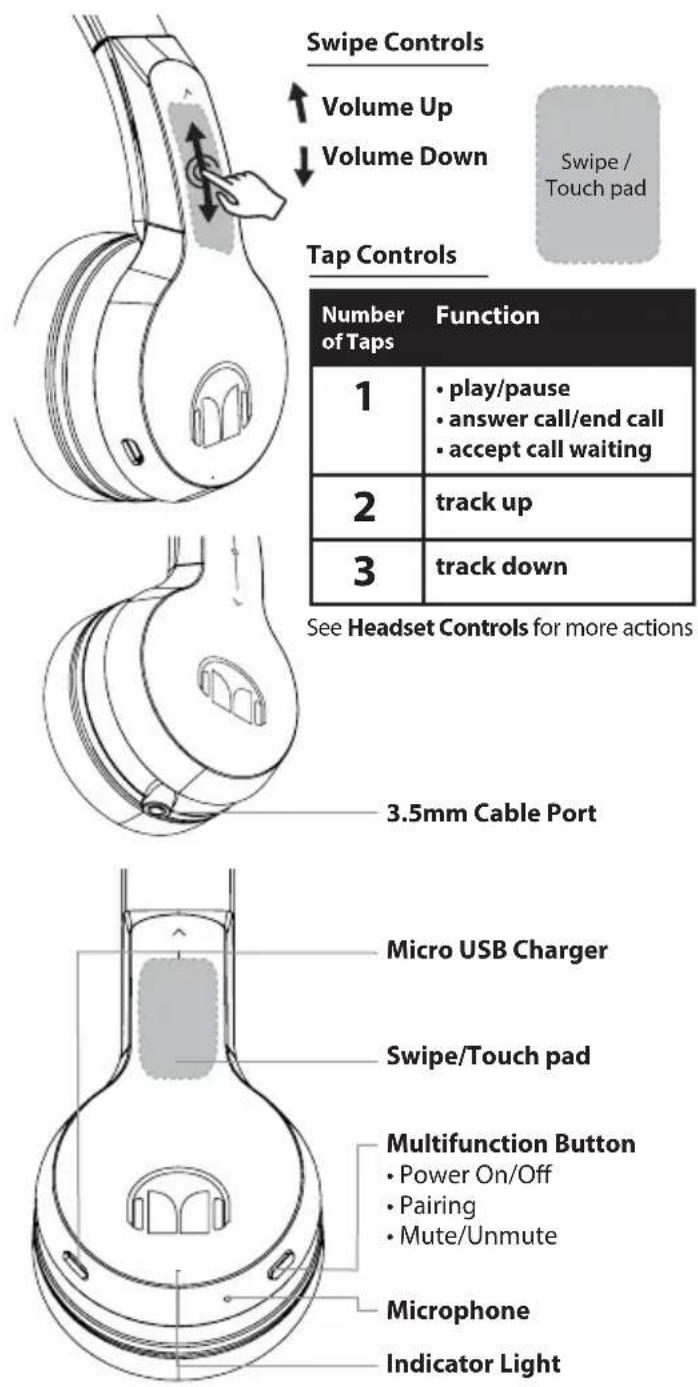

Key Features and Parts

The headset contains the following parts:

Swipe Controls Volume Up Volume Down Tap Controls Number of Taps Function 1 play/pause answer call/end call accept call waiting 2 track up 3 track down See Headset Controls for more actions 3.5mm Cable Port Micro USB Charger Swipe/Touch pad Multifunction Button Power On/Off Pairing Mute/Unmute Microphone Indicator Light

Power/Charging

Before using the headset wirelessly, you need to charge the battery and pair the headset with a compatible device.

The package includes a Micro USB cable that can be connected to your computer or other device made for USB charging. You can use a standard USB compatible charging device that plugs directly into a wall socket, or you can plug the USB cable directly into a laptop or PC. Plug the Micro USB end of the included USB cable into the USB micro port charger connector under the right earcup of the headphone. Plug the other end into a USB port on your computer or other devices made for USB charging. The indicator light will be red while charging. Once fully charged, the LED will be off. Charge time is 2 hours on an empty battery. The fully charged battery has power for up to 20 hours talking and/or music time. In this mode you can listen to your headphones via Bluetooth wireless communication or through the 3.5mm audio in.

Pairing

1. Ensure that your phone or music player is switched on.
2. To pair the headset if it has not been previously paired with a device, switch on the headset, it will enter the pairing mode automatically and the blue and red indicator light starts to flash quickly. The headset is ready to pair with your device.
3. To pair the headset if it has been previously paired with another device, ensure that the headset is switched off, and press and hold the multifunction key (for about five seconds) until the blue and red indicator light starts to flash quickly.
4. Activate the Bluetooth feature on your phone or music player, and set it to search for Bluetooth devices.
5. Select "FREEDOM" from the list of found devices on your phone or music player.
6. If necessary, enter passcode 0000 to pair and connect the headset to your device.

Using FREEDOM On-Ear Without Battery Power

If your FREEDOM On-Ear headphone is not charged, Bluetooth wireless communication will not be available.

No Batteries Required

You can use your FREEDOM On-Ear headphone as a wired headphone to save batteries or if your batteries are not charged. Simply connect one end of the cable to the bottom of the earcup and the other to your wireless capable or wired MP3 player. By inserting an audio cable in this way, FREEDOM On-Ear wireless functionality is automatically disabled.

Disconnect the Headphone

To disconnect the headset from your device, switch off the headset, or disconnect it in the Bluetooth menu of your device.

Reconnect the Headphone

To connect the headset to the phone or music player that you last used with it, switch on the headset or make the connection in the Bluetooth menu of your device.

Headset Controls

ACTION ON TOUCH PAD	FUNCTION
Hold for 2 sec.	voice dial when no call is in progress
tap x1	answer call/end call
Hold for 2 sec.	reject call
*tap x1	accept call waiting
*tap x2	accept call on hold
*Hold for 2 sec.	reject call waiting
*Hold for 2 sec.	switch call between phone and headset
Hold Touch Pad and Multifunction button for 2 sec.	redial
*Double press Multifunction Button	mute/unmute microphone

*Action during call.

Listen to Music

To listen to music, connect the headset to a compatible music player that supports A2DP Bluetooth profile. The available music functions depend on your music player.

To play a song, select the song in the music player and press the play/pause key on the FREE DOM On-Ear Headset. To pause or resume playing a song, press the play/pause key.

If you receive or make a call while listening to music, the music is paused until the call ends.

INDICATOR LIGHT DESCRIPTION
Red flash x2 Connectable
Blue and red alternate flash	Connectable/Discoverable
Blue flash x1 · Connected	Outgoing Call EstablishIncoming Call EstablishActive CallTWC Call WaitingActive Call no SCOStraming A2DP
Red flash x1 · TWC Call On HoldTWC Multi Party Call

GUIDE TO INDICATOR LIGHTS

Headphones "Break-in"

Break-in time for headphones? We're kidding, right? No we're not. Like any high performance product, whether it's cars or headphones, they're mechanical devices that settle in after use. Your new headphones will sound incredible out of the box, but will "mellow" out after use and sound even better. We recommend playing them for 8 hours. After 20 hours of playing, they should be fully broken in. Enjoy.

Battery

If applicable, battery must be recycled or disposed of properly.

Information to consumers in application of EU WEEE Directive 96/2002

This product is subject to European Union regulations that promote the re-use and recycling of used electrical and electronic equipment. This product required the extraction and use of natural resources and may contain hazardous substances. The symbol above, on the product or on its packaging, indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the store from which you purchased the product. For more information about Monster products, please visit us at: www.MonsterProducts.com.

Monster® Service

Have a Problem with Your Headphones? Our Customer Service Team is here for you.

Please don't return headphones to your retailer, CALL our customer service center, 1-877-800-8989 for United States or Latin America, or visit us at www.MonsterProducts.com/service/. For Canadian, European, and Asian Pacific customer service numbers, please see the "Telephone Numbers" section in the following "Limited Warranty for Consumers". Our team of experts will assist you with all questions and technical difficulties.

We stand behind our products. Monster ^® headphones deliver the best in sound, quality, and design.

Thank you for your purchase. Visit MonsterProducts.com/headphones to order headphone replacement parts, accessories, and cables.

Download the complete manual at:

www.MonsterProducts.com

LIMITED WARRANTY FOR CONSUMERS

Monster, LLC, 3837 Bay Lake Trail, Suite 103, North Las Vegas, NV 89030, USA, [PLEASE NOTE THAT MONSTER DOES NOT ACCEPT PRODUCTS SHIPPED TO THIS ADDRESS—FOLLOW INSTRUCTIONS IN "HOW TO MAKE A CLAIM" BELOW] [phone] ("Monster") extends You this Limited Warranty. Statutory or common law may provide You with additional rights or remedies, which shall not be affected by this Limited Warranty.

DEFINITIONS

"Adequate Use" means personal use of the Product (i) for private (as opposed to commercial) purposes, (ii) in conformance with all applicable law, code or regulations (including without limitation building and/or electrical codes), (iii) in accordance with manufacturer recommendations and/or instructions in the materials and documentation that accompany the Product, and (iv) if applicable, with proper electrical grounding.
"Authorized Dealer" means any distributor, reseller or retailer that (i) was duly authorized to do business and permitted to sell You the Product under the laws of the jurisdiction where You bought the Product, (ii) purchased the Product directly from Monster or from a party with a contractual relationship with Monster and in accordance with the authorized terms and conditions of such agreement, and (iii) sold You the Product new and in its original packaging.
"Formal Warranty Claim" means a claim made in accordance with the section

"Formal Warranty Claims" herein.

"Product" means a Product (i) that is listed in the Specifications Table below, (ii) that You bought from an Authorized Dealer new and in its original packaging, and (iii) whose serial number, if any, has not been removed, altered, or defaced.

"Product Defect" or "Defective Product" means an inadequacy of the Product that existed at the time when You received the Product from an Authorized Dealer and that causes a failure of the Product to perform in accordance with Monster's documentation accompanying the Product, unless such failure has been caused completely or partly by (a) any use other than Adequate Use, (b) transportation, neglect, misuse or abuse by anyone other than Monster's employees; (c) alteration, tampering or modification of the product by anyone other than a Monster employee; (d) accident (other than a malfunction that would otherwise qualify as a Product Defect); (e) maintenance or service of the Product by anyone other than a Monster employee; (f) exposure of the Product to heat, bright light, sun, liquids, sand or other contaminants; or (g) acts outside the control of Monster, including without limitation acts of God, fire, storms, earthquake or flood.

"Warranty Period" means the time period during which Monster must have received Your Formal Warranty Claim. The different Warranty Periods related to Product Defects are defined in the Specifications Table below. The Warranty Period commences on the date when You purchased or received (whichever occurs later) the Product from an Authorized Dealer as evidenced by the Authorized Dealer's invoice, sales receipt or packing slip. If You do not have written proof of the date of purchase or receipt, then the Warranty Period commences three (3) months after the date when the Product left Monster or its factory as evidenced by Monster's records. The Warranty Period ends after the time defined in the Specifications Table has expired or after You have transferred ownership of the Product, whichever occurs earlier. Also, You must call Monster and obtain a Return Authorization Number (as described under "How to Make a Claim") within two (2) months after You discover a Product Defect (or should have discovered it, if such Product Defect was obvious).

"You" means the first individual person that purchased the Product in its original packaging from an Authorized Dealer. This Limited Warranty does not apply to persons or entities that bought the Product (i) in used or unpackaged form, (ii) for resale, lease or other commercial use, or (iii) from someone other than an Authorized Dealer.

SCOPE OF THIS LIMITED WARRANTY

PRODUCTS. If a Product contained a Product Defect when You bought it from an Authorized Dealer, and Monster receives a Formal Warranty Claim from You (i) within two (2) months after You discover such Product Defect (or should have discovered it, if such Product Defect was obvious) and (ii) before the end of the Warranty Period for Product Defects applicable to the Defective Product, then Monster will provide You with one of the following remedies: Monster will (1) repair or, at Monster's sole discretion, replace the Defective Product, or (2) refund to You the purchase price You paid to Monster or the Authorized Dealer for the Defective Product if repair or replacement is not commercially practicable or cannot be timely made. NOTE: TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW, MONSTER DOES NOT ASSUME ANY LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES UNDER THIS LIMITED WARRANTY.

GENERAL PROVISIONS

CHOICE OF LAW/JURISDICTION. This Limited Warranty and any disputes arising out of or in connection with this Limited Warranty ("Disputes") shall be governed by the laws of the jurisdiction where You bought the Product.

OTHER RIGHTS. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION, AND WHICH SHALL NOT BE AFFECTED BY THIS LIMITED WARRANTY.* THIS WARRANTY EXTENDS ONLY TO YOU AND CANNOT BE TRANSFERRED OR ASSIGNED. If any provision of this Limited Warranty is unlawful, void or unenforceable, that provision shall be deemed severable and shall not affect any remaining provisions. In case of any inconsistency between the English and other versions of this Limited Warranty, the English version shall prevail.

REGISTRATION. Please register Your Product at www.MonsterProducts.com. Failure to register will not diminish Your warranty rights.

SPECIFICATIONS TABLE

Product Model Warranty Period for headphone
Product that accompanies this warranty statement	One (1) year for product sold in North America, South America and Asia PacificTwo (2) years for product sold in Europe

FORMAL WARRANTY CLAIM

HOW TO MAKE A CLAIM. In the event of a Product Defect, You must follow these instructions: (1) Call Monster within two (2) months after You discover a Product Defect (or should have discovered it, if such Product Defect was obvious); (2) Give a detailed explanation of how the damage occurred; (3) Obtain a Return Authorization Number; (4) Return the Product, shipping prepaid by You (to be refunded if You are entitled to a remedy under the Scope of this Limited Warranty), to Monster for verification of damage, along with a copy of Your original sales receipt or proof of purchase (invoice or packing slip) for such Product, the completed claim form, and printed Return Authorization Number on the outside of the return package (the claim form

will include instructions for return).

TELEPHONE NUMBERS. If You bought the Product in the United States (1-877-800-8989), Latin America (Mexico 011-882-800-8989), or Asia Pacific (China 400-820-8973), contact Monster, LLC via postal service at 455 Valley Drive, Brisbane, CA 94005 (PLEASE NOTE THAT MONSTER DOES NOT ACCEPT PRODUCTS SHIPPED TO THIS ADDRESS - FOLLOW INSTRUCTIONS IN "HOW TO MAKE A CLAIM" ABOVE). If You bought the Product in Australia, contact Monster's agent, Convoy International Pty Ltd (02 9700 0111), Unit 7, 1801 Botany Rd, Banksmeadow, NSW 2019 Australia. If You bought the Product anywhere else, contact Monster Technology International Ltd., Ballymaley Business Park, Gort Road, Ennis, Co. Clare, Ireland. You can use one of the following telephone numbers:

United States 1-877-800-8989

Canada 866-348-4171

Mexico 011-882-800-8989

China 400-820-8973

Ireland 353 65 68 69 354

Austria 0800296482

Belgium 0800-79201

Denmark 8088-2128

Finland 800-112768

France 0800-918201

Germany 0800-1819388

Greece 00800-353-12008

Italy 800-871-479

Netherlands 0800-0228919

Norway 800-10906

Russia 810-800-20051353

Spain 900-982-909

Sweden 020-792650

Switzerland 0800834659

Czech Republic 800-142471

United Kingdom 0800-0569520

FURTHER PROCEEDINGS. Monster will determine whether a Product Defect existed. Monster may, at its discretion, direct You to obtain a repair estimate at a service center. If a repair estimate is required, You will be instructed on how to properly submit the estimate and the resulting invoice to Monster for payment. Any fees for repairs may be negotiated by Monster.

TIMING. If You bring a Formal Warranty Claim and fully comply with all terms and conditions of this Limited Warranty, Monster will use its best efforts to provide You with a remedy within thirty (30) days after receipt of Your Formal Warranty Claim (if You reside in the United States - forty-five (45) days if You reside elsewhere), unless obstacles outside Monster's control delay the process.

* Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Heed all warnings

Keep and follow all instructions.

DO NOT use this apparatus near water

Clean only with dry cloth

DO NOT disassemble or replace the battery. If you suspect there is something wrong with the battery, please carry the unit to the service center for help. CAUTION: RISK OF EXPLOSION IF BATTRY IS REPLACED BY AN UNCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS The battery should not be disposed together with other waste. The battery has to be disposed at an authorized place for recycling of electrical and electronic appliances.

By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way. Unplug this apparatus during lightning storms or when unused for long periods of time. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat Only use accessories specified by the manufacturer. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FR

www.monsterproducts.com/support/compliance

Sécurité EN	60065:2002+A1:2006+A11:2008+A2:2010+A12:2011
Santé EN 62	479:2010
CEM EN 301	489-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011
Radio EN 300	328 V1.9.1

Adresse: 3837 Bay Lake Trail, Suite 103, North Las Vegas, NV 89030

Importateur : Monster Technology International, Ltd.

Adresse : Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland

Line drawing of a CD or audio headset with a hand pressing a button on the side (no text or symbols)

Ver. 121912 - MONDIAL ©2003-2016 Monster, LLC

DE

www.monsterproducts.com/support/compliance

Sicherheit EN60065:2002+A1:2006+A11:2008+A2:2010+A12:2011

Gesundheit EN 62479:2010

EMV EN 301489-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011

Funk EN 300 328 V1.9.1

Adresse Monster Technology International, Ltd. importieren: Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland

Diagram of a pair of headphones with a hand adjusting the seat (no text or symbols present)

Ver.121912 – GLOBAL ©2016 Monster, LLC

ES

www.monsterproducts.com/support/compliance

Seguridad EN	60065:2002+A1:2006+A11:2008+A2:2010+A12:2011
Salud EN 62479	2010
CEM EN 301489	-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011
Radio EN 300	328 V1.9.1

Line drawing of a pair of headphones with a hand adjusting the seat (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

©2003-2016 Monster, LLC

IT

Avviso Canada – IC: 5153A-190677

www.monsterproducts.com/support/compliance

Sicurezza EN60065:2002+A1:2006+A11:2008+A2:2010+A12:2011

Salute EN 62479:2010

EMC EN 301489-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011

Radio EN 300 328 V1.9.1

Indirizzo: Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland

©2003-2016 Monster, LLC

www.monsterproducts.com/support/compliance

Segurança EN	60065:2002+A1:2006+A11:2008+A2:2010+A12:2011
Saúde EN 62479:2010
EMC EN 301489-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011
Rádio EN 300328 V1.9.1

Morada: Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland

A informação do quadro em www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

©2003–2016 Monster, LLC

Monster 重要性能和安全提示

www.monsterproducts.com/support/compliance

Jù cǐ, guàiwù LLC. Shēngmíng cǐ shèbèi shì

fúhé zhǐ lìng wǔ shí sān fēn zhī èr qiān yī shí sì/ EU.

Fúhé ōuméng shēngmíng de quánwén, qǐng fǎngwèn:

Www.Monsterproducts.Com/support/compliance

安全	EN60065:2002+A1:2006+A11:2008+A2:2010+A12:2011
健康	EN 62479:2010
电磁兼容性	EN 301489-1 V1.9.2EN 301489-17 V2.2.1EN 55013:2013EN 55020:2007/A11:2011
无线电	EN 300 328 V1.9.1

认证型号：

190677 (Black Platinum)

进口：Monster, LLC

地址：3837 Bay Lake Trail, Suite 103,

North Las Vegas, NV 89030

进口: Monster Technology International, Ltd.

地址： Ballymaley Business Park,

Gort Rd., Ennis, Co. Clare, Ireland

为您的听力负责

图表信息从如下网站获得：www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

Diagram of a pair of headphones with a hand pressing a button on the side (no text or symbols present)

滑动控制

↑ 音量增大

↓ 音量降低

轻触控制

滑动/触控板

www.monsterproducts.com/support/compliance

李金 Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland

청취 시 주의 사항

Line drawing of a CD or audio headset with a hand pressing a button on the side (no text or symbols)

스와이프 컨트롤

스와이프/ 터치 패드

탭 칸트롤

탭 수 기능

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

마이크로 USB 충진기/오디오 포트

스와이프/티치 패드

다기능 버튼

- 전원 온/오프

- 떼이링

- 뮤트/언뷰트

마이크

표시등

전원/충전

www.monsterproducts.com/support/compliance

住所 Ballymaley Business Park, Gort Rd., Ennis, Co. Clare, Ireland

周囲に配慮しましょう

Line drawing of a CD/DVD head with a hand pressing a button on the shoulder (no text or symbols)

スワイブコントロール

音量を上げる

音量を下げる

タップコントロール

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

マイクロUSB充電ポー

ト/オーディオポート

スワイプ/タッチパッド

多機能ボタン

· 電源ON/OFF

・ペアリング

· 消音/消音解除

マイクロフォン

表示灯

電源/充電

Monster Technology International, Ltd

Monster, the M Monster logo, iSport, Because the Music Matters, the product and packaging are trademarks or registered trademarks of Monster, Inc. or its subsidiaries in the US and other countries. The design is Patent Pending. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Monster is under license. The aptX® mark and the aptX logo are trade marks of Qualcomm Technologies International, Ltd. (formerly CSRplc) or one of its affiliated companies and may be registered in one or more jurisdictions. Product may vary from images shown. Limited warranty inside. Monster cares about our customers and the environment. We strive to minimize materials in our products and added the convenience of finding everything you need, whenever you need it at www.monsterproducts.com. All rights reserved. All other trademarks and trade names are those of their respective owners.
