USER MANUAL Hitz WP380 CREATIVE

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods.(Creative Technology Ltd, 31 International Business Park, #03-51. Creative Resource, Singapore 809921. Telphono: [phone] (standard international call charges apply))

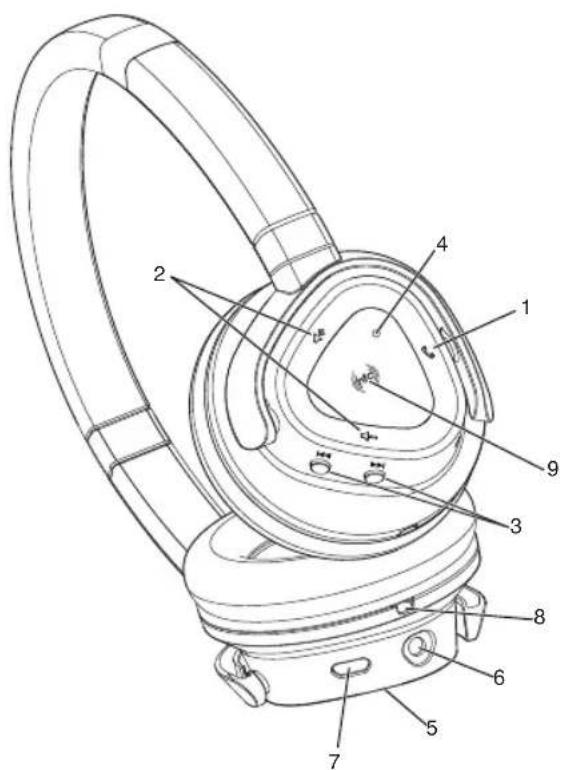

Technical diagram of a mechanical device with numbered components for identification

EN Quick Start Guide

FR Démarrage Rapide

Guida Quick Start

DE Schnellstart

ES Guía Rápida

NL Snel aan de slag

PT Início Rápido

DA Lynstart

SV Snabbstart

FI Pikaohje

NO Lynstart

PL Szybki start

RU Краткие указания

CS Krátky Úvod

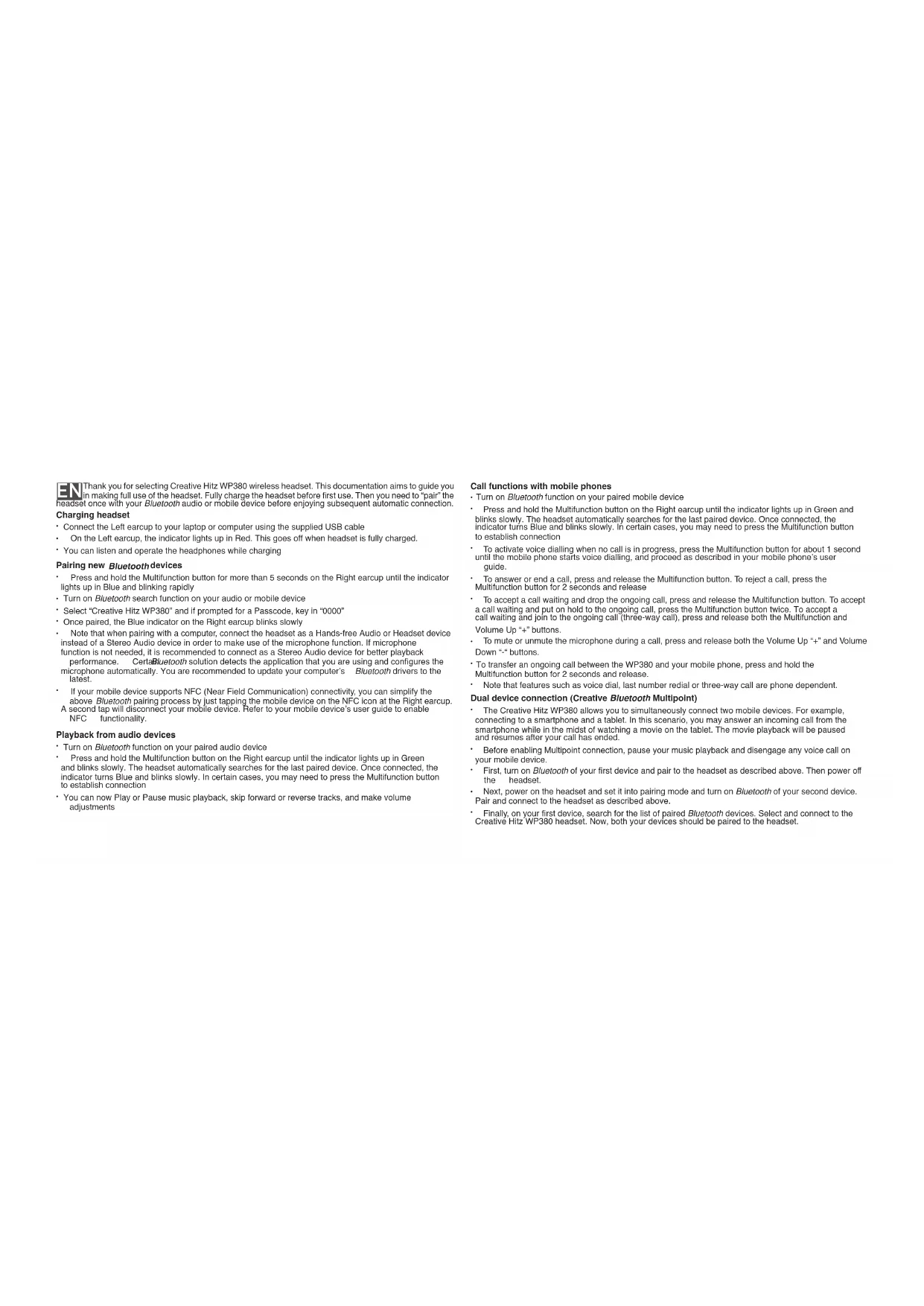

EN Thank you for selecting Creative Hitz WP380 wireless headset. This documentation aims to guide you in making full use of the headset. Fully charge the headset before first use. Then you need to "pair" the headset once with your Bluetooth audio or mobile device before enjoying subsequent automatic connection.

Charging headset

- Connect the Left earcup to your laptop or computer using the supplied USB cable

• On the Left earcup, the indicator lights up in Red. This goes off when headset is fully charged.

- You can listen and operate the headphones while charging

Pairing new Bluetooth devices

- Press and hold the Multifunction button for more than 5 seconds on the Right earcup until the indicator lights up in Blue and blinking rapidly

- Turn on Bluetooth search function on your audio or mobile device

- Select "Creative Hitz WP380" and if prompted for a Passcode, key in "0000"

• Once paired, the Blue indicator on the Right earcup blinks slowly

- Note that when pairing with a computer, connect the headset as a Hands-free Audio or Headset device instead of a Stereo Audio device in order to make use of the microphone function. If microphone function is not needed, it is recommended to connect as a Stereo Audio device for better playback performance. CertaBluetooth solution detects the application that you are using and configures the microphone automatically. You are recommended to update your computer's Bluetooth drivers to the latest.

- If your mobile device supports NFC (Near Field Communication) connectivity, you can simplify the above Bluetooth pairing process by just tapping the mobile device on the NFC icon at the Right earcup. A second tap will disconnect your mobile device. Refer to your mobile device's user guide to enable NFC functionality.

Playback from audio devices

• Turn on Bluetooth function on your paired audio device

- Press and hold the Multifunction button on the Right earcup until the indicator lights up in Green and blinks slowly. The headset automatically searches for the last paired device. Once connected, the indicator turns Blue and blinks slowly. In certain cases, you may need to press the Multifunction button to establish connection

- You can now Play or Pause music playback, skip forward or reverse tracks, and make volume adjustments

Call functions with mobile phones

- Turn on Bluetooth function on your paired mobile device

- Press and hold the Multifunction button on the Right earcup until the indicator lights up in Green and blinks slowly. The headset automatically searches for the last paired device. Once connected, the indicator turns Blue and blinks slowly. In certain cases, you may need to press the Multifunction button to establish connection

• To activate voice dialling when no call is in progress, press the Multifunction button for about 1 second until the mobile phone starts voice dialling, and proceed as described in your mobile phone's user guide.

• To answer or end a call, press and release the Multifunction button. To reject a call, press the Multifunction button for 2 seconds and release

• To accept a call waiting and drop the ongoing call, press and release the Multifunction button. To accept a call waiting and put on hold to the ongoing call, press the Multifunction button twice. To accept a call waiting and join to the ongoing call (three-way call), press and release both the Multifunction and Volume Up “+” buttons.

- To mute or unmute the microphone during a call, press and release both the Volume Up “+” and Volume Down “-” buttons.

• To transfer an ongoing call between the WP380 and your mobile phone, press and hold the Multifunction button for 2 seconds and release.

• Note that features such as voice dial, last number redial or three-way call are phone dependent.

Dual device connection (Creative Bluetooth Multipoint)

• The Creative Hitz WP380 allows you to simultaneously connect two mobile devices. For example, connecting to a smartphone and a tablet. In this scenario, you may answer an incoming call from the smartphone while in the midst of watching a movie on the tablet. The movie playback will be paused and resumes after your call has ended.

* Before enabling Multipoint connection, pause your music playback and disengage any voice call on your mobile device.

- First, turn on Bluetooth of your first device and pair to the headset as described above. Then power off the headset.

- Next, power on the headset and set it into pairing mode and turn on Bluetooth of your second device. Pair and connect to the headset as described above.

• Finally, on your first device, search for the list of paired Bluetooth devices. Select and connect to the Creative Hitz WP380 headset. Now, both your devices should be paired to the headset.

- Note that using NFC will simplify the above pairing process. Just tap your devices consecutively to the headset to connect both in Multipoint.

Creative ShareMe™ connection

• The Creative Hitz WP380 allows you to share your entertainment with another person wearing another set of Creative Hitz WP380 or Creative wireless headset featuring Creative ShareMe™ connectivity.
• Before enabling Creative ShareMe connection, pause your music playback and disengage any voice call on your mobile device.
• Place the two headsets to be paired close together and power them on.
• Simultaneously press the Volume Up “+” and Volume Down “-” buttons (Set A) on the first headset until the indicator turns Green and blinks rapidly; and simultaneously press the “Next” and “Previous” buttons (Set B) on the second headset until the indicator turns Green and blinks rapidly.
• Note that if the first headset to be paired is using Set A buttons, then the second headset will need to use Set B buttons; or vice versa.
  • Once the two headsets are paired, their indicators will blink in a combination of blue and green colors.
  • To conserve battery life, ShareMe connection will end in 15 minutes if no audio is streamed from the device.
  • Note that in Creative ShareMe connection, the paired headset is considered as one of the Multipoint device.

Voice command and Indicators

• The Creative Hitz WP380 provides audible indicators on headset connectivity or battery level status. Press the Multifunction button twice to find out the battery level status (except during voice calls).
  • Note that this is currently available in English only.
  • The headset battery level indicator will be displayed on an iPhone ^5 or iPad ^6 once paired and connected (device dependent).

Clear or reset headset

• Press and hold the Volume Down "-" and Multifunction buttons for more than 6 seconds to clear the paired Bluetooth devices
  • If the headset malfunctions, reset it by supplying USB power, then press the Volume Up “+” and Multifunction buttons for about 1 second

Automatic shutdown

- Once the headset is powered on, if it is unable to connect to the last paired device or failed to pair with a new device within 5 minutes, the headset will automatically shut down.

List of button, indicator and connector / port functions

Button Function
1. Multifunction (Power / Pair / Call and Play / Pause)	Power: Press and hold for 2 seconds to power on the headset. Press and hold for 3 seconds to power off the headset.Pair: In off mode, press and hold for more than 5 seconds to activate Pairing mode.Call: Press and hold for 1 second to activate voice dial. Press and release to answer or end an incoming call. Press and hold for 2 seconds to reject a call during an incoming call. Press twice to accept a call waiting and put on hold the ongoing call. Press together with '+' button and release to initiate a three-way call.Music playback: Press to play. Press again to pause playback.
2. Volume Up / Volume Down◀+ / ◀-	Press '+' to increase or press '-' to decrease volume. A beep tone is emitted at maximum volume level. Press and release both '+' and '-' to mute or unmute the microphone during a call.(not available in ShareMe).
3. Next, Forward / Previous, Backward▶▶/ ◀◀	Press to change to the next or previous track. Press and hold to scroll forward or backward a track (device dependent).
Light Indicator	Function
4. Right earcup indicator	Green and blinks slowly: ready to connect a device.Green and blinks rapidly: attempts to connect to a Creative ShareMe headset.Blue and blinks slowly: connected to a paired device.Blue and blinks rapidly: in pairing mode and is ready to pair with a new device.Blue and green blinks simultaneously: in an active Creative ShareMe connection.Red and flashes once: powering off the headset.Red and blinks slowly: low battery level, charge the headset soonest.
5. Left earcup indicator	Red: charging headset. This goes off when headset is fully charged.
Connector / Port	Function
6. Micro-USB charging connector	Use the supplied USB cable for charging the headset via a laptop or computer.
7. Audio Input connector	Use the supplied audio cable for a wired connection to non-wireless devices or when battery power runs out. Connect the smaller 2.5mm diameter plug to the headset (align the triangular-shaped connector properly) and the larger 3.5mm diameter plug to your audio device.
8. Invisible Microphone	Noise suppression microphone for crystal clear communications.
9. NFC (Near Field Communication) pad	Tap your NFC-enabled mobile devices here to establish Bluetooth pairing and connection. Tap again to end connection.

Technical Specifications:

• Driver: 34mm Neodymium magnet

• Frequency Response: 18Hz \~ 22kHz

• Impedance: 32ohms

• Wireless Technology: Bluetooth v3.0

- Bluetooth Profiles: A2DP, AVRCP, HSP, HFP (HD Voice ready)

* Audio Codec: aptX, AAC, FastStream*, mSBC, SBC

• Content Protection: SCMS-T

• Operating Frequency: 2402 \~ 2480 MHz

• Operating Range: Up to 10m / 33ft

• Power Supply: Rechargeable Lithium Ion battery, 3.7V, 430mAh

• Charge via USB: 5VDC, 500mA

• Charge Time / Play Time / Talk Time: 2 hours / 12 hours / 14 hours

- Net Weight: 150g / 5.3oz

* FastStream allows low latency wireless bi-directional audio streaming and voice communication with Creative BT-W1 Bluetooth USB transceiver HD Voice requires supported smartphones and mobile networks.

Refer to the following information to use your product safely, and to reduce the chance of electric shock,

short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling may void the

warranty for your product. For more information, read the warranty available with your product.

• Do not dismantle or attempt to repair your product.

• Refer all servicing to authorized repair agents.

• Do not expose your product to temperatures outside the range of 0°C to 45°C (32°F to 113°F).

• Do not pierce, crush or set fire to your product.

- Keep your product away from strong magnetic objects.

• Do not subject your product to excessive force or impact.

• Do not expose your product to water or moisture. If your product is moisture-resistant, take care not

to immerse your product in water or expose it to rain.

Bluetooth

• The short wave radio frequency signals of a Bluetooth device may impair the operation of other electronic and medical devices

• Switch off the device where it is prohibited. Do not use the device in medical facilities, aircraft, refueling points, close to automatic doors, automatic fire alarms or other automatically controlled devices.
• Keep this device at least 20 cm from pacemakers and other medical devices. Radio waves may impair the operation of pacemakers and other medical devices

Embedded Battery

• Do not attempt to remove the embedded battery. The product must be disposed of according to local environmental regulations. To replace the battery, return your product to your regional support office. For product service information, go to www.creative.com.
• Do not expose to excessive heat such as sunlight fire or the like.

CAUTION: Risk of explosion if battery is replaced by incorrect types.

Earphones

• When a conductive apparatus, such as earphones, is used in close proximity with a CRT television or CRT monitor, the latter may emit an electrostatic discharge. This electrostatic discharge can be felt as a static shock. While this static shock is usually harmless, it is good practice to avoid close contact with CRT devices when using earphones.
• Do not listen to audio on your earbuds or headphones at high volume for prolonged periods of time as hearing loss may result. For users in the United States, go to www.hei.org for more information.
• Do not listen to your audio device at high volume when driving, cycling or crossing the road,
  especially in heavy traffic or any other traffic condition where such use will hinder safe travel on the roads. We recommend that consumers be extremely cautious when using this device on the road

Avoid Hearing Damage

Permanent hearing loss may occur if the headphone is used at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use the headphone at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

FR

Safety And Regulatory Information

The following sections contain notices for various countries:

Caution

This product is intended for use with FCC/CE certified computer equipment. Please check the equipment operating/installation manual and/or with the equipment manufacturer to verify/confirm if your equipment is suitable prior to the installation or use of the product.

Notice for USA

FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received.

including interference that may cause undesired operation.

Caution

To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be installed with computer equipment certified to comply with Class B limits.

All cables used to connect to the computer and peripherals must be shielded and grounded.

Operation with non-certified computers or non-shielded cables may results in interference to radio or television reception.

Modifi cation

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

Federal Communication Commission (FCC) Radiation Exposure Statement

Power is so low that no RF exposure calculation is needed.

Notice for Canada

This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.

This device complies with Industry Canada licence-exempt RSS standard.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesirable

operation.

Canadian Class B Statement

This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of the Department of Communications.

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

Notice for Australia / New Zealand

This product complies with the requirements of the ACMA

Radiocommunications (Electromagnetic Compatibility) Standard 2008

NOTICE FOR SINGAPORE

Complies with

IDA Standards

DB00148

NOTICE FOR TURKEY

EEE YÖNETMELİĞINE UYGUNDUR

NOTICE FOR KOREA

SAFETY INFORMATION

B금 기기금 기기

(For Home Use Broadcasting & Communication Equipment)

This equipment is home use (Class B) electromagnetic wave suitability equipment and to be used mainly at home and it can

be used in all areas.

English

European Compliance

This product conforms to the following:

EMC Directive 2004/108/EC. RoHS Directive 2011/65/EU.

Mains operated product for the European market comply with Low Voltage Directive 2006/95/EC and Commission Regulation(s) Implementing Directive (2009/125/EC). Communication / RF wireless products for the European market comply with R&TTE

Directive1999/5/EC.

CAUTION: To comply with the Europe CE requirement, this device must be installed with CE certified computer equipment which meet with Class B limits. All cables used to connect this device must be shielded, grounded and no longer than 3m in length. Operation with non-certified computers or incorrect cables may result in interference to other devices or undesired effects to the product.

MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Limited or one of its affiliated companies could void the user's warranty and guarantee rights.

Français

DECLARATION OF CONFORMITY

According to R&TTE Directive (1999/5/EC)

Manufacturer's Name:

Creative

Technology

Ltd

Manufacturer's Address: 31, International Business Park

03-01

Creative

Resource

Sin

Product Name: Creative Hitz WP380

Model Number: EF0580

Intended Use: Indoor and outdoor usage

Restrictive use: Nil

To which this declaration relates are in conformity with the following standard(s):

EMC: Class B

EN 55022:2010 + AC:2011

EN 55024:2010

EN 61000-3-2:2006 +A1:2009 + A2:2009

EN 61000-3-3:2008

EN 301 489-1 V1.9.2:2011

EN 301 489-17 V2.2.1:2012

Safety:

EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011

EN 62479:2010

Radio:

EN 300 328 V1.7.1:2006

RoHS:

EN 50581:2012

Supplementary Information:

•This product does not fall under the ErP scope.

Technical documentation for this product(s) is retained at the following address:

Company Name

Creative Technology Ltd

Company Address:

31, International Business Park

03-01

Singapore

Creative

609921

Resource

UK: Hereby, Creative Technology Ltd. declares that this Bluetooth headset is in compliance with the essential requirements and other relevant provisions of Directive 1999/S/EC

EN Batteries Directive 2006/66/EC

FOR INTEGRATED BATTERY

This product contains a Lithium ion/polymer battery that should only be removed by an authorized recycling centre. By recycling this product at your local authorized recycling centre or the place of purchase, the battery will be removed and recycled separately.

NO WEEE-symbol (Waste Electrical and Electronic Equipment)

Ukraine RoHS Statement

Vietnam RoHS Statement

This product is in compliance with Circular 30/2011/TTBCT of the Ministry of Trade of the Socialist Republic of Vietnam ("Circular"), it does not contain the following substances in concentration greater than the Maximum Limit value as specified in the Circular.

Substance Maximum Limit (ppm) 1, 2

* lead 1000

* mercury 1000

• cadmium 100

- hexavalent chromium 1000

* polybrominated biphenyls (PBB) 1000

* polybrominated diphenyl ethers (PBDE) 1000

Maximum Limit does not apply to applications exempted from the Circular.

^1 Maximum Limit refers to concentration by weight in homogeneous materials.

California Proposition 65 Statement

WARNING: Handling this product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

Explanatory Note:

California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition 65) requires special product labeling for products containing certain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Creative has chosen to provide a warming based on its knowledge about the presence of one or more listed chemicals without attempting to evaluate the level of exposure. With Creative's products, the exposure may be below the Proposition 65 level of concern, or could even be zero. However, out of an abundance of caution, Creative has elected to place the Proposition 65 warning on its products.

Model No.(型号): EF0580
