USER MANUAL CoolMatic CRX 140 WAECO

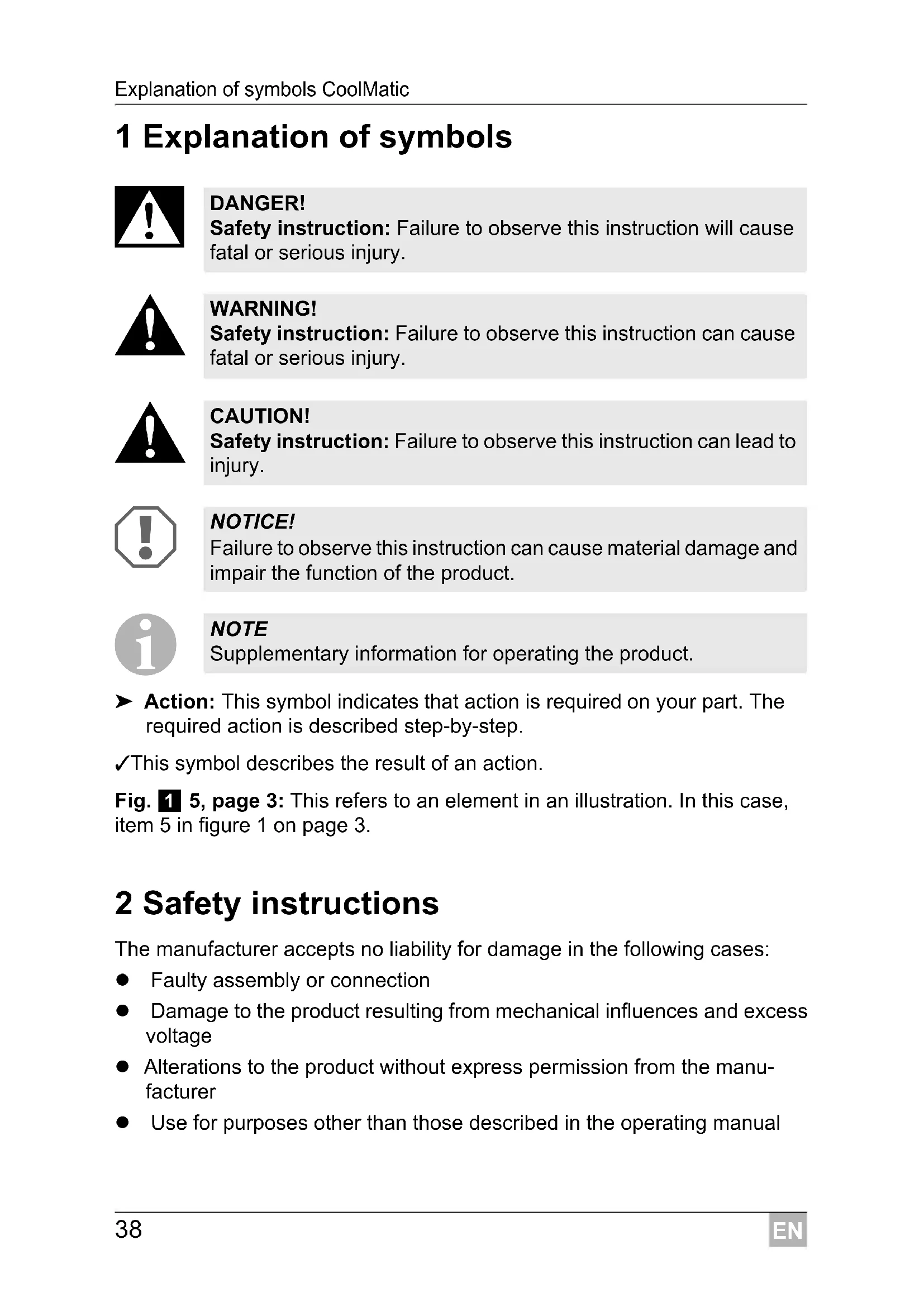

1 Explanation of symbols

➤ Action: This symbol indicates that action is required on your part. The required action is described step-by-step. ✓ This symbol describes the result of an action. Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3. 2 Safety instructions The manufacturer accepts no liability for damage in the following cases: Faulty assembly or connection Damage to the product resulting from mechanical influences and excess voltage Alterations to the product without express permission from the manu- facturer Use for purposes other than those described in the operating manual DANGER! Safety instruction: Failure to observe this instruction will cause fatal or serious injury. WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product.EN CoolMatic Safety instructions

DANGER! On boats: If the device is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING! Have a qualified technician perform the installation in wet rooms. Do not operate the device if it is visibly damaged. If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards. This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and knowledge, providing they are supervised, or have been taught how to use the device safely and are aware of the resulting risks. Cleaning and user maintenance must not be carried out by children without supervision. Children must be supervised to ensure that they do not play with the device. Always keep and use the device out of the reach of children under 8 years of age. Do not store any explosive substances, such as spray cans with propellants, in the device.

CAUTION! Danger of crushing! Do not put your fingers into the hinge. Foodstuff may only be stored in its original packaging or in suit- able containers.

NOTICE! Check that the voltage specification on the type plate is the same as that of the power supply. Never pull the plug out of the socket by the connection cable.EN Safety instructions CoolMatic

If the refrigerator is connected to the DC socket: Disconnect the refrigerator and other electric consumers from the battery before connecting the quick charging device. If the refrigerator is connected to the DC socket: Disconnect the refrigerator or switch it off when you turn off the engine. Other- wise you may discharge the battery. The refrigerator is not suitable for storing substances which are caustic or contain solvents. Keep the drainage outlet clean at all times. Do not open the refrigerant circuit under any circumstances. Never transport the device in a horizontal position, so that no oil can leak out of the compressor. Make sure that the refrigerator circuit is not damaged during transportation. The refrigerant in the refrigerator circuit is highly flammable. In the event of any damage to the refrigerator circuit: – Avoid naked flames and sparks. – Air the room well. Set up the device in a dry location where it is protected against splashing water.

2.2 Operating the device safely

DANGER! Do not touch exposed cables with your bare hands. This applies especially when operating the device from the AC mains.

CAUTION! Before starting the device, ensure that the power supply line and the plug are dry. If you connect the device to a battery, make sure that no food comes into contact with the battery acid.

NOTICE! Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose. Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)EN CoolMatic Scope of delivery

Danger of overheating! Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate. Ensure that the ventilation vents are not covered. Do not fill the inner container with ice or fluid. Never immerse the appliance in water. Protect the appliance and the cable against heat and moisture. Make sure that foodstuffs do not touch the walls of the cooling area. 3 Scope of delivery 4 Accessories Available as accessories (not included in the scope of delivery): Quantity Description 1 Refrigerator with shelves 1 Operating manual Description Explanation Item no. Low ambient control Connects an additional heater to the compressor. This ensures the compressor switches on more frequently at extremely low ambient temperatures so that it can cool the freezer compartment. LACEN Intended use CoolMatic

5 Intended use The refrigerator is suitable for cooling and freezing foodstuffs.

The refrigerator is only suitable for installation in a fitted niche. Once it is installed, only the front of the appliance may be accessible. 6 Technical description The WAECO CoolMatic CRX series cooling appliances can cool products and keep them cool. Products can be deep-frozen in the freezer compart- ment. If the refrigerator is operated without a freezer compartment, frozen products can be stored in the short term using the fast-cooling function. All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free. The device can be connected to 12 V and 24 V as well as 100 – 240 V power sources. When used on boats the refrigerator can be subjected to a constant inclina- tion of 30°. CRX50, CRX65, CRX80: The temperature is set using the control panel on the inside left of the refrig- erator. Four temperature ranges from +3 °C to +12 °C, and a fast-cooling function, are available for selection. CRX110, CRX140: The temperature is set using the control panel on the inside left of the refrig- erator. Four temperature ranges from +3 °C to +12 °C, and a winter mode, are available for selection. CAUTION! Health hazard! Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.EN CoolMatic Technical description

No. Explanation 1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only) 2 Control panel 3 Wire shelf (folding, so that bottles can be put in the fridge) 4Shelf 5 Fruit compartment 6 Bottle restraint (to hold bottles in the door) 7 Compartment with lid (hinged) No. in fig. 6, page 5, fig. 7, page 6 Explanation 1 IR sensor for switching the interior light 2 LED Service display 3 LED Green: Compressor is running Orange: Compressor is off 4 On/off button 5 Inner lighting 6 Temperature selection button 7 LED: Fast cooling function on (CRX50, CRX65, CRX80) LED: Winter mode on (CRX110, CRX140) 8 LEDs: Temperature levels 1 to 4EN Installing and connecting the refrigerator CoolMatic

7 Installing and connecting the refrigerator

7.1 Safety instructions for installation on boats

Please note the following instructions for installation on boats:

Observe the following when installing the refrigerator: Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 6). Key for fig. 8, page 6 Keep objects clear of openings in the housing or installation structure (such as ventilation slots, etc.). DANGER! If the appliance is powered by the mains, ensure that the voltage supply has a residual current circuit breaker. NOTICE! The device can be tilted sideways up to 30°. When setting up the refrigerator, note that it must be fastened to take account of this. If you have any questions regarding installation, consult your specialist dealer. Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 6). The appliance is designed for ambient temperatures between +16°C and +43°C. No. Explanation1 Cold intake air2 Hot waste air3 Condenser4 Spacing above the refrigerator if there is not sufficient air to circu-late above or at the side.EN CoolMatic Installing and connecting the refrigerator

Condensate is produced when the refrigerator is operating normally. You can either wipe up the condensate in regular intervals, or drain it through an outlet in the rear of the refrigerator. Proceed as follows to install the refrigerator: ➤ If you wish to drain the condensate through a hose: Remove the drain plug (fig. 9 1, page 7). ➤ Connect a hose with an inside diameter of 10 mm to the outlet port (fig. 9 2, page 7). ➤ Undo the transport lock (chapter “Releasing the lock” on page 51). ➤ Open the refrigerator door. ➤ Remove the blanking plugs (fig. 0 2, page 7). ➤ Push the refrigerator into the recess. ➤ Fix the refrigerator in place using suitable screws (fig. 0 1, page 7). ➤ Press the blanking plugs (fig. 0 2, page 7) into the openings.

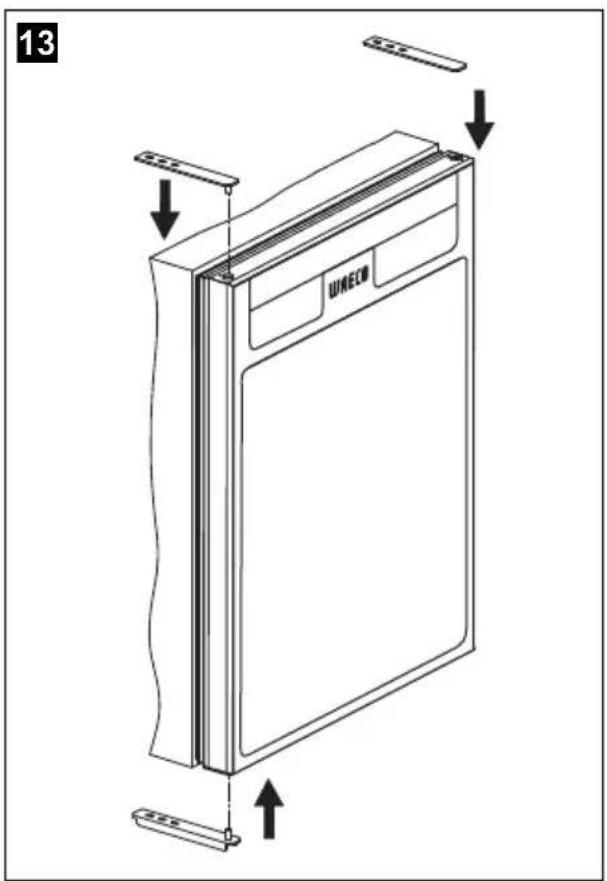

7.3 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the right. ➤ Proceed as shown in fig. a, page 8 to fig. c, page 8, to change the hinges.

7.4 Connecting the refrigerator

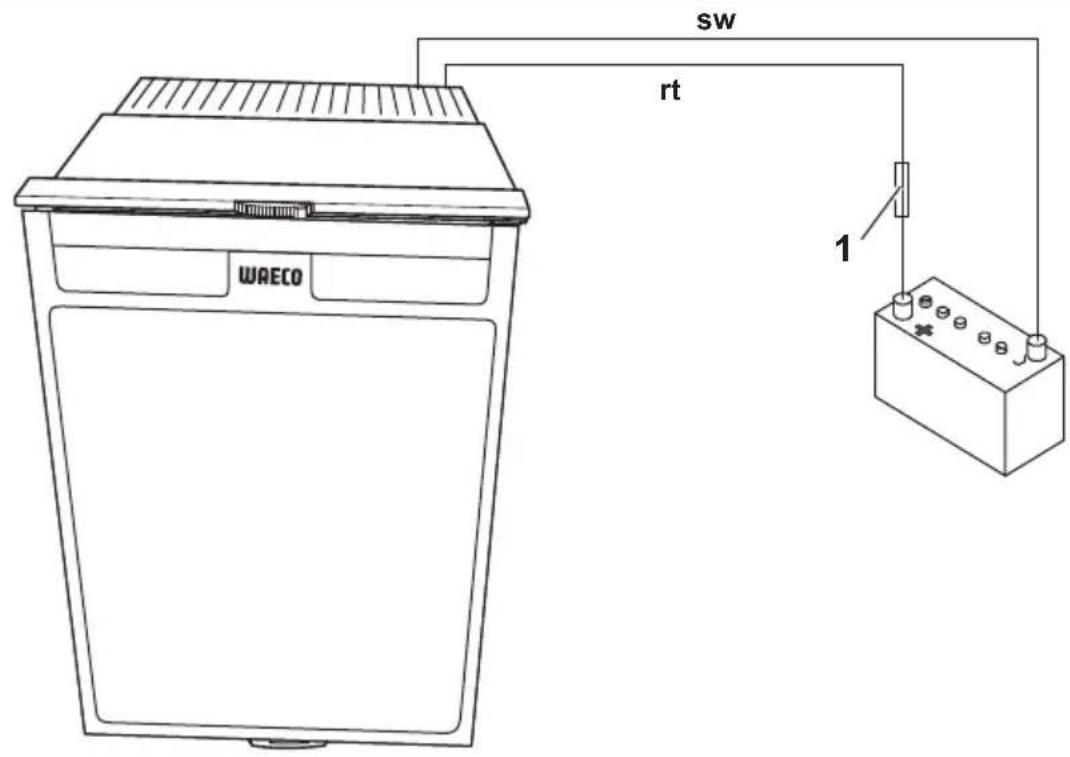

Connecting the refrigerator to DC voltage

The refrigerator can be operated with a 12 V or a 24 V DC voltage supply. NOTICE! To avoid voltage drops and loss of performance, keep the connection cable as short as possible and not be interrupted. Therefore avoid additional switches, plugs or power strips. Disconnect the cooling device and other electric consumers from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device.EN Installing and connecting the refrigerator CoolMatic

For safety reasons, the refrigerator is equipped with an electronic system to prevent the polarity being reversed. This protects the refrigerator against reversed polarity when connecting to a battery and against short circuiting. To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below). ➤ Determine the required cross section of the cable in relation to the cable length according to fig. d, page 9. Key to fig. d, page 9:

➤ Before starting up the device for the first time, check whether the operating voltage and the battery voltage match (see type plate). ➤ Connect your refrigerator to a plug socket which is fuse-protected with at least 15 A (at 12 V) or 7.5 A (at 24 V) (fig. e 1, page 9). ➤ Connect the red cable (fig. e rt, page 9) to the positive terminal of the battery. ➤ Connect the black cable (fig. e sw, page 9) to the negative terminal of the battery. 12 V 24 V Cut-off voltage

Coordinate axis Meaning Unit l Cable length m ∅ Cable cross section mm² NOTICE! Make sure the polarity is correct.EN CoolMatic Using the refrigerator

Connecting the refrigerator to AC voltage

Proceed as follows when you connect the refrigerator to the AC supply: ➤ Plug the connector into the AC socket (fig. f 1, page 9). 8 Using the refrigerator

Choose a well ventilated location which is protected from direct sunlight. Allow hot food to cool down first before you put it in the refrigerator. Do not open the refrigerator more often than necessary. If the door is left open for more than 5 minutes, the light starts to flash. Do not leave the door open for longer than necessary. Defrost your refrigerator as soon as a layer of ice forms. Avoid unnecessarily low temperature settings. Clean dust and dirt from the condenser at regular intervals. DANGER! mortal danger! Never handle plugs and switches with wet hands or if you are standing on a wet surface. If you are operating your refrigerator on board a boat with an AC mains connection using a shore connection, you must install a residual current circuit breaker between the AC mains supply and the refrigerator. Seek advice from a trained technician. NOTE Before starting your new refrigerator for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 52). Do not use force to press the flap of the freezer. Do not pull out the dividing wall if there is ice in the freezer. Do not remove the panel sticker when operating the refrigerator.EN Using the refrigerator CoolMatic

The fridge conserves fresh foodstuffs. You can also conserve frozen food- stuffs in the freezer compartment and freeze fresh foodstuffs. ➤ Switch the refrigerator on by pressing the on/off button.

Setting the temperature ➤ Press the temperature selection button to set the temperature to one of four levels between “cool” and “very cold”. The number of LEDs which light up above the temperature selection button indicate the temperature range: –1 = cool

– 4 = very cold ➤ Press the temperature selection button again to switch from level 4 to level 1.

NOTICE! Do not place any electrical devices inside the cooler. The only exceptions are devices approved for the purpose by the manufacturer. Ensure that food or liquids in glass containers are not exces- sively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers. Food may only be stored in its original packaging or in suitable containers. Make sure that you only put items in the cooler which may be kept at the selected temperature. NOTE After switching on, the refrigerator needs some time before the compressor starts up. NOTE The cooling performance can be affected by: The ambient temperature The amount of food to be conserved The frequency with which the door is opened. If the ambient temperature is at 16 °C to 20 °C, set the refrigerator to at least level 2.EN CoolMatic Using the refrigerator

Setting the fast cooling function (CRX50, CRX65, CRX80 only)

The option of operating the refrigerator using a fast-cooling function allows temperatures suitable for freezing foods to be reached. ➤ Press the temperature selection button for longer than 3 seconds. ✓ The LED above the temperature selection button lights up. ➤ Press the temperature selection button again for longer than 3 seconds to operate the refrigerator in normal mode. Setting the winter mode (CRX110, CRX140 only) The winter mode ensures optimum operation at ambient temperature of below 16 °C: ➤ Press the temperature selection button for longer than 3 seconds. ✓ The refrigerator switches to winter mode and the LED lights up above the temperature selection button. ➤ Press the temperature selection button again for longer than 3 seconds to operate the refrigerator in normal mode. NOTICE! Only use the fast-cooling function when the removable freezer compartment is not being used. Otherwise there is a risk that the freezer compartment becomes too cold and condensate cannot be prevented from forming on the outside of the refrigerator. The energy consumption will also increase dramatically. Note that bottles and other containers can burst when frozen. Note that it is difficult to open the refrigerator directly after closing it.EN Using the refrigerator CoolMatic

Conserving foodstuffs

You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package. The refrigerator is divided in different zones with different temperatures: The colder zones are immediately above the drawers for fruit and vegetables, near the back wall. Observe the temperature information and best before date on the food packaging. Observe the following when using the refrigerator: – Never re-freeze products which have started defrosting or have been defrosted; consume them as soon as possible. – Wrap food in aluminium foil or cling film and shut in a suitable box with a lid. This ensures that aromas, the shape and the freshness will be better conserved. Defrosting the refrigerator The appliance has two options to remove the condensation resulting from operation: pass it directly outside: Remove the drain plug (fig. 9 1, page 7). Connect a hose with an inside diameter of 10 mm to the outlet port (fig. 9 2, page 7). Wiping it up occasionally: Wipe the condensate up when necessary. NOTICE! Do not conserve warm foodstuffs in the refrigerator. Do not place glass containers containing liquid in the freezer compartment. NOTE Food which can easily absorb tastes and odours, as well as liquids and products with a high alcohol content, should be conserved in air-tight containers.EN CoolMatic Using the refrigerator

Defrosting the freezer

This is how to defrost the refrigerator: ➤ Empty the contents. ➤ If necessary, put them in another cooling device to keep them chilled. ➤ Press the on/off button until the refrigerator switches off. ➤ Close the door properly.

8.3 Releasing the lock

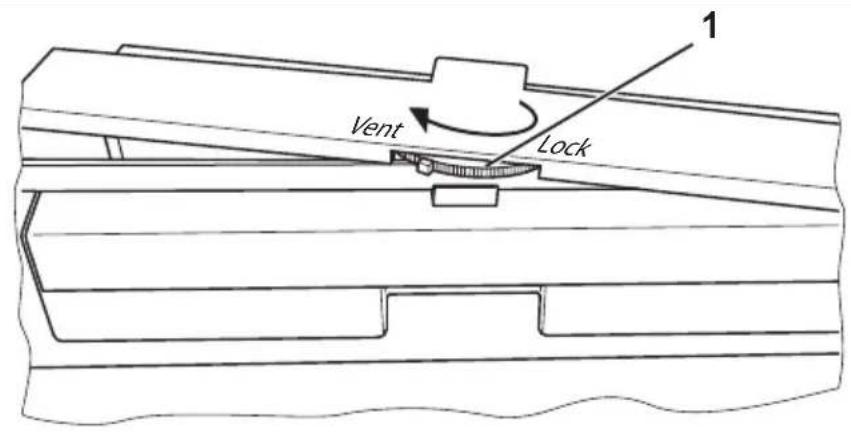

The refrigerator has a locking mechanism (fig. g 1, page 10) which is also used to protect it during transport. The following settings are possible: Lock (turn wheel clockwise to the end stop): the door is locked and secured. To open the door, lift the handle up and open it. Vent (turn wheel anti-clockwise to the end stop): The door is slightly open, but fixed in position. Use this position if you are not going to use the unit for a long time. NOTICE! Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer. NOTICE! Only adjust the locking mechanism when the door is open. If you use it with the door closed, you will damage the device.EN Cleaning and maintenance CoolMatic

8.4 Switching off and storing the refrigerator

If you do not intend to use the refrigerator for a long time, proceed as follows: ➤ Press the on/off button until the refrigerator switches off. ➤ Disconnect the connection cable from the battery or disconnect the plug on the AC cable plug from the rectifier. ➤ Clean the refrigerator (see chapter “Cleaning and maintenance” on page 52). ➤ Turn the locking wheel (fig. g 1, page 10) anti-clockwise to the end stop (“Vent”). ➤ Close the door until it latches in. ✓ The door stays open thus preventing smells from arising.

If the fuse in the AC socket is faulty, it can be replaced. ➤ Lever the fuse compartment (fig. f 2, page 9) open with a screwdriver. ➤ Replace the fuse (250 V/4 A). ➤ Close the fuse compartment again. 9 Cleaning and maintenance

➤ Clean the refrigerator regularly and as soon as it becomes dirty with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the electronics. ➤ Wipe the refrigerator dry with a cloth after cleaning. ➤ Clean dust and dirt from the condenser at regular intervals. NOTICE! Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator. Do not use hard or pointed tools to speed up the defrosting process.EN CoolMatic Warranty

10 Warranty The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer. For repair and guarantee processing, please include the following docu- ments when you send in the device: A copy of the receipt with purchasing date A reason for the claim or description of the fault 11 Disposal

➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. WARNING! Children beware! Before disposing of your old refrigerator: Take off the doors. Leave storage surfaces in the refrigerator so that children cannot climb inside.EN Troubleshooting CoolMatic

12 Troubleshooting The significance of the red LED (fig. 6 2, page 5, fig. 7 2, page 6) For operational faults it illuminates several times. The number of pulses depends on the type of fault. Each flash lasts for one quarter of a second. After the series of impulses a pause follows. The sequence for the fault is repeated every four seconds. Number of flashes Fault Possible cause 1 Line Voltage The supply voltage is outside of the set range. 2 Excessive fan current The fan load on the electronics unit is more than 1 A. 3 The motor doesn't start The rotor is jammed. The pressure difference in the cooling system is too high (> 5 bar). 4 Speed too low If the cooling system is overloaded, the mini- mum speed of the motor of 1,850 rpm cannot be maintained. 5 Overheating of the elec- tronics unit If the cooling system is loaded too heavily or the temperature is set too high, the electronics can overheat. Constantly NTC errors NTC is defective.EN CoolMatic Troubleshooting

Compressor does not run (battery connection) Problem Possible cause Remedy

Term = 0 V There is an interruption in the bat- tery–electronics connection Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse

Battery voltage is too low Charge the battery Start attempt with

Term ≤ U OFF Loose cables Poor contact (corrosion) Establish a connection Battery capacity too low Replacing the battery Cable cross section too small Replace the cable (fig. d, page 9) Start attempt with

Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Replace the compressor

Ter m Voltage between the positive and negative terminals of the electronics

Cut-in voltage of the electronics

OFF Cut-off voltage of the electronicsEN Troubleshooting CoolMatic

Compressor is not running (connected to AC supply) Poor cooling, increase in interior temperature Unusual noises Problem Possible cause Remedy No voltage Connection supply line interrupted Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse Voltage is present but the compressor doesn't run Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Replace the compressor Problem Possible cause Remedy Compressor runs for a long time/continuously Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Faulty fan Replace the fan Compressor does not run often Battery capacity exhausted Charge the battery Problem Possible cause Remedy Loud humming A component of the refrigerant circuit cannot move freely (touching the wall) Bend the component carefully away from the obstruction There is a foreign object stuck between the cooling unit and the wall Remove the foreign object Fan noise –EN CoolMatic Technical data

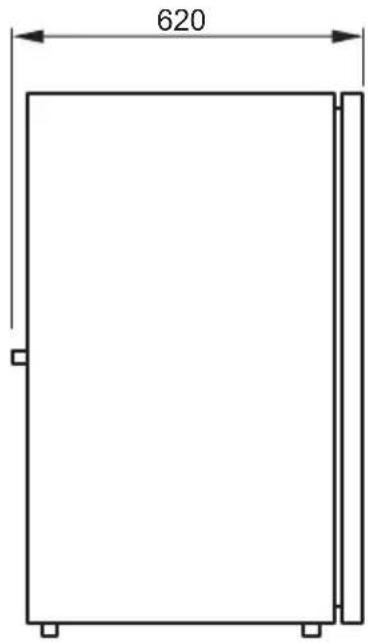

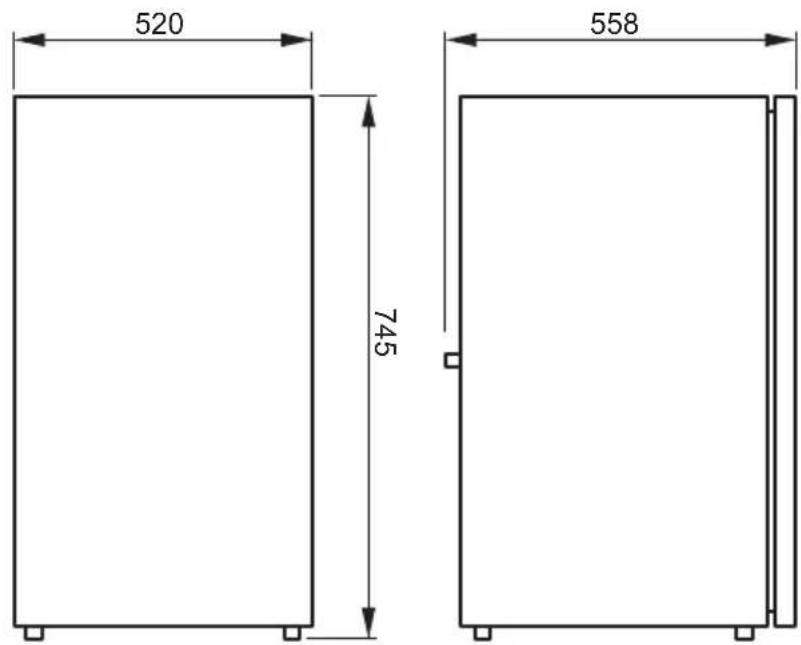

13 Technical data CRX50 CRX65 CRX80Refrigerator compartment capacity: 41.2 l 50 l 70.6 lFreezer compartment capacity: 4.4 l 7.0 l 7.5 lCapacity: 45 l 57 l 78 l Voltage: 12 Vg or 24 Vg 100 – 240 VwPower consumption (AC): 40 W 45 W 48 WRated current12 Vg:24 Vg:100 Vw:240 Vw:5.0 A2.6 A1.14 A0.53 A5.5 A2.8 A1.22 A0.58 A5.6 A2.9 A1.23 A0.56 ACooling temperature rangeRefrigerator: 3 °C to +12 °CFreezer: –15 °C to –5 °C Fast cooling (without dividing wall) maximum –6 °C ± 2 °C Climatic class: TRelative humidity: Max. 90 %Constant inclination: maximum 30° Max. pressure: LP 11 bar/HP 25 bar Propellant: C

CRX110 CRX140Refrigerator compartment capacity: 98 l 124 lFreezer compartment capacity: 9.5 l 11 lCapacity: 107.5 l 135 l Voltage: 12 Vg or 24 Vg 100 – 240 VwPower consumption (AC): 50 W 65 WRated current12 Vg:24 Vg:100 Vw:240 Vw:6.2 A3.0 A0.82 A0.34 A7.7 A3.6 A0.95 A0.4 ACooling temperature rangeRefrigerator: 3 °C to +12 °CFreezer: –18 °C to –6 °CClimatic class: TRelative humidity: Max. 90 %Constant inclination: maximum 30° Max. pressure: LP 11 bar/HP 25 bar Propellant: C
