USER MANUAL OPC 200CD OK
14_OPC20CD_14072L_V25 www.ebcglp.com
OPC 200CD
TRAGBARER CD-SPIELER // PORTABLE CD PLAYER // REPRODUCTOR DE CD PORTÁTIL // LECTEUR CD PORTATIF
TR KULLANIN KILAWUZU 56
2014 1007M
CLASS I LASER PRODUCT
CLASS I LASER PRODUCT


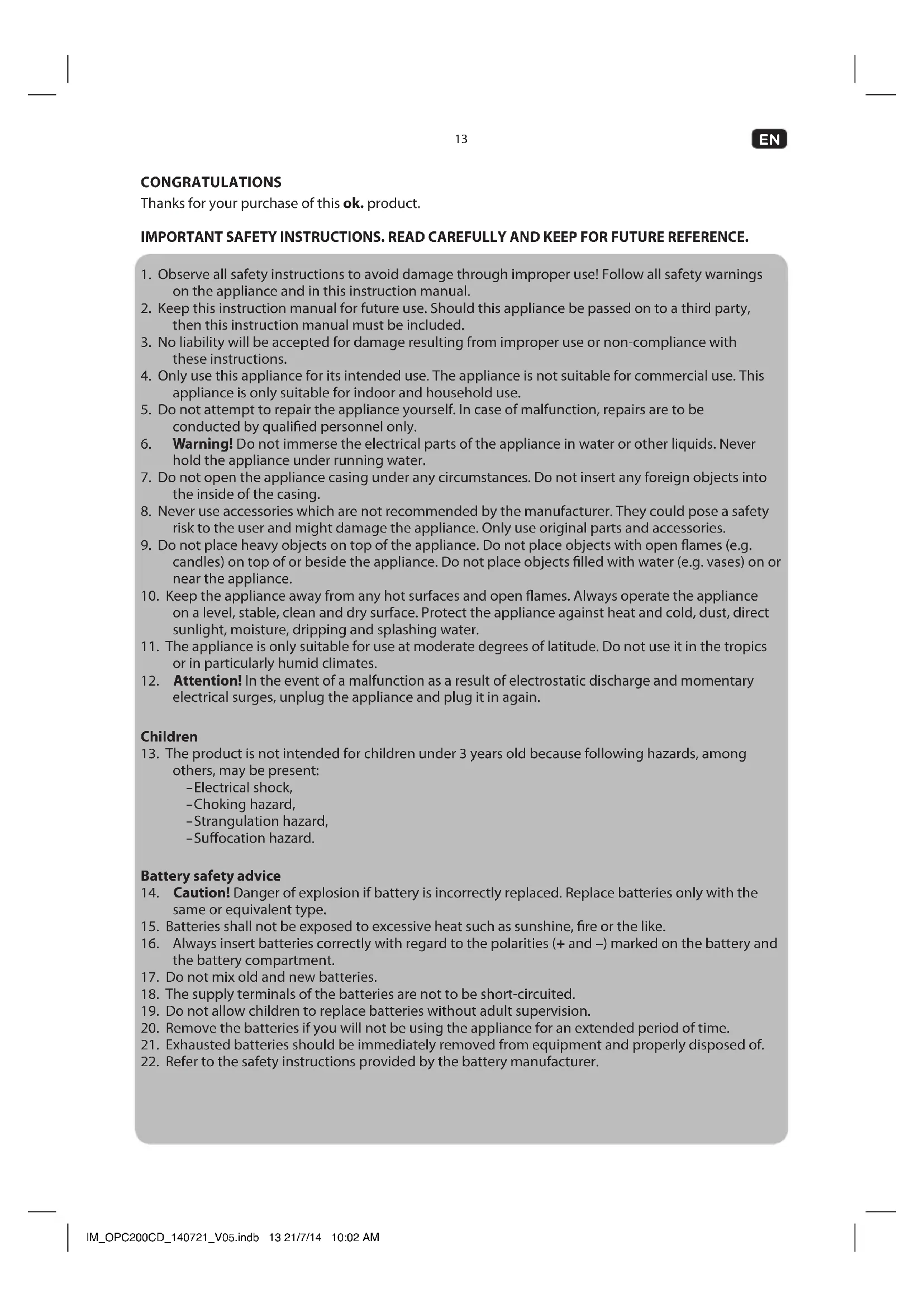

Thanks for your purchase of this ok. product.
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
- Observe all safety instructions to avoid damage through improper use! Follow all safety warnings on the appliance and in this instruction manual.
- Keep this instruction manual for future use. Should this appliance be passed on to a third party, then this instruction manual must be included.
- No liability will be accepted for damage resulting from improper use or non-compliance with these instructions.
- Only use this appliance for its intended use. The appliance is not suitable for commercial use. This appliance is only suitable for indoor and household use.
- Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
- Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
- Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
- Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. Only use original parts and accessories.
- Do not place heavy objects on top of the appliance. Do not place objects with open flames (e.g. candles) on top of or beside the appliance. Do not place objects filled with water (e.g. vases) on or near the appliance.
- Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
- The appliance is only suitable for use at moderate degrees of latitude. Do not use it in the tropics or in particularly humid climates.
- Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the appliance and plug it in again.
Children
- The product is not intended for children under 3 years old because following hazards, among others, may be present:
-Electrical shock,
-Choking hazard,
-Strangulation hazard,
-Suffocation hazard.
Battery safety advice
- Caution! Danger of explosion if battery is incorrectly replaced. Replace batteries only with the same or equivalent type.
- Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
- Always insert batteries correctly with regard to the polarities (+ and -) marked on the battery and the battery compartment.
- Do not mix old and new batteries.
- The supply terminals of the batteries are not to be short-circuited.
- Do not allow children to replace batteries without adult supervision.
- Remove the batteries if you will not be using the appliance for an extended period of time.
- Exhausted batteries should be immediately removed from equipment and properly disposed of.
- Refer to the safety instructions provided by the battery manufacturer.
EN
Use with an external transformer
- An external transformer used with the toy is to be regularly examined for damage to the cord, plug, enclosure and other parts. In the event of such damage, it must not be used until the damage has been repaired.
- The product is to be connected to the external transformer, or supplied by battery. It cannot be powered by battery and transformer at the same time.
- The used external transformer must be a safety isolated transformer for toys.
- Transformers are not toys.
Laser safety
- The information on the compact disc is read by a laser through an optical lens (do not touch). If you take the appliance from a cold to a warm room, moisture may condense on the lens, and the playback may be hampered. In this case leave the appliance for one hour at room temperature before use. Take the disc out of the appliance. Should the problem persist, have the appliance checked by qualified personnel.
Headphones
- Warning! Excessive sound pressure from earphones and headphones can cause hearing loss. Ensure that children do not turn the volume too high.
CLASS I LASER PRODUCT
This label on the product informs the user that this is a class 1 laser product containing a laser component.
Do not touch the lens inside the disc compartment.
CAUTION! Use of controls or adjustments of procedures other than those specified herein may result in hazardous radiation exposure.
DANGER! Invisible laser radiation when open and safety interlock failed or defeated. Avoid direct exposure to the beam. Do not touch the lens.
WARNING: SHOCK HAZARD - DO NOT OPEN AVIS: RISQUE DE CHOC ÉLECTRIQUE-NE PAS OUVRIR
The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" inside the enclosure of this appliance, which may be of sufficient magnitude to constitute a risk of electric shock to persons and animals.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this appliance.
INTENDED USE
This appliance is only intended for audio entertainment and is not intended for children under 3 years. This appliance is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the appliance or injury.
BEFORE FIRST TIME USE
- Remove all packaging materials.
- Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.
• Clean the appliance (→Cleaning and care). - Important! Before first use, remove the protective sheet from the disc compartment.

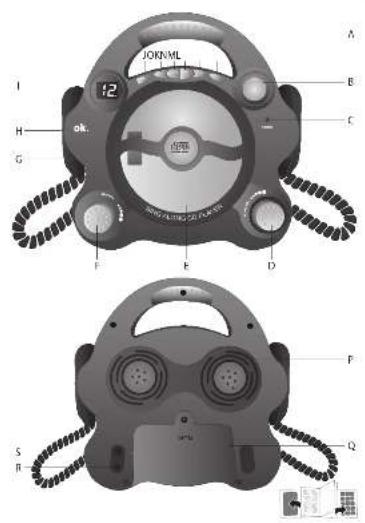

COMPONENTS
Fold out front and rear page for product illustrations.
Front:
A. Handle
B. Open CD door button (OPEN)
C. POWER indicator
D. On/off, volume control (MUSIC VOL)
E. CD compartment door
F. Microphone volume control (MIC VOL)
G. Microphone
(one on each side of the appliance)
H. Microphone on/off switch (for each microphone)
1. Display
Back:
J. Play/Pause CD playback
K. Repeat button (REP)
L. Skip to previous track
Press and hold: Fast reverse
M. Skip to next track ▶▶▶
Press and hold: Fast forward
N. Program button (STOP)
O. Stop playback
P. Loudspeaker
Q. Battery compartment
R. Headphone socket (PHONE)
S. Power socket for external transformer (6 V -1A)
POWER SUPPLY
1 Switch the appliance off by rotating the MUSIC VOL control in a counter-clockwise direction until a click sound is heard. Only then connect/disconnect the adaptor's power cable or remove/install batteries.
2 Remove the battery compartment cover with a Phillips screwdriver.
3 Insert 4 batteries (type C / LR14, 1.5 V, not included) in the battery compartment. Match the polarities + and -, as indicated on the batteries. Close the battery compartment cover.
or
4 Connect a suitable power adaptor (not included, see Technical data) to the power socket. Connect the adaptor plug to a suitable electrical outlet.
CD PLAYBACK
5 Switching on: Rotate the MUSIC VOL control in a clockwise direction. The POWER indicator lights up. The music volume can be adjusted anytime using this control.
6 Open CD compartment door: Press the OPEN Button. Insert a CD with label facing towards you. Close the CD compartment door.
7 1. Start or pause playback: Press▶II. In pause mode, track number will flash on the display. 2. Stop playback: Press STOP. In stop mode, total number of tracks will flash on the display. 3. Skip to next track: Press▶I. Press and hold to fast forward. 4. Skip to previous track: Press◀◀. Press and hold to fast reverse.
8 During playback: Press REP repeatedly to switch the playback modes:
Press Result
1x Repeat one track.
2x Repeat all tracks.
3x Normal playback.
EN
PROGRAM
9 Up to 20 tracks can be programmed in a desired sequence.
In stop mode, press the PROG button. 00 flashes.
10 Select the desired track with the ◀◀/▶▶ buttons. Confirm selected track by pressing the PROG button again. 00 flashes. Select additional tracks with the ◀◀ buttons and confirm with PROG.
11 Start program: Press
MICROPHONE
12 Switching on: Rotate the MUSIC VOL control in a clockwise direction. The POWER indicator lights up.
13 Switching on microphone(s): Set the switch to the ON position.
14 Adjusting microphone volume: Rotate the MIC VOL control to the desired volume.
15 Pull one or both of the microphones from their holders and start speaking/singing.
Notes:
- Do not hold the microphone too close to your mouth to achieve a clear sound.
- Pointing the microphone towards the appliance or towards each other will lead to sound distortions.
16 Switching off microphone(s): Set the switch to the OFF position.
SING-ALONG FUNCTION
17 Switching on: Rotate the MUSIC VOL control in a clockwise direction. The POWER indicator lights up.
18 Open CD compartment door: Press the OPEN Button. Insert a CD with label facing towards you. Close the CD compartment door.
19 Start playback: Press
20 Switching on microphone(s): Set the switch to the ON position.
21 Adjusting microphone volume: Rotate the MIC VOL control to the desired volume. Pull one or both of the microphones from their holders and start speaking/singing to the music of the CD.
22 Stop playback: Press STOP.
23 Switching off microphone(s): Set the switch to the OFF position.
CONNECTING HEADPHONES
23 Connect headphones with a 3.5 mm plug to the PHONE socket. The loudspeakers are muted whilst the headphones are connected to the appliance.
COMPATIBLE CDs
• This appliance reads CD and CD-R discs. Other discs are not supported.
- When playing CD-R discs the playback quality might be influenced by the quality of the burned disc. When burning CD-R disks with audio files we recommend using the slowest burning speed.
CLEANING AND CARE
- WARNING! Before cleaning, always switch off the appliance and remove the batteries. If an external power adaptor is used, disconnect the plug from power.
• Never immerse the appliance in water or other liquids. - Clean the appliance with a soft, slightly damp cloth. Make sure that no moisture is entering the appliance during cleaning.
- Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.
• Dry the appliance thoroughly after cleaning.
• Store the appliance in a cool, dry location.
CD MAINTENANCE
- Small amount of dust or scratches will usually not have an impact on the quality of a disc. The discs should, however, be treated with care.
- Protect your compact discs from dust and scratches.
• Store your compact discs in their covers when not in use. - To maintain the original quality of sound, you should occasionally wipe your compact discs with a soft cloth, from the centre to the edge (not with circular movements). Never use gasoline or other solvents for cleaning.
• Only hold a compact disc by its edges!
Power supply: Batteries: 4 x 1.5 V (type C / LR14) (not included)
Optional external
power supply: 6 V 1 A
The used external transformer must be a safety isolated transformer for toys.
Supported audio formats: CD/CD-R
DISPOSAL
The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
