Technical Features	CD player/recorder compatible with various audio formats
Usage	Ideal for listening to music or recording CDs from audio sources
Maintenance and Repair	Regular lens cleaning recommended, check cables and connections
Safety	Use only with compatible power supply, avoid exposure to moisture
General Information	Check compatibility with CD formats before purchase

Frequently Asked Questions - ORC 311PK OK

How can I fix the CD playback issue on the OK ORC 311PK?

Make sure the CD is clean and free of scratches. Try playing another CD to check if the problem persists. If the player still does not work, reset the device by unplugging it for a few minutes.

Why won\u0027t my OK ORC 311PK turn on?

Check that the device is properly plugged into a working power outlet. Ensure the power cable is in good condition. If the problem persists, try another outlet.

How do I record CDs on the OK ORC 311PK?

Insert a blank CD into the player. Select the recording mode on the device, then follow the on-screen instructions to start recording your music.

The sound is low on my OK ORC 311PK, what should I do?

Check the device\u0027s volume level and increase it if necessary. Also, make sure the speaker cables are properly connected and in good condition.

How can I clean the CD player of the OK ORC 311PK?

Use a cleaning disc specially designed for CD players. Avoid using chemical products or abrasive cloths that could damage the device.

My OK ORC 311PK does not recognize the CD, what should I do?

Check that the CD is compatible with the player. Try another CD to see if the problem persists. If so, the player may need repair.

How do I reset my OK ORC 311PK?

To reset the device, unplug it from the power outlet, wait about 5 minutes, then plug it back in.

Is there a warranty for the OK ORC 311PK?

Yes, the product is generally covered by a limited warranty. Please consult the user manual or the manufacturer\u0027s website for more warranty details.

USER MANUAL ORC 311PK OK

CLASSI LASER PRODUCT

CLASSI LASER PRODUCT

Autn n ETiKaTo npoiov evnuepweTo xphoTn 0ti auto eivai eva npoiov λειερ katnyopiac 1 Nou πeipexI OToxieio λειερ.

Mny ayyicTe TO qako eoWtepiKo Tnc hKnC 6iokou.

IPOEOXH! H xpnon XeipiouW n npooapouoyw diadikaaivw EKToc EKEIVW Nou avapepovtai oTo napov EYxepiio MTOpei va kataaN\xouv O eKeOeon 0EπIKivnuN activoBolia.

KINADNOE! Ynapexi aopatn
aktroboia IeIep, otav exi
napaiaotei n dev exie aqpaiaoei o
unxaviooc aoqaiionc. Anovyete
tnv aeon ekteon stn deo. Mny
ayicTe Touc qakouc.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: SHOCK HAZARD - DO NOT OPEN Avis: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

O KepauvoC ME TO BéloC MEOA O EIOIeUPO Tpiywo Exo kONo va IPOEIOIOIeTO xPnOTN yia Tnv Iapouoia m npovwEvnc «EPIKIVDUnc TaOnc OTo EOWTepiKO Tou NEPiBnmuatoC TNC OuaokEunC, O OTOIO C MOpEVA Eiva Meyeθouc TetoIOU WOTE VA PpokaEeI nEeKtpoIaNxiac Oe avOpwnouc Ka Zwa.

To auaatako meo e eva 10nlaepo
tpiywovexoiokonovnapouia
oanavtkov odnyiw leitoupyiac kai
ouvtnpoc otBiloypia nou
ouvoidei tn ouokeun.

IPOOPIZOMENH XPHEH

Autn n ouakeun npoopicietai mvo yia tnv anolaun nxntikou nepiexouevou. Autn n ouakeun elvai katalnnmnovo yia idiwtkn oikiakn xphon kal dex exei oxediaotei yia emnopikxphon. Otoiahnote aanxphon mtopei va npokaedei alaBn otn ouakeun n tpaumatio.

Evpyooinon (on) kai anevpyooinon (off)

Pntote To kouni yia va epeyonoioe/aenepepyonoioe to paoliopwvo.

Enioyn Tou Tpnonou Leitoupyiac

NATnoTe to koumi FUNC.yia va eIleEeTEmuAeitoupyiaeTynakolouohtnepa tune (Paioqwo> Cd (oukeun avanapaywync CD) > USb (USB) > AU (AUX IN).

Eaeyoc tnc evtaanctou nyou

H Evtaon Tou nou mnpei Ekoia va eEeyxei naWvTac ta Koumuia VOL+ n VOL-. H Evtaon Tou nou thou Ta eepaviotet ony oOvnyaiyo.

Aetoupyia unvou

NtnoTe ouvtopa to koupi SLEEP(YINOS) ia va puoioeTo vXpovodiaokonTn unvou e nata twv 10 aeWv ano 120 aeTc a 10 kaI 5 oTo OFF (ANENEPTONOH).

ALBUM (AAMNOYM)

Pntote to koumi kat a th diapkeia tnc avanapaywync tou apxeiou MP3 yia va eIeEeTe tv enoEv oakeo.

PAAOQNIKOESPOIOEAEITOYPTIA

Yπoσηριζόμενα bitrates MP3: 32 kbit/sec - 320 kbit/sec

Zwv n ouxvoTnttw paiaopowou: 88-108 MHz (FM)

ANOPPIPH

O anoppimuatw kado c anoppiatw onmaivei otnaiaitei a n xwpiotn oulloyn twv aoBnttw v nEKTPOKOU KAI nEKTPOVIOU EONIAOu (oDNYA WEEE). O nEKTPIKOC KAI O nEKTPOVIKOC EONIAOc mnpei va nepiexei enikivduvec ouiec. Mny anoppiTETe T ouokueun paiz ta okiaka anoppimuata. ENIOTpeyte to eva kaOpioevo onmeio oulloync yia avakukawon oumwva eTNv odnyia nepi Anoppipnc nEKTPOKOU KAI nEKTPOVIOU EONIAOu. Me autov tov tpono, Bonthe tnv diatnpon T wv npowkai Tnv pooTaia Tou nepiabalovtoc. EIKoivWvnoTe me tv npoumheut noac n tic tonikec apxec yia npioootepc nnpofopec.

Napakaλouμe anoppinntetic μnatapicae éevav φilikó yia to πepiβalov tpno. Mny tic pixveTe ota oikiaka anoppmuata. Napakaλouμe xpnoionoeite ta onεia eniotpoqnckai oukykvtpwoc otynv koivotetaac n eikoivwveite μe tov avtinpoo, otov onio ayopáoate to npoiov.

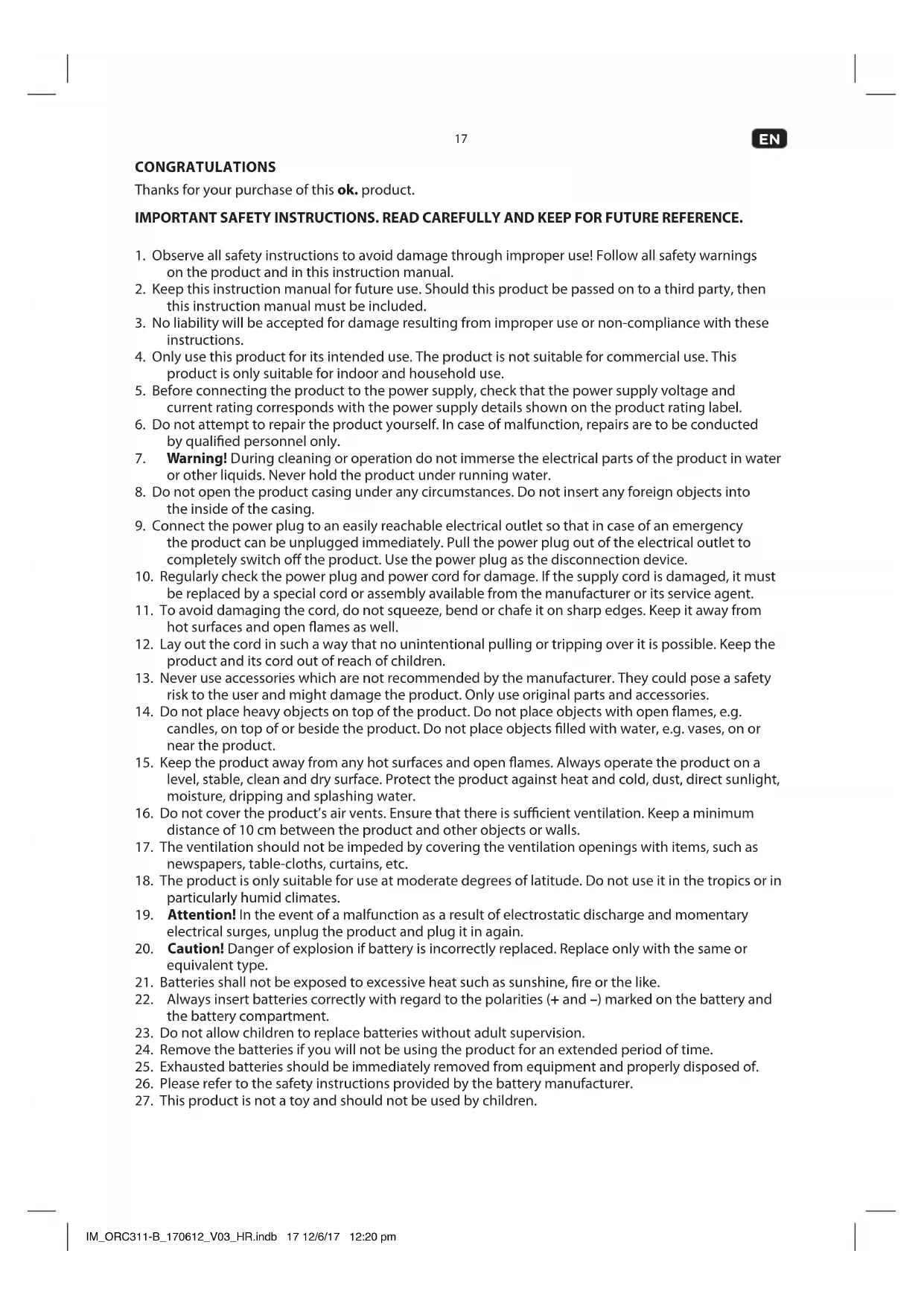

CONGRATULATIONS

Thanks for your purchase of this ok. product.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Observe all safety instructions to avoid damage through improper use! Follow all safety warnings on the product and in this instruction manual.
2. Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included.
3. No liability will be accepted for damage resulting from improper use or non-compliance with these instructions.
4. Only use this product for its intended use. The product is not suitable for commercial use. This product is only suitable for indoor and household use.
5. Before connecting the product to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the product rating label.
6. Do not attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
7. Warning! During cleaning or operation do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.
8. Do not open the product casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
9. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the product. Use the power plug as the disconnection device.
10. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
11. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well.
12. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the product and its cord out of reach of children.
13. Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the product. Only use original parts and accessories.
14. Do not place heavy objects on top of the product. Do not place objects with open flames, e.g. candles, on top of or beside the product. Do not place objects filled with water, e.g. vases, on or near the product.
15. Keep the product away from any hot surfaces and open flames. Always operate the product on a level, stable, clean and dry surface. Protect the product against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
16. Do not cover the product's air vents. Ensure that there is sufficient ventilation. Keep a minimum distance of 10cm between the product and other objects or walls.
17. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
18. The product is only suitable for use at moderate degrees of latitude. Do not use it in the tropics or in particularly humid climates.
19. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the product and plug it in again.
20. Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
21. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
22. Always insert batteries correctly with regard to the polarities (+ and -) marked on the battery and the battery compartment.
23. Do not allow children to replace batteries without adult supervision.
24. Remove the batteries if you will not be using the product for an extended period of time.
25. Exhausted batteries should be immediately removed from equipment and properly disposed of.
26. Please refer to the safety instructions provided by the battery manufacturer.
27. This product is not a toy and should not be used by children.

EN

1. The information on the compact disc is read by a laser through an optical lens (do not touch). If you take the product from a cold to a warm room, moisture may condense on the lens, and the playback may be hampered. In this case leave the product for one hour at room temperature before use. Take the disc out of the product. Should the problem persist, have the product checked by qualified personnel.

CLASSI LASER PRODUCT

This label on the product informs the user that this is a class 1 laser product containing a laser component.

Do not touch the lens inside the disc compartment.

CAUTION! Use of controls or adjustments of procedures other than those specified herein may result in hazardous radiation exposure.

DANGER! Invisible laser radiation when open and safety interlock failed or defeated. Avoid direct exposure to the beam. Do not touch the lens.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: SHOCK HAZARD - DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" inside the enclosure of this product, which may be of sufficient magnitude to constitute a risk of electric shock to persons and animals.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product.

INTENDED USE

This product is only intended for audio entertainment. This product is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the product or injury.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

BEFORE FIRST TIME USE

• Remove all packaging materials.
• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.
  Clean the product Cleaning and care).
• Important! Before first use, remove the protective sheet from the disc compartment.

COMPONENTS

Fold out front and rear page for product illustrations.

1. Handle
2. CD compartment lid
3. Display
4. FUNC. button
5. SLEEP button
6. ALBUM button
7. Speaker left
   8.Playback/Pause
8. Skip to previous track
9. On/Off button

10. USB port

11. Telescopic antenna

12. AUX IN jack
13. Battery compartment
14. AC socket
15. Power cable with plug
16. TUNING knob
17. Skip to next track
18. STOP
19. Speaker right
20. Volume control VOL+/-
21. Band/Mode selector MODE/FM ST.

POWER SUPPLY

AC supply

Attention!

• Do not use this product with AC supply and battery operation simultaneously.
• Remove all of the batteries when operating this product via power supply.
• Disconnect the product before insert batteries.

1 Connect the power cable to the AC socket.
2 Connect the power plug to a suitable electrical outlet.
Note: Alternative you can use the product with batteries.

Battery operated

Attention!

• Do not use this product with AC supply and battery operation simultaneously
  Unplug the product before inserting batteries.

3 Remove the battery compartment cover.
4 Insert 6 batteries (type C / R14, 1.5V = = not included) in the battery compartment. Match the polarities ^+ and - as indicated on the batteries.
5 Close the battery compartment cover.

SETTING THE CLOCK

Press button to turn off the product.
7 Activate clock setting mode: Press and hold for 2 seconds.

24H starts blinking on the display.

Press to choose between 12-hour/24-hour format. Press to confirm. The hour

indicator starts blinking.

8 1. Press or set the hour. Press to dBnfirm. The minute indicator starts blinking.

1. Press to set the minute. Press to confirm. The clock is now set and displayed.

Note: If the product is disconnected from power, the clock setting needs to be reset.

EN

20

OPERATION

Switching on and off

Press the button to turn on/off the radio

Mode selection

Press the FUNC. button to select a mode in following order tunE (Radio) > Cd (CD player) > USb (USB) > AU (AUX IN).

Volume control

The volume can be easily controlled by pressing the buttons VOL + or VOL-. The volume will be shown on display for a moment.

Sleep function

Press the SLEEP button shortly to adjust the sleep timer in 10 minutes steps from 120 minutes to 10 and 5 to OFF.

ALBUM

Press the button during playback of the MP3 file in order to select the next folder.

RADIO MODE

Press button to turn on the product. Press FUNC until "tunE" appears on the display.
10 Select radio band: Press MODE/FM ST.. Select FM for mono stations and FM ST. for stereo stations. FM ST. appears on display when stereo station is found.
11 Selecting desired radio station: Use the tuning knob.

Notes:

• For better FM reception: Fully extend the antenna.

CD/USB MODE

Press button to turn on the product. Press FUNC until "Cd" appears on the display.
13 Open the CD compartment door and insert a CD with the label facing up.
14 Close the CD compartment door.

or

15 Connect a USB storage device to the USB port. Note

• Connect the USB device directly to the USB port of the product. Using an extension cable is not recommended and may cause interference and failure of data transfer.
  This product supports USB 1.1 and 2.0 up to 64 GB with file system FAT16 and FAT32.
  External devices cannot be charged via USB with this product.

16 Press button to turn on the product. Press FUNC until "Usb" appears on the display.

Note: If no CD or USB storage is inserted, the display shows "no".

CD/USB PLAYBACK

17 1. Start or pause playback: Press .Pause mode, track number will flash on the display.

1. Stop playback: Press STOP. In stop mode, total number of tracks will appear on the display.
2. Skip to next track: Press . Press and hold to fast forward.
3. Skip to previous track: Press . Press and hold to fast reverse.
4. During playback, press MODE/FM ST. repeatedly to switch the playback modes as follows:

Press Display Result

1x REP Repeat one track. REP flashing in display

2x REP ALBUM Repeat album (only for MP3)

3x REP ALL Repeat all tracks

4x RAND Play a track randomly.

5x - Normal playback.

Notes:

This product reads CD, CD-R/-RW and MP3-CD discs. Other discs are not supported.
- When playing CD-R/RW discs the playback quality might be influenced by the quality of the burned disc. When burning CD-R/RW disks with audio files we recommend using the slowest burning speed.

PROGRAM PLAYBACK

Notes:

• Up to 20 CD tracks or up to 99 MP3 tracks can be programmed for a playback in any desired order.
• Programmed playback can only be made from one single source - it cannot include tracks from CD disc and USB storage at the same time.

18

1. Stop playback: Press STOP.
2. Enter program settings: Press MODE/FM ST.. PROG and P01 will show on the display.
3. Select desired track: Press OK
4. Store selected track into the program memory: Press MODE/FM ST. again. P02 will now show on the display.
5. Repeat step 3 and 4 to program additional tracks.
6. After programming all the desired tracks, press to start program playback. PROG appears on the display.
7. Stop playback: Press 1x STOP.
8. Cancel program playback: Press 2x STOP.PROG disappears from the display.

EN

22

AUXILIARY (AUX) PLAYBACK

Warning!

Observe the relevant safety information for use with other devices when connecting an external device.

Press button to turn on the product. Press FUNC until "AU" appears on the display.

Connect auxiliary device to the AUX-IN socket using 3.5mm jack audio cable (not included).

If an auxiliary device is connected, all playback functions of this device need to be used.

COMPATIBLE CDs

Only use CD compact discs with digital audio signals.
- The making of unauthorized copies of copyright-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence under your national law. This equipment should not be used for such purposes.

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes Solution
Product does not function	Interrupted power supplyDue to electrostatic discharge	Check the power supplyUnplug and plug it in again after a while
Poor Audio quality	CD is scratched	Insert a new CD
NO appears on display	CD not correctly insertedUSB not correctly connected	Re-insert the CDEnsure correct connection of USB stick
No radio reception	Poor radio reception	Place the product to another place and adjust the antenna again

CLEANING AND CARE

WARNING! Before cleaning, always switch off the product and disconnect the plug from power.
- Never immerse the product in water or other liquids.
- Clean the product with a soft, slightly damp cloth. Make sure that no moisture is entering the product during cleaning.
- Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your product.
Dry the product thoroughly after cleaning.
- Store the product in a cool, dry location, away from children and pets.

CD MAINTENANCE

• Small amount of dust or scratches will usually not have an impact on the quality of a disc. The discs should, however, be treated with care.
• Protect your compact discs from dust and scratches.
• Store your compact discs in their covers when not in use.
• To maintain the original quality of sound, you should occasionally wipe your compact discs with a soft cloth, from the centre to the edge (not with circular movements). Never use gasoline or other solvents for cleaning.
  Only hold a compact disc by its edges!

SPECIFICATIONS

Rated voltage: 230V 50 Hz

Rated power: 10 W

Battery: 9 V

= -6× 1.5V (type C/R14)(not supplied)

Supported formats: CD Audio, MP3/CD Audio, MP3

USB Port: supports up to 64 GB

Supported MP3 bitrates: 32 kbit/sec - 320 kbit/sec

Radio frequency band: 88 - 108 MHz (FM)

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.

ES

24

FELICIDADES

CLASSI LASER PRODUCT

CLASS I LASER PRODUCT

CLASSI LASER PRODUCT

CLASS I LASER PRODUCT

CLASS I LASER PRODUCT

Radiofrequencyband: 88 - 108 MHz (FM)

AFVAL

CLASSI LASER PRODUCT

11 Selecting desired radio station: Use the tuning knob.

Uwagi:

Obsguwane formaty: CD Audio, MP3/CD Audio, MP3

Port USB: obslugue do 64 GB

CLASS I LASER PRODUCT

CLASSI LASER PRODUCT

CLASSI LASER PRODUCT
