USER MANUAL SR 4304 CD AEG

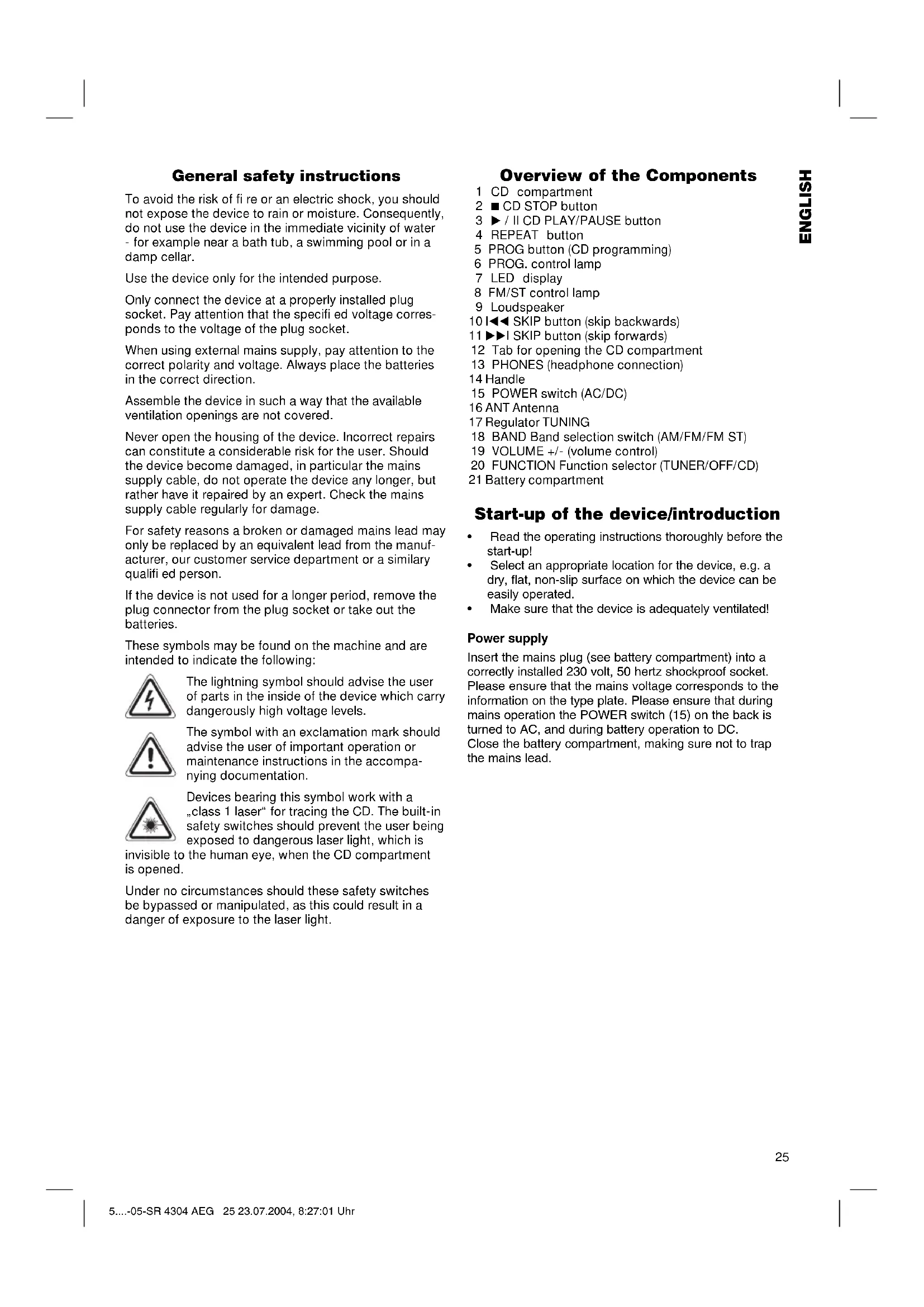

General safety instructions To avoid the risk of fi re or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar. Use the device only for the intended purpose. Only connect the device at a properly installed plug socket. Pay attention that the specifi ed voltage corres- ponds to the voltage of the plug socket. When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction. Assemble the device in such a way that the available ventilation openings are not covered. Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage. For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manuf- acturer, our customer service department or a similary qualifi ed person. If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries. These symbols may be found on the machine and are intended to indicate the following: The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels. The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompa- nying documentation. Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened. Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light. Overview of the Components 1 CD compartment 2 CD STOP button 3 / II CD PLAY/PAUSE button 4 REPEAT button 5 PROG button (CD programming) 6 PROG. control lamp 7 LED display 8 FM/ST control lamp 9 Loudspeaker 10 I SKIP button (skip backwards) 11 I SKIP button (skip forwards) 12 Tab for opening the CD compartment 13 PHONES (headphone connection) 14 Handle 15 POWER switch (AC/DC) 16 ANT Antenna 17 Regulator TUNING 18 BAND Band selection switch (AM/FM/FM ST) 19 VOLUME +/- (volume control) 20 FUNCTION Function selector (TUNER/OFF/CD) 21 Battery compartment Start-up of the device/introduction

• Read the operating instructions thoroughly before the start-up!

• Select an appropriate location for the device, e.g. a dry, flat, non-slip surface on which the device can be easily operated.

• Make sure that the device is adequately ventilated! Power supply Insert the mains plug (see battery compartment) into a correctly installed 230 volt, 50 hertz shockproof socket. Please ensure that the mains voltage corresponds to the information on the type plate. Please ensure that during mains operation the POWER switch (15) on the back is turned to AC, and during battery operation to DC. Close the battery compartment, making sure not to trap the mains lead. 5....-05-SR 4304 AEG 25 23.07.2004, 8:27:01 UhrENGLISH

Inserting the Batteries (not supplied)

• Open the lid of the battery compartment (21) on the bottom by pushing the cover in the direction of the arrow.

• Insert 6 batteries o f type UM2/LR14 1,5V (not sup- plied). Please ensure that the polarity is correct (see the inside of the battery compartment)! If the device is not used for a long period of time, remove the batte- ries to avoid the spilling of battery acid.

• Close the battery compartment, making sure not to trap the mains lead. Note: Do not dispose of batteries in the domestic waste. Please return used batteries to the relevant collection points or the shop where they were bought. Never throw batteries into a fire. Transport Safety Device, CD Compartment Open the CD compartment (1) by pulling the lid upwards by the tab (12). Before operating the machine for the first time, remove the transport safety device from the CD play- er if it is still in place. Headphone Socket Please use headphones with a 3.5 mm jack, which should be inserted in the PHONES socket (13). The loudspeakers are then switched off. Switch-off The machine is switched off when the function selector switch (20) is turned to the OFF position. Unplug the device. Listening to the Radio

2. Select the desired frequency band with the band

selection switch (18). Medium wave = AM (Mono), VHF = FM, VHF (Stereo) = FM ST.

3. For VHF/FM mode pull out the telescopic antenna (16)

and turn it to improve reception.

4. Tune into the desired station using the TUNING regu-

5. The stereo control lamp FM ST. (8) only lights up

when you have selected FM stereo and the station is being received in stereo quality. If reception is too weak and there is interference, it is possible that the stereo control lamp will not light up.

6. Proceed in a similar manner if you wish to receive

MW/AM stations. On this frequency band all program- mes are transmitted only in „mono“.

7. To switch off the radio, shift the function selector (20)

to the OFF position.

8. The desired volume can be sent using the VOLUME

2. Open the CD compartment (1) by pulling the lid

upwards by the tab (12).

3. Insert a CD with the printed side facing up and close

4. „- -“ appears in the display (7) followed by the number

of tracks. Press the / II PLAY/PAUSE button (3) in order to play the CD. The CD will play from the first title. A dot lights up in the display on the right.

5. With I SKIP (11) you can jump to the next or pre-

vious track etc. If the button is kept pressed down, the machine starts to search through the tracks.

6. The I SKIP button (10) can be used as follows:

Press once = This starts the current track again from the beginning. Press a second time = This jumps back to the pre- vious track. Press a third time = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks.

7. In order to remove a CD, please press the STOP

button (2), open the CD compartment and lift the CD out carefully. Please note these instructions for playing back CDs and CDRs in MP3 format! The device is not able to play back MP3 fi les. The CD begins to turn, but the sound cannot be heard. Always keep the CD deck closed. Note: If a disc is inserted incorrectly, or no disc is inser- ted, the symbol „- -“ appears in the display. PLAY/PAUSE (3) When a CD is playing. You can briefly interrupt the playing. The right-hand dot in the display (7) flashes. Press the /II PLAY/PAUSE (3) button again in order to continue playback. REPEAT (4) When a CD is playing the REPEAT button has a repeat function. First start the CD and then press the REPEAT button. Press once (The left hand dot in the display flashes, while the right hand dot lights up.): the current track is repeated continuously. Press a second time (both dots in the display light up): the whole CD is played conti- nuously. Press a third time: the function is deactivated. 5....-05-SR 4304 AEG 26 23.07.2004, 8:27:02 UhrENGLISH

Programmed Repeat with the PROG Button This can be used to program any desired sequence of tracks.

together with the PROG. control lamp (6). Use the II SKIP buttons (11/10) to select the desired track and then press the PROG button (5) again.

3. Press the / II PLAY/PAUSE key (3). The playback

starts. The selected track numbers are shown in the display in the correct order. Press this button to pause briefly the playback (see PLAY/PAUSE section).

Press once the STOP key (2) to stop the playback while retaining the program.

5. To resume the playback of the program press first the

PROG key once and then the / II PLAY/PAUSE key.

6. In order to delete the programme, please press the

PROG. button and then the STOP button (2). The PROG control lamp (6) goes off. The device stops automatically once the entire sequence of programmed tracks is completed. The programmed order remains in the memory until you change to the other mode, the CD is removed from the CD drawer or the device is switched off. It is possible to combine the programmed tracks with the repeat function. After you have programmed and started the device, please press the REPEAT button (4) up to three times and then you can use the functions as descri- bed under „REPEAT“. This device has been tested according to all relevant cur- rent CE guidelines, such as electromagnetic compatibili- ty and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you have a claim that falls under the guarantee, please return the complete device in its original packaging to the dealer where you bought it together with your receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. 5....-05-SR 4304 AEG 27 23.07.2004, 8:27:04 Uhr28
