USER MANUAL MW 734 CLATRONIC

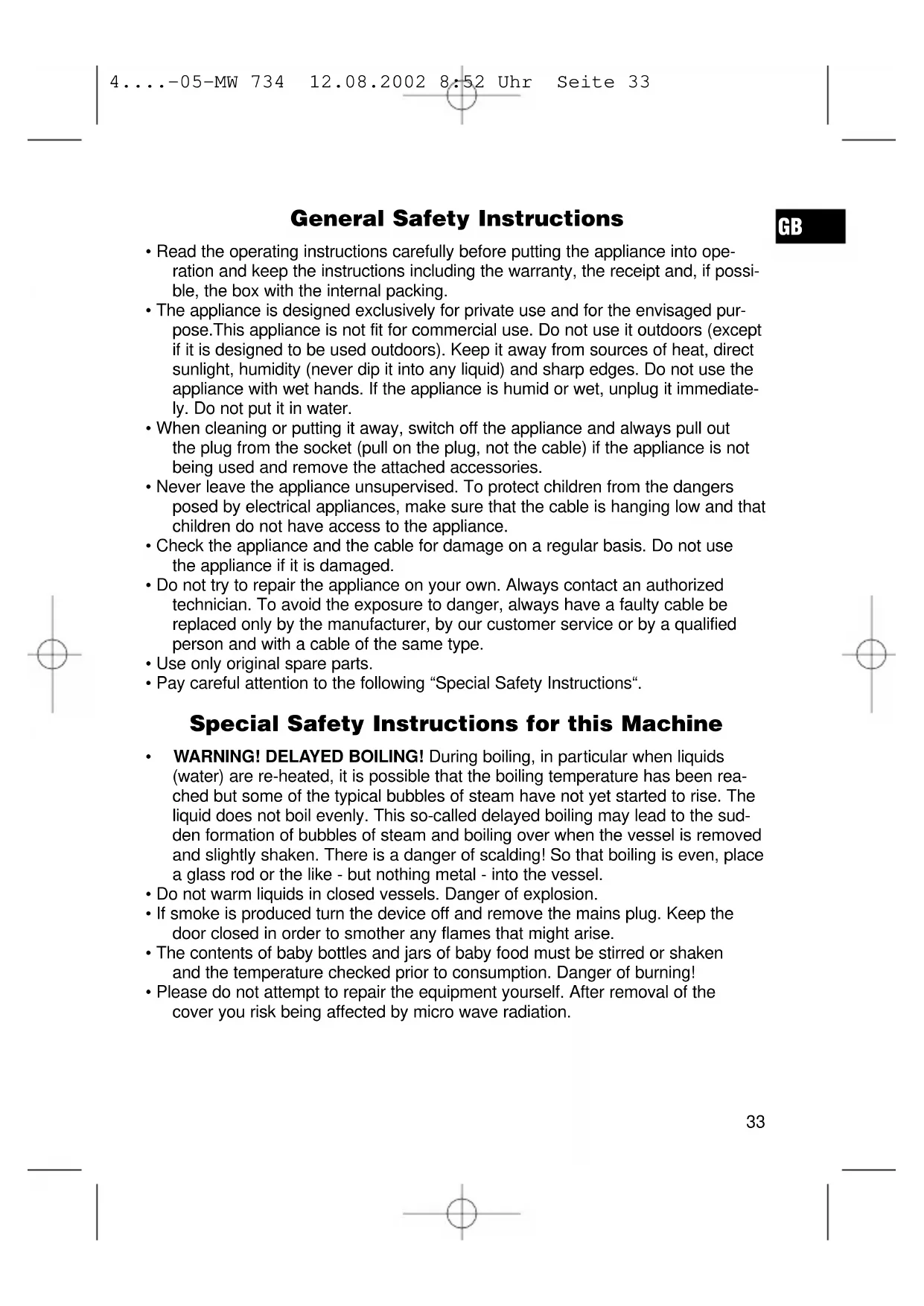

• Read the operating instructions carefully before putting the appliance into ope- ration and keep the instructions including the warranty, the receipt and, if possi- ble, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged pur- pose.This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediate- ly. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special Safety Instructions for this Machine

• WARNING! DELAYED BOILING! During boiling, in particular when liquids (water) are re-heated, it is possible that the boiling temperature has been rea- ched but some of the typical bubbles of steam have not yet started to rise. The liquid does not boil evenly. This so-called delayed boiling may lead to the sud- den formation of bubbles of steam and boiling over when the vessel is removed and slightly shaken. There is a danger of scalding! So that boiling is even, place a glass rod or the like - but nothing metal - into the vessel.

• Do not warm liquids in closed vessels. Danger of explosion.

• If smoke is produced turn the device off and remove the mains plug. Keep the door closed in order to smother any flames that might arise.

• The contents of baby bottles and jars of baby food must be stirred or shaken and the temperature checked prior to consumption. Danger of burning!

• Please do not attempt to repair the equipment yourself. After removal of the cover you risk being affected by micro wave radiation.

• In case you would like to place resp. build your micro wave oven in a cubboard or cabinet please make sure to keep a safety distance to the cubboard of 10 cm on each side of the equipment.

Remove all the accessories from the oven compartment, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle such that the plate fits into the hollow sections of the drive shaft and is lying level.

• Inspect the machine for visible damage, in particular in the area of the door. If any type of damage whatsoever is found, the machine must not be used.

• In order that there is no interference from other electrical equipment during the operation of the microwave oven, do not place your machine in the direct vicini- ty of other electronic equipment.

• Remove any adhesive protective foil from the housing.

• Please never remove the films on the inner side of the door!

• Insert the plug into a correctly installed safety socket of 230 V, 50 Hz.

• Do not remove any fitted parts from the oven interior nor from the inside of the door! Using the Oven What you should know about microwave operation:

• Your oven works with microwave radiation which heats up water particles in food in a very short time. There is no heat radiation and therefore no browning. For this reason the machine is not suitable for drying objects.

• Only food should be heated with this oven.

• The machine is not suitable for deep-frying

• Do not heat too large quantities at the same time, otherwise the machine will be less efficient.

• Do not heat any enclosed food such as eggs, sausages, preservatives in jars, etc, as there is a danger of explosion!

• Microwaves supply a great deal of energy immediately. Pre-heating is therefore unnecessary.

The microwave oven does not replace the traditional cooker. It mainly serves for: - defrosting frozen or deep frozen food - rapidly warming up or heat food or drinks - some types of cooking food

• Please do not us plastic or paper dishes like plates, cups etc. Operation Setting the Time:

1. Press the button once or twice to select the 12 H or 24 H display. Turn the

rotating button to the right or left in order to set the hours. If you press the button, the display flashes. Turn the rotating button again to set the minu- tes.Then use the button to store the time.

2. Place the food to be heated in a suitable piece of tableware.

3. Open the door and place the vessel in the middle of the glass plate. Then close

the door. (For safety reasons the oven only operates when the door is tightly closed.)

4. Set the desired microwave power with the power regulator: In order to adjust

the cooking time, turn the rotating button to the right - maximum 60:00 min. Once the cooking time is set the oven switches itself on. The light inside the oven goes on.

5. If you would like to interrupt the cooking process, open the door or turn the

rotating button to the left until it reaches "0". If you would like zo shor- ten the cooking time, turn the buton to the left, until the desired time appears in the display.

6. The cooking time depends on the quantity and constituency of the contents of

the oven. With a little practice you will soon learn to estimate the cooking time. Please note: preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.

7. After the time has elapsed the microwave switches off, the word "END" appears

in the display and a signal is heard.Then remove the food. Defrosting according to Weight: This device allows you to defrost frozen food according to weight. This saves ener- gy and protects the food.Turn the power regulator to the defrost level - a signal is heard - and then turn the rotating button. The number "100" appears in the display for 100g. By turning to the left or right you can select the weight in 100g steps up to a maximum of 2700g. The microwave automatically calculates the time needed for defrosting. After a few seconds the machine switches on automatically. Please note: A cover should be placed over the food when operating the microwave. You will find recipe books at specialist bookshops.

• Disconnect the oven from the power supply.

• Clean the inside of the oven after use with a slightly damp cloth.

• Clean the accessories in the usual way in soapy water.

• The door frame and seal and neighbouring parts must be cleaned carefully when dirty with a damp cloth. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascriba- ble to material or manufacturing defects will be eliminated free of charge by repai- ring or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase.Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
