USER MANUAL MWG 800 CLATRONIC

Instruction Manual/Guarantee

Microwave Oven with Grill

White microwave oven with digital display showing time 12:35, no visible text or symbols on the device itself.

MWG 800

CE

Diagram 1

Diagram 2

Diagram 3

General Safety Instructions

GB

- Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not intended for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

- When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

- Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is out of reach and that children do not have access to the appliance.

- Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

- Use only original spare parts.

- Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Appliance

- WARNING! DELAYED BOILING! During boiling, in particular when liquids (water) are re-heated, it is possible that the boiling temperature has been reached but some of the typical bubbles of steam have not yet started to rise. The liquid does not boil evenly. This so-called delayed boiling may lead to the sudden formation of bubbles of steam and boiling over when the vessel is removed and slightly shaken. There is a danger of scalding! So that boiling is even, place a glass rod or the like - but nothing metal - into the vessel.

- Never use metal tableware or tableware containing metal parts (e.g. golden edges or wire clips) in the microwave. This will damage the appliance.

• Always use the microwave oven with the turntable and the roller ring.

- Never operate the appliance when the oven is empty.

- If the door frame or seal or neighbouring parts are damaged, the appliance may not be used until repaired by a service technician.

- Servicing work or any repair work may only be carried out by a service technician trained by the manufacturer.

- If smoke forms in the appliance, keep the door closed and switch the appliance off and disconnect it from the power supply.

GB

• The appliance should be kept under observation if meals are warmed up or cooked in disposable containers made of plastic, paper or other combustible materials.
• The contents of glasses and bottles of baby food must be stirred or shaken before consumption. The temperature should be checked before consumption in order to avoid burns.
  • A minimum distance at 10 centimetres should be kept clear around the appliance.
• When operating the microwave oven alone never use the metal grill stand as this will damage the appliance.

Description of the Components

Diagram 1: Part description

1 Door lock 4 Drive axle 7 Control panel
2 See-through window 5 Sliding ring 8 Grill heating
3 Aeration grid 6 Rotating plate 9 Grill stands

* Please never remove the foil on the inside!
** Please never remove the cover!

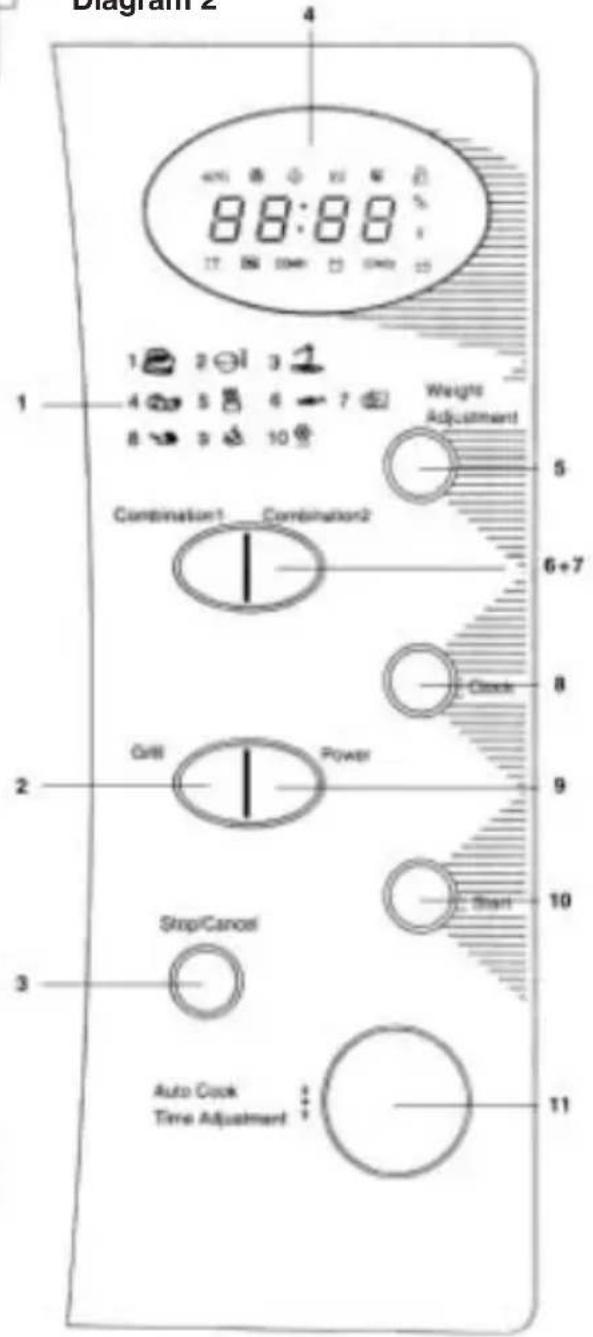

Diagram 2: Control panel

1. Automatic Menu

1 Coffee/Soup 4 Potatoes 7 Poultry 10 Automatic
2 Rice 5 Warming 8 Meat thawing
3 Noodles 6 Fish 9 Skewered meat

2. GRILL

Quartz grill for grilling and browning

3. STOP/LOCK - UNLOCK

Press once to stop the cooking;
Press twice to delete the program;
Press for 3 seconds to lock/unlock the appliance.

4. Multi-function Display

5. WEIGHT

After choosing the menu, set the weight by pressing the necessary number of times.

6. COMB 1 (Microwave/Grill combination 1)

30% microwave cooking time – 70% grill cooking time Microwave and grill work alternately

7. COMB 2 (Microwave/Grill combination 2)

55% microwave cooking time – 45% grill cooking time Microwave and grill work alternately

8. TIME

Set the time – Display the time during operation

9. POWER (microwave power)

Power levels

10. EXPRESS/START

Program start – Set the express cooking time

11. AUTO TIMER

Easy Tronic

Setting of the time, cooking time and the selection of the automatic programs

Diagram 3: Multi-function Display:

1 Automatic reminder 7 Start 13 Weight in gr.
2 Programmed cooking 8 Comb 1 14 Low power
3 Time / Weight 9 Grill 15 Comb 2
4 Program number 10 Time 16 High power
5 Automatic thawing 11 Lock active
6 Microwave 12 Microwave power in %

Information concerning grill and combined operation

• As irradiated heat is used during grill and combined operation please use only heat-resistant tableware.
• When operating the grill alone only metallic or aluminium tableware may be used - but not during combined or microwave operation.
• Do not place anything on top of the housing, as this becomes hot. Always keep the ventilation slits clear.

Initial Operation

• Remove all the accessories from the oven compartment, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle such that the plate fits into the hollow sections of the drive shaft and is lying level.
• Inspect the appliance for visible damage, in particular in the area of the door. If any type of damage whatsoever is found, the appliance must not be used.
• In order that there is no interference from other electrical equipment during the operation of the microwave oven, do not place your appliance in the direct vicinity of other electronic equipment.
• Please do not remove the foil from the inside of the door.
• Insert the plug into a correctly installed mains power supply socket.

Using the Oven

What you should know about microwave operation:

- Your oven works with microwave radiation which heats up water particles in food in a very short time. There is no heat radiation and therefore no browning. For this reason the appliance is not suitable for drying objects.

GB

• Only food should be heated with this oven.
  • The appliance is not suitable for deep fat frying.
• Do not heat large quantities at the same time, as the appliance will operate less efficiently.
• In order to interrupt the cooking process, turned the timer to "0".
• Do not heat any enclosed food such as eggs, sausages, preservatives in jars, etc, as there is a danger of explosion!
• Microwaves supply a great deal of energy immediately. Pre-heating is therefore unnecessary.

• The microwave oven does not replace the traditional cooker. It mainly serves for:

• defrosting frozen or deep frozen food

• rapidly warming or heating up food or drinks
• for cooking some types of food

- Only suitable tableware should be used, such as:

- glass, porcelain, ceramics, heat-resistant plastic or special microwave crockery.

Setting the time (12 hour clock)

Press the STOP button. Press the TIME button. Set the desired hour with the AUTO-TIMER. Press the TIME button again. Set the desired minutes with the AUTO-TIMER (Easy-Tronic). Press the TIME button again to activate the new time.

Operation

1. Place the food to be heated in a suitable piece of tableware.
2. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the oven only operates when the door is tightly closed.)

Microwave:

Selected power Power in Watts Usage area displayed in % (approx)
100 800 Rapid heating
80 560 Cooking
60 420 Warming
40 280 Thawing of frozen products
20 140 Melting of cheeses, etc.
0 0 only timer function e.g. for time-controlled cooling
Express cooking	800 Rapid heating

1. Press the STOP button. By pressing the POWER button once or several times, select the microwave power.
2. Set the desired cooking time from 10 seconds to 60 minutes with the AUTO-TIMER (Easy-Tronic) and press the EXPRESS/START button to start. The cooking time depends on the quantity and constituency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time. Please note: preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.
3. After the time has elapsed the oven switches itself off. You can then remove the food.

For recipes and the correct cooking time please use a recipe book especially for microwave ovens available in bookshops.

Express Cooking

To start express cooking press EXPRESS/START repeatedly. The cooking procedure starts immediately and the cooking time is lengthened by 30 seconds each time the button is pressed. The power of the microwave reaches 100%. The maximum express time is 12 minutes.

Automatic Cooking:

With the aid of the automatic function you can leave specific amounts of food to cook automatically. Proceed as follows:

Press the STOP button. Set the desired program number with the AUTO-TIMER (Easy-Tronic). Press the WEIGHT button until the weight of the food to be cooked is displayed. (The possible settings are provided in the table below). Press the EXPRESS/START button to start.

Program Number	Wgt. 1	Wgt. 2	Wgt. 3	Wgt. 4	Wgt. 5	Wgt. 6	Wgt. 7	Wgt. 8	Wgt. 9
1. Coffee / Soup (cups) 1 2 4
2. Rice 80g 100g 120g
3. Noodles 100g 200g 300g
4. Potatoes 150g 300g 450g 600g
5. Warming 70g 140g 210g 280g		320g 350g 380g 420g			450g
6. Fish	50g	100g	150g	200g	250g	300g	350g	400g	450g
7. Poultry *	800g	1000g	1200g	1300g	1400g	1500g	1700g	1800g	2000g
8. Meat *	300g	500g	800g	1000g	1200g	1300g	1800g

* In program numbers 7, 8 and 9 a beep sound will tell you to turn the food once half the cooking time has passed.

GB

Automatic thawing:

For automatic thawing proceed as follows to thaw frozen meat, poultry and seafood:

Press the STOP button. Set menu item 10 with the AUTO-TIMER (Easy-Tronic) and turn to set the weight of the frozen products (100 – 4000 gr.). Press the EXPRESS/START button to start.

Grill:

To grill and brown proceed as follows:

Press the STOP button. Press the GRILL button. Set the desired grilling time with the AUTO-TIMER (Easy-Tronic) between 10 seconds and 60 minutes and press the EXPRESS/START button to start.

Combination

With these settings the microwave and the grill work alternately during the set time in the following proportions:

COMB1 30% of the cooking time by microwave 70% of the cooking time by grill COMB2 55% of the cooking time by microwave 45% of the cooking time by grill

Press the STOP button. Press the COMB1 or COMB2 buttons. Set the desired cooking time with the AUTO-TIMER (Easy-Tronic) between 10 seconds and 60 minutes and press the EXPRESS/START button to start.

Special Functions

Automatic Reminder

After the end of the cooking you will be reminded with a beep every 2 minutes to remove the food from the appliance. The reminder is switched off by opening the door or by pressing the STOP button.

Lock:

By keeping the STOP button pressed, the appliance is locked or unlocked. The activation of the lock is displayed on the display. When locked, you can only select the unlock function.

Cleaning

Disconnect the oven from the power supply.

• Clean the inside of the oven after use with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully when dirty with a damp cloth.

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire appliance in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

This guarantee does not affect consumers statutory lights.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Service address

In case of any claims or questions, please call:

01922/422456

[]

9:00 am - 5:00 pm

Technical Data

Modell: MWG 800

Rated voltage/ frequency: 230 V, 50 Hz

Rated power input grill 1000 Watt

Rated power input microwave: 800 Watt

Cooking volume: 20 Litre

Protection class: 1

This device has been tested according to all relevant current CE guidelines, applicable at time of manufacturers such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
