Product Type	Microwave Oven
Brand	Clatronic
Model	MWG 755 H
Capacity	20 Liters
Power Output	700 Watts
Control Type	Mechanical Knobs and Timer
Cooking Functions	Microwave, Defrost, Timer, Power Levels
Timer	Up to 30 Minutes
Interior Light	Yes
Turntable	Glass Turntable, Removable
Door Mechanism	Push-Button Release
Safety Lock	Child Safety Lock
Power Supply	230V ~ 50Hz
Power Consumption	1050 Watts
Dimensions (W x D x H)	45.5 x 33.5 x 26.2 cm
Weight	10.0 kg
Color	White / Silver
Cleaning Instructions	Wipe interior and exterior with a damp cloth; do not use abrasive cleaners.
Spare Parts	Turntable, Glass Tray, Roller Ring
Repairability	Repairs should be carried out by qualified personnel.

Frequently Asked Questions - MWG 755 H CLATRONIC

How do I set the cooking time?

Turn the timer knob clockwise to the desired time (up to 30 minutes). The microwave starts immediately.

How do I defrost food?

Set the timer and use a low power level (e.g., 30% power) for defrosting. Refer to the manual for recommended times.

Can I use metal containers?

No, do not use metal containers or aluminum foil as they can cause sparks. Use microwave-safe glass or plastic.

How do I clean the microwave?

Unplug the microwave. Wipe the interior with a damp cloth and mild detergent. Do not immerse in water.

What does the child safety lock do?

The child lock prevents accidental operation. Refer to the manual for activation instructions.

Why is the turntable not rotating?

Ensure the glass tray and roller ring are correctly positioned. If the problem persists, contact service.

Can I cook without the turntable?

No, the turntable ensures even heating. Do not operate the microwave without it.

What power levels are available?

The microwave offers multiple power levels (e.g., Low, Medium, High). Select by adjusting the power knob.

How to replace the interior light?

The interior light bulb should be replaced by a qualified technician. Do not attempt yourself.

What does the 'Defrost' function do?

The defrost function uses lower power to thaw frozen food evenly without cooking it.

USER MANUAL MWG 755 H CLATRONIC

Exterior view of a CTRONC microwave oven (MWG755) with digital display and control buttons (no visible text beyond branding)

MWG 755 H

DEUTSCH

Inhalt

Labeled diagram of a microwave oven with numbered parts and a close-up inset showing interior components.

Description of the Operating Controls

Diagram 1: Description of Parts

1 Door lock
	2	Viewing
	3	Housing
	4	Drive
	5	Sliding
	6	Rotating
	7	Control
8 Cavity
	9	Grilling

Caution:

Do not remove any installed parts from inside the oven or anything from the inside of the door!

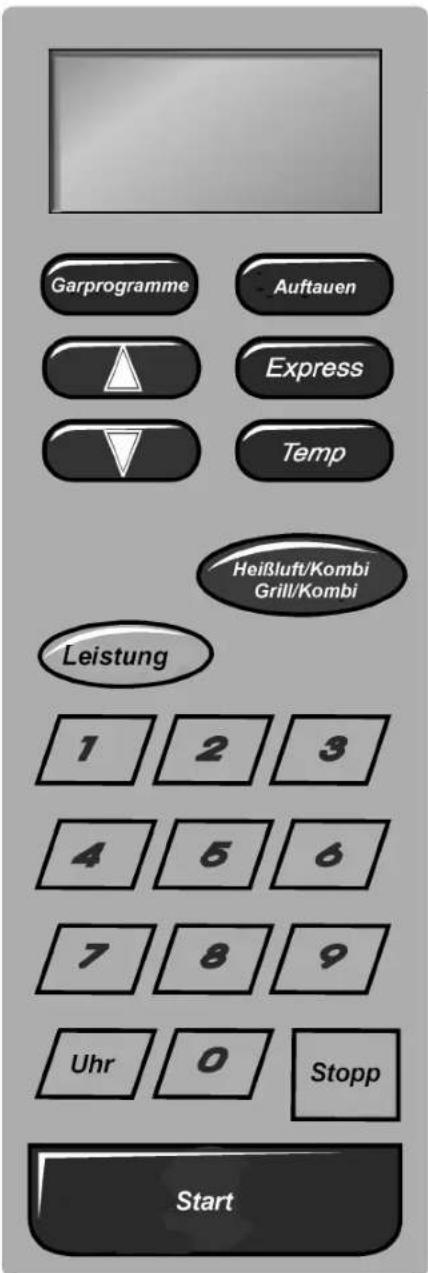

Diagram 2: Operating Controls

LEISTUNG (microwave) (Power) Power level selection

HEIBLUFT/KOMBI GRILL/KOMB

HEIBLUFT: (Hot air) Hot air only operation, thermostat-controlled

HEIBLUFT/KOMB : (Hot air/combi) Alternating hot air and microwave operation

GRILL: (Grill) For grilling and browning on top

GRILL/KOMB: (Grill/combi) Alternating grill and microwave operation

GARPROGRAMME (Cooking programmes) tion of an automatic programme by pressing repeatedly

AUFTAUEN (Defrosting) Activates the defrost function and sets the weight

EXPRESS (Express) Express start of the microwave

TEMP (Temp) Allows temperature selection during hot air operation

Arrow keys For setting temperatures or weights

NUMMERN keys (Number keys) For setting the time and length of cooking

UHR (Clock) For setting the clock time in conjunction with the NUMBERS keys

START (Start) Start of the programme

STOPP (stop/disable) Press once to stop the cooking process.

Press twice to delete the programme.

Hold down for 3 seconds to disable/reactivate the device.

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit to commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same \$elec-
  • Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Important Safety Information!

Please read carefully and keep for future use.

• Warning: When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.
• Warning: Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.
• Warning: Do not heat liquids in closed containers. Danger of explosion!
• Warning: children must only be allowed to use the oven without supervision if they have been given adequate instructions enabling them to use the device safely and informing them of the dangers of misuse.
• If you would like to use your microwave in a cupboard, on a shelf or similar item, please ensure that you maintain a space of at least 10 cm to cupboards, walls etc for ventilation purposes on all sides of the machine.
• Only suitable tableware should be used such as:
• glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.
• If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.

- If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.

- Delay in boiling: During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.

- The contents of babies' bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.

- Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is fi nished.

- Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.

- Clean the microwave oven regularly and remove any food residues from the interior.

- If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.

Information on Grilling and Combined Operation

- As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware.

- When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.

- For the GRILL and KOMBI operating modes only the grilling grid is suitable.

- Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.

- Please use the grilling grid to move the food to be cooked nearer to the heating element.

Initial Operation

- After removing all the accessories from inside the oven, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle in such a way that it locks into the dents of the drive shafts and is lying flat.

- Check the device for any visible damage, particularly in the area of the door. If any damage is found, the machine must not be used.

- In order to avoid interference to other machines when the microwave oven is operated, do not place it in the direct vicinity of other electronic devices.

- Remove any protective foils that may be adhered to the housing.

- The foils on the inside of the door must not be removed!

- Insert the mains plug into a properly installed 230 V, 50 Hz power socket.

- Do not remove any installed parts from inside the oven or from inside the door!

Using the Device

What you should know about microwave operation:

- Your device works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.

- Only food should be heated up with this device.

• The device is not suitable for baking in fl oating fat.

- Only 1-2 portions should be heated up at the same time. Otherwise the microwave will become less efficient.

- If you want to interrupt the cooking process, press the STOPP button.

- Microwaves provide their full energy levels immediately. Pre-heating is therefore not necessary.

- Never operate the machine in microwave or combined mode if it is empty.

- The microwave oven does not replace your traditional cooker. It is used mainly for:

- defrosting deep-frozen food

– rapid warming/heating of food or drinks

- cooking meals

- Please do not use any plastic or paper tableware.

Setting the Time

Note: When the microwave oven is first switched on, at first all display messages light up followed by a fl ashing colon.

- Press the STOPP button.

- Press the UHR button. The display changes to 00:00. The first figure flashes.

- Please enter the desired time in a four-figure format using the NUMMERN buttons.

• The new time is activated.

Operating the Microwave

Place the food to be heated up into suitable tableware. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the device only works when the door is firmly closed.)

1. Press the STOPP button.

2. Select the desired microwave power by pressing the LEISTUNG button once or several times.

Power in the display as selected in %	Power in watts (approx.)	Field of application
100 900 Rapid heating
80 720 Cooking
60 540 Continued cooking
40	360	Melting cheese etc.
20	180	Defrosting deep-frozen food
START	900	Rapid heating

1. With the help of the NUMMERN buttons you can now enter the desired length of cooking.

For example: 10:30 min length of cooking at 100% power

Step	Button/s	Display
1	STOPP
2	LEISTUNG	10 0P
3	1 0 3 0	10:30
4	START

1. Press the START button to start the machine. The length of cooking depends on the quantity and consistency of the contents. With a little practice you will soon learn to estimate the cooking time.

Please note: cooking in the microwave oven is very much faster than in a standard cooker. If you are not sure, set the cooking time to low and continue cooking afterwards if necessary.

After the time has elapsed the oven switches itself off and the word „END“ appears in the display. Then you can remove the food.

Automatic defrosting

For automatic defrosting of frozen meat, poultry and seafood please proceed as follows:

1. Press the STOPP button.
2. Press the AUFTAUEN button. You are now in the defrost programme. Select one of the defrost programmes by pressing the AUFTAUEN button repeatedly:

AD1	Defrosting meat from 0,1 – 2,0kg
AD2	Defrosting poultry from 0,2 – 3,0kg
AD3	Defrosting seafood from 0,1 – 0.9kg

1. Then select a weight with the help of the arrow keys.

For example: Defrosting 2.0kg of poultry.

Step	Button/s	Display
1	STOPP
2	AUFTAUEN AD -2
3	▲ / ▼	2.0
4	START

1. Press the START button to start the machine.

After the time has expired the device switches off and the word „END“ appears in the display. You can then take out the food.

The following table provides information on manual defrosting.

Defrosting Table

Food/dish Quantity		Power in watts	Approx. time In minutes	Additional thawing time in minutes
Meat, Sausages
Meat (beef, veal, pork) in pieces	500 g	80 14 – 18	10 – 15
	1000 g	180	25 - 30	20 - 25
Schnitzel, cutlet	200 g	80 4	6	5 - 10
Minced meat	250 g	80 6	8	5 - 10
Frying sausage, Frankfurter	200 g	80 4	6	5 - 10
Slices of cold meat	300 g	80 4	6	5 - 10
Tip: turn the meat halfway through and cover sensitive pieces; break up the minced meat and remove pieces that have already thawed; separate sausage slices.
Poultry
Chicken	1000 g	180	20 - 25	10 - 15
Chicken pieces	500 g	80 12 - 15	5 - 10

Food/dish Quantity		Power in watts	Approx. time in minutes	Additional thawing time in minutes
Duck	1700 g	180	25 - 40	20 - 25
Goose and turkey pieces	500 g	80 12 - 18	10 - 15
Tip: turn poultry halfway through, cover wings and legs.
Caution: throw away thawed liquid and do not allow to come into contact with other foods.
Game
Saddle of venison	1000 g	180	20 - 35	20 - 30
Saddle of hare	500 g	80 12 - 13	10 - 20
Tip: turn once and cover edges.
Fish
Prawns, shrimps	250 g	80 5 - 7	5 - 10
Trout	340 g	80 4 - 6	5 - 10
Whole fish	500 g	180	7 - 10	10 - 15
Fish fillet	250 g	180	5 - 7	5 - 10
Tip: stir several times and turn frequently.
Fruit
Raspberries, strawberries	250 g	80 4 - 6	5 - 10
Cherries, plums	250 g	80 5 - 7	5 - 10
Stewed apple	500 g	80 9 - 12	5 - 10
Tip: stir carefully or break up into pieces.
Vegetables
see „Cooking Table“, „Defrosting and Cooking Vegetables“
Bread and Pastries
Rolls	4 pieces	180	ca. 1 - 3	5
Bread	1000 g	180 13 - 15	8 - 10
Bread for toasting	500 g	80 5 - 6	5 - 10
Stirred cake	500 g	80 6 - 8	5 - 10
Fruit cake	1 piece	180	2 - 3	2 - 3
Flan	1 piece	180	0,5 - 1	3 - 5
Flan	1200 g	180 10 - 12 30 - 60
Tip: place the bread and pastries on kitchen crepe paper to take up the moisture; only defrost sensitive pastry slightly.
Milk Products
Butter	250 g	80 5 - 7	10 - 15
Curds	250 g	80 6 - 8	5 - 10
Cream	200 g	80 3 - 5	2 - 3
Tip: remove the aluminium foil and stir halfway through; whip the cream until it is semisolid.

Warming

The warming and heating of food is a particular strength of the microwave. Liquids and foods that are in the refrigerator can be easily brought up to room temperature or the right temperature for consumption without the need for many pots.

The heating times contained in the following table are only rough guides as the time depends very much on the starting temperature and the composition of the food. You are therefore advised to check from time to time whether the dish is already hot enough.

Heating Table

Food/dish Quantity		Power in watts	Approx. time in minutes	Cover
Liquids
Water, 1 cup 150 g 900 0,5 - 1 no
Water, 0.5 l 500 g 900 3,5 - 5 no
Water, 0.75 l 750 g 900 5 - 7 no
Coffee, 1 cup 150 g 900 0,5 - 1 no
Milk, 1 cup 150 g 900 0,5 - 1 no
Caution: Place a glass rod or similar item (but nothing made of metal) into the vessel to prevent delayed boiling. Stir well before drinking.
One-Course Meals
Schnitzel, potatoes and vegetables	450 g 900 2,5 - 3,5	yes
Goulash with noodles	450 g 900 2 - 2,5	yes
Meat, dumpling and sauce	450 g 900 2,5 - 3,5	yes
Tip: moisten slightly beforehand, stir from time to time.
Meat
Schnitzel, coated with breadcrumbs	200 g 900 1 - 2 no
Meatballs, 4 in total	500 g 900 3 - 4 no
Joint	250 g 900 2 - 3 no
Tip: brush with oil so that the breadcrumbs or crust do not become soft.
Poultry
Half a chicken	450 g 900 3,5 - 5 no
Chicken fricassee	400 g 900 3 - 4,5	yes
Tip: brush with oil, stir from time to time.
Extras
Noodles, rice 1 portion 2 portions	150 g 900 900 300 g 900 3 - 4	yes
Potatoes	500 g 900 3 - 4	yes
Tip: moisten slightly beforehand.
Soups/Sauces
Clear soup, 1 plate	250 g 900 1 - 1,5	yes
Soup with garnish	250 g 900 1,5 - 2	yes
Sauce	250 g 900 1 - 2	yes
Baby Food
Milk	100 ml	540 0,5 - 1 no
Mash	200 g 540 1 - 1,5 no
Tip: shake well or stir. Check the temperature!

Cooking

Practical Cooking Tips

Please keep to the recommended values in the cooking table and the recipes. Keep an eye on the cooking process until you have more experience.

The door of the microwave can be opened at any time. The machine switches off automatically.

It starts again when the door is closed.

Foods taken directly from the refrigerator require a slightly longer cooking time than those at room temperature.

The more compact a food is, the longer is the cooking time. For example, a large piece of meat has to be cooked longer than the same quantity of sliced meat. It is advisable to start cooking sizeable quantities on maximum power and then to continue cooking evenly on medium power.

Flat dishes cook faster than thick ones. Therefore it is advisable to spread the food as thinly as possible. Thinner pieces, e.g. chicken legs or fish fillets should be placed towards the inside or allowed to overlap.

Smaller quantities cook faster than large ones.

The following rule of thumb applies:

Double the quantity = almost double the time Half the quantity = half the time

If you are not able to find a suitable time for a dish, the following rule applies:

approx. 1 minute cooking time for each 100 g.

All dishes which are covered up on a normal cooker should also be covered in the microwave oven.

A lid prevents the food from drying out. Suitable covers are an inverted plate, parchment paper or microwave foil. Dishes which are to be given a crust should not be covered when cooked.

Cooking Table

Food/dish	Quantity	Power in watts	Approx. time in minutes	Cover
Vegetables
Aubergines	500 g 720	7 -	10 yes
Cauliflower	500 g	720	8 - 11	yes
Broccoli	500 g 720	6 - 9	yes
Chicory	500 g 720	6 - 7	yes
Peas	500 g 720	6 - 7	yes
Fennel	500 g 720	8 - 11	yes
Green beans 300	g 720	13 - 15 yes
Potatoes	500 g	720	9 - 12	yes
Turnip cabbage	500 g	720	8 - 10	yes
Leek	500 g 720	7 - 9	yes
Maize cob	250 g 720	7 - 9	yes
Carrots	500 g 720	8 - 10	yes
Paprika	500 g 720	6 - 9	yes
Sprouts	300 g 720	7 - 10	yes
Asparagus 300 g	720	6 - 9	yes
Tomatoes 500 g	720	6 - 7	yes
Courgettes	500 g 720	9 - 10	yes
Tip: Cut the vegetables into small pieces and cook with 2 - 3 tablespoons of liquid, stir from time to time, continue cooking for 3 - 5 minutes, season just before serving.
Fruit
Stewed apple, pear	500 g 720	5 - 8	yes
Plum jam	250 g 720	4 - 6 no
Stewed rhubarb	250 g 720	5 - 8	yes
4 baked apples	500 g 720	7 - 9	yes
Tip: add 125 ml water. Lemon juice prevents the fruit from changing colour. Cook for a further 3 - 5 minutes.
Meat *)
Meat with sauce	400 g 720	10 - 12	yes
Goulash, stewed strips of meat	500 g 720	10 - 15	yes

ENGLISH

Food/dish Quantity		Power in watts	Approx. time in minutes	Cover
Roulade of beef 250 g 720	7 - 8 yes
Tip: stir from time to time, allow to stand for 3 - 5 minutes.
Poultry *)
Chicken fricas-see	250 g 7	20 6 - 7 yes
Poultry soup 200 g 720 5 - 6 yes
Tip: stir from time to time, allow to stand for 3 - 5 minutes.
Fish
Fish fi llet 300 g 720 7 - 8 yes
Fish fi llet 400 g 720 8 - 9 yes
Tip: turn halfway through, continue cooking for 3 - 5 minutes.
Defrosting and Cooking Vegetables
Apple and red cabbage	450 g 7	20 14 -16 yes
Leaf spinach 300 g 720 11 - 13 yes
Caulifl ower	200 g 7	20 7 - 9 yes
French beans	200 g 7	20 8 - 10 yes
Broccoli	300 g 7	20 8 - 9 yes
Peas	300 g 7	20 7 - 8 yes
Turnip cabbage	300 g 7	20 13 -15 yes
Leek	200 g 7	20 10 - 11 yes
Corn	200 g 7	20 4 - 6 yes
Carrots	200 g 7	20 5 - 6 yes
Sprouts	300 g 7	20 7 - 8 yes
Spinach	450 g 600 g	720 720	12 - 13 15 - 17	yes yes
Tip: cook in 1 - 2 tablespoons of liquid, stir from time to time or divide carefully into pieces. Continue cooking for 2 - 3 minutes and season just before serving.
Soups/Stews *)
Stew	500 g 7	20 13 - 15 yes
Soup with garnish	300 g 7	20 7 - 8 yes
Crème soup	500 g 7	20 13 - 15 yes
Tip: stir from time to time and continue cooking for 3 - 5 minutes.

*) Ready-made meals

Express Cooking

• To start express cooking press EXPRESS again. Each time the button is pressed the cooking time is extended by 30 seconds.
• Press the STOPP button.

The power of the microwave is then 100%. The maximum express time is 1:30 minutes.

Automatic Programmes

With the help of the automatic control you can cook certain quantities of food automatically. The length of cooking and microwave power level are included in the programme.

Please proceed as follows:

1. Press the STOPP button.
2. Press the GARPRORAMME button. The oven is now in the cooking programmes. Select one of the programmes by pressing the GAR-PRORAMME button repeatedly:

Code	Programme	Weight
AC-1	Rice/noodles	0,1 kg	0,2 kg	0,3 kg
	Rice, with water	180 ml	33 0ml	480 ml	Cover the food
	Noodles, with water	300 ml	60 0ml	900 ml	Do not cover the food
AC-2	Vegetables, fresh	0,2 kg	0,3 kg	0,4 kg	0.5 kg	0,6 kg	0,7 kg	0,8 kg
	With water	2 EL	2 EL	2 EL	4 EL	4 EL	4 EL	4 EL
AC-3	Vegetables, frozen	0,2 kg	0,3 kg	0,4 kg	0.5 kg	0,6 kg	0,7 kg	0,8 kg
AC-4	Popcorn	3,0 Oz	3,5 Oz	Corresponds to approx. 80/100 g
		Please only use microwave popcorn in a bag.
AC-5	Liquids	250 ml	500 ml
		Do not cover! Caution - delayed boiling!
AC-6	Potatoes	0,45kg	0,65 kg
		Prick the potatoes and place spaced out on the rotating plate.
AC-7	Pizza (warming)	0,15kg
AC-8	Fish	0,45kg
		Cut into the fi sh beforehand

1. Then use the arrow keys to select a weight in the programmes AC-1 to AC-6.

For example: Cook 0.2kg fresh vegetables.

Step	Button/s	Display
1	STOPP
2	GARPROGRAMME	AC -2
3	▲ /▼	0.2
4	START

1. Press the START button to start the machine.

After the time has elapsed the oven switches off and the word „END“ appears in the display. Then take out the food.

Note: EL refers to a tablespoon.

Hot air/Combi Grill/Combi

Hot air and hot air/combined operation

For the hot air and the hot air/combined operation please proceed as follows:

1. Press the STOPP button.
2. Press the HEIßLUFT/KOMBI GRILL/KOMBI button. By repeatedly pressing the HEIßLUFT/KOMBI GRILL/KOMBI button you can select one of the following programmes:

C	Hot air only
C1	Hot air and microwave in combination
C2	Hot air and microwave in combination with an increased microwave share

1. Use the TEMP button to confirm the standard setting of 160^ C or
2. Then set a temperature of between 80^ C and 230^ C using the arrow keys.
3. With the help of the NUMMERN buttons you can now enter the desired length of cooking.

Note: The standard setting is 15 minutes.

For example: Programme C2, 180°C, cooking length 8 minutes.

Step	Button/s	Display
1	STOPP
2	HEISSLUFT/KOMBIGRILL/KOMBI	C -2
3	TEMP 160C
4	▲ / ▼	180C
5	0 8 0 0 08:00
6	START

1. Press the START button to start the machine.

After this time has expired the oven switches off and the word „END“ appears in the display. Then remove the food.

Error Messages

• During operation "Err2" appears in the display. The temperature in the cavity has exceeded the pre-set temperature. It is possible that the selected temperature is too low for this preparation. Please correct the setting.
• During operation "Err3" appears in the display. The pre-set temperature could not be reached within the given time. Please correct the setting.

Grill and Grill/Combi Operation

For grilling please use the grilling grid. Use suitable heat-resistant tableware or place the food to be grilled directly on the grid.

Large, thick food is grilled directly on the rotating plate!

It is not necessary to „pre-heat“ the grill as the infrared grill produces radiation energy immediately.

If you prepare food using the combined microwave-grill functions you should note the following:

For large, thick foods such as roast pork the microwave time is correspondingly longer than for small, fl at foods. However, in the case of the grill it is the other way round. The closer the food is to the grill, the faster it turns brown. This means that when large joints are prepared using combined operation the grilling time may be shorter than for smaller joints.

For grill and grill/combi operation please proceed as follows:

1. Press the STOPP button.
2. Press the HEIBLUFT/KOMBI GRILL/KOMBI button. By pressing the HEIBLUFT/KOMBI GRILL/KOMBI button repeatedly you can select one of the following programmes:

G	Grill only
G1	Grill and microwave in combination
G2	Grill and microwave in combination with an increased grill share

1. With the help of the NUMMERN buttons you can enter the desired length of cooking.

For example: Programme G2, 10:30 minutes cooking time

Step	Button/s	Display
1	STOPP
2	HEISSLUFT/KOMBIGRILL/KOMBI	G 2
3	1 0 3 0	10:30
4	START

1. Press the START button to start the machine.

After this time has expired the oven switches off and the word „END“ appears in the display. Now take out the food.

Grill/Combi Operation Table

Food/dish	Quantity	Combined operation	Approx. time in minutes	Cover
Meat, Sausages
Beef, pork or veal in pieces	500 g		10 - 12	no
	750 g		12 - 15	no
Smoked pork loin	500 g		12 - 14	no
Meat loaf	500 g		13 - 15	no
Wienerwurst	200 g		2 - 3	no
Frankfurter	200 g		2 - 3	no
Tip: turn the meat halfway through and continue cooking for 3 - 5 minutes; coat the meat loaf with egg white; prick the sausages with a fork.
Poultry
Boiling fowl	1000 g		13 - 15	no
Chicken pieces	250 g		4 - 5	no
Tip: allow to cook without liquid in its own juice, turn once and continue cooking for 4 - 5 minutes.
Fish
Trout, blue	300 g		5 - 6	no
Fish fillet	300 g		3 - 4	no
Tip: turn halfway through and continue cooking for 3 - 5 minutes.

Individual Cooking Programme

If you would like to enter your own cooking programme for certain preparations you can put this together from the programmes „Power of the Microwave“ and „Grill/Combi (G, G1, G2)“ and/or „Hot Air/Combi (C, C1, C2)“.

Examples of the above:

1. Press the STOPP button.
2. Select the desired microwave power by pressing the LEISTUNG button once or repeatedly.
3. With the help of the NUMMERN buttons you can now enter the desired length of cooking.
4. Select one of the programmes C, C1, C2, G, G1 or G2 by pressing the HEIßLUFT/KOMBI GRILL/KOMBI button once or repeatedly.
5. Enter the desired length of cooking with the NUM-MERN buttons.

For example: 3:00 minutes cooking time at 100% and microwave power and then 9:00 minutes grilling.

Step	Button/s	Display
1	STOPP
2	LEISTUNG	10 0P
3	0 3 0 0 03:00
4	HEISSLUFT/KOMBI GRILL/KOMBI	G
5	0 9 0 0 09:00
6	START

1. Press the START button to start the machine.

After this time has expired the oven switches off and the word „END“ appears in the display. Then take out the food.

Note:

In this way it is possible to combine up to 4 different cooking sequences one after the other.

You can also begin the programme with a grill/combi or hot air/combi setting.

Special Functions

Automatic Start

You can start the microwave or also a grill/combi or hot air/combi setting at a predetermined time. To do so, first set the clock.

In order to start the microwave automatically please proceed as follows:

1. Press the STOPP button.
2. Press the LEISTUNG button once or repeatedly to select the desired microwave power.
3. With the help of the NUMMERN buttons you can enter the desired length of cooking.
4. Press the UHR button for more than 2 seconds. A signal is heard and the display changes to the current time. The first figure fl ashes.
5. With the help of the NUMMERN buttons you can now enter the desired starting time. A longer signal is now heard and the letter "M" appears in the display.

For example: 12:30 minutes cooking time at 100% power, start time 14:20.

Step	Button/s	Display
1	STOPP
2	LEISTUNG 10 0P
3	1 2 3 0 12:30
4	UHR 10:00
5	1 4 2 0 14:20
6	UHR 14:20

1. If you would like to see the start time again, press the UHR button.

At the preset time the microwave begins cooking.

Caution, danger of fire! The device must never be left unattended during operation. When setting a delayed cooking time always ensure that when the device is operating it is not left unattended.

Do not operate the microwave oven when it is empty. If you remove the cooked food before the programme has fi nished, the programme must be cancelled by pressing the STOPP button.

After the time has expired the device switches off and the word "END" appears in the display. Now remove the food.

Automatic Reminder

After cooking has fi nished you are reminded every 2 minu- tes by a beep to remove the food.

This reminder is switched off by opening the door or pressing the STOPP button.

Disabling

Press the STOPP button for more than 2 seconds to disable the machine. The fact that the machine is disabled is then shown in the display. The function of the operating controls is now blocked. Press the STOPP button again for more than 2 seconds to reactivate the machine.

Error Messages

During operation „Err0“ or „Err1“ appears in the display. In this case there is a problem with the electronic control unit.

Please send the device to our service centre with a description of the fault.

Cleaning

Always remove the mains plug before cleaning the machine.

• Clean the inside of the oven after use with a slightly damp cloth.
• Clean the outside of the microwave oven with a slightly damp cloth.
• Clean the accessories in the usual manner in soapy water.
• The door frame/door seal and neighbouring parts must be carefully cleaned when dirty with a damp cloth.

Technical Data

Model:	MWG 755 H
Rated voltage/frequency:	230 V, 50 Hz
Rated power input:	1400 watts
Power consumption - hot air:	1300 watts
Power consumption - grill:	1000 watts
Rated microwave output power:	900 watts
Cooking cavity volume:	25 litres
Protection class:	I

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.

CLATRONIC®

INTERNATIONAL GMBH

D-47906 Kempen/Germany · Industriering Ost 40

Telefon [phone]

Internet: http://www.clatronic.de · email: [e-mail]
