Product Type	Microwave
Brand	Clatronic
Model	MWG 728
Power Supply	230 V, 50 Hz
Microwave Power	700 W (100 %)
Adjustable Power Levels	100 %, 80 %, 60 %, 40 %, 20 % (corresponding to 700, 560, 420, 280, 140 W)
Cooking Modes	Microwave, Grill, Combination 1 (30 % MW + 70 % Grill), Combination 2 (55 % MW + 45 % Grill)
Timer	Up to 60 minutes
Automatic Functions	10 programs (coffee/soup, rice, pasta, potatoes, reheat, fish, poultry, meat, skewers, defrost)
Automatic Defrost	Yes, by weight (100 g – 4000 g)
Express Cooking	Yes, in 30-second increments up to 12 minutes
Display	Digital Multifunction
Clock	12-hour
Child Lock	Yes (hold STOP key for 3 seconds)
Turntable	Yes, glass
Guide Ring	Yes
Grill	Quartz grill
Grill Rack	Yes
Safety	Automatic shut-off, lock, overheating protection
Cleaning and Maintenance	Interior with damp cloth; accessories washable in soapy water
Warranty	24 months

Frequently Asked Questions - MWG 728 CLATRONIC

How to set the clock?

Press the STOP key, then TIME. Use the AUTO TIMER key to set the hour (12h mode). Press TIME again to confirm the hours, then set the minutes with the same AUTO TIMER key. Confirm with TIME.

What utensils can I use in microwave mode?

Use only suitable utensils: glass, porcelain, ceramic, heat-resistant plastic or special microwave materials. Avoid metal as it may damage the appliance.

How to use the grill?

Press STOP, then the GRILL key. Set the cooking time (10 s to 60 min) with AUTO TIMER, then start with EXPRESS/START. Use the provided grill rack and ensure to use heat-resistant utensils.

What is the combination mode?

The combination mode alternates microwave and grill. Two options: COMB 1 (30% microwave, 70% grill) and COMB 2 (55% microwave, 45% grill). Select the mode, set the time and start.

How to defrost automatically?

Press STOP, then set program 10 with the AUTO TIMER key. Use the GEWICHT key to select the weight (100 g to 4000 g). Start with EXPRESS/START. The oven adjusts power and time.

What to do if the appliance does not start?

Check that the door is properly closed (safety). Make sure child lock is not activated (if LOCK is displayed, hold STOP for 3 seconds to unlock). Also check the plug and fuse.

How to lock or unlock the appliance?

Hold the STOP key pressed for 3 seconds. The LOCK symbol appears on the screen. To unlock, repeat the same action.

Can I use metal containers?

In microwave or combination mode, never use metal (including gold rims or clips). This could damage the oven. In grill only mode, metal or aluminium is acceptable.

How to clean the interior of the oven?

Unplug the appliance. Clean the interior with a slightly damp cloth. Wash the accessories (turntable, guide ring, grill rack) in soapy water. The frame and door seal must be cleaned carefully.

What is the maximum microwave power?

The maximum power is 700 W (100%). It is used for quick reheating. The other levels (80%, 60%, 40%, 20%) correspond respectively to 560 W, 420 W, 280 W and 140 W.

USER MANUAL MWG 728 CLATRONIC

Exterior view of a Citronics microwave oven with visible dish, control panel, and digital display (no text or symbols on main body)

MWG 728

Inhalt

Inhoud • Inhold • Sommaire • Indice • Índice • Indice

Contents • Spis treści • Obsah • Tartalom • Содержание

Guarantee....Page 40

Grafik 2

Grafik 3

D

Tryk to gange for at slette programmet

Holdes nede i 3 sekunder for at läse / läse op for apparatet

General safety instructions

GB

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors*).
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such ^ . Do not use the device with wet or moist hands ^ ).
• Should the device become moist or wet, remove the mains plug from the socket immediately*). Do not reach into the water.
• Use the device only for the intended purpose.
  *) Please note the following „Special safety instructions...“.

Special Safety Instructions for this Machine

• WARNING! DELAYED BOILING! During boiling, in particular when liquids (water) are re-heated, it is possible that the boiling temperature has been reached but some of the typical bubbles of steam have not yet started to rise. The liquid does not boil evenly. This so-called delayed boiling may lead to the sudden formation of bubbles of steam and boiling over when the vessel is removed and slightly shaken. There is a danger of scalding! So that boiling is even, place a glass rod or the like - but nothing metal - into the vessel.
• Never use metal tableware or tableware containing metal parts (e.g. golden edges or wire clips) in the microwave. This will damage the machine.
  • Always use the microwave oven with the turntable and the roller ring.
• Never operate the machine when the oven is empty.
• If the door frame or seal or neighbouring parts are damaged, the machine may not be used until repaired by a service technician.
• Servicing work or any repair work may only be carried out by a service technician trained by the manufacturer.
• If smoke forms in the machine, keep the door closed and switch the machine off or disconnect it from the power supply.
• The machine should be kept under observation if meals are warmed up or cooked in disposable containers made of plastic, paper or other combustible materials.
• The contents of glasses and bottles of baby food must be stirred or shaken before consumption. The temperature should be checked before consumption in order to avoid burns.
• A minimum distance at 10 centimetres should be kept clear around the machine.
• When operating the microwave oven alone never use the metal grill stand as this will damage the machine.

Description of the Components

Diagram 1: Part description

1 Door lock 4 Drive axle 7 Control panel
2 See-through window 5 Sliding ring 8 Grill heating
3 Aeration grid 6 Rotating plate 9 Grill stands

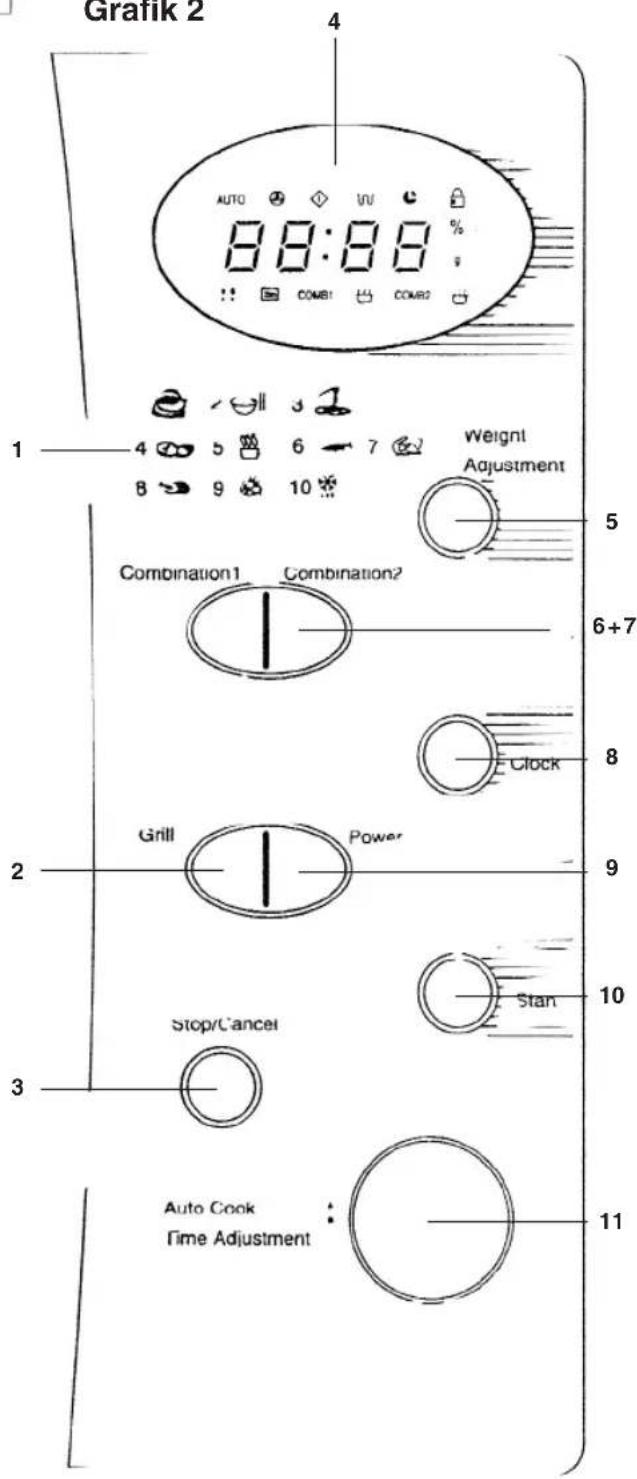

Diagram 2: Control panel

1. Automatic Menu

1 Coffee/Soup
2 Rice
3 Noodles

4 Potatoes
5 Warming
6 Fish

7 Poultry
8 Meat
9 Skewered meat

10 Automatic

thawing

2. GRILL

Quartz grill for grilling and browning

GB

3. STOP/LOCK - UNLOCK

Press once to stop the cooking;

Press twice to delete the program;

Press for 3 seconds to lock/unlock the appliance.

4. Multi-function Display

5. GEWICHT

After choosing the menu, set the weight by pressing the necessary number of times.

6. COMB 1 (Microwave/Grill combination 1)

30% microwave cooking time – 70% grill cooking time

Microwave and grill work alternately

7. COMB 2 (Microwave/Grill combination 2)

55% microwave cooking time – 45% grill cooking time

Microwave and grill work alternately

8. TIME

Set the time - Display the time during operation

9. POWER (microwave power)

Power levels

10. EXPRESS/START

Program start – Set the express cooking time

11. AUTO TIMER

Easy Tronic

Setting of the time, cooking time and the selection of the automatic programs

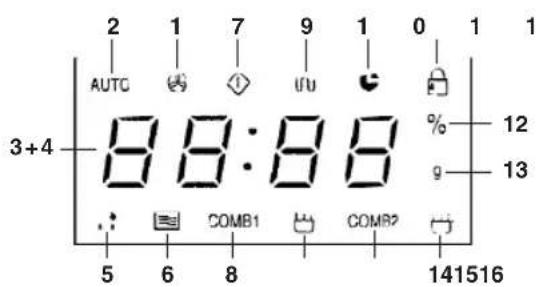

Diagram 3: Multi-function Display:

1 Automatic reminder 5 Automatic thawing 9 Grill 13 Weight in gr.

2 Programmed cooking 6 Microwave 10 Time 14 Low power

3 Time / Weight 7 Start 11 Lock active 15 Comb 2

4 Program number

8 Comb 1

12 Microwave power in %

16 High power

Information concerning grill and combined operation

• As irradiated heat is used during grill and combined operation please use only heat-resistant tableware.
- When operating the grill alone only metallic or aluminium tableware may be used - but not during combined or microwave operation.
- Do not place anything on top of the housing, as this becomes hot. Always keep the ventilation slits clear.

Initial Operation

• Remove all the accessories from the oven compartment, unpack them and place the sliding ring in the middle. Position on the glass plate on the drive axle such that the plate fits into the hollow sections of the drive shaft and is lying level.
• Inspect the machine for visible damage, in particular in the area of the door. If any type of damage whatsoever is found, the machine must not be used.
• In order that there is no interference from other electrical equipment during the operation of the microwave oven, do not place your machine in the direct vicinity of other electronic equipment.
• Remove any adhesive protective foil from the housing.
• Insert the plug into a correctly installed safety socket of 230 V, 50 Hz.

Using the Oven

What you should know about microwave operation:

• Your oven works with microwave radiation which heats up water particles in food in a very short time. There is no heat radiation and therefore no browning. For this reason the machine is not suitable for drying objects.
  • Only food should be heated with this oven.
  • The machine is not suitable for baking in deep fat.
• Do not heat too large quantities at the same time, otherwise the machine will be less efficient.
  • In order to interrupt the cooking process, turned the timer to "0".
  • Do not heat any enclosed food such as eggs, sausages, preservatives in jars, etc, as there is a danger of explosion!
  • Microwaves supply a great deal of energy immediately. Pre-heating is therefore unnecessary.
  • The microwave oven does not replace the traditional cooker. It mainly serves for:

- defrosting frozen or deep frozen food

- rapidly warming up or heat food or drinks

- some types of cooking food

- Only suitable tableware should be used, such as:

- glass, porcelain, ceramics, heat-resistant plastic or special microwave crockery.

Setting the time (12 hour clock)

Press the STOP button. Press the TIME button. Set the desired hour with the AUTO-TIMER. Press the TIME button again. Set the desired minutes with the AUTO-TIMER (Easy-Tronic). Press the TIME button again to activate the new time.

Operation

1. Place the food to be heated in a suitable piece of tableware.
2. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the oven only operates when the door is tightly closed.)

Microwave:

Selected power displayed in % Power in Watts (approx) Usage area

100 700 Rapid heating

80 560 Cooking

60 420 Warming

40 280 Thawing of frozen products

20 140 Melting of cheeses, etc.

0 0 only timer function e.g. for time-controlled cooling

Express cooking 700 Rapid heating

1. Press the STOP button. By pressing the POWER button once or several times, select the microwave power.

2. Set the desired cooking time from 10 seconds to 60 minutes with the AUTO-TIMER (Easy-Tronic) and press the EXPRESS/START button to start. The cooking time depends on the quantity and constituency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time. Please note: preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.

3. After the time has elapsed the oven switches itself off. You can then remove the food.

For recipes and the correct cooking time please use a recipe book especially for microwave ovens available in bookshops.

Express Cooking

To start express cooking press EXPRESS/START repeatedly. The cooking procedure starts immediately and the cooking time is lengthened by 30 seconds each time the button is pressed. The power of the microwave reaches 100% . The maximum express time is 12 minutes.

Automatic Cooking:

With the aid of the automatic function you can leave specific amounts of food to cook automatically. Proceed as follows: Press the STOP button. Set the desired program number with the AUTO-TIMER (Easy-Tronic). Press the GEWICHT button until the weight of the food to be cooked is displayed. (The possible settings are provided in the table below). Press the EXPRESS/START button to start.

Program Number	Wgt. 1	Wgt. 2	Wgt. 3	Wgt. 4	Wgt. 5	Wgt. 6	Wgt. 7	Wgt. 8	Wgt. 9
1. Coffee / Soup (cups)	1	2	4
2. Rice	80g	100g	120g
3. Noodles	100g	200g	300g
4. Potatoes	150g	300g	450g	600g
5. Warming	70g	140g	210g	280g	320g	350g	380g	420g	450g
6. Fish	50g	100g	150g	200g	250g	300g	350g	400g	450g
7. Poultry *	800g	1000g	1200g	1300g	1400g	1500g	1700g	1800g	2000g
8. Meat *	300g	500g	800g	1000g	1200g	1300g	1800g
9. Gespießtes Fleisch *	80g	100g	150g	200g	300g	400g	500g	600g	700g

* In program numbers 7, 8 and 9 a beep sound will tell you to turn the food once half the cooking time has passed.

GB

Automatic thawing:

For automatic thawing proceed as follows to thaw frozen meat, poultry and seafood:

Press the STOP button. Set menu item 10 with the AUTO-TIMER (Easy-Tronic) and turn to set the weight of the frozen products (100 – 4000 gr.). Press the EXPRESS/START button to start.

Grill:

To grill and brown proceed as follows:

Press the STOP button. Press the GRILL button. Set the desired grilling time with the AUTO-TIMER (Easy-Tronic) between 10 seconds and 60 minutes and press the EXPRESS/START button to start.

Combination

With these settings the microwave and the grill work alternately during the set time in the following proportions:

COMB1 30% of the cooking time by microwave 70% of the cooking time by grill

COMB2 55% of the cooking time by microwave 45% of the cooking time by grill

Press the STOP button. Press the COMB1 or COMB2 buttons. Set the desired cooking time with the AUTO-TIMER (Easy-Tronic) between 10 seconds and 60 minutes and press the EXPRESS/START button to start.

Special Functions

Automatic Reminder

After the end of the cooking you will be reminded with a beep every 2 minutes to remove the food from the appliance. The reminder is switched off by opening the door or by pressing the STOP button.

Lock:

By keeping the STOP button pressed, the appliance is locked or unlocked. The activation of the lock is displayed on the display. When locked, you can only select the unlock function.

Cleaning

Disconnect the oven from the power supply.

• Clean the inside of the oven after use with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully when dirty with a damp cloth.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice!

Warranty

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge.

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance!

The cleaning, servicing and replacement of wear parts are not covered by this warranty and hence are to be paid for.

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
