6589 - Barbecue Cloer - Free user manual and instructions

Brand	Cloer
Model	6589
Product type	Electric barbecue with warming rack
Power supply	230 V ~ 50 Hz (standard mains socket)
Temperature setting	Continuous thermostat from level 1 to 5
Coating	Non-stick on the cooking plate
Cooking surface	Cast iron plate with two sides: flat for vegetables, ridged for meat
Included accessories	Splash guard, warming rack, fat collection tray
Safety instructions	Do not immerse in water; do not use outdoors; very hot surface; do not use an external timer
Maintenance	Clean with a soft damp paper towel after complete cooling; do not use abrasive sponges
Appliance materials	Heat-resistant plastic, cast iron plate, non-stick coating
Power cord	Detachable, do not twist or expose to heat
Recommended use	For indoor use on a flat, dry surface
Warranty	2 years, upon presentation of the receipt
After-sales service	Contact the authorized Cloer dealer or the Cloer factory after-sales service
Availability of spare parts	Via Cloer after-sales service
Recycling instructions	Do not dispose of with household waste; take to a collection point for recycling

Frequently Asked Questions - 6589 Cloer

How to clean the cooking plate after use?

First unplug the appliance and let it cool completely. Then clean the grill surface with a soft damp paper towel. Never use hard sponges or steel wool to avoid damaging the non-stick coating.

What temperature settings are available?

The thermostat adjusts continuously from 1 to 5. Level 1 (or below) keeps already cooked food warm. Higher levels (2 to 5) are suitable for cooking depending on the type of food.

Can I use metal utensils on the grill surface?

No, only use utensils made of wood or heat-resistant plastic. Metal tongs or forks would damage the non-stick coating.

What to do if the appliance does not heat up?

Check that the male plug is properly inserted into the appliance socket (push until it stops) and that the cord is plugged into a working mains socket. If the problem persists, contact after-sales service.

What cooking times are recommended for meat and fish?

For meat: about 6 to 10 minutes depending on thickness. For thawed fish: 4 to 6 minutes. Small sausages require 20 to 25 minutes, and poultry about 20 minutes. These durations are indicative and depend on your preferences.

Can I use aluminum foil or parchment paper on the grill?

No, never cover the grill surface with aluminum foil, parchment paper, or any flammable material. This would cause dangerous heat buildup and could damage the appliance.

How should I store the appliance after use?

Let the appliance cool completely, clean it as indicated, then store it in a dry, dust-free place. Keep the power cord without bending it.

The appliance emits smoke during first use, is this normal?

Yes, during the first heating, there may be a slight smoke that disappears after a few minutes. This is due to the initial heating of the components.

What to do in case of breakdown or defect?

Contact your Cloer dealer or the Cloer factory after-sales service. Do not attempt to repair the appliance yourself, as this would void the warranty.

Can this appliance be used outdoors?

No, the appliance is intended for indoor use only. Do not use outdoors and protect it from moisture (rain, water splashes).

USER MANUAL 6589 Cloer

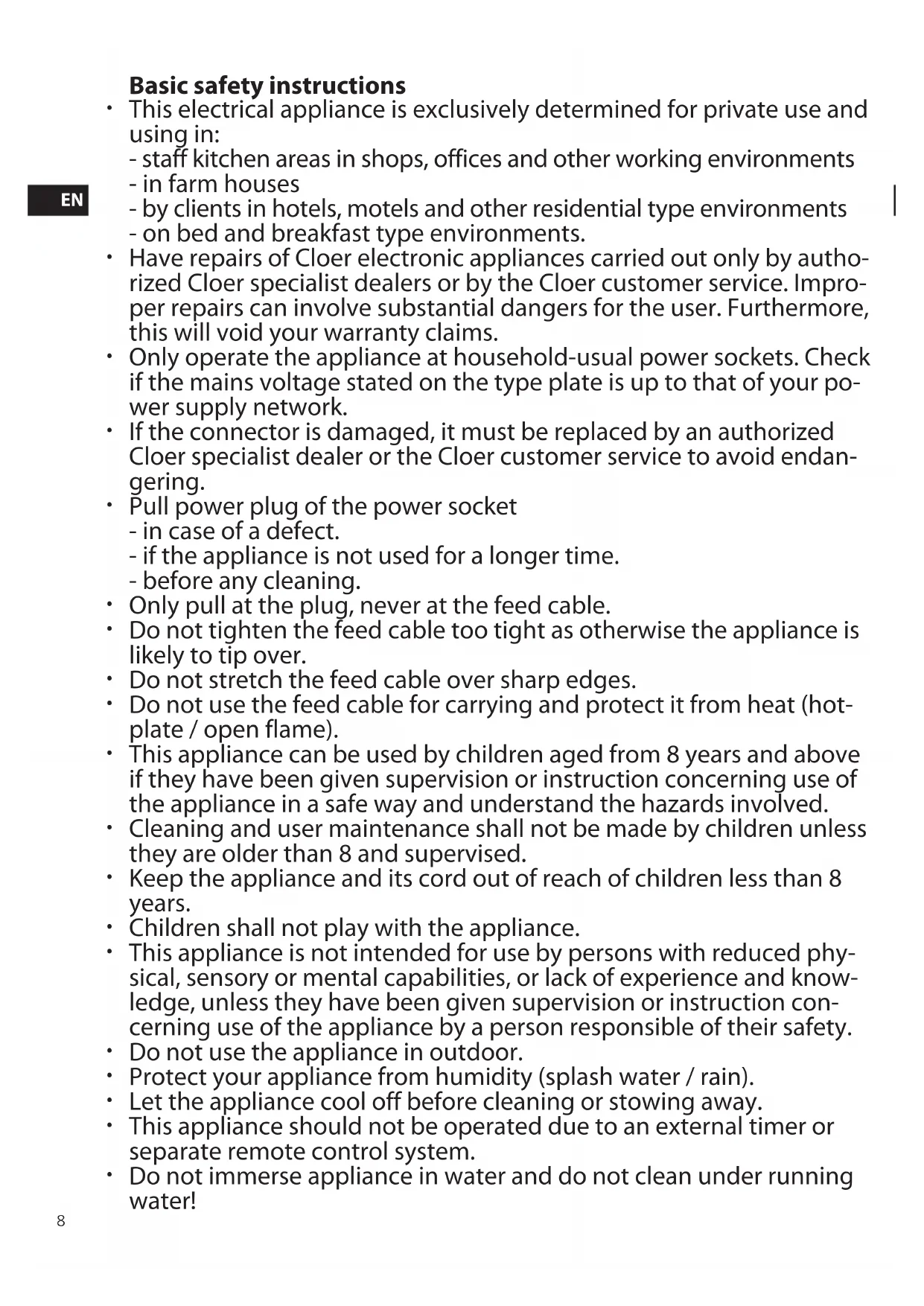

Basic safety instructions

• This electrical appliance is exclusively determined for private use and using in:
• staff kitchen areas in shops, offices and other working environments
• in farm houses
• by clients in hotels, motels and other residential type environments
• on bed and breakfast type environments.
• Have repairs of Cloer electronic appliances carried out only by authorized Cloer specialist dealers or by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Furthermore, this will void your warranty claims.
• Only operate the appliance at household-usual power sockets. Check if the mains voltage stated on the type plate is up to that of your power supply network.
• If the connector is damaged, it must be replaced by an authorized Cloer specialist dealer or the Cloer customer service to avoid endangering.
• Pull power plug of the power socket
• in case of a defect.
• if the appliance is not used for a longer time.
• before any cleaning.
• Only pull at the plug, never at the feed cable.
• Do not tighten the feed cable too tight as otherwise the appliance is likely to tip over.
• Do not stretch the feed cable over sharp edges.
• Do not use the feed cable for carrying and protect it from heat (hot-plate / open flame).
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Children shall not play with the appliance.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible of their safety.
• Do not use the appliance in outdoor.
• Protect your appliance from humidity (splash water / rain).
• Let the appliance cool off before cleaning or stowing away.
• This appliance should not be operated due to an external timer or separate remote control system.
• Do not immerse appliance in water and do not clean under running water!

Dear Customer,

we wish you a lot of pleasure with your new Cloer Barbecue Grill. By buying the Cloer Barbecue Grill you have decided on a quality product combining technology, high functionality and modern design.

Your new Cloer Barbecue Grill will make your barbecue evening a carefree event.

-Enjoy trying

Enjoy your meal!

Your company Cloer

Before using the first time

• Remove all packaging parts and, if applicable, stickers, not the identification plate.
  Before using the first time, clean the grilling surface by means of a soft cloth.

Safety instructions for operation

The appliance meets the requirements of the applicable EC directives.

The appliance is intended for in door use only.

ATTENTION! Grilling surface gets extremely hot in operation. There is the danger of burns and fire! Only touch the grill or the grill plate at the heat-isolated handles.

• Use Barbecue Grill exclusively with the delivered connector plugs:

Type 655 for Barbecue Grill 655
Type 656 for Barbecue Grill 656
Type 6589 for Barbecue Grill 6589

• Never cover the grilling surface with aluminium foil. Do not put saucepans, pans or aluminium bowls on it, as the heat development can cause deterioration of the non-stick coating.
• Never put baking paper and inflammable materials on the grilling surface. The immense heat can cause fire.
• Never let the Barbecue Grill unattended while in operation.

ATTENTION!

Even at the lowest setting of the thermostat (level 1 or lower) the appliance is already in operation. Unplug the power plug to switch off the appliance completely.

• During the very first heating up the appliance can cause slight smoke. After some minutes, however, smoking will stop again.

Operating instructions

• Your grill has an integrated heating integrated in the die-cast plate of the grilling surface.
• It provides for a constant and good heat distribution and healthy preparation of your grilling goods.
• Due to the inside heating there is no offensive smell and smoke because of dripping down and burning fat.
• Your Barbecue Grill is provided with a non-stick coating, avoiding sticking of grilling goods and facilitating cleaning.
• The infinitely variable thermostat at the connector plug serves for adapting the grilling temperature to the respective grilling goods or for keeping meals warm.
• Fat and juices developing during cooking are collected in the removable fat collecting pan.

Start-up

• Put the Barbecue Grill on a dry, non-slip and even surface.

1. Barbecue Grill with spray guard (Type 655 / 656)

• Put spray guard on the appliance
• Push the fat collecting pan in the support bar below the appliance.
• First of all, put connector plug in the lateral socket of the appliance (as far as it will go!) and then the power plug in the wall socket. Now the appliance is already in operation.
• Choose any heat level between 1 - 5 and so adapt the temperatures to the grilling goods. At lowest setting (level 1 and below) you can keep the grilled meals warm.
• Wait some minutes until the grilling surface is hot.
  Now you can put on the grilling goods.
• The even surface is appropriate for grilling vegetables and the waved surface for grilling meat.

2. Barbecue Grill with spray guard and warming rack (Type 6589)

• Put spray guard on the appliance.
  Now put on the warming rack.
• First of all, put connector plug in the lateral socket of the appliance (as far as it will go!) and then the power plug in the wall socket. Now the appliance is already in operation.
• Choose any heat level between 1 - 5 and so adapt the temperatures to the grilling goods. At the lowest setting (level 1 and below) you can

keep the grilled meals warm.

• Wait some minutes until the grilling surface is hot.
  Now you can put on the grilling goods.
• The even surface is appropriate for grilling vegetables and the waved surface for grilling meat.
• On the warming rack you can keep grilled meals warm.

ATTENTION!

Do not use the grilling goods by means of tongs or forks of metal as this will damage the non-stick

Rating.

Please exclusively use grill cutlery of wood or heat-resistant plastics!

Do not use aluminium grill pan at the grilling surface as this will cause a dangerous development of heat.

Cleaning

To clean the appliance, you should exclusively use soft, humid clothes.
- Do not clean the appliance and all of its parts by hard pot sponges.

ATTENTION!

Before cleaning please always unplug power plug.

Always let appliance completely cool down before cleaning. The removable connector plug

must not get in contact with water. Just clean the plug by means of a humid cloth.

Different grilling times

• Meat: approx. 6 - 10 min (depending on thickness)
  Fish: approx. 4 - 6 min (must be defrosted)
• Sausages coarse: approx. 20 - 25 min
• Sausages without skin: 10 - 15 min
  Poultry: approx. 20 min

Grilling times depend on kind of condition of grilling goods as well as your personal taste. Therefore, exact information about the duration of the grilling process are impossible. In general, however, the following applies: Sausages require a longer grilling than meat.

Please note: Experiences with grilling on gas or coal grills cannot absolutely be applied to grilling with electrical grill appliances as well!

Problem / Cause / Solution

Problem	Possible Cause	Solution
Appliance has no function	Appliance not connected	Put plug in power socket
Appliance does not heat up	Connector plug not correctly connected to the appliance	Put connec-tor plug laterally in the socket as far as it will go
Browning degree of grilling goods too low or insufficient	Too low temperature setting	Adjust thermostat higher in Max. direction
Browning degree of grilling goods too low or insufficient	Chosen grilling time too short	Grill grilling goods longer

Environmentally friendly disposal

We use only environmentally friendly packaging for the transport of our appliances. Please recycle cardboard/paper and plastic packaging appropriately.

CAUTION!

rical appliances should

be disposed of with the

household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Please consult the local authorities for information on recycling appliances.

Customer service

In the event that your Cloer appliance becomes defective, please contact your Cloer dealer or Cloer customer service department.

Cloer electrical appliances comply with current EC guidelines and safety regulations.

Conditions of warranty

Cloer grants you, the private end user, a limited manufacturer's warranty. Assuming careful handling and compliance with the operating instructions and safety notices, we

will be obligated to replace the appliance at no cost, insofar as there are defects in material or workmanship. The repair will be effected by repairing or replacing defective components. Any parts replaced will become the property of Cloer. All further claims of any type, especially claims for indemnification, are not valid. This warranty does not affect any rights of the customer with respect to the sale of goods in accordance with the applicable national laws.

The warranty period is 2 years starting from the date on which the product was first purchased by an end consumer. The warranty period will not be extended or begin anew or in any other way be affected by the subsequent sale, repair or replacement of the product.

This warranty is passed on to you by your retail dealer. In order to assert a warranty claim, please contact your dealer directly.

If you have questions about your product, please contact the Cloer importer in your country. The address and telephone number can be found on our website at http://www.cloer.de or you can send an e-mail to

[e-mail]

As proof of warranty entitlement you must submit the original sales receipt with the date of sale and the dealer's address. Without the sales receipt, the repair will be carried out at your expense without asking.

The warranty does not cover damages resulting from

improper use,
natural wear and tear,
external influences (e.g. damage from transport, shocks, jolts, heat, acids, etc.),
insufficient decalcifying
- or unsuitable accessories.

The warranty will be void if the appliance

is used commercially,
- is opened or modified without authorisation
- or if unauthorised repairs are attempted. Also, the warranty does not apply to consumable materials.

• electric kettle / coffeemaker / teamaker

Chere cliente, cher client,

-Keenaem npnTHoro nCnoB3OBaHna

PnurTHoro annetnta!

BawaΦnpMa Cloer

Ipea nepBbIM nCNoJb3OBaHnem

• PONHOCTbU ydaIInTe ynaKOBky n HaKJIeKn.Φnp-MeHHyIO Ta6nHyKe He ydaIaIte.
  IpeepnepBbIM nCNOJb3OBAHnEM NOBepxHOCTb rnilr Heo6XoDIMO Nouchntb MfKoB BlaXHO TpAkn.

Yka3aHnI NO TexHnKe 6e3oNaChOCTN B Ipo-uece NcNoJIb3OBaHnI

OCTOPOXHO!

PobepxHocTb rpnn u KpbIiKa

Ppoecce pa60Tb cunbHo

HarpbeBaIOToC.CuIeCTByET

OIOCHOCTb OXKOROB M

BO3HMKHOBeHHn NOXapOB!

Bepute KpbliuKy Tolbko 3a

TeTnON3OInpOBaHHbIe pyuKn.

Icnoj3yntepn6apektoBkoC npnaaraemOn annapaTHoCteBOB BNKO: Tnn 655 dny rpuJa 6ap6ekio 655 Tnn 656 dny rpuJa 6ap6ekio 656 Tnn 6589 dny 6ap6ekio 6589
HnB Koem Cnyaee He 3akpbbAaiTe NOBepxHocTb rPnIa oIbfoi. He cTaBbTe Ha NOBepXHOCTb KaCTpOJIIN NIIc KOBOPoIbI, TaK KaK Upe3MePHOe HArpeBaHHe MOKeT PnIBeCTN K NOBpeJdeHIO NOKpbITnI pOTnB pniJInnaHn.
Hn B Koem Cnyae He Klaadte 6ymary dIy BblneuKN IIN JERKO BOCIIaMeHryIOuecmaTeepnaIbHa NOBepxHOCTrpuJ.B pe3yIbTaTe CNbHO HArpeBaHry MOKET BO3HNKHyTb NOKap.
He octabJnTe 6e3 npncMOtpa BkIIOueHHbI rnilb 6ap6ekIO.

BHIMAHHE!

Pn6op BkIouaetcya K

CAMOM HN3KOM NIOJOKeHN

emnepaTypHoro peryIaTopa
1-8a cTyneHb HnHexe).YTo6bl
HomocTBIO OTKnIOuHTb npu6Op,
BbIKIOuHTe CeTeByIO BUNKy n3
po3ETKn.

Ipeed qnCTKO o6aTeBHO OTKIOHTe cTeByo BnIKy. Ipeed qnCTKO np60py Heo6xOIMo DaTb OCTbITb.

CbeMHa annapatha Bnka He doJxHa cOpnKaacaTbcra C BOdo. IcnoIb3yIte dna qNCTKN BnKn ToIbKO MArKyo BnaXHyIO TpAnKy.

Pa3nHoe Bpem npuroToBleHna

Mco: np6Jn3teJbHO 6-10 MNHyT (B 3aBncu-MOCTN OT TOJIUNHbI)
Pb16a: npu6n3nteBHO 4 - 6 MNHT (B pa3MopoxKeHHOM BnDE)
KoI6ackn n3 φapwa rpy6oro nomona: npu6nn. 3nteJbHO 20-25 mHyT
KoI6ackn 6e3 o6oJouKn: 10-15 MNHyT
- PtTuca: npu6Jn3nteJbHO 20 MmHyT

Bpemj KApKn Ha rPnIe 3aBncnt OT BnJa n Ooc6eHHoCTe npOdyKta, NOpJexKaUeTo JapKe, a TAKKe OT HNDINBnDyAalbHOrO BKyca. IOTOMyMbI He MoXem yka3aTb ToOHoe Bpemj He06xODmOe dIg JxpN Ha rPnIe. Ondako He06xODmO yuHTbBaTb, YTO dJIKoNl6aCOK He06xODmO 6Oone DnITeNbHoe Bpemj PnproTOBnEHH, Yem dJI Mca.

Ioxanynta, yuTte: Xapka Ha 3neKTpueckom rpuJe moKeT OTnmuatbca OT xapKnHa yronbHOM nIra3OBom rpuJe!

ПюбLEMа/причнa/устра themselves He doctaTkoB
