USER MANUAL 656 Cloer

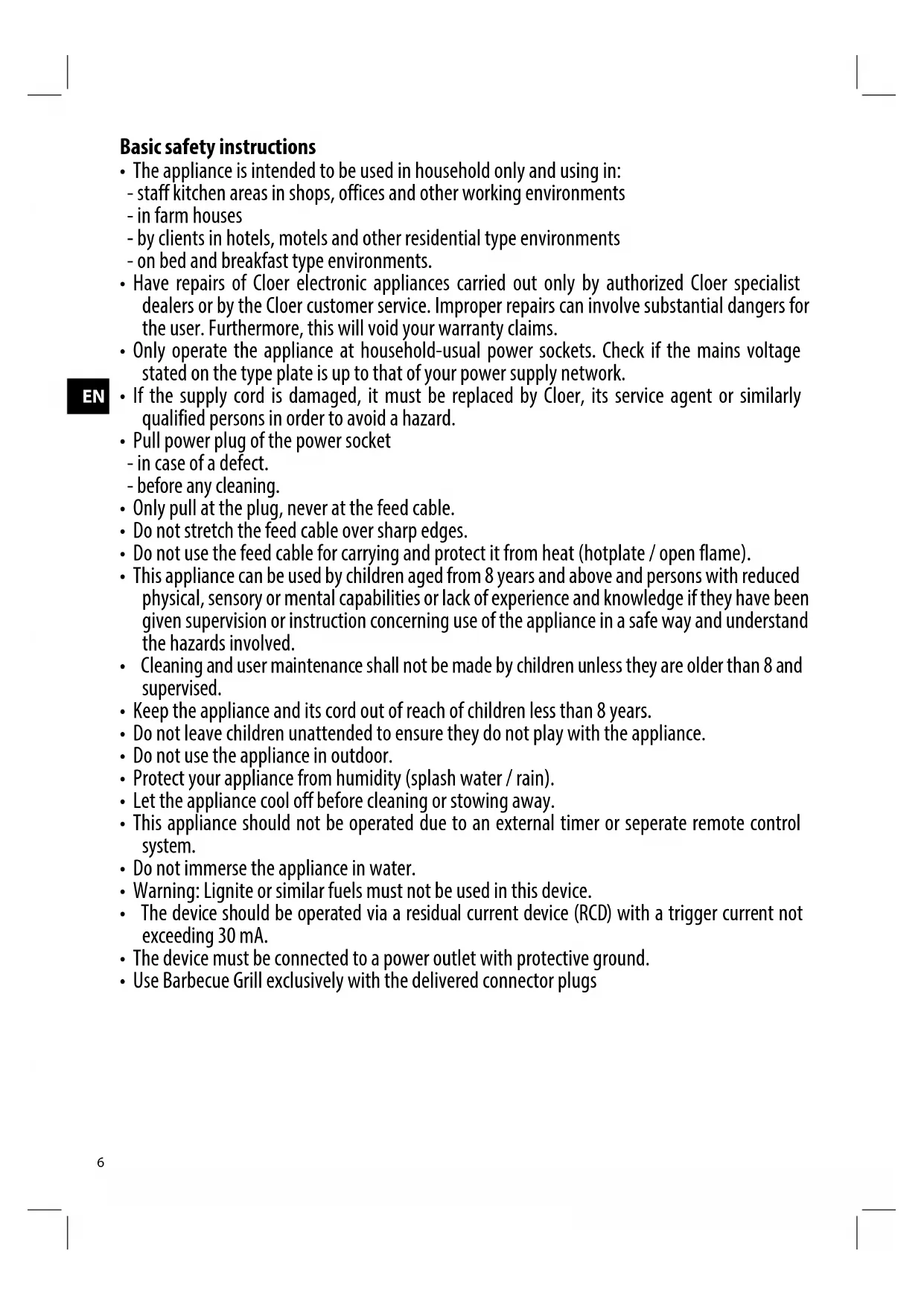

• The appliance is intended to be used in household only and using in: - staff kitchen areas in shops, offices and other working environments - in farm houses - by clients in hotels, motels and other residential type environments - on bed and breakfast type environments.

• Have repairs of Cloer electronic appliances carried out only by authorized Cloer specialist dealers or by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Furthermore, this will void your warranty claims.

• Only operate the appliance at household-usual power sockets. Check if the mains voltage stated on the type plate is up to that of your power supply network.

• If the supply cord is damaged, it must be replaced by Cloer, its service agent or similarly qualified persons in order to avoid a hazard.

• Pull power plug of the power socket - in case of a defect. - before any cleaning.

• Only pull at the plug, never at the feed cable.

• Do not stretch the feed cable over sharp edges.

• Do not use the feed cable for carrying and protect it from heat (hotplate / open flame).

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Do not leave children unattended to ensure they do not play with the appliance.

• Do not use the appliance in outdoor.

• Protect your appliance from humidity (splash water / rain).

• Let the appliance cool off before cleaning or stowing away.

• This appliance should not be operated due to an external timer or seperate remote control system.

• Do not immerse the appliance in water.

• Warning: Lignite or similar fuels must not be used in this device.

• The device should be operated via a residual current device (RCD) with a trigger current not exceeding 30 mA.

• The device must be connected to a power outlet with protective ground.

• Use Barbecue Grill exclusively with the delivered connector plugs EN7 Technical Data type volt hz watt 656 220-240 50 2000 Before the first use Read these operating instructions carefully before using the appliance for the first time.

• Remove all packing parts and possibly stickers, but not the type plate nor the serial number.

• Place the Barbecue-Grill on a dry, slip-resistant and level surface. Before using the first time, clean the grilling surface by means of a soft cloth. CE Label / Safety information The appliance meets the requirements of the applicable CE directives. The appliance is designed for indoor domestic use only. ATTENTION! Grilling surface gets extremely hot in operation. There is the danger of burns and fire! Only touch the grill or the grill plate at the heat-isolated handles.

• Never cover the grilling surface with aluminium foil. Do not put saucepans, pans or aluminium bowls on it, as the heat development can cause deterioration of the non-stick coating.

• Never put baking paper and inflammable materials on the grilling surface. The immense heat can cause fire.

• Never let the Barbecue Grill unattended while in ope

• You can clean the grill plate under running water; ho

wever, thereby it is absolutely necessary to pay atten- tion to the following: - The detachable device plug must be taken off. It must not have any contact with water. - The plug socket on der grill plate must be complete

ly dry before putting the grill again in operation. You can find other cleaning instructions on the fol

lowing pages. ATTENTION! Even at the lowest setting of the thermostat (level 1 or lower) the appliance is already in operation. Unplug the power plug to switch off the appliance completely. ACHTUNG! Verwenden Sie keine Holzkohle oder ähnliche Brennstoffe sowie sogenannte Anzündhelfer für den Barbecue-Grill! ATTENTION! Always unplug appliance when not in use and before cleaning! Advice During the very first heating up the appliance can cause slight smoke. After some minutes, however, smoking will stop again. Operating instructions

• Your grill has an integrated heating integrated in the grill plate of the grilling surface. It provides for a cons

tant and good heat distribution and healthy prepara- tion of your grilling goods.

• Due to the inside heating there is no offensive smell and smoke because of dripping down and burning fat.

• Your Barbecue Grill is provided with a non-stick coa

ting, avoiding sticking of grilling goods and facilita- ting cleaning.

• The infinitely variable thermostat at the connector plug serves for adapting the grilling temperature to the respective grilling goods or for keeping meals warm.

• Fat and juices developing during cooking are collec

ted in the removable fat collecting pan. Start-up

• Put spray guard on the appliance

• The grease drip tray is inserted from above in the plas

tic frame. The grill plate and then the splash guard are mounted on it. After you have completely assembled the grill, plug the device plug in the device.

• Put connector plug in the lateral socket of the appli

ance (as far as it will go!) and then the power plug in the wall socket. Now the appliance is already in operation.

• Choose any heat level between 1 – 5 and so adapt the temperatures to the grilling goods. At lowest setting (level 1 and below) you can keep the grilled meals warm.

• Wait some minutes until the grilling surface is hot.

• Now you can put on the grilling goods.

• The even surface is appropriate for grilling vegeta

bles and the waved surface for grilling meat. EN8 ATTENTION! Do not use the grilling goods by means of tongs or forks of metal as this will damage the non-stick coating.Please exclusively use grill cutlery of wood or heat-resistant plastics! Do not use aluminium grill pan at the grilling surface as this will cause a dangerous development of heat. Cleaning

• To clean the appliance, you should exclusively use soft, humid clothes.

• Do not clean the appliance and all of its parts by hard pot sponges. ATTENTION! Before cleaning please alwaysunplug power plug. Always let appliance completely cool down before cleaning. The removable connector plug must not get in contact with water. Just clean the plug by means of a humid cloth. Please note: Experiences with grilling on gas or coal grills cannot absolutely be applied to grilling with electrical grill appliances as well! Problem / Cause / Solution Problem Possible Cause Solution Appliance has no function Appliance not connected Put plug in power socket Appliance does not heat up Connector plug not correctly connected to the appliance Put connector plug laterally in the socket as far as it will

Browning degree of grilling goods too low or insufficient Too low temperature setting Adjust thermostat higher in Max. direction Browning degree of grilling goods too low or insufficient Chosen grilling time too short Grill grilling goods longer Environmentally friendly disposal We use environmentally friendly packaging for the transport of our appliances. Please recycle cardbo

ard/ paper and plastic packaging appropriately. ATTENTION! Electrical appliances should not be disposed of with the household trash. Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recog

nised recycling facility. Consult the local authorities for information on recycling appliances. Warranty Cloer electrical appliances are in conformity with the currently required EC-guidelines and safety regulati

ons. If your Cloer electrical appliance has a defect or it does not work properly, contact your specialist dealer. Registered clients have at their disposal our technical customer service. Manufacturer warranty Please register your appliances in the period of 6 months since the purchase in order to benefit from our manufacturer warranty. The published conditi

ons of warranty in the moment of the registration are valid. You will find conditions of warranty and pro
