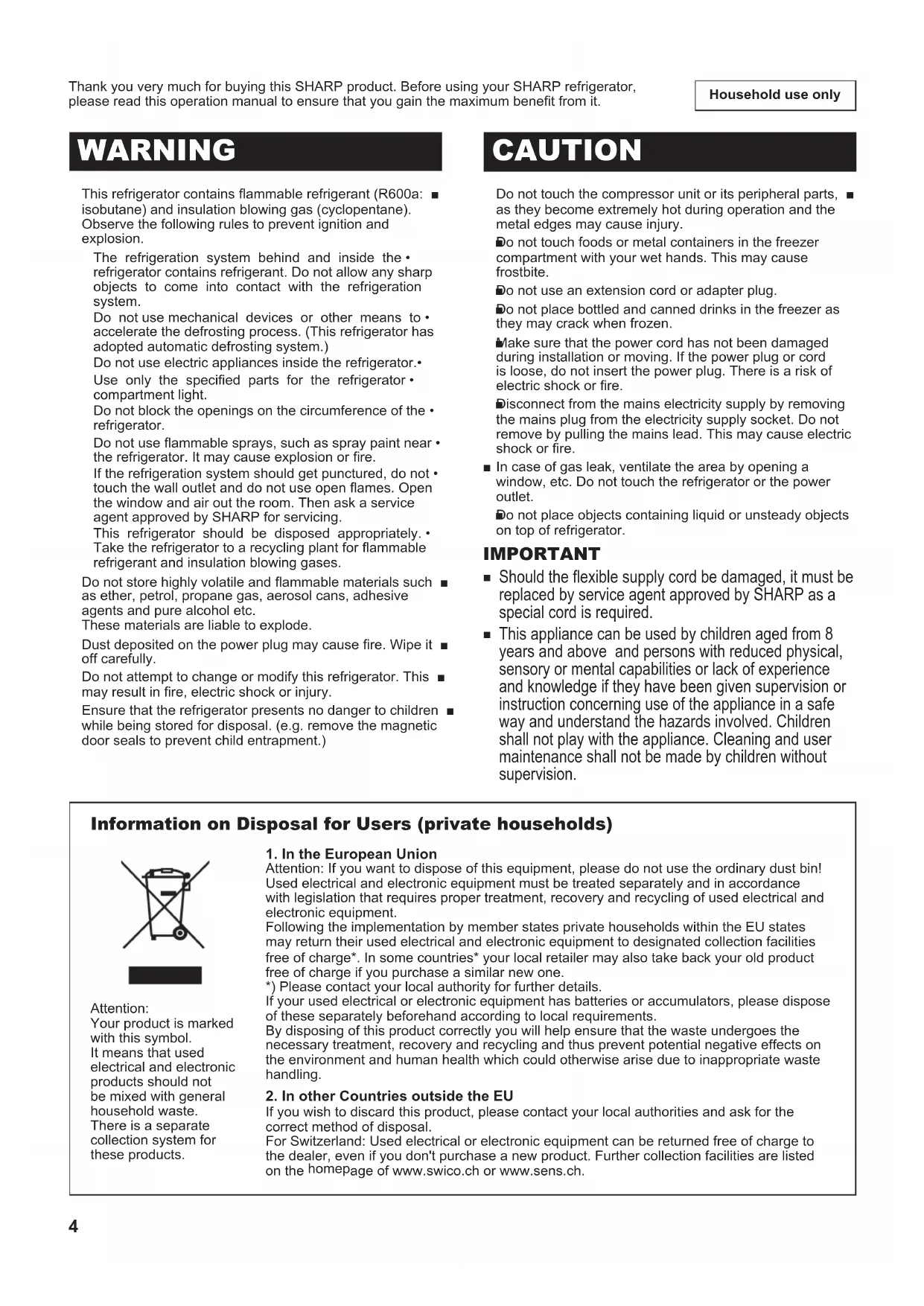

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator,

please read this operation manual to ensure that you gain the maximum benet from it.

This refrigerator contains ammable refrigerant (R600a: ■

isobutane) and insulation blowing gas (cyclopentane).

Observe the following rules to prevent ignition and

The refrigeration system behind and inside the •

refrigerator contains refrigerant. Do not allow any sharp

objects to come into contact with the refrigeration

Do not use mechanical devices or other means to •

accelerate the defrosting process. (This refrigerator has

adopted automatic defrosting system.)

Do not use electric appliances inside the refrigerator.•

Use only the specified parts for the refrigerator •

Do not block the openings on the circumference of the •

Do not use ammable sprays, such as spray paint near •

the refrigerator. It may cause explosion or re.

If the refrigeration system should get punctured, do not •

touch the wall outlet and do not use open ames. Open

the window and air out the room. Then ask a service

agent approved by SHARP for servicing.

This refrigerator should be disposed appropriately. •

Take the refrigerator to a recycling plant for ammable

refrigerant and insulation blowing gases.

Do not store highly volatile and ammable materials such ■

as ether, petrol, propane gas, aerosol cans, adhesive

agents and pure alcohol etc.

These materials are liable to explode.

Dust deposited on the power plug may cause re. Wipe it ■

Do not attempt to change or modify this refrigerator. This ■

may result in re, electric shock or injury.

Ensure that the refrigerator presents no danger to children ■

while being stored for disposal. (e.g. remove the magnetic

door seals to prevent child entrapment.)

WARNING CAUTION Do not touch the compressor unit or its peripheral parts, ■

as they become extremely hot during operation and the

metal edges may cause injury.

Do not touch foods or metal containers in the freezer ■

compartment with your wet hands. This may cause

Do not use an extension cord or adapter plug. ■

Do not place bottled and canned drinks in the freezer as ■

they may crack when frozen.

Make sure that the power cord has not been damaged ■

during installation or moving. If the power plug or cord

is loose, do not insert the power plug. There is a risk of

electric shock or re.

Disconnect from the mains electricity supply by removing ■

the mains plug from the electricity supply socket. Do not

remove by pulling the mains lead. This may cause electric

In case of gas leak, ventilate the area by opening a ■

window, etc. Do not touch the refrigerator or the power

Do not place objects containing liquid or unsteady objects ■

on top of refrigerator.

Should the exible supply cord be damaged, it must be

replaced by service agent approved by SHARP as a

special cord is required.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance

with legislation that requires proper treatment, recovery and recycling of used electrical and

electronic equipment.

Following the implementation by member states private households within the EU states

may return their used electrical and electronic equipment to designated collection facilities

free of charge*. In some countries* your local retailer may also take back your old product

free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose

of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the

necessary treatment, recovery and recycling and thus prevent potential negative effects on

the environment and human health which could otherwise arise due to inappropriate waste

2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the

correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to

the dealer, even if you don't purchase a new product. Further collection facilities are listed

Your product is marked

electrical and electronic

be mixed with general

collection system for

(B505)-W.indb 4 2013/11/01 12:47:015

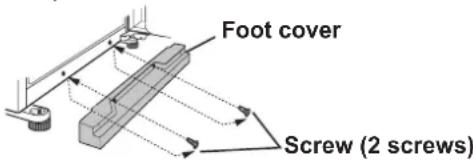

Remove the 2 screws of the cabinet lower part, and

then set the foot cover (supplied inside the refrigerator

compartment) with removed 2 screws.

NOTE Position your refrigerator so that the plug is accessible. • Keep your refrigerator out of direct sunlight.• Do not place next to heat generating appliance.• Do not place directly on the ground. Provide suitable stand. •

INSTALLATION WARNING Do not install the refrigerator in a damp or wet ■

location as this may cause damage to the insulation

and a leakage. Condensation may also build on the

outer cabinet and cause rust.

Use the two front adjustable feet, to ensure that the

refrigerator is positioned rmly and at on the oor.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water.

If soapy water is used, wipe it off thoroughly with water.

The casters allow the refrigerator to move back and forth.•

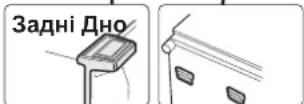

Carry the refrigerator by holding the handles located on the •

rear and the bottom. Foot coverScrew (2 screws)Casters (4 pcs.)rear bottom This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average

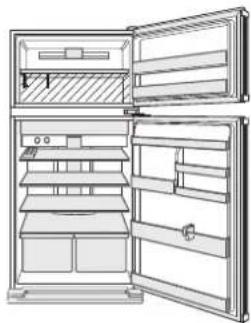

temperature in the coldest zone.

The symbol indicates the coldest zone in the

refrigerator compartment.

(The door pocket positioned at the same height

isn't the coldest zone.)

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature

in the coldest zone is correct and, if necessary, adjust the

refrigerator temp. control.

To maintain a correct temperature inside the appliance,

check that the indicator of temperature is always BLUE.

If the indicator of temperature turns WHITE, the temperature

is too high; in this case, increase the refrigerator temp.

control setting and wait for 6 hours before checking the

indicator of temperature again.

NOTE The internal temperature of the refrigerator depends on • various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.When fresh food has been introduced or the door has been • left open for some time, it is normal for the indicator of temperature to turn WHITE. BLUE WHITECorrect setting Temperature too high, adjust the refrigerator temp. control.Symbol INDICATOR OF TEMPERATURE Adjustable foot 1

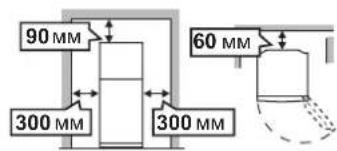

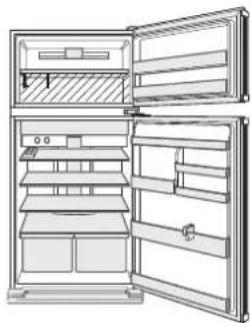

Keep adequate ventilation space around the refrigerator.

The gure shows the minimum •

required space for installing the

refrigerator. The measurement

consumption is conducted

under a different space

By keeping greater space, the •

refrigerator may be operated

under a less amount of power

If using the refrigerator in the smaller space •

dimension than the below gure, it may cause the

temperature rise in the unit, loud noise and failure.

The space between the rear of the refrigerator and •

the wall should be 60mm or more and less than

If the space is wider than 75mm, you may get injured

by touching compressor and its peripheral parts

which are extremely hot during the operation.

60mm or more 60mm or more 90mm or more

1525 mm1400 mm Overall space required in use Free standing type

(B505)-W.indb 5 2013/11/01 12:47:036

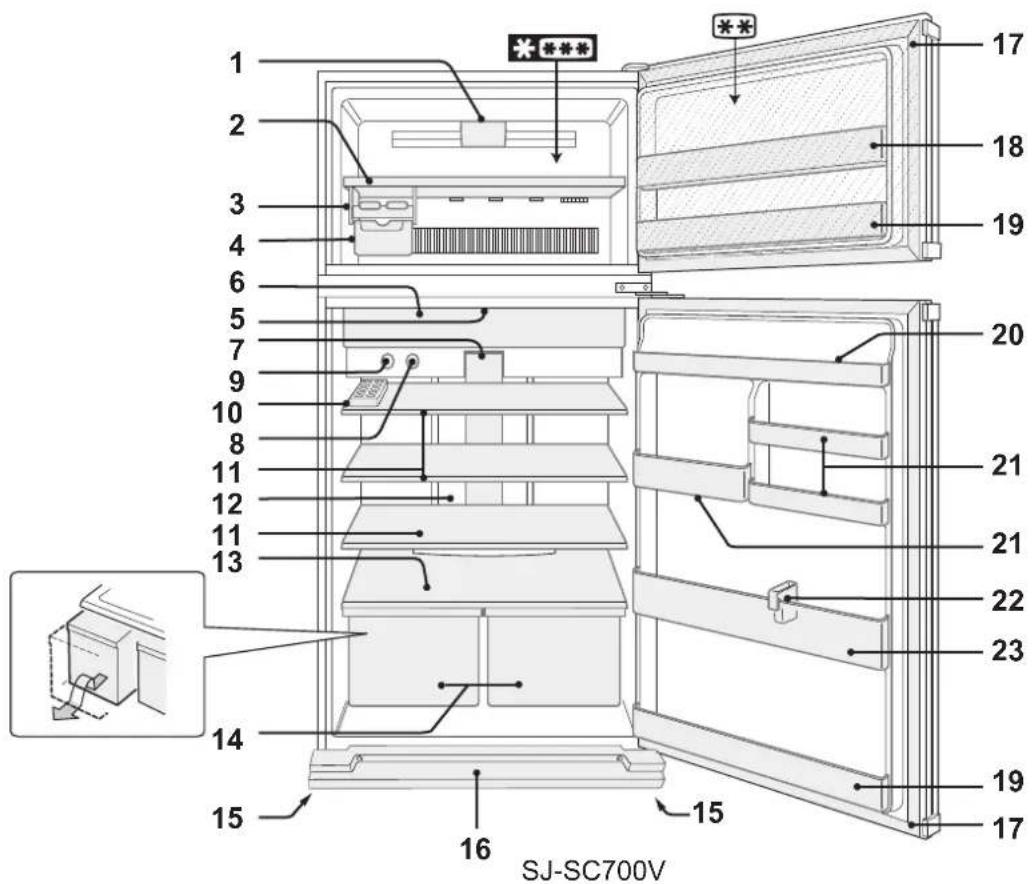

Deodorizing unit5. No operation and cleaning are required. Fresh case & door6.

Refrigerator temp. control knob9.

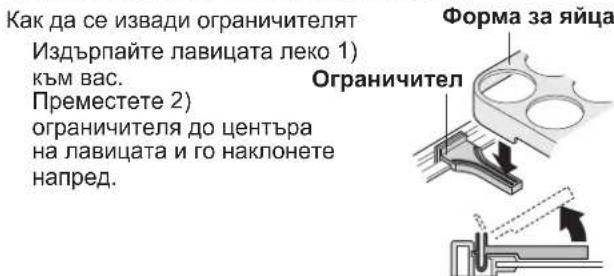

Egg holder & stopper10. How to take out the stopperPull the refrigerator shelf 1) slightly toward you.Move the stopper to the center 2) of the shelf and tilt it upward. Refrigerator shelves 11. (SJ-SC680V : 2 pcs. / SJ-SC700V : 3 pcs.) Hybrid cooling panel12. The panel is cooled from the rear, thus indirectly cools the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air ow. Fruit and vegetable shelf13.

Fruit and vegetable crisper14.

Flexible pocket18. Tall food items (e.g. pizza box) can be stored by lifting the partition from the bottom of the pocket. Door pockets 19.

Refrigerator pocket20.

SJ-SC680VSJ-SC700V NOTE ( Only for SJ-SC700V)Do not replace the right utility pocket with that of the left, and vice versa. Bottle stopper / Tube stand22. Prevents bottles etc. from falling. Stick-type food products stored inside. Bottle pocket23.

largeStopperEgg holder2 star section for storing frozen foods only. (B505)-W.indb 6 2013/11/01 12:47:057

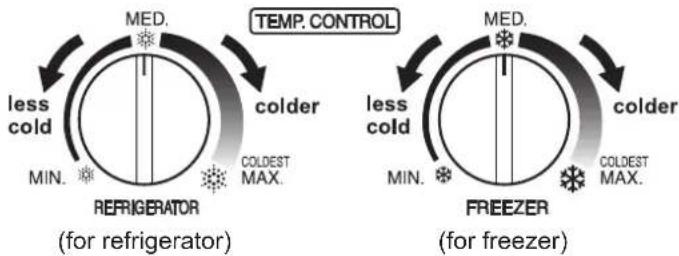

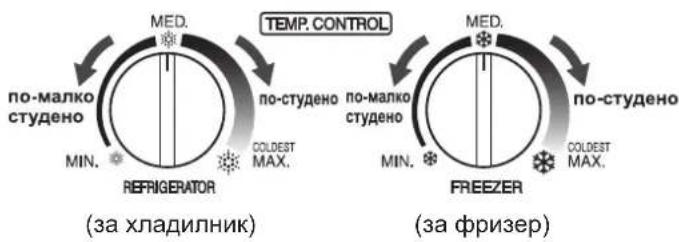

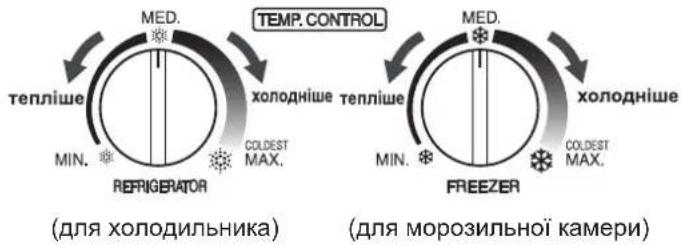

OPERATION Controlling temperature Adjustable by turning each knob. (for refrigerator) (for freezer) Door Alarm When the refrigerator or freezer door is left open, the door alarm will sound.The door alarm will sound in 1 minute after opening the • door and again after 1 minute (once in each case).If the door is left open for approx. 3 minutes, the alarm will • sound continuously. Hints when making ice

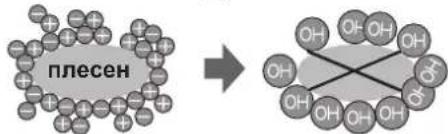

1 Do not over ll the Ice cube trays; otherwise the ice cubes will be joined together when frozen. 2 When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice cube box. NOTE To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it. Plasmacluster The Plasmacluster automatically starts operating when the refrigerator is powered on. Notes about Plasmacluster operation The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the refrigerator compartment. These ion clusters inactivate airborne mold fungus.There may be a slight odor in the refrigerator. This is the • smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.mold fungusLeverIce cube box Tips for saving energy Keep the ventilation space as much as ■possible around the refrigerator.Keep your refrigerator out of direct sunlight, ■and do not place next to heat generating appliance.Open your refrigerator door as briey as ■possible.Hot foods should be cooled before storing. ■Place the food evenly on the shelves to allow ■the cooling air to circulate efciently.The amount of power consumption of this model is measured according to the international standard of the refrigerator performance. If the refrigerator is operated with these accessories[Ice cube maker, Ice cube box]taken out, it works under the most energy-efcient condition.The amount of power consumption of this • model is measured with these accessories taken out as indicated on the right figure.The amount of power consumption • of this model is measured under the space dimensions on the right figure.

(B505)-W.indb 7 2013/11/01 12:47:078

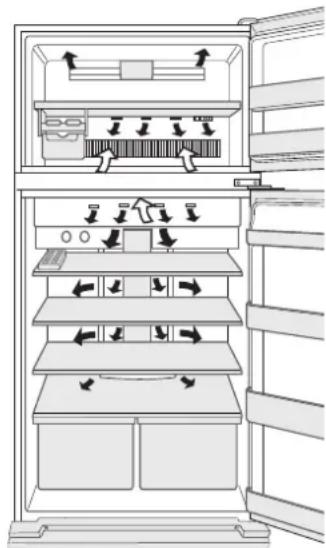

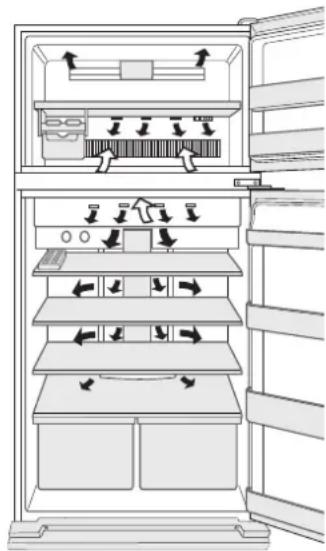

STORING FOOD IN OUT Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.Ensure all cooked food is wrapped securely or placed in an • airtight container.To minimize moisture loss, fruit and vegetables should be • loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the fruit and vegetable crisper.Eggs should be stored in the Egg holder.• Evenly place the food on the shelves to allow the cooling • air to circulate efficiently.Hot foods should be cooled before storing. Storing hot • foods increases the temperature in the unit and increases the risk of food spoilage.Do not block the outlet and inlet of the cool air circulating • circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.Keep the door securely closed.• Do not place food directly in front of cold air outlet. This may lead to the food freezing. For best freezing Quality of foods should be • fresh.Freeze small quantities • of food at a time to freeze them quickly.Food should be properly • sealed, sealed tightly or covered.Evenly place the food in • the freezer.Label bags or containers • to keep an inventory of freezing food.

CARE AND CLEANING WARNING Unplug the refrigerator rst to prevent electric shock. ■Do not splash water directly on the outer cabinet or ■the interior. This may lead to rusting and deterioration of the electrical insulation. IMPORTANT To prevent cracking on inside surfaces and plastic components, follow these tips.Wipe any food oils adhered to plastic components.• Some household chemicals may cause damage, so use • only diluted washing-up liquid (soapy water). If undiluted detergent is used or soapy water is not wiped • off thoroughly, cracking of plastic parts can result. 1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. (Only fruit and vegetable shelf is not removable.) 2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water. 3 Wipe the exterior with a soft cloth each time it is soiled. 4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water. NOTE To prevent damage to your refrigerator, do not use heavy • duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).If the power supply is disconnected, please wait for at least 5 • minutes before re-connecting power.The glass shelves weigh approximately 3 kg each. Hold rmly • when removing from the cabinet or carrying. Do not drop objects inside the refrigerator or strike the inner • wall. This may cause the inner surface to crack. Defrosting Defrosting is fully automatic due to a unique energy saving system. When the compartment light is blown Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualied service personnel. Switching off your refrigerator If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open. (B505)-W.indb 8 2013/11/01 12:47:089

BEFORE YOU CALL FOR SERVICE Before you call for service, check the following points.

The outside of the cabinet is hot

It is normal. The hot pipe is in the cabinet in order to prevent dew generation.

When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.

Loud noise produced by the compressor when operation starts •

--- Sound becomes quieter after a while.

Loud noise produced once a day by the compressor •

--- Operating sound produced immediately after automatic defrost operation.

Sound of owing uid (gurgling sound, zzing sound) •

--- Sound of refrigerant owing in pipes (sound may become louder from time to

Cracking or crunching sound, squeaking sound •

--- Sound produced by expansion and contraction of inner walls and internal parts

Frosting or dew generation occurs

inside or outside the refrigerator.

This may occur in one of the following cases. Use a wet cloth for wiping frost and a

dry cloth for wiping dew.

When the ambient humidity is high.•

When the door is frequently opened and closed.•

When foods containing plenty of moisture are stored. (Wrapping is required.)•

The foods in the refrigerator

Is the refrigerator operated for a long time with temp. control set at MAX?•

Low ambient temperature may cause placed foods to freeze even if refrigerator •

temp. control is set to MIN.

It smells in the compartment. Wrapping is required for the foods with strong smell.•

Deodorizing unit cannot remove all of the smell.•

Door alarm does not stop. If the door alarm does not stop after closing all doors, it is a defect. •

Contact the SHARP service center for service.

Method of stopping the door alarm temporarily.

Adjust both temp. control knobs at the same time as following steps.

Return to MED The door alarm will sound again after approximately 2 days.•

IF YOU STILL REQUIRE SERVICE Refer to your nearest service agent approved by SHARP.

In Europe represented by

SHARP ELECTRONICS EUROPE LTD.

4 Furzeground Way, Stockley Park,
