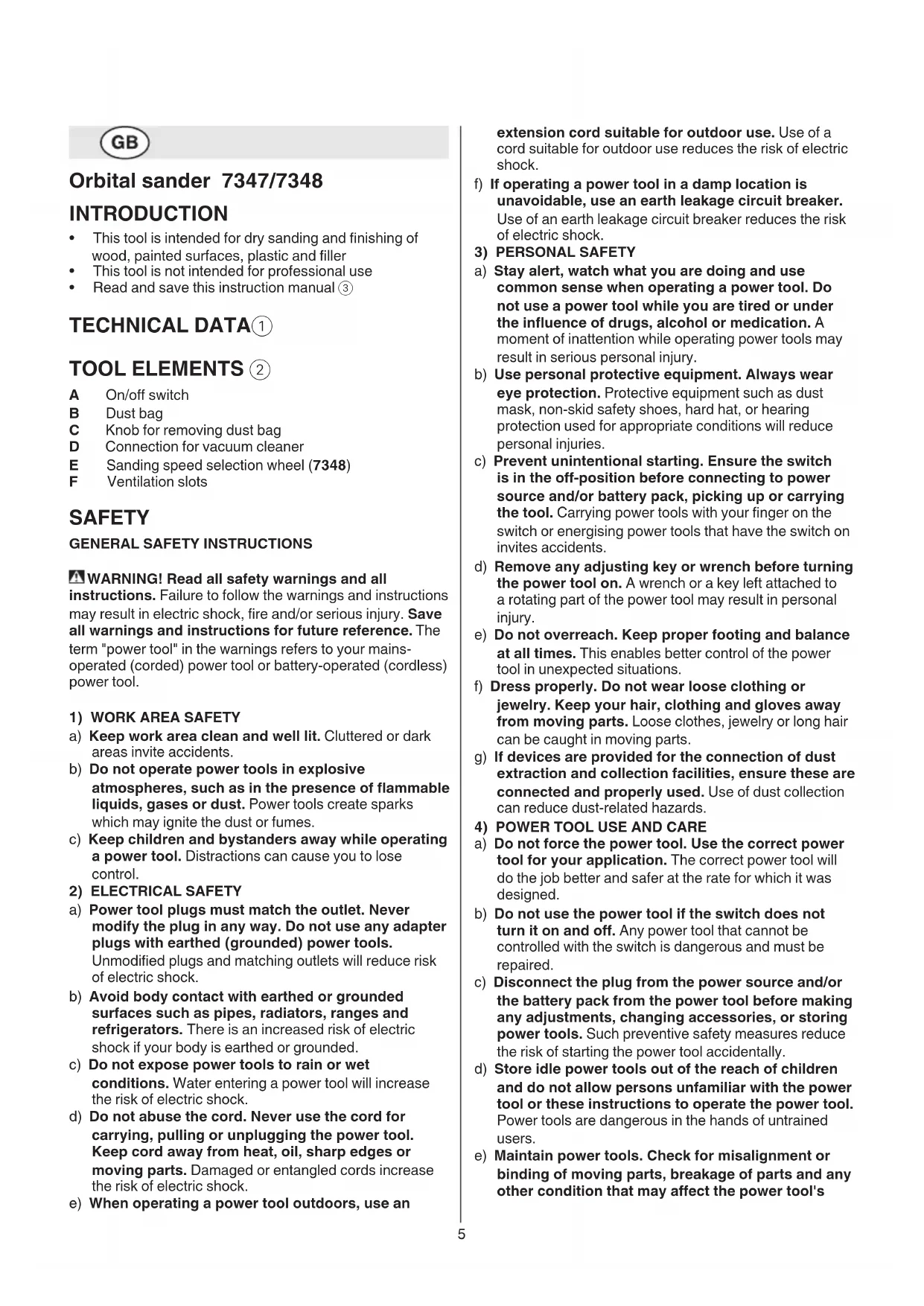

USER MANUAL 7348 AA SKIL

• This tool is intended for dry sanding and nishing of

wood, painted surfaces, plastic and ller

• This tool is not intended for professional use

• Read and save this instruction manual

C Knob for removing dust bag

D Connection for vacuum cleaner

E Sanding speed selection wheel (7348)

SAFETY GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions

may result in electric shock, re and/or serious injury. Save

all warnings and instructions for future reference. The

term "power tool" in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cordless)

a) Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

b) Do not operate power tools in explosive

atmospheres,suchasinthepresenceofammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter

plugs with earthed (grounded) power tools.

Unmodied plugs and matching outlets will reduce risk

b) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet

conditions. Water entering a power tool will increase

the risk of electric shock.

d) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase

the risk of electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric

f) If operating a power tool in a damp location is

unavoidable, use an earth leakage circuit breaker.

Use of an earth leakage circuit breaker reduces the risk

a) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under

theinuenceofdrugs,alcoholormedication. A

moment of inattention while operating power tools may

result in serious personal injury.

b) Use personal protective equipment. Always wear

eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce

c) Prevent unintentional starting. Ensure the switch

isintheo-positionbeforeconnectingtopower

source and/or battery pack, picking up or carrying

the tool. Carrying power tools with your nger on the

switch or energising power tools that have the switch on

d) Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to

a rotating part of the power tool may result in personal

e) Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power

tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewelry. Keep your hair, clothing and gloves away

from moving parts. Loose clothes, jewelry or long hair

can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection

can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power

tool for your application. The correct power tool will

do the job better and safer at the rate for which it was

b) Do not use the power tool if the switch does not

turnitonando. Any power tool that cannot be

controlled with the switch is dangerous and must be

c) Disconnect the plug from the power source and/or

the battery pack from the power tool before making

any adjustments, changing accessories, or storing

power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power

tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained

e) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any

otherconditionthatmayaectthepowertool's

ACCESSORIES WWW.SKIL.COM B C B D6

operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly

maintained power tools.

f) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are

less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.,

in accordance with these instructions, taking into

account the working conditions and the work to

be performed. Use of the power tool for operations

dierent from those intended could result in a hazardous

a) Haveyourpowertoolservicedbyaqualiedrepair

person using only identical replacement parts.

This will ensure that the safety of the power tool is

SAFETY INSTRUCTIONS FOR SANDERS GENERAL

• This tool should not be used by people under the age

• Use completely unrolled and safe extension cords with a

capacity of 16 Amps (U.K. 13 Amps)

• Never use the tool when cord is damaged; have it

replaced by a qualied person

• This tool is not suitable for wet sanding

• Dust from material such as paint containing lead, some

wood species, minerals and metal may be harmful

(contact with or inhalation of the dust may cause allergic

reactions and/or respiratory diseases to the operator or

bystanders); wear a dust mask and work with a dust

extraction device when connectable

• Certain kinds of dust are classied as carcinogenic

(such as oak and beech dust) especially in conjunction

with additives for wood conditioning; wear a dust

mask and work with a dust extraction device when

• Follow the dust-related national requirements for the

materials you want to work with

• Do not work materials containing asbestos

(asbestos is considered carcinogenic)

• When sanding metal, sparks are generated; do not

use dust bag and keep other persons and combustible

material from work area

• Regularly clean the power tool’s air vents (the

motor’s fan will draw the dust inside the housing and

excessive accumulation of powdered metal may cause

• Always disconnect plug from power source before

making any adjustment or changing any accessory

• SKIL can assure awless functioning of the tool only

when original accessories are used

• Do not continue to use worn, torn or heavily clogged

• Always check that the supply voltage is the same as the

voltage indicated on the nameplate of the tool

• Avoid damage that can be caused by screws, nails and

other elements in your workpiece; remove them before

• Secure the workpiece (a workpiece clamped with

clamping devices or in a vice is held more securely than

• The noise level when working can exceed 85 dB(A);

• Wear protective gloves, safety glasses, close-tting

clothes and hair protection (for long hair)

• Always keep the cord away from moving parts of the

tool; direct the cord to the rear, away from the tool

• Do not touch the moving sanding sheet

• In case of electrical or mechanical malfunction,

immediately switch o the tool and disconnect the plug

• If the cord is damaged or cut through while working, do

not touch the cord, but immediately disconnect the plug

• When you put away the tool, switch o the motor and

ensure that all moving parts have come to a complete

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire

in the cord of this tool to the earth terminal of the plug

• If for any reason the old plug is cut o the cord of

this tool, it must be disposed of safely and not left

• Mounting of sanding sheet

! disconnect the plug

- if necessary, clean backing pad rst

! perforation in sanding sheet should correspond

with perforation in sanding foot

! the dust suction requires the use of perforated

! always use the tool with the total sanding surface

covered with sanding paper

! replace worn sanding sheets in time

- switch on/o the tool by pushing switch A

! before the sanding surface reaches the

workpiece, you should switch on the tool

! beforeswitchingothetool,youshouldliftit

- remove dust bag B by pressing knob C and hold it in

that position while pulling dust bag backwards

- mount dust bag B by sliding it back until it clicks into

- for using vacuum cleaner remove dust bag B and

mount vacuum cleaner to connection D

! do not use dust bag/vacuum cleaner when

For optimal sanding results on dierent materials

you can set the desired sanding

- adjust speed to grit size used

- before starting a job, nd the optimal speed and grit by

testing out on spare material7

• Holding and guiding the tool

! whileworking,alwaysholdthetoolatthegrey-

coloured grip area(s)

- guide the tool parallel to the working surface

- do not apply too much pressure on the tool; let the tool

- do not tilt the tool in order to avoid unwanted sanding

- keep ventilation slots F

- the amount of material removed is determined by

the selection of the sanding sheet, the preselected

sanding speed and the applied pressure

! intensiyingthesandingpressuredoesnotlead

to an increase of the sanding capacity, but to

increased wear of the tool and the sanding sheet

! never use the same sanding sheet for wood and

• Move the tool in straight movements in line with the grain

- for sanding bare wood surfaces

- for extra ne nishing

• Never use the same sanding sheet for wood and metal

• Recommended sanding sheet grits:

- for removing paint and for sanding of extremely rough

wood use coarse grit sizes (40, 60)

- for sanding of rough or plain wood use medium grit

sizes (80, 100, 120)

- for smoothing of wood and surfaces with old paint as

well as for nishing of bare wood use ne grit sizes

! alwaystestoutrstonapieceofscrapmaterial

• Use dierent grit sizes when the working surface is

- start sanding with coarse or medium grit

- nish with ne grit

• For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use

• Always keep tool and cord clean (especially ventilation

- remove adhering sanding dust with a brush

! disconnect the plug before cleaning

• If the tool should fail despite the care taken in

manufacturing and testing procedures, repair should

be carried out by an after-sales service centre for SKIL

- send the tool undismantled together with proof of

purchase to your dealer or the nearest SKIL service

station (addresses as well as the service diagram of

the tool are listed on www.skil.com)

• Do not dispose of electric tools, accessories and

packaging together with household waste material

(only for EU countries)

- in observance of European Directive 2012/19/EC

on waste of electric and electronic equipment and

its implementation in accordance with national law,

electric tools that have reached the end of their life

must be collected separately and returned to an

environmentally compatible recycling facility

will remind you of this when the need for

DECLARATION OF CONFORMITY

• We declare under our sole responsibility that the product

described under "Technical data" is in conformity with

the following standards or standardization documents:

EN 60745, EN 61000, EN 55014, in accordance with the

provisions of the directives 2004/108/EC, 2006/42/EC,

Operations & Engineering

• Measured in accordance with EN 60745 the sound

pressure level of this tool is 85 dB(A) and the sound

power level 96 dB(A) (standard deviation: 3 dB), and the

vibration 7.9 m/s² (hand-arm method; uncertainty

• The vibration emission level has been measured in

accordance with a standardised test given in EN 60745;

it may be used to compare one tool with another and as

a preliminary assessment of exposure to vibration when

using the tool for the applications mentioned

- using the tool for dierent applications, or with dierent

or poorly maintained accessories, may signicantly

increase the exposure level

- the times when the tool is switched o or when it is

running but not actually doing the job, may signicantly

reduce the exposure level

! protectyourselfagainsttheeectsofvibration

by maintaining the tool and its accessories,

keeping your hands warm, and organizing your

Operations & Engineering

VEDLIKEHOLD / SERVICE

Operations & Engineering

in corrispondenza della(e) area(e) grigia(e)

Operations & Engineering

• Thithja e pluhurave

Operations & Engineering
