Product type	Vibrating sander
Brand	Skil
Model	7366 AA
Power supply	230 V ~ 50 Hz, 250 W
No-load speed	12,000 - 24,000 rpm (variable)
Dimensions (L x W x H)	20 x 10 x 12 cm
Weight	1.2 kg
Pad type	Triangular pad 100 x 70 x 95 mm
Abrasive attachment system	Velcro (hook and loop)
Dust extraction	Integrated with vacuum adapter
Sound level	82 dB(A)
Vibration level	4.5 m/s²
Main functions	Fine and precision sanding, adjustable speed, safety stop
Maintenance and cleaning	Regularly dust the housing and ventilation slots. Use a damp cloth without solvent.
Safety	Unplug before changing abrasive. Wear goggles and a dust mask.
Spare parts and repairability	Abrasive pads, filters, motor brushes available. Repairability score: 7.5/10
General information	2-year warranty. Made in China.

Frequently Asked Questions - 7366 AA SKIL

How to change the abrasive pad?

First unplug the tool. Remove the old abrasive by peeling it off the Velcro. Position the new pad aligning the dust holes, then press firmly.

What is the ideal speed for sanding wood?

For sanding wood, set the speed between 12,000 and 18,000 rpm. Use a higher speed for finishing.

Can I use this sander without dust extraction?

Yes, you can use the sander without a vacuum, but the dust box must be empty and attached to collect debris.

How to clean the ventilation slots?

Use a soft brush or paintbrush to remove dust from the ventilation slots. Avoid using compressed air as it may push dust inside.

The pad no longer holds well, what to do?

Check that the Velcro surface of the pad is not dirty. Clean it with a brush. If the problem persists, replace the pad (ref. Skil 2610360001).

Which abrasive to use for walls?

For walls (plaster or paint), use abrasive grit 80 to 120. Make sure it is compatible with the Velcro system.

How to adjust the speed?

The speed is adjusted via the dial on top of the sander. Turn it to increase or decrease the speed according to the material.

What to do if the sander overheats abnormally?

Immediately stop the tool and let it cool down. Check that the ventilation slots are not blocked and that you are not using a speed too high for the application.

Where to find replacement motor brushes?

Motor brushes are available at authorized Skil dealers or on spare parts websites. Reference: Skil 2610360002 (set of 2).

What is the warranty on this sander?

The Skil 7366 AA sander comes with a 2-year warranty against manufacturing defects. Keep your receipt.

USER MANUAL 7366 AA SKIL

Illustration of two SKIL electric shaver machines with attached wiring, shown from different angles (no text or symbols on the devices themselves)

GB ORIGINAL INSTRUCTIONS 5
F NOTICE ORIGINALE 7
D ORIGINALBETRIEBSANLEITUNG 11
NL ORIGINELE GEBRUIKSAANWIJZING 14
S BRUKSANVISNING I ORIGINAL 17
DK ORIGINAL BRUGSANVISNING 20
N ORIGINAL BRUKSANVISNING 23
FIN ALKUPERÄISET OHJEET 26
E MANUAL ORIGINAL 28
(P) MANUAL ORIGINAL 32
I ISTRUZIONI ORIGINALI 35
H EREDETI HASZNÁLATI UTASÍTÁS 38
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 41
TR ORİJINAL İŞLETME TALİMATI 44
PL INSTRUKCJA ORYGINALNA 47
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 50

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 54
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 58
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 61
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 65
SK PÔVODNÝ NÁVOD NA POUŽITIE 68
HR ORIGINALNE UPUTE ZA RAD 71
SRB ORIGINALNO UPUTSTVO ZA RAD 74
SLO IZVIRNA NAVODILA 77
EST ALGUPÄRANE KASUTUSJUHEND 80
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 83
LT ORIGINALI INSTRUKCIJA 86
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 89
AL UDHËZIMET ORIGJINALE 93
AR دليل الاستعمال 100
④ RAHENMAI AUSLI 98

www.skil.com

8

Simple line drawing of a container with an X mark and a circle inside, no text or symbols present.

GB

Orbital sander 7361/7366

INTRODUCTION

• This tool is intended for dry sanding and finishing of wood, painted surfaces, plastic and filler
  • This tool is not intended for professional use
• Read and save this instruction manual ③

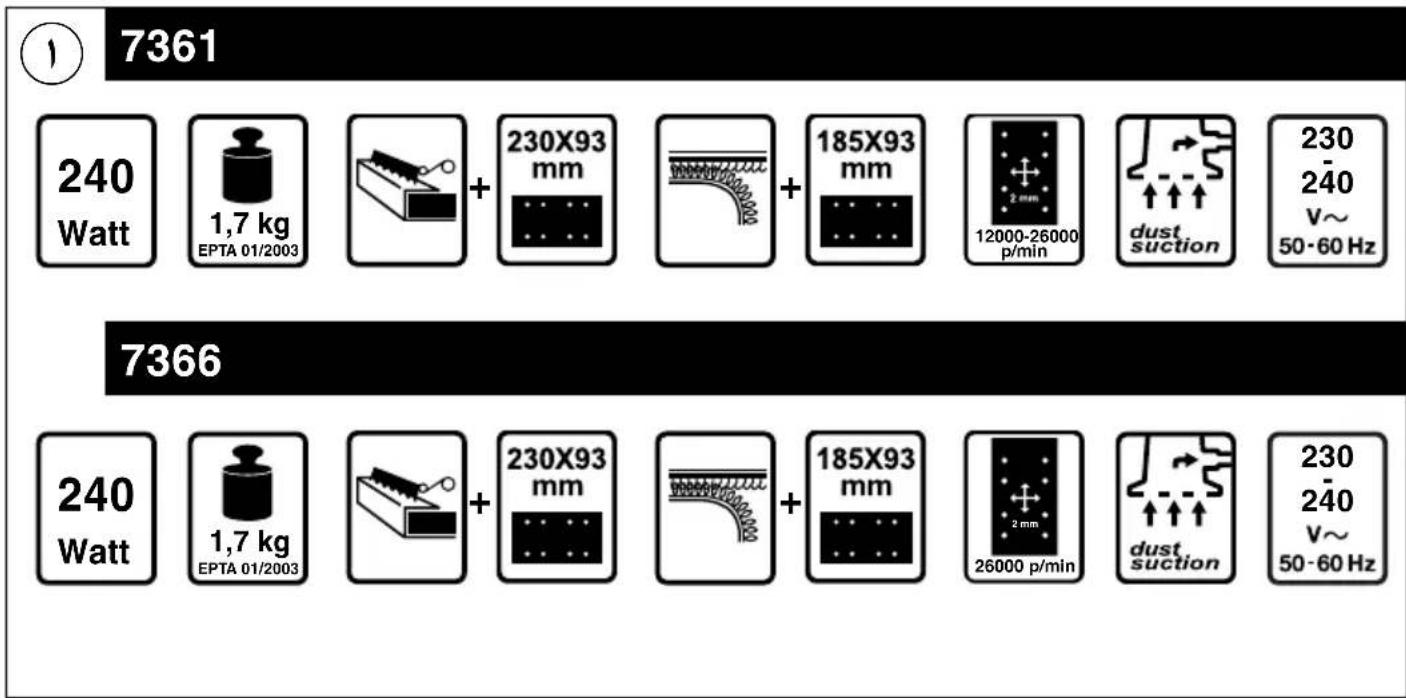

TECHNICAL DATA ①

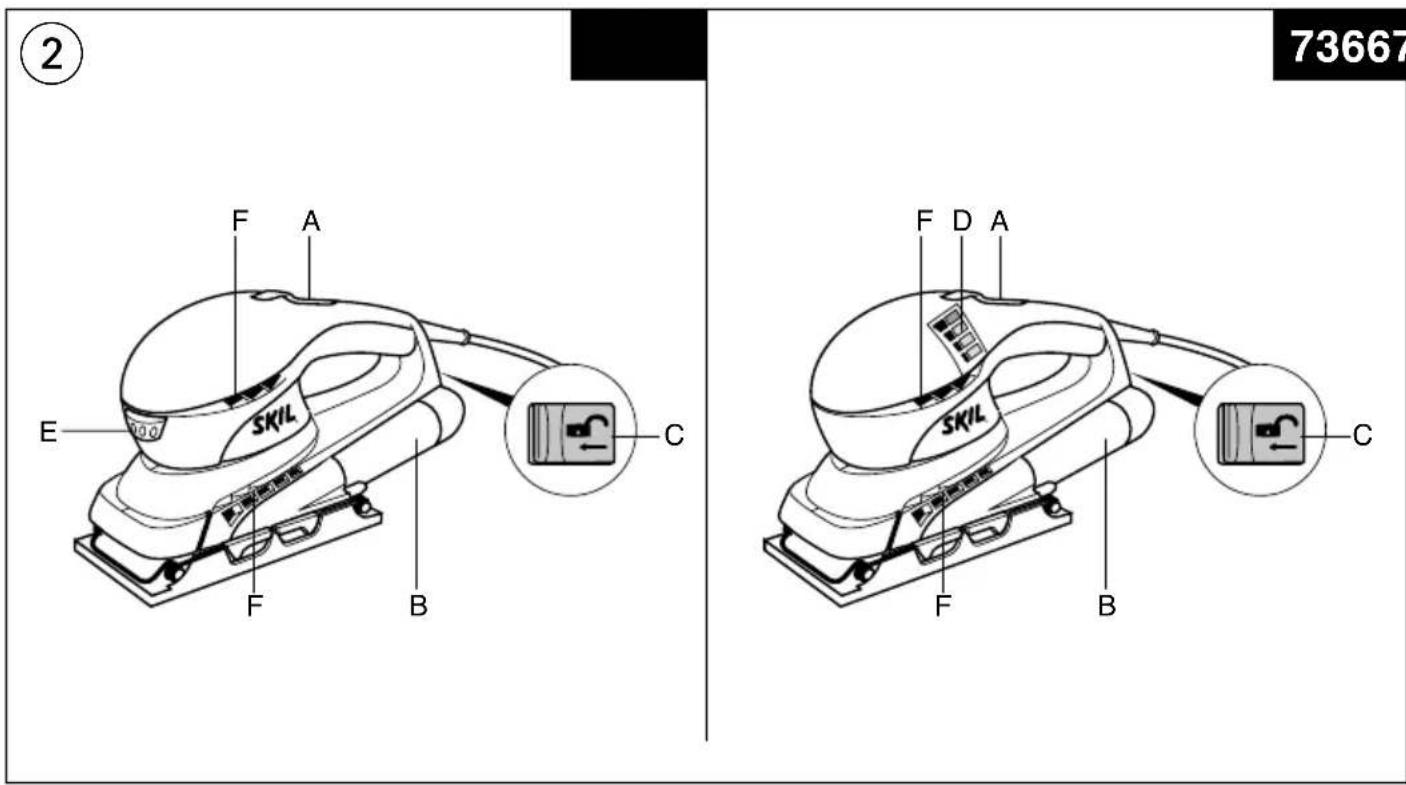

TOOL ELEMENTS ②

A On/off switch
B Dust box
C Knob for removing dustbox
D Pressure control (7366)
E Sanding speed selection wheel (7361)
F Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

A WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's

operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR SANDERS

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• SKIL can assure flawless functioning of the tool only when original accessories are used
• This tool should not be used by people under the age of 16 years
• The noise level when working can exceed 85 dB(A); wear ear protection
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it replaced by a qualified person
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)
  • This tool is not suitable for wet sanding
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Regularly clean the power tool's air vents (the motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards)
• When sanding metal, sparks are generated; do not use dustbox and keep other persons and combustible material from work area
• Do not touch the moving sanding sheet
• Do not continue to use worn, torn or heavily clogged sanding sheets

• Wear protective gloves, safety glasses, close-fitting clothes and hair protection (for long hair)

• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
  • Always disconnect plug from power source before making any adjustment or changing any accessory WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

- Mounting of sanding sheet ④

! disconnect the plug
! the dust suction requires the use of perforated sanding sheets
! perforation in sanding sheet should correspond with perforation in sanding foot
! replace worn sanding sheets in time
! always use the tool with the total sanding surface covered with sanding paper

- On/off switch

• switch on/off the tool by pushing switch A ② forward/backwards
  ! before the sanding surface reaches the workpiece, you should switch on the tool
  ! before switching off the tool, you should lift it from the workpiece

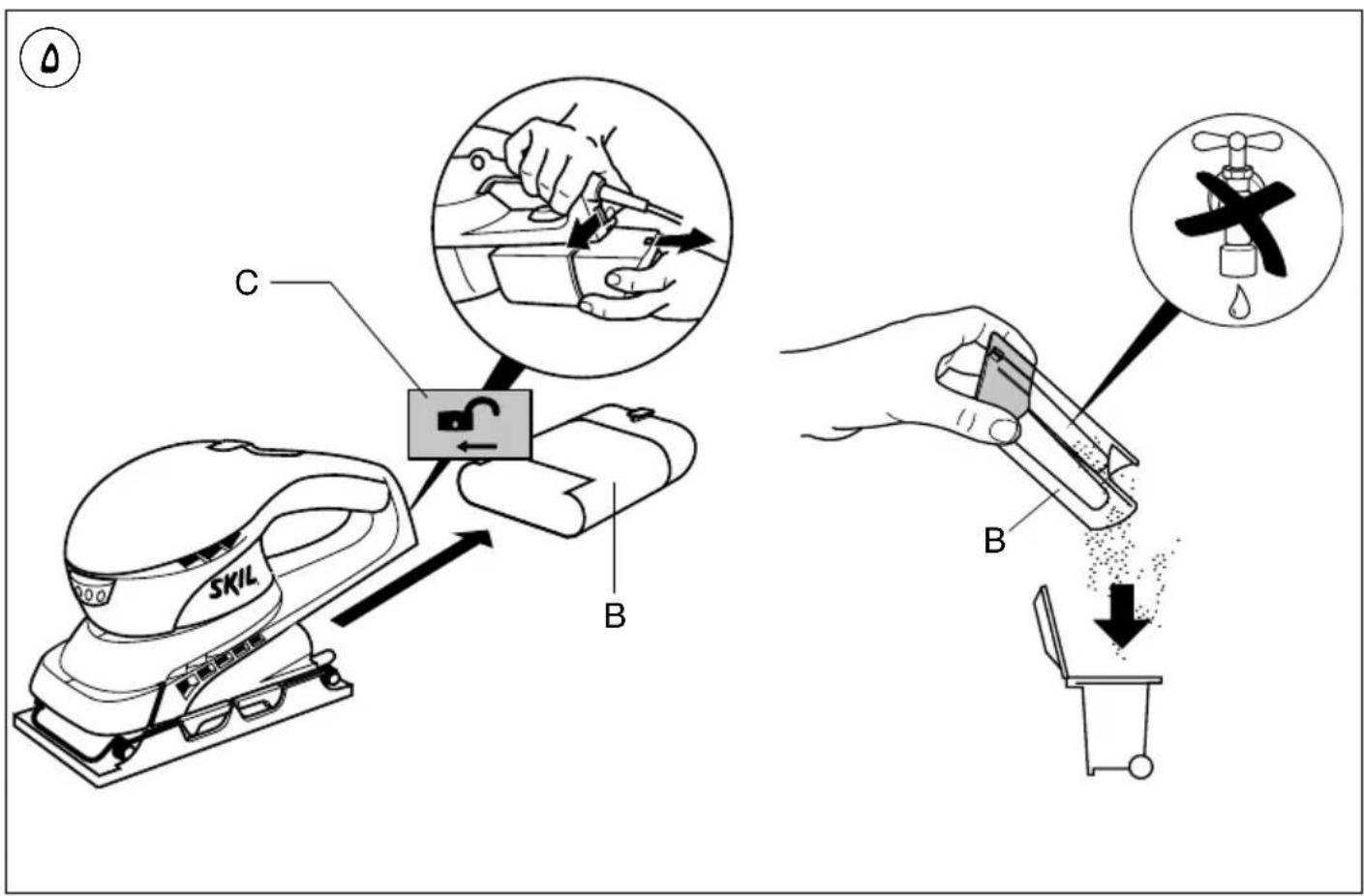

- Dust suction ⑤

• empty dustbox B regularly for optimal dust pick-up performance
• remove dustbox B by pushing knob C to the left and hold it in that position while pulling dustbox B backwards
• mount dustbox B by sliding it back until it clicks into place

! do not use dustbox when sanding metal

• Pressure control ⑥ (7366)

Warns the user when applying too much pressure on the tool while working (too much pressure reduces the sanding performance)

• green light 1 turns on when running tool is placed on workpiece
• green light 2 turns on in case of pressure
• green light 3 turns on in case of increased pressure
• red light 4 turns on when pressure is too high

• Speed control (7361)

For optimal sanding results on different materials

• with wheel E ② you can set the desired sanding speed
• adjust speed to grit size used
• before starting a job, find the optimal speed and grit by testing out on spare material

- Holding and guiding the tool ⑦

! while working, always hold the tool at the grey-coloured grip area(s)
- guide the tool parallel to the working surface
! do not apply too much pressure on the tool; let the sanding surface do the work for you
- do not tilt the tool in order to avoid unwanted sanding marks
- keep ventilation slots F ② uncovered

APPLICATION ADVICE

• Move the tool in straight movements in line with the grain
• for sanding bare wood surfaces
• for extra fine finishing
• Never use the same sanding sheet for wood and metal
• Recommended sanding sheet grits: coarse - for removing paint; for sanding of extremely rough wood medium - for sanding of rough or plain wood fine - for smoothing of wood; for finishing of bare wood; for smoothing surfaces with old paint
• Use different grit sizes when the working surface is rough:

- start sanding with coarse or medium grit

- finish with fine grit

• For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots F ②)

- remove adhering sanding dust with a brush

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑧ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY C€

• We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC, 2006/42/EC, 2011/65/EU
  • Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

NOISE/VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is 85 dB(A) and the sound power level 96 dB(A) (standard deviation: 3 dB), and the vibration 12.8 ~m / s^2 (hand-arm method; uncertainty K = 1.5 ~m / s^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned
• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Ponceuse vibrante 7361/7366

INTRODUCTION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

BRUIT/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

GERÄUSCH/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

GELUID/VIBRATIE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

LJUD/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

ST∅Y/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

MELU/TÄRINÄ

- Interruptor On/Off

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

RUIDOS/VIBRACIONES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

ZAJ/REZGÉS

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

HAŁASU/WIBRACJE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

HLUKU/VIBRÁCIÁCH

OPŠTA UPUTSTVA O SIGURNOSTI

PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU
a) Držite Vaše područje rada čisto i pospremljeno.

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

APKALPOŠANA / APKOPE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

TROKSNIS/VIBRĆIJA

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI ②

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

БУЧАВА/ВИБРАЦИИ

- Thithja e pluhurave⑤

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

07.08.2013

صدا/ارتعاشات

ال CONDITION/ALABETRAZ

Blank white square with a small circular symbol in the top-left corner (no text or markings)

Simple black-and-white icon showing a person reading a book inside a circle, with a small circular symbol in the top-left corner (no text or symbols)

Illustration of two SKIL electric shaver machines with visible branding and mounting base (no text or symbols on the devices themselves)

دليل الاستعمال

AR

راهنماي اصلی

FA

2610Z05195

08/13

سکیل أروبا ب.ق - کونینانبرج 60
