USER MANUAL RGDP 4525 EINHELL
- Safety information
- Layout and items supplied
- Intended use
- Technical data
- Before putting into operation
- Operation
- Replacing the power cable
- Cleaning, maintenance and ordering of spare parts
- Disposal and recycling
- Storage
- Troubleshooting guide
GB
Important!
When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.
We accept no liability for damage or accidents which arise due to non-observation of these instructions and the safety information.
1. Safety regulations
Caution!
In stagnant water bodies, garden ponds, swimming ponds and their surrounding areas the unit may only be used with an earth-leakage circuit breaker with an actuating rated current of up to 30mA (according to VDE 0100 Part 702 and 738).
The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!
This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.
Important!
Before you put the equipment into operation, arrange for a specialist to check that the
- earthing
- protective multiple earthing
- residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.
The electrical plug-in connections must be protected from wet conditions.
If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
-Strictly avoid pumping aggressive liquids and
abrasive substances.
- Protect the equipment from frost.
- Protect the equipment from dry running.
Take suitable measures to keep the equipment out of the reach of children.
CAUTION!
Read all safety regulations and instructions.
Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.

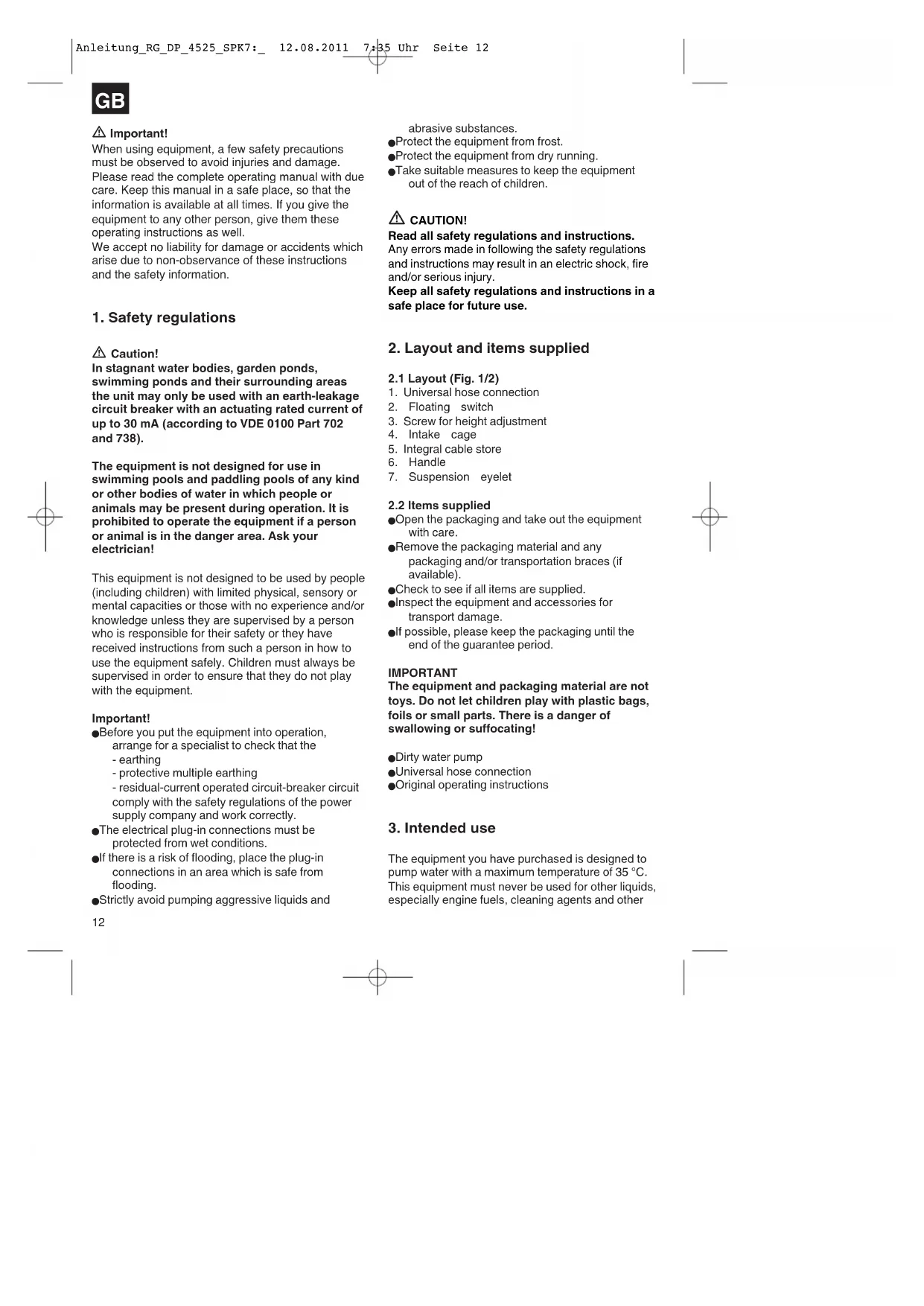

2. Layout and items supplied
2.1 Layout (Fig. 1/2)
- Universal hose connection
- Floating switch
- Screw for height adjustment
- Intake cage
- Integral cable store
- Handle
- Suspension eyelet
2.2 Items supplied
Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
Check to see if all items are supplied.
Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.
IMPORTANT
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
Dirty water pump
Universal hose connection
Original operating instructions
3. Intended use
The equipment you have purchased is designed to pump water with a maximum temperature of 35^ . This equipment must never be used for other liquids, especially engine fuels, cleaning agents and other
chemically-based products!
Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!
For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.
Examples of such safety measures: Pumps running in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements.
Be sure to consult a professional plumber if you have any doubt. The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!
If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.
The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.
The equipment may be used only for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains connection 230V 50Hz
Power rating 390 W
Max. pumping rate 10,000 l/h
Max. delivery head 6 m
Max. submersion depth 8 m
Water temperature max. 35^
Hose connection approx.
47.8 mm (G 1 1/2) external thread
Max. size of foreign bodies: 0.25 mm
Switching point height: ON max. approx. 60 cm
Switching point height: OFF min. approx. 5 cm
5. Before putting into operation
5.1 Installation
The equipment can be installed either:
Stationary with a rigid pipe line or
- Stationary with a flexible hose line
The equipment must be fastened to the suspension eyelet with a rope (Fig. 2/Item 7).
Note:
The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced. If the universal hose connection (Fig. 1/Item 1) is used, it should be shortened (as shown in Fig. 4) to the connection actually used in order not to reduce the pumping rate unnecessarily. Flexible hoses must be fastened to the universal hose connection with a hose clip (not included in the scope of supply).
Note!
When installing, never hang the equipment by the discharge line or by the power cable. The equipment must be hung up by the provided carry handle or suspension eyelet, or it must rest on the bottom of the shaft. To ensure that the equipment works properly, the bottom of the shaft always must be free of sludge and other accumulations of dirt. If the water level is too low, the sludge in the shaft can quickly dry out and hinder the equipment from starting. It is necessary therefore to check the equipment regularly (carry out trial start-ups).
Note:
The pump shaft should measure at least 50 × 50 × 50 cm so that the floating switch can move freely.
5.2 Mains connection
The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230V 50Hz . Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.
Important.
To rule out danger, this work must be left strictly to a specialist electrician or Customer Service.
GB
6. Operation
You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:
Make sure that the equipment is set up securely.
Check that the discharge line is fitted correctly.
Make sure that the electrical connection is 230V 50Hz
- Check that the electrical socket-outlet is in good working order.
Make sure that no moisture or water can ever reach the power connection.
Make sure that the equipment does not run dry.
Setting the On/Off switching point:
The ON/OFF switching point can be infinitely adjusted with the height adjustment facility. For this purpose you must first slacken the screw (Fig. 3, Item 3). The switching differential can be infinitely adjusted by extending or shortening the float cable (Fig. 3).
The floating switch must be fitted so that the switching point height: ON and the switch point height: OFF can be reached easily and with little force. Check this by placing the equipment in a container filled with water and carefully raising and lowering the floating switch with your hand. You can then see whether the equipment switches on and off.
Make sure that the distance between the floating switch head and the cable holder is not too smaller than 10cm . If the distance is too small, there is no guarantee that the equipment will work correctly.
- When adjusting the floating switch, make sure that the floating switch does not touch the bottom before the equipment is switched off. Important. Risk of dry running.
Manual operation:
Mount the floating switch as illustrated in Figure 1. This means that the equipment will run continuously. The equipment is allowed to be used in this mode only under supervision so as to prevent dry running. The equipment must be switched off (pull out the power plug) as soon as no more water is emitted from the discharge line.
7. Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or by similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Important.
Pull out the power plug prior to any maintenance work.
8.1 Cleaning
For mobile applications, the equipment should be cleaned with clear water each time after it is used.
For stationary installation it is recommended that you check the floating switch for proper operation every three months.
Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.
- Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
Use clear water to remove deposits from the floating switch.
8.2 Servicing
There are no parts inside the equipment which require additional maintenance.
8.3 Ordering spare parts
Please provide the following information on all orders for spare parts:
Model/type of the equipment
Article number of the equipment
ID number of the equipment
- Spare part number of the required spare part
For our latest prices and information please go to www.isc-gmbh.info
9. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
10. Storage
Store the equipment and its accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.
11. Troubleshooting guide
| Faults Cause Remedy | ||
| The equipment does not start | - Power supply not connected | - Check power supply |
| - Floating switch does trigger | - Raise position of floating switch | |
| The equipment does not pump | - Intake sieve clogged | - Clean intake sieve with water jet |
| - Discharge hose kinked | - Unkink the hose | |
| The equipment does not cut out | - Floating switch cannot sink | - Place equipment correctly on shaft bottom |
| Insufficient pumping rate | - Intake sieve clogged | - Clean intake sieve |
| - Performance reduced due to heavily contaminated and abrasive water impurities | - Clean equipment and replace wear parts | |
| The equipment switches off after briefly running | - Motor circuit-breaker switches the equipment off due to excessive water contamination | - Unplug power plug and clean equipment and shaft |
| - Water temperature too high; motor circuit-breaker switches the equipment off | - Ensure that maximum permissible water temperature (35 °C) is not exceeded | |
