USER MANUAL BMK 2700E EINHELL

Operating Instructions

Local air conditioners

4. Before starting the equipment

6. Cleaning, maintenance and ordering of spare

7. Disposal and recycling

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 14 Important!

When using the equipment, a few safety precautions

must be observed to avoid injuries and damage.

Please read the complete operating instructions and

safety regulations with due care. Keep this manual in

a safe place, so that the information is available at all

times. If you give the equipment to any other person,

hand over these operating instructions and safety

regulations as well. We cannot accept any liability for

damage or accidents which arise due to a failure to

follow these instructions and the safety instructions.

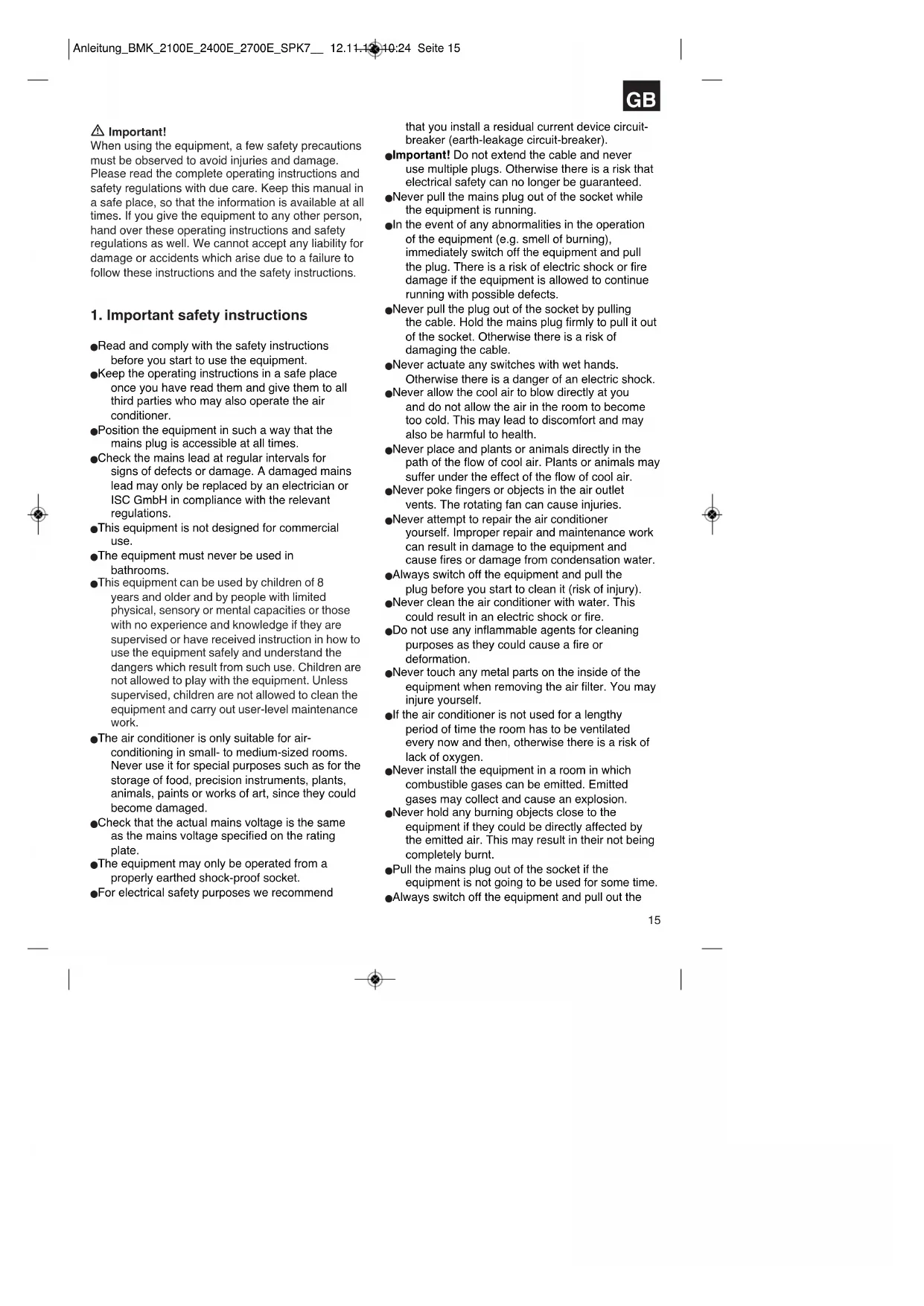

1. Important safety instructions

n Read and comply with the safety instructions

before you start to use the equipment.

n Keep the operating instructions in a safe place

once you have read them and give them to all

third parties who may also operate the air

n Position the equipment in such a way that the

mains plug is accessible at all times.

n Check the mains lead at regular intervals for

signs of defects or damage. A damaged mains

lead may only be replaced by an electrician or

ISC GmbH in compliance with the relevant

n This equipment is not designed for commercial

n The equipment must never be used in

n This equipment can be used by children of 8

years and older and by people with limited

physical, sensory or mental capacities or those

with no experience and knowledge if they are

supervised or have received instruction in how to

use the equipment safely and understand the

dangers which result from such use. Children are

not allowed to play with the equipment. Unless

supervised, children are not allowed to clean the

equipment and carry out user-level maintenance

n The air conditioner is only suitable for air-

conditioning in small- to medium-sized rooms.

Never use it for special purposes such as for the

storage of food, precision instruments, plants,

animals, paints or works of art, since they could

n Check that the actual mains voltage is the same

as the mains voltage specified on the rating

n The equipment may only be operated from a

properly earthed shock-proof socket.

n For electrical safety purposes we recommend

that you install a residual current device circuit-

breaker (earth-leakage circuit-breaker).

n Important! Do not extend the cable and never

use multiple plugs. Otherwise there is a risk that

electrical safety can no longer be guaranteed.

n Never pull the mains plug out of the socket while

the equipment is running.

n In the event of any abnormalities in the operation

of the equipment (e.g. smell of burning),

immediately switch off the equipment and pull

the plug. There is a risk of electric shock or fire

damage if the equipment is allowed to continue

running with possible defects.

n Never pull the plug out of the socket by pulling

the cable. Hold the mains plug firmly to pull it out

of the socket. Otherwise there is a risk of

n Never actuate any switches with wet hands.

Otherwise there is a danger of an electric shock.

n Never allow the cool air to blow directly at you

and do not allow the air in the room to become

too cold. This may lead to discomfort and may

also be harmful to health.

n Never place and plants or animals directly in the

path of the flow of cool air. Plants or animals may

suffer under the effect of the flow of cool air.

n Never poke fingers or objects in the air outlet

vents. The rotating fan can cause injuries.

n Never attempt to repair the air conditioner

yourself. Improper repair and maintenance work

can result in damage to the equipment and

cause fires or damage from condensation water.

n Always switch off the equipment and pull the

plug before you start to clean it (risk of injury).

n Never clean the air conditioner with water. This

could result in an electric shock or fire.

n Do not use any inflammable agents for cleaning

purposes as they could cause a fire or

n Never touch any metal parts on the inside of the

equipment when removing the air filter. You may

n If the air conditioner is not used for a lengthy

period of time the room has to be ventilated

every now and then, otherwise there is a risk of

n Never install the equipment in a room in which

combustible gases can be emitted. Emitted

gases may collect and cause an explosion.

n Never hold any burning objects close to the

equipment if they could be directly affected by

the emitted air. This may result in their not being

n Pull the mains plug out of the socket if the

equipment is not going to be used for some time.

n Always switch off the equipment and pull out the

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 15power plug during a storm. Electrical parts may

get damaged as a result of overvoltage.

n If the coolant circuit should develop a leak,

switch off the equipment immediately and

contact your service partner.

n There is a risk of harmful gas being generated if

any of the coolant escapes and comes into

contact with a flame. Switch off the equipment

n To avoid electromagnetic interference the device

should be kept away from televisions and radios.

n Always place the portable device on a firm,

n The unit must always be stored and operated in

an upright position.

n The unit must never be covered whilst it is

operating since this prevents air passing in and

out of it, resulting in the unit being damage.

The unit is supplied in packaging to prevent it from

being damaged in transit. The raw materials in this

packaging can be reused or recycled.

Read all safety regulations and instructions.

Any errors made in following the safety regulations

and instructions may result in an electric shock, fire

and/or serious injury.

Keep all safety regulations and instructions in a

safe place for future use.

7. Mains lead hanger

10. Connection operating for exhaust hose

12. Connection for continuous condensation drain

Accessories (Fig. 3)

13. Exhaust air adapter for window

14. Exhaust air hose

15. Activated carbon filter

17. Water drainage hose

18. Window adapter without opening

19. Window adapter with opening

The air-conditioning system is only designed to air-

condition dry rooms. The room volume depends on

the local conditions. Large window areas, additional

heat sources (PC, television, people, etc.), poor wall

insulation, etc. serve to reduce this room volume.

The machine is to be used only for its prescribed

purpose. Any other use is deemed to be a case of

misuse. The user / operator and not the

manufacturer will be liable for any damage or injuries

of any kind caused as a result of this.

Please note that our equipment has not been

designed for use in commercial, trade or industrial

applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial

businesses or for equivalent purposes.

4. Before starting the equipment

n Before you connect the equipment to the mains

supply make sure that the data on the rating

plate are identical to the mains data.

n Always place the portable device on a firm,

n The machine must always be in an upright

n Never tilt the device by more than 45°!

Whenever the device has been transported

(inclined positions), leave for at least one hour

before connecting to a socket outlet.

n In the cooling function the warm exhaust air must

be transferred outside by the exhaust air hose.

An opening in the wall or window must therefore

n Please note that the minimum distance between

the equipment and the wall to the side 50 cm and

rear must be 36 cm. The minimum distance to

other objects at the front must be 2 m.

4.1 Installing the activated charcoal filter (Fig. 4)

1. Take out the filter frame

2. Remove the filter fastener from the filter frame

3. Take the carbon filter out of the bag

4. Place the carbon filter in the filter frame

5. Fasten the filter with the filter fastener

6. Slide in the filter frame

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 164.2. Installing the exhaust air hose (Fig. 5)

Use only the supplied exhaust air hose. The length of

the exhaust air hose can be varied from between 360

mm to 1500 mm. For the most effective cooling the

hose should be as short as possible. Avoid kinks are

excessive bends in the hose so that the exhaust air

can be transferred out without hindrance. If you

ignore this advice, the device as a whole may

overheat and shut down. This could result in damage

The length of the exhaust air hose is matched to the

technical specifications of the device. Never extend

the hose as this could lead to malfunctions or faults

Under certain circumstances a partial vacuum may

develop in the room, which will lead to a reduction in

the cooling performance of the device. To prevent

this from happening you must ensure that there is a

supply of air to the room (leave the door to the room

Fitting the exhaust air hose through an open

n Secure the exhaust air hose to the connection

opening for the exhaust air hose by turning it

n Use the exhaust air adapter for the window and

the extendible window adapter. Fasten the air

adapter for the window to the exhaust air hose

by turning it clockwise. Open the window slightly

and clamp the window adapter in the gap.

Secure the window so that the window adapter is

kept firmly in place. Insert the exhaust air

adapter for the window in the opening provided

in the window adapter.

Hot Air Stop Art.-Nr.: 23.651.50

Note: Take appropriate precautions to prevent

unauthorized entry through the window.

Fitting the exhaust air hose through the wall

We recommend that you use a suitable telescopic

duct with automatic shutter and wall connection

(available at your DIY store) to which you can

connect the hose without using the exhaust air

adapter for the window.

5. “UP” selector switch – higher

6. “ON/OFF” switch – On/Off

7. “DOWN” selector switch – lower

8. „Sleep“ switch - sleep function

14. “COMP” LED – compressor running

15. LED – indicator panel

16. “F.W.” LED – condensate tray full

18. „Automatic mode set“ LED

19. „Cool mode set“ LED

5.2 Switching the device on and off

Press the On/Off switch. The device starts up

automatically. If the ambient temperature:

앬 is higher than 23°C the device will run in cooling

앬 if it is between 20°C and 23°C the device will run

The status of the device, or mode in which it is

running, will be shown by the corresponding LEDs

(see indicator panel).

Note: The LED indicator panel shows the current

room temperature (0-50°C).

To switch the device off, press the On/Off switch

After you have switched off the unit, you must wait at

least three minutes before you switch it on again.

This protects the compressor from overloads and

considerably extends its service life.

The cooling system switches itself off whenever the

room temperature is below the value set on the

thermostat. The air circulation/ventilation fan

continues to run as set. If the room temperature

increases again, the cooling system switches on

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 175.3 Selecting the mode

Press the “Mode” selector (MODE) in the sequence

“Automatic”, “Cool”, “Fan”. The LED for the selected

mode lights up (see indicator panel).

5.4 Setting the set-point temperature

Press the “Warmer” selector (UP) or “Cooler”

(DOWN) to set your desired set-point temperature. If

you press the “Warmer” or “Cooler” selector, the LED

indicator panel will show your desired set-point

temperature. Otherwise the LED indicator panel

always shows the current room temperature.

5.5 Selecting the fan speed

Press the “Fan speed” selector to set the desired fan

The LED for the mode lights up (see indicator panel).

If the device is in “Automatic mode” (AUTO) the fan

speed will be selected automatically by the device in

dependency on the room temperature. The

corresponding LED lights up. The “Fan speed” is

5.6 Setting the timer

Press the switch for the “Timer” (TIMER) to set the

desired operating time (1 - 12 h). The “Timer”

(TIMER) LED lights up. If the timer is set, the device

starts automatically. If you press the “Timer” switch,

the time you have set will be shown in the LED

indicator panel. If the timer has not been switched

on, the device will run continuously.

If the unit is connected to the voltage supply and you

press the TIMER switch, you can set the time at

which you wish the unit to be switched on. If, for

example, the timer shows “2”, this means that the

device will start up automatically in 2 hours time.

5.7 Activating the sleep function (only possible in

Press the “Sleep” key to activate the sleep function.

In order to prevent undercooling, the set room

temperature increases 1 °C during the first hour and

2 °C within 2 hours. When the sleep function is

switched off the room temperature decreases back to

the set value. After the sleep function has been on

for 12 hours the equipment switches off

When the sleep function has been activated, the fan

will automatically run at low speed. The fan speed

All modes and functions can be set using the

supplied remote control.

n Use two alkali batteries, type R03 AAA (1.5 V)

n Never use a combination of new and used

n Never use a battery type other than the specified

n If the remote control is not used for a lengthy

period of time, remove the batteries to prevent

n Dispose of spent batteries properly.

n Point the remote control towards the air-

conditioning system. The range is max. 5 meters.

n Direct sunlight and objects can considerably

reduce the range of the remote control.

n Handle the remote control with care. Do not drop

it and keep it away from heat and moisture.

1. Open the battery compartment cover.

2. Insert two new batteries. Be sure to observe the

correct polarity (+/-) of the batteries.

3. Close the battery compartment cover.

5.9 SETTING THE AIR FLOW DIRECTION The vertical direction of the air flow is determined by

the vertical ventilation grille. It has to be adjusted by

The horizontal direction of the air flow is determined

by the horizontal ventilation grille. It has to be adjusted

5.10 Draining the condensate in the condensate

For the cooling mode the device is fitted with a

condensate return unit. When the system is in

operation the condensate is collected in a trough

(approx. contents 0.85 liters) integrated in the device.

From there it is evaporated by the condenser and

transferred outside by the exhaust air hose.

If the humidity in the room exceeds 85% (RH), a

condensate drainage hose (see section “5.11”) is

absolutely essential.

ALL OF THE CONDENSATE MUST BE DRAINED OFF BEFORE YOU EVER RELOCATE OR STOP USING THE DEVICE.

When the condensate tray is full the compressor and

the fan motor shut down. The “F.W.” LED flashes

When this happens, empty the tray as described

1. Switch off the unit, pull the plug and do not move

2. Push a container under the drain screw (1).

3. Unscrew the drain screw (1).

4. Remove the rubber bung (2) from the drain

5. The condensate runs into the container. If the

container is smaller than the condensate tray,

seal the drain opening (3) with the rubber bung

(2) and empty the container. Then repeat the

process from point 4.

6. Once the condensate tray has been completely

emptied, fit the bung (2) and the drainage screw

7. Start the unit again. The “F.W.” LED will no

5.11 Draining the condensate with a hose

ALL THE CONDENSATE MUST HAVE BEEN DRAINED BEFORE YOU START THE FOLLOWING PROCESS.

1. Switch off the unit and pull the power plug.

2. Unscrew the drain screw (1).

3. Remove the rubber bung (2) from the drain

4. Connect the condensate drainage hose (4) and

secure it with a clip

5. The drainage hose can be extended with a hose

(5) with a diameter of 18mm. If you do so, make

sure you use a suitable connector.

The drainage hose must run to the outside with a

slight fall. The “Condensate tray full” indicator is not

6. Cleaning, maintance and

ordering of spare parts

To avoid an electric shock or risk of fire,

always pull out the mains plug first before

starting any cleaning work .

6.1 Cleaning the air filter

The air conditioner is fitted with 2 filters.

1. Dust filter (close-meshed filter net)

2. Activated carbon filter (binds particles in the air

and prevents the development of bacteria)

Important: Never use the device without air filters.

Remove the filter cover (Fig. 2/Pos. 8-9) by pulling it

to the side and rear.

Then remove the activated carbon filter. Use a

vacuum cleaner or tap the dust filter gently to remove

the dust. If the filter is very dirty, wash it carefully with

warm water. Then allow to dry thoroughly.

2) Activated carbon filter

The activated carbon filter is located behind the top

dust filter and cannot be washed. Its service life is

dependent on the operating conditions. The filter

should be inspected and replaced if necessary. The

filter cover then has to be fitted back on the device

with the activated charcoal filter.

6.2 Cleaning the housing

Use only gentle cleaner and a soft cloth to clean

the housing. Never use aggressive media, petrol,

alcohol or thinner. Only fit the filter back in place

when thoroughly dry.

6.3 At the end of the season

n At the end of the season, let the device run for

approx. 3 hours in the fan function (FAN).

n Then roll up the power cable and store it in the

storage compartment provided at the back of the

device (fig. 2/pos. 7).

n Place a suitable container beneath the

condensate drain and remove the plug. The

trough then empties (see Chapter 5.10).

n Re-insert the plug in the condensate drain.

Important: If the plug is not inserted or is not

inserted correctly, water will escape the next time

the device is used again.

n Clean the filter and the housing.

n Re-insert the filter when thoroughly dry.

n Store the device in an upright position, preferably

packed in the original box, in a dry and dust-tight

n There are no parts inside the equipment which

require additional maintenance.

6.5 Ordering replacement parts:

Please quote the following data when ordering

n Article number of the machine

n Identification number of the machine

n Replacement part number of the part required

For our latest prices and information please go to

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 197. Disposal and recycling

The unit is supplied in packaging to prevent its being

damaged in transit. This packaging is raw material

and can therefore be reused or can be returned to

the raw material system.

The unit and its accessories are made of various

types of material, such as metal and plastic.

Defective components must be disposed of as

special waste. Ask your dealer or your local council.

Rated cooling capacity (P

Recommended max. room size in m

Rated power consumption (P

Rated cooling capacity (EERd)

Energy efficiency class

A A A Power consumption (P TO

Power consumption (P SB

Area of application room temperature

18 – 32 °C Max. pressure (MPA)

Max. air throughput (m

Rated current consumption (A)

Compressor starting current RLA max. (A)

Greenhouse warming potential

Exhaust air hose (Ǿ x L in mm)

Housing dimensions WxDxH in cm

If the device is operated properly you should experience no problems with malfunctions or faults. In the event of

any malfunctions or faults, please check the following before you contact your customer services.

Problem Rectification measures

Device does not work Is the mains plug properly connected?

Is there a voltage supply at the mains socket outlet?

Was the ON/OFF button pressed?

Is the condensation water tank full or not properly inserted?

Device does not have a cooling effect or

cooling performance is not satisfactory

If the room temperature is below 18°C, the cooling mode

If the room temperature is above 18°C, the cooling

compressor will automatically activate after a potential

Is the room exposed to direct sunlight?

Are any doors and windows open?

Are there a lot of people in the room?

Is a device in the room generating a lot of heat?

Weak ventilation performance Is the air hose blocked?

Is the filter soiled?

Is the air inlet or air outlet blocked?

The device is too loud Has the device been set up on an uneven surface/at an

The compressor does not work Is the condensation water tank full?

If the compressor has overheated and the overheating

cutout has switched off the compressor, wait until the

compressor cools down.

Have the device inspected by a specialist firm when you have used it for some time.

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 22F

18 – 32 °C Pression max. (MPA)

2004/26/EC Emission No.:

2000/14/EC_2005/88/EC Annex IV Notified Body:Notified Body No.:Reg. No.:

Annex V Annex VI Noise: measured L WA = dB (A); guaranteed L WA = dB (A)P = KW; L/Ø = cmNotified Body: x

2004/26/EC Emission No.:

2000/14/EC_2005/88/EC Annex IV Notified Body:Notified Body No.:Reg. No.:

Annex V Annex VI Noise: measured L WA = dB (A); guaranteed L WA = dB (A)P = KW; L/Ø = cmNotified Body: x

2004/26/EC Emission No.:

2000/14/EC_2005/88/EC Annex IV Notified Body:Notified Body No.:Reg. No.:

Annex V Annex VI Noise: measured L WA = dB (A); guaranteed L WA = dB (A)P = KW; L/Ø = cmNotified Body: x

t For EU countries only

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its

implementation in national laws, old electric tools have to be separated from other waste and disposed of

in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the

device is properly recycled if ownership is relinquished. This can also be done by handing over the used

device to a returns center, which will dispose of it in accordance with national commercial and industrial

waste management legislation. This does not apply to the accessories and auxiliary equipment without

any electrical components which are included with the used device.

Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP)

would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere.

This appliance contains a refrigerant fluid with a GWP equal to 2088. This means that if 1 kg of this

refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 2088 times

higher than 1 kg of CO2, over a period of 100 years. Never try to interfere with the refrigerant circuit

yourself or disassemble the product yourself and always ask a professional.

The reprinting or reproduction by any other means, in whole or in part,

of documentation and papers accompanying products is permitted only

with the express consent of ISC GmbH.

 Technical changes subject to change

GUARANTEE CERTIFICATE Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely

event that your device develops a fault, please contact our service department at the address shown on this

guarantee card or the sales outlet from where you bought the device. Please note the following terms under

which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not

affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material

or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at

Please note that our devices are not designed for use in commercial, trade or professional applications. A

guarantee contract will not be created if the device has been used by commercial, trade or industrial

business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect

installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains

voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the

device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or

unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust,

transport damage), the use of force or damage caused by external forces (for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee

claims should be submitted before the end of the guarantee period within two weeks of the defect being

noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee

period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases,

the work performed or parts fitted will not result in an extension of the guarantee period, and no new

guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired

immediately and returned to you or we will send you a new replacement device.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in

the service information in these operating instructions.

Anleitung_BMK_2100E_2400E_2700E_SPK7__ 12.11.13 10:24 Seite 7778
