Product type	Monoblock portable air conditioner
Brand	Einhell
Model	MKA 2500
Dimensions (W x D x H)	35 x 45 x 77.8 cm
Net weight	34 kg
Power supply	230 V / 50 Hz
Cooling power	7500 BTU/h (2205 W)
Power consumption	820 W / 3.6 A
Air flow	370 m³/h
Dehumidification	11 L/day
Refrigerant	R-4070
Fan speeds	2 (HI and LO)
Timer	1 to 12 hours
Thermostat range	16 °C to 30 °C
Functions	Auto, Cool, Air circulation, Swing
Filter type	Activated carbon filter
Filter cleaning	Every month (more often if necessary)
Minimum distance to wall	50 cm
Warranty	2 years
Spare parts	Filter, remote control, exhaust hose

Frequently Asked Questions - MKA 2500 EINHELL

How to set the timer on the Einhell MKA 2500 air conditioner?

Press the TIMER button, then use the ▲ and ▼ buttons to set the operating time from 1 to 12 hours. If the timer is not activated, the unit will automatically switch off after 24 hours.

What to do if the condensation water tank is full?

The ON/OFF indicator lights up and the compressor stops. Turn off the unit, unplug it, remove the tank by its handle, empty it, and put it back. Restart the unit and select the desired functions again.

Why is the unit not cooling?

Check that the plug is correctly inserted and that the ambient temperature is between 16 °C and 30 °C. If the water tank is full, empty it. The compressor may take up to 3 minutes to start after switching on.

How to clean the air filter?

Unplug the unit, remove the activated carbon filter, clean it with a soft cloth and a mild detergent. Never use gasoline, alcohol or thinner. Let it dry completely before putting it back. Clean it at least once a month.

Can I use an extension cord with this air conditioner?

No, it is not recommended to use an extension cord or multiple socket. Plug the unit directly into a suitable power outlet to avoid risk of overheating or fire.

How to use the Swing function?

Press the SWING button to make the vertical air vents oscillate automatically, ensuring uniform air distribution. The horizontal vents can be adjusted manually.

What is the maximum length of the exhaust hose?

The exhaust air hose can be extended from 300 mm to 1500 mm. Do not extend it beyond that and avoid kinks or sharp bends to prevent overheating and unit shutdown.

How to store the unit at the end of the season?

Empty the water tank, clean the filter and housing, coil the power cord, and store the unit in its original packaging in a dry place. Do not place heavy objects on top of it.

What to do if the fan blows weakly?

Check that the exhaust hose is not kinked or blocked, and clean the air filter if it is clogged. A dirty filter reduces air flow.

Does the unit come with a remote control?

Yes, the Einhell MKA 2500 air conditioner is supplied with a remote control. The receiver is on the control panel. Functions (on/off, temperature, timer, etc.) are accessible from the remote control.

USER MANUAL MKA 2500 EINHELL

Line drawing of a portable air conditioner unit with ventilation grille and wheels (no text or symbols)

MKA 2500 E

D

Illustration of a large industrial air conditioner unit with a smaller rectangular device beside it (no text or symbols visible)

Instandhaltung

Illustration of a portable air conditioner unit with a solar panel array and control panel (no text or symbols)

* Please read these instructions carefully before using the air conditioner for the first time. Keep this documentation in a safe place.

You have made a good buy with the purchase of this mobile air conditioner. The appliance is professionally designed and will provide you with a maximum of comfort for many years provided it is used as described in these instructions. It pays, therefore, to read this documentation carefully and to keep it safe for future reference.

Before using the air conditioner

1. Always place the mobile appliance on a firm surface.
2. Connect the appliance to the correct type of socket-outlet.
3. Fit the exhaust pipe to the air conditioner.

Specifications

Type of coolant R-407C
Cooling capacity 7500 BTU/h	1890 Kcal/h2205 W
Current / amperage 820 W / 3.6 A
Air throughput 370 cm	^2 h
Moisture reduction capacity 11 liters/day
Fan speeds 2
Timer 1-12 hours
Thermostat 16-30°C
Dimensions (WxDxH) 35x45x77.8 cm
Net weight 34 kg
Power supply 230V/50Hz
Temperature 27°C

Important safety instructions

Prevention of accidents

● Make sure that the appliance is correctly connected to the right power supply.
● Make sure that the appliance is correctly installed as described in these instructions.

● Young, old and disabled persons are not always aware of the hazards which may arise when using electrical equipment. For this reason you should never allow anyone from these categories to operate the appliance unsupervised.

● Never use the appliance near bath-tubs, showers or wash-basins.

- Do not place any objects over the air grilles.

- Keep a gap of at least 50 cm between the appliance and the nearest wall.

- Close the curtains or adjust the blinds accordingly during the sunniest periods.

- Keep the air filter clean. Under normal conditions the filter should be cleaned once a month. Shorter cleaning intervals may be necessary under certain circumstances, however, because the air filter is designed to trap even small particles of dirt. It is strictly prohibited to operate the appliance without a filter.

● To begin with, set the fan speed to HIGH and the thermostat to maximum cooling. Later you can set the fan to LOW and the thermostat to the temperature of your choice.

Further points to note:

● Never use this air conditioner with an extension cable or an auxiliary plug connector which is connected to another appliance.
- In cooling mode the warm exhaust air has to be conveyed outdoors through the pipe. A hole in the wall or window is needed in order to use the supplied exhaust set.
● Always pull out the power plug when the appliance is no longer in use or when you want to carry out any maintenance work.
● Avoid bringing the appliance into contact with chemicals.
● Maintenance and repairs are to be left strictly to qualified electricians or air conditioning specialists.

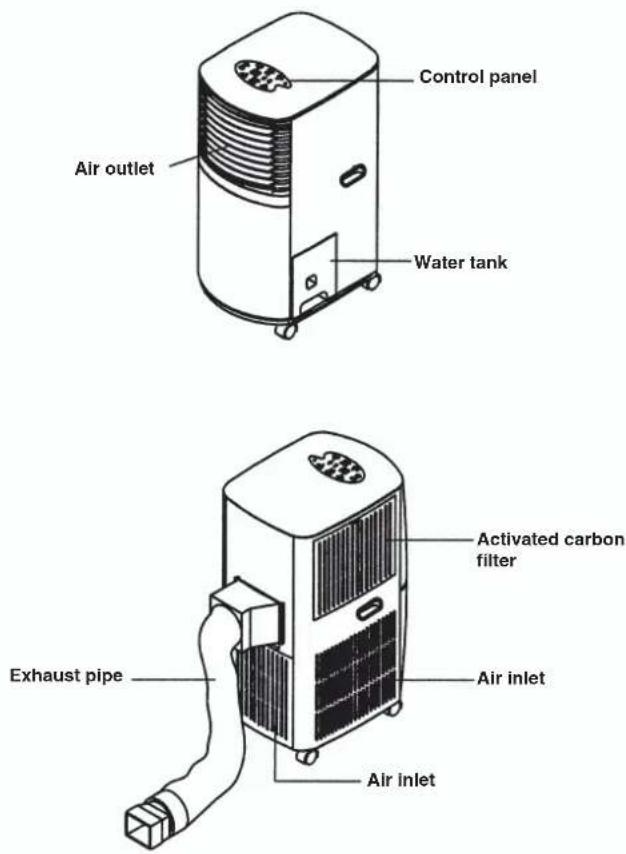

Layout of the MKA 2500 air conditioner

9

GB

GB

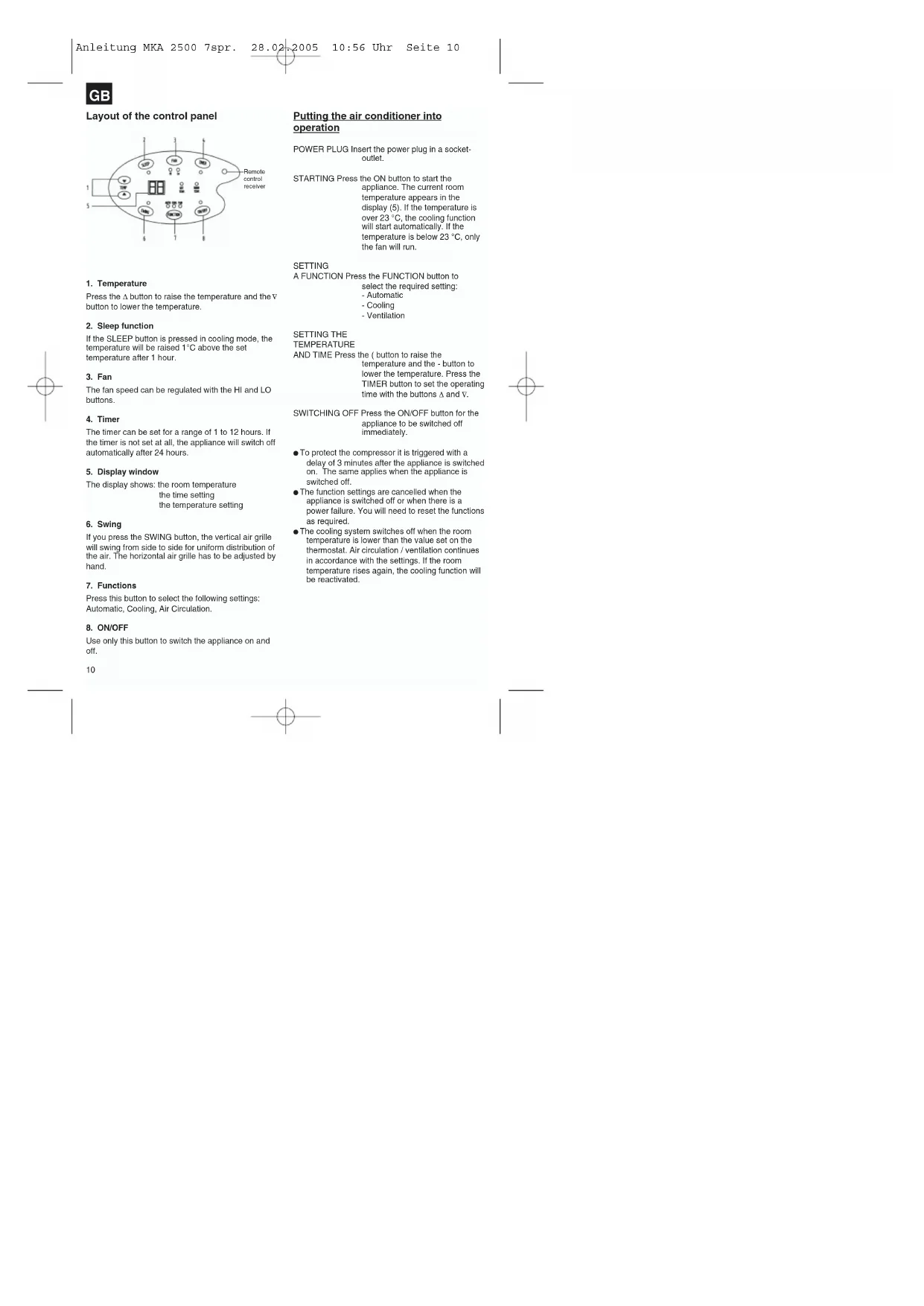

Layout of the control panel

Remote control rece/voi 1 2 3 4 5 6 7 8

1. Temperature

Press the A button to raise the temperature and the V button to lower the temperature.

2. Sleep function

If the SLEEP button is pressed in cooling mode, the temperature will be raised 1°C above the set temperature after 1 hour.

3. Fan

The fan speed can be regulated with the HI and LO buttons.

4. Timer

The timer can be set for a range of 1 to 12 hours. If the timer is not set at all, the appliance will switch off automatically after 24 hours.

5. Display window

The display shows: the room temperature the time setting the temperature setting

6. Swing

If you press the SWING button, the vertical air grille will swing from side to side for uniform distribution of the air. The horizontal air grille has to be adjusted by hand.

7. Functions

Press this button to select the following settings: Automatic, Cooling, Air Circulation.

8. ON/OFF

Use only this button to switch the appliance on and off.

Putting the air conditioner into operation

POWER PLUG Insert the power plug in a socket-outlet.

STARTING Press the ON button to start the appliance. The current room temperature appears in the display (5). If the temperature is over 23 °C, the cooling function will start automatically. If the temperature is below 23 °C, only the fan will run.

SETTING

A FUNCTION Press the FUNCTION button to select the required setting: - Automatic - Cooling - Ventilation

SETTING THE

TEMPERATURE

AND TIME Press the (button to raise the temperature and the - button to lower the temperature. Press the TIMER button to set the operating time with the buttons A and V.

SWITCHING OFF Press the ON/OFF button for the appliance to be switched off immediately.

● To protect the compressor it is triggered with a delay of 3 minutes after the appliance is switched on. The same applies when the appliance is switched off.
● The function settings are cancelled when the appliance is switched off or when there is a power failure. You will need to reset the functions as required.
- The cooling system switches off when the room temperature is lower than the value set on the thermostat. Air circulation / ventilation continues in accordance with the settings. If the room temperature rises again, the cooling function will be reactivated.

SETTING THE AIR FLOW DIRECTION

The horizontal air grille has to be adjusted by hand.

1. Adjusting the horizontal air grille:

The horizontal direction of the air current is controlled by the horizontal air grille. This grille has to be adjusted by hand.

2. Adjusting the vertical air grille:

Press the SWING button for the vertical air grille to move back and forth from side to side.

External air grille:

Horizontal adjustment by hand.

Internal air grille:

Automatic vertical adjustment by pressing on the SWING button.

FITTING THE EXHAUST PIPE

The exhaust pipe can be between 300 mm and 1500 mm long. Kinks and sharp bends in the pipe should be avoided to guarantee that the exhaust air can flow out unobstructed. If not, there is a risk that the appliance as a whole will overheat and cut out. This may result in damage to the appliance.

Caution!

The length of the exhaust pipe is calculated to match the technical specifications of the appliance. Do not lengthen the pipe or the appliance may develop a fault.

right

right

wrong

GB

Draining off condensed water

ALL THE CONDENSED WATER MUST BE DRAINED OFF BEFORE TAKING THE APPLIANCE OUT OF OPERATION OR MOVING IT TO ANOTHER POSITION.

When the condensed water tank is full, the ON/OFF switch will light up and the compressor will switch off automatically. The cooling function is then interrupted and only the fan motor will continue running. When this happens you must empty the condensed water tank as follows:

1. Switch off the appliance and pull out the power plug.
2. Holding the tank by its handle, pull it carefully up and out.
3. Empty the tank.
4. Reinsert the empty tank.
5. Restart the appliance.
6. Reset the air conditioner to the required function.

Maintenance

1. First pull out the power plug in order to rule out all risk of electric shocks and fire.
2. Use only mild detergent and a soft cloth to clean the filter and the housing. Never use aggressive agents, alcohol or paint thinner for cleaning purposes. Wait for the filter to dry before reinserting it.

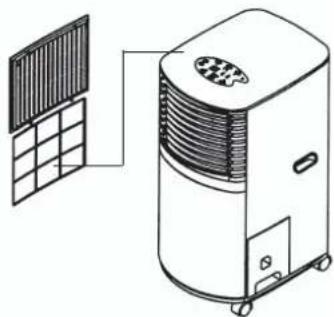

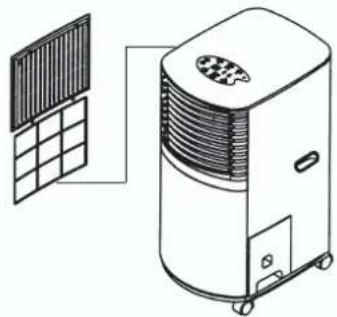

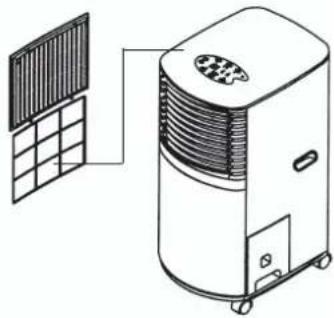

3. At the end of the season, empty the water tank, wind up the power cable, clean the filter and the housing, reinsert the filter when dry, and store the appliance ideally in its original box. Do not place any heavy objects on the appliance.

Illustration of a portable air conditioner unit with a smaller electronic device beside it (no text or symbols visible)

Illustration of a portable air conditioner unit with a solar panel array and control panel (no text or symbols)

GB

TROUBLESHOOTING

No faults should arise provided the appliance is operated correctly. In the event of any trouble, please check the following points before contacting the customer service department:

Problem Possible cause
The appliance fails to work. Check whether the power plug is correctly inserted.
The appliance fails to cool. Wait for 3 minutes after switching on, then check whether the water tank is full.The room temperature should lie in the range16 - 30°C.
Poor ventilation. Examine the air pipe and check whether the filter is dirty. Clean the filter.

After a long period of non-use the appliance should be checked by a specialist.

13

F

incorrect

F

Illustration of a cylindrical industrial air conditioner unit with a smaller rectangular device beside it (no text or symbols visible)

Entretien

Illustration of a portable air conditioner unit with a solar panel array and ventilation system (no text or symbols)

Illustration of a cylindrical industrial air conditioner unit with a separate rectangular device (no text or symbols visible)

Illustration of a portable air conditioner unit with a solar panel array and ventilation grille (no text or symbols)

VERHELPEN VAN PROBLEMEN

Illustration of a cylindrical industrial air conditioner unit with a separate rectangular device (no text or symbols visible)

Illustration of a portable air conditioner unit with a solar panel array and ventilation grille (no text or symbols)

Line drawing of a portable air conditioner unit with a smaller internal component (no text or symbols)

Illustration of a portable air conditioner unit with a solar panel array and ventilation grille (no text or symbols)

Illustration of a portable air conditioner unit with a smaller internal component (no text or symbols visible)

Line drawing of an air conditioner unit with a solar panel array and control panel (no text or symbols)

Eschenstraße 6 - D-94405 Landau/Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

The product described in these instructions carries with a 2-year warranty covering defects. This 2-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to receive this cause maintenance and be put in the proper not as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2 years.

The warranty applies in Germany, or in the respective country of the manufacture's most regional sales partner, so a supplemented to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.
