Product type	Split air conditioner
Brand	Einhell
Model	MSK 3000
Refrigerant	R-407C
Cooling capacity	12000 BTU/h (2520 Kcal/h, 3500 W)
Power consumption	1050 W
Rated current	5.1 A
Supply voltage	230 V ~ 50 Hz
Air flow rate	430 m³/h
Compressor	Rotary
Fan speeds	2
Timer	1 to 12 hours
Temperature range	16 to 30 °C
Indoor unit dimensions	35 × 45 × 78 cm
Outdoor unit dimensions	45 × 24 × 58 cm
Total weight	44 kg (indoor: 31 kg, outdoor: 13 kg)
Functions	Auto, cooling, fan, sleep, swing
Control	Remote control and control panel
Installation	Requires a dedicated 230 V outlet, mandatory grounding, minimum distance 50 cm
Filter maintenance	Regular cleaning with vacuum or lukewarm water
Warranty	12 months
After-sales service	Einhell, allée Joseph Cuqnot, Z.I. du Phare, F-33700 Merignac

Frequently Asked Questions - MSK 3000 EINHELL

How to install the outdoor unit of the MSK 3000 air conditioner?

Mount the bracket securely on the exterior wall, hang the unit by the mounting bracket. The maximum distance to the ground is 1.5 m. Connect the cooling lines by screwing the threaded fittings, using two wrenches to avoid twisting the pipes.

What operating modes are available?

The modes are: auto, cooling, and fan (air circulation). You can select the mode with the Function button.

How to set the timer on the MSK 3000?

Press the TIMER button to set a duration of 1 to 12 hours. If the timer is not activated, the device automatically stops after 24 hours.

What to do if the air conditioner does not cool enough?

Check that the air filter is not dirty, that the air inlets and outlets are not blocked, and that doors and windows are closed. If the problem persists, contact a specialist.

How to clean the air filter?

Remove the filter and gently vacuum it. If very dirty, rinse it with lukewarm water without using hot water, then let it dry before reinstalling.

Is it possible to use the air conditioner to dehumidify the air?

Yes, the air conditioner can dehumidify the ambient air without changing the temperature. Use cooling or fan mode as needed.

What are the essential safety precautions?

Use a dedicated 230 V outlet with grounding. Do not cover the device, do not pour water, and do not touch with wet hands. Have the device serviced by a professional at the end of the season.

What to do if the compressor does not start?

The compressor has a 3-minute protection delay before restarting. If it does not start after this delay, check the power supply, the plug, and the filter. If the water level indicator is on, empty the tank.

How to adjust the air flow direction?

The horizontal louvers are adjusted manually. For the vertical louvers, press the SWING button to make them swing automatically.

What is the cooling capacity of the MSK 3000?

The capacity is 12000 BTU/h, approximately 3500 W (2520 Kcal/h). This is suitable for a medium-sized room.

USER MANUAL MSK 3000 EINHELL

Two industrial air purifiers, one white and one white with a fan-shaped handle, displayed side by side (no visible text or symbols)

CE

Hand inserting a small block into an electrical outlet (no text or symbols visible)

Simple line drawing of a person standing near a window with curtains (no text or symbols)

Illustration of a person sitting in a chair with a vase and plant nearby (no text or symbols)

Simple line drawing of a fan with a handle and exhaust drop, next to a window with four blades (no text or symbols)

Simple line drawing of a mechanical setup with three cylindrical components mounted on a base (no text or symbols)

Simple line drawing of a mechanical assembly with a hand operating a tool (no text or symbols)

Type of coolant R-407C
Cooling capacity 12000 BTU/h2520 Kcal/h3500 W
Current / amperage 1050	W / 5.1 A
Air circulation 430 cm	^3 /h
Compressor rotary
Fan speeds 2
Timer 1-12 hours
Thermostat 16-30°C
Dimensions:indoors unit 35x45x78 cmoutdoors unit 45x24x58 cm
Net weight 44 kg	indoors unit: 31 kgoutdoors unit: 13 kg

* Please read these instructions carefully and keep in a safe place.

Important safety instructions

●The indoors unit should always stand on a level and firm floor.
●Fit the outdoors unit in horizontal position to an outdoors wall (split model only).
- Protect the outdoors unit from direct sunshine and rain (split model only).
●Never use the appliance near bath-tubs, showers or wash-basins.
- Keep the appliance away from heaters.
●Make sure that the air inlet and outlet are unobstructed.
- Keep a gap of at least 50 cm between the indoor unit and any walls or items of furniture.
- Do not place any objects on the appliance or hang anything over it.

●Never tip or spray water over the appliance.

●Avoid bringing the appliance into contact with chemicals.

●Always use the appliance with a filter mat.

●Do not touch the appliance with wet hands.

●Never start the appliance with the power plug. Always switch on the appliance with the start button on the control panel after the power plug is inserted.

●Clean the air filter whenever it is dirty. The appliance will then work much more efficiently.

- At the end of every season you should clean the appliance and have it checked by a specialist workshop.

●Young, old and disabled persons are not always aware of the hazards which may arise when using electrical equipment. For this reason you should never allow anyone from these categories to operate the appliance unsupervised.

Further instructions

• Do not leave windows and doors open too long while the air conditioner is in operation. This could impair the efficiency of the air conditioner.
• Do not splash any water on the appliance. This could result in short-circuiting or faults.
  ●The air conditioner needs a constant alternating voltage in the range of 230V\~50 Hz or the compressor will vibrate too severely and damage the cooling system.
  ●Optimal setting of the air current is important. In cooling mode the air grilles can be set to raised position.
  ●Never direct the air current at animals or plants or they may suffer.
  ●The EARTH lead (protective conductor) must be properly connected. Do not connect the earth lead to a gas pipe, water pipe, lightning conductor or telephone cable.
• Do not use the air conditioner for any other purposes, e.g. for the drying of clothes or for the dry-preserving of food.
  ●Do not attach any objects to the front of the outdoors unit in order to reduce noise.
  ●Place the outdoors unit where any noise or hot air currents will not disturb your neighbors.
• Call on a specialists if you hear any unusual noises while the air conditioner is working.
  ●Make sure your voltage supply is the same as that specified for the appliance.
  ●To avoid overheating, never use a multiple plug.
  ●Do not pull on the power or control cable.
• If you want to fit an electric safety switch, enlist the services of an electrician.
  ●Make sure the appliance is fitted with the correct fuse.

GB

●Make sure the power cable (supply leads) are big enough in cross section.
●Only ever connect the air conditioner to a correctly installed 230 V\~50 Hz socket-outlet.

Hand inserting a small block into an electrical outlet (no text or symbols visible)

●Never insert any objects in the air inlet or outlet. Caution! Persons may be injured and the appliance destroyed!

●Never pull on the power cable or any other leads to disconnect the appliance from the power supply.

- When the air conditioner is in use, it is best to keep doors and windows closed. The appliance cannot work correctly when doors and windows are open.

Simple line drawing of a person standing near a window with curtains, no text or symbols present

●Any smells which may be emitted by the indoors unit are not due to a malfunction or defect but are a sign of concentrated cigarette smoke, kitchen fumes, furniture emissions, etc.

●Important! It is essential for the air conditioner to have its own power supply lead. For safety reasons do not connect it to a multiple plug together with other appliances.

●Maintenance and repairs are to be left strictly to qualified electricians or air conditioning specialists.

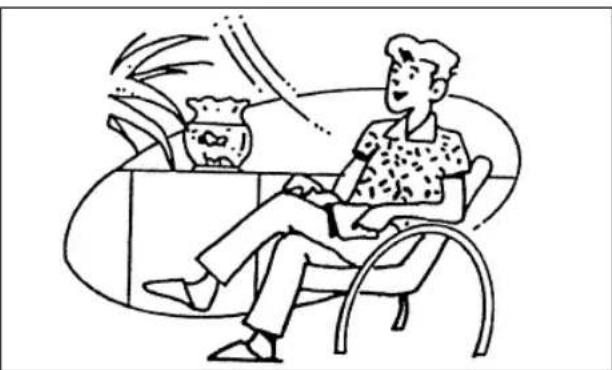

Extraction of moisture in the rainy period or in conditions of high humidity

The air conditioner can extract moisture from the room air, producing drier and more agreeable conditions, without changing the temperature in the room.

Line drawing of a person sitting in a chair with a small object nearby (no text or symbols)

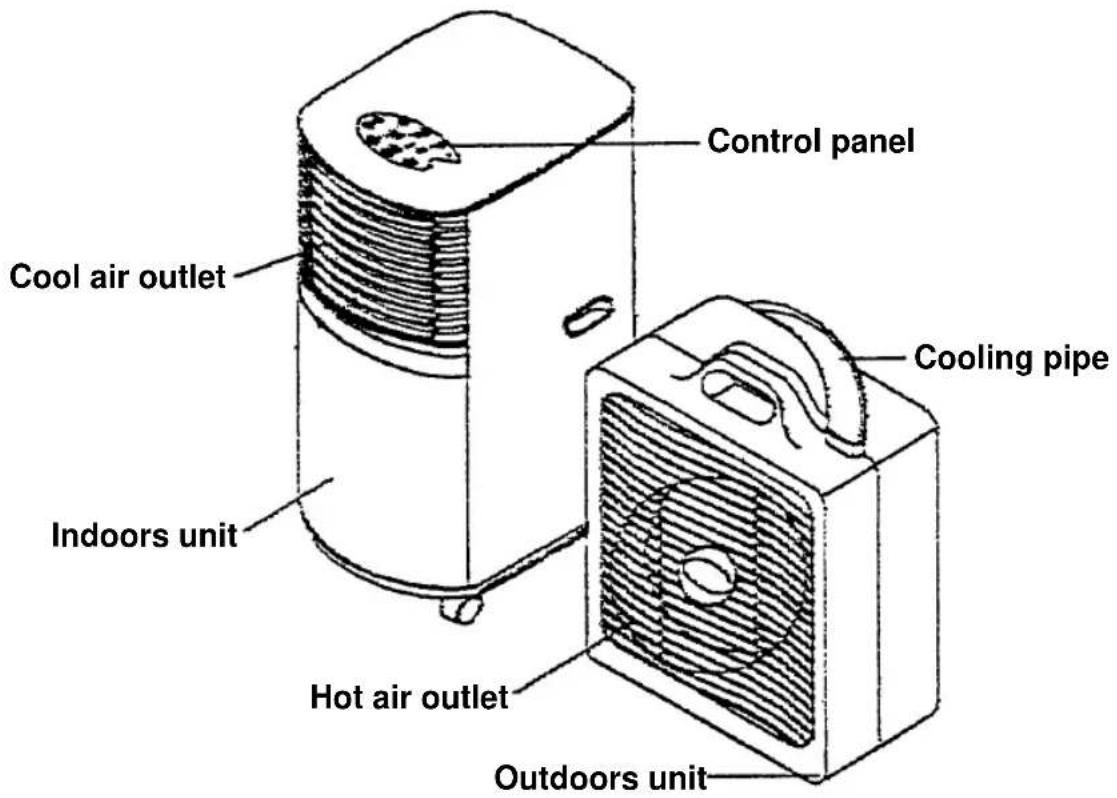

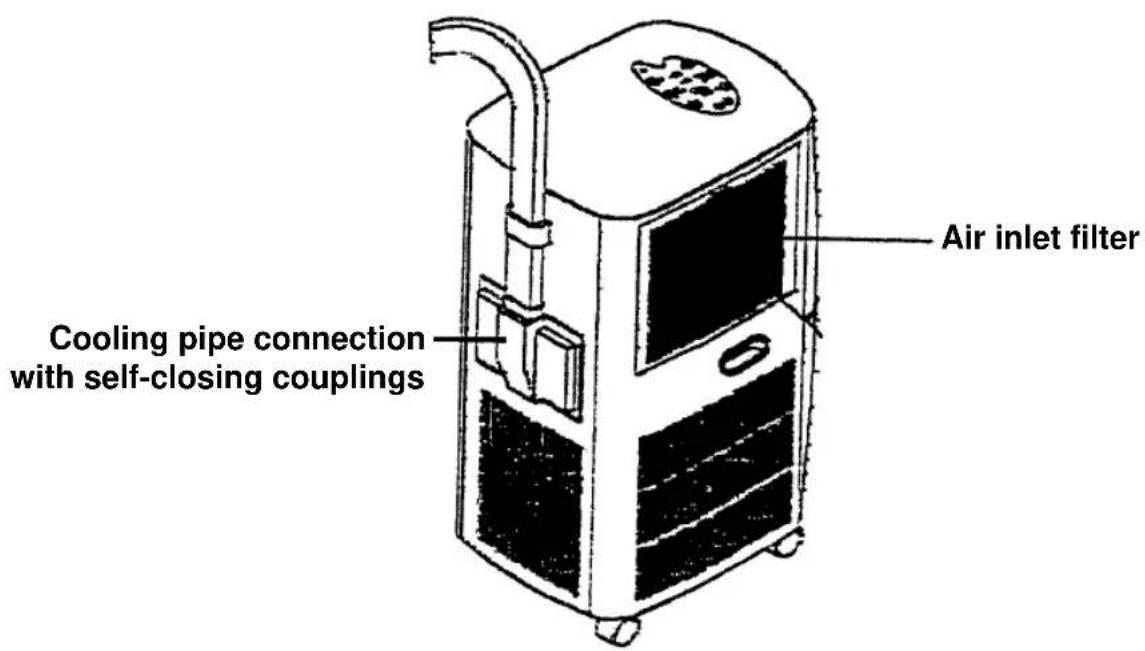

Layout of the MSK 3000 Split air conditioner

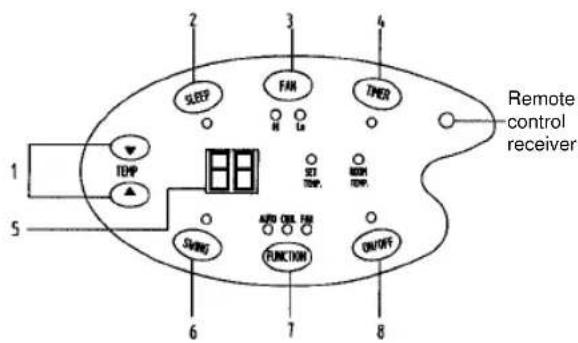

Layout of the control panel

The air conditioner is equipped with a remote control system.

Its mode of operation is the same as the user functions on the control panel.

Description of the control panel

1. Temperature

Press the button to raise the temperature and the button to lower the temperature.

2. Sleep function

If the SLEEP button is pressed in cooling mode, the temperature will be raised 1°C above the set temperature after 1 hour.

3. Fan

The fan speed (air rate) can be regulated with the HIGH and LOW buttons.

4. Timer

The timer can be set for a range of 1 to 12 hours. If the timer is not set at all, the appliance will switch off automatically after 24 hours.

5. Display window

The display shows: the room temperature the time setting the temperature setting

6. Swing

If you press the SWING button, the vertical air grilles will swing from side to side for uniform distribution of the air. The horizontal air grilles have to be adjusted by hand.

7. Functions

Press this button to select the following settings: Automatic, Cooling, Air Circulation.

8. ON/OFF button

Use only this button to switch the appliance on and off.

Starting the air conditioner

POWER PLUG Insert the power plug in a socket-outlet. The current room temperature appears in the display on the control panel.

STARTING Press the START button. The appliance will then start automatically. If the temperature is below 23 °C, only the fan will run.

SETTING

A FUNCTION Press the FUNCTION button to select the required setting: Automatic, Cooling or Ventilation

SETTING THE

TIME AND

TEMPERATURE Press the temperature UP or temperature DOWN button to set the temperature of your choice. Press the TIMER button to set the operating time.

SWITCHING OFF Press the ON/OFF button for the appliance to be switched off immediately.

●To protect the compressor it is triggered with a delay of 3 minutes after the appliance is switched on. The same applies when the appliance is switched off.

●The function settings are cancelled when the appliance is switched off or when there is a power failure. In this case you will need to reset the functions as required.

●The cooling system switches off when the room temperature is lower than the value set on the thermostat. Air circulation / ventilation continues in accordance with the settings. If the room temperature rises again, the cooling function will be reactivated.

GB

SETTING THE AIR FLOW DIRECTION

The horizontal air grilles have to be adjusted by hand.

1. Adjusting the horizontal air grilles:

The horizontal direction of the air current is controlled by the horizontal air grilles. These grilles have to be adjusted by hand.

2. Adjusting the vertical air grilles:

Press the SWING button for the vertical air grilles to move back and forth from side to side.

Draining off condensed water

The appliance is equipped with an automatic drainage function. The water is discharged through a water hole in the outdoors unit (see Figure 1).

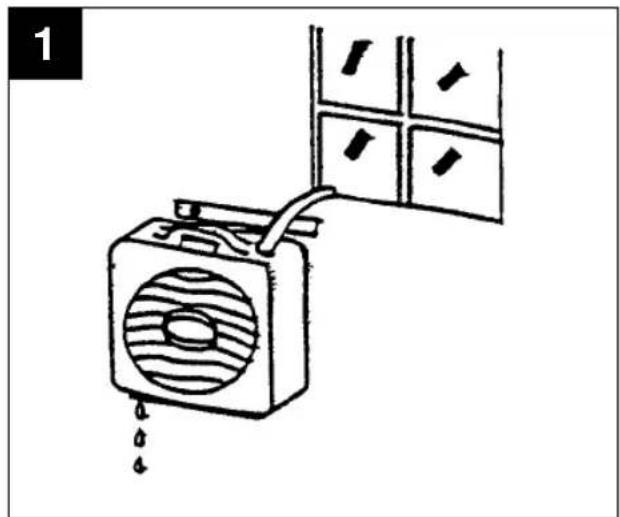

Simple line drawing of a fan with a drain, connected to a window (no text or symbols)

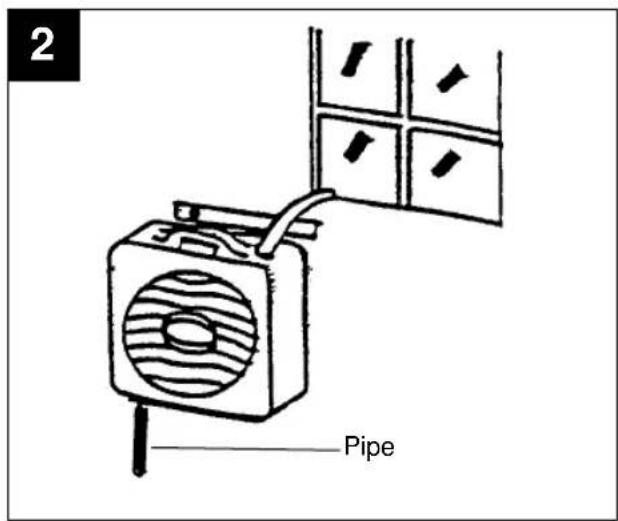

It is also possible to connect a drainage pipe (14.5 mm to the water hole and have the water run into a container (see Figure 2).

●Make sure the water can run away unobstructed!

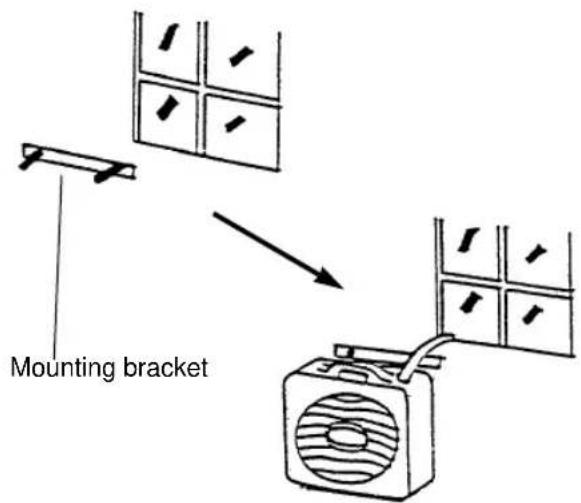

Installing the outdoors unit

Fasten the mounting bracket to an outdoors wall.

Hook the outdoors unit on the mounting bracket so that it hangs straight. The unit should be no more 1.5 m from the ground.

GB

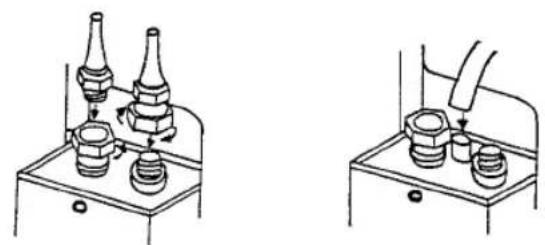

Connecting the outdoors unit to the indoors unit

Connect the two cooling pipes by screwing together the threaded couplings. The threaded couplings are self-closing valves which will not open until the threaded couplings are screwed correctly together. You can also disconnect the threaded couplings again. In this case the valves will close automatically, preventing no loss of coolant. Use two fork wrenches to steady the cooling pipes against twisting.

Plug the condensation water pipe on the nipple of the connection block. The condensation water pipe is included in the pipe pack together with the cooling pipe. In this same pack you will also find the plug connector for connecting the outdoors unit to the power supply.

Plug connector

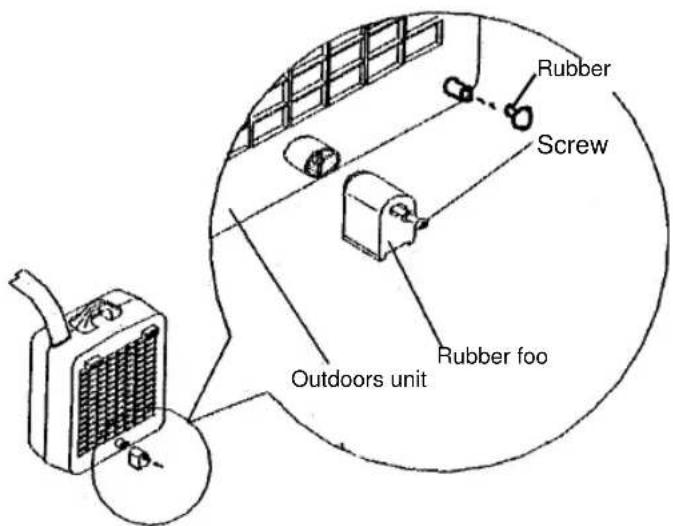

Before starting up the appliance you must still fit the rubber foot to the outdoors unit. This is only necessary, however, if the outdoors unit is to be placed on the ground.

Insert the rubber stopper in the socket at the back of the outdoors unit if you have the outdoors unit standing on the terrace where condensation water escaping from the bottom of the outdoors unit causes no problem and can simply be wiped away. If, on the other hand, you have the outdoors unit hanging on an outdoors wall, remove the rubber stopper and fasten a drainage pipe to discharge the condensation water.

Inside the outdoors unit there are two trays for collecting the condensation water. Only when no stopper is inserted will the condensation water escape through the drainage socket.

Cleaning the air filter

After removing the air filter you can clean it carefully with a vacuum cleaner. Heavily soiled filters should be carefully rinsed in warm water. Do not use hot water under any circumstances.

Cleaning the housing

It is best to clean the housing with a soft cloth. Never use aggressive detergents, petrol, chemically treated cloths or solvent as they may damage the housing.

Troubleshooting

The air conditioner fails to start.

Check whether the power plug is fully inserted.

Is there any electric current?

Is there a power failure?

Is the red lamp of the water level indicator on? If it is, check whether the tank is full and needs to be emptied or whether it is correctly inserted.

Is the room temperature below 0^ C?

The air conditioner appears to make no impact. Is the filter dirty or is the air outlet blocked?

The appliance appears to make very little impact.

Are too many doors and windows open?

Is there anything in the room producing a great deal of humidity?

The fan does not appear to run.

Is the filter heavily soiled and blocking the fan's operation?

The appliance is very loud.

Is the appliance vibrating because it is tilted or not standing squarely?

Is the floor uneven?

F

Hand inserting a small block into an electrical outlet (no text or symbols visible)

Simple line drawing of a person standing near a window with curtains (no text or symbols)

Illustration of a person sitting in a chair with a vase and abstract lines above, no text or symbols present

Simple line drawing of a fan with a handle and exhaust drop, next to a grid of windows (no text or symbols)

Simple line drawing of a laboratory apparatus with three funnels and a base (no text or symbols)

Simple line drawing of a mechanical assembly with bolts and a tool (no text or symbols)

Hand inserting a small block into an electrical outlet (no text or symbols visible)

Simple line drawing of a person standing near a window with curtains, no text or symbols present

Illustration of a person sitting in a chair with a small object nearby (no text or symbols)

NL

Simple line drawing of a fan with a drain, next to a grid-patterned panel (no text or symbols)

Technical line drawing of a mechanical assembly with three cylindrical components mounted on a base (no text or symbols)

Simple line drawing of a hand using a tool to press or install a component with two bolts (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Illustration of a person standing near a window with curtains, no text or symbols present

Line drawing of a person sitting in a chair with a lamp and abstract shapes in the background (no text or symbols)

E

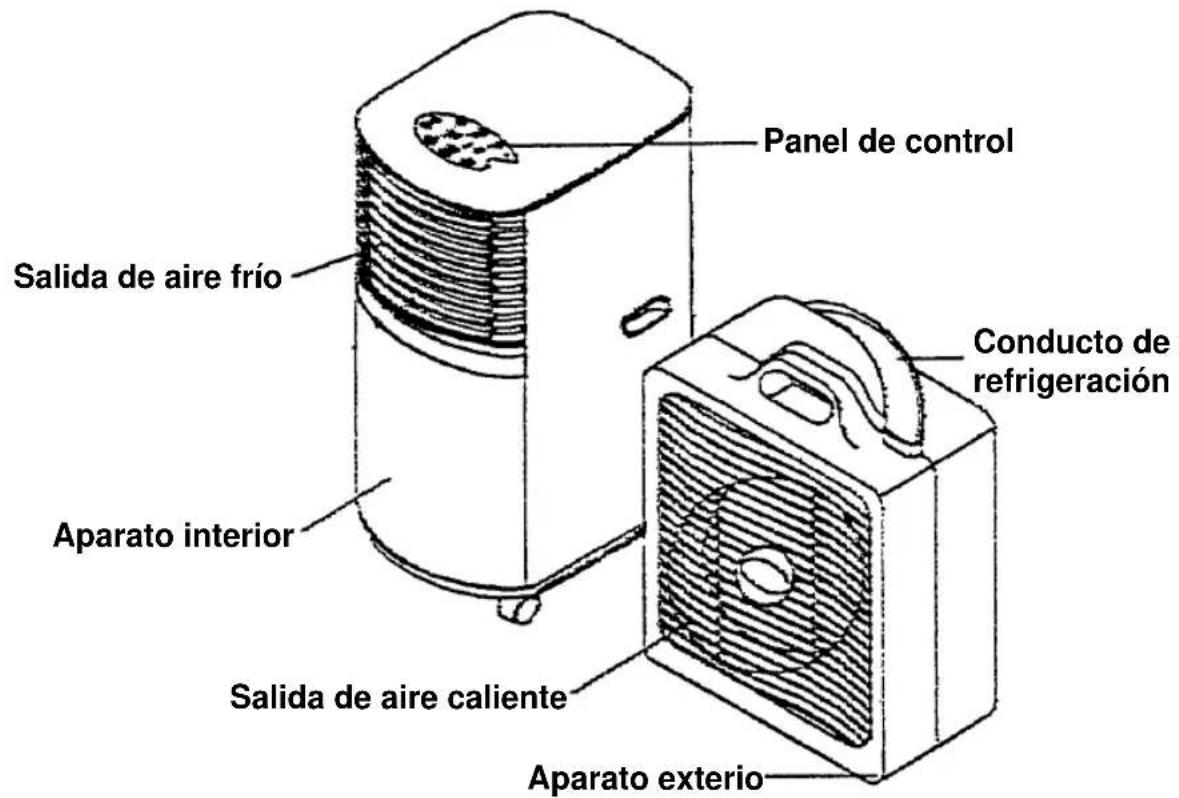

Vista general del aparato exterior e interior MSK 3000 Split

Simple line drawing of a fan with a handle and exhaust drop, next to a grid of four panels (no text or symbols)

Simple line drawing of a mechanical device with three cylindrical components mounted on a base (no text or symbols)

Simple line drawing of a hand using a tool to press or install a component on a tray (no text or symbols)

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

F GARANTIE EINHELL

Brook House, Brookway

North Cheshire Trading Estate, Prenton

Wirral, Cheshire, CH43 3 DS

Tel. 0151 / 3368246

Fax 0151 / 3363233

⑤ Agence Bellut Prudent, Service Après-Vente

DK Danish Trading Co. Silkeborg ApS

⑤ Rodelundvej 11 - Rodelund

N DK-8653 Them

H Einhell Hungaria Ltd.

Vajda Peter u. 12

H 1089 Budapest

Tel. [phone], Fax [phone]

GARANTIEURKUNDE

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Technical changes subject to change
