USER MANUAL RGSP 300 RB EINHELL

Original operating instructions

Sicherheitshinweise lesen und beachten

 Read and follow the operating instructions and safety information

before using for the first time.

 Avant la mise en service, lisez le mode dʼemploi et les consignes

When using equipment, a few safety precautions

must be observed to avoid injuries and damage.

Please read the complete operating manual with due

care. Keep this manual in a safe place, so that the

information is available at all times. If you give the

equipment to any other person, give them these

operating instructions as well.

We accept no liability for damage or accidents which

arise due to non-observance of these instructions

and the safety information.

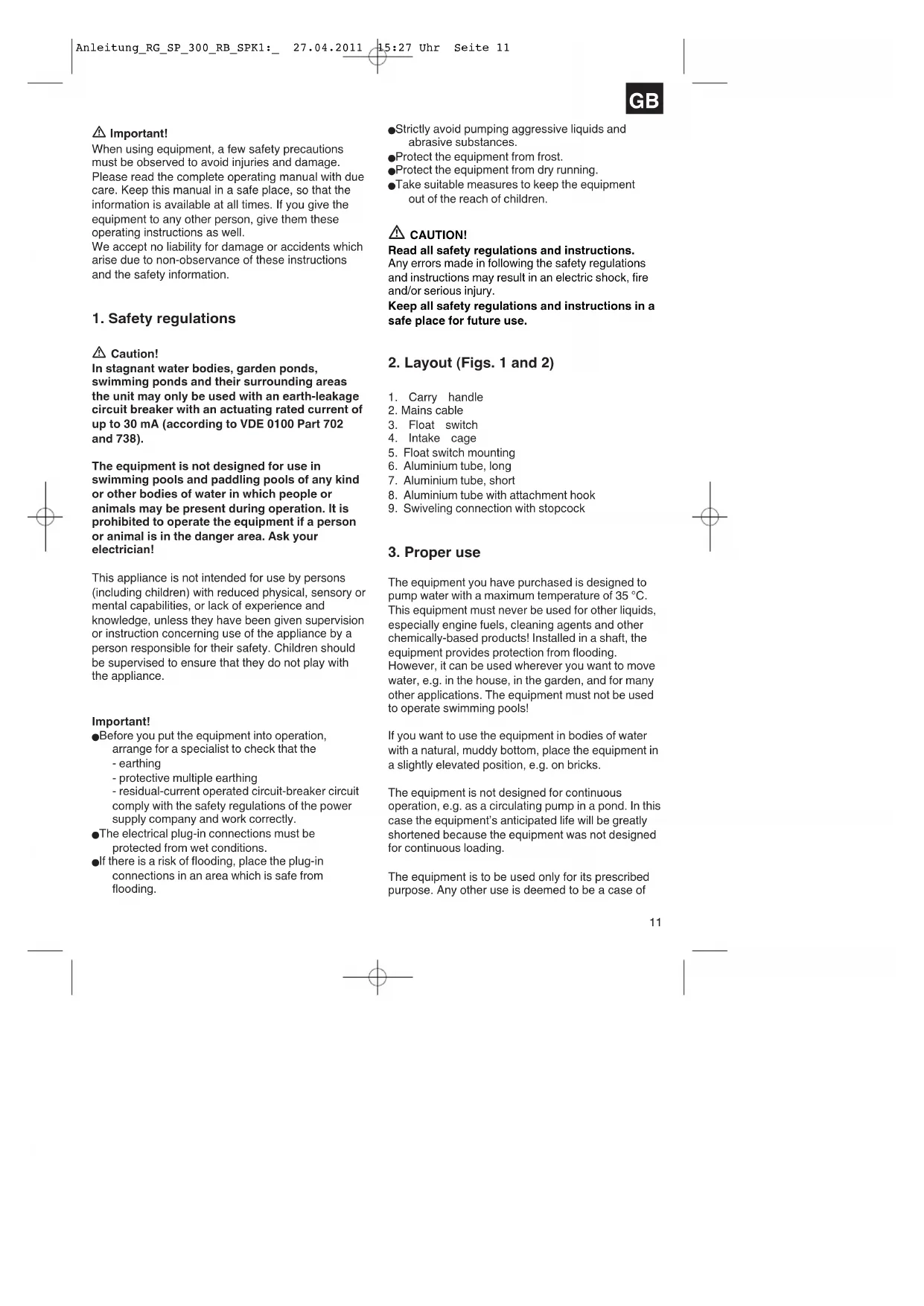

1. Safety regulations

In stagnant water bodies, garden ponds,

swimming ponds and their surrounding areas

the unit may only be used with an earth-leakage

circuit breaker with an actuating rated current of

up to 30 mA (according to VDE 0100 Part 702

The equipment is not designed for use in

swimming pools and paddling pools of any kind

or other bodies of water in which people or

animals may be present during operation. It is

prohibited to operate the equipment if a person

or animal is in the danger area. Ask your

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety. Children should

be supervised to ensure that they do not play with

 Before you put the equipment into operation,

arrange for a specialist to check that the

- protective multiple earthing

- residual-current operated circuit-breaker circuit

comply with the safety regulations of the power

supply company and work correctly.

 The electrical plug-in connections must be

protected from wet conditions.

 If there is a risk of flooding, place the plug-in

connections in an area which is safe from

 Strictly avoid pumping aggressive liquids and

abrasive substances.

 Protect the equipment from frost.

 Protect the equipment from dry running.

 Take suitable measures to keep the equipment

out of the reach of children.

Read all safety regulations and instructions.

Any errors made in following the safety regulations

and instructions may result in an electric shock, fire

and/or serious injury.

Keep all safety regulations and instructions in a

safe place for future use.

2. Layout (Figs. 1 and 2)

5. Float switch mounting

6. Aluminium tube, long

7. Aluminium tube, short

8. Aluminium tube with attachment hook

9. Swiveling connection with stopcock

The equipment you have purchased is designed to

pump water with a maximum temperature of 35 °C.

This equipment must never be used for other liquids,

especially engine fuels, cleaning agents and other

chemically-based products! Installed in a shaft, the

equipment provides protection from flooding.

However, it can be used wherever you want to move

water, e.g. in the house, in the garden, and for many

other applications. The equipment must not be used

to operate swimming pools!

If you want to use the equipment in bodies of water

with a natural, muddy bottom, place the equipment in

a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous

operation, e.g. as a circulating pump in a pond. In this

case the equipment’s anticipated life will be greatly

shortened because the equipment was not designed

for continuous loading.

The equipment is to be used only for its prescribed

purpose. Any other use is deemed to be a case of

Anleitung_RG_SP_300_RB_SPK1:_ 27.04.2011 15:27 Uhr Seite 1112

misuse. The user / operator and not the

manufacturer will be liable for any damage or injuries

of any kind caused as a result of this.

Please note that our equipment has not been

designed for use in commercial, trade or industrial

applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial

businesses or for equivalent purposes.

Mains connection 230V ~ 50 Hz

Power rating 300 W Max. pumping rate:

With 25,4 mm (1”) hose 4,600 l/h

With 16 mm rain barrel pipe 1,750 l/h

Max. delivery head 11 m

Max. immersion depth 7 m

Max. water temperature 35 °C Hose connection 26,4 mm (G 3/4) AG Max. size of foreign bodies: Ø 2,5 mm

Switching point height: ON max. approx. 50 cm

Switching point height: OFF min. approx. 15 cm

5. Before putting the equipment into

5.1 Assembly (Figs. 3 to 6)

1. Screw the aluminium tube (Item 6) to the pump

connection (Fig. 3).

2. Screw the aluminium tubes (Items 6, 7 and 8)

together (Figs. 4 and 5).

3. Screw the aluminium tube (Item 9) to the

connection (Fig. 6).

5.2 Fitting the pump to the barrel

Use the attachment hook to fit the pump to the rain

barrel (Fig. 6, Item B).

When installing, never hang the equipment by the

discharge line or by the power cable. The equipment

must be hung up with the provided carry handle or it

must rest on the bottom of the shaft. To ensure that

the equipment works properly, the bottom of the shaft

always must be free of sludge and other

accumulations of dirt. If the water level is too low, the

sludge in the shaft can quickly dry out and hinder the

equipment from starting. It is necessary therefore to

check the equipment regularly (carry out trial start-

The pump shaft should measure at least

40 x 40 x 50 cm so that the floating switch can move

5.3 Mains connection

The equipment you have purchased comes with an

earthing-pin plug. The equipment is designed for

connection to a socket outlet with earthing contact for

230 V ~ 50 Hz. Make sure that the socket-outlet is

sufficiently fused (at least 6 A) and in good working

order. Insert the power plug in the socket-outlet and

the equipment is ready for operation.

To rule out danger, this work must be left strictly to a

specialist electrician or Customer Service.

You can put the equipment into operation after you

have thoroughly read the installation and operating

instructions. Pay attention to the following points:

 Make sure that the equipment is set up securely.

 Check that the discharge line is fitted correctly.

 Make sure that the electrical connection is 230 V

 Check that the electrical socket-outlet is in good

 Make sure that no moisture or water can ever

reach the power connection.

 Make sure that the equipment does not run dry.

 To withdraw water, open the stopcock (Fig. 6,

 To switch off the equipment, pull the power plug

out of the socket outlet.

Setting the ON/OFF switching point:

The ON/OFF switching point can be infinitely

adjusted with the height adjustment facility. For this

purpose you must first slacken the screw (Fig. 7,

Point 5). The switching differential can be infinitely

adjusted by extending or shortening the floating

 The floating switch must be fitted so that the

switching point height: ON and the switch point

height: OFF can be reached easily and with little

force. Check this by placing the equipment in a

container filled with water and carefully raising

and lowering the floating switch with your hand.

You can then see whether the equipment

Anleitung_RG_SP_300_RB_SPK1:_ 27.04.2011 15:27 Uhr Seite 12GB

switches on and off.

 Make sure that the distance between the floating

switch head and the cable holder is not too small.

If the distance is too small, there is no guarantee

that the equipment will work correctly.

 When adjusting the floating switch, make sure

that the floating switch does not touch the bottom

before the equipment is switched off. Important!

Risk of dry running.

Mount the float switch as illustrated in Figure 8 so that

the device runs continuously. In this mode the

equipment may be used only under supervision to

avoid dry running. The equipment must be switched

off (pull out the power plug) as soon as no more water

is emitted from the discharge line.

7. Replacing the power cable

If the power cable for this equipment is damaged, it

must be replaced by the manufacturer or its after-

sales service or similarly trained personnel to avoid

8. Cleaning, maintenance and

ordering of spare parts

 Unplug the power plug prior to any maintenance

 For mobile applications, the equipment should be

cleaned with clear water after every usage.

 For stationary installation, it is recommended that

you check the floating switch for proper

functioning every three months.

 Use a water jet to remove any lint or fibrous

particles that may have become trapped in the

 Remove sludge from the shaft bottom and clean

the shaft walls every 3 months.

 Use clear water to remove deposits from the

8.1 Cleaning the filter (Figs. 9 and 11)

In order to protect the equipment and the impeller

from severe soiling, an additional filter has been

installed in the bottom intake cage. Please proceed

as follows when cleaning the filter:

1. Gently press the lateral tab (A) in the direction of

the arrow until the intake cage (4) can be

disconnected from the pump.

2. Remove the filter (B) and wash it out under

3. Now insert the filter back into the intake cage and

reconnect the intake cage to the equipment.

There are no parts inside the equipment which

require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering

 Article number of the machine

 Identification number of the machine

 Replacement part number of the part required

For our latest prices and information please go to

9. Disposal and recycling

The unit is supplied in packaging to prevent its being

damaged in transit. This packaging is raw material

and can therefore be reused or can be returned to

the raw material system.

The unit and its accessories are made of various

types of material, such as metal and plastic.

Defective components must be disposed of as

special waste. Ask your dealer or your local council.

Anleitung_RG_SP_300_RB_SPK1:_ 27.04.2011 15:27 Uhr Seite 1314

GB Faults Cause Remedy

The equipment does not start

- Power supply not connected

- Floating switch does trigger

- Check power supply

- Raise position of floating switch

The equipment does not pump

- Intake sieve clogged

- Discharge hose kinked

- Clean intake sieve with water jet

The equipment does not cut out

- Floating switch cannot sink - Place equipment correctly on

Insufficient pumping rate

- Intake sieve clogged

- Performance reduced due to

heavily contaminated and

abrasive water impurities

- Clean intake sieve

- Clean equipment and replace

The equipment switches off after

- Motor circuit-breaker switches

the equipment off due to

excessive water contamination

- Water temperature too high;

motor circuit-breaker switches

- Unplug power plug and clean

- Ensure that maximum

permissible water temperature

(35 °C) is not exceeded

2004/26/EC Emission No.:

2000/14/EC_2005/88/EC Annex IV Notified Body:Notified Body No.:Reg. No.:

Annex V Annex VI Noise: measured L WA = dB (A); guaranteed L WA = dB (A)P = KW; L/Ø = cmNotified Body:

t For EU countries only

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its

implementation in national laws, old electric tools have to be separated from other waste and disposed of

in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the

device is properly recycled if ownership is relinquished. This can also be done by handing over the used

device to a returns center, which will dispose of it in accordance with national commercial and industrial

waste management legislation. This does not apply to the accessories and auxiliary equipment without

any electrical components which are included with the used device.

p Uniquement pour les pays de l'Union Européenne

The reprinting or reproduction by any other means, in whole or in part,

of documentation and papers accompanying products is permitted only

with the express consent of ISC GmbH.

 Technical changes subject to change

GUARANTEE CERTIFICATE Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely

event that your device develops a fault, please contact our service department at the address shown on this

guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under

the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights.

We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the

rectification of these defects or replacement of the device. Please note that our devices have not been

designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated

if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The

following are also excluded from our guarantee: compensation for transport damage, damage caused by

failure to comply with the installation/assembly instructions or damage caused by unprofessional

installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or

current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools

or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies

into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by

the device being dropped) and normal wear resulting from proper operation of the device.

particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee

claims should be submitted before the end of the guarantee period within two weeks of the defect being

noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee

period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases,

the work performed or parts fitted will not result in an extension of the guarantee period, and no new

guarantee will become active for the work performed or parts fitted. This also applies when an on-site

4. In order to assert your guarantee claim, please send your defective device postage-free to the address

shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of

purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if

you could describe the nature of the problem in as much detail as possible. If the defect is covered by our

guarantee then your device will either be repaired immediately and returned to you, or we will send you a

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the

scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send

the device to our service address.

Anleitung_RG_SP_300_RB_SPK1:_ 27.04.2011 15:27 Uhr Seite 3839
