USER MANUAL BGET 5529 EINHELL

Original operating instructions Grass Trimmer

6. Before starting the equipment

9. Cleaning, maintenance and ordering of spare parts

11. Disposal and recycling

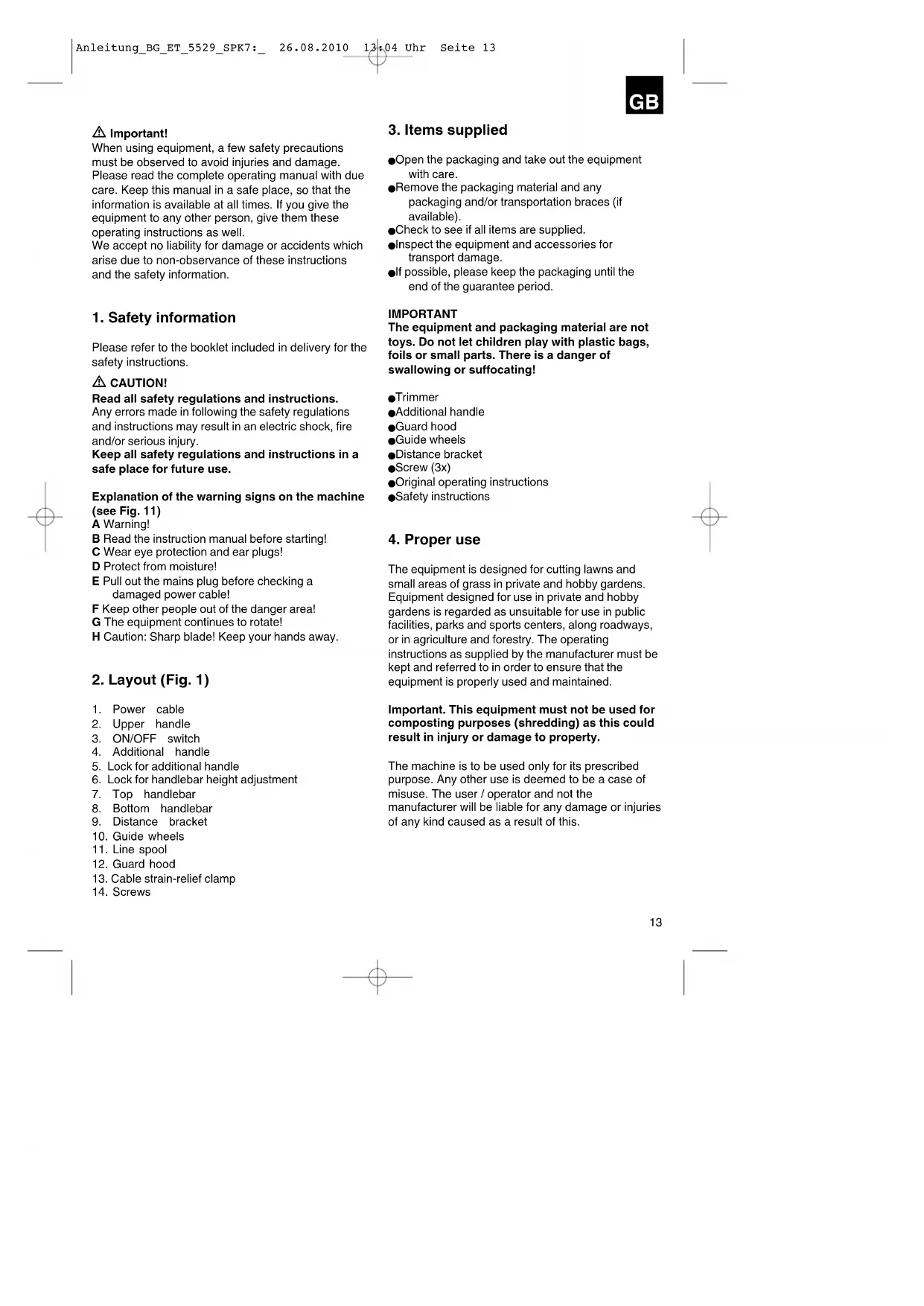

Important! When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well. We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety information

Please refer to the booklet included in delivery for the safety instructions. CAUTION! Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Explanation of the warning signs on the machine (see Fig. 11) A Warning! B Read the instruction manual before starting! C Wear eye protection and ear plugs! D Protect from moisture! E Pull out the mains plug before checking a damaged power cable! F Keep other people out of the danger area! G The equipment continues to rotate! H Caution: Sharp blade! Keep your hands away.

4. Additional handle

5. Lock for additional handle

6. Lock for handlebar height adjustment

Open the packaging and take out the equipment with care. Remove the packaging material and any packaging and/or transportation braces (if available). Check to see if all items are supplied. Inspect the equipment and accessories for transport damage. If possible, please keep the packaging until the end of the guarantee period. IMPORTANT The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating! Trimmer Additional handle Guard hood Guide wheels Distance bracket Screw (3x) Original operating instructions Safety instructions

The equipment is designed for cutting lawns and small areas of grass in private and hobby gardens. Equipment designed for use in private and hobby gardens is regarded as unsuitable for use in public facilities, parks and sports centers, along roadways, or in agriculture and forestry. The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the equipment is properly used and maintained. Important. This equipment must not be used for composting purposes (shredding) as this could result in injury or damage to property. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Anleitung_BG_ET_5529_SPK7:_ 26.08.2010 13:04 Uhr Seite 13Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

10,500 rpm Cutting line diameter 1.4 mm Sound and vibration

uncertainty 3 dB Wear ear-muffs. The impact of noise can cause damage to hearing. Vibration emission value a

Warning! The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances. The specified vibration value can be used to compare the equipment with other electric power tools. The specified vibration value can be used for initial assessment of a harmful effect. Keep the noise emissions and vibrations to a minimum. Only use appliances which are in perfect working order. Service and clean the appliance regularly. Adapt your working style to suit the appliance. Do not overload the appliance. Have the appliance serviced whenever necessary. Switch the appliance off when it is not in use. Wear protective gloves. Residual risks Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

2. Damage to hearing if no suitable ear protection is

3. Health damage caused by hand-arm vibrations if

the equipment is used over a prolonged period or is not properly guided and maintained.

6. Before starting the equipment

6.1 Assembling the grass trimmer (Fig. 3a-3e)

Take the screw set out of the additional handle (Fig.2/Item 4). Fit the additional handle (Fig. 3a/Item 4) to the top handle (Fig. 3a/Item 7). Secure the additional handle with the screw (Fig. 3a/Item A) and star nut (Fig. 3b/Item 5). Fasten the distance bracket (Fig. 3a/Item 9) as shown in Figure 3a with the two screws (Fig. 3c/Item 14). Place the guard hood (Fig. 3d/Item 12) onto the motor housing as shown in Figure 3d and secure with the screw (Fig. 3d/Item 14). Slide the guide wheels (Fig. 3e/Item 10) onto the motor housing as shown in Figure 3e. Make sure that there is an audible click when they engage.

6.2 Height adjustment (Fig. 4)

You can set your optimal working position by adjusting the height. Undo the lock for the handlebar adjustment (Figure 4/Item 6). Pull out the bottom handlebar (Figure 4/Item 8) to the required length. Refasten the lock for the handlebar adjustment (Figure 4/Item 6).

6.3 Adjusting the additional handle:

Place the grass trimmer on a firm surface. Undo the lock of the additional handle (Fig. 3b/Item 5) and move the additional handle to its optimal position. Lock the handle in place by retightening the lock.

6.4 Adjusting the angle of the handlebar (Fig. 4)

When the lock is pressed (Fig. 4/Item A) you can adjust the angle of the handlebar to 4 positions. Set the angle as suited best for your work. Make sure that there is an audible click when the handlebar engages.

When the lock is pressed (Fig. 9/Item A) you can turn the top handle to 2 positions, for example for cutting edges of lawns. Make sure that there is an audible click when the top handle engages.

Note: If the line is too long when you use the equipment for the first time, the surplus end of it will be cut by the blade on the guard hood. If the line is too short when you start the equipment for the first time, press the knob on the line spool and pull the line hard. When you start the equipment again the line will be cut to the perfect length automatically. Your grass trimmer will work at its best if you observe the following instructions: 앬 Never use the grass trimmer without its safety devices. 앬 Do not cut grass when it is wet. The best results are had on dry grass. Connect the power cable to the extension cable and fasten this to the strain-relief clamp (Figure 5/ Item 13). To switch on your grass trimmer, press the ON/OFF switch (Fig. 5/Item 3). 앬 To deactivate the grass trimmer, let go of the On/Off switch (Figure 5a / Item 3). 앬 Do not move the grass trimmer against the grass until the switch is pressed, i.e. wait until the trimmer is running. 앬 For the correct cutting action, swing the grass trimmer to the side as you walk forward, holding it at an angle of approx. 30° as you do so (see Figure 6 and Figure 7). 앬 Make several passes to cut long grass shorter step by step from the top (see Figure 8). 앬 Make full use of the edge guide and the guide hood in order to avoid unnecessary line wear. 앬 Keep the grass trimmer away from hard objects in order to avoid unnecessary line wear. Using the grass trimmer as an edge trimmer (Fig. 9) To cut he edges of lawns and flower beds, the grass trimmer can be converted as follows: 앬 Set the angle of the handlebar to its lowest position as described under 6.4. 앬 Turn the top handle through 90° as described under 6.5

8. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after- sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering

of spare parts Always pull out the mains power plug before starting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. We recommend that you clean the device immediately each time you have finished using it. Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. Use a brush to remove deposits from the safety guard.

9.2 Replacing the line spool

Important. Make sure that you pull out the power plug before replacing the line spool! Press the sides of the spool cover as shown and remove the cover (Figure 11 a). Remove the empty line spool. Thread the ends of the line on the new line spool through the eyelets in the spool cover (Fig. 11b) and allow approx. 10 cm of line to project. Fit the spool cover and spool back into the spool mounting. When you start the equipment again the line will be cut to the perfect length automatically. Important. Bits of the nylon line could cause injury when being flung out.

There are no parts inside the equipment which require additional maintenance. Anleitung_BG_ET_5529_SPK7:_ 26.08.2010 13:04 Uhr Seite 159.4 Ordering replacement parts Please quote the following data when ordering replacement parts: Type of machine Article number of the machine Identification number of the machine Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info Spare line spool Art. no.: 34.050.70

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

11. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

The machine will not work: Check that the power cable is connected properly and check the mains fuses. If the machine will not work despite the voltage supply being OK, send it to the specified after-sales service address.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.
