ERT 350 - Brush cutter EINHELL - Free user manual and instructions

Product type	Electric string trimmer
Brand	Einhell
Model	ERT 350
Mains voltage	230 V ~ 50 Hz
Power	350 W
Cutting circle	25 cm
Rotation speed	11 000 tr/min
Cutting line	Nylon Ø 1.2 mm
Weight	3 kg
Sound pressure level (LPA)	83 dB(A)
Sound power level (LWA)	93 dB(A)
Maximum vibration (handle)	5.3 m/s²
Height adjustment	Telescopic with rotary button
Edger conversion	Yes, handle rotation 180°
Line advancement system	Semi-automatic
Protective cover	Included, with line cutting blade
Safety device	Lock switch
Intended use	Cutting grass and small grassy areas (private garden)
Maintenance	Cleaning with brush and damp cloth; no water
Spare parts	Available on order (type, article number, identifier)
Warranty	2 years (material and manufacturing defects)

Frequently Asked Questions - ERT 350 EINHELL

How to assemble the string trimmer?

Insert the handle into the telescopic tube until it stops (the adjustment button engages automatically). Insert the protective cover into the motor head, turn it clockwise until it engages and screw in the included screws.

How to adjust the cutting height?

Place the device on the ground, loosen the rotary button on the telescopic tube, adjust the height according to your size, then retighten the button.

How to use the device as an edger?

Unplug the device, turn the adjustment button clockwise, remove the handle part from the rod, then reinsert it after turning it 180° - the lever engages automatically.

How to change the spool of line?

Always unplug the device. Press laterally on the spool cover at the marks and remove it with the spool. Remove the empty spool, pass the ends of the new line through the eyelets of the cover, then reassemble everything into its housing.

Why doesn't my line extend automatically?

The semi-automatic system activates the extension with each press. If the line is too short, press the spool button and pull firmly on the line to extend it. The cover blade cuts the excess at the first start.

What are the essential safety instructions?

Wear helmet, goggles, gloves and safety shoes. Keep children and animals at least 5 m away. Do not work in rainy weather. Do not touch the rotating line - wait for complete stop. Always unplug before maintenance or changing the spool.

How to clean the string trimmer?

Turn it off and unplug it. Remove deposits on the cover with a brush. Clean the body with a damp cloth and mild detergent. Never use solvents or pressurized water, and avoid water entering the device.

What to do if the device does not start?

Check that the cable is properly plugged in and that the fuses are in good condition. If voltage is present and the device still does not work, send it to after-sales service at the address given in the manual.

Where to find spare parts?

Contact your dealer or after-sales service. To order, indicate the device type, article number, identification number and the number of the needed part (see the spare parts list).

What is the warranty period?

The warranty is 2 years from the date of purchase. It covers material and manufacturing defects. Subsequent damage is not covered. For any claim, contact your dealer.

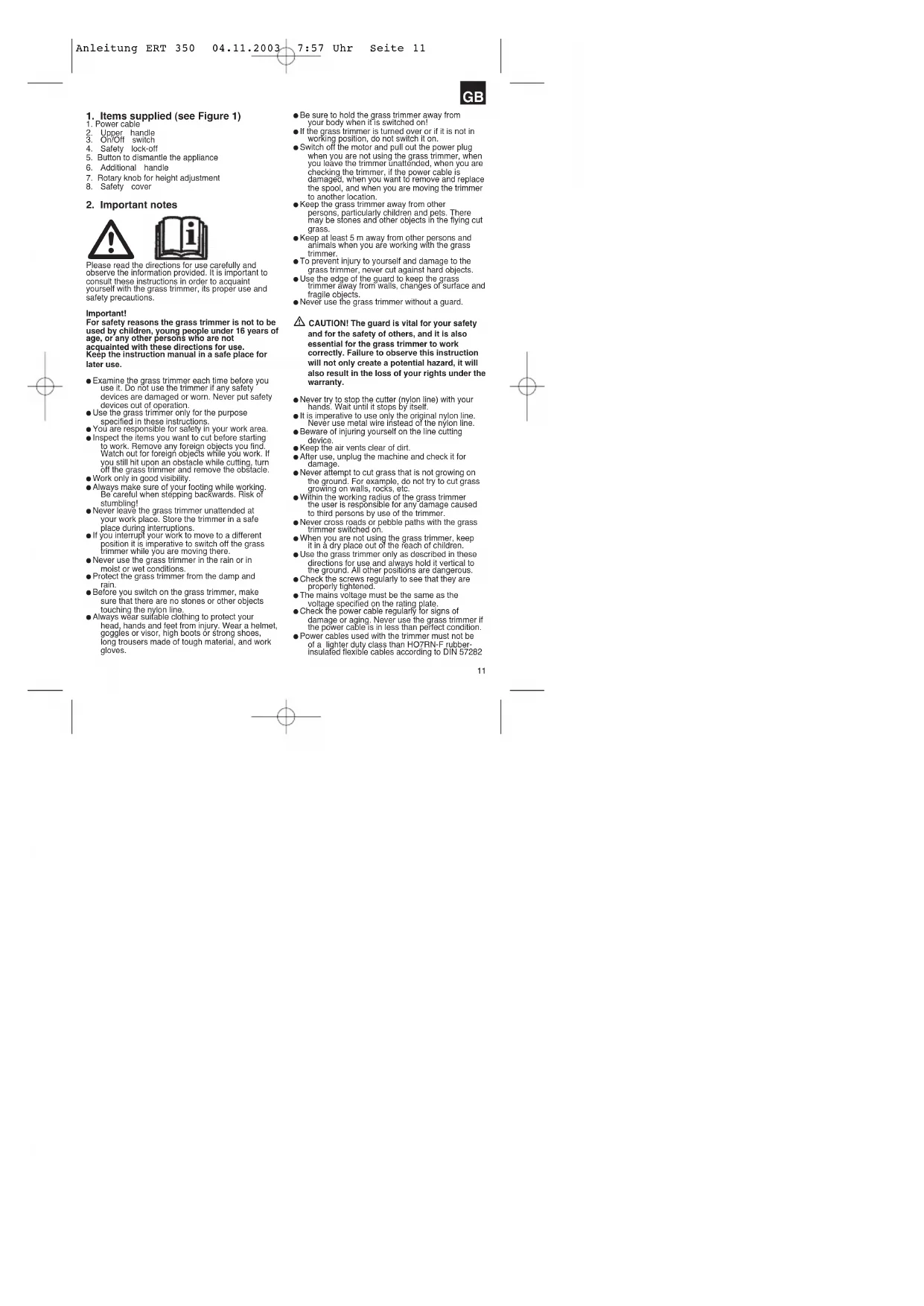

USER MANUAL ERT 350 EINHELL

1. Items supplied (see Figure 1)

1. Power cable
2. Upper handle
3. On/Off switch
4. Safety lock-off
5. Button to dismantle the appliance
6. Additional handle
7. Relay knob for height adjustment
8. Safety cover

2. Important notes

Please read the directions for use carefully and observe the information provided. It is important to consult these instructions in order to acquaint yourself with the grass trimmer, its proper use and safety precautions.

Important!

For safety reasons the grass trimmer is not to be used by children, young people under 16 years of age, or any other persons who are not acquainted with these directions for use. Keep the instruction manual in a safe place for later use.

• Examine the grass trimmer each time before you use it. Do not use the trimmer if any safety devices are damaged or worn. Never put safety devices out of operation.
• Use the grass trimmer only for the purpose specified in these instructions.
• You are responsible for safety in your work area.
• Inspect the items you want to cut before starting to work. Remove any foreign objects you find.
• Watch out for foreign objects while you work. If you still hit upon an obstacle while cutting, turn on the object and remove the obstacle.
• Work only in good visibility.
  Always make sure of your footing while working. Be careful when stepping backwards. Risk of stumbling!
• Never leave the grass trimmer unattended at your work place. Store the trimmer in a safe place during interruptions.
  If you interrupt your work to move to a different position it is imperative to switch off the grass trimmer while you are moving there.
• Never use the grass trimmer in the rain or in moist or wet conditions.

• Protect the grass trimmer from the damp and rain.
  Before you switch on the grass trimmer, make sure that there are no stones or other objects touching the nylon line.
  Always wear suitable clothing to protect your head, hands and feet from injury. Wear a helmet, goggles or visor, high boots or strong shoes, long trousers made of tough material, and work gloves.

• Be sure to hold the grass trimmer away from your body when it is switched on.
  your body when it is switched on! If the area trimmer is turned over or if it is not in
  If the grass trimmer is turned over or if it is not in working position, do not switch it on.

• Switch off the motor and pull out the power plug when you are not using the grass trimmer, when you leave the trimmer unattended, when you are checking the trimmer, if the power cable is damaged, when you want to remove and replace the spool, and when you are moving the trimmer to another location.
• Keep the grass trimmer away from other persons, particularly children and pets. There may be stones and other objects in the flying cut grass.
• Keep at least 5 m away from other persons and animals when you are working with the grass trimmer.
• To prevent injury to yourself and damage to the grass trimmer, never cut against hard objects
• Use the edge of the guard to keep the grass trimmer away from walls, changes of surface and fragile objects.
• Never use the grass trimmer without a guard.

CAUTION! The guard is vital for your safety and for the safety of others, and it is also essential for the grass trimmer to work correctly. Failure to observe this Instruction will not only create a potential hazard, it will also result in the loss of your rights under the warranty.

• Never try to stop the cutter (nylon line) with your hands. Wait until it stops by itself.
  It is imperative to use only the original nylon line. Never use metal wire instead of the nylon line.
• Beware of injuring yourself on the line cutting device.
• Keep the air vents clear of dirt.
• After use, unplug the machine and check it for damage.
• Never attempt to cut grass that is not growing on the ground. For example, do not try to cut grass growing on walls, rocks, etc.
• Within the working radius of the grass trimmer the user is responsible for any damage caused to third persons by use of the trimmer.
• Never cross roads or pebble paths with the grass trimmer switched on.
• When you are not using the grass trimmer, keep it in a dry place out of the reach of children.
• Use the grass trimmer only as described in these directions for use and always hold it vertical to the ground. All other positions are dangerous.
• Check the screws regularly to see that they are properly tightened.
• The mains voltage must be the same as the voltage specified on the rating plate.
• Check the power cable regularly for signs of damage or aging. Never use the grass trimmer in the power cable is in less than perfect condition.
  Power cables used with the trimmer must not be of a lighter duty class than HO7RN-F rubber-insulated flexible cables according to DIN 57282

GB

VDE 0282 with a minimum diameter of 1.5mm^2 Plug connectors must be equipped with earthing contacts and the coupling must be rain-water-protected.

• Keep cables and other objects out of the area. You want to cut.
• If you have to lift the grass trimmer to move it, switch off the motor and wait for the rotating tool to stop. Before you leave the trimmer, switch off the motor and pull out the power plug.
  Before you connect the grass trimmer to the power supply, make sure that none of its moving parts are damaged and that the line spool is correctly inserted and fastened.
• Never cut against hard objects when using the grass trimmer. This is imperative to avoid causing injury to the user and damage to the trimmer.
• Use only original replacement parts for repair and maintenance purposes.
  Have repairs carried out only by a qualified electrician.
  Examine the grass trimmer for signs of wear or damage each time before you use it and after any collisions. Have essential repairs carried out without delay.
  Always keep your hands and feet away from the cutting mechanism, particularly when you switch on the trimmer.
  After pulling out now line, always return the trimmer to normal working position before you switch it on again.
• Never use replacement parts or accessories which are not foreseen or recommended by the manufacturer.
  Pull out the power plug before carrying out any inspection, cleaning or other work on the trimmer and whenever it is not being used.
  Caution! The nylon line will run on for a few seconds after the tool is switched off!

3. Symbols used on the appliance (see Figure 2)

Item 1: Warning
Item 2: Wear eye protection
Item 3: Protect from moisture
Item 4: Read the instruction manual before starting
Item 5: Pull out the mains plug before checking a damaged power cable
Item 6: Keep other people out of the danger area
Item 7: The tool continues to rotate

4. Technical data

Voltage 230V\~50Hz
Power rating 350 W
Cutting width 品 25 cm
Speed 11,000 rpm
Nylon cutting line 0.1.2 mm
Sound pressure level LPA 83 dB(A)
Sound power level 93 dB(A)
Vibration aw max. 5,3 m/s
Weight 2,1 kg

The noise level of this machine may exceed 85 dB(A). In this case, noise protection measures need to be introduced for the user. The machine's noise was measured in accordance with IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (84/538/EEC).

The value of the vibrations emitted on the hand is max. 5.3 m/s. This value was determined in compliance with EN 786 Appendix D: 1996+A1: 2001.

5. Assembling the grass trimmer

To install the handle on the telescopic tube Fit the handle on the telescopic tube and insert it as far as possible (Figure 3). The button (1) will engage automatically.
To install the safety hood Place the safety hood on the motor head (Figure 4) and then turn it clockwise until it engages (Figure 5). Secure it with the screws supplied (Figure 5).

6. Proper use

The trimmer is designed for cutting lawns and small areas of grass in private and hobby gardens. Tools for private and hobby gardens are not suitable for use in public facilities, parks and sport centers, along roadways, on farms or in the forestry sector. For the tool to be used properly it is imperative to follow the instructions set out in the manufacturer's directions for use. Important! It is prohibited to use the tool to chop material for composting because of the potential danger to persons and property.

7. Before starting

You can adjust the height of the grass trimmer and the position of the auxiliary handle to obtain the optimal working position.

Height adjustment

Place the grass trimmer on a firm surface. You can adjust its height to suit your own height by undoing

GB

the rotary knob (Figure 6 Item 1) and then adjusting the telescopic tube. Then tighten the rotary knob again.

8. To start

The grass trimmer is designed only to cut grass. The grass trimmer has a semi-automatic line extension system. Each time you activate the semi-automatic line extension system, the line will be extended to ensure that you can cut your lawn with the perfect cutting width at all times. Please note that the wear on the line will be increased if you activate the semi-automatic line extension system frequently.

Note

If the line is too long when you use the machine for the first time, the surplus end of it will be cut by the blade on the safety hood.

If the line is too short when you start the machine for the first time, press the knob on the line spool and pull the line hard. When you then start the machine for the first time the line will be cut to the perfect length automatically.

Your grass trimmer will work at its best if you observe the following instructions:
- Never use the grass trimmer without its safety devices.
- Do not cut grass when it is wet. The best results are had on dry grass.
Connect the power cable to an extension cable and hook the extension cable on the handle (Figure 9).
To switch on your grass trimmer press the safety lock-off (Figure 1 Item 4) and then press the button on the control panel.
To deactivate the grass trimer, let go of the On/Off switch (Figure 1 / Item 3).
Do not move the grass trimmer against the grass until the switch is pressed, i.e. wait until the trimmer is running.
For the correct cutting action, swing the grass trimmer to the side as you walk forward, holding it at an angle of approx. 30^ as you do so (see Figure 10 and Figure 11).
- Make several passes to cut long grass shorter step by step from the top (see Figure 12).
- Make full use of the edge guide and the guide hood in order to avoid unnecessary line wear (see Figure 13 and Figure 14).
- Keep the grass trimmer away from hard objects in order to avoid unnecessary line wear.

9. Using the grass trimmer as an edge cutter

The grass trimmer can be adapted in the following way to cut the edges of lawns and flower beds:

• Disconnect the grass trimmer from the power supply!

• Push the button (Figure 11 Item 1) in the direction indicated by the arrow and pull the handle off the telescopic tube. Turn the handle through 180^ and slide it back into the telescopic tube. The lever will engage automatically.

• The grass trimmer has now been converted into an edge cutter suitable for vertical cutting (Figure 12).

10. Replacing the line spool

Be sure to disconnect the power plug from the power supply by you replace the line spool!

• Press the sides of the spool cover as shown and remove it with the spool (Figure 13 und Figure 14). Ensure that you do not lose the spring.
• Remove the empty line spool
• Thread the ends of the line on the new line spool through the yeetlets in the spool cover.
• Fit the spool cover and spool back into the spool mounting.
• When you start the machine again the line will be cut to the perfect length automatically.

Caution! Catapulted pieces of nylon line may cause Injury!

11. Cleaning and maintenance

• Switch off and unplug the grass trimmer before putting it away or cleaning it.
• Remove deposits from the guard hood with a brush.
  Clean the plastic body and plastic parts with a mild household detergent and a damp cloth.
• Never use aggressive agents or solvents for cleaning purposes!
• Never spray down the grass trimmer with water. Prevent water getting into the trimmer at all cost

12. Troubleshooting

• The machine will not work: Check that the power cable is connected properly and check the mains fuses. If the machine will not work despite the voltage supply being OK, send it to the specified after-sales service address.

13. Waste disposal

Important
- The grass trimmer and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

14. Ordering replacement parts

Please quote the following details when ordering replacement parts:
- Type of machine
Article number of the machine
Serial number of the machine
- Replacement part number of the part you require (Refer to the replacement parts list)

1.Description de I'appareil (cf. fig.1)

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.
