USER MANUAL BPA3000EU HOMEDICS

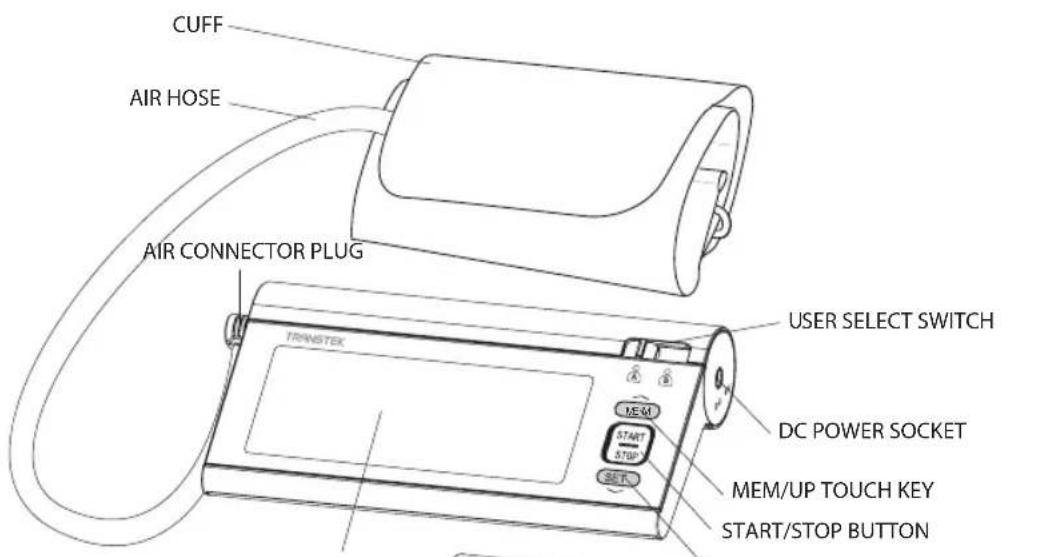

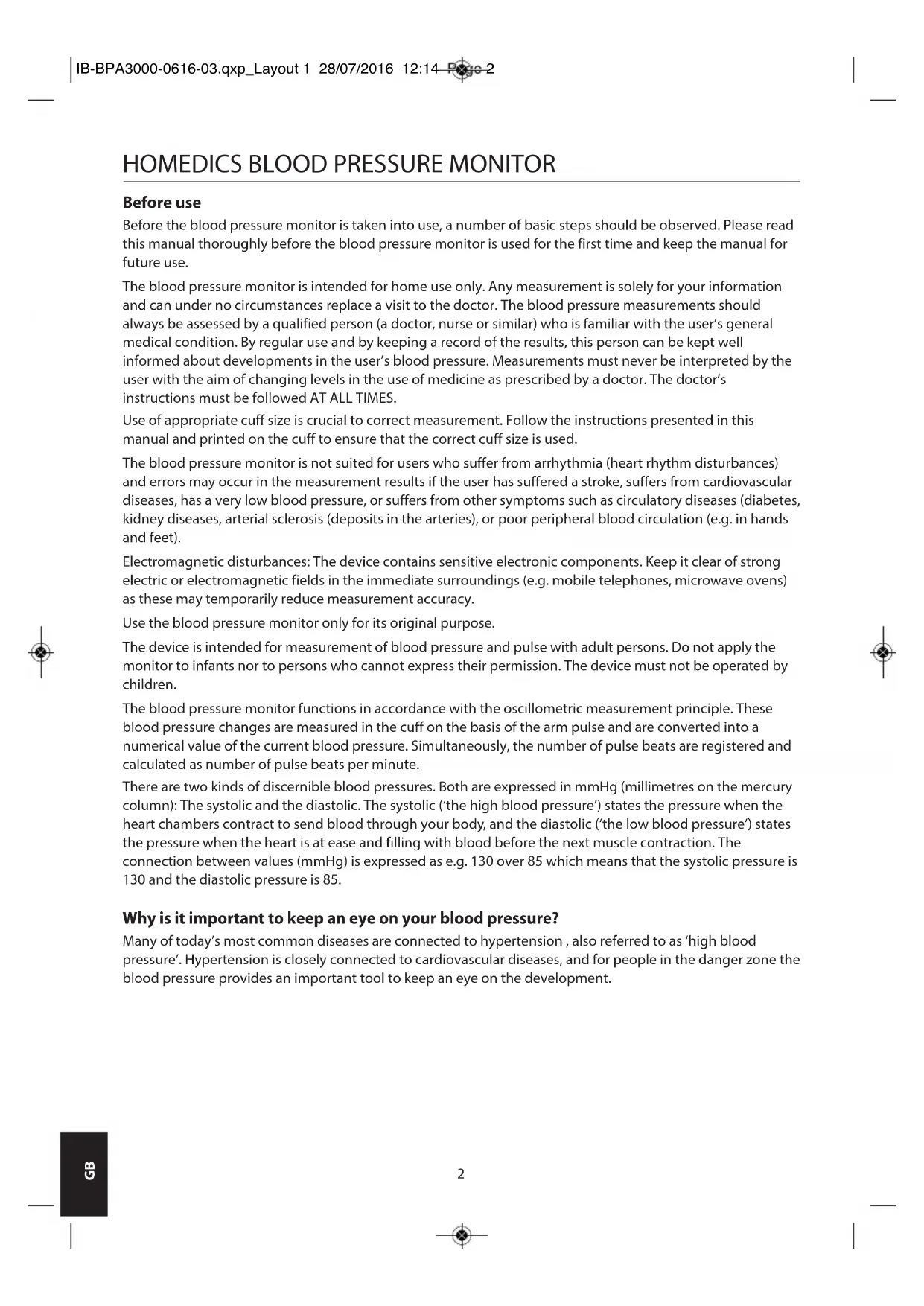

GB HOMEDICS BLOOD PRESSURE MONITOR Before use

Before the blood pressure monitor is taken into use, a number of basic steps should be observed. Please read

this manual thoroughly before the blood pressure monitor is used for the first time and keep the manual for

The blood pressure monitor is intended for home use only. Any measurement is solely for your information

and can under no circumstances replace a visit to the doctor. The blood pressure measurements should

always be assessed by a qualified person (a doctor, nurse or similar) who is familiar with the user’s general

medical condition. By regular use and by keeping a record of the results, this person can be kept well

informed about developments in the user’s blood pressure. Measurements must never be interpreted by the

user with the aim of changing levels in the use of medicine as prescribed by a doctor. The doctor’s

instructions must be followed AT ALL TIMES.

Use of appropriate cuff size is crucial to correct measurement. Follow the instructions presented in this

manual and printed on the cuff to ensure that the correct cuff size is used.

The blood pressure monitor is not suited for users who suffer from arrhythmia (heart rhythm disturbances)

and errors may occur in the measurement results if the user has suffered a stroke, suffers from cardiovascular

diseases, has a very low blood pressure, or suffers from other symptoms such as circulatory diseases (diabetes,

kidney diseases, arterial sclerosis (deposits in the arteries), or poor peripheral blood circulation (e.g. in hands

Electromagnetic disturbances: The device contains sensitive electronic components. Keep it clear of strong

electric or electromagnetic fields in the immediate surroundings (e.g. mobile telephones, microwave ovens)

as these may temporarily reduce measurement accuracy.

Use the blood pressure monitor only for its original purpose.

The device is intended for measurement of blood pressure and pulse with adult persons. Do not apply the

monitor to infants nor to persons who cannot express their permission. The device must not be operated by

The blood pressure monitor functions in accordance with the oscillometric measurement principle. These

blood pressure changes are measured in the cuff on the basis of the arm pulse and are converted into a

numerical value of the current blood pressure. Simultaneously, the number of pulse beats are registered and

calculated as number of pulse beats per minute.

There are two kinds of discernible blood pressures. Both are expressed in mmHg (millimetres on the mercury

column): The systolic and the diastolic. The systolic (‘the high blood pressure’) states the pressure when the

heart chambers contract to send blood through your body, and the diastolic (‘the low blood pressure’) states

the pressure when the heart is at ease and filling with blood before the next muscle contraction. The

connection between values (mmHg) is expressed as e.g. 130 over 85 which means that the systolic pressure is

130 and the diastolic pressure is 85.

Why is it important to keep an eye on your blood pressure?

Many of today’s most common diseases are connected to hypertension , also referred to as ‘high blood

pressure’. Hypertension is closely connected to cardiovascular diseases, and for people in the danger zone the

blood pressure provides an important tool to keep an eye on the development.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 23

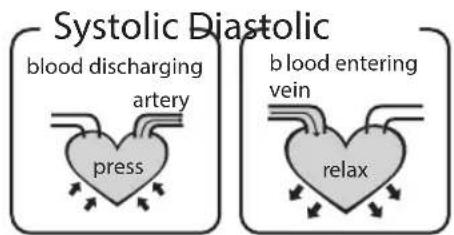

GB What are systolic pressure and diastolic

When ventricles contract and pump blood out of the heart,

blood pressure reaches its maximum value, the highest

pressure in the cycle is known as systolic pressure. When

the heart relaxes between heartbeats, the lowest blood

pressure is diastolic pressure.

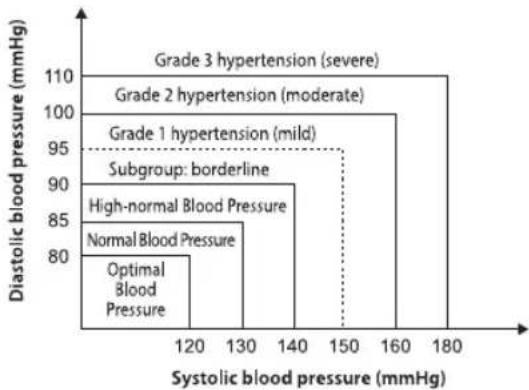

What is the standard blood pressure

Below illustrates the blood pressure classification mode by

World Health Organization (WHO) and International

Society of Hypertension(Isa) in 1999.

CAUTION Only a physician/GP can tell you your normal blood pressure range and the point at which you are at risk.

Consult your physician to obtain these values. If the measurements taken with this product fall outside the

range, consult your physician/GP.

SYS <120 120~129 130~139 140~159 160~179 >180

Normal High-normal Mild Moderate Severe Optimal Norm. Norm. G1 G2 G3 Irregular Heartbeat Detector

An irregular heartbeat is detected when a heartbeat rhythm varies while the unit is measuring the systolic

and diastolic blood pressure. During each measurement, this equipment records the heartbeat intervals and

works out the standard deviation. If the calculated value is larger than or equal to 15, the irregular heartbeat

symbol appears on the symbol when the measurement results are displayed.

CAUTION The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat

was detected during measurement. Usually this is NOT a cause for concern. However, if the symbol

appears often, we recommend you seek medical advice. Please note that the device does not replace a

cardiac examination, but serves to detect pulse irregularities at an early stage.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 34

• This device is intended for adult use only.

• This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not

intended for use on extremities other than the arm or for functions other than obtaining a blood pressure

• Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure. Do

not begin or end medical treatment based solely on the readings from this unit. Always consult your

• If you are taking medication,consult your physician to determine the most appropriate time to measure

your blood pressure. Never change a prescribed medication without consulting your physician.

• When the device was used to measure patients who have common arrhythmias such as atrial or ventricular

premature beats or atrial fibrillation, the best result may occur with deviation. Please consult your physician

• To avoid measurement errors, carefully read this manual before using the product.

• The equipment is not AP/APG equipment and not suitable for use in the presence of a flammable anesthetic

mixture with air of with oxygen or nitrous oxide.

• The operator shall not touch output of batteries /adapter and the patient simultaneously.

• This device is contraindicated for any female who may be suspected of, or is pregnant. Besides providing

inaccurate readings, the effects of this device on the fetus are unknown.

• To avoid measurement errors, please avoid the condition of strong electromagnetic field radiated

interference signal or electrical fast transient/burst signal when using the AC adaptor.

• The user must check that the equipment functions safely and see that it is in proper working condition

• This unit is not suitable for continuous monitoring during medical emergencies or operations. Otherwise,

the patient’s arm and fingers will become numb, swollen and even purple due to a lack of blood. Please use

the device under the environment which was provided in the user manual. Otherwise, the performance and

lifetime of the device will be impacted and reduced. During using, the patient will contact with the cuff. The

materials of the cuff have been tested and found to comply with requirements of ISO 10993-5:2009 and ISO

10993-10:2010. It will not cause any potential sensization or irritation reaction.

• Please use ACCESSORIES and detachable parts specified/authorised by MANUFACTURE. Otherwise, it may

cause damage to the unit or danger to the user/patients.

• The device doesn’t need to be calibrated within the two years of reliable service.

• Please dispose of ACCESSORIES, detachable parts, and the ME EQUIPMENT according to the local guidelines.

SAFETY INFORMATION Caution: consult accompanying

Caution: These notes must be observed

to prevent any damage to the device

CE mark: conforms to essential

requirements of the Medical Device

Directive 93/42/EEC.

Type BF applied parts

Symbol for “ENVIRONMENT PROTECTION - Electrical waste products

should not be disposed of with

household waste. Please recycle where

facilities exist. Check with your local

authority or retailer for recycling advice”

Direct current Manufacture date

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 45

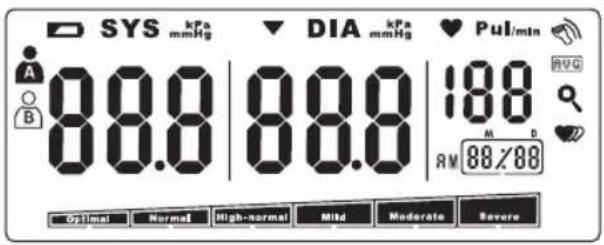

GB LCD display signal

Symbol Description Explanation

Systolic blood pressure High pressure result

Diastolic blood pressure Low pressure result

Deflating CUFF is deflating

Measurement Unit of the blood pressure

Measurement Unit of the blood pressure

Low battery Batteries are low and need to be replaced

Movement error symbol Movement can result in an inaccurate reading

Average The average of blood pressure

Recalling Recalling records

Arrhythmia Irregular heartbeat

User A The User A is chosen

User B The User B is chosen

Grade The grade of the blood pressure

Heartbeat detection during the measurement

• If you have any problems with this device, such as setting up, maintaining or using, please contact the

SERVICE PERSONNEL of HoMedics. Don’t open or repair the device by yourself. Please report to HoMedics if

any unexpected operation or events occur. Please use the soft cloth to clean the whole unit. Don’t use any

abrasive or volatile cleaners.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 56

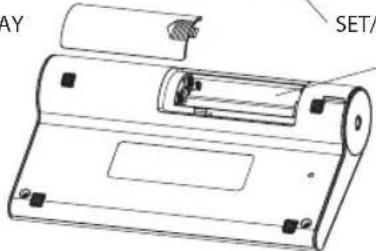

Inserting and Changing Batteries

1. Blood Pressure Monitor

1. Slide off the battery cover.

2. Install the batteries by matching the

correct polarity, as shown.

3. Replace the cover.

Replace the batteries whenever the below happen

• The display does not light up

3. 4*AAA alkaline batteries

• Remove batteries if the device is not likely to be used for some time.

• The old battery is harmful to the environment, so please do not dispose of with other daily trash.

• Remove the old battery from the device and follow your local recycling guidelines.

• Do not dispose of batteries in fire. Batteries may explode or leak.

CAUTION In order to get the best effect and

protect your monitor, please use

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 67

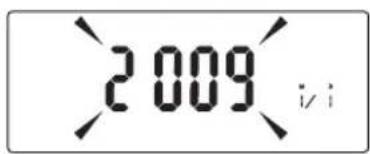

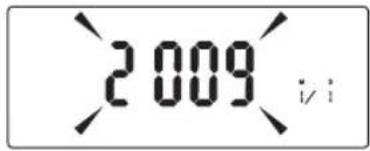

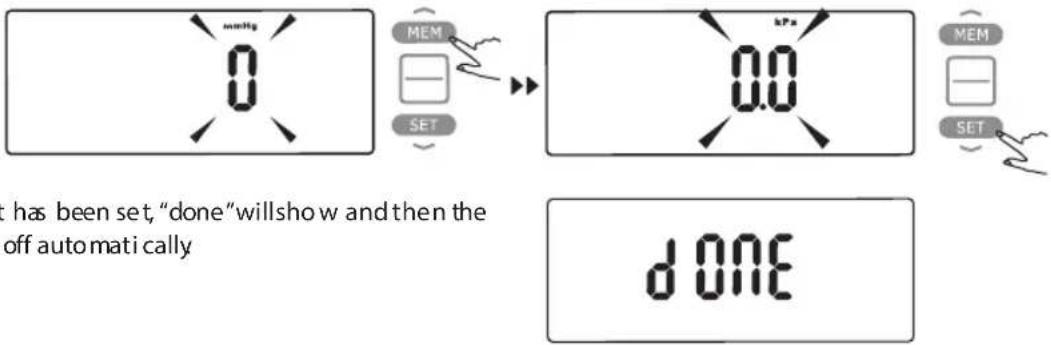

GB SETTING DATE, TIME AND MEASUREMENT UNIT It is important to set the clock before using your blood pressure monitor, so that a time stamp can be

assigned to each record that is stored in the memory. (year: 2000—2050, time: 24 H)

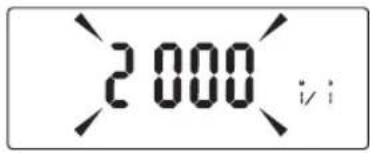

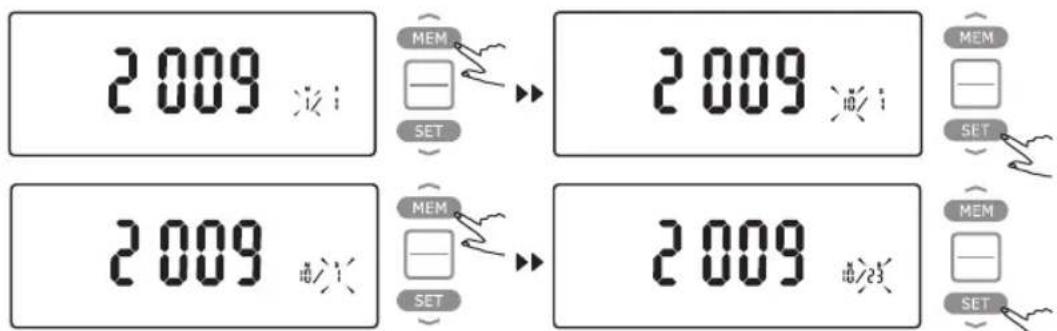

1. When the unit if off, hold “SET” for 3 seconds

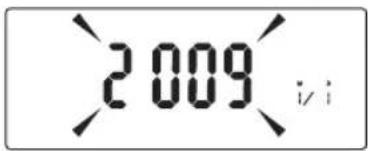

2. Press the “MEM” to change the [YEAR].

3. When you get the correct year, press “SET” and it will turn to

the next step automatically.

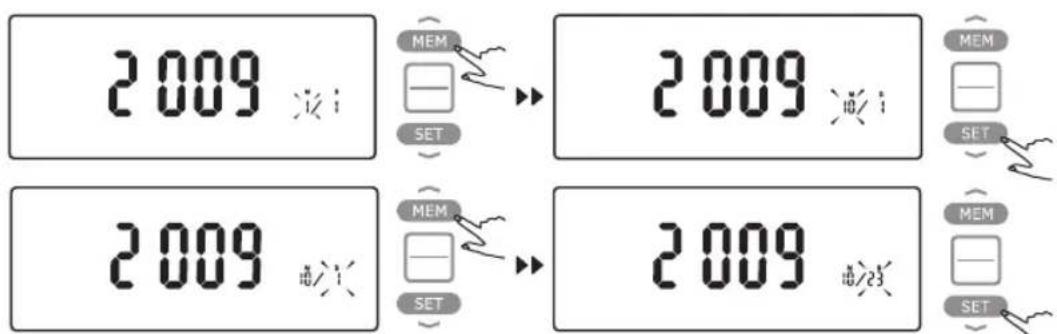

4. Repeat steps 2 and 3 to set the [MONTH] and [DAY].

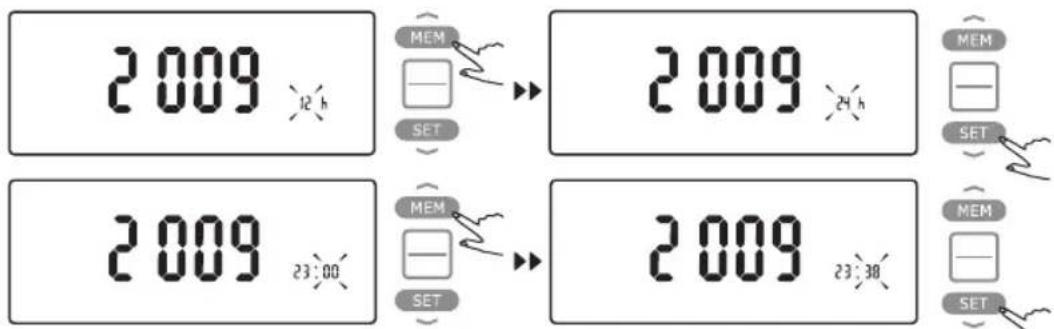

6. Repeat steps 2 and 3 to set the [HOUR] and [MINUTE].

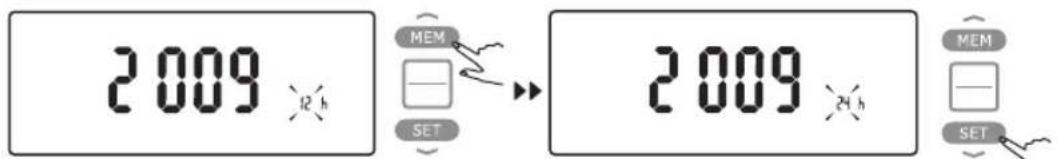

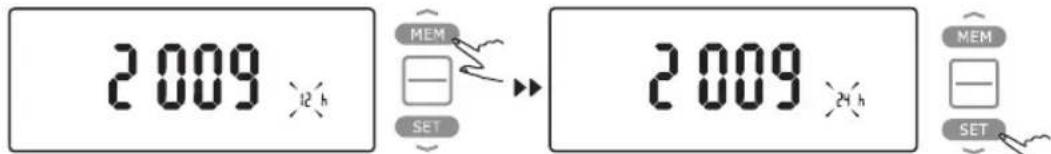

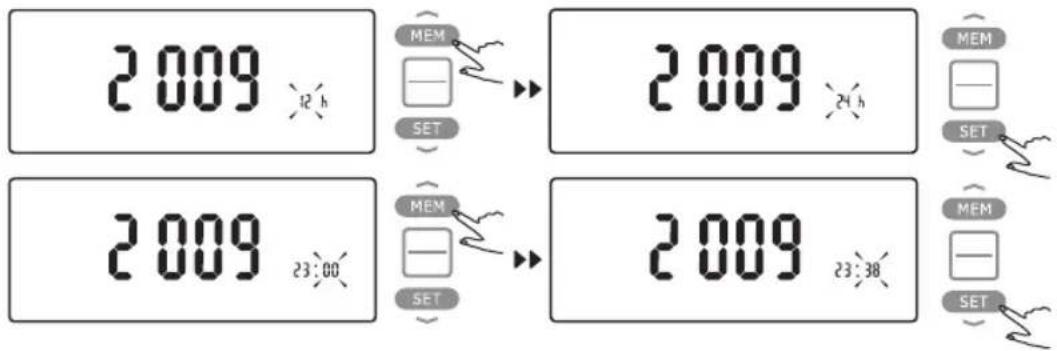

5. Then it will enter time setting mode. There are two kinds of time format

“12” hours and “24” hours.

Press “MEM” button to change the time format. Press “SET” button to confirm the time format

Correct cu size is critical to accurate measurement. This monitor comes with a standard size 22-32cm arm

cu. A large size cu 32-42cm is available from the HoMedics website www.homedics.co.uk

1. If the cu is not assembled at rst use, put the end of the cu which is furthest

away from the tube through the D-ring to form a noose.

2. Apply the tube to the left side of the device.

3. Remove tight-tting clothing from your left upper arm and position the cu at

approximately 2-3 cm above the elbow so that the tube is centred at the middle

of the arm. The tube must face downward towards the hand.

4. Pull gently at the end of the cu so that it tightens easily and smoothly around

the arm. The cu is secured by pulling the Velcro fastener towards the cu.

5. You should be able to t two ngers between the cu and your arm. The cu

should not be tted any tighter than this.

6. Relax your body and rest your arm on a table with your palm up so that the cu is

positioned at the same height as the heart. Make sure that the tube does not

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 89

GB If it is not possible to t the cu on the left arm, it can be placed on the

right arm instead. However, it is important that all measurements are

carried out on the same arm. If the measurement is to be taken on the

right arm, the artery symbol on the cu should be positioned above

the main artery. Press the arm’s arteries with two ngers at

approximately 2 cm above the elbow on the inside of the arm to nd

out where the pulse is strongest. This is the main artery.

Worth knowing about blood pressure measurement

• Blood pressure measurements should be performed in quiet and comfortable surroundings as

measurements can be aected by high or low temperatures. The blood pressure should be measured at

normal body temperatures.

• Do not move or speak during measurement. Keep your feet at on the oor.

• Do not touch the cu or the blood pressure device during measurement.

• To obtain the best possible measurement, the blood pressure should be measured at approximately the

same time every day, and on the same arm.

• If you are to perform several successive measurements, please wait 5 minutes between each measurement.

• The measurements are for guidance only. If you have doubts about your blood pressure, consult your

• The blood pressure device automatically deates when the pressure exceeds 300 mmHg.

• The product is not suited for persons suering from arrhythmia (heart rhythm disturbances).

• Measurement errors may occur if the user suers from diabetes, poor blood circulation, kidney problems, or

has suered a stroke.

• The blood pressure changes with every heartbeat and is consequently changing constantly 24 hours a day.

• The measurement of blood pressure can be inuenced by the user’s position, condition, or other factors. To

obtain the highest degree of accuracy it is recommended that the measurement is taken 1 hour after

workout, bathing, nishing a meal, consuming alcoholic or caeine beverages, or after smoking.

• Before measurement it is recommended that you sit still and relax for 15 minutes. The user should not be

physically tired or exhausted when the measurement is taken.

• The user must not talk or move arm or hand during measurement.

How to measure the blood pressure

1. Press the to turn on the monitor, and it will start and finish the whole measurement automatically.

2. When the measurement is completed, the cu automatically deates and the display will show the systolic

pressure, the diastolic pressure, and the pulse. The measurement is simultaneously stored in the monitor’s

3. The device automatically switches o approximately 1 minute after use but can also be switched o

manually by pressing the button.

notE If necessary, a measurement can be interrupted by pressing the button. The cu will subsequently deate

The cu will automatically re-inate if the device determines that the body requires higher pressure to

complete the measurement.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 910

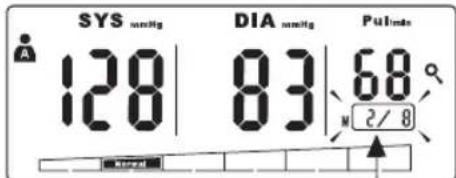

2. Press the “MEM” or “SET” to get the record

The order of the record, date, time will

display alternately.

alternate with date.

CAUTION The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. All other

records are pushed back one digit (e.g., 2 becomes 3, and so on), and the last record (60) is dropped from the

Recalling the records

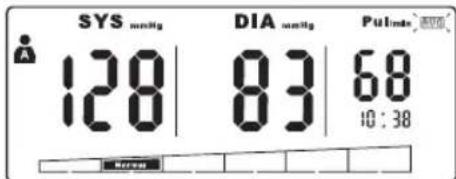

1. Please choose user A or B when the blood pressure monitor is

turned off. Then press the “MEM” to show the average of the

records you have taken. The sign of "AVG will show in the right

Deleting your records

If you did not get the correct measurement, you can

delete all results using the following steps.

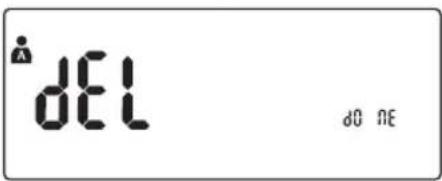

1. Please choose user A or B when the blood

pressure monitor is turned off, press and hold

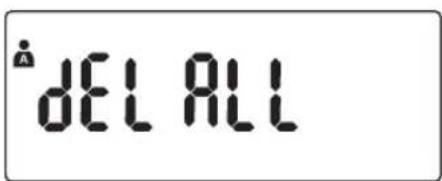

“MEM” for 3 seconds and the flash display will

2. Press “SET” to confirm deleting and the monitor

will turn off automatically.

3. If you don’t want to delete the records, press

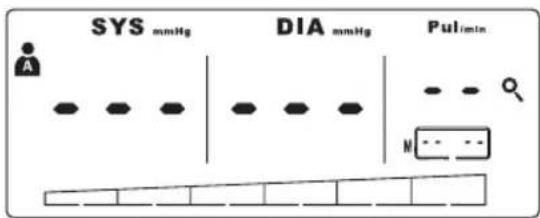

4. If there is no record the right display will show.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 1011

This section includes a list of error messages and frequently asked questions for problems you may encounter

with your blood pressure monitor. If irregularities occur during use, please check the following items.

If the device still does not function, please contact the store where the device was purchased. Do not attempt

to open the device or adjust any of the inner parts yourself.

PROBLEM SYMPTOM CHECK THIS REMEDY No power

Display is dim or will

Batteries are exhausted. Replace with new batteries

Batteries are inserted

Batteries are low. Replace with new batteries

E 1 shows The cuff is not secure.

Refasten the cuff and then

E 2 shows The cuff is very tight

Refasten the cuff and then

The pressure of the cuff is

Refasten the cuff and then

The monitor detected

motion while measuring

Movement can affect the

measurement. Relax for a

moment and then measure

E 20 or E 21 shows Measure incorrectly

Relax for a moment and then

A calibration error occurred.

Retake the measurement. If

the problem persists, contact

the retailer or our customer

service department for further

assistance. Refer to the

warranty for contact

information and return

GB Power supply Battery powered mode: 6VDC 4*AAA alkaline batteries

Measurement mode Oscillographic testing mode

Rated cuff pressure:

C within ± 0.4kPa (3mmHg)

Normal working condition

Storage & transportation condition

C Relative humidity: 10%~93%

Atmospheric pressure: 50kPa–106kPa

Measurement perimeter of the

Weight Approx. 320g (Excluding the batteries)

External dimensions Approx. 182*100*39mm

Attachment 4*AAA alkaline batteries, manual, cuff

Mode of operation Continuous operation

Degree of protection Type BF applied part

Protection against ingress of water IP21

Software version vA3

Warning: No modication of this equipment is allowed.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 12Battery Directive

This symbol indicates that batteries must not be disposed of in the domestic waste as they contain

substances which can be damaging to the environment and health. Please dispose of batteries in

designated collection points.

This marking indicates that this product should not be disposed with other household wastes

throughout the EU. To prevent possible harm to the environment or human health from uncontrolled

waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the

product was purchased. They can take this product for environmental safe recycling.

GB Cleaning and maintenance

The blood pressure monitor and the cu can be wiped with a soft cloth moistened with a mild detergent and

wiped dry with a soft, dry cloth or paper towel. Never use strong, caustic detergents as these may cause

damage to the synthetic parts. Also, never use diluents, alcohol or kerosene to clean the device.

Safety and electrical devices

• When the device is not used, store it in a safe place.

• Only use the device on the upper arm, not on other body parts.

• When the device is not used for extended periods of time, it is recommended that you remove the batteries

to avoid leakage which may cause damage to the device.

• If the device has been stored at very low temperatures near the freezing point, please allow it to obtain

room temperature before using it again.

• Neither device nor cu must be dissembled as this may cause serious damage to the device. If repair is

necessary, the device must be returned to the store where it was purchased. Do not attempt to open the

device or adjust the inner parts yourself.

• Do not submerge the device in water or other liquids as this will cause damage to the device.

• Do not expose the device nor the cu to extreme temperatures, moisture or direct sunlight. Protect the

device against dust.

• The cu and the tube should not be folded up tightly. The device must not be activated if it is not

appropriately tted to the upper arm.

• Avoid dropping the device and do not subject it to heavy pressure.

• The device must not be exposed to extreme shocks such as being dropped on the oor.

• The device is intended for use in private households only and is only suited for use with adults (over 18

• If the highly unlikely incident should occur that the cu continues to inate and does not stop, immediately

remove the cu from the upper arm.

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 1314

GB Guidance and manufacture’s declaration – electromagnetic emission

The BPA-3000-EU is intended for use in the electromagnetic environment specified below. The customer of

the user of the BPA-3000-EU should assure that it is used in such and environment.

Emission test Compliance Electromagnetic environment – guidance

The BPA-3000-EU uses RF energy only for its internal

function. Therefore, its RF emissions are very low and are

not likely to cause any interference in nearby electronic

Class B The BPA-3000-EU is suitable for use in all establishments

other than domestic and those directly connected to

the public low-voltage power supply network that

supplies buildings used for domestic purposes.

Voltage fluctuations/

flicker emissions IEC

Table 1 Guidance and manufacture’s declaration – electromagnetic emissions for all EQUIPMENT

and SYSTEMS IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 1415

GB Guidance and manufacture’s declaration – electromagnetic immunity

The BPA-3000-EU is intended for use in the electromagnetic environment specified below. The customer of

the user of the BPA-3000-EU should assure that it is used in such an environment.

Compliance level Electromagnetic environment - guidance

Floors should be wood, concrete or ceramic

tile. If floor are covered with synthetic

material, the relative humidity should be at

Mains power quality should be that of a

typical commercial or hospital environment

Mains power quality should be that of a

typical commercial or hospital environment.

Mains power quality should be that of a

typical commercial or hospital environment.

If the user of the BPA-3000-EU requires

continued operation during power mains

interruptions, it is recommended that the

BPA-3000-EU be powered from an

uninterruptible power supply or a battery.

3A/m 3A/m Power frequency magnetic fields should be

at levels characteristic of a typical location in

a typical commercial or hospital

is the a.c. mains voltage prior to application of the test level.

Table 2 Guidance and manufacture’s declaration – electromagnetic immunity – for all

ME EQUIPMENT and ME SYSTEMS IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 1516

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by

absorption and reflection from structures, objects and people.

a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and

land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted

theoretically with accuracy.

a To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey

should be considered. If the measured field strength in the location in which the ELE007839V1 is used

exceeds the applicable RF compliance level above, the ELE007839V1 should be observed to verify normal

operation. If abnormal performance is observed, additional measures may be necessary, such as

reorienting or relocating the ELE007839V1.

b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Table 3 Guidance and manufacture’s declaration – electromagnetic immunity – for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 1617

GB Recommended separation distances between portable and mobile RF communications equipment and the

ELE007839V1 Fitness Equipment.

The BPA-3000-EU is intended for use in an electromagnetic environment in which radiated RF disturbances

are controlled. The customer or the user of the BPA-3000-EU can help prevent electromagnetic interference

by maintaining a minimum distance between portable and mobile RF communications equipment

(transmitters) and the BPA-3000-EU as recommended below, according to the maximum output power of

the communications equipment.

Rated maximum output

power of transmitter

W Separation distance according to frequency of transmitter

100 11.67 11.67 23.330

For transmitters rated at a maximum output power not listed above, the recommended separation distance

d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P

is the maximum output power rating of the transmitter in watts (W) according to the transmitter

NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by

absorption and reflection from structures, objects and people.

Table 4 Recommended separation distances between portable and mobile RF communications

equipment and the EQUIPMENT or SYSTEM – for ME EQUIPMENT or ME SYSTEM that are not

LIFE-SUPPORTING IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:14 Page 1718

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

I M E M M E M Elenco

Optimal Norm. Norm. G1 G2 G3

Display is vaag of wil

E 20 of E 21 v Meting incorrect

de ELE007839V1 fitnessuitrusting.

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

Optimal Norm. Norm. G1 G2 G3

IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:18 Page 225IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:18 Page 226IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:18 Page 227IB-BPA-3000EU-0616-03

Register your product today at:

http://www.homedicsgroup.com/register

HoMedics Group Ltd, HoMedics House

Somerhill Business Park, Five Oak Green Road

Tonbridge, Kent TN11 0GP, UK IB-BPA3000-0616-03.qxp_Layout 1 28/07/2016 12:18 Page 228
