Blood Pressure Monitor with Voice Assist®

NOMEDICS 12:35 PM 12/28/10 M START STOP SYS MHz DIA- MHz Pulse min. 76

5 year limited warranty

TABLE OF CONTENTS

INTRODUCTORY INFORMATION:

Important Product Notices and Safety

Instructions ....4

About Blood Pressure 6

What is Blood Pressure?

Why Measure Your Blood Pressure?

Blood Pressure Standard 6

How This Blood Pressure Monitor Works ......8

USAGE INFORMATION:

Name/Function of Each Part ......9

Display Explanations ......10

Installing Batteries ....12

Using the AC Adapter ....13

Date & Time Set Procedure....14

Using the Voice Assist® Talking Function .....15

Using the Cuff ....17

Measurement Procedure ....20

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Risk Category Index 24

Irregular Heartbeat Detector 24

Recalling Values from Memory......26

Clearing Values from Memory ......27

Important Notes Regarding Your Blood Pressure Measurement ....28

Care, Maintenance & Cleaning ....29

Potential for Electromagnetic Interference .....31

Troubleshooting 32

Specifications 33

5 Year Limited Warranty ....34

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product.

Save these instructions for future reference.

• Please note that this is a home healthcare product only and it is not intended to serve as a substitute for the advice of a physician or medical professional.
• Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a healthcare professional for interpretation of pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or healthcare professional.
• Proper cuff size is critical for accurate measurements. Follow the instructions in this manual and printed on the arm cuff to ensure the appropriate size of cuff is being used.
• This product is not suitable for people with arrhythmias. This device may have difficulty determining the proper blood pressure for individuals with irregular heartbeat, diabetes, poor circulation of blood, kidney problems or for users who have suffered from a stroke.
• The pulse display is not suitable for checking the frequency of heart pacemakers.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

• Electromagnetic interference: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
• Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than your arm.
• Not for use by or on persons under the age of 18.
• Do not plug or unplug the adapter power cord with wet hands.
• Please use only the AC adapter included with this monitor or 1.5V AA alkaline batteries for power supply.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

ABOUT BLOOD PRESSURE

What is Blood Pressure?

Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why Measure Your Blood Pressure?

Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

BLOOD PRESSURE STANDARD

The table on page 7 contains defined levels for hypertension that are publicly available from the National Heart Lung and Blood Institute at the U.S. National Institutes of Health (NIH) (http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_Whatls.html). Users can compare their own blood pressure readings against these defined levels to determine if they may be potentially at increased risk.

This table is applicable to most adults aged 18 and older.

Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the "normal" range most of the time, you may be at increased risk and should consult your physician.

Category	Systolic (mmHg)	Diastolic (mHg)
Normal Less than 120	and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher

Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Index that automatically compares each reading to the defined levels and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. See page 24 for more information on this feature.

Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

HOW THIS BLOOD PRESSURE MONITOR WORKS

This monitor uses Smart Measure™ Technology to detect your systolic pressure, diastolic pressure and pulse. With one touch of a button, the cuff will automatically inflate to block the blood flow through your artery. Next, the deflation process starts. Smart Measure™ Technology enables the monitor to automatically inflate and deflate at the appropriate level for each individual. Please note that any muscle movement during inflation or deflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.

The monitor automatically finds where your measurement results fall on the NIH's National Heart Lung and Blood Institute's table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk. Please refer to page 24 for more information on this feature.

The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Refer to page 24 for more information on the Irregular Heartbeat Detector.

Color palette bar with grayscale gradient from black to white (no text or symbols)

NAME/FUNCTION OF EACH PART

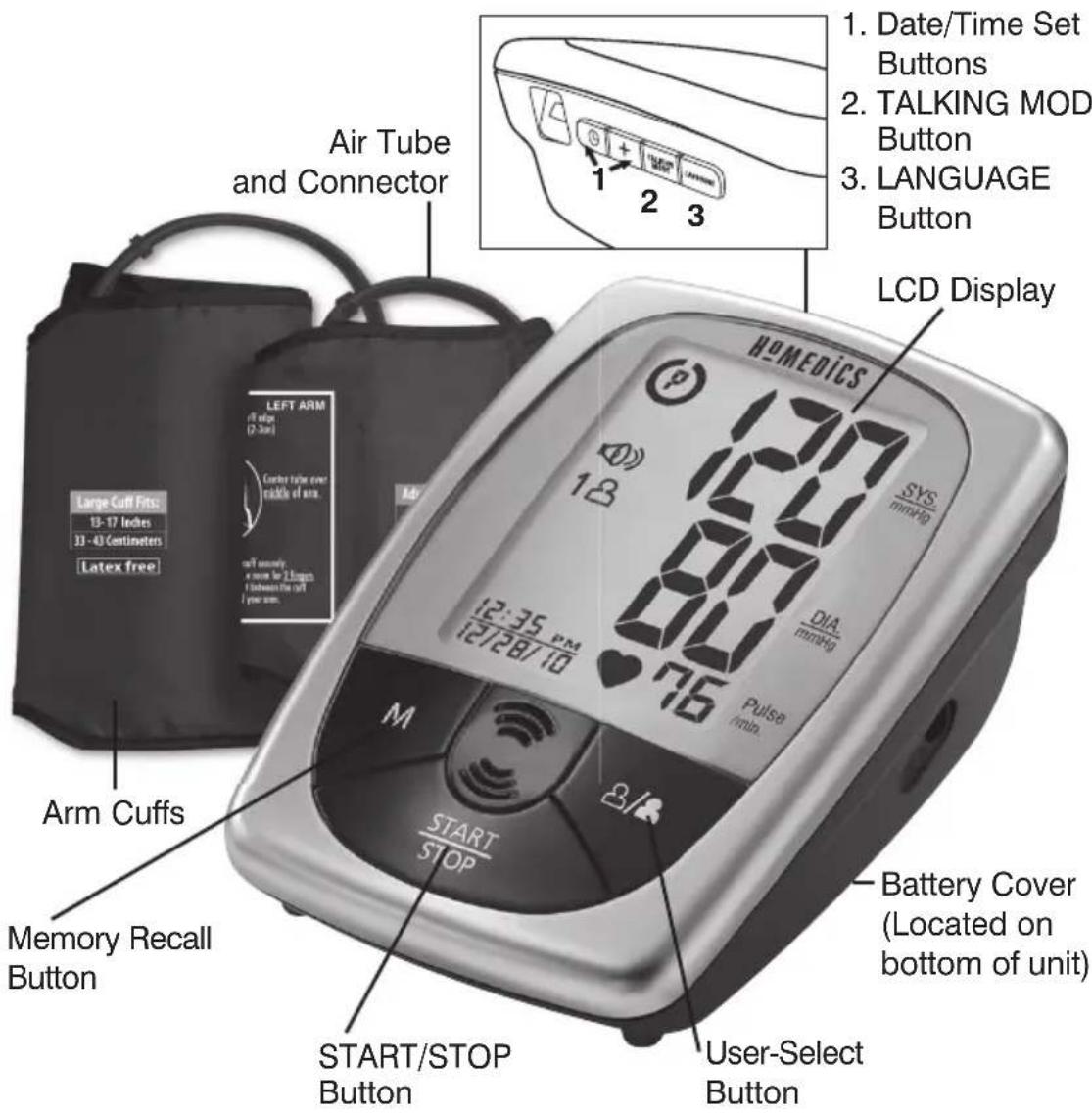

Air Tube and Connector HOMEDICS 12:35 PM 12/28/10 12 76 P SYS mmHg DIA mmHg Pulse min. M START/STOP 3/ Battery Cover (Located on bottom of unit) START/STOP Button User-Select Button ARM Cuffs Memory Recall Button Large Cuff Fits: 13-17 inches 13-43 centimeters Latex free LEFT ARM of edge (2-3cm) Coarse tube over table of area. on't security, a more for 2.50pm 1 between the on 1 your own. LCD Display 1. Date/Time Set Buttons 2. TALKING MOD Button 3. LANGUAGE Button

Other Accessories Included :

1 6V DC Output AC Adapter and 4 "AA" size, 1.5V alkaline batteries

Note: Please unload the batteries when operating with the AC adapter for an extended period of time.

Color palette bar with grayscale and color swatches, no text or symbols present

DISPLAY EXPLANATIONS

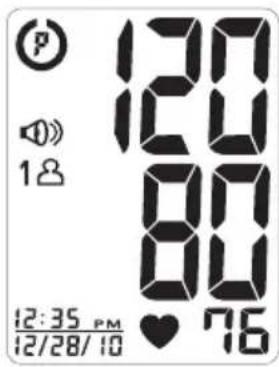

12:35 PM 12/28/10 Date/Time Indicator Systolic Pressure Diastolic Pressure Heart Rate

Display Symbols:

	User 1: Appears when the monitor is operated by User 1.
	User 2: Appears when the monitor is operated by User 2.
	Weak Battery Symbol: Appears when batteries should be replaced.
	Pulse Symbol: Shows the heart rate per minute.
	Irregular Heartbeat Detector: See page 24 for more information.

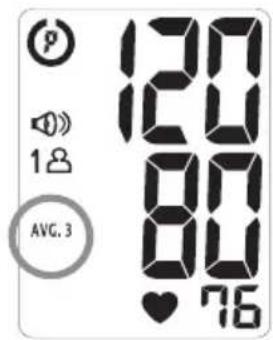

	Memory Average: Displays average of last 3 readings.
	Risk Category Index: See page 24 for more information.
	Talking Feature On Symbol: Appears when talking function is activated. (Speaker ON)

If any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See Troubleshooting section of this manual for more information.

EE	Measurement Error: Measure again. Wrap the cuff correctly and keep arm steady during measurement.
E1	Air Circuit Abnormality: Check cuff connection. Measure again.
E2	Pressure Exceeding 300 mmHg: Turn the unit off to clear, then measure again.
E3	Error Determining Measurement Data: Measure again.

INSTALLING BATTERIES

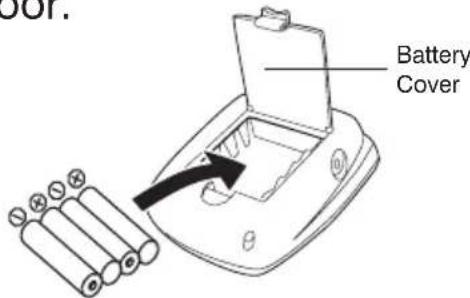

1. Press down on latch and lift the battery cover to open the battery compartment.

2. Install or replace 4 "AA" sized batteries in the battery compartment according to the indications inside the compartment.

3. Close the battery cover by pushing in the top end of the battery door.

Battery Cover 301.

Replace the batteries if:

1. The weak battery symbol appears on the display.
2. Nothing appears on the display when the power is switched on.

As the supplied batteries are for test only, they may be discharged earlier than batteries you buy in stores. Replace all batteries at one time (as simultaneous set). Use only

1.5V AA alkaline batteries. Remove batteries when unit is not in use for extended periods of time. Date and time will need to be reset if batteries are removed or replaced. Clean contacts on battery and in battery compartment with a soft dry cloth each time you install batteries.

Note: Batteries are hazardous waste. Do not dispose of them together with the household garbage.

USING THE AC ADAPTER

Note: • Please unload the batteries when operating with an AC adapter for an extended period of time. Leaving the batteries in the compartment for a long time may cause leakage, which may lead to damage to the unit.

• No batteries are needed when operating with an AC adapter.

• Date and time will need to be reset if AC adapter is unplugged and unit is without batteries.

• Connect the AC adapter with the AC adapter jack as shown below.

• Please use only the AC adapter included with this monitor.

M START STOP Connect AC

Connect AC adapter here

AC Adapter

Input: 100-240V\~0.2A 50/60Hz

Output: 6V DC 1A 6W Max

Line drawing of a medical or electronic device with a coiled cable and two pins (no text or symbols)

DATE & TIME SET PROCEDURE

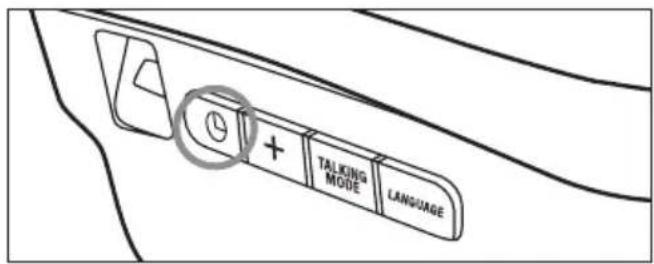

1. To adjust the date/time, press the Set button Ⓛ.

TALKING MODE LANGUAGE

1. The display will show a blinking number showing the HOUR. Change the HOUR by pressing the + button. Each press will increase the number by one in a cycling manner. Press the Set button ⏻ again to confirm the entry, and the screen will show a blinking number representing the MINUTE.
2. Change the MINUTE, MONTH, DAY and YEAR as described in Step 2 above, using the button to change the numbers and the Set button Ⓤ to confirm the entries.

Color palette bar with grayscale gradient from black to white (no text or symbols)

USING THE VOICE ASSIST® TALKING FUNCTION

The Voice Assist feature will guide you through the measurement procedure and also announce results after your reading. The Voice Assist Talking Function is not a substitute for reading and understanding the instruction manual.

The Voice Assist feature has 3 modes:

• Instructions On Mode - Announces instructions and results
• Instructions Off Mode - Announces results only
  • Quiet Mode - No voice

Setting the Voice Assist Mode:

1. Press the Talking mode button on the back of the monitor. Each press of the Talking Mode button will cycle through the different modes.

TALKING MODE LANGUAGE

1. When the 🔊 appears with the letters "InS ON", this indicates the monitor is in "Instructions On" Mode.

1:5 on 12:35 PM 12/28/10

15

Color palette bar with grayscale and multicolor swatches, no text or symbols present

1. When the 🔊 appears with the letters "InS oFF", this indicates the monitor is in "Instructions Off" Mode.

1:5 OFF 12:35 PM 12/28/10

1. When just the letters "oFF" appear, the monitor is in "Quiet Mode".

OFF 12:35 PM 12/28/10

Setting the Language:

The Voice Assist® talking function announces results in English or Spanish. To change the language, press the LANGUAGE button on the top of the monitor.

English language will display L1

Spanish language will display L2

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

USING THE ARM CUFF

Very Important: Proper cuff size is critical to accurate measurement.

This monitor comes with two sizes of arm cuffs:

Standard Size Fits 9"-13" (23 cm - 33 cm)

Large Size Fits 13"-17" (33 cm - 43 cm)

The appropriate cuff is suitable for your use if the colored arrow falls within the solid color line as shown below.

End of cuff Colored Arrow

End of cuff D-ring

Colored Arrow Solid Colored Line

BPA-260_A 323101305 0623.indd 17 2010/6/23 下午 10:04

Color palette bar with grayscale and multicolor swatches, no text or symbols present

1. If the cuff is not assembled, pass the end of the cuff furthest away from the tubing through the metal D-ring in order to form a loop. The smooth side without the felt material should be on the inside of the cuff loop.

End of cuff D-ring

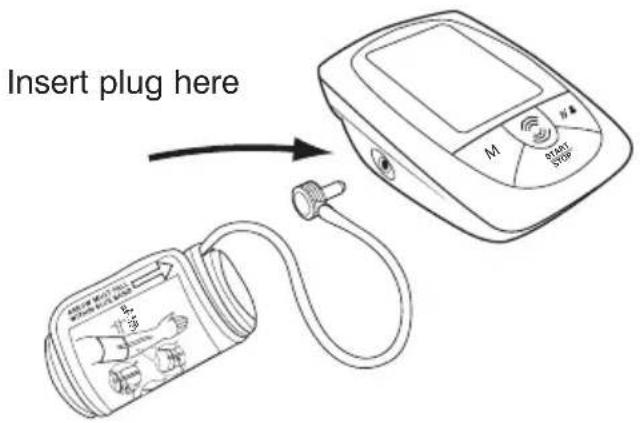

1. Plug the cuff tube into the left side of the unit.

Insert plug here M STAG STOP

Color palette bar with grayscale gradient from black to white (no text or symbols)

1. Open the arm cuff so that your arm may be placed through it.

2. Remove tight fitting clothing from your upper left arm so that the cuff can be wrapped around your exposed arm.

3. Position cuff edge 0.8-1.2 inches (2-3cm) above elbow.

Simple line drawing of a medical or anatomical structure with a central arrow, enclosed in a circle (no text or symbols)

1. Center tube over middle of arm.

Simple line drawing of a curved mechanical component inside a circle (no text or symbols)

1. Pull the end of the cuff so that it tightens evenly around your arm. Press the hook and loop material together to secure. Allow room for 2 fingers to fit between the cuff and your arm.

Simple line drawing of a hand pressing down on a curved mechanical component within a circle (no text or symbols)

1. Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked.

SO ...

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Note:

If it is not possible to fit the cuff to your left arm, it can also be placed on your right arm. However, all measurements should be made using the same arm.

To use on the right arm, you must position the artery symbol “ ” over the main artery. Locate the main artery by pressing with two fingers approximately 1” (2 cm) above the bend of your elbow on the inside of your right arm. Identify where the pulse can be felt the strongest. This is your main artery.

Main Artery

MEASUREMENT PROCEDURE Important Notes:

• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition and other factors. For greatest accuracy, wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking to measure blood pressure.

Color palette bar with grayscale and white sections (no text or symbols)

• Before measurement, it is suggested that you sit quietly for 15 minutes as measurements taken during a relaxed state will have greater accuracy. You should not be physically tired or exhausted while taking a measurement.
• During the measurement, do not talk or move your arm or hand muscles.
  • See page 28 for additional notes regarding your blood pressure measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

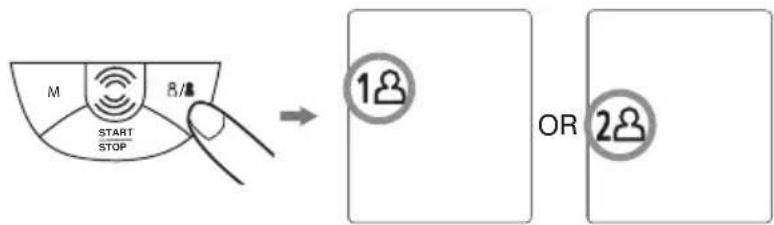

1. Press the User Select Button to choose User 1 or User 2.

After the user number is selected, press the START/STOP button to confirm the chosen user.

Color palette bar with grayscale and solid color swatches (no text or symbols)

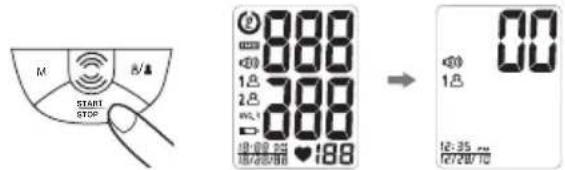

1. With the cuff wrapped around your arm, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your arm. All digits will light up to check the display functions. The checking procedure will be completed after about 3 seconds.

M 8/ START STOP 888 1.5 2.5 3.5 4.5 5.5 6.5 7.5 8.5 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.5 20.5 21.5 22.5 23.5 24.5 25.5 26.5 27.5 28.5 29.5 30.5 31.5 32.5 33.5 34.5 35.5 36.5 37.5 38.5 39.5 40.5 41.5 42.5 43.5 44.5 45.5 46.5 47.5 48.5 49.5 50.5 51.5 52.5 53.5 54.5 55.5 56.5 57.5 58.5 59.5 60.5 61.5 62.5 63.5 64.5 65.5 66.5 67.5 68.5 69.5 70.5 71.5 72.5 73.5 74.5 75.5 76.5 77.5 78.5 79.5 80.5 81.5 82.5 83.5 84.5 85.5 86.5 87.5 88.5 89.5 90.5 91.5 92.5 93.5 94.5 95.5 96.5 97.5 98.5 99.5 100.5

Note: If using the Voice Assist® “Instructions On” mode, you will be prompted to press the START/STOP button again before measurement begins.

1. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to start measurement.

30 120 180

1. The cuff will begin deflating as measurement continues.

Note: This monitor will re-inflate automatically if the system detects that your body requires more pressure for measurement.

Color palette bar with grayscale and colored squares, no text or symbols present

1. When the measurement is completed, the cuff will deflate entirely. Systolic pressure, diastolic pressure and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.

Note:

1. This monitor automatically turns off approximately 1 minute after last operation. You may also press the START/STOP button to turn the unit off.

12:35 PM 12/28/10

1. To interrupt the measurement, you may press the START/STOP (recommended), "M," "Language," "Talking Mode," User-Select or Date & Time Set ( ⭕ buttons. The cuff will deflate immediately after a button is pressed.

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to defined levels established by the U.S. National Institutes of Health's (NIH) National Heart Lung and Blood Institute as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Stage 2 Hypertension

Prehypertension

Stage 1 Hypertension

Normal (No Symbol)

IRREGULAR HEARTBEAT DETECTOR (IHB)

The appearance of the neon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is not a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Color palette bar with grayscale shades (no text or symbols)

Movement, shaking or talking during the measurement can result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.

Irregular Heartbeat Detector 12:35 PM 12/28/10 120 120 80 78

To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal heartbeat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals.

At least 3 beats with 25% or greater difference from the average heartbeat interval will generate the IHB icon on the screen.

IMPORTANT INFORMATION:

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.

Color palette bar with grayscale and solid color swatches (no text or symbols)

RECALLING VALUES FROM MEMORY

This monitor can be used by two individuals. Each user can store up to 60 measurements.

1. Press the User-Select button.

1. Choose User 1 or User 2.

1. Press the "M" button to access the memory.

M 8/ START / STOP

1. The monitor will first display the calculated average applied to the last 3 memories.

120 120 80 80 76 AVG.3

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

1. Every new press of the “M” button will recall a previous reading. The latest reading will be recalled first.

12:35 PM 12/28/10 12:40 PM 12/28/10 12:76 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12:00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 12.00 iD

CLEARING VALUES FROM MEMORY

1. Press the User-Select button to select User 1 or User 2.

1. Press and hold the Date & Time set buttons (✗) at the same time while in memory recall mode, and the data for the selected user will be erased automatically.

and + CLR

27

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.
- Do not move or talk during measurement as this can elevate readings.
- Do not move or cross legs during measurement. Keep feet flat on floor.
- Do not touch cuff or monitor during measurement procedure.
- It is suggested that you take your measurements at the same time each day and use the same arm for consistency.
- Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.
- The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
- Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
- This product is not suitable for people with arrhythmias.

- This device may have difficulty determining the proper blood pressure for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

CARE, MAINTENANCE & CLEANING

1. Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.
2. Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
3. If the unit is stored near freezing, allow it to acclimate to room temperature before use.
4. This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information can be found on the warranty page).
5. Do not immerse the unit in water as this will result in damage to the unit.

Color palette bar with grayscale and multicolor swatches, no text or symbols present

1. Do not subject the monitor and cuff to extreme temperatures, humidity, moisture, and direct sunlight. Protect from dust.
2. Do not fold the cuff and tubing tightly.
3. Do not disassemble the monitor or cuff. If in need of repair, refer to the warranty section of this manual.
4. Do not subject the monitor to extreme shocks (do not drop on floor).
5. Do not inflate the cuff unless wrapped around your arm.
6. Do not wrap the cuff around body parts other than your arm.
7. Do not drop or insert any object into any opening or hose.
8. To avoid accidental strangulation keep this product away from children. Do not drape tube around neck.
9. This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:

- Storage Environment • Operating Environment

Temperature: -4°F\~158°F (-20°C\~70°C)

Humidity: less than 90% RH

Temperature: 50°F\~104°F (10°C \~40°C)

Humidity: 15% \~ 90% RH

POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipment, do not use the device near a cell phone or microwave oven.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Prohibition sign showing a mobile phone crossed out by a diagonal line, indicating no use or prohibition.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

TROUBLESHOOTING

If any abnormality arises during use, please check the following points

SYMPTOMS	POSSIBLE CAUSES	CORRECTION
Unit does not turn on when the START/ STOP button is pushed.	Batteries have run down.	Replace them with four new AA alkaline batteries.
	Battery polarities have been positioned incorrectly.	Re-insert the batteries in the correct positions.
EE measurement error symbol shown on display or the blood pressure value is displayed excessively low (or high).	Cuff has been placed incorrectly.	Wrap the cuff properly so that it is positioned correctly.
	Did you talk or move during measurement?	Measure again. Keep arm steady during measurement.
	Shaking of the arm with the cuff on.
E1 error symbol shown on display	Air circuit abnormality. Cuff tube may not be plugged into monitor correctly.	Check cuff connection. Measure again.
E2 error symbol shown on display	Inflation pressure exceeding 300 mmHg.	Switch the unit off, then measure again.
E3 error symbol shown on display	Error determining measurement data.	Measure again.

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found on the warranty page.

SPECIFICATIONS

Power Source:	Four 1.5V DC (AA) alkaline batteries or 6V DC AC adapter
Measurement Method:	Oscillometric
Measurement Range:	Pressure: 40~280 millimeters mercury (mmHg)Pulse: 40~199 beats/minute
Accuracy:	Pressure: ±3 mmHgPulse: ±5% of reading
Pressure Sensor:	Semi-conductor
Inflation:	Pump driven
Deflation:	Automatic Pressure release valve
Memory Capacity:	60 memories for each User (120 total)
Auto-shut-off:	1 minute after last button operation
Operation Environment:	Temperature: 50°F~104°F (10°C ~40°C)Humidity: 15% ~ 90% RH
Storage Environment:	Temperature: -4°F~158°F (-20°C~70°C)Humidity: Less Than 90% RH
Weight:	0.65 lbs (293 g) (without batteries)
Arm Circumference:	Standard size cuff: 9”-13” (23-33 cm)Large size cuff:13”-17” (33-43 cm)
Dimensions:	5.6”(L) x 4.3”(W) x 2.5”(H)143.2mm(L) x 108.7mm(W) x 63mm(H)
Accessories:	(4) AA alkaline batteries, 6V DC AC adapter,pouch, arm cuffs with tube
	Internally Powered equipmentType BF EquipmentIPx0-No special protection against theingress of waterNot suitable for use in presence of flammableanesthetic mixture with air, oxygen ornitrous oxide.Continuous operation with short-time loading.

Note: These specifications are subject to change without notice.

HOMEDICS®

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Mail:

HoMedics, Inc.

Service Center

Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

Email:

cservice@

homedics.com

Phone:

1-800-466-3342

Business Hours:

8:30am-5pm ET

Monday-Friday

Distributed by

HOMEDICS

HoMedics, Inc.

3000 Pontiac Trail

Commerce Township, MI 48390

Printed in China

LIMITED FIVE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of five years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This blood pressure monitor meets the simulated measurement cycles test requirement per EN1060-3, part 8.10. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:

HoMedics Consumer Relations

Service Center Dept. 168

3000 Pontiac Trail

Commerce Township, MI 48390

No COD's will be accepted.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit: www.homedics.com

©2009-2010 Homedics, Inc. and its affiliated companies, all rights reserved. HoMedics® and Voice Assist® are registered trademarks of HoMedics, Inc. and its affiliated companies. Smart Measure™ is a trademark of HoMedics Inc. and its affiliated companies. All rights reserved.

IB-BPA260A

P/N:323101305 VER:001

HOMEDICS®

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Color palette bar with grayscale and solid color swatches (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

USO DEL ADAPTADOR DE CA

Nota:

Simple line drawings of a capacitor and a handheld device (no text or symbols)

TALKING MODE LANGUAGE

Color palette bar with grayscale shades and a row of solid color swatches (no text or symbols)

TALKING MODE LANGUAGE

Color palette bar with grayscale and color swatches, no text or symbols present

Color palette bar with grayscale and multicolor swatches, no text or symbols present

USO DEL BRAZALLETE

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

Simple line drawing of a mechanical component inside a circle (no text or symbols)

BPA-260_A 323101305 0623.indd 52

52

2010/6/23 下午 10:05

Color palette bar with grayscale gradient from black to white (no text or symbols)

Medical diagram showing two stages of surgical procedure with labeled anatomical features and measurement annotations

Line drawing of a person performing a blood pressure monitor with an arrow indicating pressure direction (no text or symbols)

Nota:

Arteria principal

53

Color palette bar with grayscale and colored squares, no text or symbols present

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Color palette bar with grayscale and color swatches, no text or symbols present

Pure geometric lines and symbols without any text, numbers, or labels

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

ÍNDICE DE CATEGORÍA DE RIESGO

Color palette bar with grayscale and solid color swatches (no text or symbols)

CÓMO RECUPERAR LOS VALORES DE LA MEMORIA

M 8/ START /STOP

M 8/ START STOP

Color palette bar with grayscale swatches and a central crosshair (no text or symbols)

12:35 PM 12/28/10 12:40 PM 12/28/10 12:00 PM 12/00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:00 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM 12:05 PM

CÓMO BORRAR LOS VALORES DE LA MEMORIA

Color palette bar with grayscale and multicolor swatches, no text or symbols present

Prohibition sign showing a mobile phone crossed out by a diagonal line, indicating no use or prohibition.
