Product Type	Active speaker (powered speaker)
Brand	Konig
Model	OSPSX110TA
Configuration	Compact 2-way
Nominal Impedance	4 Ohms
RMS Power Rating	200 Watts
SPL 1W/1m	100 dB
Frequency Response (-10dB)	55 Hz - 20 kHz
Coverage Angles	90° x 40°
Crossover Frequency	3000 Hz
High-Frequency Component	1" voice coil driver
Low-Frequency Component	1 x 10" (200 W)
Cabinet Material	18 mm Plywood
Finish	Black lacquer paint
Dimensions (W x H x D)	36 x 56 x 38 cm
Net Weight	19 kg
Power Supply	120 V / 60 Hz (USA) or 230 V / 50 Hz (Europe)
Inputs	Main XLR female, XLR/TRS microphone, 1/4" jack
Outputs	XLR male (link), Powercon connector (power output)
Controls	Main volume, microphone gain, bass/treble EQ, low-cut switch
Protection	Peak limiter, fuse
Maintenance	Clean with a dry cloth. Do not use solvents.
Safety	Do not expose to moisture. Disconnect before any repair.
Warranty	Warranty void if modified or used incorrectly.

Frequently Asked Questions - OSPSX110TA KONIG

How to connect a microphone to the speaker?

Use the Micro/Line input XLR/1/4 TRS (jack) located on the rear panel of the top speaker. Adjust the level with the Micro Gain knob. Be careful not to saturate the signal.

Can I use the speaker alone without a subwoofer?

Yes, set the low-cut/full-range switch (06) to the Off position to use the top speaker as a full-range speaker. However, low frequencies will be limited by the speaker size.

What to do if the Peak indicator lights up frequently or continuously?

The Peak indicator shows that the limiter is active to prevent saturation. If it flashes frequently or stays on continuously, lower the main volume or micro gain level to reduce the input level.

How to daisy chain multiple active speakers?

Use the Link output (XLR male) of the first speaker to connect to the main input (XLR female) of the next speaker, and so on. The output signal is identical, so you can chain multiple speakers.

What is the difference between the main input and the microphone input?

The main input (XLR female) is intended for line-level signal (mixing console, audio source). The microphone input (XLR/TRS) has a preamp with gain adjustment suitable for microphones. Do not use a microphone on the main input without an external preamp.

Can I use an unbalanced cable with this speaker?

Yes, but follow this wiring: connect the hot signal (pin 2) and ground (pin 1) of the balanced input. Leave pin 3 (cold) disconnected. In case of a ground loop, try connecting ground only to pin 3.

How to adjust the equalization (EQ)?

Use the Low (Bass) and High (Treble) EQ knobs on the rear panel. Turn them clockwise to increase the corresponding frequency. Adjust according to your acoustic preferences and the type of audio content.

What to do if the fuse blows?

Disconnect the device from the mains. Replace the fuse with an identical model (same rating, standard type) located in the designated holder. If the problem persists, have the device checked by a qualified technician.

Can I suspend the speaker by its handles?

No, the handles are not designed to support the weight when suspended. The speaker is intended to be placed on the floor. Never attempt to suspend it by the handles.

How to clean the device?

Use a dry, soft cloth to wipe the surface. Do not use solvents, alcohol, or abrasive products that could damage the finish. Make sure the device is unplugged before cleaning.

USER MANUAL OSPSX110TA KONIG

Exterior view of a modern black industrial enclosure with two speakers and support legs (no text or symbols visible)

MANUAL (p. 2)

Active Speaker System 15" + 12"

MODE D'EMPLOI (p. 10)

MANUAL DE USO (p. 22)

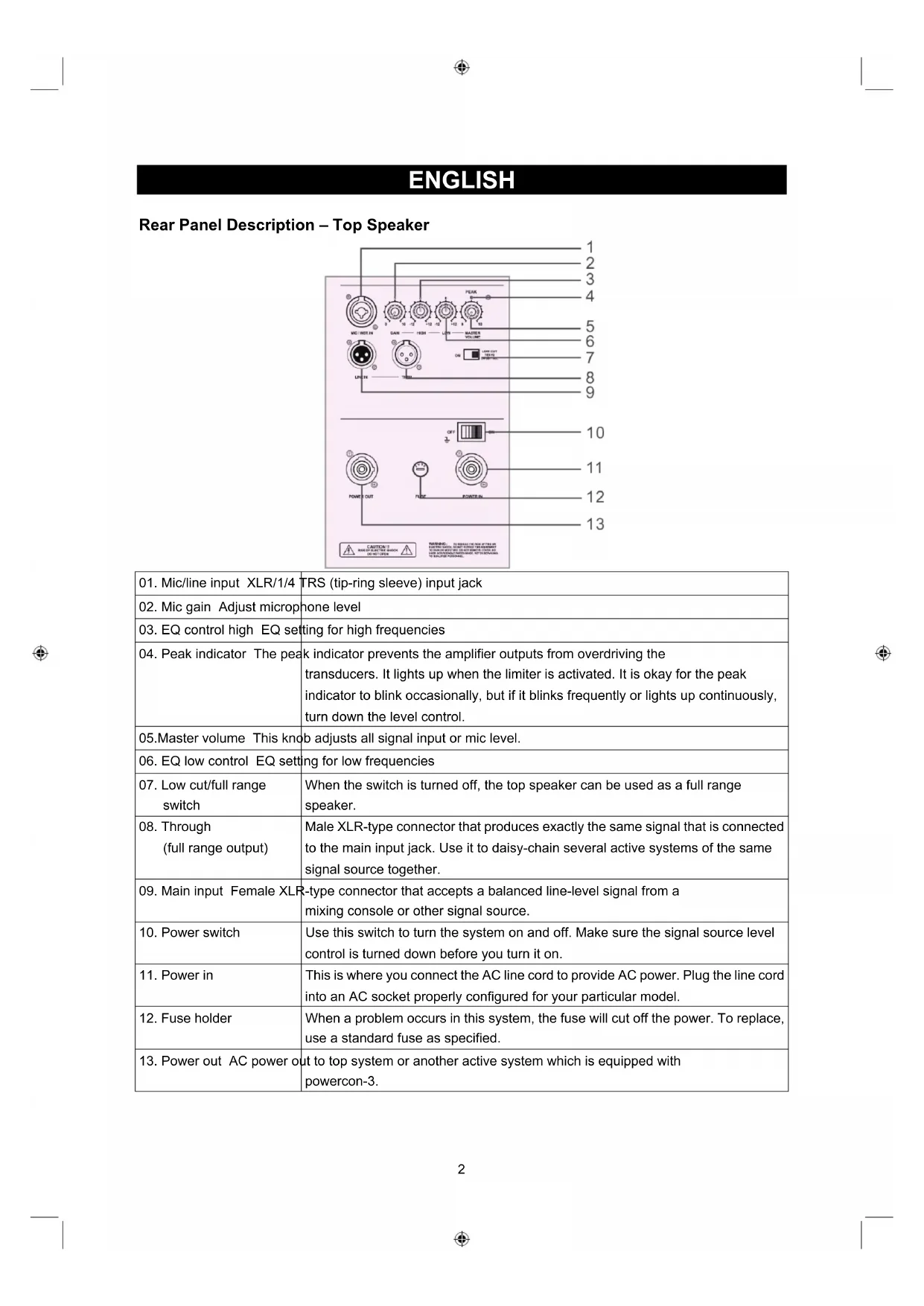

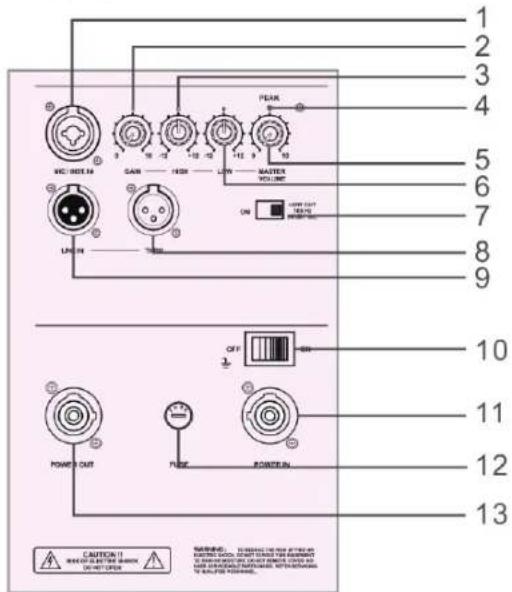

Rear Panel Description – Top Speaker

1 2 3 4 5 6 7 8 9 LAM IN CAIR FISH LEEK MAKTER VOLT-UNIT ON LOWER ROOT TOLER WMG OFF POWER OUT POWER IN 10 11 12 13 CAUTION 11 WARNING: 1. WARNING ON LAYER WITH IFC AND WARNING: OK, Cancel OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Off OK, Cancel Out

01. Mic/line input XLR/1/4	TRS (tip-ring sleeve) input jack
02. Mic gain Adjust microphone level
03. EQ control high EQ setting for high frequencies
04. Peak indicator The peak indicator prevents the amplifier outputs from overdriving the transducers. It lights up when the limiter is activated. It is okay for the peak indicator to blink occasionally, but if it blinks frequently or lights up continuously, turn down the level control.
05. Master volume This knob adjusts all signal input or mic level.
06. EQ low control EQ setting for low frequencies
07. Low cut/full range switch	When the switch is turned off, the top speaker can be used as a full range speaker.
08. Through (full range output)	Male XLR-type connector that produces exactly the same signal that is connected to the main input jack. Use it to daisy-chain several active systems of the same signal source together.
09. Main input Female XLR-type connector that accepts a balanced line-level signal from a mixing console or other signal source.
10. Power switch	Use this switch to turn the system on and off. Make sure the signal source level control is turned down before you turn it on.
11. Power in	This is where you connect the AC line cord to provide AC power. Plug the line cord into an AC socket properly configured for your particular model.
12. Fuse holder	When a problem occurs in this system, the fuse will cut off the power. To replace, use a standard fuse as specified.
13. Power out AC power out to top system or another active system which is equipped with powercon-3.

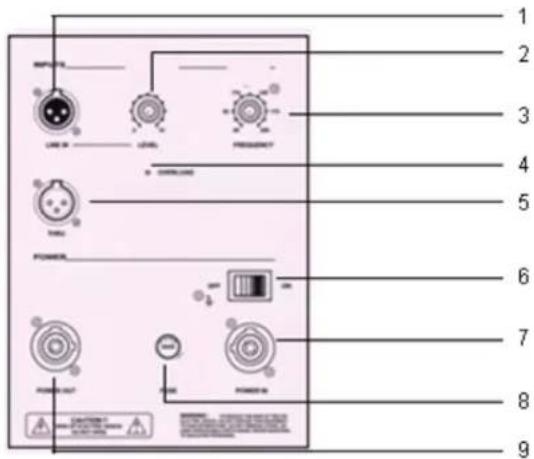

Rear Panel Description – Sub Speaker

Diagram of a computer front panel with numbered labels pointing to various electronic components and indicators.

01. Full range input Female	XLR-type connector that accepts a balanced line-level signal from a mixing console or other signal source
02. Subwoofer level control	Adjusts the subwoofer level. Use this as a starting point for setting the balance between the subwoofer and the main speaker.
03. Frequency control	With this control you can adjust the bass frequency from 40 Hz to 200 Hz to balance the bass and top speakers.
04. Limit peak indicator	The peak indicator prevents the amplifier outputs from overdriving the transducers. It lights when the limiter is activated. It is okay for the peak indicator to blink occasionally, but if it blinks frequently or lights continuously, turn down the level control.
05. Through (full range output)	Male XLR-type connector that produces exactly the same signal that is connected to the main input jack. Use it to daisy-chain several active systems of the same signal source together.
06. Power switch	Use this switch to turn the system on and off. Make sure the signal source level control is turned down before you turn it on.
07. Power in	This is where you connect the AC line cord to provide AC power. Plug the line cord into an AC socket properly configured for your particular model.
08. Fuse holder	When a problem occurs in this system, the fuse will cut off the power. To replace, use a standard fuse as specified.
09. Power out AC power out	to top system or another active system which is equipped with powercon-3.

TIPS

Do not expose electronic circuitry to moisture!

When the system is placed outdoors, be sure to protect it from rain. Keep drinks and all other liquids well away from the cabinets to protect their electronic components from short circuits.

Ensure that the ducts on the enclosures rear panels are free of dirt and the system is properly ventilated, otherwise electronic components may overheat and suffer damage.

CONNECTIONS

The system has a female XLR input that accepts a balanced line-level signal.

When connecting a balanced signal, be sure it is wired to AES (Audio Engineering Society) standards:

If connecting an unbalanced signal to the system balanced input, be sure that the signal high (hot) connection is wired to pin 2 and the unbalanced ground connection is wired to the low and the ground connections of the balanced input. If there is a ground-loop problem, try connecting the unbalanced ground connection only to the input low connection (pin 3), and leaving the input ground connection disconnected.

The through output connectors allow you to connect more than one bass or other active speaker to your system.

Simply plug the full range input jacks into the first speaker, and patch that speaker through jacks to the next speaker as input jacks, and so on, daisy-chaining multiple speakers. The through jack is wired straight from the full range input connector (there is no electronic circuitry between), so the signal coming out of the through jack is exactly the same as the signal going in.

PLACEMENT

The bass system is designed to sit on the floor.

Never attempt to suspend the system by its handles. As with all electrical components, protect the system from exposure to moisture.

If you are setting the system up outdoors, make sure they are covered if you expect rain.

AC POWER

Be sure the system is plugged into an outlet that is able to supply the correct voltage specifically for your model. Also be sure that the electrical service can supply enough amperage for all the components connected to it. We recommend that a strong supply of AC power is used because the amplifiers place high current demands on the AC line.

Poor bass performance is often caused by a week AC supply to the amplifiers. Never remove the ground pin on the power cord of the bass or any other component.

SPECIFICATION

	OSP-SX110ta	OSP-SX112ta
TOP / 10" FULL RANGE TOP / 12" FULL RANGE
Cabinet Mid / High Mid / High
Full range Full range
Configuration Compact 2-way Compact 2-way
Nom. Impedance 4 Ohm 4 Ohm
Rated Power RMS 200 Watt 300 Watt
SPL 1 w/1 m 100 dB 101 dB
Frequency Response	(-10 dB) 55-20 KHz	45-20 KHz
Coverage Angle	90° × 40°	90° × 40°
Crossover Frequency	3000 Hz	2000 Hz
Voice Coil Protection	PTC	PTC
Components High	1" Driver	1" Driver
Components Mid (Low)	1x10/200	1x12/300
	10"	12"
Material	Plywood 18mm	Plywood 18mm
Finish	Black lacquer	Black lacquer
Dimensions (w x h x d cm)	36x56x38	42x62x43
Net Weight (kg) 19	25

OSP-SX115sa

OSP-SX118sa

SUB-WOOFER / 15" SUB-WOOFER / 18"

Frequency Range: 40 Hz-200 Hz 40 Hz-200 Hz

SPL 1 w/1 m: 102 dB 102 dB

Max. SPL@1m: 124 dB 124 dB

Input Type: Balanced differential Balanced differential

Input Impedance: 20 K Ohm 20 K Ohm

Input Protection: Level protected Level protected

Low-Frequency Transducer

Diameter: 15" (386mm) 18" (463mm)
Voice Coil Diameter: 4" (99.2mm)	4" (99.2mm)

Low-Frequency Power Amplifier

Rated Power:	600 Watt RMS	600 Watt RMS
Rated THD:	<0.03%	<0.03%
US	120 V, 60 Hz	120 V, 60 Hz
Europe	230 V, 50 Hz	230 V, 50 Hz

Cabinet Material Plywood 18mm Plywood 18mm

Dimensions (w x h x d cm) 47x58x60 50x66x60

Net Weight (Kg) 38 44

Safety precautions:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
