Product type	Design Bluetooth stereo headset
Brand	Konig
Model	CMPBLUEHS20
Category	Headphone
Approximate weight	200 g
Dimensions (approx.)	18 x 15 x 5 cm (folded)
Connection type	Wireless Bluetooth
Bluetooth range	Up to 10 meters
Battery	Rechargeable lithium-ion, capacity not specified approx. 400 mAh
Initial charging time	4 hours minimum
Standard charging time	4 hours
Talk time	Approximately 8 hours (estimate)
Standby time	Up to 200 hours (estimate)
Charge indicator	Red LED on while charging, off when charged
Low battery indicator	3 tones every 30 seconds + red LED flashing twice
Main functions	Listen to music, make/receive calls, music controls (previous/next/pause/volume), voice dial, last number redial, mute mode, call switching
Headband adjustment	Adjustable retractable headband
Charging port	Micro-USB (cable included)
Built-in microphone	Yes
Care and cleaning	Clean with a dry cloth, do not use solvents
Safety	Do not open the device, do not expose to water or moisture
Warranty	Warranty not applicable in case of modification or incorrect use
Spare parts and repairability	No spare parts provided, repair by qualified technician only

Frequently Asked Questions - CMPBLUEHS20 KONIG

How to charge the Konig CMPBLUEHS20 headset?

Use the provided USB cable. Plug the cable into the headset charging port and into a USB source (power adapter, computer). The red LED lights up during charging and turns off when the battery is full. The first charge must last 4 hours minimum, and the first three uses require a full charge of 4 hours after each use.

How to turn the headset on and off?

To turn on the headset, press the multi-function button (MFB) for 3 to 5 seconds until the blue LED flashes rapidly. A tone sounds. To turn off, hold the same button for 3 to 5 seconds until the red LED flashes rapidly, then release. A tone confirms shutdown.

How to pair the headset with a Bluetooth phone?

Make sure the headset is off. Press and hold the MFB button for 5 to 7 seconds until the red and blue LEDs flash alternately (pairing mode). Enable Bluetooth on your phone and search for devices. Select 'CMPBLUEHS20' from the list. If a PIN is requested, enter 0000. Pairing is confirmed by blue or red LED flashes every 4 seconds.

What to do if pairing fails?

First turn off the headset. Retry the pairing procedure by holding the MFB button for 5 to 7 seconds to enter pairing mode. Make sure the phone is within one meter and Bluetooth is enabled. If the problem persists, restart your phone and try again.

How to answer or reject a call?

To answer, briefly press the MFB button when the phone rings. To reject a call, press and hold the MFB button for 2 seconds until you hear a short tone, then release. You can also switch the conversation between headset and phone by holding the MFB button for 2 seconds during a call.

How to use voice dial or redial the last number?

In standby mode, for voice dial, press the MFB button for 2 seconds and release when you hear a long tone. To redial the last number, briefly press the MFB button twice. A long tone confirms the action. Note: these functions depend on your phone's compatibility.

How to control music (previous/next track, pause)?

While listening to music, use the < (previous) and > (next) buttons to change tracks. Briefly press the MFB button to pause or resume playback. The + and - buttons adjust volume. These functions require your phone to support the AVRCP profile.

What do the headset LED indicators mean?

During pairing, red and blue LEDs flash alternately. In standby not connected, the blue LED flashes 2 times every 2 seconds. In standby connected, it flashes 2 times every 5 seconds. During an incoming call, it flashes 3 times per second. During a conversation, it flashes every 2 seconds. When battery is low, the red LED flashes 2 times with tones.

How to mute the microphone during a call?

During a call, briefly press the MFB button twice. A continuous tone sounds every 3 seconds to indicate the microphone is muted. To unmute, briefly press the MFB button twice again. The tone stops.

How to care for and clean the headset?

Use a soft dry cloth to clean the headset. Do not use solvents or abrasive products. Avoid exposure to water and moisture. If you do not use the headset for an extended period, charge it fully and store it in a dry place.

USER MANUAL CMPBLUEHS20 KONIG

Black hardcover headphones with a 'STUDIO 8' button, shown against a white background (no text or symbols on the device itself)

MANUAL (p. 2)

Stereo Bluetooth Design Headset

MODE D'EMPLOI (p. 10)

Casque Stéréo Bluetooth® Design

MANUALE (p. 18)

Cuffia stereo Bluetooth®

HASZNÁLATI ÚTMUTATÓ (o. 26.)

Sztereo Bluetooth® design headset

MANUAL DE USO (p. 22)

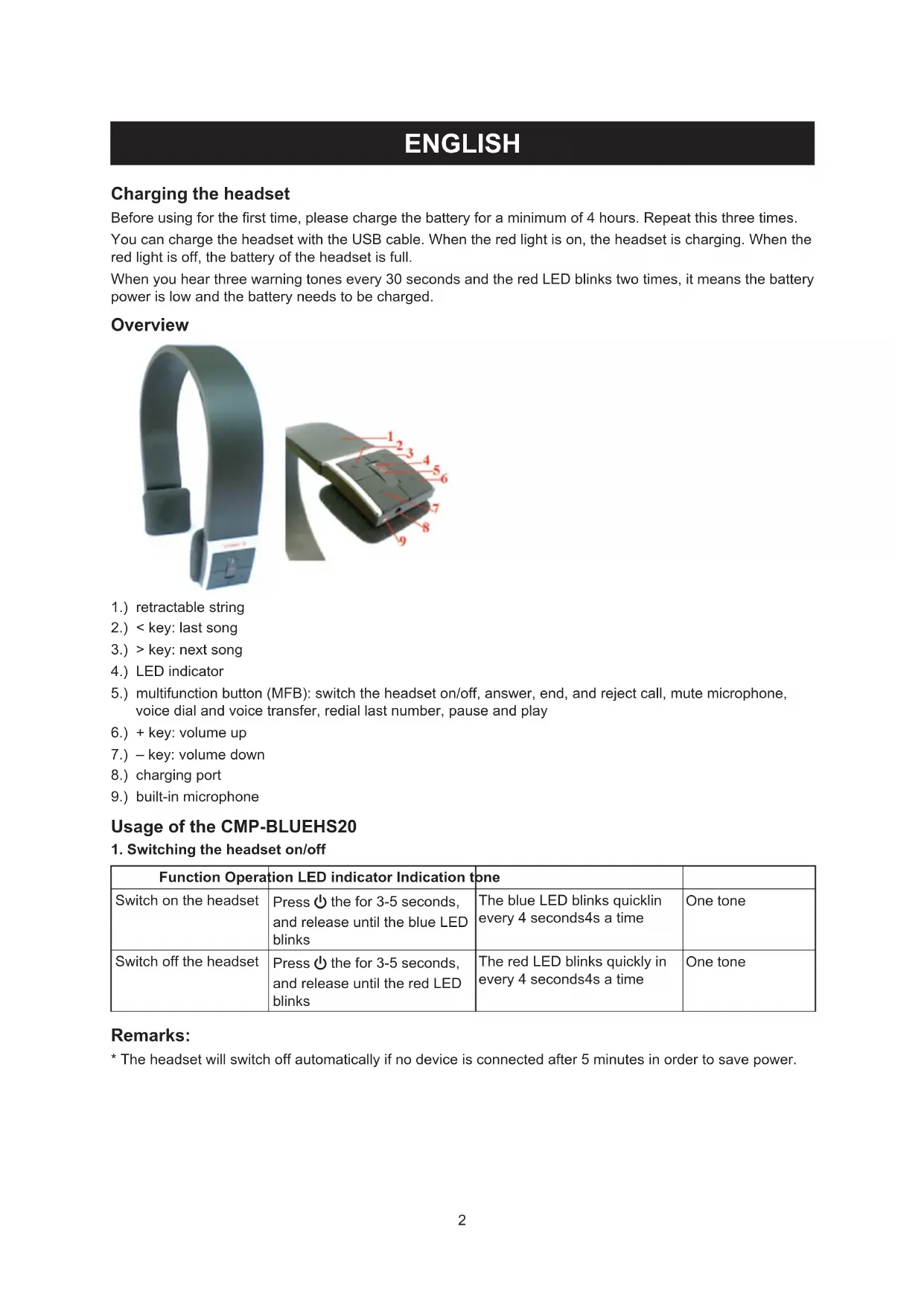

Charging the headset

Before using for the first time, please charge the battery for a minimum of 4 hours. Repeat this three times.

You can charge the headset with the USB cable. When the red light is on, the headset is charging. When the red light is off, the battery of the headset is full.

When you hear three warning tones every 30 seconds and the red LED blinks two times, it means the battery power is low and the battery needs to be charged.

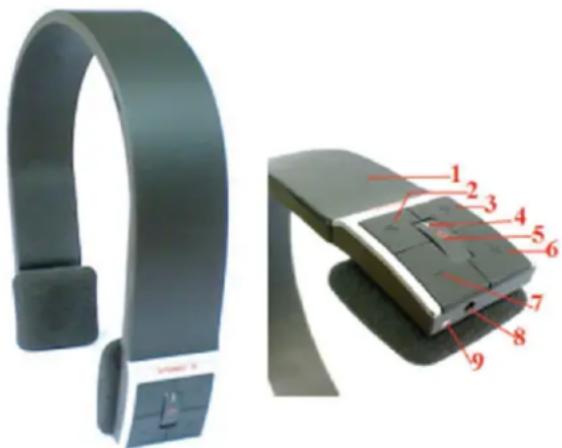

Overview

Technical diagram of a smart ear with numbered parts labeled for identification

1.) retractable string
2.) < key: last song
3.) > key: next song
4.) LED indicator
5.) multifunction button (MFB): switch the headset on/off, answer, end, and reject call, mute microphone, voice dial and voice transfer, redial last number, pause and play
6.) + key: volume up
7.) - key: volume down
8.) charging port
9.) built-in microphone

Usage of the CMP-BLUEHS20

1. Switching the headset on/off

Function Operation LED indicator Indication tone
Switch on the headset	Press ⏻ the for 3-5 seconds, and release until the blue LED blinks	The blue LED blinks quicklin every 4 seconds4s a time	One tone
Switch off the headset	Press ⏻ the for 3-5 seconds, and release until the red LED blinks	The red LED blinks quickly in every 4 seconds4s a time	One tone

Remarks:

* The headset will switch off automatically if no device is connected after 5 minutes in order to save power.

2. Pairing the headset with Bluetooth devices

2.1. How to enter the pairing mode

Function Operation LED indicator Indication tone
Enter into pairing mode	First, make sure the headset is off. Press ⏻ for 5-7 seconds and release until the red and blue LEDs blink alternately	The red and blue LEDs blink alternately	Two tones

Note:

* The pairing mode will last 2 minutes. If the headset still cannot pair with any Bluetooth devices, it will automatically switch into standby mode.

2.2. Pairing the headset with a Bluetooth mobile phone

Please make sure your mobile phone has a Bluetooth function.

Specific pairing procedures may vary with different mobile phones. Please refer to your mobile phones' manual for further information. The steps are as follows:

a. Please keep the headset and mobile phone within 1 metre of each other when pairing
b. Make the headset enter the pairing mode (please refer to 2.1)
c. Switch on the Bluetooth function of the mobile phone and search for Bluetooth devices. When the search is completed, select the headset in the Bluetooth device list.
d. When prompted, enter PIN No: "0000" as the password and press "Yes" or "Confirm".
e. After pairing the devices successfully, select the headset in the Bluetooth device list and press "Connect".
f. If the connection is successful, the blue (or red) LED of the headset blinks twice every 4 seconds.

Note:

* If the pairing is not successful, please switch off headset first then try to pair them again according to the steps mentioned above.

* After pairing, the devices will remember each other.

* The headset will connect with the last paired device. If you want to pair it with other Bluetooth devices, please switch off the Bluetooth function of the current Bluetooth device, then pair and connect the new Bluetooth device according to steps mentioned above.

3. Pairing the headset with a Bluetooth transmitter

You can enjoy music wirelessly by connecting the headset with a stereo Bluetooth transmitter. See the manual of your transmitter for more details.

4. Making a call with the headset

Function Status of the headset Operation Indicator tone
Voice dial Standby mode		Press ⏻ for 2 seconds and release until a tone is heard	A long tone
Redial last number Standby mode		Briefly press ⏻ twice	A long tone
Volume up Conversation mode Briefly press + and then release (or hold) it			None
Volume down Conversation mode Briefly press – and then release (or hold) it			None
Answer call	Ringing	Briefy press ⏻	A short tone
Reject call	Ringing	Press ⏻ for 2 seconds and release until a tone is heard	A short tone
End call	Conversation mode	Briefly press ⏻	A short tone
Switch conversation between headset and mobile phone	Conversation mode	Press ⏻ for 2 seconds and release until a tone is heard	A short tone
Function Status of the headset Operation Indicator tone
Mute microphone Conversation mode		Briefly press ⏻ twice	Continuous tone every 3 seconds
Cancel mute Conversation mode (mute)		Briefly press ⏻ twice	None

Remarks:

* Not all mobile phones support all the functions listed above. Please refer to your mobile phone's user manual.
* When the volume is adjusted to maximum or minimum, you will hear an indicator tone of "Ding-Dong".
* For some mobile phones, when you press the button to answer the phone, the conversation will be sent to the phone. If this happens, you can switch the call to the headset by using the conversation switch button or trough operating on the mobile phone. Please refer to your mobile phone's user manual for further information. It means you can check your phone setting and transfer the conversation back to the Bluetooth headphone.

5. Wearing the headset

Hook the headset over both ears by using both hands and you can adjust it as you please (see picture).

Close-up of a black hardcover with attached cable, showing a close-up of the cable's connector (no text or symbols visible)

6. Playing music

When the headset connects with the mobile phone or Bluetooth transmitter, you can enjoy music wirelessly through the headset.

Function Status of headset Operation Indicator tone
Volume up Playing music	Briefly press + and then	release (or hold) it	None
Volume down Playing music	Briefly press – and then	release (or hold) it	None
Pause Playing music		Briefy press ⏻	None
Revert Pause		Briefy press ⏻	None
Last song Playing music		Briefly press < and then release it	None
Next song Playing music		Briefly press > and then release it	None

Remarks:

* For some mobile phones, when you play music, the music will be transmitted to the speaker of the phone. In this case you should choose “transmit the sound through Bluetooth” in the phone settings. Please refer to the manual of the phone.
* When the volume of the headset is adjusted to maximum or minimum you will hear a tone of "Ding-Dong".
* To remotely control the functions of last song / next song / pause / revert, your mobile phone needs a Bluetooth transmitter which supports AVRCP. Please refer to the manual of the mobile phone for further information.

7. LED indicator

Pairing the Bluetooth device

LED indicator Status of the headset
Red and blue LEDs blink alternately Pairing mode
Blue LED blinks twice every 2 seconds Standby mode (not connected with the Bluetooth device)
Blue LED blinks twice every 5 seconds Standby mode (connected with the Bluetooth device)
Blue LED blinks 3 times every second Ringing
Blue LED blinks every 2 seconds Conversation mode

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product

to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
