Product type	Clock radio with projector
Brand	AEG
Model	MRC 4105 P
Main power supply	230 V, 50 Hz
Power consumption	3 W
Backup batteries	1 9 V block battery (not included)
Frequency bands	FM (VHF) : 88-108 MHz ; AM (MW) : 530-1600 kHz
Display	LED
Main functions	FM/AM radio, radio or buzzer alarm, sleep timer (SLEEP), alarm repeat (SNOOZE), time projection
Projection	Projected time on wall or ceiling, orientation up to 180°, adjustable focus
Alarm	By radio (adjustable volume) or by buzzer, manual or automatic stop with SNOOZE (8 min)
Sleep timer	SLEEP function: shut off after 59 min or 1 h 59 min, adjustable
Protection class	II
Safety	Do not expose to water or moisture; do not block ventilation openings; do not open the casing; use only for intended purpose
Maintenance and cleaning	Disconnect before cleaning; clean with a slightly damp cloth without detergent; do not immerse
Warranty	24 months from date of purchase (upon proof)
Repairability after warranty	Chargeable repairs by a specialist or after-sales service
Supplied accessories	Power cord (fixed), instruction manual

Frequently Asked Questions - MRC 4105 P AEG

How to set the time on the AEG MRC 4105 P clock radio?

To set the time, press and hold the TIME button while pressing HOUR for hours or MIN for minutes. The time is displayed in 24-hour format.

How to program the alarm?

Press and hold the ALARM button while pressing HOUR (hours) or MIN (minutes). The alarm is also set in 24-hour format.

How to wake up with the radio?

First select a radio station using the band selector (FM/AM) and the TUN button (10). Set the desired volume. Place the function switch (7) to AUTO. The ♂ icon appears. At the set time, the radio turns on automatically. Press ALARM to stop it.

How to wake up with the buzzer instead of the radio?

Turn the volume control (12) fully left to the BUZZER position (a click is felt). The alarm will then sound a buzzer. Press ALARM or set the switch to OFF to stop it.

How to use the SNOOZE function?

When the alarm sounds, press the SNOOZE button (6). The alarm stops for about 8 minutes, then sounds again. The II icon flashes on the display. You can repeat this action several times.

How to use the sleep timer (SLEEP) function?

Press the SLEEP button (5) to turn on the radio. It will turn off automatically after 59 minutes (1 press) or 1h59 (2 presses). To adjust the duration, hold SLEEP and press HOUR or MIN. Cancel the function by pressing SNOOZE.

How to project the time on the wall or ceiling?

Set the PROJECTION button (17) to ON. Tilt the projector (16) forward or backward. Use the FOCUS ring (15) to adjust sharpness. The 180° ROTATION wheel (19) allows you to orient the projected display up to 180 degrees.

What to do in case of a power cut? Are settings saved?

In case of a power cut, settings (time, alarm) are only saved if backup batteries are installed. Open the battery compartment on the back, insert a 9 V block battery respecting polarity. Without battery, settings will be lost.

How to clean the clock radio?

Always unplug the device before cleaning. Use a soft slightly damp cloth (no detergent). Never immerse the device in water and avoid water entering the inside.

Radio reception is poor, what to do?

For FM band, fully extend the flexible antenna and orient it to improve reception. For AM band, a ferrite antenna is built-in; rotate the entire device to find the best orientation.

USER MANUAL MRC 4105 P AEG

Overview of the Components 3

Instruction Manual. 52

Technical Data 56

Guarantee 57

Spis tresci

Strona

Przegladelementow oblsugi. 3

D-47906 Kempen/Germany

UKW = FM, once medie = AM.

Stille inn tiden (24 h)

Timer: Trykk på TIME-knappen (3) og samtidig på HOUR-knappen (2).
Minutter: Trykk på TIME-knappen (3) og samtidig på MIN-knappen (1).

Stille inn vekketiden (24 h)

Timer: Trykk på ALARM-knappen (4) og samtidig på HOUR-knappen (2).

Legge inn batteri (Batterier leveres okay med)

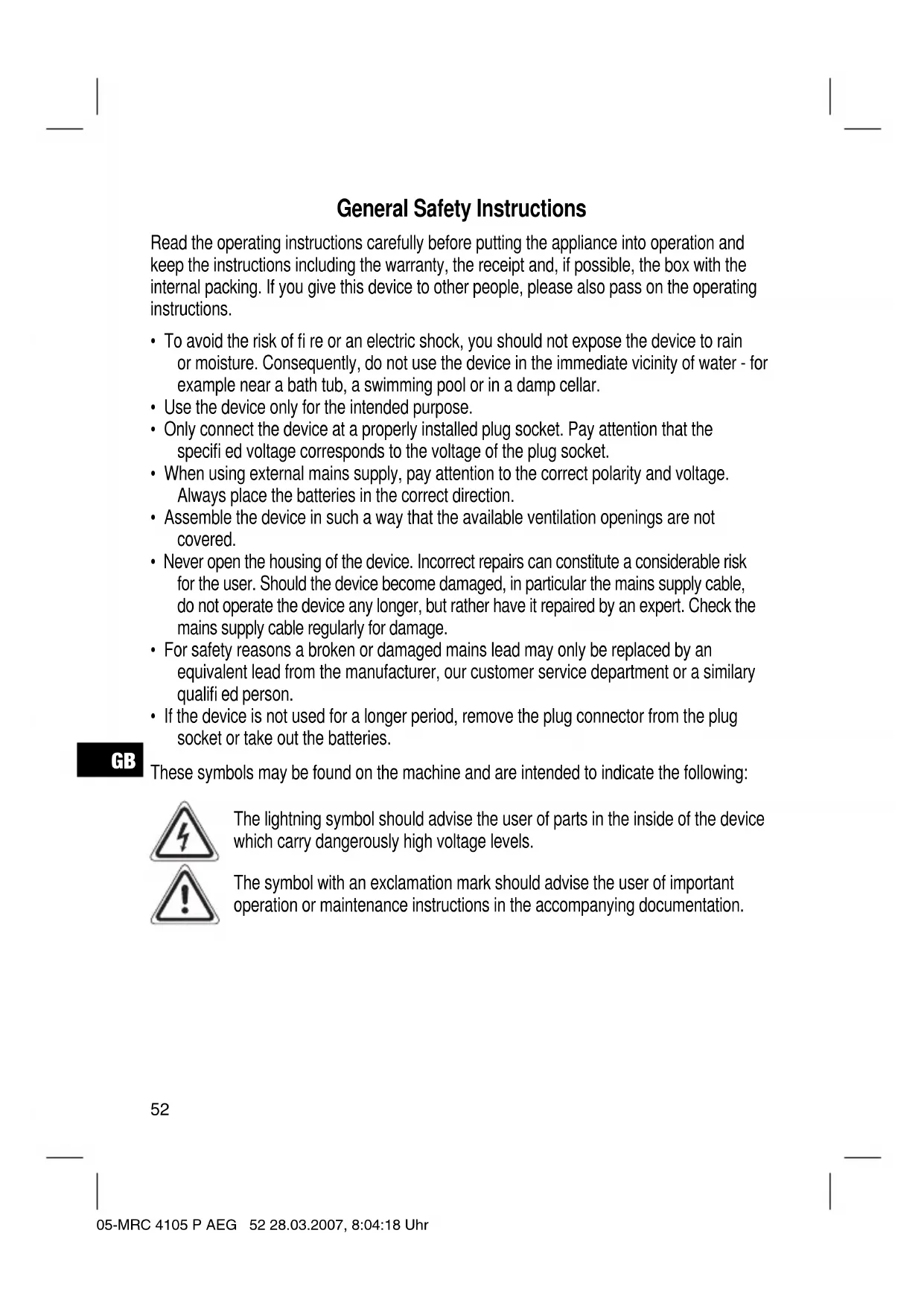

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
• Use the device only for the intended purpose.
• Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
• When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
• Assemble the device in such a way that the available ventilation openings are not covered.
• Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similary qualified person.
• If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

GB

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION: This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special Safety Instructions

• Do not use the device in locations that are extremely hot, cold, dusty or moist.
• Select a suitable location for the radio recorder, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
• Ensure that the radio recorder is sufficiently ventilated!
• Do not cover any ventilation slits with objects such as magazines, tablecloths, curtains etc.
• Never touch the mains plug or lead with wet hands.
• Keep the mains lead away from heaters.
• Never put a heavy object on the electric lead.
• Keep the device away from vases, baths, wash basins etc. If liquid enters the device this may cause serious damage.

Overview of the Components

1 Set minutes (MIN) 10 TUN. regulator
2 Hour function key (HOUR) 11 LED display
3 Time setting function key (TIME) 12
4 Alarm function key (ALARM) 13 Battery compartment
5 Function key for delayed switch-off 14 Lens (SLEEP) 15 FOCUS regulator
6 Wake-up interval (SNOOZE) 16 Swiveling projector
7 Function switch (AUTO/OFF/ON) 17 PROJECTION ON/OFF switch
8 LED for activated alarm function (2) 18 Band selection switch (FM/AM)
9 Station scale 19180^ ROTATION regulator

Putting into function

Insert the plug into a properly installed 230V 50 Hz power socket.

Radio station tuning

1. Turn the band selector switch (18) to the FM or AM position, depending on which frequency band you wish to hear.
   UKW = FM, Medium Wave = AM.
2. Push the function switch (7) to the ON position and select a station by turning the TUN control (10). The station scale (9) indicates the selected frequency.
3. If reception is too weak and the station being received hisses, try to improve reception by turning, unwinding or winding up the throw-out antenna.
4. An aerial is integrated into the device for the reception of AM stations. The device can be turned to line it up with the transmitter.

Volume

The desired volume can be sent using the VOL(UME) regulator (12).

Setting of the Clock (24 h)

Hours: Press the TIME key (3) and the HOUR key (2) simultaneously.

Minutes: Press the TIME key (3) and the MIN key (1) simultaneously.

Setting of the Alarm (24 h)

Hours: Press the ALARM key (4) and the HOUR key (2) simultaneously.

Minutes: Press the ALARM key (4) and the MIN key (1) simultaneously.

54

Radio alarm

• Once the alarm times are set and a radio station has been selected, shift the function selector (7) to „AUTO“. The „8(8) symbol lights up in the display (11).
• As soon as the alarm time is reached, the radio is switched on. The selected radio station plays at the set volume.

To turn the radio off simply press the ALARM button.

Buzzer alarm

• If you would not like to be woken up by the radio, turn the volume control (12) to the „ position (buzzer) until it locks in place.
  Instead of the radio, the buzzer goes off when the alarm time is reached.

To turn off the alarm, push the function switch (7) to the OFF position or press the ALARM button (4).

Automatic Alarm Interval

The automatically set alarm function can be shut off for approximately 8 minutes with the SNOOZE key (6). The ^# flashes in the display.

Switch-off

The device is switched off if the function switch (7) is in the "OFF" position.

Delayed Shut-Off

The delayed switch-off function can be used when the switch is in the positions AUTO or OFF.

• When the SLEEP button (5) is pressed the radio is switched off after 59 minutes or 1 hour and 59 minutes. The switch-off time can be adjusted by pressing the SLEEP and the HOUR button (2) or the MIN button (1) at the same time.
• This function can be cancelled with the SNOOZE key (6).

Projection

With this device you can project the time on the wall or on the ceiling. Shift the PROJECTION switch (17) to the ON position. You can swing the projector (16) either to the front or backwards. On the back of the projector there is a dial (15) with which you can adjust the sharpness of the projected display.

I NOTE:

With the adjustment wheel (19) you can turn the projected image through up to 180 degrees.

Inserting the batteries

(not supplied)

If there is a power cut or the mains plug has been removed from the power socket, the settings will be retained if the power reserve batteries are inserted.

1. Open the battery compartment on the back.
2. Connect a 9 V, E compound battery to the supply connection. Please ensure the correct polarity.
3. Close the battery compartment again.
4. If the device is not used for a prolonged period of time, please take the batteries out in order to prevent leakage of battery acid.

CAUTION:

Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

WARNING:

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!

Cleaning

• Remove the plug before cleaning.
• Clean the appliance with a slightly humid cloth without any additives.
• Do not dip the appliance in water.

GB

Technical Data

Model: MRC 4105 P

Power supply: 230 V, 50 Hz

Power consumption: 3 W

Battery power reserve: 9 V block

Protection class: II

Frequency ranges: UKW / FM 88 ~ 108 MHz

MW/AM530\~1600kHz

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Regulator , VOL (sila glosu)

19 Regulator 180^ ROTATION

Uruchomienie

Regulatorem glosnosci VOL(UME) (12)UNCTO 100000000000000000000000000000000000000000000000000000000000000000000000

BHHMaHHe! He no3BOJnTe DeTm nIgpaTb C nOJIaTnIeHOBo IJIeHKo. OnachocTb yduyba!

• UTO6bI 3aunntb DeTei n Dpynx LnU, HxKaIOxxCB B yXOe I npcMOTpe, OT nopaxKeHn EJIeKTPoTOKOM, CneIte 3a TEM, UTO6bI np6Op He BkIoHuaIcR 6e3 npcMOTpa. 3OT np6Op - He irpyuHa. He donyckaiTe K Hemy Deten.

Cnmbonbl npHmehbIe B daHHOM pyKOBoDCTBe NOIb3OBaTeJIa

BaKbIe peKOMeHdauu InI OBeCneueHn BaWei 6e3OnaCHOCTN 0603NaueHbI NO OcObeHHomy. O6r3aTeNbHO CNeDyIte 3TmpeKOMeHaUaM, UTObI pPeOTBpaTITb HeCuaCThBi CNyau NIN NIOLOMKy N3dEInra:

PENEYNPEKHEHNE:

IpeynpeKdaet 06 onaCHOCTn IJN 3IOPOBBB IN BO3MOXHOM pINCKe NOJUeyHn TpaBMbl.

BHIMAHHE:

Yka3bIbaet Ha BO3MOxHHyIO ONaCHOCTb IJIa N3DeJIINr I dpyrNX OkpyXaIOxN ppeDMeTOB.

I INPIMEYAHNE: Daet coBeTbI INHΦopMaunHO.

CneuaHbHbIe yka3aHnI no TexHnke 6e3oNaCHOCTN

• He yctaHaBnBaIte n3dJIeNBE CINbHO rOpAUX, XOIOJHbIX ININ BIAKHBIX MecTax.
  -ПодберпгЕ ДЯЗТО ГОДХОДЯСЕМecTO,TAKOBыMЯВЯETССухаг,ПLOCKагИ HeCKOЛьЗКаг NOВЕРХНOCТБ,C XOPOшIMdoCTYNOMKИЗDEЛИH.
  Cneinte 3a TEM, yTo6bI 6bJa o6ecneueHa DoctatoUHae BENTINJrNn3deJInr!
  He 3aKpbIbaiTe BeHTnlaUHbIe OTBepCTna KaKIMN-NoO npEdmTaMn, KaHapnMpE ra3EtAmN, DeKOpaTHBbIMn CaIΦETkAmN, 3aHaBeCmN T.D.
  He npikacaiTecb MOKpbIMn pykamK CeTEbOMy uHpy nIu ITeNCELHO.
  CeteboiHyp He doJxhen KacaTbc8aTapei OTOnJIeHHra.
• Hn B KOem Cnyuae He CTaBbTe Ha cTeBOH UHyp TAgKeIbIe npEaMeTbl.
  -Держichteидени поадьше OT Ba3 CцBetamn, BaHHbl, руkomоинka n.T.d.ЕспВODА ПОпадET ИЗдени, 3TO MOЖET пИВECTN K cepbe3HBIM NOСLEДCTBЯМ.

RUS

O63op JeTaJeI npH6opa

1 Khonka MNhyT (MIN) 8 CBeToDnOdHbI INHdNKaTOP

2 Khonka yacob (HOUR)

BKNIOUeHn6yDnIbHnKa (

3Функционьня кногka 9шкаланactpoиkn nporpammmpoBaHnвремeni (TIME)10 PeryIaTOp TUN.
4ФункционьногКногka11CbetOnOHyДИспел

nporpaMMnpoBaHH6yDInbHnka 12

PerynTOp VOL (rpomKoCTb)

(ALARM) 13 Otcek 6aatapeek

5ФункионьнянКногka14Пинза БыклоченясЗадержков(SLEEP)15PerylantopFOCUS
6 INTEpBaI BkIoueHn/ 16 NObOpOThbI npoEKTOp BbIKIOUeHn 6yDnIbHnka (SNOOZE) 17 BbIKIOUaTeIb PROJECTION ON/OFF
7Функионьний порклочаел 18 Пepeклочаел Диапазанов (FM/AM) (AUTO/OFF/ON) 19 Perynapot 180° ROTATION

BkIIOUeHne

BCTaBbTe cTeByIO BnIKy B po3eTKy C hAnpJKeHneM cEtN 230 B, 50 Tc, yCTaHOBHeHHyIO B COOTBETCTBmC PpeDnIcAHnA M.

• HaKaTne KhoNKn "SLEEP" (5) BBiKlIOuaye TaIIOnpnEMnK C 3aIepKkoB 59 nnn 1 yac 59 mHyT. BpeMa BbIKNoUeHn MOxHO peYunpoBaTb, Haxmam OndHOBpeMeHHO KhoNkn "SLEEP" n "HOUR" (2) nnn "MIN" (1).

HaKaTne KhoNKe "SNOOZE" (6) BbIKNoUaET 3tOT peKIM.

PpoeKzna

Pn nOMOuN 3TOrO np6opBa Bbl moKeTe npoeUPOBaTb noka3aHn yacOB Ha CTeHy nnHa nOTOLOK. DnA 3TOrO yCTAHOBtte BbIKIOuHTeB (npoeKun) PROJECTION (17) B no3nHOn ON. Bbl moKeTe hakIoHnB npoeKToP (16) Bneped nnHa3ad. Ha o6paTHoI cTOpone npoeKTopa HaxoINTcpeylnpOBOHoe KJIecNKo (15), npn nOMOuN KOtOPoro Bbl moKeTe perynpoBaTb pe3KocTb npoeUPOBaHHOro n3O6paJKeHN.

I INPIMEYAHNE:

Pn nmoi npynpoBOno KoneCka (19) Bbl moKeTe noBopaHbTa bpeunpoBaHHoe 306paXeHne Bnnot do 180 rpaDycob.

BctabJIeHne 6aTapeek

(6aTaapeHKn B KOMnIeK T NOCTaBKn He BXOJrT)

Ha cnyaai c6oEB B 3neKtpocetn nnn ecnn CteBaA BnIka bdyet BbHyta n3 po3eKn, BCTabJIeHHbIe 6atapeiKN Cnykat pe3epBOM XOJa YacOB i COxpaHr npOrpamMmPoBaHne.

1. OTKpoIte OTCeK 6aTapeEeK Ha 3aHne CTopoHe.
2. Поб_COeДиHHTe 9-и ВОьТоВуЮ 6аТаpeй К pa3БeМу. СбИДаиTe NOЯрHOCtIb.
3. 3akpoTe OTCEK dJa 6aTaapeek 6paTHo.
4. Ecnn 3neKtponpnpop dolroe BpeM He nCnoIb3yETcB bHbTe 6aTapeKn H3 Hero, YTObI PpeDTBpaNTb "BbITEKaHHe" UeNoH N3 HIX.

BHIMAHHE:

He Bb6paCbIbAte 6atapeKn B domaHm Mycop. PoJauyIcTa cdaIe Otpa6oTahHbIe 6atapeKn Ha CneuaJIbHbI pyHKT npIeMa IINB TOpRObyIO TocKy.

PPEyPENKDEHNE:

He noDBepraTe 6atapeKn CInbHomy HArpeBy nIN BO3deJCTBnIO npraMbIX cOnHeuHbIX Lyuei. HnkOrda He 6pocaiTe 6atapeKn B orOhb. CyueCTByET ONaCHOCb B3pbBa!

YnCTKa n yXoJ

-Перед чИстКо ВынselfeВиLКу n3 рОЗТК.
- Португе захлесуюпбог сlerka валжно Трянков 6e3 kaKnx-лбо моюшхсpeдст.
- Hn B koem clyuae He norgykaite 3neKtpopnpobby B BOy.

RUS

TexHnueckne daHHbIe

MoeIb: MRC 4105 P
3JIeKtpoIHTaHHe: 230B,50Tc
Iotpe6nemam MoHocb: 3 BaTT
Батарейка peЗервого пиганя: 6лочая 9В
Klacc 3aunrbl: II
ДианазоньчacOT: YKB / FM 88 ~ 108 MHz

CB/AM530\~1600kHz

3TO n3deneHne npoJIO BCE Heo6xOaMbIe n akTyalbHbIe npOBepK, npedncaHHbIe dInpeKTINBOI CE, K npIM. Ha 3NeKtpomarHHTHyO COBMeCTNMOCTb I COOTBETCTBHe Tpe6OBaHmK Hn3KOBoIbTHoI TexHnke, OHO 6blIO TaKHe CkOHCTpynpoBaHO I NOCTPOEHO C yUeTOM NocJeDHNX Tpe6OBaHm IO TexHnke 6e3OnaCHOCTn.

Mbl octabnem 3a coob npabo Ha texnueckne n3mehenra!

TapaHTnHoe 6ra3aTeIbCTBO

TapaHTnHbIcPOKHaTePPHTOpN PoCCnCKo Feepaun yCTaHaBnBaETCnNOHOMOHyIMPiPeDCTaBNTeJIAMN.

KaccobbyuekraBnTcraRapaHTnHbIM TaHOH.6e3 Hero HeBO3MOKeH 6ecnIaTHbI pEMOHT nI 3ameHa n3dEInr.

B cnyae BO3HKNHOBxHnnpTeHnNo rapaHTn, npedbBte n3dene B pONHOKOMNJIeKTAuNN, C opHnHaIbHOyNAKOBOKo NKACCOBbIM YekOM TOpROBOI TOUKe, npOdaBwe 3TO n3dene.

IepeKbI 3HaUNBaEMbIX npHnAdJeXHOCTe Hnn TpyuNXcA DeTanei, a TaKKe YNCTKa, Texo6ClyJxHBaHne Hnn 3aMeHa TpyuNXcA DeTanei He NOnaJaOT NOd rapaHTIO, I No3ToMy npOBoJrTcA 3a OTdeNbHyO ONNaTy!

TapaHTnI TepaETc npB BCKpbITn H3deJIIN NOCTOpOHmN Iuamn.

PocJe rapaHTnN

Iocne OKOHuaHnCpoka rapaHTnn, pemOnT n3denn npOn3BOoNTc 3a OnNaTy, COOTBETCTByIOUIMM MaCTepCKmN Nn PnyHKTaMn CepBnCHOrO 6cNyKbAHn.

RUS

84

GARANTIE-KARTE

Garantiebewijs · Carte de garantie
