Overview of the Components

Technical diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling purposes.

10 Touche (Lecture/Rause)

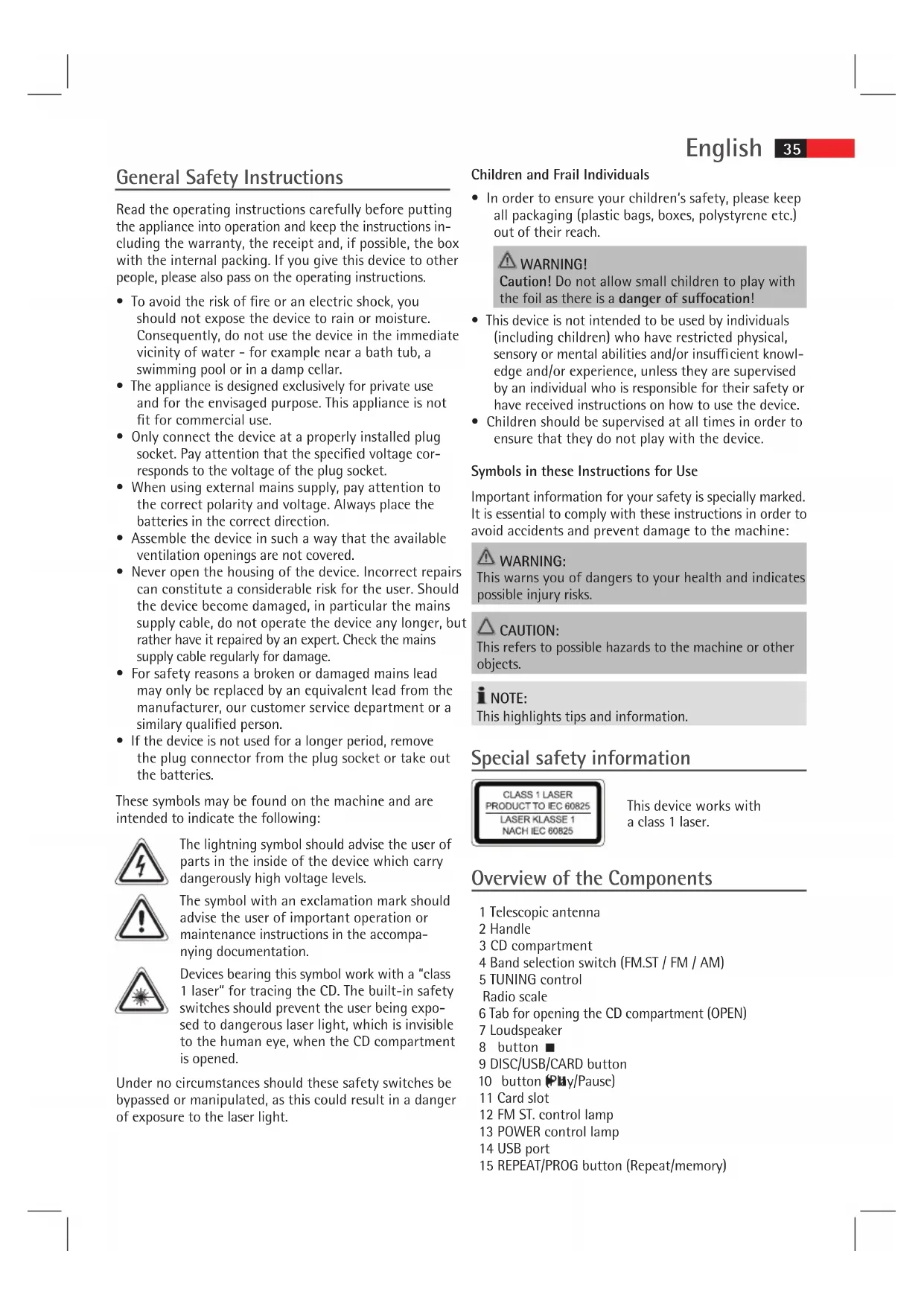

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.

- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

- Assemble the device in such a way that the available ventilation openings are not covered.

- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a "class 1 laser" for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

- Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

Special safety information

This device works with a class 1 laser.

Overview of the Components

1 Telescopic antenna

2 Handle

3 CD compartment

4 Band selection switch (FM.ST / FM / AM)

5 TUNING control

Radio scale

6 Tab for opening the CD compartment (OPEN)

7 Loudspeaker

8 button ■

9 DISC/USB/CARD button

10 button (Play/Pause)

11 Card slot

12 FM ST. control lamp

13 POWER control lamp

14 USB port

15 REPEAT/PROG button (Repeat/memory)

English

16 button(reverse search)

17 button(forward search)

18 LCD display

19 VOLUME (volume control)

20 Headphone jack

21 Function selector switch (LINE IN/RADIO / CD/MP3/USB/CARD / OFF)

Back (not shown)

AC Mains connection

LINE IN connection

Bottom (not shown)

Battery compartment

Intended Use

This device is used for

• The reception of radio programmes.
- Playing back audio/MP3 CDs/Files.
• Sound playback from external audio sources.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

The firm ETV – Elektro-Technische Vertriebsgesellschaft mbH does not accept any liability for damage caused as a result of the use of this device contrary to its intended use.

Start-up of the device/introduction

• Please read the operating instructions carefully before using the device for the 1st time!
• Select a suitable location for the device, such as a dry, lat, non-slip surface on which it is easy to operate the machine.
• Ensure that the device is sufficiently ventilated!
• Remove the protective ilm from the display if it is still present.

Power Supply

• Connect the power cable supplied (see battery compartment if necessary to a properly installed 230 V / 50 Hz safety power socket and the mains connector AC \~ IN on the back of the machine.
• Ensure that the voltage is the same as that indicated on the model identification plate.

Inserting the Batteries (not supplied)

- Open the lid of the battery compartment on the bottom.

• Insert 6 batteries of type UM2/R14 1.5 V. Please ensure that the polarity is correct (see the loor of the battery compartment)!
• If the device is not used for a long period of time, remove the batteries to avoid the spilling of battery acid.
• Then close the battery lid.

i NOTE:

When a mains cable is connected the batteries are automatically switched off.

CAUTION:

• Different battery types or new and used batteries must not be used together.
• Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

WARNING:

Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!

Transport Safety Device, CD Compartment

• Open the CD compartment (3) by pulling the lid upwards by the tab (6).
• Before operating the machine for the first time, remove the transport safety device from the CD player if it is still in place.

Headphone jack (20)

For headphone operation, use a headphone set with a 3.5 mm stereo jack plug plugged into the 📞 headphone jack. The speakers are switched off.

Volume

The desired volume can be sent using the VOLUME regulator (19).

Switch-off

The machine is switched of when the function selector switch (21) is turned to the OFF position. The POWER (13) control lamp goes off. Unplug the device.

USB port (14)

This device has been developed according to the latest technological developments in the USB field. However, the large variety of different USB storage media of all kinds being offered today makes it impossible for us to guarantee full compatibility with all USB storage media. Because of this, in rare cases there may be problems with playback from USB storage media. This is not a malfunction of the device.

1. Set the function selector (21) to the position CD/MP3/USB/CARD.

2. Press the button DISC/USB/CARD until "USb" is shown on the display.

3. Connect a USB storage device. After a few seconds, the total number of folders and the title are displayed, and then playback starts. The display shows the current title, ▶MP3, and USB.

For the operating procedure, refer to the section "Play CDs/MP3".

To change back to CD mode, press the button DISC/USB/CARD until "-" flashes on the display.

ATTENTION:

Before removing the USB storage device, set the function selector (21) to the position LINE IN/RADIO.

Card slot (11)

1. For playback of data on an SD/MMC card, insert the card into the card slot. In doing so, the contacts must face upwards.
2. Set the function selector (21) to the position CD/MP3/USB/CARD.
3. Press the button (9) DISC/USB/CARD until "Sd" is shown on the display. After a few seconds, the total number of folders and the title are displayed, and then playback starts. The display shows the current title, ▶ MP3, and CARD.

For the operating procedure, refer to the section "Play CDs/MP3".

To change back to CD mode, press the button DISC/USB/CARD until "-" flashes on the display.

LINE IN socket (back of the device)

To connect analogue replay devices. Via this socket you can also hear the sound of other playback devices such as MP3 players, CD players etc. through the loudspeakers.

1. Please connect the external device with a 3.5 mm stereo jack plug to the LINE IN socket.
2. Set the function selector (21) to the position LINE IN/RADIO. The radio sound is switched off.
3. Through the loudspeakers you can hear the playback of the sound from the external device; with the VOLUME control (19) you can change the volume. The CD buttons do not have any function.
4. For the remaining procedure please see the operating instructions of the external sound source.

i NOTE:

Adjust the volume of the external device to a comfortable level.

Listening to the Radio

1. Turn the function selector switch (21) to the LINE IN/RADIO. position.
2. Use the band selector switch (4) to select the desired frequency band.

$$ \begin{array}{r l} \text { VHF (Stereo) } & = \text { FM ST.,VHF } = \text { FM }, \ & \text { Medium wave } = \text { AM (Mono) } \end{array} $$

1. Tune in the desired station with the station adjustment knob TUNING (5).

2. The FM ST control lamp (12) only lights up when you have selected FM stereo and the station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will licker. Where reception is bad we recommend switching to FM.

3. For VHF/FM mode pull out the telescopic antenna (1) and turn it to improve reception.

4. An aerial is integrated into the device for the reception of AM stations. The machine can be aligned to the station by turning it. In this frequency band programs are transmitted in "mono" only.

Playing CDs/MP3

This is how you play a CD

1. Turn the function selector switch (21) to the "CD/MP3/USB/CARD" position.
2. Open the CD compartment (3) by pulling the lid upwards by the tab (6).
3. Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
4. After a few seconds the total number of songs/tracks is shown in the display.

i NOTE:

In the case of CDs in MP3 format the number of folders is briefly displayed at first.

1. The CD will play from the first title. The current track and the playing time that has elapsed are shown in the display.

i NOTE:

With CDs in MP3 format the current track and folder are shown alternately in the display.

1. In order to remove a CD, please press the ■ key (8), open the CD compartment and lift the CD out carefully.

38 English

Always keep the CD deck closed.

i NOTE:

• If a disc is incorrectly inserted - or no disc has been inserted - the symbol "--", and the word "NOd" appear in the display.
• Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.

Description of the CD buttons

▶ II (10)

You can briefly interrupt and resume playback using this button. The symbol "II" and the current title flash on the display. Pressing again continues playback.

▶/◀(17/16)

With an audio CD or a CD in MP3 format playing:

With▶you can jump to the next or previous track etc.

- If the button is kept pressed down, the machine starts to search through the tracks. The sound is muted.

The k button can be used as follows:

Press once = This jumps back to the previous track.

Press twice = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks. The sound is muted.

■(8)

The CD stops.

REPEAT/PROG (15)

In stop mode for programming any order of tracks (see the section on "Programmed Play").

With an audio CD or a CD in MP3 format playing:

Press once = (REPEAT flashes) the current track is repeated continuously.

Press twice = (the REPEAT ALL emits a fixed light) the whole CD is played continuously.

Press three times = all functions are cancelled. The normal play mode is resumed.

Only for CDs being played back in MP3 format

Press once = the current track is repeated continuously (REPEAT flashes on the display).

Press twice = the selected folder of the MP3 CD is repeated continuously (The display shows REPEAT).

Press three times = the whole CD is played continuously (REPEAT ALL appears in the display)

Press four times = the function is deactivated and the CD is played in the normal mode.

Programmed Play

This can be used to program any desired sequence of tracks.

1. Press the ■key (8).
2. Press the REPEAT/PROG key (15). The number "P01" (storage location) and the symbol PROGRAM flash in the display. Use the ▶! Buttons (17/16) to select the desired track and then press the REPEAT/PROG button again. The display changes to memory slot P02.
3. Select the next track with the ▶key and press the REPEAT/PROG key again. Repeat the procedure until all the desired tracks are selected.

i NOTE:

When the storage capacity of the titles to be programmed has been reached, the storage location 01 etc. is replaced.

1. Press the ▶II key (10). The playback starts. The first track number selected is shown in the display together with the playing time that has elapsed and the word PROGRAM. Press this button to pause briefly the playback.
2. Press once the ■key to stop the playback while retaining the program.
3. To play the programme back again, press the ▶ button.
4. To delete the program, press the ■ key twice. The PROGRAM control lamp goes out.

The device stops automatically once the entire sequence of programmed tracks is completed. The programmed sequence is kept in memory until you switch to a different mode or until the CD or the storage device is removed or the unit is switched off.

It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the REPEAT/PROG button (15) up to three times and then you can use the functions as described under "REPEAT/PROG".

Playing back Music in MP3 Format

With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R.

This machine of is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display).

If you would like to play one of these CDs, proceed as described under "Playing CDs/MP3". Tracks can be programmed as described under "Playing Back Programmed Tracks".

Please note:

There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.

Furthermore, the music industry does not adhere to fixed standards (copy protection).

For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.

Cleaning and Maintenance

- Always remove the mains plug before cleaning the machine.

- Any marks on the surface can be wiped off with a slightly damp cloth without any additives.

Troubleshooting

Symptoms Course Solution
CD can not be played back.	CD is not inserted or inserted incorrectly.	Ensure that the disc is inserted with the label facing upwards.
	Batteries too weak	Insert new batteries or operate the device with the mains lead.
CD jumps during playback.	Check the disc for ingerprints, dirt or scratches.	Check the disc for ingerprints, dirt or scratches.
The unit does not work	The unit is blocked and “hangs”.	Disconnect the mains plug for approximately 5 seconds. Then switch the unit back on.

Technical Data

Model: SR 4336 CD/MP3

Power supply: 230 V, 50 Hz

Battery operation: 6 x 1.5 V, Type UM2/R 14

Power consumption: 15 W

Protection class:....II

Net weight: 1.63 kg

Radio section:

Frequency ranges: ......VHF/FM 88 \~ 108.0 MHz

MW/AM 530 \~ 1600 KHz

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal/Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
