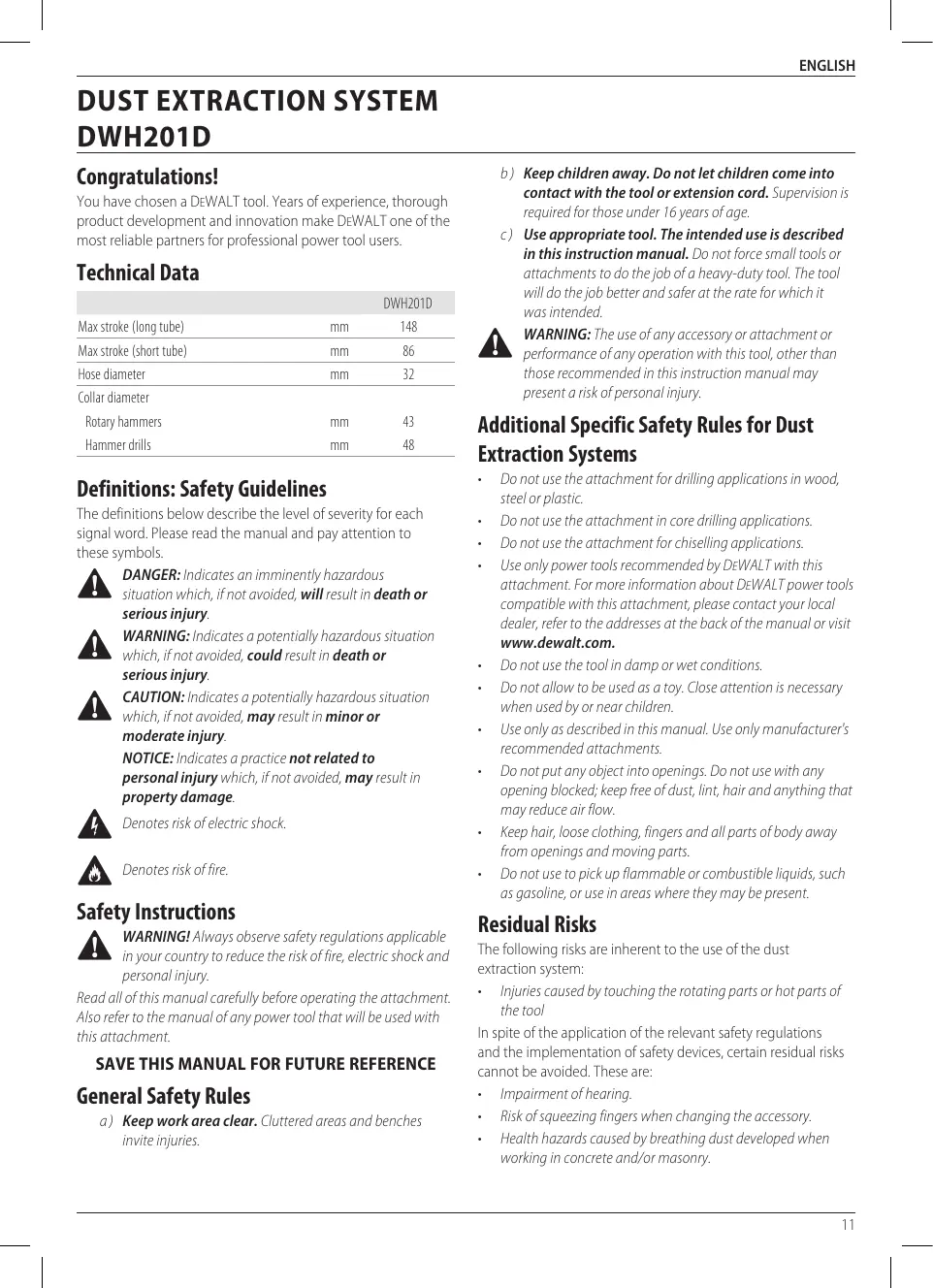

USER MANUAL DWH201D-XJ DEWALT

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DWH201D
Max stroke (long tube)	mm	148
Max stroke (short tube)	mm	86
Hose diameter	mm	32
Collar diameter
Rotary hammers	mm	43
Hammer drills	mm	48

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

Safety Instructions

WARNING! Always observe safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before operating the attachment. Also refer to the manual of any power tool that will be used with this attachment.

SAVE THIS MANUAL FOR FUTURE REFERENCE

General Safety Rules

a) Keep work area clear. Cluttered areas and benches invite injuries.

b) Keep children away. Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.
c) Use appropriate tool. The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

WARNING: The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

Additional Specific Safety Rules for Dust Extraction Systems

• Do not use the attachment for drilling applications in wood, steel or plastic.
• Do not use the attachment in core drilling applications.
• Do not use the attachment for chiselling applications.
  Use only power tools recommended by DEWALT with this attachment. For more information about DEWALT power tools compatible with this attachment, please contact your local dealer, refer to the addresses at the back of the manual or visit www.dewalt.com.
• Do not use the tool in damp or wet conditions.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

Residual Risks

The following risks are inherent to the use of the dust extraction system:

Injuries caused by touching the rotating parts or hot parts of the tool

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

Impairment of hearing.
- Risk of squeezing fingers when changing the accessory.
- Health hazards caused by breathing dust developed when working in concrete and/or masonry.

Package Contents

The package contains:

1 Dust extraction system
1 Side handle
1 Long tube
1 Short tube
1 Dust port plug
1 Wear ring
1 Dust hose
1 Adapter for rotary hammers
1 Adapter for hammer drills
1 Instruction manual
- Check for damage to the tool, parts or accessories which may have occurred during transport.
Take the time to thoroughly read and understand this manual prior to operation.

Markings on Dust Extraction System

The following pictograms are shown on the tool:

Read instruction manual before use.

Description (Fig. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

1 Side handle
2 Short tube
3 Long tube
4 Dust extraction connection port
5 Wear ring

6 Dust hose
7 Adapter for rotary hammers
8 Adapter for hammer drills
9 Dust port plug

Intended Use

The DWH201D dust extraction system has been designed for the extraction of dust in professional hammer drilling in masonry or concrete, and with solid drill bits mounted to the power tool. This dust extraction attachment will fit most DEWALT corded and cordless SDS PLUS rotary hammers, corded hammer drills and premium cordless drill/driver/hammer drills. For more information about DEWALT power tools compatible with this attachment, please contact your local dealer, refer to the addresses at the back of the manual or visit

www.dewalt.com.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

The dust extraction system is an attachment for use with professional power tools.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.

• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

SPECIFICATIONS

Short tube	To be used with 150 mm overall length (100 mm useable) bits.
Long tube	To be used with 250 mm overall length (200 mm useable) bits.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/ installing attachments or accessories. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

Attaching and Removing the Dust Extraction System

To Attach the Dust Extraction System (Fig. A-D)

1. Remove the bit prior to assembling.
2. Remove the side handle and the depth adjustment rod, if attached to the tool.
3. Widen the ring opening 17 by rotating the side handle 1 anti-clockwise.
4. Slide the assembly onto the nose of the tool, through the ring opening 17 and onto the collar 10, past the chisel holder and sleeve. If an adaptor is needed refer to Attaching the Dust Extraction System with an Adapter.
5. Rotate the dust extraction system to the desired position.
6. Lock the assembly in place by securely tightening the side handle 1, rotating the grip clockwise so that the assembly will not rotate.
7. Insert the dust hose 6 into the dust extraction connection port 4 and a dust extractor (not shown).

NOTE: The dust excretion system is compatible with or without a dust extractor. The tool can be used with the plug 9 inserted in the dust extraction connection port 4. If you are using the plug, it is recommended you remove the dust from the tube after drilling each hole.

Attaching the Dust Extraction System with an Adaptor (Fig. A, D)

If the diameter of the tool's collar 10 is less than 43mm , an adaptor is needed to properly mount the dust extraction system.

Your dust extraction system comes with two adaptors, a toothed adaptor for rotary hammers 7 and a smooth adaptor for hammer drills 8.

1. Choose the correct adaptor.
2. Open correct adaptor and close onto the collar 10. NOTE: The adaptor will slide back and forth on the tool.
3. Widen the ring opening 17 by rotating the side handle ① anti-clockwise.

4. Place the ring opening 17 onto the adaptor.

5. Complete steps 5-7 of To Attach the Dust Extraction System.

FITMENT GUIDE

No adaptor collar needed	D25333, D25263, DCH263, DCH273, D25323, DCH253, DCH213, D25223, D25213, D25123, DCH283, DCH323, DCH333, DCH334, D25333, D25334, DCH243, D25263, D25313, D25324
Toothed adaptor needed	DCH133, D25133, D25260, D25052, D25012, D25023, DWD525, DWD520, DCH033, D25032, D25033, D25134
Smooth adaptor needed	DCD997, DCD996, DCD995, DCD985, DCD970, DCD950

Removing the Dust Extraction System (Fig. A)

1. Remove the dust hose 6 from the dust extraction connection port 4.
2. Remove bit from SDS PLUS tool holder or drill chuck.
3. Turn side handle 1 to loosen and slide from nose of tool.
4. If adaptor was used, open and remove adaptor from nose of tool.

AirLock Compatible (Fig. A, E)

Your DEWALT dust extractor is compatible with the DEWALT AirLock connection system. The AirLock allows for a fast, secure connection between the dust hose and power tool. The AirLock connector 11 connects directly to DEWALT compatible tools or through the use of an AirLock adaptor 12 (available from your local DEWALT supplier).

NOTE: If using an adaptor, ensure it is firmly attached to the tool outlet before following the steps below.

1. Ensure the collar on the AirLock connector is in the unlock position. (Refer to Figure E.) Align notches 13 on collar and AirLock connector as shown for unlock and lock positions.
2. Push the AirLock connector onto the adaptor connector point.
3. Rotate the collar to the locked position. NOTE: The ball bearings inside collar lock into slot and secure the connection.The power tool is now securely connected to the dust extractor.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/ installing attachments or accessories. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

Proper Hand Position (Fig. F)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle 14 of the hammer and one hand on the side handle 1.

Attaching and Removing Tubes (Fig. A, G)

Your dust extraction system comes with a short tube 2 and a long tube 3. Refer to Specifications for proper usage for each tube.

Attaching the Tube

You can attach the tube with the bit either installed or removed.

1. Push the tube onto the end of the dust extraction unit while using a twisting motion until the tube is secure.
2. Place the wear ring 5 on the end of the tube.

Removing the Tube

To remove the tube, twist and pull the tube away from the dust extraction unit.

MAINTENANCE

Your DEWALT dust extraction system has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/ installing attachments or accessories. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

WARNING: Use only DEWALT replacement parts.

Replacing the Dust Brush (Fig. H)

WARNING: Wear approved eye protection and approved dust mask when performing this procedure.

The dust brush will wear during use and will need to be replaced.

1. To remove the dust brush 15, pry it away from the four small tabs 16 holding it in place.
2. Insert the new dust brush making sure it is securely held by the four small tabs.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can

be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.
