Product type	Smart gateway for controlling sprinkler valves
Brand	GARDENA
Model	SmartSystem
Power supply	Mains power supply (5 V DC, 1 A)
Internet connectivity	Ethernet (LAN) 10/100 Mbps, Wi-Fi 802.11 b/g/n (2.4 GHz)
Smart home protocol	Apple HomeKit (via built-in HomeKit tag)
Mobile app	GARDENA smart system (iOS and Android)
Dimensions (approx.)	10 x 10 x 3 cm
Weight (approx.)	150 g
LED indicators	Power LED, Internet LED
Reset button	Yes (Reset button)
Box contents	Gateway, power supply, LAN cable
Care and cleaning	Clean with a dry, soft cloth; do not use liquids or solvents
Safety	Operates at low voltage (SELV); do not open the device
Spare parts and repairability	Contact GARDENA customer service; no user-available spare parts
General information	Open source software included; copy of source code available upon request

Frequently Asked Questions - SmartSystem GARDENA

How to connect the Gateway to the Internet using a LAN cable?

Plug in the power supply, then connect the Gateway to your router using the provided LAN cable. Wait until the Power and Internet LEDs become solid green (up to 15 minutes). Then download the GARDENA smart system app and follow the instructions.

How to connect the Gateway via Wi-Fi (without LAN cable)?

After powering on, wait for the Internet LED to turn yellow (configuration network enabled). Connect to the Wi-Fi network named GARDENA_config from your device. Open the URL http://10.0.0.1 in a browser, log in using the first 8 characters of the Gateway ID (located under the device), then select your home Wi-Fi network and its password.

What to do if I cannot connect to the configuration network?

Make sure the Internet LED is solid yellow. The configuration network stays active for 15 minutes. If it has expired, briefly press the Reset button to reactivate it. Also check that cookies and JavaScript are enabled on your browser.

How long does the Gateway software update take?

The initial update can take up to 15 minutes depending on your Internet connection. The Power and Internet LEDs become solid green once the update is complete.

What do the LEDs on the Gateway mean?

The Power LED lights up green when the device is powered on. The Internet LED indicates connection status: solid green = connected to Internet; solid yellow = configuration mode (temporary Wi-Fi network); off or red = no connection.

How to set up the Gateway with Apple HomeKit?

For an iPhone/iPad, wait for the Internet LED to be solid yellow. Open the Apple Home app, choose 'Add Accessory', then scan the HomeKit code located under the Gateway. Follow the instructions until the Internet LED turns green. Then download the GARDENA smart system app.

Where to find the Gateway ID?

The Gateway ID is on a sticker under the device. It looks like a UUID code (example: 9eb74563-e89b-12d3-a456-426655446548). The first 8 characters (without dashes) serve as the password for the configuration interface.

Can I use the Gateway with another smart home system other than HomeKit?

The Gateway is primarily designed to work with the GARDENA smart system app and is compatible with Apple HomeKit. No other compatibility is mentioned. For other uses, contact GARDENA support.

What to do if my device automatically leaves the GARDENA_config configuration network?

It may happen that your smartphone or tablet leaves this network because it has no Internet access. In your device's Wi-Fi settings, allow staying connected even without Internet access. On iOS, disable the 'Auto-Join' option for this network if necessary.

How to obtain the source code of the open source software used in the Gateway?

GARDENA provides a copy of the source code upon request. Send an email in French, German, or English to [e-mail], specifying the product and date of purchase. The offer is valid for three years after purchase.

USER MANUAL SmartSystem GARDENA

Open Source Software

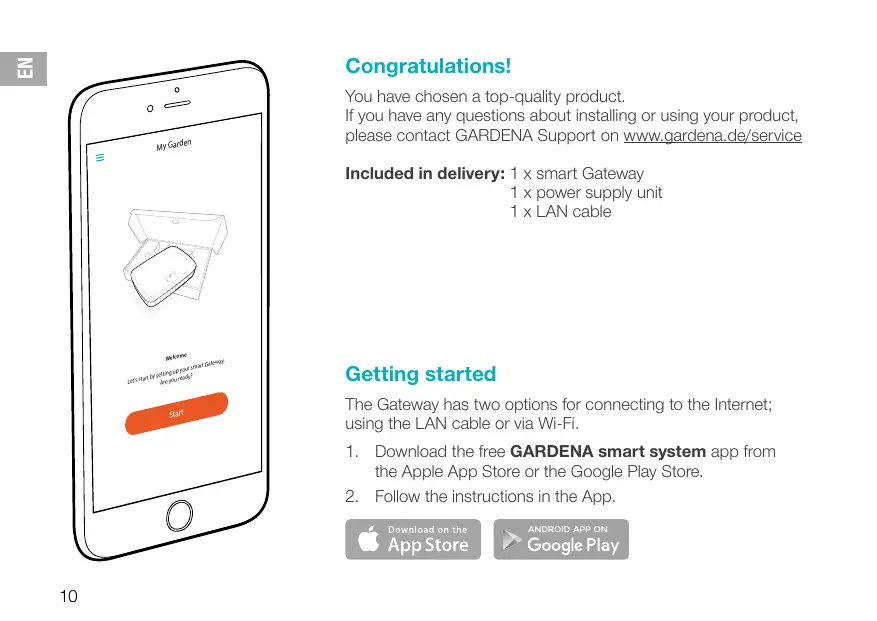

You have chosen a top-quality product.

If you have any questions about installing or using your product, please contact GARDENA Support on www.gardena.de/service

Included in delivery: 1 x smart Gateway

1 x power supply unit

1 x LAN cable

Getting started

The Gateway has two options for connecting to the Internet; using the LAN cable or via Wi-Fi.

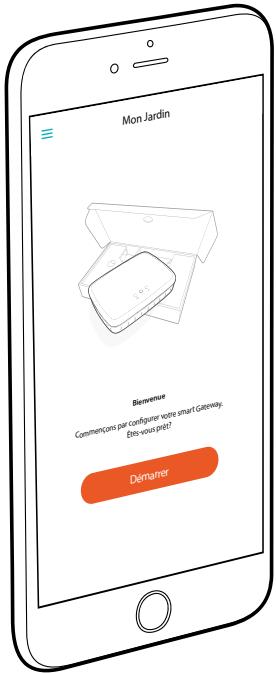

1. Download the free GARDENA smart system app from the Apple App Store or the Google Play Store.
2. Follow the instructions in the App.

Download on the

App Store

ANDROID APP ON

Google Play

To commission the smart Gateways

An Internet connection is required for installation of the Gateway. The Gateway can be connected to the Internet via ethernet or Wi-Fi.

1. Connect the power supply unit to a mains socket.

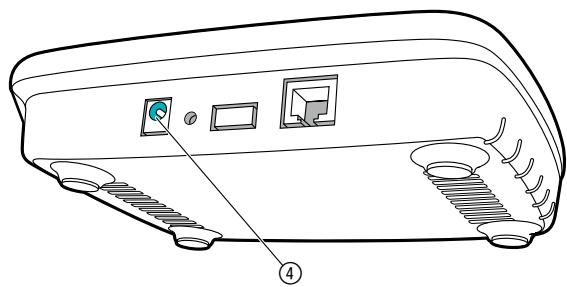

2. Connect the power supply cable to the plug socket (4) of the Gateway.
3. Select one of the following options: To connect via ethernet cable/To connect to a Wi-Fi network

To connect via ethernet cable (recommended)

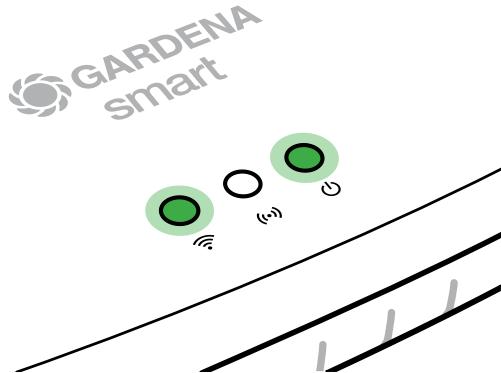

1. Connect the Gateway with the provided network cable to your router. The software for your Gateway is now being updated. This process can take up to 15 minutes (depending on your Internet connection). Once the Internet-LED and the Power LED illuminate green permanently, the Gateway is up to date. It can now be included in the App.
2. Download the GARDENA smart system app from the Apple App Store or the Google Play Store.
3. Follow the instructions in the App.

To connect to a Wi-Fi network

If the Gateway is neither connected to the router via a LAN cable nor integrated into another Wi-Fi network, the Gateway automatically provides a configuration network after approx. 1 to 2 minutes after startup.

The configuration network is activated as long as the Internet LED permanently illuminates yellow.

The configuration network remains active for 15 minutes. After the 15 minutes have elapsed (or if the Gateway was previously configured to another Wi-Fi network that is no longer available), the configuration network can be reactivated by briefly pushing the reset button ⑦.

To configure the Wi-Fi network with an iOS device (iPhone, iPad)

Wait until the Internet LED illuminates yellow permanently (the configuration network is activated).

1. Open the Apple Home App (this is located by default on your mobile iOS device).
2. Select "Add accessory".
3. Scan the HomeKit label on the bottom side of the Gateway.
4. Wait until the Internet LED illuminates green permanently. The software for your Gateway is now being updated. This process can take up to 15 minutes (depending on your Internet connection). Once the Internet LED and the Power LED illuminate green permanently, your Gateway is up to date. It can now be included in the App.
5. Download the GARDENA smart system app from the Apple App Store.
6. Follow the instructions in the App.

To configure the Wi-Fi network with another device

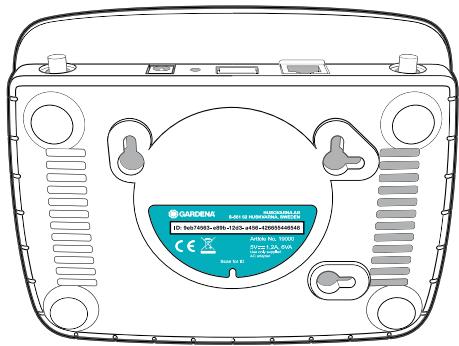

Wait until the Internet LED illuminates yellow permanently (the configuration network is activated). To establish a connection via Wi-Fi, you need your Gateway ID. The Gateway ID can be read on the sticker on the underside of the Gateway. You will also need the password for your Wi-Fi network.

1. Connect to the GARDENA configuration network. To do this, go to the Wi-Fi settings on your smartphone, tablet, or computer. The Gateway should now be displayed there as an available Wi-Fi network. The network name starts with "GARDENA_config".

2. Open the URL:

http://10.0.0.1

in your preferred Internet browser.

You should now see the Gateway Interface.

1. Login using the first eight digits of your Gateway ID as the password (see graphic). The Gateway ID is located on the bottom side of the Gateway.
2. Select your home Wi-Fi network under Wi-Fi Network. Then your Gateway is connected with the Internet.

Gateway ID: 9eb74563-e89b-12d3-a456-426655446548

Password Gateway Interface: 9eb74563

1. Enter your network password and confirm your settings. Wait until the Internet LED illuminates green permanently.

The software for your Gateway is now being updated. This process can take up to 15 minutes (depending on your Internet connection).

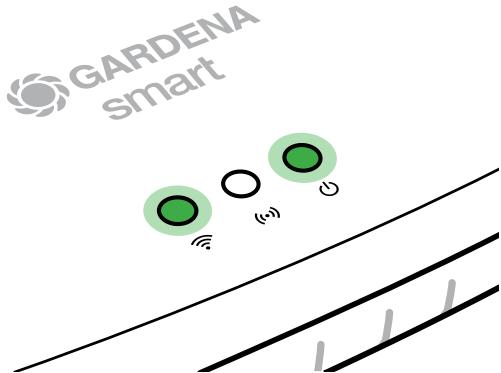

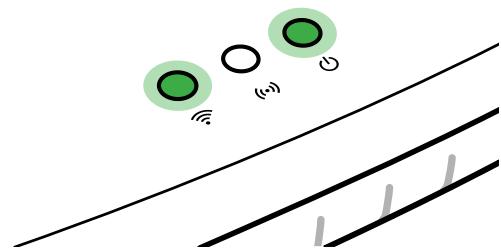

Once the Internet LED and the Power LED illuminate green permanently, your Gateway is up to date. It can now be included in the App.

1. Download the GARDENA smart system App from the Google Play Store.
2. Follow the instructions in the App.

Note: Because the GARDENA configuration network does not have its own Internet access, your device may automatically leave the GARDENA configuration network or may displays an error message. In this case, you must allow a connection without Internet access to be maintained in the settings of your device.

Also, make sure JavaScript is activated and browser cookies are accepted, in order to display the page correctly. Connecting the Gateway is not supported by Internet Explorer.

Open Source Software

This device contains open source software. GARDENA hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such offer is requested by the respective licenses. This offer is valid up to three years after product purchase to anyone in receipt of this information.

To obtain the source code, please write in English, German or French to:

[e-mail]
