USER MANUAL home Plafonnier à LED, 4,6 W LIVARNO
STROPNE LED SVIETIDLO
Assembly, operating and safety instructions
NL BE
LED-PLAFONDLAMP
STROPNI LED SVITIDLO
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
WARNING! STROMSCHLAGGEFAHRI!
List of pictograms used
Introduction
Intended use Page 15
Scope of delivery.. Page 15
Parts description. Page 15
Technical data.. Page 15
Safety
Safety notices.. Page 15
Preparation. Page 17
Required tools and material. Page 17
Prior to installation
Start-up Page 17
Mounting the light.. Page 17
Directing the spotlight. Page 17
Changing the bulb. Page 18
Maintenance and cleaning
Disposal
Warranty and service.. Page 18
Warranty declaration. Page 18
Service address.. Page 19
Declaration of conformity. Page 19
Manufacturer. Page 19

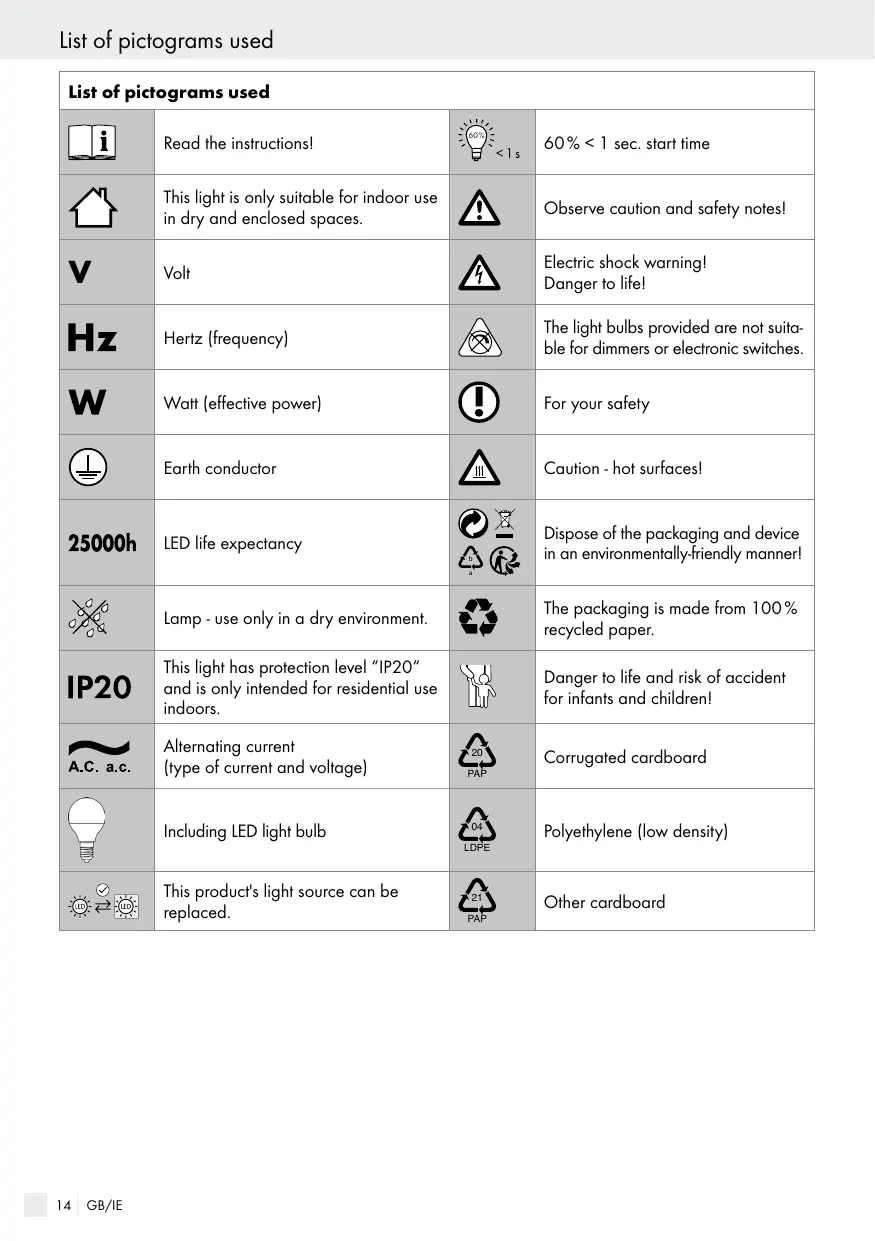

| List of pictograms used |
| i | Read the instructions! | 60% < 1s | 60% < 1 sec. start time |
| This light is only suitable for indoor use in dry and enclosed spaces. | | Observe caution and safety notes! |
| V | Volt | | Electric shock warning!
Danger to life! |
| Hz | Hertz (frequency) | | The light bulbs provided are not suitable for dimmers or electronic switches. |
| W | Watt (effective power) | | For your safety |
| Earth conductor | | Caution - hot surfaces! |
| 25000h | LED life expectancy | | Dispose of the packaging and device in an environmentally-friendly manner! |
| Lamp - use only in a dry environment. | | The packaging is made from 100% recycled paper. |
| IP20 | This light has protection level "IP20" and is only intended for residential use indoors. | | Danger to life and risk of accident for infants and children! |
| A.C. a.c. | Alternating current (type of current and voltage) | 20
PAP | Corrugated cardboard |
| Including LED light bulb | 04
LDPE | Polyethylene (low density) |
| This product's light source can be replaced. | 21
PAP | Other cardboard |
LED ceiling light
Introduction
Congratulations on your new product.
You have selected a high quality product.
Please be sure to carefully read the com
plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.
Intended use
This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally inflam
mable surface. This product is intended for private household use only. This product is intended for normal use.
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED ceiling light, Model 14161302L
2 Screws (mounting angle)
2 Wall plugs
2 Protective tubes
3 Lamp lenses
3 LED light bulb
1 Tool
1 Set of assembly instructions and instructions for use
Parts description
1 Wall plug
2 Mounting bracket
3 Screw (connection housing)
4 Screw (mounting bracket)
5 Terminal housing
6 Light bulb
7 Tool
Threaded ring
Lamp glass
10 Socket
Spotlight
12 Protective tube
13 Mains connection cord (external)
14 Terminal block
Technical data
Model number: 14161302L
Operating voltage: 230 - 240V 50Hz
Rated output: LED E14, 3 x max. 3.8W
Lamps: LED E14, max. 3.8W
Protection class:
Protection type: IP20
E14: This product contains energy efficiency category "G" light sources (energy efficiency category according to Regulation (EU) 2019/2015).
Safety
Safety notices
Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!
WARNING RISK OF FATAL INJURY AND ACCIDENT HAZARD FOR TODDLERS AND
SMALL CHILDREN!
Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
Avoid the risk of fatal injury from electric shock
Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.
WARNING!
A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.
Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see chapter "Technical data").
Ensure that the light does not come into contact with water or other liquids under any circumstances.
- Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the light on a wet or conductive substrate!
Prevent fire and injury hazards
RISK OF INJURY!
Check each lamp and lamp glass for damage immediately after unpacking.
- Do not mount the light with defective lamps and/or lamp lenses. In this case contact the service centre for a replacement.
Do not look directly into the LEDs.
Do not look at the LED with an optical instrument (e.g. magnifying glass).
Only intended for installation outside of normal reach.
CAUTION! RISK OF BURNS - HOT SURFACES!
Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head.
Allow the lamp to cool off completely.
Replace defective bulbs with new ones immediately. Before changing bulbs, always first remove the fuse or switch off the circuit breaker.
Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with.
The light bulbs provided are not suitable for dimmers or electronic switches.
Lamp - use only in a dry environment.
Safe working
Only use lamps as specified in chapter "Technical data".
Mount the light so that it is protected from moisture and dirt.
Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any
necessary additional tools or materials before starting so they are easy to reach.
Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.
Preparation
The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.
- Pencil/making tool
- 2-pole voltage tester
- Screwdriver
- Electric drill
- Bit (ø approx. 6 mm)
- Side cutting pliers
- Ladder
- Prior to installation
Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.
Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
Use the voltage tester to verify the de-energised status.
Remove all packaging material from the light.
- Start-up
- Mounting the light
Remove the screws 3 visible at the side of the connection housing 5 and remove the mounting angle 2 from the back.
Use the slotted holes in the mounting bracket 2 intended for the screws to mark the bores.
Now drill the fixing holes (approx. 6mm depth approx. 40mm ). Be careful not to damage the supply line.
Insert the dowels into the bores.
Fasten the mounting bracket 2 with the provided screws 4.
Loosen the threaded ring 8 from the socket 10
Place the bulb carefully over the fitting 10 and fasten it in place by tightening the threaded ring using the supplied tool 7. Be sure it is correctly positioned.
Use a clean, lint-free cloth to insert the light bulbs.
Insert the E14 light bulb by carefully screwing it in a clockwise direction. Check it is correctly positioned.
Feed the mains connection cable (L and N) (external) [13] through the protective tubes [12].
Now connect the external lead of the light to the mains cable (external) [13] using the terminal block [14].
Note: Be sure to correctly connect each of the individual wires of the mains connection cable (external): live wire, black or brown = symbol L, neutral wire, blue = symbol N, earth wire, green-yellow = symbol 业
Now use the screws 3 to screw the light to the mounting bracket 2.
Your light is now ready to use.
Reinsert the fuse or switch the circuit breaker back on.
- Directing the spotlight
Only change the direction of the spotlights 11 when the light is switched off.
- Allow the lamp to cool off completely.
Turn or tilt the individual spotlights to the desired position by their base. The spotlights can be turned approx. 320^
- Changing the bulb
WARNING! RISK OF ELECTRIC SHOCK!
First disconnect the light from the mains when replacing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).
Only use lamps as specified in chapter "Technical data".
- Allow the light bulb to cool off completely.
Use a clean, lint-free cloth to replace a bulb.
Remove the defective light bulb by carefully unscrewing the E14 light bulb in an anticlockwise direction.
Insert the new E14 light bulb by carefully screwing it in a clockwise direction. Check it is correctly positioned.
Reinsert the fuse or switch the circuit breaker back on.
- Maintenance and cleaning
WARNING! RISK OF ELECTRIC SHOCK!
Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (O position).
WARNING! RISK OF ELECTRIC SHOCK!
For electrical safety, never clean the light with water or other liquids, or immerse it in water.
CAUTION! RISK OF BURNS - HOT SURFACES!
Allow the light to cool completely.
Do not use solvents, benzene or similar substances. They could damage the light.
Only use a dry, lint-free cloth for cleaning.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Warranty and service
Warranty declaration
You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following model number: 14161302L.
Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.
Service address
Free service number:
Tel.: 00800/27456637
IAN 387209_2110
Please have your receipt and the article number (IAN 387209_2110) ready as your proof of purchase when enquiring about your product.
This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
Manufacturer
