This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

The appliance is suitable for mixing, kneading and beating food. The appliance must not be used for processing other substances or objects. Additional applications are possible if the accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories. Never use the accessory parts for other appliances.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and/or

knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

VAN Risk of electric shock and fire!

# Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.

= Use only the rotary switch to switch the appliance on or off. Never connect the appliance to timer switches or remote-controllable sockets. Never leave the appliance unattended while it is switched on!

# Do not place the appliance on or near hot surfaces, e.g. hobs. The power cord must not come into contact with hot parts or be pulled across sharp edges.

MUM44_8001056867indb 13 25012017 10:07:02

en Important safety information

= Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands.

” After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

# Do not insert mains plug until all preparations for working with the appliance are complete.

= Before replacing accessories or additional parts which move during operation, the appliance must be switched off and disconnected from the power supply. After switching off, the drive continues running for a short time. Wait until the drive has come to a standstill.

= lfthere is a power cut, the appliance remains switched on and will start up again when the power is restored.

# Do not adjust the swivel arm while the appliance is switched on.

= Only use tools when the bovwi is inserted, the lid is fitted and the protective drive covers are in place! When using accessories, fit the bovw, lid and drive covers according to the instructions!

= While operating the appliance, never reach into the bowil or filling shaft with your hands. Do not insert any objects (e.g. wooden spoon) into the bowl or filling shaft. Keep hands, hair, clothing and other utensils away from rotating parts.

m# Never use tools and accessories or 2 accessories at the same time. When using the accessories, follow the individual operating instructions enclosed.

= The accessory must be completely assembled before use. Never assemble the accessory on the base unit. The accessory should only be used in the intended operating position.

= Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only.

# Do not touch blender blades with bare hands.

# Never reach into the attached blender! Never use the blender without the lid in place.

= Care shall be taken when handling the sharp cutting blades, emptying the container and during cleaning.

À Risk of scaldingl! If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0.5 litres of hot or frothing liquid.

VAN Risk of suffocation! Do not allow children to play with packaging material.

Important safety information en

We recommend that the appliance is never switched on for longer than is necessary to process the ingredients. Do not operate

at no-load. VAN Important!

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period (= “Cleaning and

servicing” see page 18).

À Explanation of the symbols on the appliance or accessory

[il Follow the instructions in the operating instructions.

Caution! Rotating blades.

Caution! Rotating tools.

Do not place fingers in the feed tube.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our web page.

Intended use. Important safety information. Overview. Operating position: Operation …. Cleaning and servicing Troubleshooting … Application examples. Standard / optional accessories . Disposal.. Guarantee...

The operating instructions describe several models. The appliance requires no maintenance.

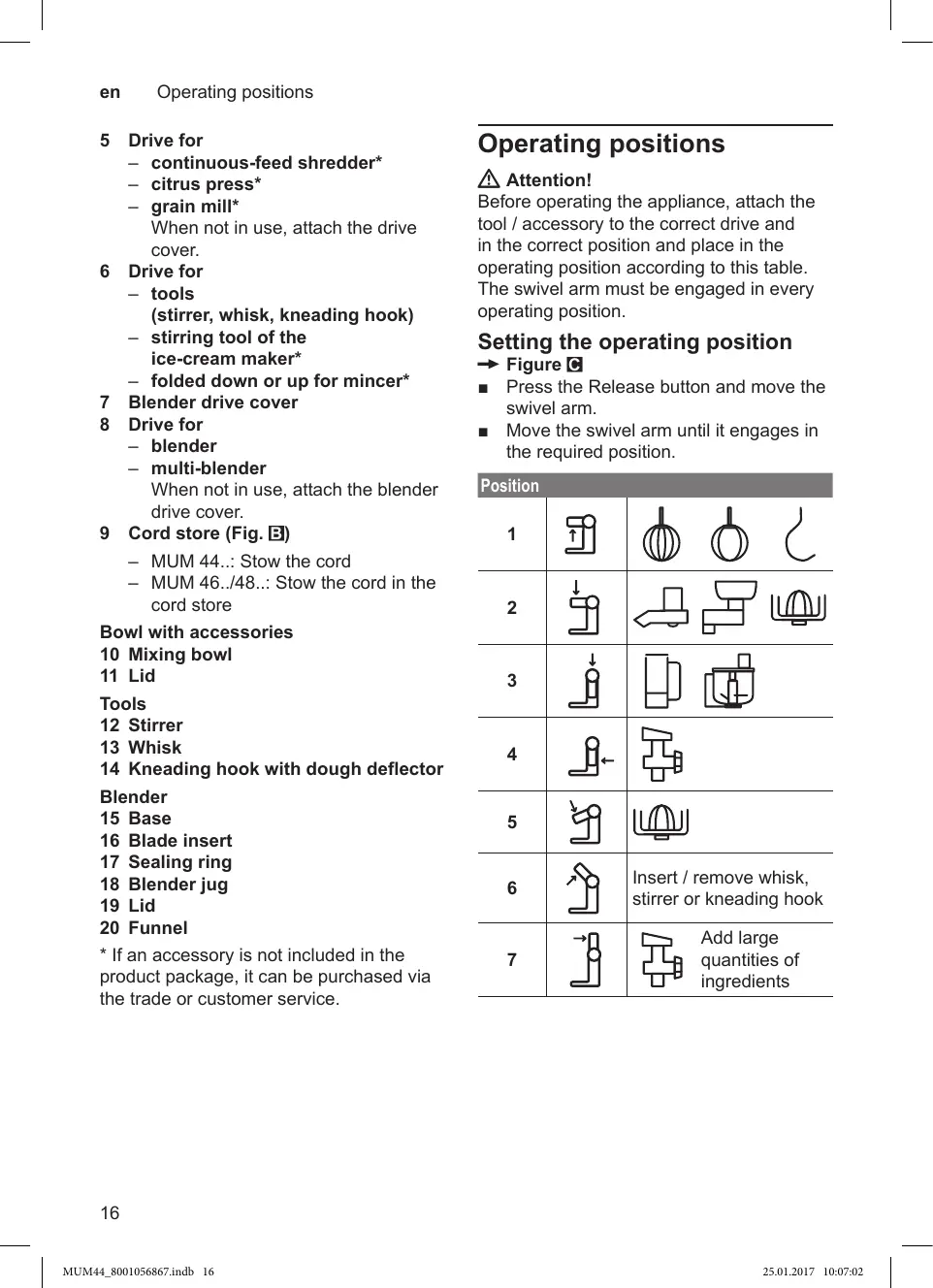

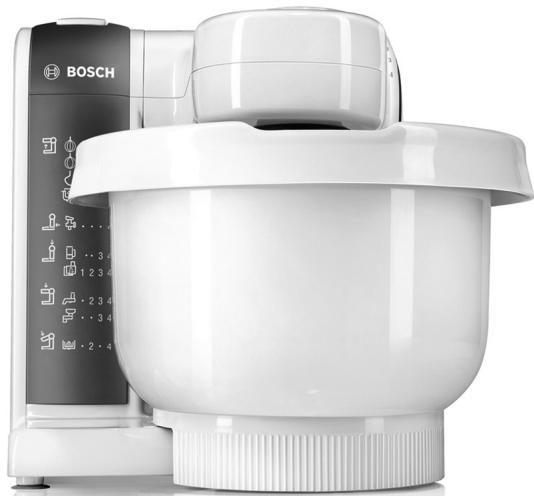

Please fold out the illustrated pages. — Figure Base unit 1 Release button 2 Swivel arm (see “Operating positions”) 3 Rotary switch O/off = Stop TP = Parking circuit Hold rotary switch until the drive stops; tool is in the swivel position. If the drive does not move, the swivel position has already been reached. seungs 1-4 = Operating speed Minimum speed — slow ii Maximum speed — fast If the power is interrupted, the appliance remains switched on and restarts when the power is restored. 4 Drive cover To remove the drive cover, rotate until the locking feature has been released.

5 Drive for — continuous-feed shredder* — citrus press* — grain mill* When not in use, attach the drive cover. 6 Drive for — tools (stirrer, whisk, kneading hook) — stirring tool of the ice-cream maker* — folded down or up for mincer* 7 Blender drive cover 8 Drive for — blender — multi-blender When not in use, attach the blender drive cover. 9 Cord store (Fig. El) — MUM 44..: Stow the cord — MUM 46../48..: Stow the cord in the cord store Bowl with accessories 10 Mixing bowl 11 Lid Tools 12 Stirrer 13 Whisk 14 Kneading hook with dough deflector Blender 15 Base 16 Blade insert 17 Sealing ring 18 Blender jug 19 Lid 20 Funnel * If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Before operating the appliance, attach the tool / accessory to the correct drive and

in the correct position and place in the operating position according to this table. The swivel arm must be engaged in every operating position.

Setting the operating position

” Press the Release button and move the swivel arm.

= Move the swivel arm until it engages in the required position.

Operation À Risk of injury!

Do not insert mains plug until all preparations

for working with the appliance are complete. Attention! Do not operate the appliance without an accessory / tool in the operating position. Do not operate the appliance empty. Do not expose appliance or accessories to heat sources. Parts are not microwave-safe. = Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”. Preparation = Place the base unit on a smooth, clean surface. = Unwind / pull out the cord. — Fig. E = _Insertthe mains plug.

Stirrer, whisk and kneading hook

for stirring dough, e.g. cake mixture Ô

for kneading heavy dough and é

mixing-in ingredients that ought not

be cut (e.g. raisins and chocolate chips)

ury from the rotating tools!

While the appliance is operating, keep

fingers clear of the mixing bowl. Do not

change tools until the drive has come to a

standstill - when the appliance is switched

off, the drive continues running briefly.

The appliance may only be operated when

the unused drives have been safeguarded

with the drive covers.

m Set rotary switch to TP and hold in place until the drive stops.

Note: |f the drive does not move, the swivel position has already been reached.

Whisk (6a) for whisking egg whites, cream and light dough, e.g. sponge mixture Kneading hook with dough deflector (6b)

MUM44_8001056867indb 17

” Press the Release button and move the swivel arm to position 6.

= insert the bowl. The base of the mixing bowl must be inserted into the recess of the base unit.

= Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position. If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position.

= Putthe ingredients to be processed into the bowi.

” Press the Release button and move the swivel arm to position 1.

m Attach the cover. Set the rotary switch to the desired setting.

Adding more ingredients

= Switch off the appliance with the rotary switch. Set rotary switch to TP, and hold in place until the drive stops.

” Press the Release button and move the swivel arm to position 7.

= add more ingredients through the feed tube in the cover.

After using the appliance

= Switch off the appliance with the rotary switch. Set rotary switch to TP, and hold in place until the drive stops.

= Remove mains plug.

” Press the Release button and move the swivel arm to position 6.

m Take the tool out of the drive.

= Clean all parts. # “Cleaning and servicing” see page 18

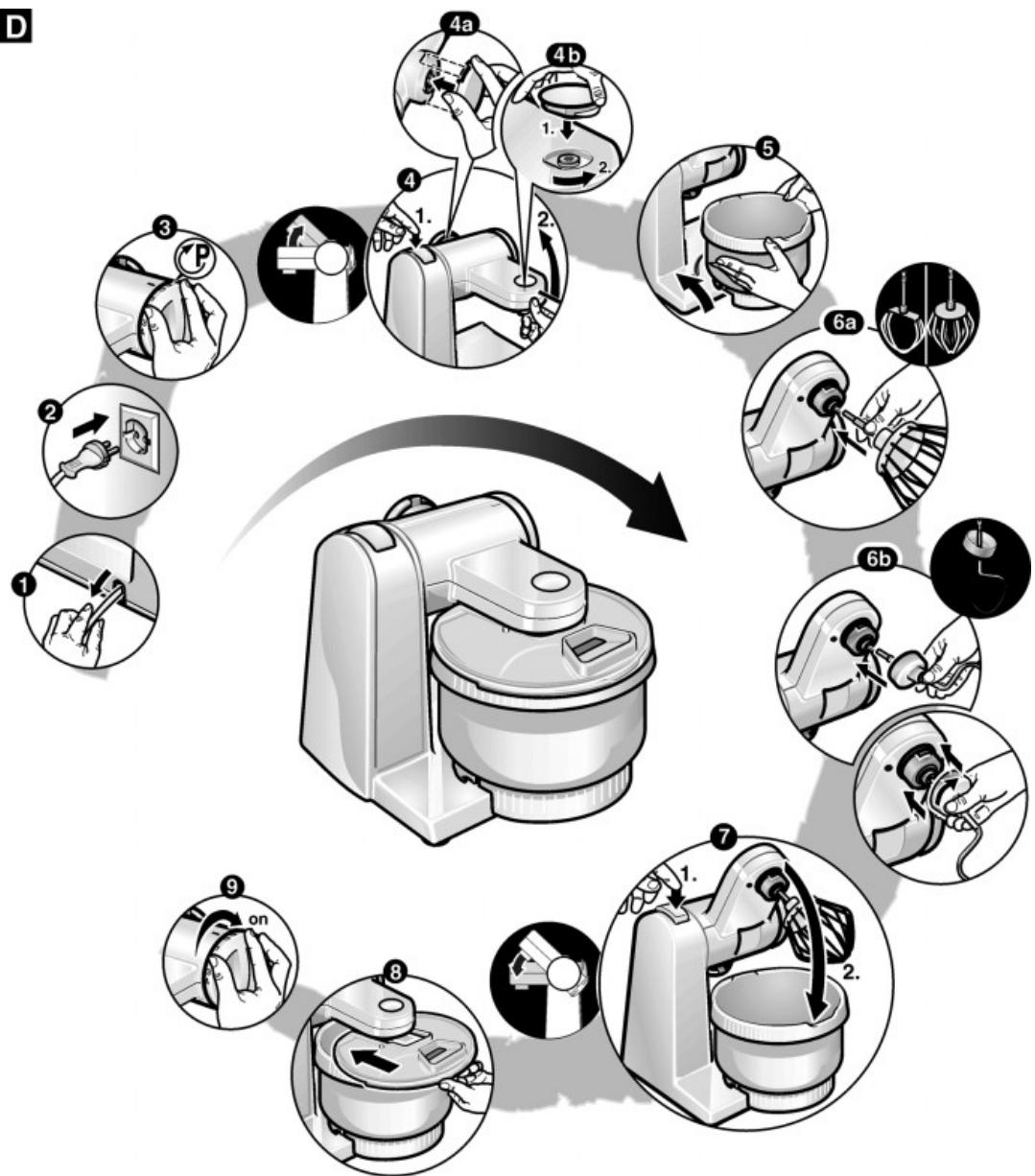

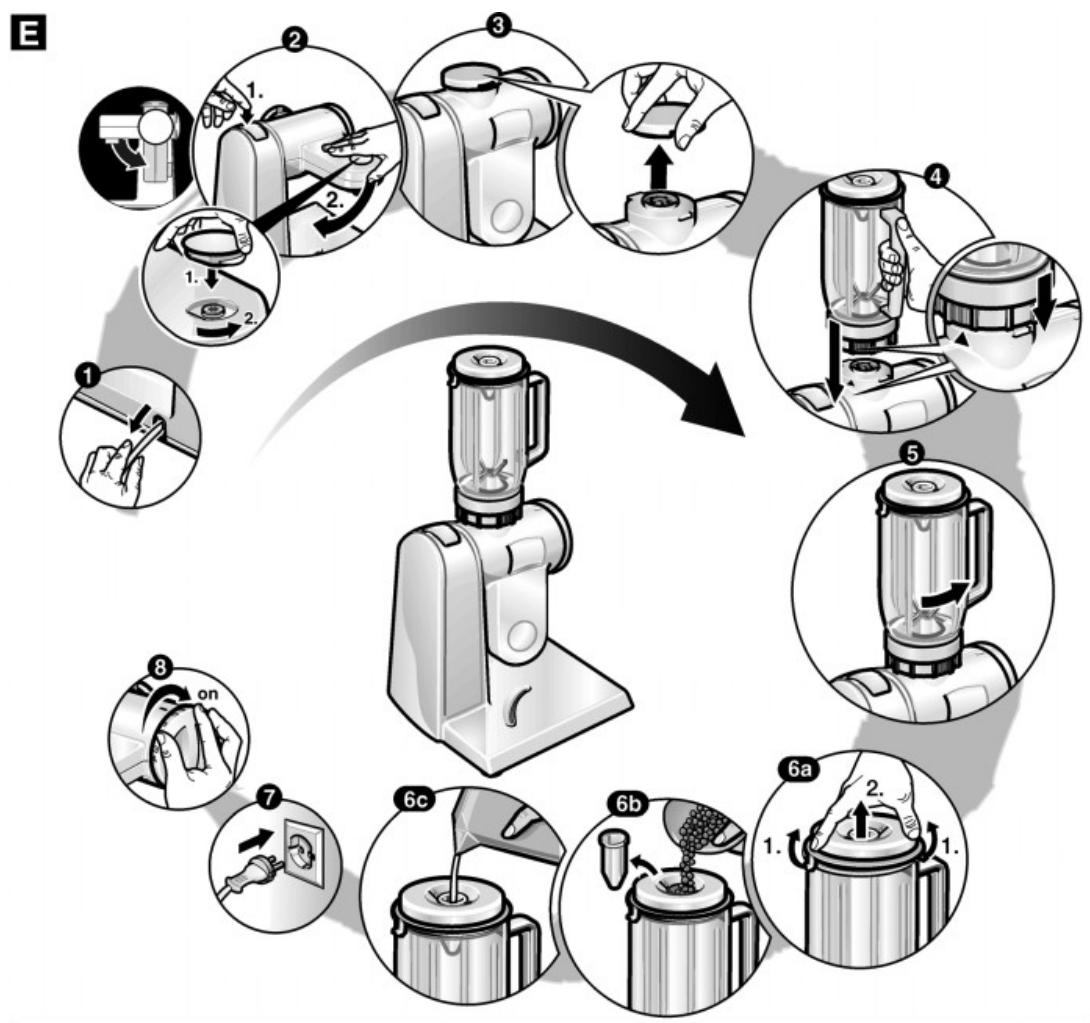

— Figure — Figure H-6

À Risk of injury from sharp blades / = Switch off the appliance with the rotary rotating drive! suion. th d add ingredient

Never place fingers in the attached blender! … emove the cover and add Ingredients

Do not remove / attach the blender until the drive is at a standstill! Operate the assembled blender only and with the lid

= remove the funnel and gradually add solid ingredients through the feed tube

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0.5 litres of hot or frothing liquid.

Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate when empty.

Processing liquids in the glass blender: maximum setting 3. Add a max. 0.5 litres of hot or frothing liquid.

Press the Release button and move the swivel arm to position 3.

Remove the blender drive cover. Attach the blender jug (mark on the base of the blender jug on the mark on the base unit) and rotate as far as possible in an anti-clockwise direction. —+ Fig. H-4/5

Maximum capacity of liquid for plastic blender = 1 litre,

for glass blender = 0.75 litres,

frothing or hot liquid maximum 0.5 litres Optimal processing capacity — solids

Attach lid and press firmly. While working, always hold the lid firmly with one hand. However, do not place hand over the refill opening!

Set the rotary switch to the desired setting.

MUM44_8001056867indb 18

= pour liquid through the funnel.

After using the appliance

Switch off the appliance with the rotary

= Remove mains plug.

m Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

Attention! Do NOT use abrasive cleaning agents. Surfaces may be damaged.

Cleaning the base unit

À Risk of electric shock!

Never immerse the base unit in water or

place under running water.

= Remove mains plug.

= Wipe the base unit with a damp cloth. If required, use a little detergent.

= Then dry the base unit.

Cleaning the bowl and accessories

All parts are dishwasher-safe. Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender

À Risk of injury from sharp blades!

Do not touch blender blades with bare hands. The blender can be disassembled for cleaning.

Do NOT use abrasive cleaning agents. The blade insert is not dishwasher-safe. Clean the blade insert under running water only.

Tip: After processing liquids, it is often sufficient to clean the blender without disassembling it. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (if the appliance features quick-action operation, select setting M). Pour out the water and rinse out the blender with clear water.

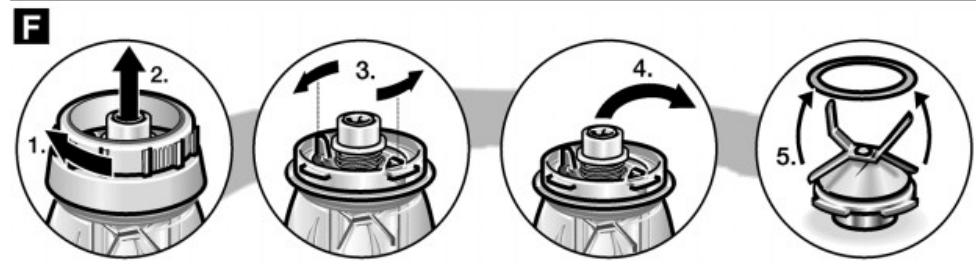

Taking the blender apart

= Rotate the base of the blender jug in a clockwise direction and remove.

= Upon the flanks, rotate the blade insert in an anti-clockwise direction. The blade insert is released.

= Take blade insert out and remove sealing ring.

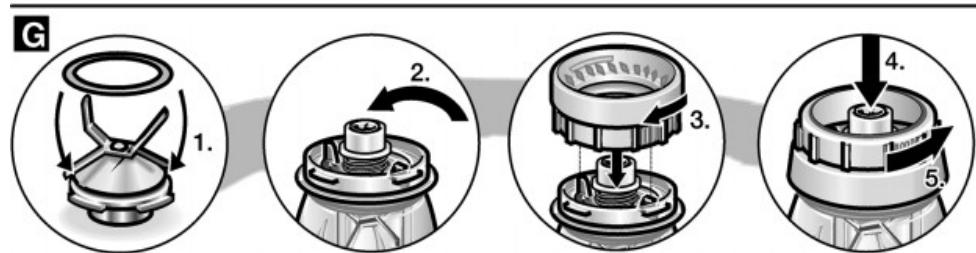

Putting the blender together

= Apply sealing ring on blade insert.

= insert blade insert from below into blender jug.

= Tighten the blade insert with the aid of the blender jug base.

= Tighten the base of the blender jug in an anti-clockwise direction.

If the appliance malfunctions, please consult our customer service.

= Whip cream with the whisk for 174 to 4 minutes at setting 4 (depending on the quantity and properties of the cream).

= Beat egg white with the whisk for 4 to 6 minutes at setting 4.

— 2-3 tbs. hot water

— 1 packet of vanilla sugar

— 70 g cornflour baking powder (if required)

= Beat the ingredients (except flour and cornflour) with the whisk for approx. 4-6 minutes at setting 4 until frothy.

= Rotate switch to setting 2 and spoon in the sifted flour and cornflour within

approx. /2 to 1 minute.

Maximum quantity: 2 x basic recipe

— 1 packet of vanilla sugar or peel from ? lemon

— 200-250 g butter (room temperature)

— 1 packet of baking powder

= Mix all ingredients with the stirrer for approx. 7: minute at setting 1, then for approx. 3-4 minutes at setting 3.

— _ Baking powder if required

= Process all ingredients for approx. 7 minute at setting 1, then for approx. 2-3 minutes with the stirrer (setting 3) or kneading hook (setting 2).

Maximum quantity: 2 x basic recipe

en Standard / optional accessories

C Yeast dough Basic recipe — 500 g flour — {egg — 80 g fat (room temperature) — 80 g sugar — 200-250 mi lukewarm milk — 25g fresh yeast or 1 packet of dried yeast — Peel of }z lemon — 1 pinch of salt = Mix all ingredients with the kneading hook for approx. ? minute at setting 1,

then for approx. 3-6 minutes at setting 2.

Maximum quantity: 1.5 x basic recipe

Ingredients must be at the same

= Process the ingredients (except the oil) in the blender for several seconds at setting 2.

= Switch the blender to setting 4 and slowly pour the oil through the funnel

and mix until the mayonnaise emulsifies.

Eat the mayonnaise immediately, do not store.

MUM44_8001056867indb 20

Standard / optional accessories

Other accessories enclosed with the packaging are described in the separate operating instructions.

Enclosed accessories / optional accessories can also be purchased separately.

The accessories for the MUM 45.. appliance are also suitable for the MUM 44. /46.. /48.. appliances.

Plastic mixing bowl (MUZ4KR3) Up to 1 kg of flour plus ingredients can be processed in the bowil.

Stainless steel stirring bowl (MUZA4ER2)

Up to 1 kg of flour plus ingredients can be processed in the bowil.

Plastic blender attachment (MUZ4MX2)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Glass blender attachment (MUZ4MX3)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Mini processor (MUZ4MM3)

For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

Continuous-feed shredder (MUZ4DS3)

For slicing cucumbers, cabbage, kohirabi, radish; for shredding carrots, apples and celery, red cabbage, cheese and nuts; for grating hard cheese, chocolate and nuts.

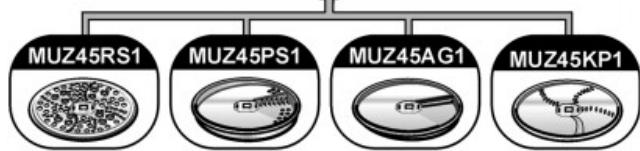

Chipper disc (MUZ45PS1)

For the continuous-feed shredder MUZA4DS3. For slicing raw potatoes for chips.

Asiatic vegetables disc (MUZ45AG1)

For the continuous-feed shredder MUZA4DS3.

Slices fruit and vegetables into fine strips for Asian vegetable dishes.

Grating disc coarse (MUZ45RS1) For the continuous-feed shredder MUZA4DS3.

For grating raw potatoes, e.g. for potato pancakes or dumplings.

Potato fritter disc (MUZ45KP1) For the continuous-feed shredder MUZA4DS3.

For grating raw potatoes for rostis

and potato fritters, for cutting fruit and vegetables into thick slices.

Citrus press (MUZ4ZP1) For squeezing oranges, lemons and grapefruits.

Mincer (MUZ4FW3) For cutting fresh meat for steak tartare or meat loaf.

Perforated disc set (MUZ45LS1) For the mincer MUZ4FW3.

Fine disc (3 mm) for pasties and spreads, coarse disc (6 mm) for sausages and bacon.

Viennese whirl attachment (MUZ45SV1)

For the mincer MUZ4FW3.

With metal template for 4 different pastry moulds.

Grater attachment (MUZ45RV1) For the mincer MUZ4FW3.

For grating nuts, almonds, chocolate and dried bread rolls.

Juicer attachment (MUZ45FV1) For the mincer MUZ4FW3.

For pressing soft fruit, (except raspberries), tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.

MUM44_8001056867indb 21

Accessories holder (MUZ4ZT1) For the storage of accessories such as kneading hook, whisk, stirrer, slicing, shredding and grating disc.

Mill with conical grinder made of steel (MUZ4GM3)

For all grain types except maize, also oil seeds, dried mushrooms and herbs.

Ice-cream maker (MUZ4EB1) For the preparation of up to 550 g of ice cream per cycle and container.

Disposal Dispose of packaging in an environ- mentally-friendly manner. This

== appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the frame- work for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from

the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Prudence! Lames rotatives.

= Retirer le couvercle.

Multi-mixer (MUZ4MM3)

‘ROC L 217 = LU n = ‘SUR ‘147 L

Ingredienserne skal have samme

VAN Fare for skolding!

> (LS Bo [ko [Lg | F8

Desdobre as pâginas com as ilustraçôes.

m ATOOUVOÉOTE TO IG.

Maywrounxavh (MUZ4EB1)

‘ROC L 217 = LU n = ‘SUR ‘147 L

= He nepecraBnañTe noBOPOTHUA BaXKiNb, NOKA NPHNAA yBiMKHEHUÜ.

= He TopkaTuca HoxiB GneHAepa oroneHAMU pyKaMy.

ANA 3aMiLLYBAHHA TICTA, TaKOrO

aynuHkU NPABOTA — niCNIA BAMKHEHHA

= YcraHosiTe 4auuy. OcHoBa 4auuii Mae BBIATU y BUÏMKY OCHOBHOrO 6noKka npunaay.

i BTPHMyYüTE HOrO B LbOMY NONOXEHHI,

BUKOPUCTOBYBATU TALK B 3i6PAHOMY CTaHi

= Micna UbOro NPOTPITE PNA HACYXO.

Auck ana npuroTyBanHa aepyHiB (MUZ45KP1)

npu6op. Mpu6op 4 npuHaanekHOCTU He

OCTaHOBKU NPHBOHA — NOCNE BLIKTIOHEHAA

M SarpyanTb UHTPEAMEHTbI.

She Y gli ll is (oubela) Ualles gulil ialiali (alta) tal

LAN 4e Ji us :lasls| Gé as (ol

ar-6 jsll uiall, cylarl

& (Mo cle gli bus eg pall Jai

Ab; 4 she duo le Jedi as de

Gael; still; (DA ae Ÿ pass

BSH Home Appliances FZE Round About 13,

Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit ww.bosch-home.co.uk

or call Tel: 0344 892 8979

‘Call are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, EAAGg BSH Ikiakes Siskeves A.B.E.

Central Branch Service

BSH Home Appliances Limited Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

IE Republic of Ireland BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate Walkinstoun

Service Requests, Spares and Accessories Tel.: 01450 2655*

0.03 € per minute at peak

North Industrial Park

Plot No. 103, Road No. 12,

* Mo-Sa: 8 00am to 8.00pm (exude publi holidays)

MT. Malta Oxford House Ltd. Notabile Road

Abdul Cat Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

{Next to Toyota), Jamiah Dist

Block 4012, Ang Mo Kio Avenue 10

* Mo-Fr:8.30am t 7 00pm, Sa: 8 30am to 5.30pm <exaude publi holidays)

TW. Taiwan, £? SRE inaies,

15th Road Randjespark
