Product type	LED TV 43" (109 cm)
Brand	BLAUPUNKT
Model	43U3012
Dimensions (without stand)	Approx. 96.5 x 56.5 x 8 cm
Weight	Approx. 7.5 kg
Power supply	220-240 V, 50/60 Hz
Consumption (standard mode)	70 W (typical)
Standby consumption	Less than 0.5 W
Tuner type	DVB-T/T2, DVB-C, DVB-S/S2 (according to model)
Screen resolution	1920 x 1080 pixels (Full HD)
Connectivity	HDMI (x3), USB (x2), VGA (PC), Scart, Digital audio output optical/coaxial, 3.5 mm headphone
Main features	Weekly TV guide, teletext, parental control, sleep timer, USB Multimedia mode (photo, music, video), HDMI CEC
Maintenance and cleaning	Clean the screen with a soft, damp cloth (clean water only). Do not use detergents or solvents.
Safety	Do not expose to moisture, ensure good ventilation (5 cm from wall), do not place naked flames, unplug during thunderstorms, use a stable support, fix to wall to prevent falling
Spare parts and repairability	No user-serviceable parts. Contact the manufacturer or an authorized service center for any repair.
Included accessories	Remote control, 2 AAA batteries, stand mounting kit, RF cable, user manual, warranty card
Operating temperature	Moderate climate, dry indoor
Viewing angle	178° (horizontal and vertical, typical)
Standards	Complies with RED Directive 2014/53/EU
Energy class	Check the label on the device (ECO, Standard, Maximum values)

Frequently Asked Questions - 43U3012 BLAUPUNKT

How to install the stand provided with the television?

Follow the instructions in the user manual included in the accessories bag. Attach the stand to the TV using the provided screws, then place the TV on a stable surface. For wall mounting, use a suitable mounting kit and an anti-tip strap to prevent falling.

What to do if the remote control does not work?

Check that the batteries are inserted with correct polarity and are not depleted. Replace them if necessary. Ensure no obstacle blocks the signal between the remote and the TV sensor. If the problem persists, use the buttons on the TV (joystick or keys) to control the device.

How to search for channels for the first time?

Turn on the TV: the initial setup menu appears. Select language, country, antenna type (DVB-T, DVB-C or DVB-S) then start automatic search. Press [MENU] then 8-8-8-8 if the menu does not appear. Channels will be stored automatically.

Can I connect a USB stick to the TV?

Yes, plug the USB stick into one of the USB ports on the TV. Press [SOURCE] and select USB. The multimedia menu appears: you can play photos, music and videos. Use the navigation keys to select a file and [ENTER] to play. Avoid USB extension cables to ensure good quality.

What to do if the image is distorted or does not fill the screen?

Press the [ASPECT] button on the remote to choose the appropriate image format: 16:9, 4:3, Zoom, Auto, etc. The ideal setting depends on the source (TV, HDMI, USB). You can also adjust in the menu Image > Aspect ratio.

How to reset the TV to factory settings?

Press [MENU], go to Settings > Reset TV. Confirm with [ENTER]. All settings (channels, preferences) will be erased. The TV will restart as at first power-on.

Can I update the TV software?

Yes, via the menu Settings > Software update (USB). Download the latest version from the website www.umc-poland.com/blaupunkt/, copy it onto a USB stick and insert it into the TV. Follow the on-screen instructions. Never turn off the power during the update.

The TV displays an error message or turns off abnormally, what to do?

Try turning the TV off and on after a few seconds. If the problem persists, unplug the power cord for one minute. Ensure ventilation is adequate (5 cm from wall) and the device is not exposed to a heat source. In case of electrostatic discharge, turn the TV on and off to restore normal operation.

How to clean the screen without damaging it?

Use a soft, lint-free cloth slightly dampened with clean water. Gently wipe the screen. Never use chemicals, alcohol, detergents or solvents. Do not spray liquid directly onto the screen.

What is the power consumption of this TV?

The consumption depends on the mode. In Standard mode, it is about 70 W. In ECO mode, it can drop to 50 W. Maximum consumption (full brightness, high volume) can reach 100 W. In standby, less than 0.5 W. Check the energy label for exact values.

USER MANUAL 43U3012 BLAUPUNKT

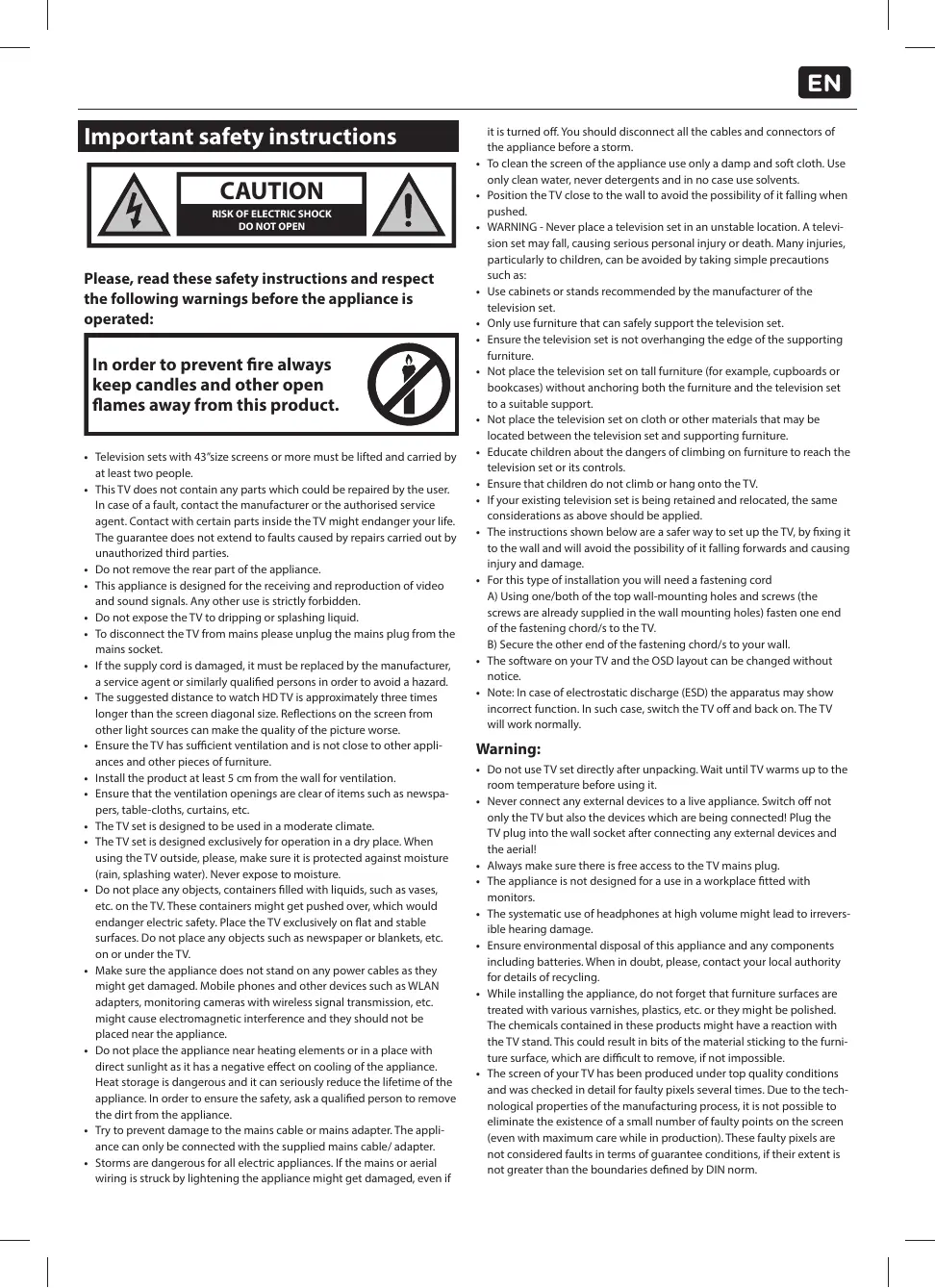

Important safety instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated:

In order to prevent fire always keep candles and other open flames away from this product.

• Television sets with 43"size screens or more must be lifted and carried by at least two people.
• This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the manufacturer or the authorised service agent. Contact with certain parts inside the TV might endanger your life. The guarantee does not extend to faults caused by repairs carried out by unauthorized third parties.
• Do not remove the rear part of the appliance.
• This appliance is designed for the receiving and reproduction of video and sound signals. Any other use is strictly forbidden.
• Do not expose the TV to dripping or splashing liquid.
• To disconnect the TV from mains please unplug the mains plug from the mains socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• The suggested distance to watch HD TV is approximately three times longer than the screen diagonal size. Reflections on the screen from other light sources can make the quality of the picture worse.
• Ensure the TV has sufficient ventilation and is not close to other appliances and other pieces of furniture.
• Install the product at least 5cm from the wall for ventilation.
• Ensure that the ventilation openings are clear of items such as newspapers, table-clowns, curtains, etc.
• The TV set is designed to be used in a moderate climate.
• The TV set is designed exclusively for operation in a dry place. When using the TV outside, please, make sure it is protected against moisture (rain, splashing water). Never expose to moisture.
• Do not place any objects, containers filled with liquids, such as vases, etc. on the TV. These containers might get pushed over, which would endanger electric safety. Place the TV exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the TV.
• Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance.
• Do not place the appliance near heating elements or in a place with direct sunlight as it has a negative effect on cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the appliance. In order to ensure the safety, ask a qualified person to remove the dirt from the appliance.
• Try to prevent damage to the mains cable or mains adapter. The appliance can only be connected with the supplied mains cable/adapter.
• Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by lightening the appliance might get damaged, even if

it is turned off. You should disconnect all the cables and connectors of the appliance before a storm.
- To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents and in no case use solvents.
- Position the TV close to the wall to avoid the possibility of it falling when pushed.
- WARNING - Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
- Use cabinets or stands recommended by the manufacturer of the television set.
- Only use furniture that can safely support the television set.
- Ensure the television set is not overhanging the edge of the supporting furniture.
- Not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not place the television set on cloth or other materials that may be located between the television set and supporting furniture.
Educate children about the dangers of climbing on furniture to reach the television set or its controls.
- Ensure that children do not climb or hang onto the TV.
- If your existing television set is being retained and relocated, the same considerations as above should be applied.
- The instructions shown below are a safer way to set up the TV, by fixing it to the wall and will avoid the possibility of it falling forwards and causing injury and damage.
- For this type of installation you will need a fastening cord A) Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/s to the TV.

B) Secure the other end of the fastening chord/s to your wall.

• The software on your TV and the OSD layout can be changed without notice.
  Note: In case of electrostatic discharge (ESD) the apparatus may show incorrect function. In such case, switch the TV off and back on. The TV will work normally.

Warning:

• Do not use TV set directly after unpacking. Wait until TV warms up to the room temperature before using it.
• Never connect any external devices to a live appliance. Switch off not only the TV but also the devices which are being connected! Plug the TV plug into the wall socket after connecting any external devices and the aerial!
  Always make sure there is free access to the TV mains plug.
• The appliance is not designed for a use in a workplace fitted with monitors.
• The systematic use of headphones at high volume might lead to irreversible hearing damage.
• Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling.
• While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The chemicals contained in these products might have a reaction with the TV stand. This could result in bits of the material sticking to the furniture surface, which are difficult to remove, if not impossible.

• The screen of your TV has been produced under top quality conditions and was checked in detail for faulty pixels several times. Due to the technological properties of the manufacturing process, it is not possible to eliminate the existence of a small number of faulty points on the screen (even with maximum care while in production). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries defined by DIN norm.

• The manufacturer cannot be held responsible, or be liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider.

• There are a variety of reasons you may be unable to access content or services from the device unrelated to the device itself, including, but not limited to, power failure, the Internet connection, or failure to configure your device correctly. SCEP, its directors, officers, employees, agents, contractors and affiliates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided.
• All third party content or services accessible via this device is provided to you on an "as-is" and "as available" basis and SCEP and its affiliates make no warranty or representation of any kind to you, either express or implied, including, without limitation, any warranties of merchantability, non-infringement, fitness for a particular purpose or any warranties of suitability, availability, accuracy, completeness, security, title, usefulness, lack of negligence or error-free or uninterrupted operation or use of the content or services provided to you or that the content or services will meet your requirements or expectations.
• 'SCEP' is not an agent of and assumes no responsibility for the acts or omissions of third party content or service providers, nor any aspect of the content or service related to such third party providers.
• In no event will 'SCEP' and/or its affiliates be liable to you or any third party for any direct, indirect, special, incidental, punitive, consequential or other damages, whether the theory of liability is based on contract, tort, negligence, breach of warranty, strict liability or otherwise and whether or not SCEP and/or its affiliates have been advised of the possibility of such damages.

Important information regarding use of video games, computers, captions and other fixed image displays.

• The extended use of fixed image program material can cause a permanent "shadow image" on the LCD screen (this is sometimes incorrectly referred to as "burnout to the screen"). This shadow image is then permanently visible on the screen in the background. It is irreversible damage. You can avoid such a damage by following instructions below:
• Reduce the brightness/contrast setting to a minimum viewing level.
• Do not display the fixed image for a long period of time. Avoid displaying of:

» Teletext time and charts,
TV menu
» In the „Pause“ mode (hold): Do not use this mode for a long time, e.g. while watching a video.
Turn off the appliance if you are not using it.

Batteries

• Observe the correct polarity when inserting the batteries.
• Do not expose batteries to high temperatures and do not place them on locations where the temperature might increase quickly, e.g. near the fire or on the direct sunshine.
• Do not expose batteries to excessive radiant heat, do not throw them into the fire, do not disassemble them and do not try to recharge un-rechargeable batteries. They could leak or explode.

Never use different batteries together or mix new and old ones.
» Dispose of batteries in an environmentally friendly way.
» Most of the EU countries regulate the disposal of batteries by law.

Cd

Disposal

• Do not dispose of this TV as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

CE Statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU. http://www.umc-poland.com/declaration-of-conformity/

In order to let customer to manage TV power consumption properly and save energy, there are declared three power consumption values on the device rating label:

ECO - economy value, which provides minimum power consumption and which is available under default device condition (after reset, for example). Standard - the middle value, which reflects average power consumption under general device settings, after leaving of eco mode.

Maximum - the value, which is achievable under highest device load conditions (max picture luminance, max sound volume, etc).

What is included in the box

Supply of this TV includes following parts:

• 1x TV	• 1x User guide
• 1x Remote control	• 1x TV stand installation packet
• 2x AAA batteries	• 1x Technical leaflet
• 1x Warranty card	• Product fiche

Attaching the Stand

Please follow the instructions in Technical leaflet, located in the accessories bag.

Getting started - initial set up

1. Insert the batteries supplied into the Remote control.
2. Using the RF cable supplied, connect the TV to the TV Aerial wall socket.
3. Connect the power cable to the Electrical outlet and switch the TV on by using the standby button on the TV.
4. After turning the TV on, you will be welcomed by the First Time Installation menu. If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. If you wish to make changes to any of the default settings, use the scroll / / buttons. To exit this menu at any time, press [EXIT] button.
5. Please set desired settings in FIRST TIME INSTALLATION screen. DVB Antenna - You can choose between Terrestrial (DVB-T), Cable (DVB-C) or Satellite (DVB-S)*.

Language - Set the TV Menu language.

Country - Set the desired country.

Tunning Mode - Choose if you want to tune only Digital (DTV)

Analogue (ATV) or both Digital and Analogue (DTV + ATV)

Environment - Select the location of TV.

For home use, please select Home Mode.

For shop demonstration mode, set Store Mode.

Sorting by LCN - Set LCN to ON if you want to arrange channels by provider preferences (only applies to DVB-T and DVB-C channels).

1. Press [ENTER] button to start the tuning process.
2. Optional channel presets DVB-C:

Keep all default settings as recommended.

If DVB-C channels are not found, contact your network provider for the valid "Network ID". Then perform a new search. Press the [MENU], select "Network ID" and enter the network ID.

1. Optional channel presets DVB-S2*: Select "Satellite" in the "DVB Antenna" in the menu for the optional channel presets. Here you can choose between the various satellites. Since selection completed, then the channel list of the exact satellite will be available to be imported into your TV system.

Confirm with [ENTER] button on the remote control, to start scanning.

TIP: If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

• • Available only for TVs with DVB-S tuner

Remote control

Refer to remote control picture on the second page of this user manual.

1. STANDBY - Switch on TV when in standby or vice versa.
2. MUTE - Mute the sound or vice versa.
3. DTV - Switch to digital TV source.
4. RADIO - Switch to Digital and switch between TV and radio in Digital mode.
5. USB - Switch to USB source.
6. 0-9-to select a TV channel directly.
7. TV GUIDE - Opens the 7 Day TV Guide (Digital mode).
8. RECALL - To return to the previous channel viewed.
9. VOL+/- - To increase / decrease the sound level.
10. S.MODE - Scrolls through sound mode options.
11. P.MODE - Scrolls through picture mode options.
12. FAV - To display favourites menu.
13. CH + / - To increase or decrease the channel being watched.
14. ( / ) / ENTER) - Allows you to navigate the on-screen menus and adjust the system settings to your preference. While watching TV, press ENTER to show Channel list.
15. MENU - To display OSD menu.
16. EXIT - To exit all menus.
17. SOURCE - To display the input/source menu.
18. INFO - Press once for now/next channel information. Press twice for programme information about current programme.
19. ASPECT - To switch the screen between the different picture formats.
20. SLEEP - Press repeatedly to cycle through the sleep options.
21. AUDIO - To change the audio language (if available).
22. SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).
23. TEXT - Teletext mode - To enter Teletext
24. TEXT HOLD - Teletext mode - Hold current page which is displayed
25. • To restart the current chapter
26. • To advance forward to the next chapter
27. • To stop the playback
28. • To play in fast rewind mode.
29. -To play in fast forward mode.
    30.▶-To play/pause
30. COLOUR BUTTONS- Additional teletext and OSD functions

TV buttons*

Vol+ Volume up and menu right

Vol- Volume down and menu left

CH+Programme/Channel up and menu up

CH-Programme/Channel down and menu down

MENUDisplaysMenu/OSD

SOURCE Displays the input source menu

STANDBY Standby Power On/Off

* - for TV with buttons

TV Control Stick*

TV control stick is located on the lower left corner of back side of the TV. You can use it instead of remote control to control most of the functions of your TV.

While TV is in standby mode:

• short press of control stick - Power On

While watching TV:

• RIGHT/LEFT - volume up/volume down
  UP/DOWN - changes channel up/down
• long press UP (or DOWN) - Displays Sources/Inputs menu

• short press - Displays Menu

• long press - Standby Power Off

While in menu:

• RIGHT/LEFT/UP/DOWN - navigation of cursor in on-screen menus
• short press - OK/Confirm selected item
• long press - Back to previous menu
• • for TV with control stick

TV Control button*

TV control button is located on the bottom side of the TV front.

Short press - open or navigate menu

Long press - OK/Confirm selected item

* - for TV with control button

Choosing Mode Input/Source

To switch between the different input/connections.

a) Using the buttons on the remote control:

1. Press [SOURCE] - The source menu will appear.
2. Press [] or [] to select the input you require.
3. Press [ENTER].

b1) Using the buttons* on the Television:

1. Press [SOURCE].
2. Scroll up/down using CH+/CH- buttons to the input/source you require.
3. Press [VOL+] to change input/source to the one selected.

b2) Using the TV control stick*:

1. Press control stick UP (or DOWN) for few seconds to enter SOURCES menu.
2. With control stick choose the input/source you require.
3. By short press of control stick to center, you will change input/source to the one selected.

* - optional

Connections

Please follow the instructions in Technical leaflet, located in the accessories bag.

USB USB-Input 1, 2*

HDMI 1, 2*, 3* in HDMI-Input 1, 2*, 3*

VGA(PC)* VGA PC-Input

VGA (PC) Audio In* 3.5mm PC audio input

R/L - Video & YPbPr audio In* Component / Video audio input

Video (CVBS)* VIDEO input

Component / YPbPr* Component HD Input

SCART* SCART-Input

CI Card IN CI input

RF In RF / TV Aerial Input

Sat In* Satellite Input

Digital Optical Audio Out* Digital optical output

Digital COAX Audio Out* Digital Coax output

HEADPHONES 3.5mm Headphone output

• • Only on supported devices

TV Menu navigation

To access this menu, press [MENU] button on the remote control. To enter a menu press [ENTER]. If you wish to make changes to any of the default settings, use the scroll (▲/▼/▲) buttons. To confirm any settings press [ENTER] button. To exit this menu at anytime, press [EXIT] button.


Picture Mode - Choose from the following presets.

• Dynamic - Recommended settings for fast moving pictures
  -Standard-Default settings
• Mild - Set to be lighter in colour and less bright
• Personal - Lets you manually alter all the settings
  Economy - Consume 15% less energy.

Contrast - Switch the balance between black and white.

Brightness - Increase or decrease the brightness of the picture.

Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture (for NTSC signal only)

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature - Choose from the following presets.

Cold-Increases blue within the picture
- Normal - Default settings
- Warm - Increases red within the picture

Noise Reduction - Filters and reduces the noise (interference) of the picture

Aspect Ratio - Picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs.

• Auto - Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.
• 4:3 - Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen.
• 16:9 - Fills the screen with a regular 16:9 signal.
• Zoom 1/2 - The picture is the correct proportion but zoomed in to fill the screen.
• Dot by Dot (HDMI) - Will display the picture in its original resolution without any change.

HDMI Mode - settings for HDMI sources.

• Auto - recommended option, TV will set best option based on connected device by HDMI.
  Video - picture will be with overscan to get optimal aspect ratio for watching movies.
• VGA/PC** - picture will be without overscan. Set this option manually in case part of screen is hidden, after you connect PC to the TV.

PC*

Auto Adjust - Lets you automatically configure the television to be used as a computer monitor.

H Offset - Changes the horizontal position of the picture.

V Offset - Changes the vertical position of the picture.

Size - increase picture size.

Phase - To adjust delay time of phase in order to reduce the noise of picture

TIP: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

• • Only on supported devices

Sound

Sound Mode - Choose from the following presets

Standard-Default settings
- Music - Emphasises music over voices
- Movie - Provides live and full sound for movies
Sports - Emphasises sound for sports
- Personal - Selects your personal sound settings

Equalizer - Adjusts the volume of different sound frequencies. The equalizer sound levels can only be adjusted when the sound mode 'Personal' is selected.

Balance - To switch the sound between the left and right speakers.

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source.

Surround Sound - Allows you to turn surround sound effect ON or OFF.

Digital Output - This is the digital Audio output.

Choose from the following options:

-Off-Off
- Auto - Selects the best settings automatically
- PCM - Select this option if you are connecting to a Stereo Hi-fi via digital cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

SPDIF Delay (ms) - Enables the user to adjust sound setting to sync picture and audio for external speakers connected via digital audio output.

Audio Delay (ms) - Enables the user to adjust sound setting to sync picture and audio for TV speakers.

Audio Description - Additional sound track for visually impaired.

Available only on selected DTV shows.

• AD Volume - to adjust volume of Audio Description sound track

Channel

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Analogue Manual Tuning - Allows you to

manually tune your analogue signal.

Digital Manual Tuning - Allows you to manually tune your digital signal.

Channel Edit - Allows you to delete, skip and add favourite channels.

• Red Button - delete selected channel.
• Yellow Button - Move selected channel. Go with cursor to channel, which you wish to move to different position, then press YELLOW button. Now move selected channel with UP/DOWN arrow to desired position and press YELLOW button again to confirm its new position in channel list.
• Blue Button - Skip selected channel. Channels selected to Skip will not be displayed while pressing CH + or CH- buttons.

Schedule List - Lists your programme reminders.

Signal Information - Information about DVB signal.

CI Information - Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Satellite Setup* - This menu is only available in DVB-S2 mode. You can select the type of satellite, your transponder and your LNB type, etc.

• • Only for models with DVB-S tuner

Time

Clock - Set the date and time. Date and time is set up automatically in DVB mode.

Off Time - Allows you to set a specific time for your TV to turn off.

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone - Change your current time zone.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time.

Auto standby - Adjustment for the auto standby in hourly increments: Off -> 3h -> 4h -> 5h.

OSD Timer - Lets you adjust the amount of time the On

Screen Menu stays on the screen before disappearing.

Lock

System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password. Use the button to quit the password input. Use the button to clear. Default password is 0000.

Set Password - Change the default password.

Channel lock - Lock specific TV channels.

Parental Guidance - Lock TV channels based on age restriction.

Key Lock - Lock the TV buttons.

• Off - All TV buttons are unlocked
• Full - All TV buttons are locked

Settings

Language - Allows you to change the language of the menu.

TT Language - Allows you to change Teletext language.

Audio Languages - Allows you to change audio language on selected DVB channels.

Subtitle Language - Allows you to change subtitles language on selected DVB channels.

Hearing Impaired - If signal provides support for the hearing impaired, the subtitles can be played by pressing the "Subtitle". If you set Hearing Impaired ON and switch to a channel with supports for hearing impaired subtitles will be activated automatically.

Blue Screen - Changes the background when there is no input between transparent and a blue background (Only available on some sources).

First Time Installation - Starts the first time installation.

Reset TV - This resets the menus to factory settings.

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/firmware onto the television. Further details of how to do this will be issued with the firmware. Contact the helpline or refer to the 'www.UMC-poland.com/blaupunkt'/website.

WARNING: Do not turn off the TV's power until the upgrade is complete!

HDMI CEC* - Allows you to operate devices connected via HDMI with TV remote control.

• CEC Control - set CEC functions on/off.
• Audio Receiver - Sends audio signal from terrestrial/satellite broadcast via HDMI to the AV receiver without using any additional audio cables, this functions is available only on HDMI 1 or 2 output (*- optional base on model).
  Device Auto Power Off - Automatically turn off connected devices via HDMI CEC, when you turn off TV.
• TV Auto Power On - when you turn on any of connected HDMI CEC devices, TV will start up automatically.
  Device List - show list of connected CEC devices
  Device Menu - Allows you to access devices menu and operate the menu using TV remote control.

Version Info - shows version of TV software

Store Mode** - switch ON/OFF shop demonstration mode

• • HDMI CEC must be supported by connected device.
    **- available only if store mode was selected during first time installation

7 Day TV Guide

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the Digital channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1. Press [TV GUIDE]. The following 7 Day TV Guide will appear.
2. Navigate through the menu using / / .

You can now:

Set a reminder by pressing GREEN.

View a previous day by pressing YELLOW.

View the next day by pressing BLUE.

[INFO] shows detailed information about the selected post

1. Press [EXIT] to exit the 7 day TV Guide.

USB mode / Media player

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the USB mode menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

1. You can navigate through the menus using the scroll
   / / buttons. To confirm the item you wish to play/view press [ENTER] button.
2. Select the drive you require. (If your drive only has 1 partition you will only see 1 item).
3. You can now access the item. Press ENTER to view.
4. While viewing you may control the item playback modes by using the remote control buttons or by invoking playback navigation menu and selecting on-screen buttons / / / and [ENTER]

NOTE: USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages during play back of USB content.

BaxHn INhctpykqm 3a 6e3oNaCHOCT

BHIMAHNE

PNCCKOTOKOYADUPDAHEOTOBAPPA

Ipeu da 3anoohete pa6oTa c ypea, moJ npouetete HnCTpykunite 3a 6e3onacnoct n cna3BaaiTe npedynpexdHnraTa, noocoyn no-dony:

C cen npedotbpaTbaHe ha noXap BnHarn dpbXte Cbeu nIIN dpyrN N3TOUHNU Ha OTkPIT orbN daJeY OT 03n npOdyKT.

Tenebnizoprute c ekapanu OH 43"Trepa6Ba da 6bdaat nobdrnHHN HOCENH OT NOHE daa yuu.
To3n TeneBm3Op He CbIbPka qactN, KOINTo 6xHa MOrIa Da ce npnpabRT ot Notpe6bnteRn. B cIyauH na NobPeDa ce CbIbPxete C npOn3BODmtTEn Iu n CyIbHNOMOUeH cepBn. OonpIbT do npOedelen H qactN, HamaPiAsn Ce TeneBImOpA MoKeJa da bJe oAnocet a Ha JKBota Bn. GapanpaTna Te e BaVuaHn B cIyauH na NobpeDn BCJeCTBne Ha pEmOHn, N3BbPbBaHN OT HeYtbnHOMOQUEHn TptE nCTpAHn.
He cbaJnTe 3aHaTa qact Ha ypeJa.
Toba yCTPOINCTBO e npOeKTHIAPHO 3a noJUHABAHNE iBb3npOu3BExkJaHe Hn BIDeo n 3yKOBn CInHAn. BcKaKaB VBnD npTu yNtPpe6a e Ctporo 3abpeHa.
- Pana3eTe TeneBn30pa OTKaneu nn pa3nBaun Ce TeuHocTn.
3a da INKIOHUTe TENEBA3Opa OTOCHBOTO ENEKTPO3xApaHBAhe,MOIA, HABATEE UIENCECA ON KOTKAHA.
Bcnyaeye3xazpanbuaunrKa6eb6bdeNobpeDeH,TOyTp86ba da 6bde Bcnpn3bOuNTeR,HerocepBn3nOnToIiueCnOo6hbaKanfkaaucaCueJe6bdeNt6bnerataeEBehTuHaNa onaoCTH.
IpnopbHTnHOTo pa3OToHNe 3a rIeHaHe HA HD TeneBn3n e npbiNtENHO dmaOnHApHa Na ekpaHa, yMHOKeH no nT pTNI. Otpaehnra BbyPxy EkapHa OT aDpyrN3TOTuHnHa cBeTnHa MoRat da BNOUAT KauEcBTO H a KaPTnHa.
YbepeTeCe,te TEneBnOBoT e NOctABen HA NOCTaTHNo PNOBETPBO MAToC,KAKTO NHe E pa3NIOJKeH B HenoCpeCTBena 6bI30CT DoDyTRn EJIeKtPOpyDeIN YOMdAKHNCKO 603abeKdAhe.
3a noctnrahe Ha do6pa BeHTnlaucia,MOHTnpaIte ypeHa MmHImaHOp a3CToHne O T 5 CM OT CTehata.
YBEPedeCe, Ye BEHTNAUONHINTE OTOBPNHE ca 3aKPNTHO NT ppeDMETN, KATO HANPMERCEBTCHNIU, NOKPNBKN, 3AEBCN I.T.H.
Tetebn3oRb7 e npOeKTHIpa 3a n3nON38aBe npu yMepeHNI KINMAHTNCHY yCNoBn.
Toi Tp86ba da 6bde n3noB3aH eMHCTBeHO Ha cyx Mecta. Korato n3noB3aTE TeneBn3Opa HA oTKPITO, MOJy BVEpeTe ce, Ye e 3auiTeH OT bOda (DjKd, pa3nBaUca ce BOda). HNKORA He n3naarite Tozne ENEKTPOYPeD h BOda.
He Noctabai Te HnKAKBn PpeDMTeN, CbDObe C TeHOnCTN, KATO BA3N n Dp. BByPOX TeneBUN3Opa. Te Moar Da 6bDat 8yTaNt, KoToE 6n Dobeno Do onaPCHOT TO kOKB Yapd. NocTabai Te NeBUN3Opa EINCHTEBO H Bpyx NIOCKN I CTaBNN NOBxPbOCTN. He Noctabai PpeDMTeN, KATO HApIMep BECTNHU, NOKpNBkN u T.N. BByPx Nn ND TeneBUN3Opa.
Yepece Ce,Ye yepbIte He e nocTaben Bbyx3axpaHbaun Ka6enn. Toba 6n rno npBepdIno.MobinHne TepeOnu H npyr uCTPOcTBA, Kato 63xynmHnpEboi Kaptn, Kamepn 3a h6bnOJeHne C 63xynHO npedabaHe n.T.H. MoRat da npuHnHT enEKePOMaHTHNm CmUeHn H ne Tp80aDa b6bDat noctabnn H bNIOCT do yepda.
He noctabrIte TENEB3nOpa B 6nIcSto D ypeDn, m3TOUHK HA BWCOKA TEmnepatya, KaKTo H Na MeCt a CnpKa cNbYeBa CBETInHa, TbB KATO TOBA OK3Ba OTPuINaTeHO BNInHNe BbPxy OXJaXdAHeTo MY.

AkyMunpaHToHaTOnnHa eOnaCHO n Moke cepno3HO da HamaNl XNBOTA hYcTOCTBO.To. O6bPHTe CE kMb KBAIINΦuPAHO nIue 3a NOuchCTBaHe HaHTpyNAHATA MPbCOTnO tyeDA, cJeONOCrpyRBaHe Ha 6beonacHata My pa6oTa.

• Panaete mpexobnna Ka6en n anaTnep TOpnbexdahe. YpeBt MoKeJ da bJe cBpb3aH eniHCTBeHO C npedocTabeHne mpexobKa6en / anaTnpn
• Bypinte npedctabnbaat onachoct 3a BCNUK neneKTPOpyepdi. Ako rnaBHOTO 3axpaHBeA INI ANHTAbe bDatpornapaENOTMbly, ypeBtMOke da bde npobedeh dopni u KORATO e NkLNIOUe. PnpdEybprTpa6Ba da nKKnIOUte BCNUK Ka6eHNu KOHEKTOPI ONCTPOYCTBOTO.
  3aNoCHTBaHE Na eKapana H3nO3BaeIe EINHCTBEHO BnaJHaN MeKa kPna. H3nO3BaTe cAmo NcTa BODa, HNKORA NoCHTBAuN npenapatn B IN HNKakBb CUYay pAaTBOTyIeN.
  Noctabete TeneBIA30Aba B 6nHc0stO cTe hna, cZen u36Ba7ha Na bBmOHOCTTa OT naJahe, B cNayh ce 6Be 6bTnat.
  BHIMAHHE: HnKORA He noctabai TeleBnOpa Bbpy HectabnHO macto.ToM MoKeJa nadHe n da npuHInn cepno3HO fN3Huecko hapaRaBaHe nIcMbpt.MHOrO hapaRaBaHnO,OC6eNo Ha deca,Morat da ce 136erHat kato Ce pnpneMaT cIeHNt leChn nppeNaHm MEPK:
  I3n03a8Tne 5ka4oBe 6nn 6toKn, npenOpbuaHn OT pO13Bovtner na TepeB6nOpa.
  I3n03B3aTe cAmO Me6eHIn, KOITOn MOrAT 6e0anHO da cnJyKAT 3a onOpa H a TENEB3oHa.
• Ybepete ce, ye TeIeBn3OpBT He BnCn HAd pb6a Ha Te3n Me6eenn.
• He noctabraye tetebn3oRa bByPx BvscOKn Me6eNn (Hapr. 6ioFeTn nn
• Keepkn) Be3 da 3axbHete KaKTo Me6eNtne, Taka n Tetebn3oRa KbM
• noxdoxraa onopara.
  He nocstabraIte TeneBnOpa BbPxY NpokRbKa nn DpyrMaTePmaNl, KOIO MOraT Da Ce HAmnpat MeJy TeneBnOpa I cnLyKeJeIte 3a OnOpA Me6eJI.
  3a0n3haJIe deLa cOnaONOCTNE pRy kATEpeHb bpyx Me6BENITE,3a da DOCTHRAT TELEB3NOpA mIy 6BYOTNIe.
• YBepete Ce, Ye Deuata He Ce KATEpT IN He Bucr Tbpxy TeNeBu3Opa.
  Ako hactoarunBt Tenebn30p 6bJe 3aanaehn npemecthen, trpa6ba da ce npnooxat sbCnute npndaanm MEPKp.
  OncnHHTe NO-dony INCTpyKUIM NOKA3BAT 6eONAcEN HauIN 3a npKpEnBaHE na TEeB3Opa KbM CTHeTA. IIO TozIH HauIN MOrat da 6bDat n36eRnatn PneKaTpyBaHETo My HapRed i npNInHraHETo Ha haparHbAHNI mI npOBepi.
  3a Da an3bprnHTe Tozhi BIV MOHTaK, 贝 Bu 6bJe HUYKHO BJKe 3a npinkpenBaHe.

A) I3n03Baikyn eDHHN INI INBATA DIO6ena, KaKTO IN BHTOBe (BHTOBETe Ca npINoKEnH 3aEDHO C IO6enIITe), 3aterHete eHNIN Kpa HbBKeTo 3 npKpRpenBaHe KbM TeneBnO3opa.
B) PInpKNepENe DpyrN Kpa HbBKeTo KbM CTehata.

CoTpyTeBHa NtBaHEnTeNBebONKAKIO KEPAHNOHTO OPOPMNEHMOTarDa6BdATPnOMeHN63pePDBaRAtENHOUBCTHe.
3a6eIeKka:BcnyaHaeneKtpoctatunHepa4pE(SED)ypeBtMOKeJa daNOKA3BAHnepaBUNHaФHyKuIN.AKOToBa ce cnuy,INKIOUCheteTeNeBnO3opa,CneJ KOeTO RbKNIOUChTe HAnBO. TeNeBn3OpBt 3e 3aNoHHe da pa60TNI HOPMnHO.

BHIMAHHE:

• He i3n0l3aIte TeneBIA3Opa HENOCPECTBEHO CNEd p3oIaNOKoBAHe.
• Ppei da ro BkUChTe I3uKaIte,doKATO ce AkImMaTINbIPO do CTaHaTEMnepatypa.
  HnKora He CbP3aIe BbHUni YcTPOCTBa DOkato TeneBUN3OpBT e BKNUChen. NkCNIOVAeBe He cMoTe TNEBUN3Opa, aNycTOPIeCTBA, KOtIO Ce CbP3aT. BKnIOeTe IeIencena Hte TeneBUN3Opa B KOHTAKTA H a CTehata, cnE KATO CTE CbP3aIe BbHUnHITMeYcTPOCTBa N KaBena H a NTehATA.
  BinaHc se yebepaBaiTe, Ye mHa DoCTbI Do 3axpaHbaauiKa6eNHa tenebu3o4a.
• Ypèdʒt h e n pènpàhǎn3háuèn 3a ynôtpè6a H a páoθTHO MRCtO, o6opýDbaHO C moHHTOpN.

Czntemhata nytnp6a Hc suyuank npri BVCOKA cna H 3bVCA MOKe da DOBede NOhe6paHTHM YBpeKdAHn H naCyua.
YubepeTe ce, yeypeDbT IN BCNUKNI HEROBNI KOMNHOENTNI, BKLIQUHTENHIO 6atepiN, ue 6bdat nXbBpneHN NO 6eONaCen 3a OKoINHATA cpeDA naHH. Pnpi CbMHeHNI OTHCNO NocPEnHOTO, ce CBbpKeTe C MeCTHNTE BnAaTI, OT KOINTO Ie NOnyUIne TIOBEue INHΦOpMaJna 3a NaHHNHe Na peuNKnPAne.
- Пи монтіране Ну устійсТВО.To He 36abpavriTe,Чо NobpIXHOCHTne Ha Раэлінчіпімі Бмелі OБИКHOBEHо Ca OБpa6OTeH C n KIoape,Пл actMci N T.N.II.Na TII PONAPHa, XIMKmJIaNte, KOToTe ce CBdPbKATB TeuPIPOyKTNI MOratДЯ CB3DAДAT peakJiCn C NOCTabKaTHa TaleBvI3Opa. Toba MoJke Да Дове De 3aJIENBaHе Na ChAtni OT MATEpIana 3a NOBpXHOCTTA Na МeДeФeNTe, cIeN KoTo IpnEmaXbaHTo Nm 6bIbI ToPyIHO NIIIn DOpri Heb3MOXHo.
EkpaHbT ha Baunra TeeneBnOpe npOn3BeEN npri ycNoBna Ha nai-BuCOKO KAcECTBO e HekONKOKpAHTo NPOBepBAH detaHnHO 3a DeeKTHN pIKcENI. PnpaIe THeNOJOrNHtme Oco6eHOCTNa H npOn3B0DCTeBNHn POUC, PbIHOTO EINMMNHPaRe HA MHNMAHnHb 6poi DeeKTHN pIKcENl Ha eKpaHa e Bb3MoJxHO (dopri pnip MaKcIMAnHa rpnjka B pnoceca Ha npOn3B0DcTBO).TeJe DeeKTHN pIKcENI He CE cUYtAT 3a DeeKTHN, PO tOHouWeHne Ha rapAHIOHNHTe YcNoBna, B cLnyaay Te XeTNb6 PoR he NaBnuBaRa rpaHnUITE, onpeJelen He b CTanJaPa DIN.
- PpOIm3BODIeTHe Hocn OTROBOPHOCT 3a Ipo6JIeMn, CbIp3AHn c nOpTe6BHTENCKOTo 06CnykBaHne Ha CbIbPjxHAne NmU yCnyu, npEOCTABEHn OT TpeTn Nmua. BcKaKBN BbPcOsn, KOMENTapn Nm 3aNITBaHn, OTHacsan Ce KbM CbIbPxAHne Nm UcNyTu, npEOCTABEHn OT TpeTn CTpaHn CneoJa Da 6bJat OTnpaBHN DnpeKTHo KbM DCtabUnHa HCblbpXHAne INu YCnyu.
CbIeCTBvBAT p3NCHINPiuHIn, npOaI KOIO e Bb3MOKHO Da HIMATE DOCTbI NO CbDbPkAHne uNN yCJyTN oT yCTPOIcTBOTO, KOIO He Ca CBp3Ani CbCaMOTo yCTPOIcTBGO, BKNIOUHTENHO, HO He CAMO, npekcbBaHe h AEJIeTKPcIeCTBO, BP3kata C INTEHPET, NnHepaBnHNO KOnΦYrnpurpaHae h YctPOIcTBTO Bn. SCE, HNeHInTe MeHNIXbpr, PbKOBOdITeH, cNjKtENl, npEcdTabrTeHn, i3NtBnHInTeHn IpoDaaDeneHn HE HOAT OTOBPOHcT npE Bac nnI Pteta aNo OTHoWHeHn Ha Takaba HeBb3MOKHOCT nnI npEkbCBAHm 3a NoDDpbJka, He3ABNCM0 O pRnuHATA, n EBEHTyAJIHATA B3MOKHOCT NocJeDhInTe da 6bxa MoHn da 6bdat N36BerHaTn.
Lanoto cbbpjxahne iIy ycnyrHa n TaTeTn cTaPAnH,doCTbNHO 4pe3 ToBaYcTPOiCTBO Bn ce npedoctaba KAKTOe N"KAKTO e HauNHO" IN SCEP u HeNHtne NoPdA3pEnHe n Be N ppeOCTABRT KAKBTo n da 6IIO rapaHun, dpeKTHN n IIN KOCBeHn, BKJIOHTeHNO, 63 oRpaHUnehme, BCNUK4 rapaHUn 3a npDaaBaeMoCT, IINnca H a npuyHeMe, npriOHDoCT 3a onpeJeHena CE, IIN kakBTo n Da 6IIO rapaHUn 3a roDNoCT, DOCTbNHOCT, TOCHOT, PJIHOTA, CNyprHOCT, 3aRnabHe, nonE3HOCT, 63eONrpeHua IIN HeNpeKbCnata pa6Ota IIN mIzIOnI3BaHe Ha cbbpjxAHne IIN ycnytHe, KOHTo Ca Bn npedeOCTaHn, IIN ne Te ToBA cbbpjxAHne IIN ycnyrIe OTTOBaprt Ha BaWnte IINsCKBAAHHn IIN OUkBAHn.
" SCEP" He e npedctabunen I He noema OTROBOPHCT 3a JeIeCTBnraTn nnb 63JeDcTBnraTn Ha TpeTne CTpAnu, DoCTABuNtu Na CbDbpbJxAHMe Nnn yCynrN, HNTo 3a KaIOu N da bNo acNeKt Na CbDbpbJxAHMeTo nn Ucnyrata, CbPb3na C TaKNA DObTaeBnuN.
B HNKO cnuya "SCEP" n/nnn HeHNHnTe Noopda3deneHnHe HocTt OTROBOPOCT KbM Bac nnn dpyr Tpttn CTpaHn 3a KaKBNTo n da 6nno npKe, KOcBeHn, CneuaJnHn, CnyauHn, Haka3aTeJnHn, 3aKOHmepHn nn Dpyr Tnte, H3ABSCIMD anai TeOprrTa 3a OTROBOPOCT ce OCHOBaba Ha doTobOP, Heno3BOnEHO yBpeXdane, He6peKHOCT, HapyuHne Ha ranapuTATA, 6e3BnHObHa OTROBOPOCT n T.N. n daNN SCEP n/nnn HeHNrTe noopda3deneHn He ca 6nnn npDeynpeDenn 3a Bb3MOKHOCTTa OT b3NkBAHETO Ha TAKIBA uETn.

Baxha HhOpmaun OTHoCHO n3nON3BaHeTo Ha BUneo UrpN, KOMNtPn, HApNcN Ipyr npOrpamC fKncupan 6pb3.

IpoobJnxIeHATAynOpTe6aHa npOrpAmnMATEnpaJIcCfIKCuapAHo6pa3 MoKe Da doBepeDo noTOCTOAnHa "CnKA B o6pa3"Ha TeuHOKpCTAnHnE ekpan (noHkORA HnepAIBINO HApUHaO "IpERapHe Ha eKpaHa") Ta3n CAnHa B o6pa3 OCTaba NOCTOHNBO BVIMAb BBfoHB peKHM. Toba e Heo6pTaMnOBpeJa. MoKeTe da a n36BerHete, KATO cneBbATE uNCHTpyKunITE, NocOeHNNo-DOJy:
HAMATEHE HACTPOKA 3A RPKOCT/KOHPTACT DO Bb3MOXHO HAI-NICKTE HNBA, HA KONTO MOKETE daIgadte.
He b3npo3nB6zAaIe DhoC43 a 3a dIyI npEIOIo NT BpMe. N36BaRaeThe b3npO3nB6zAaHToHa:

»BpeMe nДиarpaMnHa TeJTeKCT,
》TV MeHIO
» pni 3a,bxjkahe B pexkM,lay3a? He nIpoIaBteToI pexM 3a rolemn nepnoDn,napmpepdo katoTneIe dneOekn

N3KJIIOUBAIte ypeda, KORATO He ro I3NON3BaTe.

Batepni

Пиocпаэгнета На Батурений оБчрны BHIMANHдади поярптбе сизен рабимно.
He n3nagarite 6atepntne Ha BWCOKI TEMpepaTyrn He rO octabrrte Ha MeCTa, KbDETO TEMepatypata 6n moRna da ce nobuHs 6bpr3o (KATO HApnpMeP 6bnIO do oBtB nn Hn Da NPeKTHa CbHueBa CBETnHa).
He 3nlaaraiTe 6atepniHte Ha cnHna IbNCTa ToTnIHa, He nI XbBpIaIe BOrbH, He nI pa3nO6BaIte Hne OOnITBaIte da npE3apEckdaTe 6atepeHH, KOInTO He ca cneuAnIO npriOJeHN ta Toba. BnpotINBeH cnUay e Bb3MOHX Te da npoteKAT nn da ekCnloNDupat.

H NkOra He n3mOp3BaTBe 3aednHO pa3nMnUb6aTeepu Hne CMeCbAte HOBN i CTAPN TAKUBA.

I3XbIpyIte n3pa3xOeHInTe 6aTePnI NO 6e3oNaCeH 3a OkHaTa CpeHa NaHH.
» N3xBbPnHTo ha 6aTepein e peytnpAHO c b3aKOH B nObeHeo CTpaHOnOT EC.

U3Bexkahe OTeKcIIaTaun

He n3xBbPrrte Tozni TeneBn3Op Hapei c npyrnte 6nToBOnTnBtu. BbPheTe rO BnKoI OtnpeJeHnTe ceHTPOBE 3a peuNkJIpaHe CbPaNcHo DnPeKtNBata 3a NYEEO. ITO Tozhi NauHIn NpOmArate 3aNa3BaHeto Ha pecypcn i 3aunTabate OkOnHata cpea. 3a NoBoeu INΦOPMaJnCe CBbPxKe t c H-6bn3KnD Bo Bac TbProBeU nI m CeMtNHte Bnactn.

CEДeКларачн:

C hactoIuTo Sharp Consumer Electronics Poland sp. z o.o. eklnapipa, ye to3n LED TelenBEmOp e B cboTertCTBne Cb sbc bIeCTBeHIne n3sKBaHnA i npJIoNkIMn pAnIOpeBn Ha IapeKtNbBatra 3a RED 2014/53/EU. http://www.umc-poland.com/declaration-of-conformity/

3a da ce no3B0IIn Ha KInEHTa Da npApBaJIbA npabINHO KOHCyMaIJIra
Ha eHeprna Ha TeLeBnOpaN i Da neCTn eHeprrn, Ha etNIketa c peITNIHR
Ha yCTPOIcTBOTO ca DeKnappArHn TPr CTOnIOHcTn Ha KOHCyMaIra Ha eHeprrna

ECO -ИКОHMOMUHA CTOHOC, KOTAO OCINYPRBA MHHIMAHA KOHCUMAZHA Na eheprn i KOtro E doCTbNa npr yCNOBNA HA yCTPOICTBO T O npo noopada6bapara (hanpimep cledy hnuapara).

StaNdaptna - cpeDnata CToHIOCT, KOToT Otpa3Ba CpeDnata KOHCymuaIa Na eheprn aPi oBsiu HAcTPOJKN Ha yCtpojCTBOTO, Cleed n3JIi3aHe OT eko pekIM.

MaKCMYMM-CTHOHNOCTTCA,KOTO E NOCTNIXIMMA PPI HAI-BICOKI YCNOIBIA Ha HTOBAPBAHe HA yCTPOJCTBOTO (MakcUMaJIHa JRPKOC HA KapTINHaTa, MakcIMAAHcUHa H3ByKa T.H.).

KaKBo e BkJIouyeHO B NaKeTa

Пи зakунвае на.To3n TeleБиЗОр,пс почиTe cnEднITE eLemementN:

KpaTKO HATNCKaHE Ha JxKOJCTnKa-BKIOUOBaHe

DokaTo rnepeTe TeneBn3na:

HAJRCHO/HALBO-yBENuBaHe/HaMaJIbAbeCnTaHa3ByKa
HAGOPE/HADONY-npeBknUcbaHe hKaHaJHarope/HaOny
πρόβλκχητενΗ Ματικαήν ΜΑγθΟPE (πιη ΜΑΝΟΥ) - ποκαλβα ΜΕΜΟ ΘΙΝύθου/ΒΧΟύθους Ανημία
KpaTKO HaTnCKaHe - NOKa3BaHe Ha MeHIO
- pOdBJIKNKTeHNO HaTnCKaHe - NOCTaBReH BpeXIM Ha rTOBOHOCT

ДOKATO CE HAMNAPATE B MEHITO:

HADJRCHO/HANIBBO/HANOPE/HAIOJLY-HABINIPAHANE HAKPCOPA B MEHOTOTA hKaepana
KpaTKo HATnCKaHe - OK / NTbBypXdAbaHe Ha 36paH enement
- PpOdbJIKHTeJIHO HaTnCKaHe - BpbIaHe KbM ppeDNIshOTo MeHIO
*- npu modenu c dxoucmuK

ByToH 3a ynpaBneHne Ha TeJeBu3Opa\*

Bytont3a ynpaIbneneHa tne TeBnizopa e paanIOJoxEN OT dOnHATA strpHa na pndnAHT cAH TaHa nTeBnizopa.

Kpatko Hatnckahe - OTbaprHe NIN HABURAcN B MEHIO

HaTnCHTe npOdbIjXnteHNO-OK/NotBbPdTe n36paHna enemEn

*-3a mene6u3op c KOHmpoeh 6ymoh

I36op Ha pexm 3a BXOdeH cnrHaJI/ I3TOUHNK

IpeBkIIOUbaHe MeKJy pa3LIuHnTe BXoHN CnHaJI/CBbp3BaHna.

a) YnOtpe6a Ha 6yToHInTe Ha nIcTaNCHOnHnHO ynpabLeHne:

1. HATNCHETE 6YTOH [SOURCE] -ИЗБЕДА се МЕЛТО за ИТСТУПЕК на сИндан.
   2.Спд Товатис悔ete [ ] ИИ [▲],зда Изберете рпедочианянВот Baix Bovodem Cinhay.
2. HatncheTe [ENTER].

61) Ynotpe6a Ha 6yToHInTe Ha TeleBn3opa*:

1. Hatnche 6yToH [SOURCE].
2. IprBprrte Hareog/HaNDony c moNOna ha 6yToHnite CH+CH,3a daOCTHIRE HeoJenahnaT OBa CIOtOHNk HA XBOeHN ciHnA
3. HATCHETHE [VOL+], 3a da npomenehte BXOHNIA cHrHaN/IN3TOHnKA bKM To3N, KOIO TcE IN6APnI.

61) Ynotpe6a ha JxkoCTnka*:

1. HAMCHETDE JIKOCTKIA HAFOPE (IINHAJIOY) I RO 3aapbXte HANKOLKO CSEKYUN 3a BOKW M BENU I3TOUYHMIU.
   2.Изберете желаньготВасховенсгнан/източниксnomошта наджоитск. <|im_start|>assistant 3.Изберете желаньготВасховенсгнан/източниксnomошtega Наджоитск.

2. C KAPKTO HATNCKAHE CTENbPA Ha JDOJOKSTNKA MOKETe Da nPOMEHTNE BXOHNH CHHAI / IN3OHTNHKA.

*-no u360p

Cbbp3BaHe

CnEaBte yka3aHnraTbTexnueckata NICTOBKa,KoTo 0e OTKpHete BTO6uKATc npHaadJeXHoCTN.

USB

USBBxoA1,2*

.

HDMI 1,2*,3* in

BxOДЗaHDMI1,2,3

VGA (PC)*

VGA PC-BxOd

VGA (PC) Audio In*

3.5 MM PC aynio BXoD

R/L - Video & YPbPr audio In*

KOMIHOHENTEN/BVIDeayDIO BXO

Video (CVBS)*

BUNEO BxOa

Component/YPbPr*

KOMNOHeHTeH HD BXoD

.

SCART*

SCART-BXoD

CI Card IN

CI BxOa

RF In

BxOJ 3a aHTeHa RF /TV

一

Sat In*

BxOД 3a cateJIIT

---

Digital Optical Audio Out*

UΦOB onTnueH n3XoD

一

Digital COAX Audio Out*

UΦpOB KOaKcnaJIeH n3XoJ

CJUWALKU

3.5 MM n3XoD 3a CnyuJAKN

*Eduhcmbeho npu ycmpoucmbama, koumo zo nodbpxam

Управленье на MeHIOTо на TeJIeBn3Opa

3a doctbnpdo TOBA mEHNO hatnche6ytoh [MENU] bBypx dInctahnIOHHTO ynpabJIeHne. 3a da BnE3eTe B MeHOTo hatnche6yTOH [ENTER]. Ako jenaete da hanaPbNTe IpOMEnB HRAKOI on a6pNIHO 3aadeneHnTE hactpOKn, n3N0n3BaHTe 6yToHNe 3a npebptane (A/NE/ / ). 3a noTbPbXdABaHE na hactpOkn HA tncHETe 6yTOH [ENTER]. 3a i3XoD on MEHOTo BB BCEKn EDIN MOMENT, hatncHETe 6yTOH [EXIT]/I3XOД/.

KaptnHa

PekhMn KahtmHata -Ia6peTe HKoT O TcneHnte npEbaTepHe 03a4eHn HAcTPOHy.

• CtanhapTeH - fo6pnuHo 3aadaeHn HactpoiKn
  -Дианмчимп -нреторьчтеленhaнскгостук 3a 6bр3dOвдИКЕSU се КтAPINH
  -ymepeH-cno-6neDnZBEToBeNno-HNCKaRkoCT

• Pecnohaen -No3BOJRABa Bn da npomeHate pbuHO BCuKN HaCTPOKNI
  -ИкohOMuEn-KoHcymupa 15% no-MaIko eHepnЯ.

Kohtpact - npomraHa ha 6anaHca mejdy 6yio n cepho.

ApKoCT -yBeJIuHaBa IIN HaMaJIaBa ApKOCTTa Ha KapTInHaTa.

BRT-yBeHnUaBa ZBEToBcTeOT UepHo 6JIO.

OTTEbK-NOB3BBAJyEBAWBAHABaIe HNAMLAHBeA H CTENENTHa H NAHOACHTBE KAPTINHAte (eGnIHCTBEO npri NTSC cRTHAn).

Octpota - yBelenuaba HAMaJaBa OCTpoTaHa KapTHHaTa.

• AD Volume - NaCTPOIBAHe Ha CINaTa Ha 3ByKa Ha ayDINO ONICAHNETO.

Kanai

ABOMTUMHNA HACTPOKIa-No3OBJANBa Bn da HACPTponTE OTHOBO TENEBUNOPa 3BaCNKu ΜιΦρονKaHAnLi, ΜιΦρονPaRINO CTANMIu NHAnOHOFU KaHAni.

AHAONOROBpuHNOCKAHPANE- nO3BONBA Bn da HACTPOENTpuHNO AHAONOROBU CINHAN.

LIOPOBOYUHOCKANHPAe-NO3OBJBAWbIaHADNCTOPOBYTPOHOIOIOPOBVAIRHAI.

PedaKaHa KaHAna -NoBOrBaR Ba NdaI3nTbAbe, PnECAKATe NIOJDoABTe IIOOIMN KaHAni.

• YepBEN 6yToH - n3TpnuBaHe Ha n36paH KaHaI.
• JbIy 6byOn - npemecTBaHe Ha n36paH Kahan. IocTaBeTe Kypcopo BpyxK Hana, KoTo JxemaTe Da npemecTte, CnE KOTo HATnCHete JbIYn6 By0n. CnE ToBa NPeMeCTe N36paHn KaHn CbC CTpeNkA HATOPE / HAJOly Do JxemaHATA No3uINB CnOtCbKa C hAnin HATnCHete JbITn6 By0n Oue BeDhXb, 3a Da NotBpDnITE n36opa cn
• CmH6ytoH - nponyckaHe Ha n36paH Kaan. H36paHATE 3a nponyckaHe KaanHnHaMa 7bDat Npok3aBaHn PaHtNcKaHe Ha cytoHN CH+ /Kahan hnped/ nn CH-/kahan h3aD/.

Cnncbk c rpaonu -cnbcun C BauHTe HAnOMHHN3a nporgpAMn. HINOPMAUNa 3a CmHana - INHOPMAUNa 3a UNDPOBMTELEBMEIOHECNIHAN.

CInHOpMaJna - nIaTeHeNte ycIytn I3nCKBt B TeneBn3Opa da 6bJe noCTabeha CMapKptapA'. Ako ce a60HApate 3a nIpaTeha ycIyta, oNoCTabuKnBt Ie Bu nI3dape 'CAM' i "cmAPtkapA". CAM moke da 6bJe noCTabeha B O6UJI NHTEPFNEICEH IOPT (CI Card In).

CateinTHa KOHfYrpaunia* ToBa MEHO eOCTBnHO eHNCTBHe BO pEKIM DVB-S2. MoKete da n36epet BVa H a catenita, Baunia TpAHCNOHdep, BVnda Ha Baunia LNB tNt.

*Eduhcmeho npu modenu c DVB-S myne

Bpeme

ABTOMATNUO CHNXPONHINPAE - ABTOMATNUO 3a daabahe Na toUeH cua n daHa na TelenbOp3na. Heo6xOdmo e TelenbOp3bTa Da bDe paBtoi C uMPOOB CngHau N/nnn INHTepHe Bp3ka. 3a Pbnuy epeYINPAHn HaactPOnkInTe 3a ToUeH cua n daTa n3KnIOUe TheyHKUInTeA"ABTOMATNUO CnXPONHINPAE.AKO "ABTOMATNUO CnXHPONHINPAE" 6bDe iNknIOye H aCsbT n daTata - HcTOPoeHN PbTuO, hNtINOPMaunu Ie 6bDe Hynipana npri npceCTaHOBBaHe n 3aXpaHbaHeto Na Telenb3Opa.

YachOBHnB -BBeBeTe dAa n Hac, DaTata a Yachb C aBAETOMATNUO 3aDadEna B PekmN DVB.

Bpeme 3a n3kIOu7hae-no80BnBa Mn 3a daTepe
onopeIeNO Bpeme 3a n3kIOu7hae Na TeneBIOpa

Bpeme 3a BkIOuBaHe - NtOeBlaBa Bn da zadAtepe OnpTeIeHO BpeMe 3a BkIOuBaHe na TbeNepUOpa, da NtE6pege KaHana, KoTto ue 6b de NpOKa3An, KAKTO nIITouHnka Hb3PONI3BcHexJaDe m CnHATA h3ByKa. Ta7i yHKnua MoKe da 6b de npEbkIOuHa taka, ye da ce NobTapr BceKn de Hn Iu BnpTeIeHn den Yacoba 30a -npOMHaHa h TeKUqTa Hb Yacoba 30Ha.

Taimepa 3a 3acnBaHe -no3B0JbA Bn da HcTAPoVTE TaIIMepa 3a 3acnBaHe Taka, ye TeNeBnOtpB da ce N3KJIIOUBA bAOtMAHNO ChEe OPNEJENHe PnIOID OT BPEme.

Auto standby /ABTomatuHNo noCTabHe BpeKIM Ha

TOTBOHOCT/ -pernylinahe BA abtOMATNUHRT PEXMHN HA TOTBOHOCT B YA CACOBNCT Off/M3KNIOUHEO/->34y->4y->54.

OSD taimep- no3oBraBA Ba n da pyerunapate nepiOa OT bVPEme, 3a KOEt oMeHIO T OCTA H a ekpaHa pneDu da I3u3e3Ne.

3aKJIIOUBaHe

CnTeMo 3aKnOuBaHe -no3B0nBa Bn da 3aKnOuHte nIIN ot 4 CmBOnA.1N3oN3BaTe 6yToH <,3a da pNeycTaHObTE bBBeKdHaTo h Na npOnA.1N3oN3BaTe 6yToH >,3a da uN3wUHTe.Φa6pMnHO 3aJaedHata npOna e 0000.

3aDaBaHe Na npoma -npOMHa Ha 6pHnO 3aJaEHa Ta npoma.
3aKnIOuBaHe Ha KaHaJI -3aKnIOUBaHe Ha
onpeIeHN HTeBv3IOHHK KaHAn.

PodontenkckonTpoln-3akJIOVbAHe H TANEI3OHNHKAHANBb3OCHOBaHbBa3Pc08OPOBAnHEMe.

3aKJIIOUbaHe Ha 6yToHInTe - 3aKJIIOUbaHe Ha 6yToHInTe Ha TeIeBUN3opa.

-ИЗкlioqueho -ВсичКи 6уToHи Ha TeleBn3Opa ca OTKlioquehN
-Пьлно -Всчки 6утон Ha TeleВиЗра ca 3aklnuoyehn

Hactpoikn

E3nK - NO3BOJRA Bn Da npomeHrTe e3nKa Ha MeHIOTo.

EknHaTeNETEKT-By3MOXHOCT3a npOMraHa H e3nKa Ha TeNETECT. Aynoe3nU -No3BONJIBA Bn da npOMeHre ayINO e3nIeHT Ha n36pAHN cHPOBn KAHAni.

EaHk NaCy7PnTpe- n03oBNlaBa Da npOMeHrte e3ika Ha cy7Pbntpe Ha n36pahnNcDpOBOKanAHu

Ybpehen cnyx - Ppi Hanuime Ha cybntpn 3a xopa c ybpehen cnyx B onpepehen H KaHAni, noCleDnite Moar da 6bDat nok3aBaanu qe3 HataNcKaHa ha 6byToh "Subtitie"/Cybntpn/A. Ako BKIOUHTe HKnjra "Hearing Impaired" n nePBKIOUHTe Ha KaHan, 3a KOInTO e noDpBkHa, cybntpn ige 6bDat nok3aBaanu ABOTMAtuHNO.

CnEkpan-npnniNcHa bxOeDn CnHrnan pomemehoHa npoPnAeHn nnCn (Hanuueh Camo npnrHKOntUOHNH).

Digital COAX Audio Out*

Digitánlí koaxiánlí yystup

HEADPHONES

3.5mm sluchatkov yystup

Sedmidenni TV program

STANDBY Standby Taend/Sluk

STANDBY EvpyoioiOn/AnEvepyoioiOn kataoanc avouviC

* -yia tnIeopaon me koumuia

Mox'oc xieipioou tnoεópaonc*

O oxlaoc xepiaou tnc tneopaocn pbioketai otny kaw apiote npvua n ci oipn aepac tnc tneopaocn. Mnpoeite va tox npoiioioie et avti tou tne xepiaotpiou ia va xepiaote tic nepiaootepec, eitoupiec n c tneopaocn.

Otnik'EtEo0c ΨnqiaKou'Hxou*

Aetioupyia USB / Media player

H 1eoupyia USB EITpTei Tnv avatapayuyn nAnouc diaopoptikov Tuvw nepieoxevou nou Evoux anOthkeutei OE USB stick mVhuc. Metaaivovtac o nY USB, eupavicietai nObov tou mevou aeitoupiac USB.Me aaoTovtu apexiou, to pteiyoevo diaxwipctai oe Dwtotpapiec, Moukien,Taviec kKeEvO.

1. Mnopeite va nepinytheite ste mevox npoioomovtac ta koujmi kuiianc / / 7nva tne avanapaywn/ npoBoaTu eniOmuu otoeiou, natoTte tokunl [ENTER].
2. EπλεΤΟ ΣδικΟ Που ΘέλετΕ. (Av o δικος ἐχει 1 διαμέρισμα, θα βλεπεΤΟ μόνο Ενα στοίχεο).
3. MnopeiteTwpa va etaeite OTo OtoiExio. PAnTe ENTER ia npoBoIh.
4. Kata tny npoBoI, mtopeite va eIeYxTe tic aeitoupyie avatapaywync tou oioxiou xpnaioiOniowvTac ta koumiia tou nIeepiOtnpiou n kalwntac to mevov neipinyonc otny avatapaywynk aeiIeIeyovTac ta koumiia eni Tnc obvoc A/▼/kai [ENTER]

S HMEIOsH: Ta kaIOWbia enEkeaocn USB dev ouattivovta kAouc o
muopé iva npokaléounu MIeoiOnTnC noiOITnac EIKoVAC/IXouk KAI
biakontc KATa TNY AvanapayuWU TO neipieKouEVUbX

1x Folleto technique

Botones* de la television

Palanca* de control de la television

Olulised ohutusjuhised

ETTEVAATUST

ELEKTRILÖOGIOHT

ARGE AVAGE

Digital COAX Audio Out*

Digitalni koaksijalni izlaz

SLUSALICE

3,5 mm izlaz za slusalice

*- samo na podrzanim uredjima

Navigacija po TV izborniku

Za pristup izborniku pritsnite gumb [MEN] na daljinskom upravljaču. Za ulaz u izborniku pritsnite [ENTER]. Ako Želite promijenit odane postvake, koristite gumb za pomicanje (▲/▼/▲). Za potvrdu postavke pritsnite gumb [ENTER]. Za izlaz iz izborniku pritsnite gumb [EXIT] (izlaz).

Slika

Način slike - odaberite izmedu navedenih prethodno postavljenih postavki.

• Dinamično - preporučene postavke za slike koje se brzoPokreću
• Standard-zadane postavke
• Umjereno - postavka da boje budu bljehe i ne zarke
• Osobno - ručno podesavanje svih postavki
• Eko-potrosnja 15% manje energije

Digital COAX Audio Out*

Digitalis koax kimenet

HEADPHONES

Digital COAX Audio Out*

Mod USB/Player media

Digital COAX Audio Out*

CH+ program/kanal gor in meni gor

CH- program/kanal dol in meni dol

b1) Paina television painikkeita*:

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Digital Video Broadcasting

The DVB logo is the registered trademark of the Digital Video Broadcasting - DVB - project.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Compatible files in USB Mode

Media	File Ext.	Codec		Remark
		Video	Audio
Movie	.mpg	MPEG-1, MPEG-2	MP3, AAC, PCM, AC3	Max Resolution: 1920x1080 Max Data rate: 40 Mbps
	.avi	Xvid, MJPEG, MPEG-4 SP/ASP, H.263/H.264		Max Resolution: 1920x1080 Max Data rate: 20 Mbps
	.ts	MPEG-2, H.264, H.265/HEVC
	".mov/ .mkv"	MPEG-4 SP/ASP, H.263/H.264, H.265/HEVC
	.dat	MPEG-1
	.mp4	MPEG-4 SP/ASP, H.263/H.264, H.265/HEVC
		MPEG-1, MPEG-2		Max Resolution: 720x576 Max Data rate: 40 Mbps
	.vob	MPEG-2
Music	.mp3	-	MP3	Sample Rate 8K-48KHz Bit rate: 32K - 320Kbps Channel: Mono/Stereo
	".m4a/ .aac"	-	AAC	Sample Rate 16K-48KHz Bit rate: 32K ~ 442Kbps Channel: Mono/Stereo
Photo	".jpg/ .jpeg"	Progressive JPEG		Max Resolution: 1024x768
		Baseline JPEG		Max Resolution: 15360x8640
	.bmp	BMP		Max Resolution: 9600x6400 Pixel Depth 1/4/8/16/24/32 bpp
	.png	Non-Interlaced		Max Resolution: 9600x6400
		Interlaced		Max Resolution: 1280x800
