Enjoy it.

Safety Notes

This tire inflator has been manufactured according to established safety guidelines. However, dangers may still occur if the safety notes in this manual is not observed. This manual is intended to familiarize the user with the tire inflator's important functions. Read this carefully, prior to using the appliance. Keep this manual in an easily accessible location. In addition, do observe the instructions of the devices used in conjunction with this appliance.

Attentions

• This appliance is intended for installation and operation in a vehicle with 12V vehicle system voltage.
• Do not operate the appliance for other purposes other than inflating car tires, motorbike or bicycle tires, balls and other low pressure inflatables.
• Do not operate appliance on high pressure inflatables such as truck and heavy machine tires.
• Use only the supplied accessories when operating the appliance.
• Do not leave the appliance unattended during operation.
• Do not over inflate.
• Do not operate the appliance for more than 30 minutes continuously. Appliance or tire may be damaged due to overheating.
• Keep the appliance away from children.
• Keep the appliance away from flammable areas or liquids.
• The appliance should be stored in dry and low humidity place.
• Do not operate the appliance during cleaning.
  • Dry all the components after cleaning.

This manual may be updated from time to time without any notice.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products. USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

TIRE INFLATOR & VACUUM CLEANER

① TEC NFLATOR 43 ② ③

④ ⑤ BLAUPUNKT

ACCESSORIES

Blue rectangular object with a white mark and number 6 labeled, no text or symbols present.

Close-up of a black pipe fitting with a numbered label (7) pointing to it, no text or symbols on the object itself.

Close-up of a black threaded mechanical component with a circular marker labeled '8' (no text or symbols on the object itself)

Close-up of a black conical object with a numbered label (9) pointing to its tip, no other text or symbols visible.

10

Functions

1. Pressure Gauge : Pressure Range (0\~120 Psi)
2. Air Hose
3. Power Source : 12V Cig Charger
4. Button for Opening Dust Compartment
5. ON/OFF Switch
6. Crevice Nozzle
7. Upholstery Brush
8. Soft Tube
9. Adaptor for Tire and Inflatables

10. Adaptor for Ball

11. Easy to Clean Dust Compartment

12. Tire Inflator Suitable for Car, Motorbike, Bicycle, Ball and Inflatables
    • Inflation Time : < 7min (Standard 195R65/15 Tire from 0 to 35Psi)
    • 1L for Dust Compartment
    • Vacuum Power: 4200Pa
13. Air Flow : 24L
14. Hose Length : 50cm
15. Cable Length: 300cm
    • Working Temperature : -10°C \~ 60°C
    • Storage Temperature : -20°C \~ 70°C
16. Voltage: 12V
    • Max Current : 10A
    • Max Measuring Pressure:120 Psi
    • Max Continuous Working Pressure : 60 Psi
17. Power: 120W
    • Power Connection : 12V Car Cigarettes Lighter Socket
18. Weight: 1.5kg
    • Dimension : 470 x 133 x 150mm
19. Accessories : 12V Car Cigarette Charger, 2 Hose Adaptors (for ball and inflatable), Vacuum Cleaner with Crevice Nozzle, Upholstery Brush and Soft Tube

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems	Possible Causes	Solutions
Inflator does not start	Car ignition is off.	Turn on car ignition.
	Loose power plug connection.	Ensure 12V cig charger is firmly attached to the cig charger socket.
	Failure of power outlet fuse.	Ensure vehicle power outlet fuse is 15amp or higher.
Inflator is started but does not inflate	Incorrect or loose hose connections.	Ensure the hose connector is firmly screwed on the valve stem.
	Air leaking from tire or hose.	Ensure the tire inflator does not have leakage.Ensure air hose or tire does not have puncture.
Slow inflation	Inflator is overheating.	Do not operate inflator for more than 30 minutes.Allow approx. 15 minutes of cool down time in case of overheating.
	Insufficient voltage supply.	Ensure car battery is in good condition and not in low voltage.
Weak vacuum suction	Dust compartment is full.	Empty the dust compartment.
	Soft tube or Crevice Nozzle is blocked.	Remove the blockage.

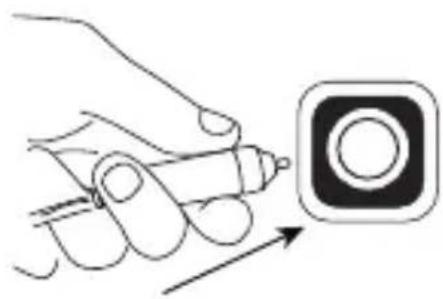

1. Plug the 12V cig charger into the car cig charger socket.

Illustration of a hand holding a pen next to a square button with an arrow (no text or symbols)

1. Connect the inflator hose to the tire valve stem.

Hand holding a pen pointing to a car interior (no text or symbols visible)

1. Press "II" to start the inflator and keep and eye on the pressure gauge.

Diagram showing a device connected to a curved cable with a magnified view of internal components (no text or symbols)

1. Press "O" to stop operating the inflator when the desired pressure is achieved.

Diagram showing a device connected to a car interior via cable, with an arrow indicating direction (no text or symbols present)

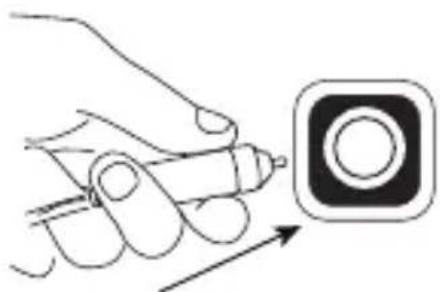

1. Plug the 12V power plug into the power socket.

Line drawing of a hand holding a pen with an icon next to a square button (no text or symbols)

1. Press "I" to start operating vacuum cleaner.

Line drawing of a hand using a handheld vacuum cleaner to lift air particles (no text or symbols)

1. Cleaning Vacuum Cleaner

2. Turn off the vacuum switch and disconnect from the power source before cleaning the vacuum.

3. Press the opening dust compartment button, pull dust compartment gently to remove the filter from appliance.

Line drawing of a handheld device with a downward arrow indicating compression or disassembly (no text or symbols)

- Clean the filter plate and make sure it is dried before installing. Install the filter plate back after cleaning.

Technical line drawing of two mechanical components: a conical tool and a flanged component (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Designed and engineered by Blaupunkt Competence Centre 1 571 19 002 34 01
