USER MANUAL EVO PLUS FPJ FRANKE

FPJ 625 V BK/SS FPJ 705 V BK/SS FPJ 925 V BK/SS FPJ 625 V WH/SS FPJ 705 V WH/SS FPJ 925 V WH/SS

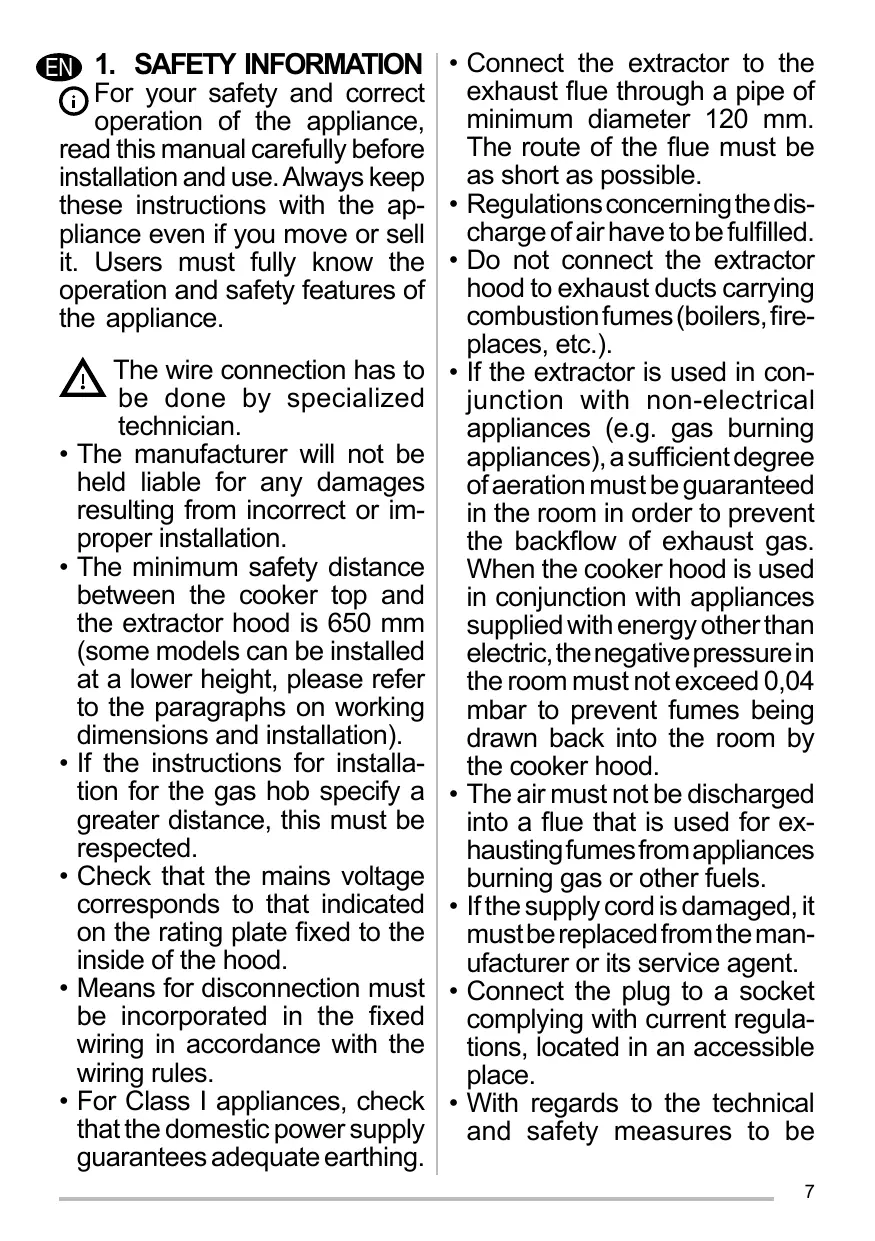

1. SAFETY INFORMATION EN For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation). If the instructions for installation for the gas hob specify a greater distance, this must be respected. Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm.

The route of the flue must be as short as possible. • Regulations concerning the discharge of air have to be fulfilled. • Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.). • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood. • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. • If the supply cord is damaged, it must be replaced from the manufacturer or its service agent. • Connect the plug to a socket complying with current regulations, located in an accessible place. • With regards to the technical and safety measures to be 7

or mental capabilities, or lack adopted for fume discharging of experience and knowledge, it is important to closely follow unless they have been given the regulations provided by the supervision or instruction. local authorities.

Accessible parts may beWARNING: Before installing come hot when used with the Hood, remove the procooking appliances. tective films. Use only screws and small parts • Clean and/or replace the Filters in support of the hood. after the specified time period WARNING: Failure to install (Fire hazard). See paragraph the screws or fixing device Care and Cleaning. in accordance with these • There shall be adequate veninstructions may result in tilation of the room when the electrical hazards. range hood is used at the same Do not look directly at the light time as appliances burning gas through optical devices (binocor other fuels (not applicable to ulars, magnifying glasses…). appliances that only discharge Do not flambè under the range the air back into the room). hood; risk of fire. • The symbol on the product This appliance can be used or on its packaging indicates by children aged from 8 years that this product may not be and above and persons with treated as household waste. reduced physical, sensory or Instead it shall be handed mental capabilities or lack of exover to the applicable colperience and knowledge if they lection point for the recycling have been given supervision or of electrical and electronic instruction concerning use of the equipment. By ensuring this appliance in a safe way and unproduct is disposed of correctly, derstand the hazards involved. you will help prevent potential Children shall not play with the negative consequences for appliance. Cleaning and user the environment and human maintenance shall not be made health, which could otherwise by children without supervision. be caused by inappropriate Children should be supervised waste handling of this product. to ensure that they do not play For more detailed information with the appliance. about recycling of this product, The appliance is not to be used please contact your local city by persons (including children) office, your household waste with reduced physical, sensory

disposal service or the shop 3. CARE AND CLEANING

-- The Activated charcoal filter is not wawhere you purchased the shable and cannot be regenerated, and product.

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed. • Never leave high naked flames under the hood when it is in operation. • Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides. • Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

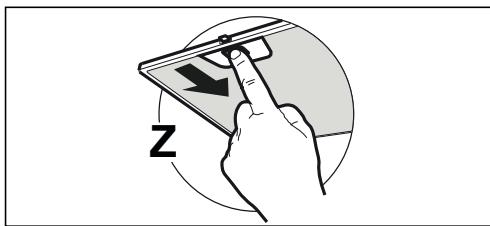

-- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS A B C Button Function

Turns the lighting system on and off at maximum intensity.

Press and hold the button for approximately 2 seconds to activate the Delay. Suitable to complete elimination of residual odours. It can be activated from any speed. Press and hold at length to activate automatic shutdown with a 5 minute delay. When it is active, the speed icon flashes.

It is disabled by pressing the button for the speed.

B Brief pressure. Turns the suction motor on and off at speed one.

C Brief pressure. Turns the suction motor on and off at speed two.

Turns the suction motor on at speed three.

Press a second time to activate INTENSIVE speed, which is timed to run for 6 minutes, after which the hood will turn off automatically. This function is suitable to deal with maximum levels of cooking fumes.

Press button D again to deactivate INTENSIVE mode and turn the Motor off.

• For replacement contact technical support

(“To purchase contact technical support”).
