1225B-18 - Range hood FRANKE - Free user manual and instructions

Brand	Franke
Model	1225B-18
Product Type	Range Hood
Power Supply	230 V~, 50/60 Hz
Max Connection Power	370 W (with central fan AC motor)
Lighting	LED, 6.5 W
Filter Type	Aluminum grease filters
Cleaning	Filters dishwasher safe; Easy Clean system
Operating Modes	Two modes: Mode 1 (factory) and Mode 2 (programmable)
Timer	Extension timer (+30 minutes)
Filter Guard	Programmable; LED flashes when cleaning needed
Damper Operation	Automatic close after 60 min
Safety Distance (Electric Hob)	Minimum 44 cm
Safety Distance (Gas Hob)	Minimum 65 cm (or as per hob manufacturer)
Materials	Stainless steel, glass, polypropylene, polyamide, polycarbonate, PBT
Environmental Compliance	RoHS compliant
Warranty	Covered by applicable provisions; contact Franke Service
Service Contact	Franke Service, Tel. [phone], www.franke.se/service

Frequently Asked Questions - 1225B-18 FRANKE

What is the minimum distance between the hob and the hood?

For electric hobs, the minimum distance is 44 cm. For gas hobs, it is 65 cm, or as recommended by the hob manufacturer.

How do I clean the grease filters?

Remove the filters by opening the snap retainer (Fig. 5). Soak them in warm water with washing-up liquid, or wash them in a dishwasher. Let them dry completely before refitting.

What are the two operating modes of the hood?

Mode 1 (factory default) controls the central fan for general ventilation. Mode 2 provides separate control for the damper and central fan speeds. You can switch between modes via programming (see manual).

How do I activate the filter guard?

Enter programming mode by pressing and holding buttons A and B for 3 seconds until they flash. Then press button F to activate/deactivate the filter guard. The LED on button F lights up when active.

How do I reset the filter guard after cleaning?

After cleaning the filters, press and hold button F for two seconds to reset the system. The LED will stop flashing.

Can I use the timer function?

Yes, you can extend the current operation by 30 minutes by pressing button F while buttons B-E are active. The damper and fan will automatically switch off after 60 minutes.

What should I do if the LED lighting fails?

Replacement of the LED lighting and driver must be carried out by a qualified professional. Contact Franke Service for an equivalent replacement part.

How do I check which operating mode is active?

Press and hold button A for 3 seconds. If button C lights up, Mode 1 is active; if button D lights up, Mode 2 is active.

Is it safe to use the hood with a gas stove?

Yes, but ensure the room has adequate air supply. Do not flambé food under the hood. Maintain a minimum distance of 65 cm between the hob and the hood.

How do I obtain service or spare parts?

Contact Franke Service at [phone] or visit www.franke.se/service. Have the FUN number, S/N number, and manufacturing date from the product label ready.

USER MANUAL 1225B-18 FRANKE

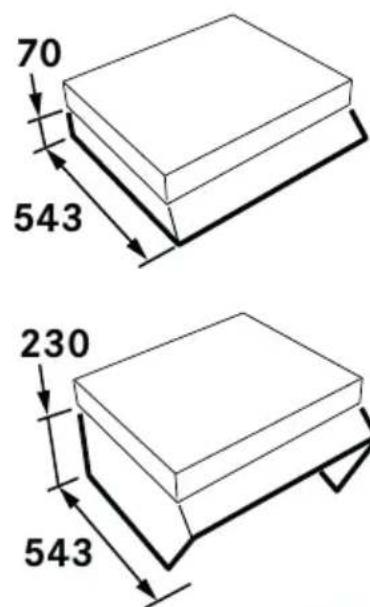

Exterior view of a white stainless steel kitchen air conditioner unit (no text or symbols visible)

Exterior view of a white air conditioner unit with open lid and ventilation slots (no text or symbols visible)

BRUKSANVISNING

Safety Instructions 9

Instructions for use 11

Servicing and warranty....14

Electrical installation....33

Installation 36

Adjusting air flow....38

BRUKSANVISNING

Sikkerhetsforskrifter 27

Bruk....29

Simple line drawing of a blank whiteboard with a small square and a curved arrow symbol on the top (no text or labels)

Fig.5

Please read this installation and user guide carefully before installing and using the product, paying special attention to the safety instructions.

Save these instructions for later use or for the party who may take over the product after you.

Disconnect the product from the power supply prior to cleaning or maintenance.

§ Diversion of exhaust air must be carried out in accordance with instructions issued by the appropriate authority.

§ Exhaust air must not be directed into flues that are used for fumes from items such as gas, wood or oil-burning stoves or fireplaces.

§ The distance between the stove and the product must be at least 44 cm. For gas hobs, the § distance should be increased to 65 cm. Adjust accordingly if the gas hobs manufacturer recommends a higher mounting height. N.B. If the product has a stove alarm or stove guard, it must not be mounted over a gas hob. See separate instructions.

§ You must not flambé food underneath the product.

§ For safety reasons, the installation and replacement of cables or other types of connectors should only be carried out by a qualified professional.

§ If the product is to be used at the same time as products that use energy sources other than electricity, i.e., gas hobs, gas, wood or oil-burning stoves or fireplaces, etc, the room must have an adequate supply of air.

§ The product may be used by children from 8 years of age and persons with mental, sensory or physical impairment, or a lack of experience and knowledge, provided they are given information about how the product is to be used.

Children should not be allowed to play with the product. Children must not undertake cleaning or maintenance of the product unsupervised.

Accessible parts of the product may become hot when food is being prepared.

§ A fire is more likely to spread if the product is not cleaned as frequently as indicated.

Attention!

The developer or proprietor is responsible for ensuring installation is carried out correctly and complies with the applicable building regulations.

GENERAL INFORMATION

The product features LED lighting (6.5 W), aluminium filters and the Easy Clean system.

FUNCTIONS

The product is equipped with two operating modes, see below. Mode 1 is active by default upon delivery. For information on how to change to mode 2, see the programming section.

Fig. 1

The central fan always operates in standard mode for general and sanitary ventilation.

Mode 1\* (factory settings)

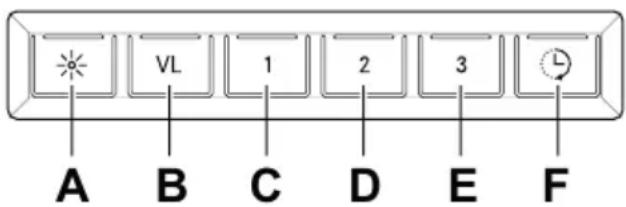

A. Lighting.
B. Increased general and sanitary ventilation. The central fan runs at top speed.
C. Open damper. Central fan - speed 1.
D. Open damper. Central fan - speed 2.
E. Open damper. Central fan - speed 3.
F. 1. Extension of timer (+ 30 minutes). Can be activated when one of buttons B-E is activated. Then switches to remaining time for activated mode.
2. Filter guard. If the filter guard is activated (see Programming below), the LED will flash when the filter needs to be cleaned. After cleaning, press and hold down button F for two seconds to reset the system.

Mode 2\*

A. Lighting.
B. Damper function. Open/close.
C. Central fan - speed 1.
D. Central fan - speed 2.
E. Central fan - speed 3.

F. 1. Extension of timer (+ 30 minutes). Can be activated when one of buttons B-E is activated. Then switches to remaining time for activated mode.

1. Filter guard. If the filter guard is activated (see Programming below), the LED will flash when the filter needs to be cleaned. After cleaning, press and hold down button F for two seconds to reset the system.

The damper and/or the central fan close automatically after 60 minutes and the central fan returns to standard mode. It can also be returned to standard mode by pressing in the activating button one more time.

It is a good idea to have the damper open a short while before and after cooking to prevent cooking smells spreading into the room.

The product is fitted with a filter guard. To activate/deactivate the filter guard, see Programming.

*Mode 1 corresponds to the operating mode of a Franke cooker hood -14/16.

*Mode 2 corresponds to the operating mode of a Franke cooker hood -14/17.

Checking the operating mode

Fig. 2
Press and hold down button A for three seconds to check which operating mode is currently activated. See Fig. 2.
Button C lights up for two seconds if mode is active and button D lights up for two seconds if mode 2 is active. See Fig. 2.

Attention!

If the product has a stove alarm or stove guard, see separate instructions.

PROGRAMMING

1. To open programming: press and hold down buttons A and B for 3 seconds so that they both flash 3 times, see Fig. 1. Programming mode will then be active for 30 seconds.
2. Select function: press the button for the selected function to activate/deactivate the function.

Button Functions
F Filter guard

The LED on the button lights up when the function is activated.

1. To save programming: press and hold down buttons A and B for 3 seconds, see Fig. 1. Buttons A and B will flash twice to show that the programme has been saved.

Changing the operating mode

Fig. 3

- To reprogramme the operating mode to mode 2, press and hold down button D for five seconds. See Fig. 3. Release the 1 button when the LED starts flashing.

- The flashing LED indicates that a five second time window for reprogramming has been activated.

- Now immediately press and hold down button D for another two seconds. This must be done within the activated time window, otherwise the reprogramming will be cancelled.

Fig. 4

- The LEDs for all the buttons will flash to indicate successful reprogramming of the operating mode, see Fig. 4.

- If the LEDs are not flashing, it may mean that the programming has failed. Check the activated operating mode by following the instructions under “Checking the operating mode”.

The same programming can be done to change to mode 1, by pressing and holding down button C instead.

CARE AND MAINTENANCE

Attention!

In order to ensure operation, quality and safety after servicing and maintenance, use only original parts.

Cleaning the filter

The cooker hood should be cleaned with a damp cloth and washing-up liquid. In the case of normal usage, the filters must be cleaned at least every second month.

Clean more often after intensive use.

Simple line drawing of a blank whiteboard with a small arrow and a small square tag (no text or symbols)

Fig. 5

Remove the grease filter by opening the snap retainer, Fig. 5.

Handle the filter carefully, taking care not to bend it.

Soak the filter in a solution of warm water and washing-up liquid. The filter can also be washed in a dishwasher.

Refit the grease filter after cleaning, making sure it snaps firmly into place.

Cleaning other parts

The inside of the cooker hood and the damper must be cleaned at least twice a year.

The damper must be thoroughly cleaned in both its open and closed position using a damp cloth and washing-up liquid. Handle the damper carefully.

REPLACEMENT OF LED LIGHTING AND LED DRIVER

Fig. 6

Attention!

The replacement of the LED lighting and LED driver must be carried out by an authorised professional. Contact the service organisation.

The lighting and driver must be replaced with an equivalent special light fixture and driver from the manufacturer or its service agent.

TROUBLESHOOTING

Check that the fuse is intact. Go through all the functions to check what is not working. Start by disconnecting the product from the power supply and switching it on again. Check that the connector is not bent or twisted at the connection point.

Attention!

If the product has a cooker alarm or cooker guard, use the separate instructions for troubleshooting.

SERVICING

Fig. 7

Before contacting servicing, check the product label and note down the FUN number, S/N number and manufacturing date of the product.

The product label is located on the left side, underneath the filter/bottom plate.

Franke Service

Tel. [phone]

www.franke.se/service

They can help you fix the problem or refer you to the nearest service agent for fast and effective service.

The product is covered by the relevant AP-PLiA provisions.

ENVIRONMENTAL INFORMATION

The main raw materials used in Franke's products are:

• Metals: stainless sheet metal, galvanised sheet metal, zinc, aluminium
• Plastics: polypropylene, polyamide, polycarbonate, polybutylene terephthalate (PBT)
• Glass

All components comply with the RoHS Directive. Several of Franke's products have undergone environmental assessment by a third party. For more detailed environmental information, go to www.franke.se

PACKAGING AND PRODUCT RECYCLING

The packaging should be deposited at your nearest

recycling point.

The symbol means that the product must not be treated as household waste. It should instead be taken to a collection point for the recycling of electrical and electronic components. By ensuring that the product is dealt with in the correct manner, you are helping to prevent the adverse environmental and health effects that could arise if the product was disposed of as regular waste. For further information on recycling, contact your local authority or waste disposal service, or the store where you purchased your product.

Simple line drawing of a blank whiteboard with a small arrow icon and a small square tag (no text or symbols)

Fig. 5

Simple line drawing of a blank whiteboard with a small inset showing an arrow and a small square (no text or symbols)

Kuva 5

PLEIE OG VEDLIKEHOLD

Merk:

Simple line drawing of a blank whiteboard with a small arrow icon and a small square tag (no text or symbols)

Fig. 5

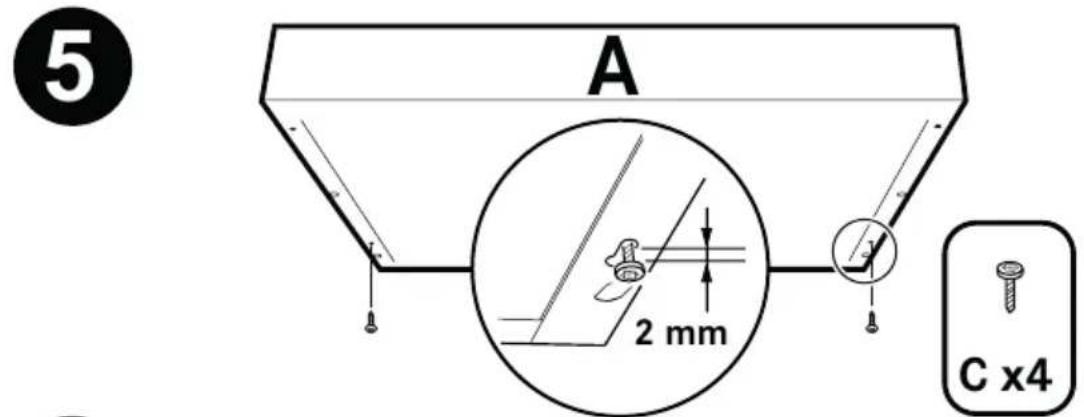

In order to avoid a potential hazard, installation, replacement of cables or other types of connection should be carried out by a qualified professional.

Electrical connection for 230 V\~ earthed.

The connection must be secured and the cooker hood must be preceded by an omnipolar switch.

The junction box or wall socket must be accessible after installation is complete.

If the connector is damaged, it must be replaced with an equivalent special cable from the manufacturer of their service agent.

Max. connection power 370 W at 230 V\~ when connecting a central fan (AC motor).

Output voltage from transformer 80, 100, 120, 140, 160 and 180 V.

At delivery 80, 100 and 120 V are connected.

The product is supplied with a low voltage cable for connection to an external EC motor.

OBS!

The black conductor is live and must therefore always be earthed by screwing it into a terminal block or otherwise ensuring that it does not pose a danger.

ELEKTRISK INSTALLATION

OBS!

ADJUSTING AIR FLOW

ILMAVIRTAUKSEN SÄÄTÖ

JUSTERING AF LUFTMÆNGDE

TILPASNING AV LUFTSTR∅MMEN

EN Note! Damper adjustment or speed changes must be carried out by a qualified professional.

Adjusting damper: Basic ventilation is set by moving the sliding damper. The damper becomes accessible for adjustment by removing the grease filter.

Changing the preset speeds: The output voltage of the speeds can be changed by reprogramming via the circuit breaker (contact Franke Service).

Open the damper by pressing button B. Loosen stop lug G by rotating it 180° (Torx/star screwdriver 10). Set the stop lug to the desired position. The markings on the damper correspond to the values in the "Basic flow" diagram – see following pages. The marking in the picture corresponds to position G7 in the diagram. Lock the stop lug. N.B. Make sure the lug is fully locked. Close the damper by pressing button B on the circuit breaker. Measure the pressure, Pm, at test point A and check that the desired basic flow has been achieved.

DA Grundventilation
