FAR 605 XS LED - Range hood FRANKE - Free user manual and instructions

Brand	Franke
Model	FAR 605 XS LED
Product type	Wall-mounted cooker hood
Color	Brushed stainless steel
Width	60 cm
Depth	50 cm
Height (min-max)	60 - 110 cm
Weight	12 kg
Power supply voltage	220-240 V ~ 50/60 Hz
Motor power	200 W
Lighting	LED 2 x 3 W
Noise level (max)	65 dB
Max airflow	650 m³/h
Grease filter	Dishwasher-safe metal filter
Charcoal filter (optional)	Activated carbon filter for recirculation
Controls	Mechanical buttons, 3 speeds + lighting
Main functions	Extraction or recirculation, LED lighting, 3 speeds
Energy class	A+
Repairability index	7.5/10 (according to French index)
Maintenance and cleaning	Dishwasher-safe metal filter; clean surfaces with a soft cloth
Safety	Automatic shut-off after 24h (optional), overflow safety (no)
Spare parts available	Filters, LED bulbs, motor (via after-sales service)
Warranty	2 years, 5 years on motor

Frequently Asked Questions - FAR 605 XS LED FRANKE

How to install the Franke FAR 605 XS LED hood?

Installation must be carried out by a qualified professional. The hood is fixed to the wall at a minimum height of 65 cm above an electric hob and 75 cm for a gas hob. Follow the template provided for drilling.

How to clean the grease filters?

The metal filters are easily removed and can be washed in the dishwasher at low temperature (max 65°C) or by hand with soapy water. Dry them completely before putting them back.

How to replace the LED lighting?

The lighting is equipped with integrated LEDs that are not individually replaceable. In case of failure, contact Franke after-sales service for module replacement.

Does the hood work in recirculation mode?

Yes, the hood can operate in recirculation mode with an activated carbon filter (sold separately). The filter is placed behind the air outlet grille.

What is the maximum noise level?

The maximum noise level is 65 dB at maximum speed, which corresponds to normal conversation noise.

How to adjust the speeds?

Use the mechanical buttons on the front: press the button to turn on, then select the speed (1, 2 or 3) according to the intensity of vapors.

What to do if the hood does not turn on?

First check the electrical connection and the circuit breaker. If the lighting does not work, the LED module may be defective. Contact after-sales service.

What is the warranty on the motor?

Franke offers a 5-year warranty on the motor and 2 years on other parts. Keep the invoice to validate the warranty.

How to disable the automatic shut-off?

The automatic shut-off after 24h is an integrated safety function. It cannot be disabled on this model. The hood turns off automatically to save energy.

Where to find spare parts?

Spare parts (filters, bulbs, motor) are available from Franke after-sales service or on their website. Use the model number FAR 605 XS LED to order.

USER MANUAL FAR 605 XS LED FRANKE

GB Instructions for use and installation

Cooker Hood

RECOMMENDATIONS AND SUGGESTIONS 3

CHARACTERISTICS 6

INSTALLATION....7

USE 10

MAINTENANCE 11

INDICE

IT

CONSIGLI E SUGGERIMENTI....12

CARATTERISTICHE....15

INSTALLAZIONE 16

USO 19

MANUTENZIONE 20

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS....21

CARACTERISTIQUES....24

INSTALLATION....25

UTILISATION 28

ENTRETIEN 29

INHALTSVERZEICHNIS

DE

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
  Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a greenhouse with a pot and smokestack, crossed by a green X-shaped line against a light green background (no text or symbols)

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

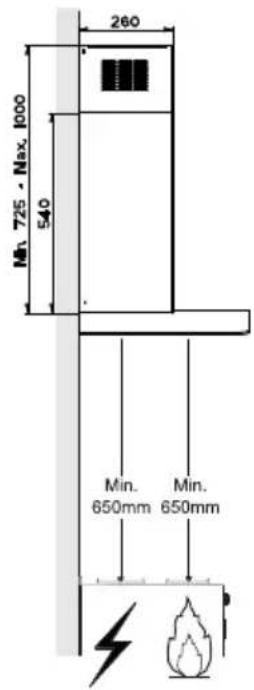

Dimensions

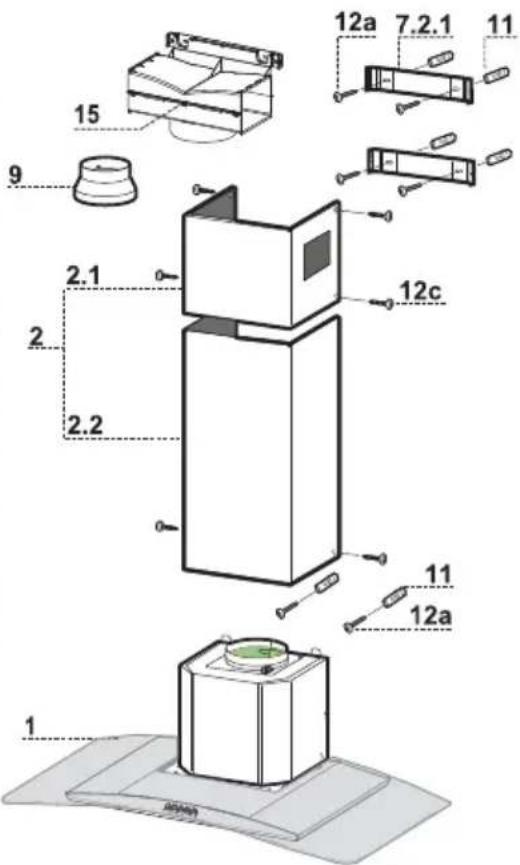

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
9	1	Reducer Flange ø 150-120 mm
15	1	Air Outlet Connection
Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction Manual

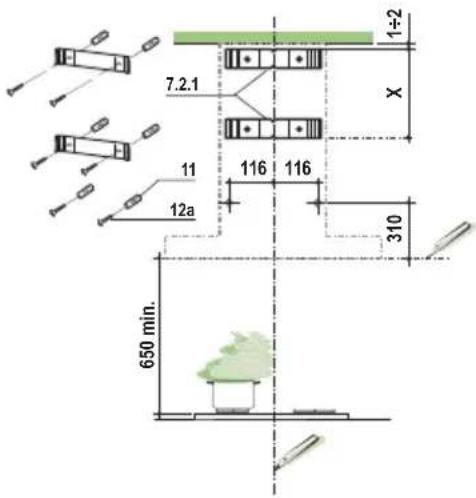

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 310 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a (4,2 x 44,4) screws supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

AIR OUTLET - RECIRCULATION VERSION

• Unfasten the 2 screws fixing the upper bracket 7.2.1.
• Fasten the air outlet connector 15 in its place, using the 2 screws removed as above.
• Join the Connector 15 to the Hood canopy outlet using a rigid or flexible pipe 150 mm , selection of which is at the discretion of the installation technician.
  • Make sure that the Activated charcoal odour filter has been fitted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

Control panel

BUTTON LED FUNCTIONS

T1 Speed On Turns the Motor on at Speed one.

Turns the Motor off.

T2 Speed On Turns the Motor on at Speed two.

T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three.

L Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
  • Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Illustration of a hand pressing down on a mechanical component with a green arrow indicating direction (no text or symbols)

Lighting unit

- For replacement contact technical support ("To purchase contact technical support").

Illustration of a chemical experiment setup with a conical flask, smoke, and a control panel (no text or symbols)

Illustration of a greenhouse with a pot and smokestack, crossed by a green X (no text or symbols)

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Montaggio Camino

Camino superiore

Quadro comandi

TASTO LED FUNZIONI

Hand holding a smartphone with a green arrow pointing to the screen (no text or symbols visible)

Filtro antiodore (Versione Filtrante)

SOSTITUZIONE FILTRO ANTIODORE AL CARBONE ATTIVO

Illustration of a hand pressing a component on a green surface, with a green arrow indicating direction (no text or symbols)

Illuminazione

Illustration of a chemical experiment setup with a funnel, thermometer, and test tube (no text or symbols)

Diagram of a pipe connection with a 2° angle indicator, showing structural components without any text or symbols.

Illustration of a greenhouse with a stove and a green leafy plant, crossed by a green ribbon (no text or symbols)

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Montage Cheminée

Cheminée supérieure

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Filtre anti-odeur (Version filtrante)

REPLACEMENT FILTRE AU CHARBON ACTIF

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Éclairage

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Technical diagram showing a pipe joint with a 2° angle indicator (no text or symbols present)

Illustration of a greenhouse with a pot and smokestack emitting vapor, crossed by a green ribbon (no text or symbols)

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Kaminmontage

Oberer Kaminteil

Schalttafel

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Geruchsfilter (Umluftversion)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Beleuchtung

LED-Strahler

Illustration of a chemical experiment setup with a conical flask, smoke rising, and a control panel (no text or symbols)

Illustration of a greenhouse with a pot and smokestack, crossed by a green X-shaped line (no text or symbols)

Diagram showing a mechanical component with an inset view of a device's internal structure (no text or symbols)

Bacanın montajı

Üst baca

Kumanda Tablosu

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Koku Filtresi (Filtreli Model)

AKTİF KARBONLU KOKU FILTRESİNİN DEĞİŞTİRİLMESİ

Hand pressing a button on a green surface, no text or symbols visible

Aydınlatma
