COT1S45FSH - Refrigerator CANDY - Free user manual and instructions

Product type	Refrigerator-freezer table top
Brand	CANDY
Model	COT1S45FSH
Power supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST, T (10 °C to 43 °C)
Temperature adjustment	5 positions (1 to 5) for the refrigerator
Super freeze function	Yes, activation by key combination, duration 24 h
Freezing capacity	2 kg per 24 h
Door reversal	Possible, detailed instructions in the manual
Interior lighting	LED, energy efficiency class G
Open door alarm	Yes, after 1 minute
Defrosting	Manual, do not use sharp objects
Cleaning	Every 4 weeks, lukewarm water and neutral soap
Stabilization time before first use	4 hours
Refrigerant	R600a (flammable)
Adjustable feet	Yes, for leveling
Freezer star rating	4 stars
Availability of spare parts	Thermostats, sensors, boards, LED (7 years); handles, hinges, bins, baskets (7 years); door gaskets (10 years)
Safety	Follow instructions: do not use multi-socket extensions or extension cords, do not store flammable products, do not touch cold parts with wet hands

Frequently Asked Questions - COT1S45FSH CANDY

How to adjust the temperature of my Candy COT1S45FSH refrigerator?

Use the Adjust button on the control panel. Press to cycle from level 1 (least cold) to level 5 (coldest). The default setting is 3.

How to activate the Super freeze function?

Set the thermostat to position 5, then simultaneously press the door switch and the temperature adjustment button. The LED 5 flashes to indicate the function is active for 24 hours, after which it returns to the previous setting.

Can I reverse the door opening direction?

Yes, the manual provides detailed instructions. You need to disassemble the hinges, reverse the parts, and reposition the door. Make sure to adjust the seal after the operation.

What to do in case of an audible alarm?

The alarm sounds if the door is left open for more than one minute. Close the door or press the SET button to temporarily disable the alarm.

How to clean the interior of the refrigerator?

Unplug the appliance. Use lukewarm water and mild soap. Rinse and dry with a soft cloth. Do not clean hot glass shelves. Clean every 4 weeks.

What is the maximum freezing capacity in 24 hours?

The refrigerator can freeze up to 2 kg of fresh food in 24 hours. Do not exceed this amount.

What to do in case of a power outage?

Open the door as little as possible. The storage time indicated on the rating plate is given. Prepare ice cubes if the outage is announced. Consume thawed food quickly.

How to replace the LED bulb?

The lighting is an LED that can only be replaced by a professional. Contact customer service.

Why does ice form in the freezer?

This may be due to a poorly closed door or poorly packaged food. Make sure the door is fully closed and that food is tightly sealed. Defrost if necessary.

What are the important safety precautions?

Do not use multi-plug adapters or extension cords. Do not store flammable or explosive substances. Do not touch cooling elements with wet hands. Keep out of reach of children.

USER MANUAL COT1S45FSH CANDY

SAFETY INFORMATION 2 SCRAPPING OLD APPLIANCES 10 Energy Saving 11 Before first use 12 Fridge use 13 Freezer use 13 Overview 14 Storage 15 Control panel 16 Installation of the appliance 21 Care and Cleaning 23 Troubleshooting 25

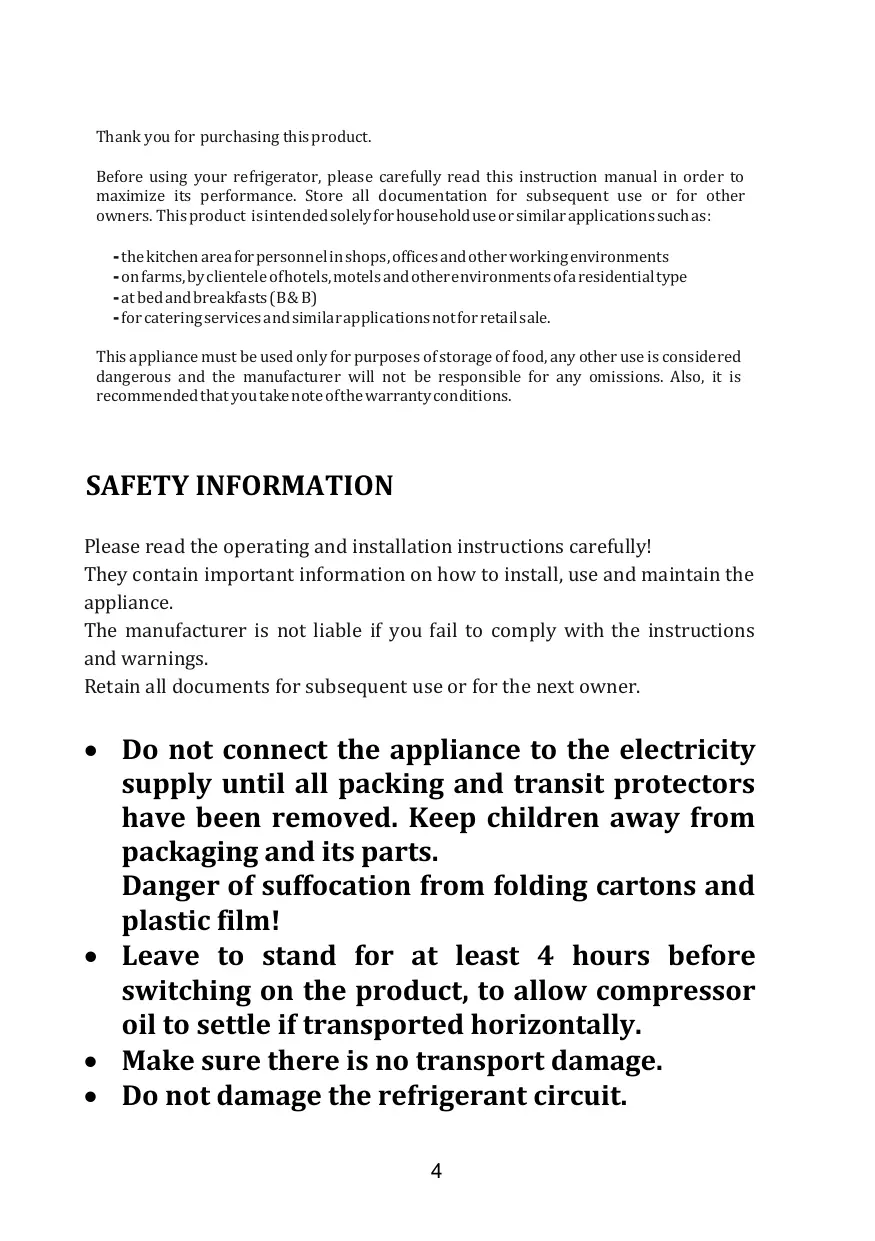

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B&B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.
• Do not damage the refrigerant circuit.
• Keep the ventilation openings in the appliance enclosure or in the built-in structure free of obstruction.
• Never use water to wash the compressor area; wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Always handle the appliance with at least two people because it is heavy.
• Install and level the appliance in an area suitable for its size and use.
• Make sure that the electrical information on the rating plate matches the power supply. If it does not, contact an electrician.
• The appliance operates on a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuations may cause the appliance to fail to start, damage the temperature control or compressor, or produce abnormal noise during operation. In such cases, an automatic voltage regulator should be installed.
• For UK only: The appliance's power cable is fitted with a 3-core (grounded) plug that fits a standard 3-core (grounded) socket. Never cut off or remove the third pin (grounding). After installation, the plug should be accessible.
• Make sure that the mains cable is not caught under the appliance during and after

moving the appliance, to avoid the cable being cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.

• Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight or water.
• Do not install the appliance near heaters or flammable materials. For appliances with a freezer compartment: if there is a power failure, do not open the lid. Frozen food should not be affected if the failure lasts less than the hours indicated on the rating label (temperature rise time). If the failure lasts longer, check the food and eat it immediately, or cook it and then refreeze.
• If you find that the lid of the appliance is difficult to open just after closing it, don't worry. This is due to a pressure difference that will equalize and allow the lid to open normally after a few minutes.
• Do not store medicines, bacteria, or chemical agents in the appliance. This appliance is a household appliance; it is not recommended to store materials that require strict temperature control.
• Do not excessively pull or fold the power cord

or touch the plug with wet hands.

• Do not store products which contain flammable propellant (e.g., spray cans) or explosive substances in the appliance. Risk of explosion!
• Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited physical, mental, or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
• Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance. Children should not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload this appliance. FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!
• Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
• Before performing any operation, unplug the power cord from the power socket.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.
• Supervise children while the appliance is being cleaned or maintained.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
• If the refrigerant circuit should be damaged:
• Switch off the appliance and pull out the mains plug,
• Keep naked flames and/or ignition sources away from the appliance,
• Thoroughly ventilate the room for several minutes,
• Inform customer service.
• WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.
• Do not attempt to sit or stand on the top of the

appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

• The product is designed and built for domestic household use only.
• Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. One-, two- and three-star compartments, if present in the appliance, are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

For wine coolers: this appliance is intended to be used exclusively for the storage of wine. For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance. For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs.

• Replaceable (LED only) light source by a professional.
• This product contains a light source of energy efficiency

class G.

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

Before first use

You must allow the fridge to settle for at least four hours prior to switching the

power on.

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start at 5°C for the fridge and -18°C for the freezer and work continuously until it reaches the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.

Fridge use

• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
• Make sure food is clean and any extra water is wiped away before putting into the fridge.
• Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
• Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
• Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
• Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Freezer use

The freezer compartments are designed to store only frozen food. - Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer. - Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date. - Store food in small packages (ideally less than 1 kg). This reduces the freezing time and improves the quality of the food after thawing. - Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry. Label the food before freezing with information including type of food and dates of storage and expiry. - Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage. - Bottled or canned drinks should not be stored in the freezer compartments as they could explode. The maximum amount of fresh food that can be frozen within a 24 hour period is 2.0 kg - Do not attempt to freeze more than the maximum amount.

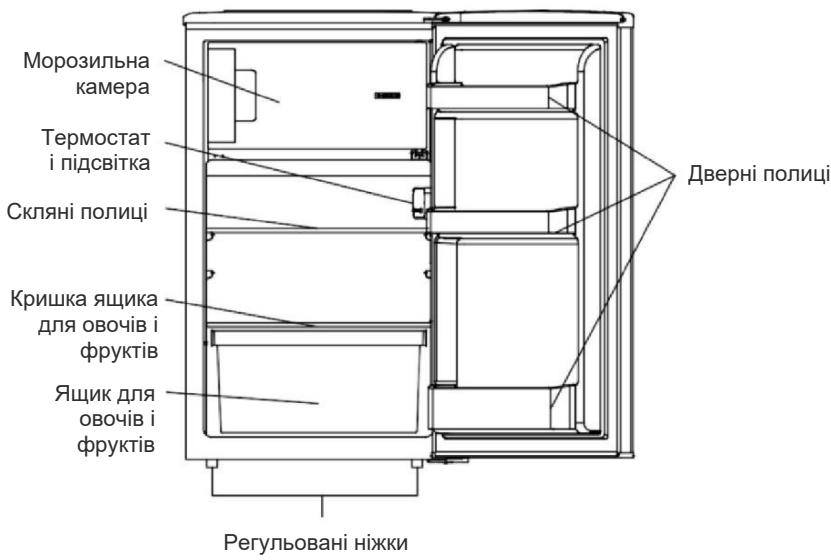

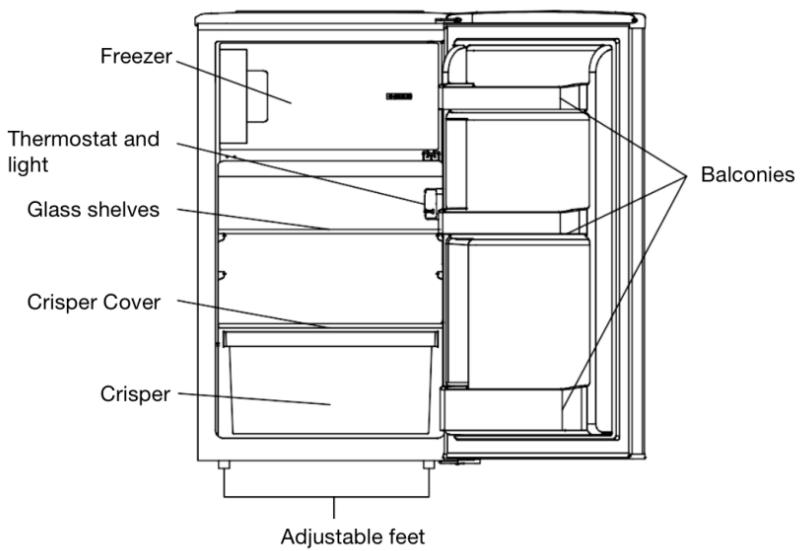

Overview

** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

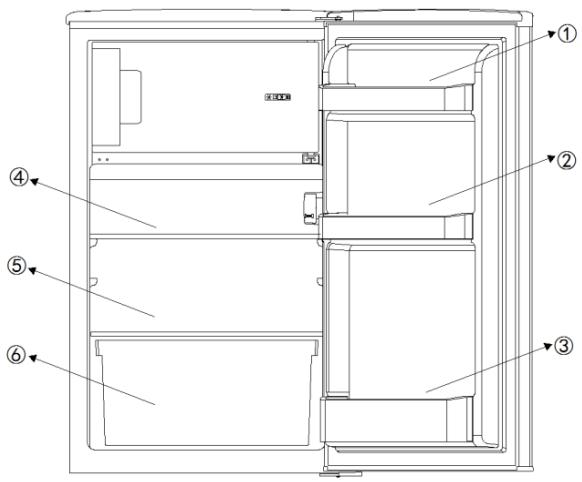

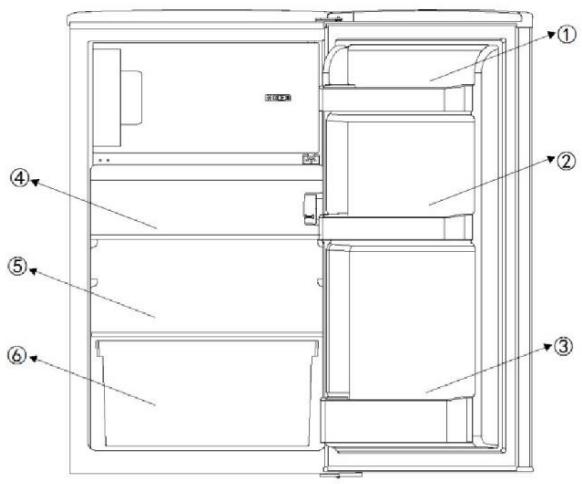

Storage

The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.

1. Butter, cheeses etc.
2. Food in jars and bottles 3. Drinks, e.g. milk
3. Cooked food
4. Yogurts, preserves etc.
5. Fruit and vegetables

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.

To replace, slide the shelf back into the slot, and then lower the rear section.

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

Control panel

There are total 5 temperature settings for the refrigerator. After connecting to the power supply, the refrigerator will be set on setting 3, which is the default setting.

Button "Power": Located on the left side, functioned as switching on / off by pressing 3s.

Button "Adjust": located on the right side, used to adjust the temperature settings for the refrigerator.

Adjusting the temperature:

The inside temperature of the refrigerator is adjusted by pressing the left "adjust" button. By pressing the button, the settings 1 to 5 represent different temperatures from the highest to the lowest.

Position	Conditions
1-2	Summer or ambient temperature between 25°C-35 °C
3-4	Spring Autumn or ambient temperature between 15°C-25 °C
5	Winter or ambient temperature between 5°C-15 °C
Super freezing function	Quick freeze

Caution: Some time will be required for the refrigerator to reach the set level when temperature adjustments are made. The length of this period is determined by the difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed, and the amount of food in storage.

Super freezing function

To activate the Super Freezing function:

• Set the thermostat in position 5, press the door switch and temperature adjustment button together, wait until the LED of position 5 blinks continuously, the SF function has been activated. SF will work for 24 hours, after that the function will quit automatically, then back to the original position setting. Note: During the SF period, the LED of position 5 will keep blinking.

Reversing the appliance doors

We recommend you seek the help of another individual to support the doors whilst performing this operation.

1. remove the top screws cover	2.remove the screws then remove the top cover
3 unscrews the top hinge and then unscrew the hinge pin, turn the hinge over and replace it.	4. remove the door
5. unscrews the lower hinge and adjustable feet then unscrew the hinge pin, turn the hinge over and replace it.	6. get the left side stopper from accessory bag and install it on the lest side of refrigerator, then install the lower hinge on the on the lest side of refrigerator accordingly.
7. fix the door on the lower left side hinge	8. refit the top hinge
9. change the screws hole cover from left side to right side and refit the top cover.	10. install the top cover screws
11. refit the top screws cover

Install door external handle (if external handle present)

1. unscrew the handle on the left side.	2. remove the screws cover from right side
3. install the screw cover on the left side	4. Install the handle to the right side

Reversing the inner doors

1.remove the screw cover on the right side, then unscrew the screws.	2.remove the screw cover on the left side.
3. install the screw cover from left side to right side.	4. Rotate inner door and install to the left side and then install the screws.

Ensuring the door seals correctly:

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

INSTALLATION

WARNING! The appliance is heavy. Always handle with at least two persons.

Before first use

Remove all packaging materials. Clean the appliance with water and a mild detergent, and dry it with a soft cloth. Check that the power supply, socket, and fusing are appropriate for the rating plate. Check that the power socket is earthed and that no multi-plug or extension cord is used. Check that the power plug is accessible after the appliance has been positioned. The refrigerator and freezer temperatures are automatically set at 4°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. See "Adjust the temperature."

Environmental conditions

This appliance should be installed in a room that is dry and well ventilated.

Do not install the appliance near other heat-emitting appliances (such as ovens or refrigerators) without isolation, or expose it to direct sunlight. If this appliance is situated in a cold environment (such as a shed, outhouse, or garage), its performance will be affected, and this may damage the food.

Install this product in a position where the ambient temperature is not lower or higher than the operating temperature; otherwise, the appliance will not work properly.

• Extended temperate (SN): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C.
• Temperate (N): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C.
• Subtropical (ST): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C.
• Tropical (T): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.

Levelling the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards.
2. Turn the feet clockwise to raise the refrigerator.
3. Turn the feet counterclockwise to lower the refrigerator.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

TIPS FOR FOOD STORAGE

Position different food in different compartments according to the table below:

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cocking, such as ready-to-eat foods, deli meats, leftovers
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meat, poultry, fish ·Middle drawer for frozen vegetables, chips ·Top tray for ice cream, frozen fruit, frozen baked goods

It's suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment. For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat. For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C).

Tips for storing food in the fridge

Keep your fridge temperature below 5°C. Hot food must be cooled to room temperature before storing in the appliance. Foods stored in the refrigerator should be washed and dried before storing. Food to be stored should be properly sealed to avoid odour or taste alterations. It is advisable to keep food covered with materials that are tasteless, impermeable to air and water, non-toxic and free of pollution, to avoid contamination or odour transfer. It is recommended not to obstruct the air outlets of the refrigerator compartment. Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogenous cooling. Leave a gap between foods and the inner walls, allowing air flowing. In special way don't

store foods against the rear wall, as food could freeze.

The ageing process of some fruit and vegetables (such as melons, papaya, banana, pineapple etc) can be accelerated in the refrigerator; therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Tips for freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. Place the fresh food to be frozen in the freezer compartment. The maximum amount of food that can be frozen in 24 hours is specified on the rating plate. The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Tips for storing food in the freezer

Keep the freezer temperature at -18°C. Hot food must be cooled to room temperature before storing in the freezer compartment. Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg. It is better to pack the food before putting it into the freezer. Defrosted food cannot be re-frozen unless it is first cooked. Do not load excessive quantities of fresh food in the freezer compartment. Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months). Do not exceed the food storage time recommended by the manufacturers.

CARE AND CLEANING

WARNING! Disconnect the appliance from the power supply before cleaning.

General

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

Clean the inside and housing of the appliance with lukewarm water and some neutral soap. Rinse and dry with a soft cloth. Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance. Do not clean any of the parts of the appliance in a dishwasher. Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Replacing the LED lamps

The internal light is an LED type. To replace the lamp, please contact the customer service. See Troubleshooting.

Door opening alarm

When the appliance door is left open for more than 1 minute, the door opening alarm will sound. The alarm can be silenced by closing the door or by pressing the SET key (this will not affect the temperature setting, it will just mute the alarm).

Non-use for long periods

If the appliance is not used for an extended period of time:

1. Take out the food and unplug the power cord.
2. Clean the appliance as described in the "Care and Cleaning - General" section.
3. Keep the door and freezer drawers/door open to prevent the creation of bad odors inside.

Power interruption

In the event of a power cut, food should remain safely cold for the time indicated on the rating plate. Follow these tips during a prolonged power interruption, especially in summer:

Open the door/drawer as few times as possible. Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than the amount of hours indicated on the rating plate, make some ice and put it in the top of the refrigerator compartment. The storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) in order to prevent health risks.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of 7 years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of 7 years and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

TROUBLESHOOTING

In case of a problem, please check all shown possibilities and follow the instructions below before contacting an after-sales service.

Problem	Possible cause	Possible solution
The appliance does not work	The appliance is turned off	Press the ON/OFF key to turn on the appliance
	Mains plug is not connected in the mains socket	Connect the mains plug
	Fuse has blown or is defective	Check the fuse and replace it if necessary
	Socket is defective	Mains malfunctions should be corrected by an electrician
The appliance runs frequently or runs for a too long period of time	The indoor or outdoor temperature is too high	It is normal for the appliance to run longer
	The appliance has been off power for a period of time	Normally, it takes 8 to 12 hours for the appliance to cool down completely
	A door/drawer of the appliance is not tightly closed	Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door
The inside of the refrigerator is dirty and/or smells	The inside of the refrigerator needs cleaning	Clean the inside of the refrigerator
	Food of strong odour is stored in the refrigerator	Wrap the food thoroughly
Moisture formation on the inside of the refrigerator	The climate is too warm and too damp	Increase the temperature
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer
	Food containers or liquids are left open	Let hot foods cool to room temperature and cover foods and liquids
Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer	The climate is too warm and too damp	This is normal in damp climate and will change when the humidity decreases
	The door/drawer is not closed tightly	Ensure that the door/drawer is tightly shut
Strong ice and frost in the freezer compartment	The goods were not adequately packaged	Always pack the goods well
	A door/drawer of the appliance is not tightly closed	Close the door/drawer
Unusual noises	The appliance is not at level	Re-adjust the feet
	The appliance is touching the wall or other objects	Slightly move the appliance
UI Led’s are flashing	One of the sensors is out of range	Contact the assistance
An alarm is beeping	The fridge storage compartment door is open	Close the door or silence the alarm manually
The interior lighting or cooling system does not work	The LED-lamp is out of order	Please call the service for changing the lamp

During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product.

To contact technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact technical assistance.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR code on the energy label supplied with the appliance.

User Manual Table Top

Contents

Safety information 37 Energy test 38 Intended use 39 Using the refrigerator 40 Using the freezer 40 Freezing 41 Storage 42 Control panel 43 Care and maintenance 50 Troubleshooting 52

Thank you for purchasing this product.

Before using your appliance, please read this manual carefully to achieve the best efficiency. Keep these documents for future reference or for the next owner. This product is intended solely for domestic use or similar applications such as:

• Kitchen boxes for staff in shops, offices and other work environments
• In farms, hotel rooms, motels and other residential environments
• In guesthouses, bed and breakfast (B & B)
• For catering services and similar applications, but not for mass catering of objects for sale.

This appliance must be used only for storing food. Any other use is considered dangerous and the manufacturer is not responsible for any damages. It is recommended to familiarize yourself with the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not responsible if the instructions and warnings are not followed.

Keep all documents for future reference or for the next owner.

Do not connect the appliance to the power supply until all packaging and transport protection elements have been removed. Do not allow packaging and its parts to come into contact with children.

Danger of suffocation from plastic bags! Keep them away from children!

• Leave it standing for 4 hours before switching it on, so that the compressor oil can settle, if it has been transported horizontally.
• Make sure there is no transport damage.

Do not damage the appliance. - Ventilate the room or the built-in structure freely without obstructions. - Never use water to clean the compressor area; after cleaning, wipe it dry with a dry cloth to prevent rust. - The appliance must be placed at least 2 meters away from the wall, as it is heavy. - Place and level the appliance in an area suitable for its size and use. - Ensure that the electrical installation information on the data plate matches the power supply. If not, contact an electrician. - The appliance operates on 220-240 VAC/50 Hz. Voltage fluctuations in the power supply may cause the appliance to start unexpectedly, damage the temperature control or compressor, or cause unusual noise during operation. In such cases, install an automatic voltage regulator. - For UK only: the appliance's power cord is fitted with a three-pin (earthed) plug, which fits a standard three-pin (earthed) socket. Never cut off or remove the third pin (earth). After installing the appliance, there must be easy access to the plug.

• Ensure that the power cord is not trapped under the appliance during or after moving it, to prevent damage to the power cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard. Do not install the appliance in damp, oily, or dusty places, nor expose it to direct sunlight or water. Do not install the appliance near heaters or flammable materials. For appliances with a freezer: if the power goes out, do not open the lid. Frozen food should not be refrozen if the power outage lasted less than the time specified on the data plate (the time needed for the temperature to rise). If the power outage was longer, the food should be checked, cooked, or refrozen. Do not be alarmed if you notice that the lid of the appliance is difficult to open right after closing it. This is due to the vacuum created, which will equalize and allow the lid to be opened after a few minutes. Do not store medicines, bacteria, or chemical agents in the appliance. This is a household appliance; it is not recommended to store materials that require strict temperature control.

If the power cord is damaged or does not exceed the extension cable, or do not touch the device with wet hands. Do not store products that contain flammable fuel (e.g., gasoline) or explosive substances in it. Risk of explosion! Do not place unstable items (heavy items, candles, containers with water) on top of the refrigerator, to avoid injuries caused by falling or electric shock upon contact with water. Do not use electrical appliances inside the storage compartment, unless they are of the type recommended by the manufacturer. Do not touch the internal cooling elements, especially with wet hands, to avoid burns or injuries. This appliance is intended for use by individuals, including those with limited physical, sensory, or mental capabilities, as well as those lacking experience and knowledge, provided they are supervised or instructed on the safe use of the appliance and understand the hazards involved. - Ensure that children do not play with the appliance. Children should be supervised or instructed by the person responsible for safety when using the appliance. Only children aged 8 and above may use the appliance. - Children must not play with the appliance.

• Children aged 3 to 8 may load and unload the appliance. For refrigerator-freezer: Do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! For freezer: Never place frozen food directly against the freezer. Risk of burns from low temperatures!
• Clean the plastic parts of the door seal with a mild detergent. Otherwise, the plastic parts of the door seal may become brittle.
• Keep the power cord away from contact. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use sharp objects or tools with sharp edges such as knives or blades to remove frost. Never use a hair dryer, electric heaters, or other similar electrical appliances for defrosting.
• It is recommended to keep the appliance clean; excessive dust on the appliance may cause a fire. Do not attempt to repair, disassemble, or modify the appliance yourself. If repair is needed, please contact our service department for customer service.
• When using, servicing, or cleaning the appliance, do not touch the glass panels with hot water. The sharp temperature difference may cause the glass to crack. WARNING: The refrigerant circuit contains a small amount of flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. The release of refrigerant may harm your health or cause its replacement.
• If the cooling circuit is damaged:
• Disconnect the appliance and ventilate the room. Keep away from the appliance any open flame and/or ignition sources.
• Ventilate the room for a few minutes.
• Inform the customer service center.
• WARNING: Do not damage the pipes and/or the power cord; this may cause electric shock or fire.
• WARNING: Do not use portable sockets or portable power supplies. Do not use extension cords. Do not stand or sit on the appliance. It may be damaged or cause injury. This appliance is not intended for use in a column with other appliances.
• The product is designed and developed exclusively for domestic use.
• Only original parts provided by the manufacturer can be used. The manufacturer guarantees that only these parts are responsible for the safety requirements.
• Leaving the doors open for a long period can lead to a significant increase in the temperature in the compartments of the appliance.

-Clean regularly surfaces that may come into contact with food and accessible drainage systems. -Clean water reservoirs if they have not been used for 48 hours; flush the water system connected to the water supply if water has not been drawn for 5 days. -Raw meat and fish are stored in suitable containers in the refrigerator, so that they do not come into contact with other food or drip onto other food. -Compartments marked with stars (if present on the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. -Compartments with one, two, and three stars (if present on the appliance) are not suitable for freezing fresh food. -If the refrigerator is left empty for a long period, switch it off, defrost, clean, dry, and leave the doors open to prevent the formation of mold inside.

FOR WINE COOLER: This appliance is intended exclusively for storing wine. FOR FREE-STANDING APPLIANCE: This refrigerator is not intended for use as a built-in appliance. FOR APPLIANCE WITHOUT A 4-STAR COMPARTMENT: This refrigerator is not suitable for freezing food.

• Replacing the light source (only LED) by a professional. This product contains a light source with energy efficiency class G.

Disposal of old appliances

This appliance is marked in accordance with European Directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE).

WEEE contains both hazardous substances (which can cause negative consequences for the environment) and basic components (which can be reused). It is important that WEEE is subjected to specific treatment to properly remove and dispose of all substances and to collect and recycle all materials.

Households can play an important role in ensuring that WEEE does not become an environmental problem; it is important to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to appropriate collection points managed by the municipality or registered companies. In many countries, for large WEEE, there may be the possibility of home collection.

In many countries, when you buy a new appliance, the old one can be returned to the retailer, who must take it back free of charge on a one-for-one basis, provided the equipment is of equivalent type and has the same functions as the supplied one.

Compliance

This product complies with the requirements of the applicable European safety, health, and environmental protection legislation.

Warranty

The minimum warranty is: 2 years for EU countries, 3 years for Turkey, 1 year for the UK, 1 year for Russia, 3 years for Sweden, 2 years for Bulgaria, 5 years for Norway, 1 year for Morocco, 6 months for Algeria. No regular warranty is required for Tunisia.

Energy efficiency

For better energy efficiency, we recommend:

Install the appliance away from heat sources, direct sunlight, and in a room with good ventilation. - Avoid placing hot food in the refrigerator, to prevent the internal temperature from rising, which would lead to longer compressor operation. Do not store excessive amounts of food, to ensure good air circulation. Defrost the appliance regularly, if ice forms, to facilitate the transfer of cold air. In case of a power outage, keep the refrigerator door closed. - Open or close the door as briefly as possible - Avoid setting the temperature of the freezer too low. - Clean the back of the appliance from dust.

First use

You must leave the refrigerator to rest for at least four hours before connecting it to the power supply.

It is advisable before first use to clean the interior of the appliance with a solution of soda and warm water, and then dry the interior well.

During first use, the refrigerator may emit an odor. It will disappear as the appliance cools.

Please note:

The temperature is set to 5°C for the refrigerator section and -18°C for the freezer. The appliance will operate continuously until it reaches the correct temperature. If the appliance has been unplugged, you must wait at least five minutes before plugging it back in, to prevent damage to the compressor. Never store flammable, explosive, or corrosive substances in the appliance.

The refrigerator cools by evaporating the refrigerant in the inner back wall of the sealed compartment. It is normal for frost to form on this surface; it dissipates and drains through a small drain hole, where it evaporates harmlessly. The presence of frost on the back wall is not a defect of the refrigerator.

Remove all packaging materials.

Clean the appliance with a mild detergent and dry it with a soft cloth. Check that the power supply, plug, and socket are in good condition. Check that the electrical contact is properly grounded and ensure there is no loose connection. Make sure the appliance is level before placing it in position. The temperature of the refrigerator and freezer is set automatically to 4°C and -18°C respectively. These are the recommended settings. You can change these temperatures manually. See "Temperature regulation".

YcnoBnaHa 06kpXkaBaAaata cpea

To3n ypeI Tp86Ba da ce nHctaJnpa B cyxo ndo6pe npOBeTpInBO nOmeueHne.

He nHCTaIpaIte ypeDa 6nI3O do dpyrN nIbYBaun ToIINHa ypeDu (fypHn, xnaIInu) be3 n3OJaun Ha MrcTo, KbJeTO ue e n3IOKeH Ha DnpeKTHa CnBHeBa CBETIIHa. AkoTozni ypee e pa3noJooH B cTuJeHa Cpea (HAnpIMep 6apaka, npncTropona nnrnapax),pa6oTaTMy ue 6bJe 3aceHaTa n TOBa MoKe da pa3Baan XpaHaTa.

HCTaIpaTteTo3nIpoyKTHaMRCTo,KBTeTOOKOIHaTaTeMpePaTyPe He eNo-HNcKa HIN NO-BvCokaOTpa6oTHaTaTeMnePaTyPa:Bto3n Cnyaay ypeBtHe pa6oTI npabuHNO.

Pa3uipen ymepeh KImat (SN):To3n XnaIJIeH ypeE npEHa3HaueH 3a n3noI3BaHe npi TempepaTpa Ha OKoIIHaTa cpeDa B DnIaNa3OHa OT 10°C do 32°C - Umepeh Klnmat (N):To3n XnaDInien YpeI e npEHa3NaueH 3a I3no3BaHe npi TempepaTpya Ha OKoHaTa CpeJa B DnAna3OHa OT 16°C Do 32°C Cy6tpoHnueH KImMat (ST):To3n XJIaIIneH ypeI e npEHa3NaueH 3a I3POn3BaHe npi TempepaTpya Ha OKoHaTa CpeDa B Dnana3OHa oT 16°C do 38°C TpOnnueH KInMaT (T):To3n XnaIaIIneH ypeI e npEHa3NaueH 3a n3noI3BaHe npi TemnepaTypa Ha OKoINHaTa cpeDa B dInana3OHa ot 16°C do 43°C

HnBeJInpaHe Ha ypeDa

UpeBt Tp6Ba Da 6bJe nocTaBeH Na paBHa N TBbpda NobbpxHOCT

1. Hakohe Te ypeJa Neko Ha3aI.
2. 3aBbptTe Kpaetata no nocoka Ha yacOBHKOBaTa CTpeJka, 3a da NOBdHHeTe XnaDnHnKa.
3. 3aBbptTe KpaetaNo nocoka obaTHa Ha acOBHnKoBaTa CtpElnKa, 3a Da HamaJIte BnCOuHnHa Ta Ha XlaIINHnKa.

IpeMeCTBaHe Ha ypeDa

1.ИЗва对接ецлараХраниИЗКЛЮЧЕурдаOTΚΟТАкта 2.ПоДсИгуре paФТOBeTe И ДPyrIte ПОДВИХнЧаТи В XЛадИNHиКa И BБ БФИЗерac TИKKO. 3. He naknaHnTe XnadnHnKa Ha nobuee ot 45° 3a da n36erHe Te nobpeHa ha oxJaNTeHaTa CnCTema.

CbBETN3A CbXPAHEHNE HA XPAHA

IocTabraTe pa3JnHHe BnOBe XpaHa B pa3JnHn OTdJIeHn Cnope d cJeHaTa TaBnla:

Хладино отдениe	Видхрана
Враты ини рафтоve на вратута нахладиноTO отдениe	•Храни с ecteстvenи KoHcEpBaHTNi, kaTo habримерMapmaIamdi/KoHΦiNTOpri, cokOBe, habITKN, noДправки•He sbxpanhaьайte netprainn xpaи
Чекmedжета за по-дьлготравпа CBexject (чекmedжete за салata)	•Плodove, bILNKи Зеленчуи ТрЯБа за sbыдат постовиНOTdelenH B KUTNITa 3a по-дьлгotrayа CBexject•He sbxpanhaьайte balaани, lyk, kapToФи и чесьн Вхладилика
Среени рафТ в xладилика	•Млechни п探测TKи, яиca
Горен рафТ в xладилика	•Храни, кОЛТо НЯмат hyЖda OT rotв breathe, habримерrotobи 3a KOHcymaця Xpaи, NOlyrotobи Meca,немяденияястя
Чекmedж("Ta)/тава на Фризера	•Xрани за дьлгocspочno сыхсане•Долно чекmedжete за сурово месо, птуve месо, риба•Среени чекmedжete за замразецни зеленчуи,бlahширани и hapязани karptofи•Горна тава за садюлд, замразецни плodove,замразецп Тсetectenvи Храи

Прелорьчтелноедансточь Temпература OT 4° CB xладиното OTделения KORAto e Bb3MOxH0-OT-18°CBbBФрзета. 3a noBeyeTo KaTeoropn XpaHn Hn-PrOdbJnKInTeHb BpeMe Ha cbXpaHEnb XnaIINHOOT OTeJeHne ce NoCTnra pnp Hn-CTyDeHn TempeApTu. TbN KaTO HnKoN KOHKpeTHN IpOyKTN (HaNPmep PpeCN IIODoB n 3eNeHuZn) MoKe Da bDaT yBpeDeHN OT NO-CTyDeHN TempeApTu, e npenOpbYntelNo da rC bXpaHЯBaTe B YeKMeJxKeTa 3a DJIroTpaHa CBxEeCT, KOrato ca HnUHn TaKbA. B cLuyaay XnaIadinHkbt He pa3NoIar a CYeKMeJxKeTa 3a DblrToPaHa CBxEeCT, HAcTpoIte CpeHa CToIHocT Ha TepMOCTaTa. 3a 3ampa3eHn xpaHn cna3BaIte BpeMeTo 3a cbxpaHeHne, HAncaHo Ha OnaKoBkTa NM. Toba BpeMe 3a cbxpaHeHne ce nocTnra, KOraTO HacTpoiKaTa Cna3Ba pepepeHTHaTa TempePaTpaHa otDeJeHneTo (edHa 3Be3da -6°C, dBe 3Be3dN -12°C, trp 3Be3dN -18°C)

Tips for storing food in the refrigerator

Keep the temperature of the refrigerator at 5°C. The food must reach this temperature before being stored. Stored food in the refrigerator must be covered. Food that is stored must be properly closed to avoid loss of aroma or taste. It is recommended that food be covered with neutral material that does not allow air and water to pass, without suffocating, to avoid suffocation or spoilage of products. It is recommended that the air outlets in the refrigerator compartment not be blocked. Do not store excessive amounts of food. Leave space between foods so that cold air can circulate, which ensures better and more even cooling.

Leave distance between foods and the inner walls so that air can circulate. In particular, do not store food against the back wall, as they may freeze. The ripening process of some fruits and vegetables (e.g., plums, pears, bananas, pineapples, etc.) may be accelerated in the refrigerator; therefore, it is not recommended to store them in the refrigerator. The ripening of many green fruits and vegetables can be stimulated for a certain period. Onions, garlic, ginger, and other root vegetables should be stored at room temperature.

Tips for freezing fresh food

The freezer is suitable for freezing fresh food and storing frozen food. For long-term storage of deeply frozen food, place the fresh food you want to freeze in the freezer. The maximum amount of food that can be frozen in 24 hours is indicated on the rating plate. Freezing continues for 24 hours: during this period, do not add other food for freezing.

Tips for storing food in the freezer

Keep the freezer temperature at -18°C. The food must reach this temperature before being stored in the freezer. Food placed in small portions freezes faster and is easier to thaw and cook. It is recommended that each portion be about 2.5 kg; it is best if the food is packaged before placing it in the freezer. Thawed food cannot be refrozen unless it has been cooked. Do not exceed the recommended amounts of fresh food in the freezer. Food can be stored in the freezer at temperatures below -18°C for a period of 2 to 12 months, depending on the characteristics of the food. Meat: 3 to 12 months, vegetables: 6 to 12 months. Do not exceed the storage time for foods; it is recommended to follow the manufacturer's instructions.

CARE AND CLEANING

WARNING! Disconnect the appliance before cleaning

General information

The appliance must be cleaned on all four sides for good operation and to prevent the risk of food contamination.

Clean the interior and the door gasket with a soft cloth and mild detergent. Rinse and dry with a soft cloth. Clean the accessories only with lukewarm water and neutral detergent. Make sure the door gasket is dry and clean before closing the door. Never immerse any part of the appliance in water. Wait about 5 minutes before switching the appliance back on, as frequent starting may damage the compressor.

Replacing the light bulb

The interior light is provided by an LED lamp. To replace the lamp, contact the customer service department.

See "Troubleshooting".

Door open alarm

When the door of the appliance has been left open for more than 1 minute, the door open alarm will sound. The alarm can be silenced by closing the door or pressing the "SET" button (this will not affect the temperature setting, it will only silence the alarm).

Use for long periods of time

If the appliance is not used for a long period of time:

1. 1. Remove all food and clean the appliance as described in the section "Cleaning and maintenance". 2. Clean the appliance as described in the section "Cleaning and maintenance".
2. Leave the door of the freezer compartment open to prevent the development of mold and unpleasant odors inside.

Freezing of fresh food

When freezing fresh food, it should be placed in the freezer compartment in accordance with the data in the table below. Follow the specific recommendations for the duration of freezing, especially in summer:

Open the door/drawer as little as possible. Do not place other food in the appliance during freezing. If you have received a warning about freezing and its duration is longer than the hours indicated on the data plate, place the food in the upper part of the freezer compartment. The quality and shelf life of food will be reduced. All food that has thawed must be either consumed or refrozen (if possible) to avoid potential health risks.

Availability of spare parts

Thermostats, temperature sensors, circuit boards and light sources are available for a minimum period of 7 years after the last unit of the model is placed on the market. Door handles, door hinges, trays and baskets are available for a minimum period of 7 years, and door gaskets for a minimum period of 10 years, after the last unit of the model is placed on the market.

TROUBLESHOOTING

In case of problems, please check all possible solutions and follow the instructions below before contacting the after-sales service department.

ПюбLEM	Вераята ручна	Бъзменно reшениe
Урémonыт He pașotи	Урémonыт e Источуен	Нат生态系统е 6-byToha 3a Въ�очанe/Источанe, за Да Въ�очиTe урда
	Шелсеньт He e Въ�очenВ елковсякя сокт	Въ�очete сцениа
	Исторгий e пешточten яйи有很大 deф却又н таьВ	Пробеге пешточtenя и го замене, пое и необховимо
	Контакт b e Deф却又н	Поведи на леслошистота Верига Травьда за Бъдат OTстанивани OT елковотекинк
Урémonыт se Въ�очва често яйи pașotи пождъжітейно в徕мe	Въ传统产业та яйи Въшонatura TempepaTypa e Тьърд e Bricoka	Hорmalно e урémonыт да разоти по-д��лго
	Урémonыт e бilingи Источуен 3a пождъжітейно в徕мe	Оьиговено са Небховими OT 8 до 12 ча, за да ce oxлади урémonыт нально
	Враза/чесMedже на урда яйe Затворера/о пьъно	Затворete ВразаТа/ЧесMedжetoи сe УрBERe, чe урémonыт сe намира Вьрху Нвевеллара пobьрхнocт, Калто и чe Затваряпето на ВразаТа He e ВьзэрпЯтCTBaHo OT xparha илй контейнер
Въ特产ноctт Na хладилнika e Мрьсан и/илс с loш мирис	Въ特产ноctт Na xладилнika Травьда дa Бъдe поиспета	Почистete Въ特产ноctт Na хладилнika
	В xладилнika ce сьхраявахраha сьс сил徳 мирис	Опakовaite doбpe xparahata
Въвьъ特产ноctт Na хладилнika ce формira koHDEN3	КлIMаТb e Тьърд Тогьи Tьърд Влajжен	УвELIJeTe TempepaTypaTa
	Враза/чесMedже на урда яйe Затворера/о пьън.	Затворete ВразаТа/ЧесMedжeto
	Контейнери с Храна яйи Точноctn са OCTавени OTворец	Оставete ropeшитe xparhi Да Истинатdo Stайна TempepaTypaи nokрinasTe хрaveniteи ТочноctITE
Посповыхноа на хладинда оТ Вьншадастара и лмжду Вратыte/вратуда и чекmedжто се образува кондени	Климатыт e ТВьрдe тольи и ТВьрдe Влajхен	Това e hopмално рп Влajхен климати пое се промени, когаю Влajхностда Намалee
	Вратыда/чекmedжто He e Зат borpeha/o пльъно	Уberете сe, чe Вратыда/чекmedжто e Зат borpeha/o пльъно
Много леди скрж Вьв Фризера	Хра捜е He ca onakobани а déквато	Виharу onakobайte xpanitete добpe
	Врата/чекmedже на урEDA He e Зат borpeha/o пльъно	Зат borpeTe Вратыда/чекmedжeto
Небочайнишимove	Уретыт He e Невелеган	Perugларайte OTNOBO Крачета
	Уретыт се дорIPA до сtleната ил до дугпPreДмети	Премecтete Малко урда
Сbvетоюdnite сbvтлини на потравименckий интерфейс пимигват	Един ot сензорITE e ИЗВьн обхват	Сbvржто сe с OTдени за Тech ninthаюц
Алармata ce актувира	Вратыta нахладинда e OTborpeha	Зат borpeTe Bратуда ил ЗаглuyшеTe anapmata рьчно
Вbvтrewнatable сbvтлинна ил oxладименna сисема не павOTи	Сbvетоюdnata Лампа e Nobvel徳а	Могя, обадеTe се на обсclужвац сcentьр за смая на Лампа taxa

During operation, the side walls of the freezer compartment may be hot; this is normal and is due to the normal operation of the product.

To contact the technical support department, visit the website: https://corperate.haier-europe.com/en/

In the "Support" section, select the brand of your product and your country. You will be redirected to the specific support page, where you can find the phone number and the contact form for the technical support department.

For more information about the product, visit https://eprel.ec.europa.eu/ or scan the QR code on the energy label provided with the device.

Adjusting the temperature:

SAFETY INFORMATION

Reversing the appliance doors

Reversing the interior doors

Replacing the LED lamps

Please keep for future reference:

They contain important instructions for installation, use, and maintenance of the appliance.

The manufacturer is not responsible for any damage resulting from failure to follow these instructions and precautions.

Keep all documentation for future reference or for other users.

Do not connect the appliance to the mains until it is completely unpacked and all elements that protect it during transport have been removed. Do not allow children near the packaging or its parts.

Plastic film and cardboard can cause suffocation!

• If the appliance was transported in a horizontal position, let it stand for at least 4 hours before switching it on, so that the compressor oil can settle.
• Make sure there is no damage during transport. Do not damage the cooling circuit. Do not block or obstruct the ventilation openings on the appliance body or on the built-in structures.
• Never wash the compressor with water; carefully wipe it dry with a cloth after cleaning to prevent rust.
• Due to the weight of the appliance, it must be moved by at least two people.
• Install the appliance and adjust its level in a place that matches its dimensions and usage.
• Make sure that the electrical characteristics on the rating plate match those of the power source. If not, contact an electrician.
• The appliance operates from a power source of 220-240 V AC/50 Hz. Abnormal voltage fluctuations may cause malfunctions during start-up, damage to the temperature regulator or compressor, or strange noise during operation. In this case, install an automatic voltage regulator. Only for large models: The power cord of the appliance is equipped with a 3-contact (grounding) plug, which is connected to a 3-contact (grounded) socket. It is forbidden to cut or remove the third prong (ground). After installation of the appliance, the plug must be easily accessible.
• Make sure that during or after moving the appliance, the power cord is not pinched, as this could lead to damage or breakage of the power cord. If the power cord is damaged, to avoid possible danger, its replacement must be carried out by the manufacturer, its service representative, or a person with similar qualifications. Do not install the appliance in damp, dusty, or oil-contaminated places, nor in places exposed to direct sunlight or water. Do not install the appliance near heaters or flammable materials. - For appliances with a freezer compartment: In case of power failure, do not open the lid. If the duration of the power failure does not exceed the number of hours indicated in the nameplate (temperature rise time), this will not affect the frozen products. If the power failure lasts longer, the products must be checked, and then either consumed or refrozen. Do not worry if the appliance door is hard to open immediately after you close it. This is due to a pressure difference, which will equalize after a few minutes, and the lid can then be opened normally. Do not store medicines, bacteria, or chemical substances in the appliance. This device is a household appliance; it is not recommended to store materials in it that require strict adherence to a temperature range.

Do not touch the appliance with wet hands. Do not store products containing flammable gases (e.g., aerosol cans) or explosive substances in the appliance. Risk of explosion! Do not place unstable items (heavy items, containers with water) on the refrigerator to avoid injury from falling items or electric shock due to contact with water. Do not use electrical appliances in the food storage compartments, except for appliances of the type recommended by the manufacturer. Do not touch the internal cooling elements, especially with wet hands, to avoid cracks or injury. - Risk concerns children, people with limited physical, mental, or sensory capabilities, as well as people with insufficient knowledge regarding safe operation of the appliance. - Make sure that children and people from vulnerable groups understand the danger. The person responsible for safety must supervise or instruct users who are children or from vulnerable groups. Use of the appliance is permitted for children at least 8 years old. Do not allow children to play with the appliance. - Children aged 3 to 8 may load and unload products from the refrigerator.

• For appliances with a freezer compartment: Do not store liquids in bottles or canned goods (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode! - For appliances with a freezer compartment: Never put food from the freezer compartment directly into your mouth. Risk of cold burns!
• Plastic parts of the door seal must not come into contact with oils or fats. If this condition is not met, the plastic parts of the door seal may become porous.
• Before performing any work, disconnect the appliance from the power supply. - To speed up the defrosting process, do not use mechanical or other devices other than those recommended by the manufacturer. - To remove ice, do not use sharp or pointed objects such as knives or forks.
• Never use hair dryers, electric heaters, or other similar electrical appliances for defrosting.
• It is recommended to keep the power plug clean, as dust accumulation on the contacts can lead to fire. Do not attempt to repair, disassemble, or modify the appliance yourself. For repairs, be sure to contact our customer service department. During cleaning or maintenance of the appliance, it is necessary to supervise children.

Do not use glass shelves when they are hot. A sharp temperature contrast can cause the glass to crack. WARNING. The cooling circuit tubes contain a small amount of environmentally safe, but flammable refrigerant (R600a) and insulating gas (cyclopentane). They do not damage the ozone layer and do not increase the greenhouse effect. In case of refrigerant leakage, it can damage your eyes or ignite. In case of damage to the cooling circuit:

• Turn off the appliance and unplug it from the outlet.
• Do not use open flames or ignition sources near the appliance.
• Ventilate the room thoroughly for several minutes.
• Contact the service department for repairs.
• WARNING. Do not damage the plug or power cord; this can lead to electric shock or fire. WARNING. Do not use multi-outlet extension cords or portable power supplies. We do not recommend using extension cords or adapters with multiple sockets. Do not attempt to sit or stand on the appliance. You may get injured or damage the appliance. This appliance is not intended for installation on other household appliances or under them.
• The appliance is designed and manufactured for household use only.
• Only use original spare parts supplied by the manufacturer. The manufacturer guarantees compliance with safety requirements only for these parts.
• Leaving the doors open for a long time can lead to a significant increase in temperature inside the appliance compartments.

Surfaces that may come into contact with food products and accessible cleaning systems. -Clean water reservoirs if they have not been used for 48 hours; flush the water supply system connected to the water supply if water has not been drawn for 5 days. -Store raw meat and fish in sealed containers in the refrigerator so they do not come into contact with other food products and do not drip on them. -Two-star compartments for frozen products (if available in the appliance) are suitable for storing pre-frozen products, storing or making ice cream, and making ice cubes. -One-, two-, and three-star compartments, if present in the appliance, are not suitable for freezing fresh food. -If the appliance remains empty for a long time, turn it off, defrost, clean, dry, and leave the door open to prevent mold from forming inside the appliance.

Before switching on the electrical appliance, the refrigerator must be allowed to stand for at least four hours before connecting to the power supply.

It is recommended that before first use, clean the interior surfaces of the appliance using a solution of sodium bicarbonate in warm water, and then dry them thoroughly. During first use, the refrigerator may emit an odor. It will disappear once the appliance has cooled down.

Attention:

The appliance must be placed on a level surface.

1. Tilt the appliance slightly backwards.
2. Turn the feet clockwise to lower the refrigerator.
3. Turn the feet counterclockwise to raise the refrigerator.

Moving the appliance

1. Remove all products and disconnect the appliance from the electrical supply. 2. Secure all movable parts inside the refrigerator and freezer compartment with adhesive tape. 3. To avoid damage to the cooling system, do not tilt the refrigerator more than 45 degrees.

Tips for storing food products

Place different food products in different compartments according to the table below:

Replacing the light bulbs

The interior lighting of the appliance is LED. The bulbs are replaceable by the user. See the section on troubleshooting.

Door open alarm

When the door is left open for more than 1 minute, an alarm sounds to indicate that the door is open. The alarm can be turned off by closing the door or pressing the SET button (this will not affect the temperature setting, it will simply turn off the alarm).

Non-use of the appliance for an extended period

If the appliance is not used for an extended period of time:

1. Remove the products and disconnect the power cord from the electrical outlet.
2. Clean the appliance as described in the section "Care and Cleaning - General Information". 3. Keep the door and the freezer drawer open to prevent the formation of unpleasant odors inside the appliance.

Power failure

In the event of a power failure, the products will remain cold for the period indicated on the rating plate. Follow these tips during prolonged power outages, especially in summer:

Open the door/drawer as rarely as possible.

Do not place products in the appliance during power outages. If you receive a preliminary warning of a power outage and the duration of the interruption exceeds the number of hours indicated on the rating plate, prepare some ice and place it in the upper part of the refrigerator compartment. The storage time and quality of the food will be reduced. Newly frozen products should be consumed as soon as possible, cooked and refrozen (if appropriate) to avoid health risks.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for at least 7 years after the last unit of the model is placed on the market. Door handles, door hinges, trays and baskets are available for at least 7 years, and door gaskets for at least 10 years after the last unit of the model is placed on the market.

TROUBLESHOOTING

In the event of problems, check all the indicated options and follow the instructions provided below before contacting the after-sales service.

To contact the technical support, visit the website:

https://corporate.haier-europe.com/en/

In the "Web site" section, select your product brand and your country. You will be redirected to a specific website where you can find the phone number and the technical support form.

https://corporate.haier-europe.com/en/

https://corporate.haier-europe.com/en/

They contain important instructions for installation, use, and maintenance of the appliance.

The manufacturer is not responsible for non-compliance with the instructions and warnings.

Keep all documentation for future reference or for subsequent users.

Do not connect the appliance to the power supply until you have fully unpacked it and identified all the components that protect the appliance during transport. Do not allow children to play with the packaging and its parts.

Disposal of old appliances

This appliance is marked in accordance with EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

Waste electrical and electronic equipment (WEEE) contains polluting substances (which can have a negative impact on the environment) and base components (which can be reused. It is important to ensure a special collection of waste electrical and electronic equipment, so that all polluting substances are properly disposed of and recycled, and all materials are reused.

Some materials can play an important role in ensuring that waste electrical and electronic equipment does not become an environmental problem; it is necessary to follow a few basic rules:

• Do not dispose of waste electrical and electronic equipment with household waste;
• Waste electrical and electronic equipment should be handed over to the appropriate collection points, managed by municipalities or registered companies. In many countries, large collection points for waste electrical and electronic equipment may be available.

In many countries, when buying a new appliance, you can return the old one to the seller, who is obliged to accept it free of charge on a "one for one" basis, if it is an appliance of similar type and has the same functions as the appliance the seller supplies.

Responsibility

The marking on the device confirms its compliance with all relevant European requirements for safety, health protection, and the environment, as established by the legislation for this product.

Warranty

Minimum warranty: 2 years for EU countries, 3 years for Turkey, 1 year for large appliances, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, and for Tunisia, no warranty is required.

Energy saving

To save electricity, we recommend:

Install the appliance at a distance from heat sources, in a dry, well-ventilated place, away from direct sunlight, suitable for the intended use. Do not place the appliance in the refrigerator to avoid increasing the temperature inside the appliance, which would force the compressor to run continuously. Do not overload the refrigerator with products to ensure proper air circulation. In case of frost formation, defrost the appliance to improve cooling efficiency. In case of power outage, keep the refrigerator door closed. - Keep the door open less frequently and do not leave it open. - Try not to set too low temperatures. - Wipe the shelves clean.

Using the refrigerator

Never place uncovered liquids in the refrigerator. Never put hot food in the refrigerator. Allow hot food to cool to room temperature before placing it in the refrigerator. When you open the door, do not leave it open for a long time, as this will cause freezing and possible problems and condensation that will be difficult to remove. - Before placing products in the refrigerator, make sure they are clean, and also wipe off any excess water. - Before placing food in the refrigerator, cover or wrap it. This will help prevent moisture loss and avoid unpleasant odors, preserving food freshness. Sort products before storing. Any products that will be used soonest should be placed in the front part of the shelf to prevent spoilage caused by exposure to air over a long period. Do not overload the refrigerator with products. There should be enough space between products for cold air to circulate freely. - Defrosting frozen products in the refrigerator compartment helps maintain low temperature and save energy. Never store raw meat on shelves above cooked meat or other products. This will help prevent contamination of other food products with meat juices.

Using the freezer compartment

Frozen products are intended for storage of frozen products only. Never place hot or warm products in the freezer; let them cool completely before placing them in the freezer. Follow the instructions on the packaging for storing frozen products. If this information is missing, products should be stored for no longer than three months. Store them in small packages (ideally less than 1 kg). This reduces freezing time and improves the quality after thawing. Before placing products in the freezer, wrap them. To prevent sticking of wrappers, make sure they are dry. Label the food before freezing, including the type of product, storage date, and expiration date. Do not refreeze thawed products. Thaw only as much as needed to avoid unnecessary waste. Do not store bottled or canned food in freezers, as they may burst.

The maximum quantity of fresh food that can be frozen within 24 hours is 2.0 kg. Do not try to freeze more than the maximum quantity of products.

General

** The image shown is for familiarization only. The actual configuration of the device depends on the model or specific distributor.

Storage

The cold compartment is intended for short-term storage of food. Despite the possibility of maintaining low temperatures, it is not recommended to store food in it for a long period.

Since the cold compartment is closed inside the refrigerator, the temperature in different sections may vary. Therefore, food products should be stored in different sections of the device according to their type.

1. Butter, cheese, and similar products in sealed packages
2. Eggs, for example, milk
3. Ready meals
4. Yogurt, canned food, and similar
5. Vegetables and fruits

The refrigerator shelves can be moved according to the storage requirements in the refrigerator compartment. To move a shelf, lift the rear part, then pull the shelf out of the device.

To install the shelf, insert it back into the guide, then push it fully into the section. For maximum energy efficiency, the device should be installed away from heat sources, such as ovens or radiators; see the installation image.

Control panel

Set the refrigerator temperature. The setting will be set to 3.0 by default. The "Power" button is located on the front and performs the on/off function when pressed for 3 seconds. The "Adjust" button is located on the right side and performs the temperature setting function for the refrigerator.

Temperature adjustment:

The temperature of the refrigerator is adjusted by pressing the "Adjust" button. By pressing the button, you can select temperatures from 1 to 5, corresponding to temperatures from the lowest to the highest.

Install the external handle

(if an external handle is available)

If the appliance is not used for a long time:

1. Remove the plug and disconnect the power cable.
2. Clean the appliance as described in the section "Cleaning and general maintenance."
3. Keep the door and the freezer compartment door open to prevent the formation of unpleasant odors inside the appliance.

Power failure

In case of a power failure, the products will remain cold for the time specified on the nameplate. Follow the instructions below during a prolonged power outage:

Open the door/drawer as little as possible.

Do not put additional food or products in the appliance during a power outage. If you have received a warning about a power interruption, and the duration of such interruption exceeds the number of hours specified on the nameplate, prepare a cooler and place it on the top shelf of the refrigerator compartment. The storage time will be shortened, and the quality will deteriorate. Any thawed products should be cooked or refrozen (if appropriate) to avoid health risks.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for at least 7 years after the last unit of the model is placed on the market. Handles, hinges, trays and baskets will be available for at least 7 years, and door gaskets - for at least 10 years, after the last unit of the model is placed on the market.

If any problems occur, first try all the specified options and follow the instructions provided, before contacting the after-sales service.
