USER MANUAL MQ5045 BRAUN

Stapled booklet, 148 x 210, 84 pages (incl. 8 pages cover), 1/1c = black – Print Spec J 92194885

Register your product

www.braunhousehold.com/register

De’Longhi Braun Household GmbH Carl-Ulrich-Straße 4

63263 Neu-Isenburg/Germany

5722112764/03.17 MQ 5000 Soup, MQ 5020 Pasta, MQ 5035 Sauce, MQ 5045 Aperitive

DE/UK/FR/ES/PT/IT/NL/DK/NO/SE/FI/PL/CZ/SK/HU/HR/SI/TR/RO/MD/GR/ KZ/RU/UA/Arab

+5 sec +5 sec turbo turbo turbo

+5 sec +5 sec turbo turbo

+5 sec +5 sec turbo turbo

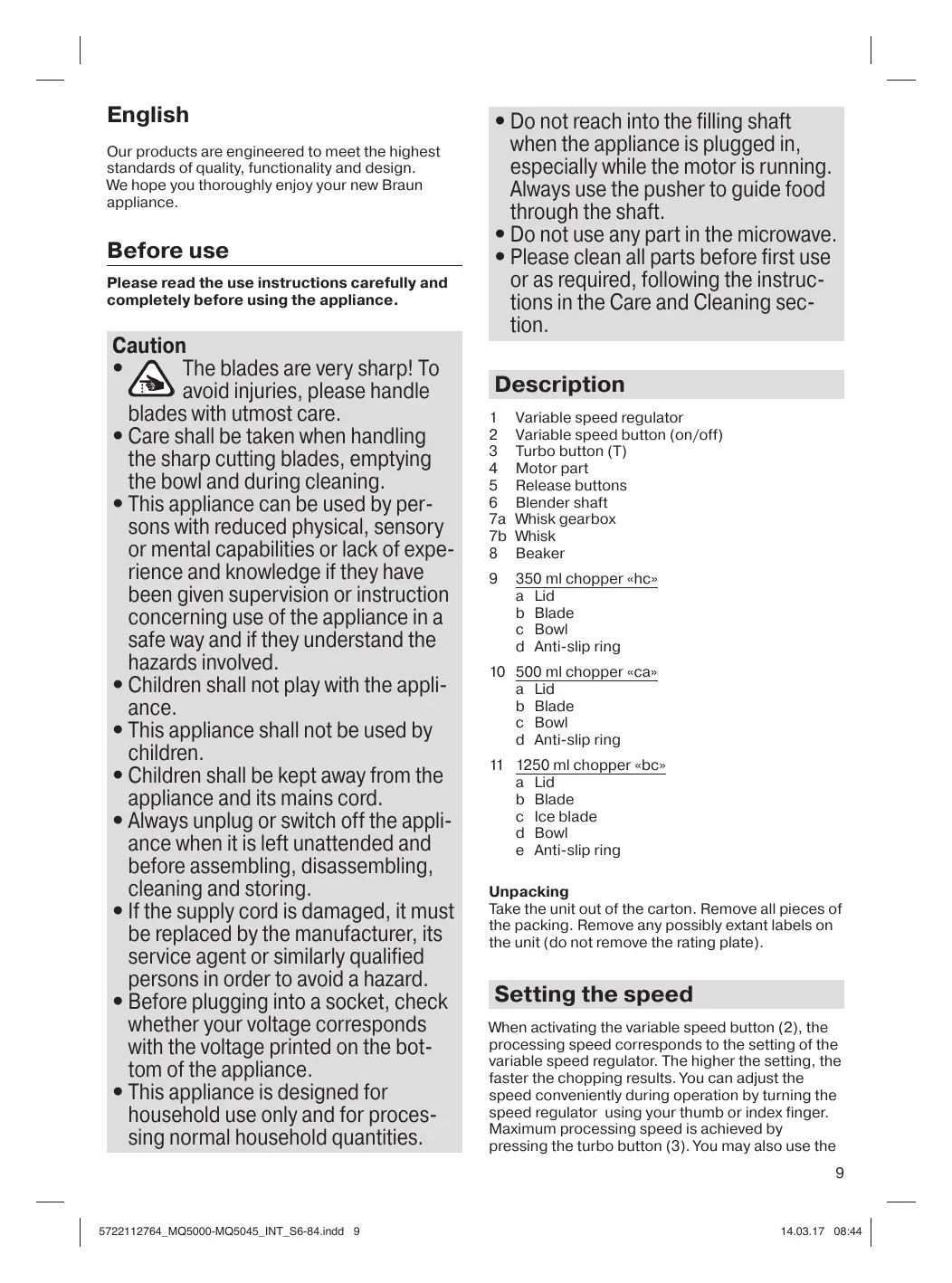

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Please read the use instructions carefully and completely before using the appliance.

• The blades are very sharp! To avoid injuries, please handle blades with utmost care. • Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning. • This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. • Children shall not play with the appliance. • This appliance shall not be used by children. • Children shall be kept away from the appliance and its mains cord. • Always unplug or switch off the appliance when it is left unattended and before assembling, disassembling, cleaning and storing. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance. • This appliance is designed for household use only and for processing normal household quantities.

• Do not reach into the filling shaft when the appliance is plugged in, especially while the motor is running.

Always use the pusher to guide food through the shaft. • Do not use any part in the microwave. • Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section. Description 1 2 3 4 5 6 7a 7b 8

Variable speed regulator

Variable speed button (on/off) Turbo button (T) Motor part Release buttons Blender shaft Whisk gearbox Whisk Beaker

10 500 ml chopper «ca» a Lid b Blade c Bowl d Anti-slip ring

11 1250 ml chopper «bc» a Lid b Blade c Ice blade d Bowl e Anti-slip ring Unpacking Take the unit out of the carton. Remove all pieces of the packing. Remove any possibly extant labels on the unit (do not remove the rating plate).

When activating the variable speed button (2), the processing speed corresponds to the setting of the variable speed regulator. The higher the setting, the faster the chopping results. You can adjust the speed conveniently during operation by turning the speed regulator using your thumb or index finger. Maximum processing speed is achieved by pressing the turbo button (3). You may also use the 9

turbo button for instant powerful pulses without having to manipulate the speed regulator.

The choppers (9,10,11) are perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, carrots, nuts, almonds etc.

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks and milk shakes.

For best results, use the Turbo speed.

Always chop hard food at full speed (e.g. parmesan, chocolate).

• Click the motor part (4) into the blender shaft (6).

• Position the hand blender deep in a beaker or bowl. Then switch the appliance on as described above. • After use unplug and press the release buttons (5) to detach the motor part.

For best results see processing tables (D,E,G).

Maximum operation time for the «hc» chopper: 2 minutes (large amounts of wet ingredients) / 30 seconds (dry or hard ingredients or amounts < 100g / 100 ml). Immediately stop processing when motor speed decreases and/or strong vibrations occur.

When blending directly in the saucepan while cooking, remove the pan from the stove first to avoid splashing of the boiling liquid (risk of scalding).

Recipe example: Mayonnaise 250 g oil (e.g. sunflower oil), 1 egg and 1 extra egg yolk, 1–2 tbsp. vinegar (approx. 15 g), salt and pepper to taste Place all ingredients (at room temperature) into the beaker in the order as mentioned above. Place the hand blender on the bottom of the beaker. Operate the hand blender by pressing the turbo button, keep it in this position until the oil starts emulsifying. Then without switching off slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. Processing time: from 1 minute (for salad) up to 2 minutes for more stiffness (e.g. for dip).

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts. • Insert the whisk (7b) into the whisk gear box (7a) then click the motor part (4) into the gear box. • Place the whisk in a bowl and only then switch the appliance on. • After use, unplug and press the release buttons (5) to detach the motor part. Then pull the whisk out of the gear box. Tips for best results • Use a medium-sized bowl. • Move the whisk clockwise, holding it slightly inclined. • Whipped cream (max. 400 ml chilled cream, min. 30% fat content, 4–8 °C): Start with low speed and increase the speed (by turning the speed regulator) while whipping. • Beaten egg whites (max. 4 eggs): Start with a medium speed and increase the speed (by turning the speed regulator) while whipping.

For ice crushing, use the «bc» chopper with the ice blade (11c). Do not chop extremely hard food such as nutmeg, coffee beans and grains.

Before chopping … • Pre-cut meat, cheese, onions, carrots. • Remove stems from herbs, shell nuts. • Remove bones, tendons and gristle from meat. • Always make sure that the anti-slip ring is attached to the bowl. Caution: The blade is very sharp! Always hold it by the upper plastic part and handle it carefully. 1. Carefully remove the protective cover from the blade. 2. Place the blade on the centre pin of the bowl, push it down and give it a turn so that it locks. 3. Fill the chopper bowl with food and put on the lid. 4. Click the motor part onto the lid. 5. Press button (2) or (3) to operate the chopper. During processing, hold the motor part with one hand and the bowl with the other. 6. After use, unplug and press the release buttons (5) to detach the motor part. 7. Remove the lid. 8. Carefully take out the blade before removing the processed food. To remove the blade, slightly turn and pull off. Recipe example: Vanilla-Honey-Prunes (as a pancake stuffing or spread): • Fill the «hc» chopper bowl with 50 g prunes and 70 g creamy honey. • Chop 4 seconds at maximum speed • Add 10 ml water (vanilla-flavoured). • Resume chopping for another 1.5 seconds.

Additional applications for the «bc» chopper (11)

With the «bc» chopper, you can also blend shakes or drinks, mix batters or crush ice cubes.

Mixing pancake batter

First pour 375 ml milk into the bowl, then add 250 g flour and finally 2 eggs. Using speed «T», mix the batter until smooth. Crushing ice cubes – Firmly push the ice blade (11c) onto the centre pin of the bowl (11d) until it locks. – Fill the bowl with up to 7 ice cubes. Put on the lid, attach the motor part and operate at full speed. – After use, detach the motor part, remove the lid and the ice blade. – Remove the crushed ice or simply pour your drink into the bowl for serving at the table.

Clean the motor part (4) and the whisk gear box (7a) with a damp cloth only. The lids (10a, 11a) can be cleaned under running water, but do not immerse them in water, nor clean it in a dishwasher. All other parts can be cleaned in a dishwasher. You may remove the anti-slip rings from the chopper bowls for extra thorough cleaning. When processing foods with a high pigment content (e.g. carrots), the plastic parts of the appliance may become discoloured. Wipe these parts with vegetable oil before cleaning them.

(can be bought individually, not available in every country) MQ 10:

Whisk for whipping cream, beating egg whites

350 ml chopper to chop herbs, carrots, etc.

500 ml chopper to chop carrots, meat, onions, etc.

1250 ml chopper to chop, mix, blend and crush ice

puree accessory to puree cooked vegatable and potatoes

Compact kitchen machine accessory

(1500 ml) to chop, mix, slice and shred.

Both the design specifications and these user instructions are subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

Guarantee Information All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected. Please keep your receipt as this will form the basis of your guarantee. In the unlikely event of a breakdown you have access to professional help from our team simply by calling: 02392 392333 For service in the Republic of Ireland please call: 012475471 Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that; • We are promptly informed of the defect. • The product is used and maintained in accordance with the User Instructions. • The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household. • No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use. • Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee. • The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water. Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages. Braun Household, New Lane, Havant, Hampshire PO9 2NH www.braunhousehold.co.uk Thank You for choosing Braun. We are confident that you will get excellent service from this product. TO IMPROVE YOUR EXPERIENCE Register now at www.braunhousehold.co.uk By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips. 11
