Product type	Stroller
Brand	RED CASTLE
Model	CITYLINK 3 / CITYLINK III
Recommended age	From 6 months (up to 15 kg)
Maximum child weight	15 kg
Maximum basket load	2 kg
Safety standard	EN 1888:2003
Harness system	Height-adjustable 5-point safety harness
Brake	Rear foot brake
Folding	Compact fold (empty basket before)
Canopy	With integrated sun visor
Footrest	Adjustable leg support
Combo use	Compatible with RED CASTLE/RECARO Group 0+ car seat (up to 13 kg) and RED CASTLE carrycot (up to 9 kg)
Maintenance	Clean with damp cloth; textile parts wash with water (not machine), dry in shade
Accessories	Rain cover available, sun visor
Stroller weight	Approximately 10 kg (estimate)
Manufacturer	RED CASTLE FRANCE

Frequently Asked Questions - CITYLINK 3 - CITYLINK III RED CASTLE

How to fold the CITYLINK 3 stroller?

Before folding the stroller, empty the basket completely. Then follow the folding instructions in the manual: lower the handle and activate the locking mechanisms. Make sure the stroller folds without forcing.

Can I use the stroller from birth?

The stroller alone is recommended from 6 months. For a newborn, you must use either the RED CASTLE/RECARO Group 0+ car seat (up to 13 kg) or the RED CASTLE carrycot (up to 9 kg) attached to the chassis.

How to clean the stroller textiles?

The textile parts should be cleaned with water (no machine wash) using a non-aggressive powder. Do not use bleach. Dry in shade. Plastic and metal parts clean with a damp cloth.

At what age can my child use the stroller without a carrycot?

As soon as your child can sit up unsupported, usually from 6 months. Before that age, use a carrycot or an appropriate car seat.

Can the rain cover be used indoors?

No, never use the rain cover indoors, when it's hot, or near a heat source. This could cause dangerous overheating for your child.

How to adjust the safety harness?

The harness straps are height-adjustable. Adjust them to your child's size. Always use the crotch strap with the harness, even with a footmuff.

Can I use a car seat on the chassis?

Yes, the stroller is compatible with RED CASTLE/RECARO Group 0+ car seats (up to 13 kg) and RC Group 0 car seats (up to 9 kg). Ensure the attachment devices are properly engaged.

What to do if the stroller folds with difficulty?

Do not force the mechanism. Check that the basket is empty and nothing blocks the joints. Refer to the manual for folding steps. If the problem persists, contact customer service.

Is it possible to put more than one child in the stroller?

No, this stroller is designed to carry one child. Never transport more than one child in the CITYLINK 3.

How to maintain the wheels after use on the beach?

After use in seawater or on sand, systematically rinse the parts in contact with salt and sand, especially the wheels, springs, and rivets. Avoid rolling in seawater.

USER MANUAL CITYLINK 3 - CITYLINK III RED CASTLE

GB Instructions for use

CZ Rozkládání

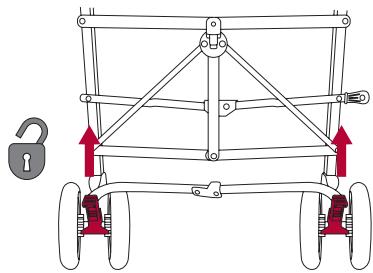

GB IMPORTANT: Make sure that the chassis is secured firmly in place (click heard).

Diagram of a wheeled cart with red arrows indicating downward motion, accompanied by a gray lock icon (no text or symbols)

Diagram of a wheeled cart with red arrows indicating upward motion, no text or symbols present

CZ Parkovací brzda

DE Bremse

EE Parkimispidur

ES Freno de parking

FR Frein parking

GB Parking brake

HU Fékek

IT Blocco freni

GB IMPORTANT: It may be dangerous to leave your child alone and unattended in the stroller, even if the parking brake is on. Check that the wheels are securely locked.

GB The safety harness

HU Biztonsági öv

Technical line drawing of a mechanical assembly with two red clamps and two hanging clips (no text or symbols)

Technical line drawing of a garment collar structure with two hanging clips and red clamps (no text or symbols)

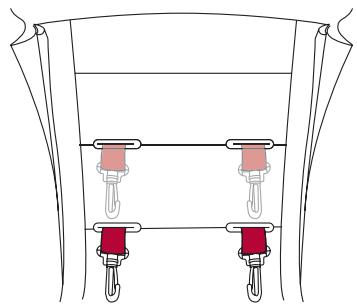

GB The safety harness

HU Biztonsági öv

GB The harness straps are height adjustable.

CZ Opěrka zad

DE Rückenlehne

EE Seljatugi

ES Respaldo

FR Le dossier

GB Seat back

HU Háttámla

IT Lo schienale

LT Atlošas

LV Atzveltne

NL Rugleuning

NO Seteryggene

CZ Opěrka na nohy

DE Fussstütze

EE Jalatugi

CZ Snadno odnímatelná předni kolečka, otáčivá nebo zafixovaná
DE Schnellverschluss Vorderräder schwenkbar oder fixiert
EE Esirataste kiir-eemaldamine, pöörlevad või fikseeritud
ES Ruedas delanteras extraíbles fijas o giratorias
FR Roues avant amovibles pivotantes ou fixes
GB Quick release front wheels, swivel or fixed
HU Az első kerekek levehetőek, bolygósíthatóak vagy fixálhatóak
IT Rilascio rapido ruote anteriori piroettandi o fisse
LT Greitas priekinių ratukų (sukančių arba fiksuotų) nuėmimas
LV Priekšējo riteņu ātrā noņemšana, grozāmi vai fiksēti
NL Verwijderbare draaiende of vaste voorwielen
NO Lett avtagbare fronthjul som kan rotere eller være fastlåst
PL Szybko zwalniane przednie kółka, obrotowe lub zablokowane
PT Rodas dianteiras removíveis fixas ou giratórias
RU Съемные колеса, поворотные с фиксацией
SE Avtagbara framhjul, fritt svängande eller fixerade
SK Jednoducho odnímatelné predné kolesá, otáčavé alebo zafixované

CZ DŮLEŽITÉ: Na nerovném povrchu doporučujeme zablokovat kolečka.

GB IMPORTANT: Over rough grounds it is strongly recommended that the front wheels be used in the fixed position.

CZ Stříška

DE Verdeck

EE Päikesevari

ES Capota

FR Capote

GB Hood

HU Kapucni

IT Capote

LT Apdanga

LV Salokāms jumtiņš

NL Kap

NO Kalesje

PL Daszek

PT Capota

RU Защитный козырек

SE Huvan

SK Strieška

Line drawing of a stroller with four wheels and a red seat cover (no text or symbols)

CZ Košík na zip
DE Korb mit Reißverschluss
EE Lukuga avatav korv
ES Cestilla inferior con cremallera
FR Panier dézipable

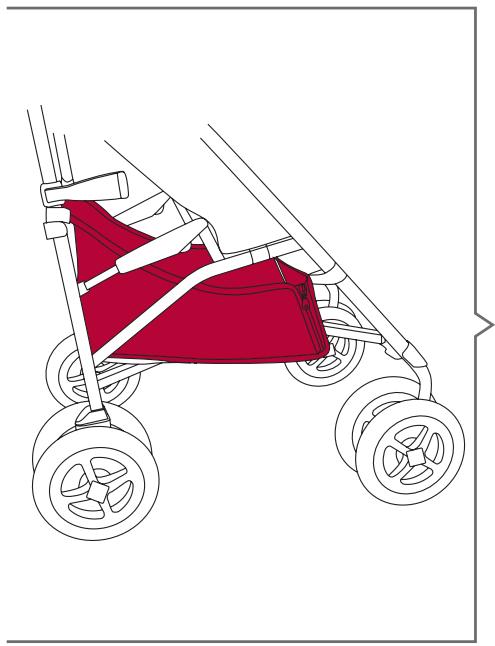

GB Zip-open basket
HU Cipzározható kosár
IT Cerniera apertura cestino
LT Krepšelis su užtrauktuku
LV Ar rāvējslēdzēju atverams grozs
NL Afritsbaar mandje
NO Handlekurv
PL Kosz na zamek
PT Cestinha inferior com fecho-ecler
RU Корзина на молнии
SE Korg med blixtlåsöppning
SK Kôš na zips

GB IMPORTANT: The maximum weight in the basket should not exceed 2kgs.

CZ Pláštěnka

DE Regenschutz

EE Vihmakile

GB IMPORTANT: Do not use the raincover indoors, during warm weather, when it is sunny or near a source of heat. Your child may become too hot.

Technical line drawing showing two mechanical components with red arrows indicating motion or force direction (no text or symbols)

CZ Sluneční clona

DE Sonnenschutz

EE Päikesesirm

ES Protector solar

FR Protège soleil

GB Sun screen

HU Napfényvédő-háló

IT Proteggi sole

LT Saulès skydelis

LV Saulesssargs

NL Zonnescherm

NO Solbeskyttelsen

PL Przeciwsłoneczna

PT Protector para o sol

RU Ширма от солнца

SE Solskyddet

SK Slnečná clona

GB IMPORTANT: The sun screen has been designed to reduce the sun's glare and limit the effect of UV rays. The use of this sun screen does not exempt you from the need to protect your children. We recommend the systematic use of a sun cream. Regularly check that your child has enough to drink.

CZ Skládání kočárku

GB Folding your stroller

GB IMPORTANT: Empty the basket completely BEFORE folding the stroller.

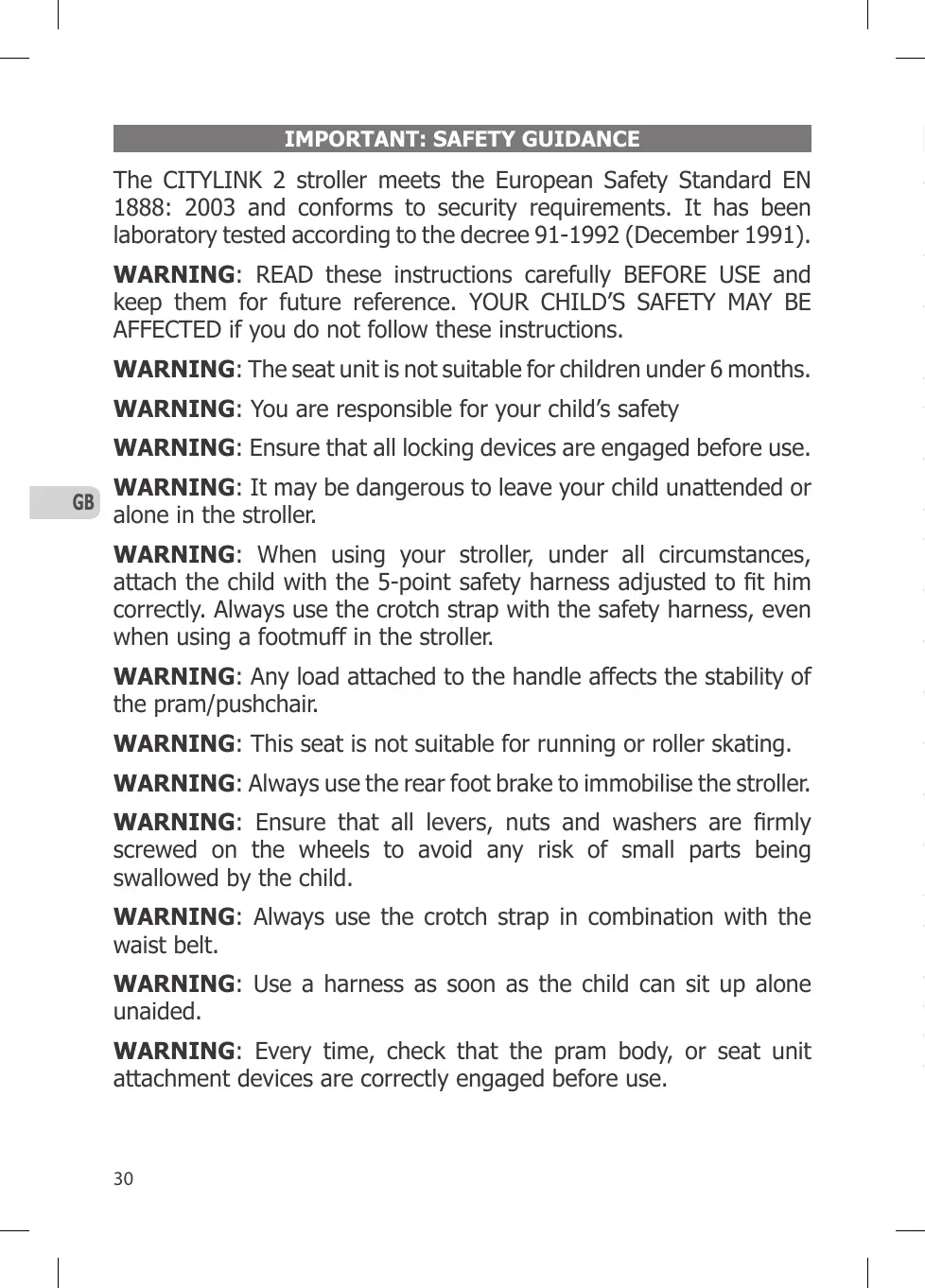

The CITYLINK 2 stroller meets the European Safety Standard EN 1888: 2003 and conforms to security requirements. It has been laboratory tested according to the decree 91-1992 (December 1991).

WARNING: READ these instructions carefully BEFORE USE and keep them for future reference. YOUR CHILD'S SAFETY MAY BE AFFECTED if you do not follow these instructions.

WARNING: The seat unit is not suitable for children under 6 months.

WARNING: You are responsible for your child's safety

WARNING: Ensure that all locking devices are engaged before use.

WARNING: It may be dangerous to leave your child unattended or alone in the stroller.

WARNING: When using your stroller, under all circumstances, attach the child with the 5-point safety harness adjusted to fit him correctly. Always use the crotch strap with the safety harness, even when using a footmuff in the stroller.

WARNING: Any load attached to the handle affects the stability of the pram/pushchair.

WARNING: This seat is not suitable for running or roller skating.

WARNING: Always use the rear foot brake to immobilise the stroller.

WARNING: Ensure that all levers, nuts and washers are firmly screwed on the wheels to avoid any risk of small parts being swallowed by the child.

WARNING: Always use the crotch strap in combination with the waist belt.

WARNING: Use a harness as soon as the child can sit up alone unaided.

WARNING: Every time, check that the pram body, or seat unit attachment devices are correctly engaged before use.

GENERAL INSTRUCTIONS

• This stroller is intended to transport a child from age 6 months up to a maximum weight of 15kgs, as well as an additional weight of 2kgs in the basket below the stroller. The maximum load in other compartments should not exceed 0,5kgs.
• From birth, use the stroller with the RED CASTLE / RECARO Group 0 car seat up to 13kgs OR with the RC car seat Group 0 up to 9kgs OR with the RED CASTLE carrycot up to 9kgs.
• The correct assembly of this stroller is essential. Neither RED CASTLE FRANCE nor their distributors can be held responsible should this not be the case. Please note that incorrect use of the stroller could damage the stroller and be dangerous for your child.
• Never transport more than one child in the CITYLINK 2 stroller.
• Never use the textile stroller seat before your child is able to sit up alone unaided (from 6 months old).
• Do not use replacement parts or accessories other than those recommended by RED CASTLE FRANCE.
  • To avoid the risk of suffocation, keep all plastic bags away from and out of the reach of children.
• You can attach an extra safety harness onto the D-rings. Check that the harness conforms to the EN 13210 standard.
  • Always attach your child with the 5 point safety harness correctly adjusted to fit him whenever you use the stroller.
• The child should always be kept clear of detachable parts when adjustments are made and when opening and closing the stroller.
• When the stroller is folded and upright, keep the child clear to avoid their being injured should the stroller fall.
• Should the stroller be used by someone unfamiliar with it, always show them the correct way to use it.
• To avoid the risk of strangulation, NEVER attach strings, ribbons or cords onto the stroller or onto your child.
• The stroller should always open and close without difficulty. If it doesn't, do not force the mechanisms and refer to the Instruction manual.
• Ensure that all safety mechanisms are engaged before use and that they are used correctly.
  • Overloading, incorrect folding and the use of accessories non-approved by the manufacturer may seriously damage or break the stroller (in particular the use of buggy boards).
• Never place any item on the stroller hood.
• Never place a load on the foot-rest.
• Never allow children to stand on the foot-rest.

• Do not use the raincover indoors, during warm weather, when it is sunny or near a source of heat. Your child may become too hot.

• The sun screen has been designed to reduce the sun's glare and limit the effect of UV rays. The use of this sun screen does not exempt you from the need to protect your child. We recommend the systematic use of a sun cream. Regularly check that your child has enough to drink.

• ALWAYS TAKE YOUR CHILD OUT of the stroller when going up or down stairs, or when using an escalator.
• Step over obstacles (pavements etc...) with care. Bumping it up and down repeatedly may damage your stroller.
• Never use the stroller if it is damaged or broken.
• Never lift up the stroller by the Infant car seat or the carrycot but by the chassis only.

MAINTENANCE

• This stroller requires regular maintenance by the user.
• Clean the plastic and the metal parts of your stroller with a damp cloth and wipe them dry immediately. Use only mild cleaning products.
• The textile parts can be wiped clean with water (not machine washable). Use only a mild detergent. DO NOT USE BLEACH. Leave open to dry thoroughly. Do not dry in direct sunlight.
• Regularly check screws, rivets and bolts. Any worn parts must be replaced.
• Prolonged exposure to direct sunlight may prematurely discolour the stroller fabric.

IMPORTANT! We do not recommend taking this stroller into the sea. After using your stroller on a beach, or on a snowy/salted pavement, always rinse the parts in contact with the salt and the sand, especially the wheels, the springs and the rivets.

FONTOS : ÁLTALÁNOS BIZTONSÁGI ELŐÍRÁSOK

Three baby strollers with different designs, shown from different angles (no text or symbols visible)
