USER MANUAL CSD 40 LI RYOBI

It is essential that you read the instructions in this manual before operating this machine.

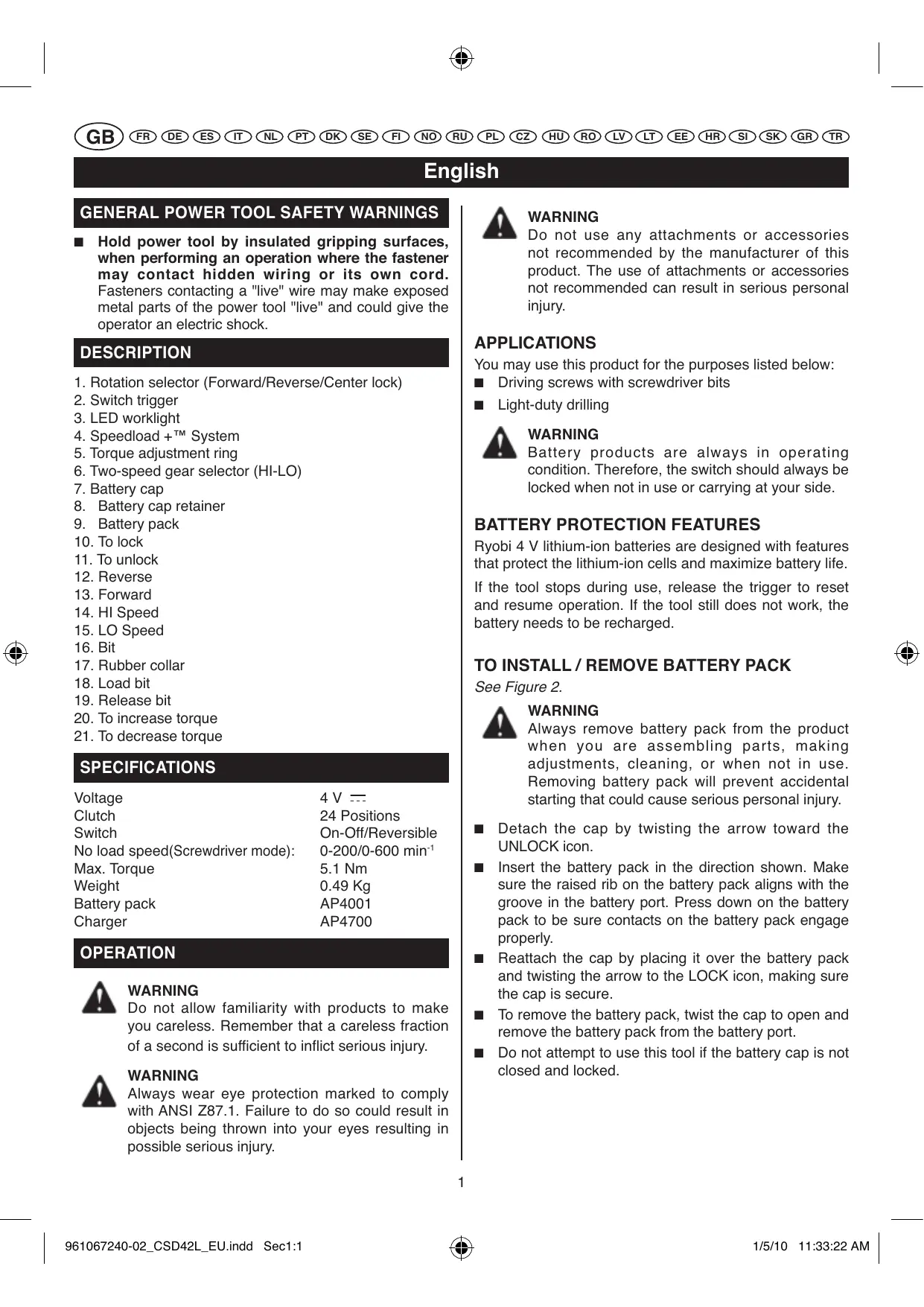

GENERAL POWER TOOL SAFETY WARNINGS Q WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord.

Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

APPLICATIONS DESCRIPTION You may use this product for the purposes listed below:

Q Driving screws with screwdriver bits

1. Rotation selector (Forward/Reverse/Center lock)

2. Switch trigger 3. LED worklight 4. Speedload +™ System 5. Torque adjustment ring 6. Two-speed gear selector (HI-LO) 7. Battery cap 8. Battery cap retainer 9. Battery pack 10. To lock 11. To unlock 12. Reverse 13. Forward 14. HI Speed 15. LO Speed 16. Bit 17. Rubber collar 18. Load bit 19. Release bit 20. To increase torque 21. To decrease torque

Q WARNING Battery products are always in operating condition. Therefore, the switch should always be locked when not in use or carrying at your side.

BATTERY PROTECTION FEATURES Ryobi 4 V lithium-ion batteries are designed with features that protect the lithium-ion cells and maximize battery life.

If the tool stops during use, release the trigger to reset and resume operation. If the tool still does not work, the battery needs to be recharged.

TO INSTALL / REMOVE BATTERY PACK See Figure 2.

WARNING Always remove battery pack from the product when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

SPECIFICATIONS Voltage

Clutch Switch No load speed(Screwdriver mode): Max. Torque Weight Battery pack Charger

24 Positions On-Off/Reversible 0-200/0-600 min-1 5.1 Nm 0.49 Kg AP4001 AP4700

Q Q OPERATION Q WARNING Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Q Q WARNING Always wear eye protection marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

Detach the cap by twisting the arrow toward the

UNLOCK icon. Insert the battery pack in the direction shown. Make sure the raised rib on the battery pack aligns with the groove in the battery port. Press down on the battery pack to be sure contacts on the battery pack engage properly. Reattach the cap by placing it over the battery pack and twisting the arrow to the LOCK icon, making sure the cap is secure. To remove the battery pack, twist the cap to open and remove the battery pack from the battery port. Do not attempt to use this tool if the battery cap is not closed and locked.

ADJUSTABLE TORQUE CLUTCH This screwdriver is equipped with an adjustable torque clutch for driving different types of screws into different materials. The proper setting depends on the type of material and the size of screw you are using.

D I R E C T I O N O F R O TAT I O N S E L E C TO R

(FORWARD / REVERSE / CENTER LOCK) See Figure 3. The direction of bit rotation is reversible and is controlled by a selector located above the switch trigger. With the screwdriver held in normal operating position, the direction of rotation selector should be positioned to the left of the switch trigger for forward motion. The direction is reversed when the selector is to the right of the switch trigger.

ADJUSTING TORQUE See Figure 6.

There are twenty-four torque indicator settings located on the front of the screwdriver.

Setting the switch trigger in the OFF (center lock) position helps reduce the possibility of accidental starting when

Q Select the gear selection setting to HI or LO speed.

Q Rotate the adjusting ring to the desired setting.

For driving small screws (HI or LO speed)

For driving screws into soft material

To stop the screwdriver, release the switch trigger and allowthe collet to come to a complete stop.

For driving screws into soft and hard materials (LO speed)

NOTE: The screwdriver will not run unless the direction of rotation selector is pushed fully to the left or right.

For driving screws in hard wood (LO speed)

For driving large screws (LO speed)

CAUTION To prevent gear damage, always allow the collet to come to a complete stop before changing the direction of rotation.

The tool has an overload protection device. The tool will stop if the spindle is locked for several seconds while the trigger is on. If this happens, release the trigger, then wait for a few seconds before you resume operation. To avoid this situation, do not force the tool.

The screwdriver has a two-speed gear box designed for

LO or HI speeds. A slide switch is located on top of the screwdriver to select either LO or HI speed. When using screwdriver in the LO speed range, speed will decrease and unit will have more power and torque.When using screwdriver in the HI speed range, speed will increase and unit will have less power and torque. When drilling use 1/4 in. hex shank drill bits only. Maximum drill size is 1/4 in.

LED WORKLIGHT See Figure 7.

The screwdriver has a built-in LED worklight. This feature is convenient when working in close or tight areas where additional light is needed. Whenever the switch trigger is depressed, the LED worklight will illuminate.

Use the HI speed setting to drill holes, and use the LO speed setting for driving screws.

NOTE: The LED worklight will go off when overload protection causes the tool to stop. The light will come on again when the trigger is depressed and operation resumes.

TO LOAD/RELEASE BITS See Figure 5.

The SPEEDLOAD +™ SYSTEM on the screwdriver is a quick change chuck designed to accept any 1/4 in. hex bits. Insert the bit into the chuck and push as far as possible until the chuck locks onto the bit. To remove a bit, push rubber collar forward, and then pull the bit straight out of the chuck.

MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other part may create a hazard or cause product damage.

Avoid using solvents when cleaning plastic parts.

Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. They contain chemicals that can damage, weaken or destroy plastic.

Revolutions or reciprocations per minute Direct current CE Conformity Please read the instructions carefully before starting the machine.

Do not abuse power tools. Abusive practices can damage tool as well as workpiece.

WARNING Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your

Local Authority or retailer for recycling advice.

ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing as waste. The machine, accessories and packaging should be sorted for environmentalfriendly recycling.

5.1 Nm 0.49 Kg AP4001 AP4700

FUNZIONAMENTO Q D I R E Z I O N E D E L S E L E Z I O N AT O R E D I ROTAZIONE (AVANTI / INDIETRO / BLOCCO CENTRALE)

ALGEMENE VEILIGHEIDSVOORSCHRIFTEN Q For at skrue store skruer i (LO hastighed)

ALLMÄNNA SÄKERHETSFÖRESKRIFTER Q

5.1 Nm 0,49 Kg AP4001 AP4700

Q Q VÄXELLÅDA MED 2 HASTIGHETER

ÖVERBELASTNINGSSKYDD B E S K LY T T E L S E S I N N R E T N I N G OVERBELASTNING

2 HASTIGHETS GIR MOT PENTRU INSTALAREA/ÎNDEPRTA ACUMULATORUL SPECIFIKĀCIJAS Spriegums

Saj'gs Slªdzis ®trums tukšgait( (skr'vªšanas rež&ms): Maks. griezes moments Svars Akumulators L(dªt(js

OPA SIGURNOSNA PRAVILA Q PRACOVNÉ OSVETLENIE LED OCHRANA ŽIVOTNÉHO PROSTREDIA All Ryobi products are guaranteed against manufacturing defects and defective parts for a period of twenty four (24) months from the date stated on the original invoice drawn up by the retailer and given to the end user.

Deterioration caused by normal wear and tear, unauthorised or improper use or maintenance, or overload are excluded from this guarantee as are accessories such as battery packs, light bulbs, blades, fittings, bags, etc. In the event of malfunction during the warranty period, please take the NON-DISMANTLED product, along with the proof of purchase, to your retailer or nearest Authorised Ryobi Service Centre. This warranty in no way affects your legal rights concerning defective products.

FR GARANTIE - CONDITIONS GARANTIJAS PAZI OJUMS WARNING The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in

EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may signi{cantly increase the exposure level over the total working period.

IT An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may signi{cantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

FR DECLARATION OF CONFORMITY FR SE DÉCLARATION DE CONFORMITÉ

FI KONFORMITÄTSERKLÄRUNG NO We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents. 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from

Dec. 29, 2009), 2004/108/EC, EN60745, EN55014-1, EN550142, EN61000-3-2, EN61000-3-3 Sound pressure level 56.5 dB(A) Sound power level 67.5 dB(A) Weighted root mean 2 0.8 m/s2 square acceleration value (k=1.5 m/s )

CZ Machine: 4 VOLT 2 SPEED SCREWDRIVER Name of company:

Address: Web: Name/Title:

Type: CSD42L Dec. 2009

TECHTRONIC INDUSTRIES CO. LTD.

24/F, CDW BUILDING, 388 CASTLE PEAK ROAD, TSUEN WAN, HONG KONG www.ttigroup.com Brian Ellis / Vice President - Engineering

Dec. 05, 2009 Technical File at Name of company: Address: Web: Name/Title:

TTI EMEA MEDINA HOUSE, FIELDHOUSE LANE, MARLOW, BUCKS, SL7 1TB, UNITED KINGDOM www.ttigroup.com

Carl Jefferies / Head of Ryobi Product Marketing

Trademarks: The use of the trademark Ryobi is pursuant to a license granted by Ryobi Limited.
