USER MANUAL MARTEAU PERFORATEUR BURINEUR KRESS

Original instructions "Hammer drill"

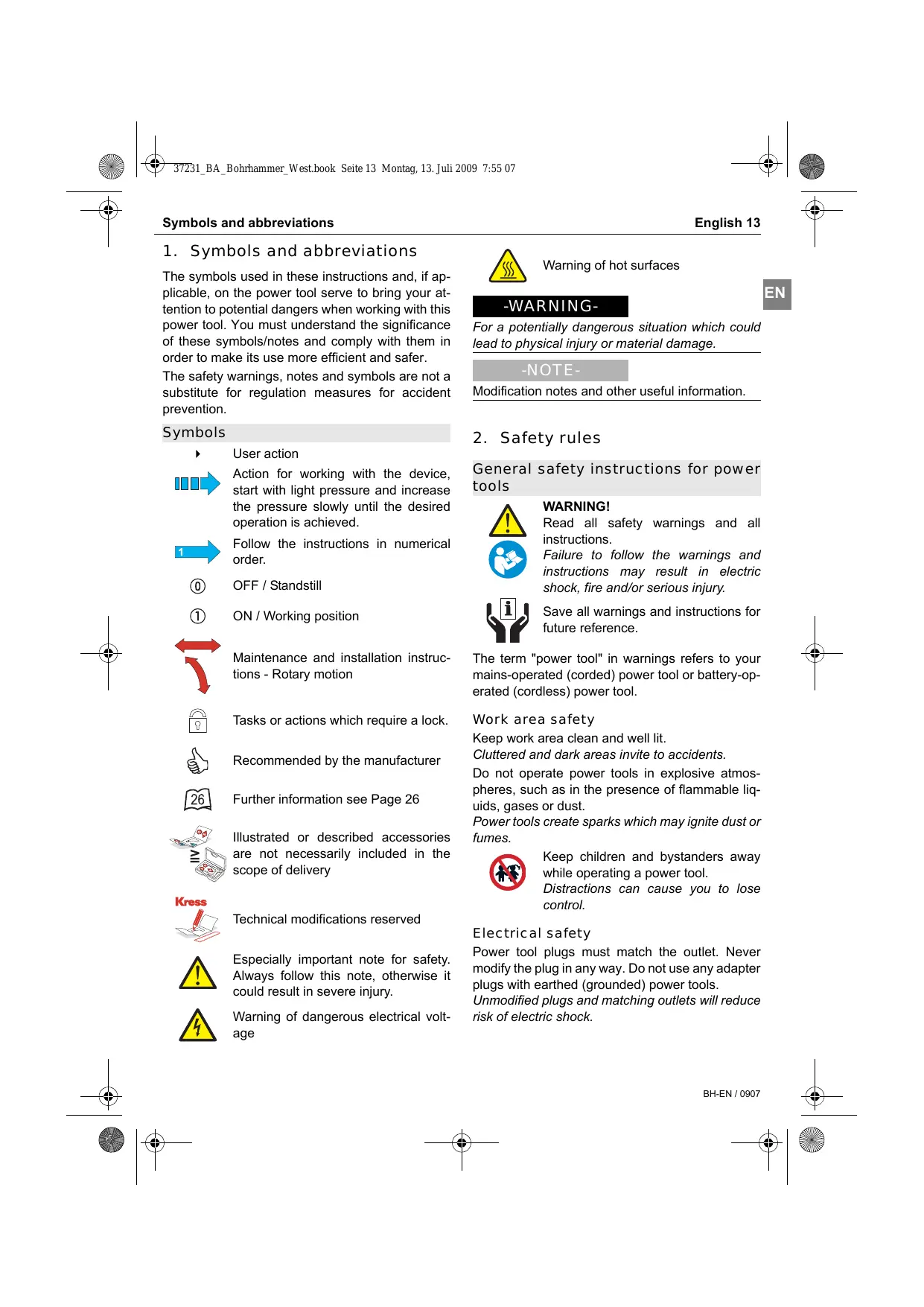

1. Symbols and abbreviations

The symbols used in these instructions and, if applicable, on the power tool serve to bring your attention to potential dangers when working with this power tool. You must understand the significance of these symbols/notes and comply with them in order to make its use more efficient and safer.

The safety warnings, notes and symbols are not a substitute for regulation measures for accident prevention.

Symbols

User action

Action for working with the device, start with light pressure and increase the pressure slowly until the desired operation is achieved.

Follow the instructions in numerical order.

OFF/Standstill

① ON / Working position

Maintenance and installation instructions - Rotary motion

Tasks or actions which require a lock.

Recommended by the manufacturer

Further information see Page 26

Illustrated or described accessories are not necessarily included in the scope of delivery

Technical modifications reserved

Especially important note for safety. Always follow this note, otherwise it could result in severe injury.

Warning of dangerous electrical voltage

Warning of hot surfaces

-WARNING-

For a potentially dangerous situation which could lead to physical injury or material damage.

-NOTE-

Modification notes and other useful information.

2. Safety rules

General safety instructions for power tools

WARNING!

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit.

Cluttered and dark areas invite to accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite dust or fumes.

Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators.

Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for connecting dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the

manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified repair person using only original spare parts.

This will ensure that the safety of the power tool is maintained.

Machine-specific SafetyWarnings

Wear hearing protection.

The effects of noise can cause loss of hearing capacity.

Use auxiliary handles supplied with the tool.

Loss of control can cause personal injury.

Always assume a safe standing position and hold the power tool securely in both hands.

When the drill unexpectedly jams, the machine kicks back.

Hold the power tool only by the insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own power cord.

Contact with a "live" wire will also make exposed metal parts of the power tool "live" and lead to electric shock.

Secure the workpiece.

A workpiece clamped with clamping devices or in a vice is held more secure than by hand.

Do not work on stone containing crystalline silica (SiO2).

This will produce dust which is dangerous to your health.

Do not work on materials containing asbestos.

Asbestos is considered carcinogenic!

Take protective measures if there is danger of formation of combustible or explosive dust during operation that can be hazardous to health.

Example: Some dusts can be carcinogenic. Wear a dust mask and work with a dust/chip extraction unit, if possible to connect.

The tool must only be used with the appropriate guards fitted.

Always wait until the machine has come to a complete stop before placing it down.

The tool insert can jam and lead to loss of control over the power tool.

During operation, always ensure that the mains and extension cable is to the rear away from the device.

This prevents anyone from tripping over the cable while working.

Move the switch to the "OFF" position before removing the plug from the plug socket.

When the tool is reconnected to the mains accidental starting of the machine is avoided, thus reducing the risk of accidents.

Tools not in use must be locked away safely in a dry place out of the reach of children.

Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance.

Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes damage to property or electric shock.

Switch the power tool off immediately if the tool insert gets jammed. Be prepared for high torque levels if the tool kicks back.

The tool insert jams if:

the power tool becomes overloaded or
the tool tilts in the workpiece

To mark the machine, do not drill into the housing.

The protective insulation would be bridged. Use stickers.

Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable gets damaged during operation.

Damaged cables increase the risk of electric shock.

Residual risk. Although this information sheet and the operating manuals for our electrical tools contain extensive instructions on safe working with electrical tools, every electrical tool involves certain residual risks that cannot be completely prevented through safety mechanisms. Therefore, electrical tools must always be operated with the necessary caution.

3. Device description

Read all the warnings and instructions before using the equipment.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

For help, please use the enclosed illustrations showing the device. Open these illustrations while reading the operating instructions.

Operating elements

I Unlocking sleeve
II Operating mode switch
III Gear selector/Rotation stop switch
IV Adjuster for speed selection (optional)
V On/Off control switch
VI Stop button
VII Left/Right rotation switch
VIII Interlock button mains cable module
IX Unlocking sleeve drill chuck (optional)

Device components

1 Tool holder
2 Dust protection cap
3 Additional handle
4 Depth stop
5 Mains cable module / fixed supply
6 Screwing adaptor
7 Quick-action drill chuck
8 Mounting spindle (optional)

Contents

See packaging

Specified Conditions of Use

The pneumatic hammer drill is intended for universal use for hammer drilling in concrete, brick and stone and for light chisel work (Exception: chisel work with 550 PH not possible).

It is also suitable for drilling without impact in wood, metal, ceramic and plastic.

Requirements for the user

The tool must only be operated, maintained and serviced by authorised trained personnel. The personnel must be made aware of the relevant dangers.

Technical data

Mains voltage in V / Frequency in Hz Nominal power rating P in Watts

Noise levels

$$ \begin{array}{l} \mathrm {L} _ {\mathrm {p A}} = \mathrm {A} - \text {r a t e d n o i s e l e v e l} \ \mathrm {L} _ {\mathrm {w A}} = \mathrm {A} - \text {r a t e d n o i s e o u t p u t l e v e l} \ K = \begin{array}{c} \text {M e a s u r e m e n t u n c e r t a i n t y} \ \text {v a l u e} \end{array} \ \end{array} $$

The noise level can exceed 85 dB(A) during operation.

Wear hearing protection!

Triaxial vibration emission level determined in accordance with EN 60745.

K = Measurement uncertainty value

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another.

The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. This could lead to underestimation of vibration when the tool is used regularly in such a manner.

Note: To be accurate, an estimation of the level of exposure to vibration experienced during a given period of work should also take into account the times when the tool is switched off and when it is running but not actually when doing the job.

This may significantly reduce the exposure level over the total working period.

1st n_0 = Idle speed (1st gear)

2nd n_0 = Idle speed (2nd gear)

1st n_1 = Load speed (1st gear)

2nd n_1 = Load speed (2nd gear) in rpm

Individual impact strength in Joule

Number of impacts n^-1

Corner dimension in mm

Collar diameter in mm

Weight in kg

Your device is fitted with an SDS-plus automatic locking device.

SDS-plus

Your device has a manual SDS-plus locking device.

Drilling and hammer drilling in concrete - max. in mm

Drilling and hammer drilling in brick - max. in mm

Drilling and hammer drilling in sandstone - max. in mm

Drilling in steel - max. in mm

Drilling in aluminium - max. in mm

Fitting screws in wood - max. 0 in mm

Drilling in wood - max. in mm

Your power tool is doubly insulated in compliance with EN 60745; there is thus no need for an earth wire.

The machine is radio and TV interference-free in accordance with EN 55014-1 and interferenceproof in accordance with EN 55014-2.

4. Operation

Before carrying out any work on the machine, pull the mains plug.

EN

Putting into operation

Observe correct main voltage!

Before putting into operation, check that the mains voltage and frequency on the identification plate match the details of your mains supply.

Fit the additional handle

Connect mains cable module if necessary

If using an extension cable: Only use extension cables specifically approved for the application with the required cross-section. Otherwise the power of the tool can be reduced and the cable can overheat. Replace damaged cables.

Additional handle

Operate the machine only with the additional handle

Loss of control can cause personal injury.

Place the additional handle 3 in the working position to provide a safe and fatigue-free working situation.

Tighten the lower hand grip of the additional handle 3 by turning in a clockwise direction. Turn the hand grip in an anticlockwise direction to release it.

Depth setting

The required drilling depth X can be set using the depth stop 4.

Release the additional handle 3 and insert the depth stop 4 into the additional handle.

Extend the depth stop 4 until the distance between the tip of the drill and the tip of the depth stop 3 corresponds to the required drilling depth X.

Mains cable

If the mains cable is damaged while working, pull the mains plug immediately.

Fixed power supply

Fixed power supply

Damaged mains cables must not be used. They must be replaced immediately by an expert technician.

Mains cable module

Mains cable module with Patent Quick Interlock.

Connect the mains cable module 5 to the handle. The plug must snap in.

Use the mains cable module 5 only for Kress electric tools. Do not attempt to operate other machines with the module.

Damaged mains cable modules must not be used. They must be replaced by a new Kress mains cable module immediately.

Push the two unlocking buttons VIII and remove the mains cable module 5 from the handle.

Use only an original Kress mains cable module and at least a heavy rubber tube cable (H07RN-F).

Sliding clutch

Always assume a safe standing position and hold the power tool securely in both hands.

If the drill jams unexpectedly, the machine kicks back.

If the tool insert becomes caught or is jammed, the drive to the drill spindle is interrupted.

Remove the load from the machine immediately by retracting the drill

If the power tool jams, switch the machine off and release the tool insert.

When switching the machine on with the drilling tool jammed, high reaction torques can occur.

Operation

On-/off

Press or release the On/Off switch V. The On/Off switch V can be locked using the locking button VI.

Release the On/Off switch V by pressing and releasing briefly.

-NOTE-

At low outside temperatures: The tool requires a minimum operating temperature before the hammer action will work. Switch on the tool, place briefly on the ground and run at idle speed.

Repeat until the percussion starts.

Select speed/impact rate (option)

In devices with a setting dial IV you can select the speed using the setting dial IV depending on the area of application.

Position "A" = lowest speed

Position "G" = highest speed

Changing the speed/impact rate

The On/Off switch V can be used for infinitely variable speed control. Light pressure on the On/Off switch V causes the machine to rotate slowly; with increased pressure, the speed increases.

Mechanical gear selection (option)

The gear selection / rotation stop switch III can be used to select three settings.

1 Low speed range: Hammer drilling, drilling with normal twist drills in wood/metal over 8 mm, and stirring tasks
2 High speed range: Drilling with normal twist drills up to 8 mm

No rotational motion: Light chisel work

The switchover can best be performed at standstill. Please note that the gear selection / rotation stop switch III can only be turned 1 level at a time. After the On/Off switch V has been actuated and the machine has started, the gearbox switches to the preselected setting. Only then can the gear selection / rotation stop switch III be turned to the next setting.

Selecting the direction of rotation

Operate the rotational direction switch VII only when the machine is at a standstill!

Set the required direction of rotation.

Clockwise rotation:

For drilling and fixing screws.

Anticlockwise rotation:

For loosening and removing screws and nuts.

Important: Press the rotational direction switch VII up to the stop on the housing, i. e. until it snaps in audibly.

If the rotational direction switch VII is set between the positions "R" and "L", the machine cannot be switched on.

Selecting the modes of operation

The operational mode switch II can be used to select the required settings.

The switchover can be performed best at standstill. After the On/Off switch V has been actuated and the machine has started, the gearbox switches to the preselected setting.

Impact drilling

Impact drilling

-NOTE-

Left rotation when impact drilling damages the drill. Switch off the impact mechanism for diamond crown drilling or for mixing work.

When hammer drilling, only use drills with tungsten carbide inserts and SDS-Plus shafts.

The use of commercially available rock drills with cylindrical shafts by means of the adapter 6 and a normal drill chuck in conjunction with the pneumatic impact mechanism is not possible.

Drilling / Stirring

Drilling / Stirring

Adjusting the chisel

Positioning the chisel

The chisel can now be turned by hand to the required working position.

The chisel latches automatically as soon as it is radially loaded by the working or chiselling process.

-NOTE-

In devices where the selection of the above symbol is not available, put the operational mode switch in an intermediate position.

Chiselling

Chiselling

-NOTE-

In some devices, the gear selector/rotation stop switch III must be used at this point. Please take note of the enclosed illustrations.

Changing the tool

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures prevent accidental start of the power tool.

Wear safety gloves for tool changing.

The tool insert can become very hot after working for long periods and/or the cutting edges of the tool insert are sharp.

The dust protection cap 2 largely prevents the penetration of drilling dust during operation. When inserting the tool, take care that the dust protection cap 2 is not damaged.

A damaged dust protection cap should be changed immediately. It is recommend to have this carried out by an after-sales service.

The tool holder retains the drill bit or chiselling tool in a SDS-plus holder without additional equipment.

Inserting the tool

Clean and grease the tool shaft slightly.

Retract the unlocking sleeve I.

Insert the tool into the tool holder by turning it until it snaps into place. 1

Release the unlocking sleeve I.

Check the interlock by pulling the tool.

-NOTE-

In devices with SDS-plus automatic interlocking, the unlocking sleeve must not be retracted when inserting the tool.

SDS-plus Manual SDS-plus interlock

SDS-plus automatic interlock

Removing the tool

Pull the unlocking sleeve I backwards and remove the tool.

Operating tips

Use auxiliary handles supplied with the tool.

Loss of control can cause personal injury.

Always match the speed setting to the material concerned and the diameter of the drill bit.

Hammer drilling - Chiselling

Wear protective glasses and hearing protection.

Do not apply too much pressure. The performance is not increased by doing so.

The most effective method for chiselling is to break out only small pieces of material.

Drilling in tiles

Start drilling slowly on the tile. Only after the tile is drilled through, switch to hammer drilling.

This prevents the tile from cracking.

Drilling with diamond drill bits

Set the operation mode switch II to drilling.

-NOTE-

Switch the hammer action off when drilling with a diamond drill bit.

Screws

The screw adapter 6 (accessory) can hold screw bits.

Commercially available bits with a hexagonal dimension of 6.3mm or 1/4 (DIN 3126, Form C) can be used. The screw-bits are held in the adapter with a spring ring. Therefore, use only bits with a notch.

Set the operation mode switch II to drilling.

5. Tools and accessories

For metal, use only flawless, sharpened drills; for stone and concrete, only rock drills with hard metal inserts.

Sharpening the chisels

Good results are only achieved with sharp chisels, therefore sharpen the chiselling tools in due time. This prolongs the service life of the tools and ensures good working performance.

Sharpen chiselling tools with grinding wheels (e.g. ceramic bonded corundum wheel) with a steady supply of water. Standard values for this are shown in the illustrated instructions. Take care that no annealing colouration appears on the cutting edges, otherwise the hardness of the chiselling tools will be impaired.

Usekeylessdrill chuck

Drill bits with a cylindrical shaft are used for drilling in metal, wood and plastic. A keyless drill chuck (max. 13 mm clamping diameter) is available for this purpose.

-NOTE-

The keyless chuck is not suited for hammer drilling and chiselling.

The drill chuck is mounted onto the carrier spindle of the screw adapter 6 or of the device.

Changing the tool holder

Before carrying out any work on the machine, pull the mains plug.

All common drill chucks with 1 / 2'' x 20 UNF internal threads (13 mm max. chuck opening) can be used. The drill chuck is mounted on the screw adapter 6 (accessories) for screw-bits.

Fitting the drill chuck (accessory)

Retract the unlocking sleeve I.

Insert the screw adapter 6 into the tool holder 1 while rotating.

Release the unlocking sleeve.

Check the interlock by pulling the screw adapter.

-NOTE-

In devices with SDS-plus automatic interlocking, the unlocking sleeve must not be retracted when inserting the tool.

SDS-plus Manual SDS-plus interlock

SDS-plus automatic interlock

Inserting the drill chuck (accessory)

Clean the thread on the drill chuck (accessory) and on the screw adapter 6 (accessory).

Screw the drill chuck 7 onto the adapter 6.

Set the rotation stop switch III or operation mode switch II temporarily to the chiselling function to allow you to tighten the drill chuck to a torque of 40 Nm.

Removing the drill chuck

Pull the unlocking sleeve I backwards and remove the drill chuck III with the screw adapter 6.

If required, first screw the drill chuck 7 from the screw adapter 6.

Changing quick-fit drill chuck system

Before carrying out any work on the machine, pull the mains plug.

Removing the tool holder

Slide the drill chuck unlocking sleeve IX backwards and remove the tool holder 1 from the carrier spindle.

Fitting the drill chuck

Clean the carrier spindle 8.

Pull the drill chuck unlocking sleeve IX backwards and guide the required drill chuck 7 onto the carrier spindle 8 while rotating.

Release the unlocking sleeve I. Check that the drill chuck 7 is secure.

6. Maintenance and Service

Before carrying out any work on the machine, pull the mains plug.

Always keep the machine and ventilation slots clean.
Wipe off the accessible plastic parts regularly with a cloth without cleaning agent.
Always keep the holder clean.

Replacing brushes

Worn carbon brushes should be replaced by an authorised customer service organisation.

Service

After heavy use over a long period, the machine should be taken to a Kress service location for inspection and thorough cleaning.

The relevant service centres are listed in the enclosed appendix "SERVICE" or on the website www.kress-elektrik.de.

Spare parts / exploded view

Exploded views and spare parts lists are available on our home-page http://spareparts.kress-elektrik.de

Environmental Protection

Recycle raw materials instead of disposing them as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling.

The plastic components are labelled for categorised recycling.

Only for EC countries.

Do not dispose of electric tools together with household waste material!

In observance of the European Directive 2002/96/EC for waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Warranty

1. This power tool has been carefully tested and has been subjected to a strict quality control process.
2. We guarantee the free-of-charge repair of faults in the power tool that arise within 24 months from the date of purchase at the end user's premises and which can be attributed to a material or manufacturing defect. In certain countries there are special regulations concerning the warranty terms. We reserve the right to repair faulty components or to replace them. Replaced items become our property.
3. Inappropriate use or handling and opening up the device by unauthorised repair centres leads to the warranty becoming void. The warranty does not cover: mechanical damage due to falls etc., damage caused by penetration of water or other fluids, cut and damaged cables, motor damage and mechanical damage caused by inappropriate overloading, wear parts e.g. carbon brushes, drill chucks, chuck keys, worn drilling spindles, motors, mains cables, batteries, saw blades, grinding discs, dust bags, accessories in general (drill bits, chisels etc.). Details of the various toll wear parts can be obtained from http:// spareparts.kress-elektrik.de or from one of our service centres.
4. The warranty may only be enforced when defects are reported without undue delay (including shipping damage). Warranty implementation does not extend the warranty period.
5. If you need to apply the warranty, send the original purchase receipt together with the device to us or to the relevant service centre.
6. The warranty obligations assumed by us shall exclude any further claims on the part of the buyer, in particular the right to cancellation of a sale, reduction and the assertion of damage claims.
7. However, the buyer shall have the right to either a reduction (in the purchase price) or the cancellation of the sales agreement should we fail to eliminate any defects within a reasonable period of time.
8. This does not exclude compensation claims in accordance with §§ 463, 480 Para. 2, 635 BGB caused by the failure of assured properties.
9. The provisions defined in Items 7 and 8 only apply to the Federal Republic of Germany.

Afiar as ferramentas de cinzel
