USER MANUAL PH 500 KRESS

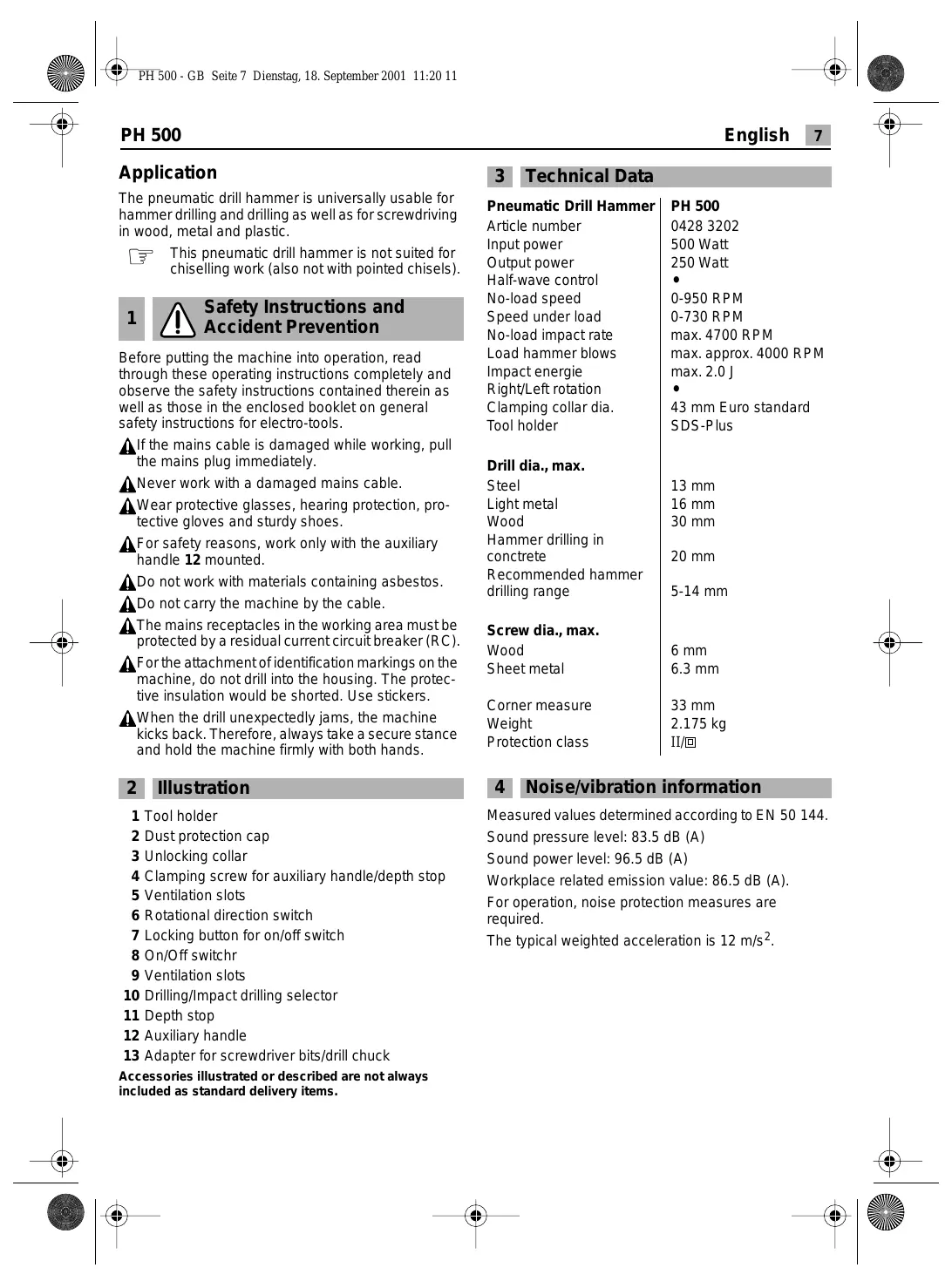

Safety Instructions and Accident Prevention Before putting the machine into operation, read through these operating instructions completely and observe the safety instructions contained therein as well as those in the enclosed booklet on general safety instructions for electro-tools. If the mains cable is damaged while working, pull the mains plug immediately. Never work with a damaged mains cable. Wear protective glasses, hearing protection, protective gloves and sturdy shoes. For safety reasons, work only with the auxiliary handle 12 mounted. Do not work with materials containing asbestos. Do not carry the machine by the cable. The mains receptacles in the working area must be protected by a residual current circuit breaker (RC). For the attachment of identification markings on the machine, do not drill into the housing. The protective insulation would be shorted. Use stickers. When the drill unexpectedly jams, the machine kicks back. Therefore, always take a secure stance and hold the machine firmly with both hands.

Illustration Tool holder Dust protection cap Unlocking collar Clamping screw for auxiliary handle/depth stop Ventilation slots Rotational direction switch Locking button for on/off switch On/Off switchr Ventilation slots Drilling/Impact drilling selector Depth stop Auxiliary handle Adapter for screwdriver bits/drill chuck Accessories illustrated or described are not always included as standard delivery items.

Corner measure Weight Protection class 33 mm

13 mm 16 mm 30 mm 20 mm Noise/vibration information Measured values determined according to EN 50 144. Sound pressure level: 83.5 dB (A) Sound power level: 96.5 dB (A) Workplace related emission value: 86.5 dB (A). For operation, noise protection measures are required. The typical weighted acceleration is 12 m/s 2. PH 500 - GB Seite 8 Montag, 17. September 2001 1:20 13

Mounting the Auxiliary Handle, Powersupply Cord Before any work on the machine itself, pull the mains plug! Operate the machine only with the auxiliary handle 12. Place the auxiliary handle on the clamping collar and tighten with the clamping screw. Damaged mains cables must not be used. They must be replaced without delay by an authorised servicing agent (heavy rubber sheathed code designation H 07 RN-F).

Putting into Operation Check before putting into operation that the mains voltage agrees with the voltage specified on the nameplate of the machine.

Press or release the on/off switch 8. The on/off switch can be locked on with the locking button 7. To release, briefly press and release the on/ off switch 8.

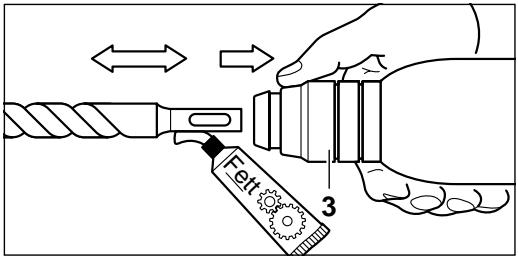

Inserting/Removing Tools The tool holder 1 clamps the drilling tools without using a tool key. INSERTING TOOLS Before any work on the machine itself, pull the mains plug! Clean and lightly grease the tool shaft.

SPEED CONTROL With the on/off switch 8, the speed can be continuously varied. With light pressure on the on/off switch 8, the machine begins to rotate slowly; with increased pressure, the speed increases.

ROTATIONAL DIRECTION SWITCHING

Operate the rotational direction switch 6 only when the machine is at a standstill! Take hold of the rotational direction switch 6 on both sides. Right rotation: Set the rotational direction switch 6 to “R”. Left rotation: Set the rotational direction switch 6 to “L”. Important: Press the rotational direction switch 6 in each case to the stop on the housing, i. e. until it can be felt to engage. If the rotational direction switch 6 is set between the positions “R” and “L”, the machine cannot be switched on.

For drilling, place the selector 10 in the position. For impact drilling, set to The switch-over can best be performed at a standstill. Only after the on/off switch 8 is actuated and the machine starts does the gear box shift to the selected mode. Note: Left rotation when impact drilling damages the drill. Switch off the impact mechanism for diamond crown drilling or for mixing work. When hammer drilling, use exclusively drills with hard metal inserts and SDS-Plus shafts. The use of commercially available masonry drills with cylindrical shafts by means of the adapter 13 and the normal drill chuck in conjunction with the pneumatic impact mechanism is not possible. PH 500

Pull back the unlocking collar 3. Insert the tool while turning into the tool holder until it latches. Release the unlocking collar. Check whether the tool is firmly seated. Take care that the dust protection cap 2 is not damaged. Replace damaged dust protection caps! REMOVING TOOLS Slide the unlocking collar 3 to the rear and pull out the tool. PH 500 - GB Seite 9 Montag, 17. September 2001 1:20 13 PH 500

English Drill Chuck (Accessory) For drilling work in metal, wood and plastic with drills that have normal shafts, a drill chuck (13 mm max. chuck opening) is available. The drill chuck is mounted on the adapter (accessory) for screwdriver bits. All common drill chucks with 1/2" x 20 UNF internal threads (13 mm max. chuck opening) can be used.

Before any work on the machine itself, pull the mains plug! Clean the threads of the drill chuck (accessory) and the adapter 13 (accessory). Screw the drill chuck onto the adapter and tighten firmly (approx. 30 Nm). Clamp in a vise for tightening the adapter, for example. Clamp an Allen key in the drill chuck and use it to tighten the chuck. Then lock the adapter in the tool holder the same as a drill.

Practical Tips Do not drill into hidden electrical lines or gas and water pipes. Check the area to be worked with a metal detector, for example, before starting. For metal, use only flawless, sharpened drills; for stone and concrete, only masonry drills with hard metal inserts. Always adapt the speed to the material to be worked and the diameter of the drill. For precision working with metal and wood, place the machine in a drill stand (accessory). HAMMER- DRILLING Wear protective glasses and hearing protection. Do not apply to much pressure. The performance is not increased in this manner. For hammer drilling, work only with protective glasses, hearing protection and the auxiliary handle 12. Check before putting into operation if the shift knob 10 is latched in the position.

Start drilling slowly on the tile. After the tile is drilled through, switch to impact drilling.

SCREWDRIVING Screwdriver bits can be inserted into the adapter 13 (accessory). Commercially available bits with a hexagonal dimension of 6.3 mm or 1/4" (DIN 3126, Form C) can be used. The screwdriver bits are held in the adapter with a spring ring. Therefore, use only bits with a notch. 10 Slip Clutch If the drilling tool become jammed or get caught, the slip clutch releases. Remove the load from the machine immediately by pulling back the drilling tool. Always hold the machine tightly with both hands and assume a secure stance. 11 Maintenance Measures Before any work on the machine itself, pull the mains plug! Always keep the ventilation slots clean. Wipe off the accessible plastic parts regularly with a cloth without cleaning agent. After heavy use over a long period, the machine should be taken to a Kress service location for an inspection and thorough cleaning. 12 Environmental Protection Kress takes back worn-out machines for the purpose of resource-saving recycling. As a result of their modular construction, Kress machines can be very easily dismantled into their reusable materials. Give your worn-out Kress machine to your dealer or send it directly to Kress. Subject to change without notice PH 500 - Buch Seite 10 Montag, 17. September 2001 11:54 11 Français

1. This electro-tool was manufactured with high precision and subjected to rigorous factory quality controls.

2. Therefore, we guarantee the cost-free correction of fabrication or

material defects that occur within 24 months of the date of purchase by the end user. We reserve the right to repair defective parts or replace them with new parts. Replaced parts become our property. 3. Improper use or handling as well as opening of the machine by unauthorised repair agencies voids the guarantee. Parts subject to wear are excluded from the guarantee.

4. The guarantee may only be enforced when defects are reported

without undue delay (including shipping damage). Guarantee implementation does not extend the guarantee period. 5. If the tool is defective, please complete the guarantee card and return the unit, guarantee card and a brief description of the problem to the responsible service location. Please enclose your sales receipt.

6. The guarantee obligations assumed by us shall exclude any further

claims on the part of the buyer, in particular the right to recission of a sale, reduction and the assertion of damage claims.

7. However, the buyer shall have the right to either a reduction (in the

purchase price) or the recission of the sale (cancellation of the sales agreement) should we fail to eliminate any defects within a reasonable period of time.

8. Damage claims in accordance with §§ 463, 480 Paragraph 2,635

BGB due to absence of guaranteed quality shall not be not excluded.

9. The provisions defined in Items 7 and 8 only apply to the Federal

Republic of Germany.
