USER MANUAL MBH 2002 KRESS

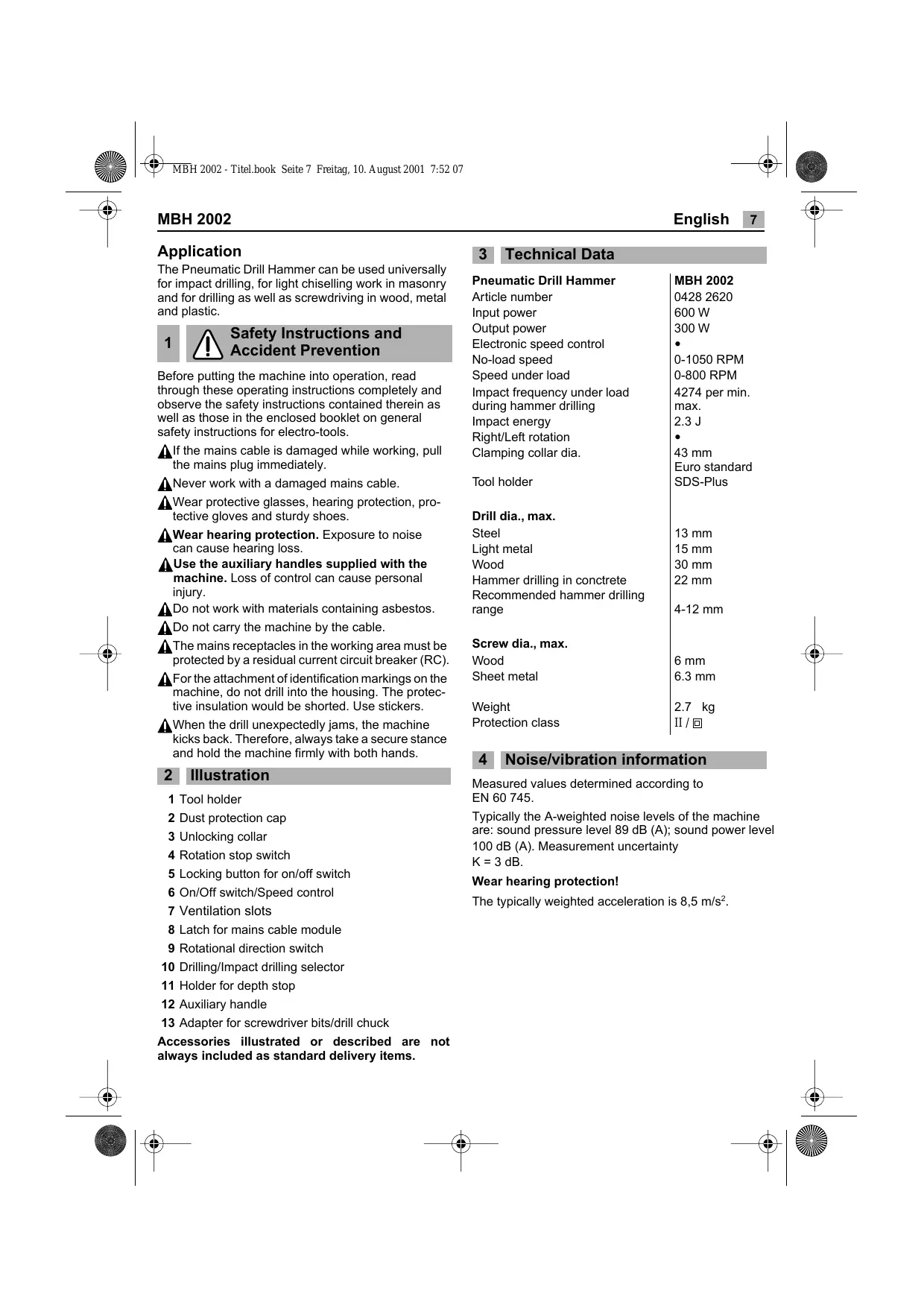

1/4"/6,3 mm (DIN 3126, Form C) SDS-plus 1/2" x 20 UNF max. Ø 13 mm max. Ø 13 mm SDS-plus Ø 5 - 20 mm 43 mm Euro-Norm SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm MBH 2002 Application The Pneumatic Drill Hammer can be used universally for impact drilling, for light chiselling work in masonry and for drilling as well as screwdriving in wood, metal and plastic.

Safety Instructions and Accident Prevention Before putting the machine into operation, read through these operating instructions completely and observe the safety instructions contained therein as well as those in the enclosed booklet on general safety instructions for electro-tools. If the mains cable is damaged while working, pull the mains plug immediately. Never work with a damaged mains cable. Wear protective glasses, hearing protection, protective gloves and sturdy shoes. Wear hearing protection. Exposure to noise can cause hearing loss. Use the auxiliary handles supplied with the machine. Loss of control can cause personal injury. Do not work with materials containing asbestos. English

Technical Data Pneumatic Drill Hammer Article number Input power Output power Electronic speed control No-load speed Speed under load Impact frequency under load during hammer drilling Impact energy Right/Left rotation Clamping collar dia. Tool holder Drill dia., max. Steel Light metal Wood Hammer drilling in conctrete Recommended hammer drilling range MBH 2002 600 W 300 W

43 mm Euro standard SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm Do not carry the machine by the cable. The mains receptacles in the working area must be protected by a residual current circuit breaker (RC). For the attachment of identification markings on the machine, do not drill into the housing. The protective insulation would be shorted. Use stickers. When the drill unexpectedly jams, the machine kicks back. Therefore, always take a secure stance and hold the machine firmly with both hands.

Illustration 1 Tool holder 2 Dust protection cap 3 Unlocking collar 4 Rotation stop switch 5 Locking button for on/off switch 6 On/Off switch/Speed control 7 Ventilation slots 8 Latch for mains cable module 9 Rotational direction switch 10 Drilling/Impact drilling selector 11 Holder for depth stop 12 Auxiliary handle 13 Adapter for screwdriver bits/drill chuck Accessories illustrated or described are not always included as standard delivery items. Weight Protection class

2.7 kg

Noise/vibration information Measured values determined according to EN 60 745. Typically the A-weighted noise levels of the machine are: sound pressure level 89 dB (A); sound power level 100 dB (A). Measurement uncertainty K = 3 dB. Wear hearing protection! The typically weighted acceleration is 8,5 m/s2. Mounting the Auxiliary Handle and the Mains Cable Module Before any work on the machine itself, pull the mains plug! Operate the machine only with the auxiliary handle12. Mount the handle onto the clamping collar of the drill, turning it to the working position and tightening it using the handle collar. Connect the mains cable module to the handle. The plug must latch. Use the mains cable module provided only for Kress Electro-Tools. Do not attempt to operate other machines with the module. Use only an original Kress mains cable module that is at least of heavy rubber sheathed cable (Code designation H07 RN-F).

Putting into Operation Check before putting into operation that the mains voltage agrees with the voltage specified on the nameplate of the machine.

SWITCHING ON/OFF

Press or release the on/off switch 6. The on/off switch can be locked on with the locking button 5. To release, briefly press and release the on/ off switch 6. STOP ROTATION Two settings can be selected with the stop-rotation switch 4. Drilling/hammer drilling, stirring = No rotation: Light chiseling jobs. Changing the setting is best carried out when the machine is stopped. The gear switches to the preselected setting after actuating the on/off switch 6, respectively when the machine starts running. SPEED CONTROL With the on/off switch 6, the speed can be continuously varied. With light pressure on the on/off switch 6, the machine begins to rotate slowly; with increased pressure, the speed increases.

ROTATIONAL DIRECTION SWITCHING

Operate the rotational direction switch 9 only when the machine is at a standstill! Take hold of the rotational direction switch 9 on both sides. Right rotation: Set the rotational direction switch 9 to “R”. Left rotation: Set the rotational direction switch 9 to “L”. Important! Press the rotational direction switch 9 in each case to the stop on the housing, i. e. until it can be felt to engage. If the rotational direction switch 9 is set between the positions “R” and “L”, the machine cannot be switched on.

Inserting/Removing Tools The tool holder 1 clamps drilling and chiselling tools without a tool key. INSERTING TOOLS Before any work on the machine itself, pull the mains plug! Clean and lightly grease the tool shaft.

DRILLING - IMPACT DRILLING

For drilling, place the selector 10 in the position. For impact drilling, set to The switch-over can best be performed at a standstill. Only after the on/off switch 6 is actuated and the machine starts does the gear box shift to the selected mode. Note: Left rotation when impact drilling damages the drill. Switch off the impact mechanism for diamond crown drilling or for mixing work. When hammer drilling, use exclusively drills with hard metal inserts and SDS-Plus shafts. The use of commercially available masonry drills with cylindrical shafts by means of the adapter 13 and the normal drill chuck in conjunction with the pneumatic impact mechanism is not possible. MBH 2002

Pull back the unlocking collar 3. Insert the tool while turning into the tool holder until it latches. Release the unlocking collar. Check whether the tool is firmly seated. Take care that the dust protection cap 2 is not damaged. Replace damaged dust protection caps! MBH 2002 REMOVING TOOLS Slide the unlocking collar 3 to the rear and pull out the tool.

ADJUSTING THE CHISEL

Set the rotation stop switch 4 to an intermediate position. The chisel can now be turned by hand to the required working position. Return the rotation stop switch 4 to the initial position . The chisel latches automatically as soon as it is radially loaded by the working or chiselling process.

Drill Chuck (Accessory) For drilling work in metal, wood and plastic with drills that have normal shafts, a drill chuck (13 mm max. chuck opening) is available. The drill chuck is mounted on the adapter (accessory) for screwdriver bits. All common drill chucks with 1/2" x 20 UNF internal threads (13 mm max. chuck opening) can be used.

MOUNTING THE CHUCK

Before any work on the machine itself, pull the mains plug! Clean the threads of the drill chuck (accessory) and the adapter 13 (accessory). Screw the drill chuck onto the adapter and lock the adapter in the same manner as a drill in the tool holder. To tighten the drill chuck, set the rotation stop switch 4 temporarily to position

Practical Tips Do not drill into hidden electrical lines or gas and water pipes. Check the area to be worked with a metal detector, for example, before starting. For metal, use only flawless, sharpened drills; for stone and concrete, only masonry drills with hard metal inserts. Always adapt the speed to the material to be worked and the diameter of the drill. For precision working with metal and wood, place the machine in a drill stand (accessory). English

IMPACT DRILLING - CHISELING

Wear protective glasses and hearing protection. Do not apply to much pressure. The performance is not increased in this manner. The most effective method for chiselling is to break out only small pieces of material. When chiselling, work only with protective glasses and the auxiliary handle 12. Check before starting to work if the rotation stop switch 4 is engaged in the position.

DRILLING IN TILES

Start drilling slowly on the tile. After the tile is drilled through, switch to impact drilling. SCREWDRIVING Screwdriver bits can be inserted into the adapter 13 (accessory). Commercially available bits with a hexagonal dimension of 6.3 mm or 1/4" (DIN 3126, Form C) can be used. The screwdriver bits are held in the adapter with a spring ring. Therefore, use only bits with a notch. 10 Maintenance Measures Before any work on the machine itself, pull the mains plug! Always keep the ventilation slots clean. Wipe off the accessible plastic parts regularly with a cloth without cleaning agent. After heavy use over a long period, the machine should be taken to a Kress service location for an inspection and thorough cleaning. 11 Environmental Protection Do not dispose of electric tools together with household waste material! Recycle raw materials instead of disposing as waste. The machine, accessories and packaging should be sorted for environmental friendly recycling. These instructions are printed on recycled paper manufactured without chlorine. The plastic components are labelled for categorised recycling. Subject to change without notice 43 mm Euro-norm SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm 43 mm Norma Euro SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm MBH 2002 600 vatios 300 vatios

43 mm Norma Euro SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm 43 mm Euro-Norm SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm 43 mm Euro-Norm SDS-Plus 43 mm Euro-norm SDS-Plus 13 mm 15 mm 30 mm 22 mm 4-12 mm 43 mm Euro-Norm SDS-Plus

1. This electro-tool was manufactured with high precision and subjected to rigorous factory quality controls.

2. Therefore, we guarantee the cost-free correction of fabrication or

material defects that occur within 24 months of the date of purchase by the end user. We reserve the right to repair defective parts or replace them with new parts. Replaced parts become our property. 3. Improper use or handling as well as opening of the machine by unauthorised repair agencies voids the guarantee. Parts subject to wear are excluded from the guarantee.

4. The guarantee may only be enforced when defects are reported

without undue delay (including shipping damage). Guarantee implementation does not extend the guarantee period. 5. If the tool is defective, please complete the guarantee card and return the unit, guarantee card and a brief description of the problem to the responsible service location. Please enclose your sales receipt.

6. The guarantee obligations assumed by us shall exclude any further

claims on the part of the buyer, in particular the right to recission of a sale, reduction and the assertion of damage claims.

7. However, the buyer shall have the right to either a reduction (in the

purchase price) or the recission of the sale (cancellation of the sales agreement) should we fail to eliminate any defects within a reasonable period of time.

8. Damage claims in accordance with §§ 463, 480 Paragraph 2,635

BGB due to absence of guaranteed quality shall not be not excluded.

9. The provisions defined in Items 7 and 8 only apply to the Federal

Republic of Germany.
