Coolingbeauty 4000 Mirror - Washer dryer CECOTEC - Free user manual and instructions

Product type	Washer-dryer
Brand and model	Cecotec Coolingbeauty 4000 Mirror
Washing capacity	9 kg
Drying capacity	6 kg
Maximum spin speed	1400 rpm
Energy class	Class A
Number of programs	16 programs
Display	LED screen
Main functions	Steam option, delayed start (24 h), stainless steel drum, inverter motor
Maintenance and cleaning	Drum cleaning, lint filter and detergent drawer
Safety	Child lock, water leak protection, automatic shut-off
Spare parts and repairability	Availability of spare parts for 10 years
Dimensions (W x D x H)	60 x 60 x 85 cm
Net weight	70 kg
Power supply	220 - 240 V, 50 Hz
Rated power	2200 W
Noise level (washing/spinning)	56 / 76 dB
Cable length	1.5 m
General information	Freestanding appliance, can be built-in

Frequently Asked Questions - Coolingbeauty 4000 Mirror CECOTEC

What is the washing capacity of the Cecotec Coolingbeauty 4000 Mirror?

This washer-dryer has a washing capacity of 9 kg and a drying capacity of 6 kg, ideal for a large family.

Can I wash and dry continuously?

Yes, it has an automatic wash + dry program to save time.

How do I clean the lint filter?

The filter is located at the bottom of the machine or on the drum depending on the model. Remove it, rinse it under water and put it back. Clean it after each drying cycle.

What should I do if the machine does not turn on?

Check the plug, the fuse and that the door is properly closed. If the indicator light remains off, contact technical support.

Is there a delayed start option?

Yes, you can schedule the start up to 24 hours in advance.

What is the noise level?

The noise level is approximately 56 dB during washing and 76 dB during spinning.

Is the door reversible?

On most models, the door can be reversed. See the manual for the procedure.

What programs are available?

There are 16 programs such as Cotton, Synthetic, Sport, Delicate, Wool, Rinse, Spin, etc.

What should I do if the appliance vibrates too much?

Check that the feet are adjusted and the appliance is level. Remove the transport bolts if not already done.

Can I use vinegar as a fabric softener?

Yes, but be careful not to exceed the dose and clean the drawer regularly to avoid wear.

USER MANUAL Coolingbeauty 4000 Mirror CECOTEC

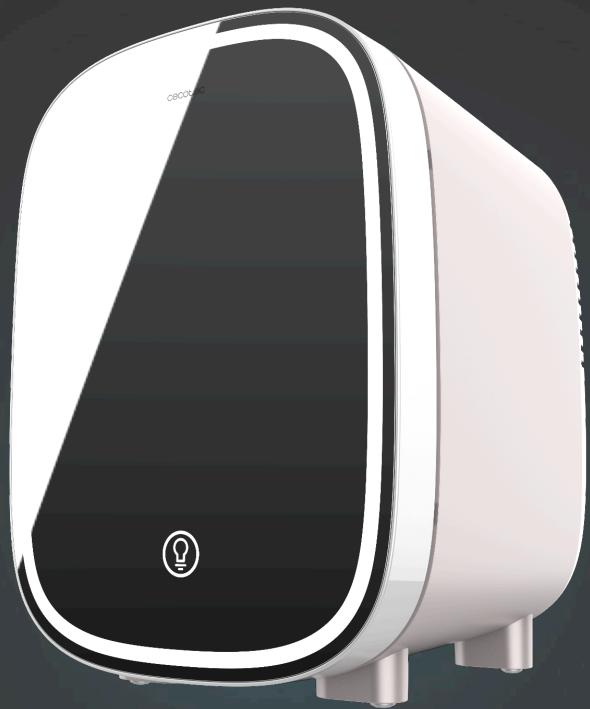

COOLINGBEAUTY 4000 MIRROR ROSE

Índice - Index

Índice - Index....2

SAFETY INSTRUCTIONS....5

ESPAÑOL....51

ENGLISH....56

FRANÇAIS....61

DEUTSCH....66

ITALIANO....71

PORTUGUÊS....76

NEDERLANDS....81

POLSKI....86

ČEŠTINA....91

MAGYAR....96

ΕΛΛΗΝΙΚΑ......101

TÜRKÇE....106

العربية 111

CATALÀ....115

FIGURES....120

NOTA

EU01_122500 CoolingBeauty 4000 Mirror Rose

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Children from 3 to 8 years old are allowed to load and unload refrigeration appliances.
• To avoid food contamination, please follow the below instructions:
• Prolonged opening of the door can lead to a significant increase in the temperature of the appliance compartment.
• Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.
• Store raw meat and fish in appropriate containers so as to prevent them from touching or dripping on each

other.

• If the refrigerator appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
• WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.
• WARNING: do not place multi-socket adaptors or portable power supplies on the rear of the appliance.
• WARNING: keep the appliance ventilation grilles or the cabinet for built-in installation free from any obstruction.
• WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.
• WARNING: do not use electrical devices inside the food-preservation compartment unless they're of a type recommended by the manufacturer.
• WARNING: do not damage the refrigeration circuit.
• If the power cord is damaged, it must be replaced with a special cord or assembly to be supplied by the manufacturer or its after-sales service.
• The equipment should only be used with the power supply unit supplied with the appliance.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room

SAFETY INSTRUCTIONS

temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

https://cecotec.es/es/information/declaration-of-conformity

1. Parts and components

Fig. 1

1. Carrying handle
2. Cool/Heat switch
3. Green indicator light (Cooling)
4. Red indicator light (Heating)
5. DC power socket
6. AC power socket
7. Shelf
8. Door basket
9. Water tray
10. Power cables (DC and AC)
11. Light button

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

Product
- Wall adapter
- Car adapter
- Instruction manual

• Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.
• This mini fridge is ideal to keep beauty products like perfumes, balms, lipsticks, eye creams, eyeliners, jade roller, hydrating creams, facial cleansers, lotions, creams, nail varnish, organic and preservative-free skin care products, serums, face masks, facial sprays and mists, sunscreens, toners, etc.

3. Operation

1. Make sure the Cool/Heat switch is in the OFF position.
2. Insert and connect the corresponding power cable to the DC power socket or AC power socket on the appliance and then to the power source.
3. Cool mode: set the Cool/Heat switch to the COOLING position. The green indicator light (cooling) will illuminate to indicate that the appliance is cooling.
4. Heat mode: set the Cool/Heat switch to the HEATING position. The red indicator light (heating) will illuminate to indicate that the appliance is operating in heating mode.

Use with car power supply (12 V--)

1. The vehicle's engine is required to be running. The DC power cable is the cable with a plug for the cigarette lighter socket.
2. Connect the cable to the DC power socket on the appliance and to the vehicle's cigarette lighter socket. Fig. 2

Use with domestic power supply (US/JP: 100-120 V\~, EU/UK: 220-240 V\~)"

1. Connect the AC power cable to the AC power socket on the product.
2. Connect the plug to a power socket. Fig. 3

Light setting

Repeatedly press the light button on the outside of the door to adjust it. After the 3 available settings, press the light button again to turn it off.

4. Cleaning and maintenance

● Make sure to unplug the appliance after use and before storing it.
● Store the mini fridge in a cool, dry place. Always make sure it is completely dry

ENGLISH

before storing it.

● Always let the mini fridge dry completely with the door open before storing it.
Keep the door open while the appliance reaches room temperature to avoid moisture and mould formation inside the appliance.
- Clean the mini fridge with a soft, damp cloth. The removable shelf can be cleaned with water, neutral soap, and a soft sponge.
- It is common for condensation to form inside the mini fridge: be sure to clean it frequently to prevent bad odours and ensure proper operation.

5. Troubleshooting

Water droplets inside:

Cause: condensation of moisture from the cooling/heating unit. This is normal in thermoelectric units.

Solution: dry the interior with a soft cloth twice a week.

The refrigerator is not cold enough:

Explanation: The internal temperature depends on the ambient temperature surrounding the equipment.

Expected performance: cools approximately 16° C to 20° C below outside temperature, with the lowest temperature being around 5° C.

The refrigerator is not warm enough:

Explanation: The internal temperature depends on the ambient temperature surrounding the equipment.

Expected performance: heats approximately between 50 and 65°C.

Make sure that the voltage of the vehicle or house corresponds to the voltage indicated in the technical specifications.

6. Disposal of old electrical and electronic appliances

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities. Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

7. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. Simplified EU Declaration of Conformity

Cecotec Innovaciones hereby declares that this appliance complies with the

essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website:

https://cecotec.es/es/information/declaration-of-conformity

9. Technical specifications

Product: CoolingBeauty 4000 Mirror Rose

Product reference: EU01_122500

Voltage: 220 - 240 V \~

Frequency: 50/60 Hz

Energy consumption (cold): 43 W

Energy consumption (hot): 36 W

Voltage: 12 V =

Energy consumption (cold): 48 W

Energy consumption (hot): 41 W

Climate class SN/N

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

10. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's

Official Technical Support Service at [phone].

FRANÇAIS

https://storececotec.it/it/information/declaration-of-conformity

https://cecotec.es/es/information/declaration-of-conformity

9. Technische specificaties

Product: CoolingBeauty 4000 Mirror Rose Productreferentie: EU01_122500

Spanning: 220-240 V \~

Frequentie: 50/60 Hz

https://cecotec.es/es/information/declaration-of-conformity

9. Műszaki adatok

Termék: CoolingBeauty 4000 Mirror Rose

https://cecotec.es/es/information/declaration-of-conformity

9

8

10

Fig 2:

Fig 3:

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
