Airglisse 14in1 Platinum - Washer dryer CECOTEC - Free user manual and instructions

Product type	Hair dryer (styling)
Brand	Cecotec
Model	Airglisse 14in1 Platinum
Intended use	Household use only
Number of accessories	14
Box contents	Product, 14 accessories, leather case, instruction manual
Circular touch screen	Shows modes and accessories
Light ring	Operating indicator around the screen
Heating technology	PTC heating
Temperature setting	4 levels: ambient air (blue), yellow, orange, red
Speed setting	3 speeds: low, medium, high
Cold air function	Activates maximum speed with ambient temperature air
Settings memory	Resumes last used accessory at startup
Settings customization	Saves settings per accessory (long press on the screen)
Accessories included	Lisse&Volume, FrizzFree, AirLisse, CoandaTech 34 L/R, BlowOut, Precise BlowOut, MaxiCurls, FastDry, DrySleek, CoandaTech 37 L/R, RotaryStyler 45, RotaryStyler 38
Air grille maintenance	Regular cleaning recommended (monthly)
Cleaning accessories	Dry or slightly damp cloth; heating accessories exclusively dry
Safety	Do not use near water; unplug after use; do not cover air inlets
Power supply	Mains (check voltage compatibility)
Power cable	Replacement only by Cecotec official service
Recycling	Compliant with WEEE regulations

Frequently Asked Questions - Airglisse 14in1 Platinum CECOTEC

How to turn the Cecotec Airglisse 14in1 Platinum on and off?

To turn on the device, slide the on/off switch to the on position. The white light ring turns on and the startup animation starts. To turn off, slide the switch to the off position.

How to select an accessory on the screen?

After powering on, the screen displays the last used accessory. Gently rotate the screen ring to scroll through the accessory icons. Briefly press the screen to select and start the accessory.

How to adjust the temperature?

Press the temperature button to cycle through the levels: Ambient temperature (blue) → yellow → orange → red. The device can be adjusted to your styling needs.

How to adjust the air speed?

Press the speed button to cycle through the 3 levels: low, medium, high. The selected level is indicated by a white fan icon.

What is the cold air function?

The cold air button activates operation at maximum speed with ambient temperature air, ideal for setting hairstyles. Press again to return to the previous mode.

How do I save my preferred settings for an accessory?

Select the accessory, set the desired speed and temperature, then press the screen for 3 seconds. The outer ring blinks 3 times to confirm saving. The settings will be applied automatically the next time you use that accessory.

How to clean the Cecotec Airglisse?

Unplug the device and let it cool down. Clean the surface with a slightly damp soft cloth. Regularly clean the air inlet grille (monthly recommendation) to prevent overheating.

Can I use the device in the bathroom?

No, this device must not be used near a bathtub, shower, washbasin, or any container holding water, even when turned off. Installation of a residual current device (RCD) is recommended for use in a bathroom.

What accessories are included?

The device comes with 14 accessories: Lisse&Volume, FrizzFree, AirLisse, CoandaTech 34 L/R, BlowOut, Precise BlowOut, MaxiCurls, FastDry, DrySleek, CoandaTech 37 L/R, RotaryStyler 45 and RotaryStyler 38, plus a leather case.

Can children use this device?

This device can be used by children aged 8 and above under supervision. Children must not play with the device and must not perform cleaning and maintenance.

USER MANUAL Airglisse 14in1 Platinum CECOTEC

1. Parts and components 48
2. Before use 48
3. Operation 49
4. Cleaning and maintenance 51
5. Recycling of electrical and electronic equipment 51
6. Copyright 51
7. Simplified EU Declaration of Conformity 52

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• Ensure that the mains voltage matches the voltage specified on the appliance rating label and that the plug is earthed.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• If the appliance is to be used in a bathroom, it must be unplugged from the wall socket after use, as the proximity to water could be a risk even with the appliance switched off.
• As additional protection, it is recommended that a Residual Current Device (RCD) having a rated operating fault current not exceeding 30 mA be installed in the electrical circuit supplying the bathroom. We recommend you ask a qualified installer for advice.
• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.

- This icon means that the appliance must not be used in a bathtub, shower, or any other water-filled tank.

• WARNING: do not use this appliance near bathtubs, showers, sinks or other containers filled with water.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• This symbol means: "Caution, hot surface".
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service to avoid any danger.
• Ensure that the air inlets and outlets are not blocked.
• Turn off and unplug the appliance from the power supply immediately after use.

• Immediately unplug the appliance from the socket in these cases:

• Abnormal operation.

• Cleaning.

• After use.

• Do not insert metal objects through the air inlets to avoid electric shocks.

• Do not wind the power cord around the appliance.
• Keep your face, neck, and scalp away from the appliance.
• Do not leave the appliance on any surface while in operation.
• Do not use the appliance to comb wigs, natural hair extensions, fake hair, or animal hair.
• The air inlet ensures good ventilation of the appliance. Do not cover or obstruct it, as this may cause overheating.
• Do not insert objects in the air inlet.
• Burn hazard. Keep appliance out of reach from young children, particularly during use and cool down
• When the appliance is connected to the power supply, never leave it unattended

INSTRUCTIONS DE SÉCURITÉ

1. Air outlet
2. Display
3. PTC indicator
4. Cool shot button
5. Temperature button
6. Speed icon
7. Power switch
8. Air inlet grille
9. 360° cord

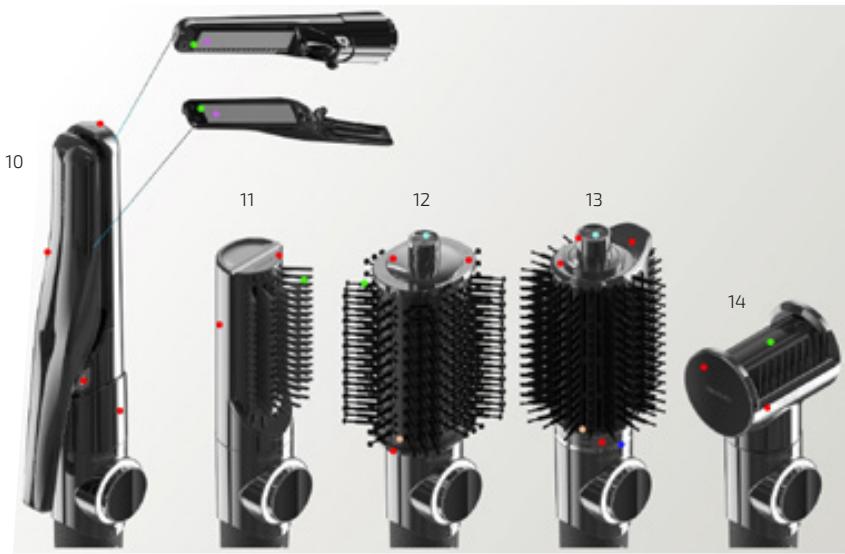

10. AirLisse head
11. Lisse&Volume head
12. BlowOut head
13. Precise BlowOut head
14. FrizzFree head

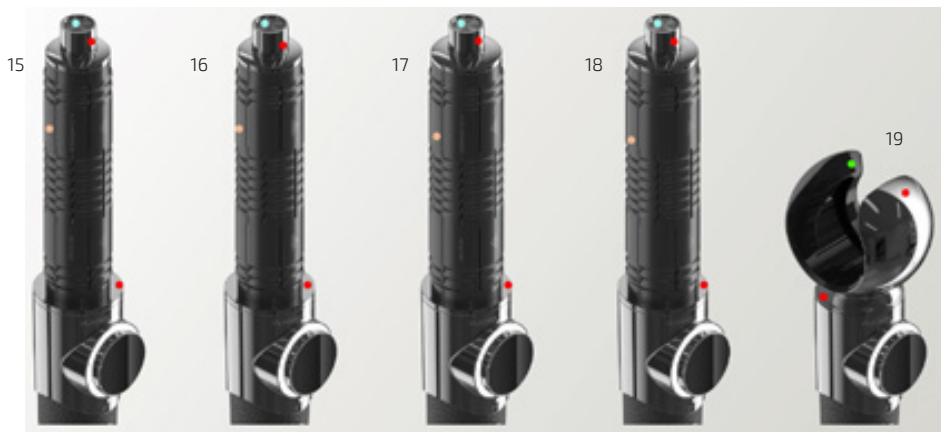

15. CoandaTech 34L head
16. CoandaTech 34R head
17. CoandaTech 37L head
18. CoandaTech 37R head
19. DrySleek head
20. RotaryStyler 45 head
21. RotaryStyler 38 head
22. MaxiCurls head
23. FastDry head

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them

are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• 14 accessories
• Leather case
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

On/Off

• Switch on: slide the on/off switch to the on position. The white light ring around the display is illuminated and the start-up animation is played. After the animation, the last selected accessory is displayed.
• Switch off: slide the on/off switch to the off position.

Display

1. When switched on, the light ring (white) is illuminated and the start-up animation is displayed. No operations can be performed during the start-up animation.
2. On first use, a preset accessory is displayed.
3. Gently turn the display ring to scroll through the accessory icons. Select the desired accessory and briefly press the display to start. If the selected accessory is equipped with a PTC heater, the PTC is activated and the PTC indicator lights up; otherwise, it remains off.
4. To adjust temperature/speed/cool airflow with the current accessory, use the three buttons on the handle. To return to the main menu, briefly press the display (the device pauses).

Cool air button

• In any mode, press this button to activate the cool air mode. The device operates at maximum airflow speed with airflow at room temperature.
• Press the cool air button again to exit and return to the previous mode. Pressing any other button also cancels the cool air mode.

Changing the temperature

Lightly press the temperature button to switch between the available options: Room temperature (blue) → (yellow) → (orange) → (red) → cycle.

Airflow speed change

Lightly press the speed button to switch between the available options: Low → Medium → High → cycle (indicator with white fan icon on).

Changing the accessory

Press the display to return to the accessory selector menu, install the desired accessory, turn the display ring to select it and press briefly to confirm. If you wish to make any speed/temperature adjustments, these are made with the buttons.

To change accessory, press the display briefly to pause, change the accessory, turn the ring to select the accessory on the display and press briefly again to resume.

IMPORTANT: The PTC heads feature an alignment mark with the handle, for proper operation. Ensure the marks are correctly aligned.

Accessory memory

After start-up, the last accessory used is displayed.

Default settings

Set the airflow speed/temperature for the selected accessory and press and hold the display for 3 seconds (the outer ring flashes 3 times) to save. The next time you select that accessory, the saved settings will be automatically applied.

Default settings

Accessory	RPM	Temperature
Lisse&Volume head	High	High
FrizzFree head	High temperature	Medium temperature
AirLisse head	High	High
CoandaTech 34 L / R head	High	High
BlowOut head	High	High
Precise BlowOut head	High	High
MaxiCurls head	Low	Medium
FastDry head	High	High
DrySleek head	High	High
CoandaTech 37 L / R head	High	High
RotaryStyler 45 head	High	High
RotaryStyler 38 head	High	High

4. CLEANING AND MAINTENANCE

Disconnect the device from the power supply and allow it to cool down completely. Clean the body with a soft, slightly damp cloth.

Clean dust from the rear air inlet grille periodically (monthly recommended).

Do not wash or immerse the accessories. Carry out dry cleaning or with a slightly dampened cloth. Clean heated accessories exclusively when dry.

5. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and

electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

6. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

7. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.

es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1:

1. Sortie d'air
2. Écran
3. Voyant PTC
4. Bouton d'air froid
5. Bouton de température
6. Bouton de vitesse
7. Interrupteur marche/arrêt
8. Grille
9. Câble 360°
10. Tête AirLisse
11. Tête Lisse&Volume
12. Tête BlowOut
13. Tête Precise BlowOut
14. Tête FrizzFree
15. Tête CoandaTech 34L
16. Tête CoandaTech 34R
17. Tête CoandaTech 37L
18. Tête CoandaTech 37R
19. Tête DrySleek
20. Tête RotaryStyler 45
21. Tête RotaryStyler 38
22. Tête MaxiCurls
23. Tête FastDry

Note :

it/information/declaration-of-conformity

1. PEÇAS E COMPONENTES

Figura 1:

https://cecotec.pt/pt/information/declaration-of-conformity

1. ONDERDELEN EN COMPONENTEN

Fig. 1

https://cecotec.es/es/information/declaration-of-conformity

1. CZĘŚCI I KOMPONENTY

Rysunek 1:

https://cecotec.es/es/information/declaration-of-conformity

1. PECES I COMPONENTS

Figura 1:

1. Sortida d'aire
2. Pantalla
3. Indicador PTC
4. Botó d'aire fred
5. Botó de temperatura
6. Botó de velocitat
7. Interruptor d'encesa/apagada
8. Reixeta d entrada d aire
9. Cable 360°
10. Capçal AirLisse
11. Capçal Lisse&volume
12. Capçal Blowout
13. Capçal Precise Blowout
14. Capçal FrizzFree
15. Capçal CoandaTech 34L
16. Capçal CoandaTech 34R
17. Capçal CoandaTech 37L
18. Capçal CoandaTech 37R
19. Capçal DrySleek
20. Capçal RotaryStyler 45
21. Capçal RotaryStyler 38
22. Capçal MaxiCurls
23. Capçal FastDry

Nota:

information/declaration-of-conformity

declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

www.cecotec.es
