Conga Carpetclean 20000 Pro Ultra - Vacuum Cleaner CECOTEC - Free user manual and instructions

Product type	Vacuum cleaner with carpet cleaning function
Brand	Cecotec
Model	Conga Carpetclean 20000 Pro Ultra
Use	Household use only
Power supply	Mains with earth connection
Rated voltage	220-240 V ~ 50 Hz
Suction power	20,000 Pa
Cable length	5 m
Hose length	1.5 m
Weight	4.5 kg
Water tank capacity	1 L
Dirty water tank capacity	0.8 L
Functions	Water injection, extraction, suction, carpet cleaning
Spray nozzle	Yes, with anti-clogging protection
Filtration	Washable and reusable filter
Noise level	80 dB
Safety	Child lock, disconnect before maintenance
Maintenance	Clean the tanks and nozzle regularly
Spare parts	Available from the official Technical Support Service
Warranty	2 years

Frequently Asked Questions - Conga Carpetclean 20000 Pro Ultra CECOTEC

How to install the Conga Carpetclean 20000 Pro Ultra?

Installation is simple: remove the device from its packaging, check that it is not damaged, remove the packaging material and place it on a flat surface. Connect the plug to a power outlet with earth grounding and make sure the voltage matches.

Can I use this vacuum cleaner for professional use?

No, this appliance is intended for household use only. It must not be used in bars, restaurants, farms, hotels, motels, or offices.

How to clean and maintain the appliance?

Before any cleaning, unplug the appliance. Clean the tanks and spray nozzle regularly with a damp cloth. Never immerse the appliance in water.

What to do if the spray nozzle is clogged?

If the nozzle is clogged, stop using the appliance immediately. Unplug it and inspect the nozzle to remove any obstruction. If the problem persists, contact the official Technical Support Service.

Is the appliance safe for children?

This appliance can be used by children aged 8 years and older if they are supervised and have understood the risks. Children must not play with the appliance or perform its cleaning or maintenance.

What type of outlet is needed?

The appliance must be plugged into an outlet with earth connection. If your installation does not have a grounding, have it installed by an authorized electrician.

What to do in case of a damaged cable?

If the power cable is damaged, it must be replaced by the manufacturer, After-Sales Service, or qualified personnel to avoid any danger. Do not use the appliance anymore.

How to recycle the appliance at end of life?

This appliance must be recycled in accordance with the directive on electrical and electronic equipment. Do not dispose of it with household waste. Contact your municipality for collection points.

Is the warranty valid if the appliance is repaired by a third party?

In case of malfunction, repair must be carried out by the official Technical Support Service of Cecotec. Any repair by an unauthorized third party voids the warranty.

Can cleaning products other than those recommended be used?

It is recommended to use specific products for carpet cleaners. The use of other products could damage the appliance or the spray nozzle. Check the manufacturer's instructions.

USER MANUAL Conga Carpetclean 20000 Pro Ultra CECOTEC

Safety instructions 7

1. Parts and components 51

2. Before use 51

3. Installation 52

4. Operation 52

5. Cleaning and maintenance 53

6. Troubleshooting 54

7. Recycling of electrical and electronic equipment 55

8. Copyright 55

9. Simplified EU Declaration of Conformity 55

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and

above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.
• The mains plug of the power cable must be removed from the base before cleaning or maintenance operations.
• WARNING: check that the upholstery cleaner and package are not damaged. Never use the appliance if it is damaged. Should it be the case, immediately contact the official Cecotec Technical Support Service.
• Packaging material may be dangerous to children. Remove it and place it out of their reach.
• The upholstery cleaner plug must be connected to a grounded socket. If you do not have an earthed socket, an earthed installation must be carried out by a licensed electrician. In case of ungrounded use, Cecotec shall not be liable for any malfunction or damage that this may cause.
• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.

• Always use the plug provided with the appliance. Do not modify the plug provided with the appliance if it does not match the power socket.

• Do not operate the product if its cable, plug, or structure show visible damage, do not operate properly, or produce unusual sounds or odours.

• In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void.
• Stop using the appliance if the spray nozzle is blocked.
• Do not plug in or unplug the appliance with wet hands.
• To unplug the device, pull from the socket, never from the cord.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• Disconnect the appliance from the electric circuit when it is not used.
• Disconnect the device from the power socket before carrying out any maintenance, cleaning, or transport.
• Do not use the device with pesticides, dyes, lubricants, or other liquids.
• Do not use the appliance to vacuum lit matches, cigarette butts, petrol gas, heat sources or hot ashes.
• Use water below 40° C to remove dirt from the appliance.
• Do not use the appliance without installing the waste-water tank.
• This device is designed for personal use only and is not suitable for commercial use.
• Do not place the device near sources of heat, flammable substances, etc.

• If any strange object blocks any of the parts or you vacuum any strange object, stop using the device, empty it, and clean it to be able to use it again.

• When the waste-water tank exceeds the maximum water level, stop operation immediately and empty the waste-water tank before using the appliance again.

• If you want to use detergent, choose a low-foaming one and dilute it in water before spraying it on the object to be cleaned.
• When using detergent, make sure it does not leave any stains.
• Using the appliance on a shag carpet may block the air outlet, causing the vacuum cleaner to stop working.
• If there is too much foam or waste water in the lower part of the appliance during operation, stop using it immediately and clean the tank before using it again.
• Do not use a foaming detergent.

INSTRUCTIONS DE SÉCURITÉ

1. Hose handle
2. Plastic tube
3. Handle
4. Power switch
5. Water tube connector
6. Inlet
7. Upholstery brush
8. Hose
9. Spray button
10. Water jet switch
11. Clean water tank
12. Hook
13. Dust tank
14. Wheeled base

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Upholstery cleaner
• Wide nozzle
• Narrow nozzle
• Vacuum base
• Hose

ENGLISH

• Tubes x2
• Window accessory
• Crevice tool
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Main unit accessories installation

Fig. 2

1. Remove all accessories from the tank.
2. Insert the four universal wheels into the base.
3. Place the lid on the barrel body and secure it with the buckle.
4. Place the clean water tank on the base; ensure the tank's water outlet is also inserted into the main motor.

Note: Use the absorbent sponge for water extraction; use the HEPA filter for dry dust.

Hose installation and connector tube assembly

Fig. 3

1. Insert the hose into the inlet nozzle in the direction of the arrow and rotate 90 degrees.
2. Insert the tube into the water outlet until you hear a "click" sound.
3. Connect both rigid tubes to the hose respectively.
4. Select the appropriate brush head to insert into the rigid tube.

4. OPERATION

Water spraying

1. Fill the water tank and reinsert it. Fig. 4
2. Open the water release valve. Fig. 5.
3. Position the brush head over the stain, press the spray button to dispense water. Fig. 6.
   Note: When cleaning stubborn stains, you may add upholstery cleaner to the cleaning tank.

To use the spray button:

• Ensure the water tank is full and properly positioned.
• Switch on the appliance and place it on the surface to be cleaned.
• Press the spray button to activate the cleaning spray.
• Hold the button while moving the appliance over the area to be treated to apply the cleaning solution uniformly.

Precautions:

• Do not hold the spray button when not over a surface requiring cleaning to avoid wasting solution.
• Ensure the treated area is suitable for water and cleaning products.

Water absorption

Fig. 7

1. Press the power button to start the appliance.
2. Align the brush head with the stain so that waste water can be vacuumed into the tank.

Dust absorption

1. To use the dust absorption function, simply switch on the main power; the water spray button need not be activated.
2. Insert the floor brush head in the direction of the arrow into the carpet spray brush. Fig. 8

Using other brushes

Fig. 9

1. Press the button on the brush and remove it.
2. Insert the alternative brush.
   Note: Different brush heads are suitable for various uses.

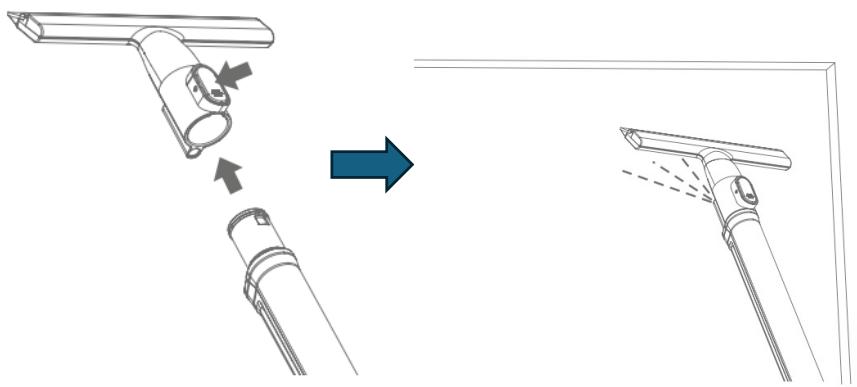

Using the window cleaner

Fig. 10

1. Press the button on the brush and remove it.
2. Insert the window cleaner.
3. Connect the power cable, press the power on/off button, then press the spray button.
4. Press the window cleaner against the window to absorb water.

5. CLEANING AND MAINTENANCE

Caution! Never clean the appliance or its parts while plugged into the mains.

• To extend your upholstery cleaner's lifespan and prevent blockages or issues, perform proper maintenance.
• Always clean when the appliance has been switched off for a short period.
• This appliance can be cleaned with a soft, damp cloth to keep the exterior free from dirt and dust.
• Use a dry cloth to clean the power cable.
• To prevent unpleasant odours, clean both tanks and ensure they are completely dry before storage and after each use.

ENGLISH

• This appliance is primarily designed for wet use; do not use it to collect large amounts of dust.
• Dry the dirty water tank, clean water tank and hose interior if temperatures are extremely low to prevent freezing.
• Remove any foreign objects from the hose if blocked before reuse.

Cleaning the dirty water tank

Fig. 11

Remove the used water tank from the main body and empty it.

Cleaning the HEPA filter

Fig. 12

1. Press the water outlet switch and remove the tube.
2. Open the plate buckle and remove the lid.
3. Remove the HEPA filter, wash with water and dry.

Notes:

• Do not use a washing machine to clean the dust tank filter.
• Do not use a hair dryer for drying. Air dry only.
• It is recommended to replace the dust tank filter every three months (depending on usage) to ensure optimal appliance performance.

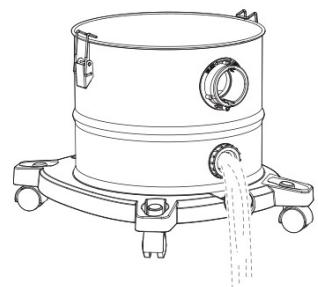

Cleaning the tank

1. Open the water drainage hole, completely empty remaining water from the tank, then remove debris. Fig. 13
2. Clean the appliance with a dry cloth or damp paper towel.

6. TROUBLESHOOTING

Problem	Possible cause	Possible solution
It does not work after switching on.	The plug is not properly connected.The cable is damaged.	Switch it off, connect the plug properly or contact Cecotec's Official Technical Support Service.
No or little water comes out after pressing the spray button.	The spray nozzle is blocked.The handle or pump is damaged.	Remove the brush, wash the spray nozzle or contact Cecotec's Official Technical Support Service.

No suction or weak suction.

● The appliance is not switched on.● The dirty water tank is full.● The hose is not in good condition.● The inlet sponge is blocked.

● Switch on the appliance.● Clean the dirty water tank for reuse.● Check the hose to make sure it is in good condition.● Clean or replace the sponge.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the

following website: https://cecotec.es/es/information/declaration-of-conformity
