USER MANUAL JX10 CARA JABRA

© 2007 GN A/S. All rights reserved. Jabra® is a registered trademark of GN A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN A/S is under license. (Design and specifications subject to change without notice).

Bluetooth

www.jabra.com

Made in China

Jabra

JX10 cara

Design by Jacob Jensen

Jabra

Bluetooth® headset

User manual

Jabra

TOLL FREE Customer Contact Details:

Phone Numbers:

Belgique/Belgie 0080072252272

Danmark 70252272

Design by Jacob Jensen

English	GB
François	F
Deutsch	DE
Italiano	IT
Nederlands	NL
Espanol	ES
Dansk	DK
Suomi	SU
Svenska	SE
Norsk	NO
Portugués	PT
Ελληνικά	GR

English

Thank you 4

About your Jabra JX10 cara. 5

What your new headset can do. 6

Getting started 6

Charge your headset 7

Turning your headset on and off. 7

Pair it with your phone 7

Wear it how you like it. 7

How to 8

What the lights mean 9

Using Jabra JX10 cara with 2 mobiles phones 9

Using a Bluetooth Hub. 9

Troubleshooting & FAQ 10

Need more help? 10

Taking care of your headset 10

Service and Warranty information 11

Certification and safety approvals 12

Glossary 12

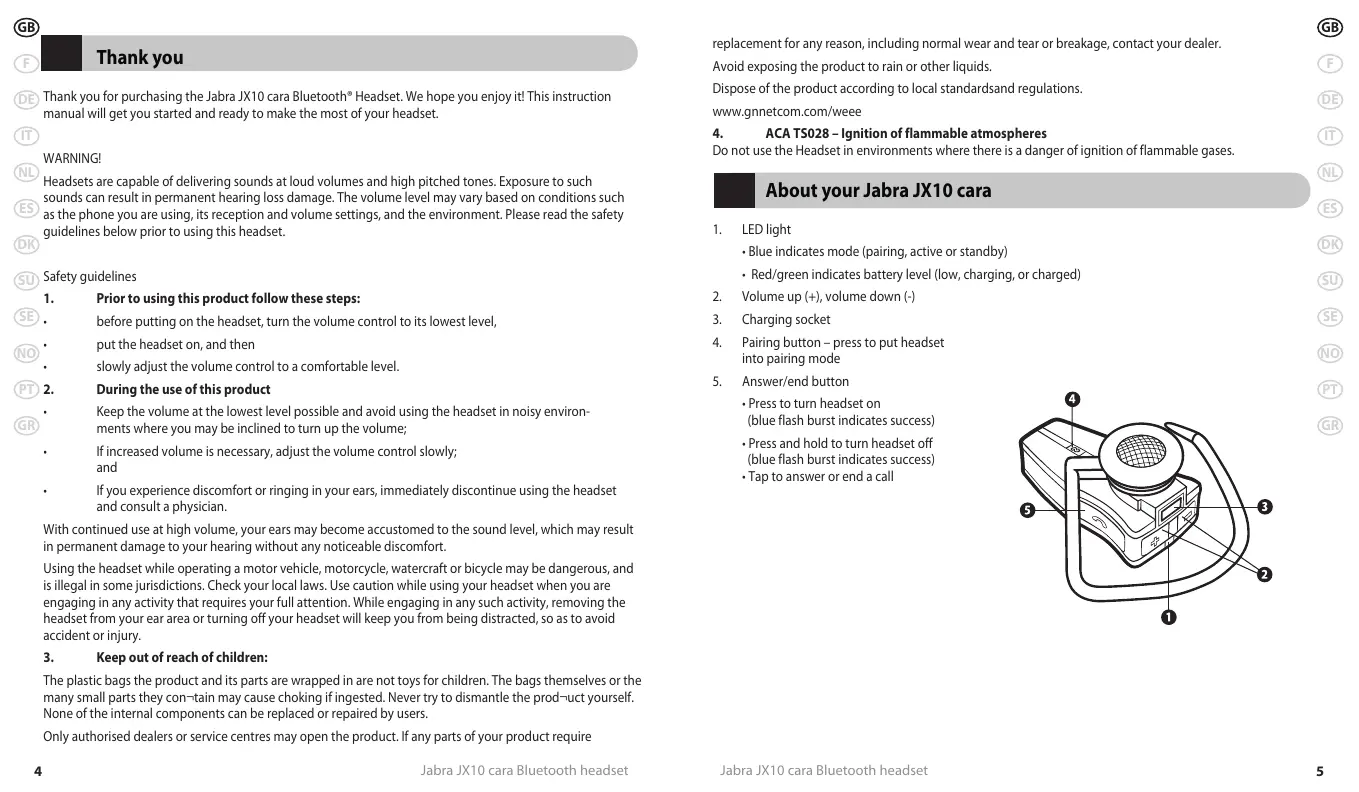

Thank you

Thank you for purchasing the Jabra JX10 cara Bluetooth® Headset. We hope you enjoy it! This instruction manual will get you started and ready to make the most of your headset.

WARNING!

Headsets are capable of delivering sounds at loud volumes and high pitched tones. Exposure to such sounds can result in permanent hearing loss damage. The volume level may vary based on conditions such as the phone you are using, its reception and volume settings, and the environment. Please read the safety guidelines below prior to using this headset.

Safety guidelines

1. Prior to using this product follow these steps:

before putting on the headset, turn the volume control to its lowest level,
put the headset on, and then
slowly adjust the volume control to a comfortable level.

1. During the use of this product

2. Keep the volume at the lowest level possible and avoid using the headset in noisy environments where you may be inclined to turn up the volume;
   If increased volume is necessary, adjust the volume control slowly; and
   If you experience discomfort or ringing in your ears, immediately discontinue using the headset and consult a physician.

With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing without any noticeable discomfort.

Using the headset while operating a motor vehicle, motorcycle, watercraft or bicycle may be dangerous, and is illegal in some jurisdictions. Check your local laws. Use caution while using your headset when you are engaging in any activity that requires your full attention. While engaging in any such activity, removing the headset from your ear area or turning off your headset will keep you from being distracted, so as to avoid accident or injury.

1. Keep out of reach of children:

The plastic bags the product and its parts are wrapped in are not toys for children. The bags themselves or the many small parts they contain may cause choking if ingested. Never try to dismantle the product yourself. None of the internal components can be replaced or repaired by users.

Only authorised dealers or service centres may open the product. If any parts of your product require

replacement for any reason, including normal wear and tear or breakage, contact your dealer.

Avoid exposing the product to rain or other liquids.

Dispose of the product according to local standards and regulations.

www.gnnetcom.com/wee

1. ACA TS028 - Ignition of flammable atmospheres

Do not use the Headset in environments where there is a danger of ignition of flammable gases.

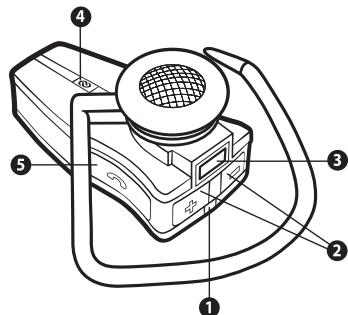

About your Jabra JX10 Cara

1. LED light

2. Blue indicates mode (pairing, active or standby)
   Red/green indicates battery level (low, charging, or charged)

3. Volume up (+), volume down (-)

4. Charging socket
5. Pairing button - press to put headset into pairing mode

6. Answer/end button

7. Press to turn headset on (blue flash burst indicates success)

8. Press and hold to turn headset off (blue flash burst indicates success)
9. Tap to answer or end a call

What your headset can do

Your Jabra JX10 cara lets you do all this (dependent on your phone supporting the function:

Answer calls
End calls
Reject calls*
Voice dialling
Last number redialling*
Call waiting*
Put call on hold

* Phone dependent

Specifications

Up to 6 hours talk time/standby time up to 200 hours
- Rechargeable battery with charging option from AC power supply, PC via USB cable, desktop charger or car charger
Less than 17 grams
- Operating range up to 10 metres (approx. 33 feet)
- Headset and hands-free Bluetooth profiles
- Bluetooth specification (see glossary) version 1.2

GETTING STARTED

The Jabra JX10 cara is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it.

Instruction:	Duration of press
Tap	Press briefly
Double Tab	2 quickly repeated Taps
Press	Approx: 1 second
Press and hold	Approx: More than 3 seconds

1 Charge your headset

Make sure that your Jabra JX10 cara headset is fully charged before you start using it. Use the AC adaptor to charge from a power socket, or charge directly from your PC with the USB cable provided, or through your carcharger - see fig. 3. Connect your headset as shown in fig. 2. When the LED is solid red, your headset is charging.

When the LED is green, it is fully charged.

Charge from your desktop holder

Connect your USB cable/AC power adaptor to the desktop holder. Place your JX10 cara in the desktop holder as shown in fig. 3

Please note: The lifetime of the battery will be significantly reduced if your device is left uncharged for a long period. We therefore recommend that you recharge your device at least once a month."

2 Turning your headset on and off

• Press the answer/end button to turn on your headset.
• Press and hold the answer/end button to turn off your headset.

3 Pair it with your phone

Before you use your Jabra JX10 cara, you need to pair it with your mobile phone.

1. Put the headset in pairing mode

Make sure the headset is on.
Press the pairing button marked

1. Set your Bluetooth phone to 'discover' the Jabra JX10 cara
   Follow your phone's instruction guide. This usually involves going to a 'setup,' 'connect' or 'Bluetooth' menu on your phone and selecting the option to 'discover' or 'add' a Bluetooth device. * (See example from a typical mobile phone in fig. 6).

2. Your phone will find the Jabra JX10 Cara

Your phone then asks if you want to pair with it. Accept by pressing 'Yes' or 'OK' on the phone and confirm with the passkey or PIN = 0000 (4 zeros). Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3.

4 Wear it how you like it

The Jabra JX10 cara is ready to wear on your right ear. If you prefer the left, gently remove the earhook and rotate to fit left ear. (See fig. 4)

5 How to...

Answer a call

• Tap the answer/end button on your headset to answer a call.

End a call

• Tap the answer/end button to end an active call.

Make a call

• When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset. If your phone does not allow this feature, tap on the Jabra JX10 cara's answer/ end button to transfer the call to the headset.

Reject a call*

• Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal.

Activate voice dialling*

• Press the answer/end button. For best results, record the voice-dialling tag through your headset. Please consult your phone's user manual for more information about using this feature.

Redial last number*

• Double Tap the answer/end button when the headset is on and not used.

Adjust sound and volume

• Press the volume up or down (+ or -) to adjust the volume. (Show fig 1).

Call waiting and placing a call on hold*

This lets you put a call on hold during a conversation and answer a waiting call.

• Press the answer/end button once to put the active call on hold and answer the waiting call.
• Press the answer/end button to switch between the two calls.

• Tap the answer/end button to end the active conversation.

• Functions marked with * are dependent on your phone supporting these features. Check your phone's user manual for further information.

6 What the light means

What you see	What does this mean about your headset
Flashing blue light	Flashing every second: active on a call
Flashing blue light	Flashing every three seconds: in standby mode
Flashing red light	Running low on battery
Solid red light	Charging
Solid green light	Fully charged
Solid blue light	In pairing mode – see section 3

7 Using Jabra JX10 cara with 2 mobile phones

Jabra JX10 cara is capable of having two mobile phones connected to the headset at the same time. This will give you the freedom of having only headset to operate both your mobile phones and the operation of the functions in the headset functions as described in section 5.

Only it must be observed that Last Number Redial will dial the number from the last outgoing call, independent of the mobile phones, and the Voice Dialling function only will work on the last paired mobile phone.

8 Using a Jabra Bluetooth Hub

The Jabra JX10 cara can used along with the Jabra Bluetooth Hub (sold separately). This will enable you to use the headset with both your mobile phone and your office phone.

To pair the Jabra JX10 cara with the Jabra Bluetooth Hub

The pairing process is a little different:

• Put your Jabra JX10 cara in pairing mode
• Put the Jabra JX10 cara in pairing mode.
• Place them close together. You do not need a dedicated pin code to pair the two Jabra products. Consult the Jabra Bluetooth Hub user manual for more information on how to connect the Bluetooth hub to your office phone.

The use of the Jabra JX10 cara with the Jabra Bluetooth Hub is very similar to using the headset with a mobile phone only. The only difference lies in the transfer of a call to the headset from the office phone.

Transfer the call to the headset

• Tap the answer/end button to transfer the call from the office phone to the headset via the Jabra Bluetooth Hub

The answering of a call from the office phone requires a hook lifter in order to have the Jabra JX10 car answer the call automatically.

9 Troubleshooting & FAQ

I hear crackling noises

For the best audio quality, always wear your headset on the same side of the body as your mobile phone.

I cannot hear anything in my headset

• Increase the volume on the headset.
• Ensure that the headset is paired with the phone.
• Make sure that the phone is connected to the headset – if it does not connect either from the phone's Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (see section 3).

I have pairing problems even though my phone indicates otherwise

You may have deleted your headset pairing connection in your mobile phone.

Follow the pairing instructions in section 3.

Will the Jabra JX10 cara work with other Bluetooth equipment?

The Jabra JX10 cara is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or 1.2 and support a headset and/or hands-free profile...

10 Need more help?

See the inside cover for your country's support details.

11 Taking care of your headset

Always store the Jabra JX10 Cara with the power off and safely protected
- Avoid storage at extreme temperatures (above 45^ / 113^ – including direct sunlight – or below -10^ / 14^ ). This can shorten battery life and may affect operation. High temperatures may also degrade performance.
- Do not expose the Jabra JX10 cara to rain or other liquids.

12 Service and Warranty Information

Limited Two-Years Warranty

GN Netcom AS ("GN"), warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of one (1) year from the date of purchase ("Warranty Period"). During the Warranty Period, GN will repair or replace (at GN's discretion) this product or any defective parts ("Warranty Service"). If repair or replacement is not commercially practicable or cannot be timely made, GN may choose to refund to you the purchase price paid for the affected product. Repair or replacement under the terms of this warranty does not give right to any extension or a new be-ginning of the period of warranty

Claims under the Warranty

To obtain Warranty Service, please contact the GN dealer from which you purchased this product or visit www.gnnetcom.com or www.jabra.com for further information about customer support.

You will need to return this Product to the dealer or ship it to the dealer or to GN (if so indicated on www.gnnetcom.com or www.jabra.com) in either its original packaging or packaging affording an equal degree of protection.

You will bear the cost of shipping the product to GN. If the Product is covered by the warranty, GN will bear the cost of shipping product back to you after the completion of service under this warranty. Return shipping will be charged to you for products not covered by the warranty or requiring no warranty repair.

The Following information must be presented to obtain Warranty Service: (a) the product, and (b) proof of purchase, which clearly indicates the name and address of the seller, the date of purchase and the product type, which is evidence that this product is within the Warranty Period. Please further include (c) your return address. (d) daytime telephone number, and (e) reason for return.

As part of GN/Jabra's efforts to reduce environmental waste you understand that the product may consist of reconditioned equipment that contains used components, some of which have been reworked. The used components all live up to GN/Jabra's high quality standards and comply with the GN product performance and reliability specifications. You understand that replaced parts or components will become the property of GN.

Limitation of Warranty

This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. The warranty provided by GN in this statement applies only to products purchased for use, and not for resale. It does not apply to open box purchases, which are sold "as is" and without any warranty.

Specifically exempt from warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, modular plugs, ear tips, decorative finishes, batteries, and other accessories.

This warranty is invalid if the factory-applied serial number, date code label, or product label has been altered or removed from this product.

This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, Acts of Nature, accident, disassembling or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than GN or a GN dealer which is authorized to do GN warranty work. Any unauthorized repairs will void this warranty.

REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. GN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTYES WHATSOEVER, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.

NOTE! This warranty gives you specific legal rights. You may have other rights which vary from location to location. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or implied warranties, so the above exclusions may not apply to you. This warranty does not affect your legal (statutory) rights under your applicable national or local laws.

13 Certification and safety approvals

This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.jabra.com. Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland, Norway and Switzerland

Bluetooth

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners.

14 Glossary

1 Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 30 feet). Get more information at www.bluetooth.com.
2 Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
3 Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.

4 Passkey or PIN is a code that you enter on your mobile phone to pair it with your Jabra JX10 cara. This makes your phone and the Jabra JX10 cara recognize each other and automatically work together.
5 Standby mode is when the Jabra JX10 cara is passively waiting for a call. When you 'end' a call on your mobile phone, the headset goes into standby mode.
